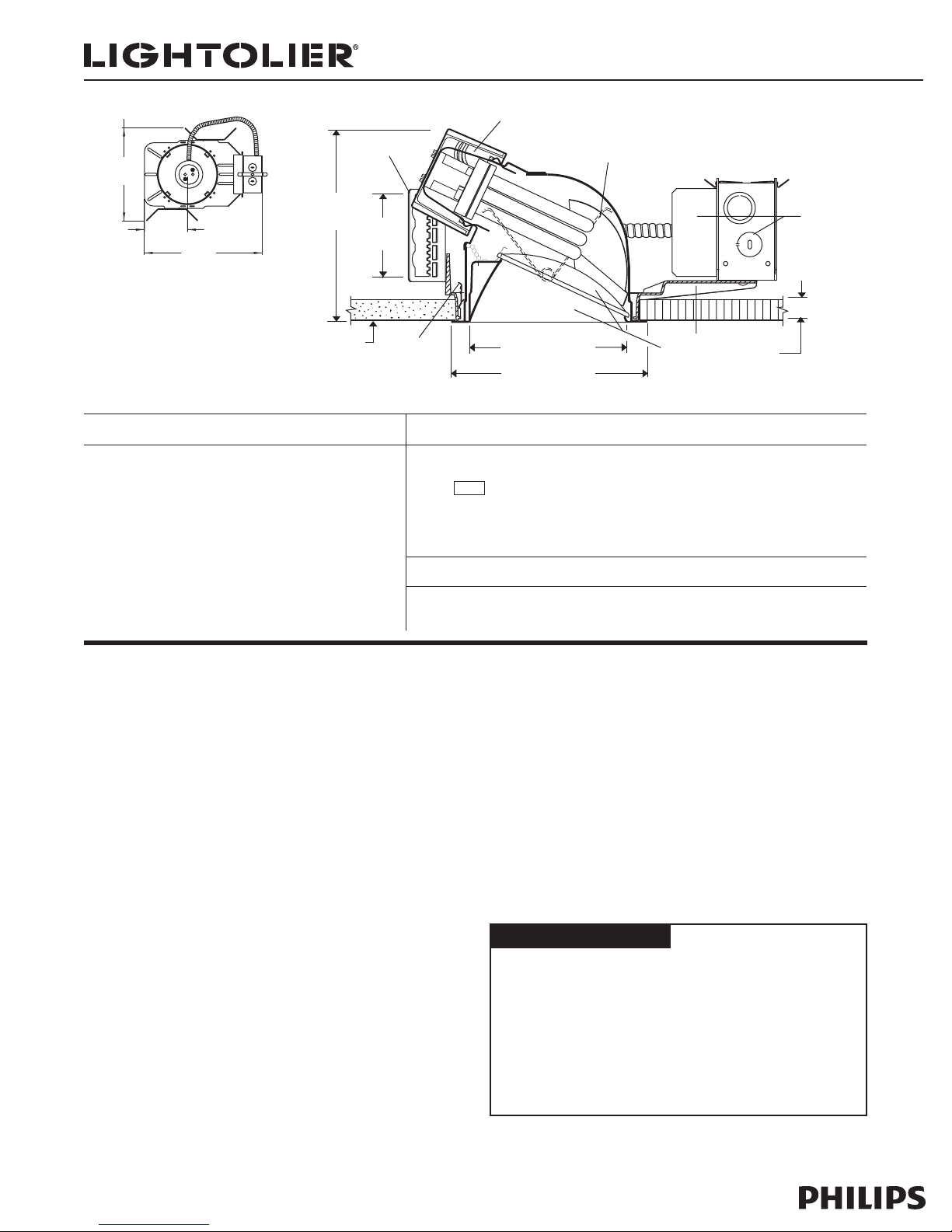

Calculite® CFL Lensed Wall Washer 8046
Page 1 of 2 6" Aperture Triple Tube Vertical Lamp
Reflector Trim Frame-In Kit
8046CLW Clear Iridescence Free, White Flange
8046CLP Clear Iridescence Free, Polished Flange
8046 Add suffix. See options for other finishes.
S6132BU 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S6132B
CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)
J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
6126BURM 6" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
6132BURM 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Features
1. Optics: Directional prismatic glass spread lens and Alzak®“kick” reflector
direct light smoothly across and down wall. Rotates for correct orientation.
Aperture cone with Iridescence Free finish.
2. Socket Cup: Effectively dissipates heat and positions lamp holder. Snaps
onto reflector neck to assure consistently correct optical alignment without
tools.
3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other
6” Triple Tube reflectors (see S6132BU Spec Sheet).
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or 1
1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit
wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboard mounted
to reduce heat transfer and maintain lamp efficacy and life.
Service from below without tools.
7. Torsiontite Springs: Wire formed steel holds reflector/spread lens assembly
snug to housing.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
“Ballast” specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.
Options and Accessories
Comfort Clear™Finishes1Other Finishes
Clear CCL White WH
Diffuse CCD
Champagne Bronze CCZ
1Specify desired flange. WWhite, P Polished, Blank - Molded Ring
Options and Accessories (continued)
Emergency Add suffix EM*
Chicago Plenum Use 6132BULC
Existing/Thk. Ceiling FA EC6*
Emergency Ltg. Kit FA EM3E*
FA EM4E*
Fuse (slow blow) Add suffix F
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
IC Frame available; see C6CFL32 specification sheet.
Labels
UL listed for damp locations.Alzak® is a registered trademark of ALCOA.
7
3
4
5
6
6 3/4"
(172 mm)
5 3/4" (146 mm) Dia.
7" Self-Flanged Trim
(178 mm)
1" (25 mm) min.-
2-1/8" (54 mm) max.
1 1/8" (29 mm) max.
Ceiling Thickness
3"
(76 mm)
2
1
13 3/8"
(340 mm)
5"
(127 mm)
10"
(254 mm)
11 1/8"
(283 mm)
4 5/8"
(117mm)
10"
(254mm)
12 3/4"
(324mm)
