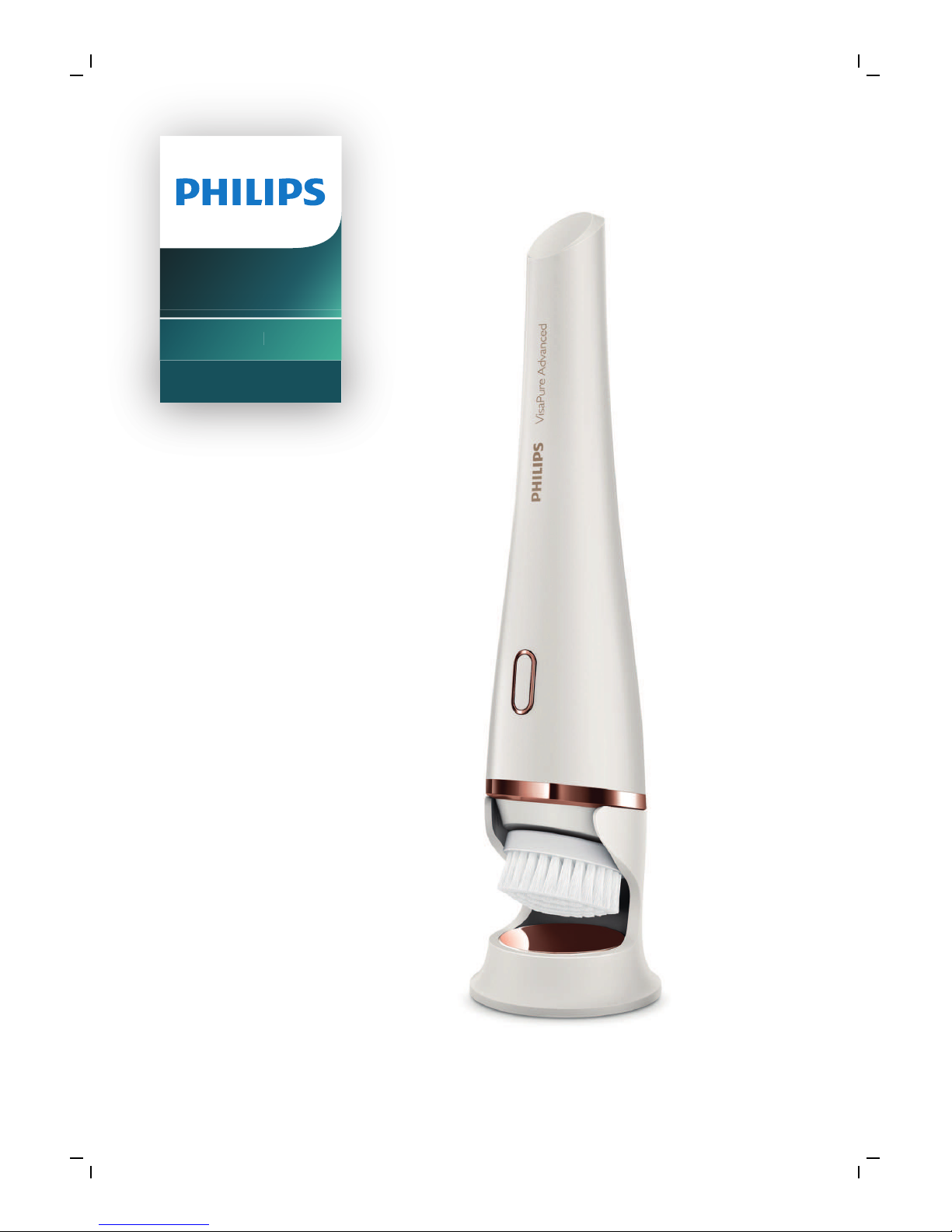

Philips VisaPure Advanced SC53 Series User manual

VisaPure
Advanced
Advanc
ed
SC53XX

1
2
4
20
3
5
6
7
19
13
14
15 16 17
8 9 10
11
12
21
18
23
22
1

English 6
Čeština 30
Polski 54
Română 80

English
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
With VisaPure Advanced you will enjoy a range of benefits to reveal a
radiant, revitalized and refreshed skin. Thanks to Intelligent Head
Recognition, the appliance recognizes which head you put on and
automatically activates a customized DualMotion program, with
dedicated levels of rotation and vibration. This means you get great
skincare results! VisaPure Advanced comes with a diverse set of
heads that can be easily integrated into your skincare routine. You
can use all heads with your current skincare products like cleansers,
creams, oils and serums. This user manual contains information about
how to use the product and how to cleanse your skin with it.
Why cleansing?
Cleansing is an essential part of the daily skincare routine. VisaPure
Advanced cleanses your skin 10 times better compared to cleansing
by hand*. It cleanses your skin thoroughly and removes dead skin
cells and make-up. Your skincare products will be absorbed better
after you have used VisaPure Advanced. Therefore your skin feels
clean and soft.
* Internal study performed in the Netherlands in 2011 with 21 women.
General description (Fig. 1)
1 Handle
2 Charging light with battery-low indication
3 Speed indication
-Speed one: gentle cleansing
-Speed two: deep cleansing
4 On/off button
5 Connection pin
6 Charging pins
7 Anti-roll ridge
8 Normal brush head
9 Intelligent Sensitive brush head
6English

10 Deep Pore brush head
11 Anti-pollution brush head
12 Protection cap
13 Precision brush head
14 Protection cap
15 Revitalising Massage head
16 Fresh Skin head
17 Fresh Eyes head
18 Storage palette
19 Charging stand
20 Socket for small plug
21 Pouch
22 Adapter
23 Small plug
Note: Attachments and accessories may differ depending on the
VisaPure type.
Important safety information
Read this important information carefully before you use the
appliance and save it for future reference.
Danger
-Keep the adapter dry (Fig. 2).
Warning
-To charge the battery, only use the
detachable supply unit
(SSW-2028/SSW-2600) provided with the
appliance (Fig. 3).
-The adapter contains a transformer. Do not
cut off the adapter to replace it with another
plug, as this causes a hazardous situation.
7
English

-Fully charge the appliance at least every 3
months to sustain battery lifetime.
-This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
-Children should be supervised to ensure
that they do not play with the appliance.
-Do not insert metal-containing material into
the socket for the small plug to avoid short
circuiting.
-Always check the appliance before you use
it. Do not use the appliance, the
attachments or the supply unit if it is
damaged, as this may cause injury. Always
replace a damaged part with one of the
original type.
8English

-Do not use the appliance on chapped skin,
open wounds, healing wounds, skin
recovering from surgery or if you suffer from
a skin disease or skin irritation, such as
severe acne, sunburn, skin infection, skin
cancer, inflammation, eczema, psoriasis etc.
-Do not use the appliance if you are taking
steroid-based medication.
-Do not use the Fresh Eyes head and Fresh
Skin head if you have glaucoma, an eye
injury, or have had eye surgery within the
last 12 months.
-Do not use the Fresh Eyes head and Fresh
Skin head if you have an allergy to
aluminum.
-Do not put any of the attachments in the
freezer, as this may cause a hazardous
situation for your skin.
-Use a hairband or hair clips to avoid your
hair getting caught in the rotating parts.
Caution
-Only use VisaPure attachments from Philips
as described in this user manual.
9
English

-For hygienic reasons, we advise you to not
share the appliance and the heads with
other people.
-Do not clean the appliance with water that
is hotter than shower temperature (max.
40°C/104°F).
-Do not put the appliance or any part in the
dishwasher.
-Charge, use and store the appliance at a
temperature between 10°C/50°F and
40°C/104°F.
-If you wear piercings on your face, remove
the piercings before you use the appliance
or make sure that you do not use the
appliance on or near the piercing.
-If you wear jewelry or glasses, take them off
before you use the appliance, or make sure
that you do not use the appliance on or
near jewelry or glasses.
-Do not use the appliance with self-made
cleansers, creams, oils or cosmetic products
containing harsh chemicals or rough
particles.
10 English

-If you have sensitive skin or experience skin
irritation after using the appliance with the
normal brush head, we advise you to switch
to the sensitive brush head.
11
English

-VisaPure cleanses your skin deeply and
stimulates blood circulation. If your skin is
used to the treatment, you may experience
slight skin reactions like redness or skin
tightness on occasion. If your skin is not
used to the treatment, these reactions may
be stronger and can last longer, but should
disappear after some hours. To reduce
these skin reactions, you can shorten the
treatment time, reduce the treatment
frequency and/or apply less pressure on the
skin during treatment.
After 2 weeks of daily usage, your skin
should have adapted to treatment with
VisaPure. However, if you still experience
strong skin reactions after 2 weeks of daily
usage, we advise you to stop using VisaPure
and give your skin some time to recover.
You can continue your treatment once the
skin reactions have disappeared, using
reduced treatment time and frequency. If
the strong skin reactions reoccur, we advise
you to contact your doctor.
12 English

-The Fresh Eyes head is intended for use on
the bony area below the eye. Do not place
the Fresh Eyes head on the eyeball or on
the eyelid.
-The Fresh Skin attachment is intended for
use on the cheeks and the forehead area.
Do not place the Fresh Skin attachment on
the eyeball, the eyelid or close to the eyes.
-The Revitalising Massage head is intended
to massage the cheeks.
-Do not use any of the attachments if they
are damaged or broken to avoid injuries.
-The Precision brush head is intended to
cleanse hard-to-reach areas, only around
the nose and mouth.
-Do not use the Precision brush head around
the eyes.
-Do not use the Precision brush head on the
lips, on or inside the ears, or inside the nose.
13
English

-Only treat the nose area with the Precision
brush head once per treatment. If you use
the Precision Brush, do not cleanse your
nose with one of the regular brush heads
beforehand.
-Do not use the Precision brush head on dry
skin or on open wounds.
General
- Please note that the condition of the skin varies throughout the
year. Facial skin can get dryer during the winter season. In that
case you can reduce the treatment time or frequency, depending
on the needs of your skin.
- Regular cleaning of the appliance ensures optimal results and a
longer life of the appliance.
- The appliance complies with the internationally approved IEC
safety regulations and can be safely used in the bath or shower
and cleaned under the tap.
- The appliance is equipped with an automatic voltage selector and
is suitable for mains voltages ranging from 100 to 240 volts.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Preparing for use
Charging the appliance
Note: Charge the appliance before you use it.
Charging the appliance for the first time takes approximately 6 hours.
A fully charged appliance can be used for at least 1 week without
charging, according to the recommended usage per specific
attachment.
14 English

1Make sure the appliance is switched off.
2Insert the small plug into the socket of the charging stand (Fig. 4).
Put the adapter in the wall socket.
3Remove the protection cap (Fig. 5).
4Place the appliance upright into the charging stand, make sure
that it is placed properly (Fig. 6).
5The charging light flashes white to indicate that the appliance is
charging. When the battery is fully charged, the charging light lights
up white continuously for 30 minutes (Fig. 7).
Battery-low indication
When the battery is almost empty, the charging light flashes amber.
The battery still contains enough energy for a complete treatment
(Fig. 8). When the battery is completely empty, the battery charge
indicator flashes amber quickly.
Ideal sequence of attachment usage
For optimal results, please follow the ideal sequence of attachment
usage for your Visapure:
SC5320, SC5340, SC5360, SC5363, SC5370:
1Normal brush head / Intelligent Sensitive brush head (SC5363
only)
2Revitalising Massage head
3Fresh Eyes head (SC5360, SC5363, SC5370 only)
SC5371:
1Deep Pore brush head
2Precision brush head
3Revitalising Massage head
BSC431:
1Anti-pollution brush head
2Revitalising Massage head
3Fresh Skin head
You can find the explanation of how to use these attachments in the
following chapters.
15
English

Facial cleansing with VisaPure
Skin zones
- The face can be divided into three zones: right cheek, left cheek
and T-zone (Fig. 9). The cheek zones include the chin, the area
between nose and upper lip and the area between eyes and ears.
The neck and décolleté can also be divided into three zones (Fig.
10).
Note: Do not use the appliance on the sensitive skin area around the
eyes.
Using the regular brush heads
The VisaPure Advanced operates with regular and Intelligent brush
heads. Your VisaPure type may not have all brush heads listed below.
You can either use the appliance in front of the sink, in the shower or
in the bath. We advise you to use VisaPure Advanced with your
favorite cleanser.
Brush head type Intended use Skin type
Normal (SC5990) Daily cleansing Normal skin,
combination skin, oily
skin
Intelligent Sensitive
(SC6011)
Gentle daily
cleansing
Sensitive skin
Exfoliation (SC5992) Weekly exfoliation to
remove dead skin
cells *
All skin types
Extra Sensitive
(SC5993)
Extra gentle daily
cleansing
Dry or sensitive skin
Anti-Blemish
(SC5994)
Effective and gentle
daily cleansing
Acne prone skin
16 English

Deep Pore Cleansing
(SC5996)
Daily deep pore
cleansing to help
reduce blackheads
All skin types
Anti-pollution
(SC5999)
Daily cleansing All skin types
* Only use this brush head with your daily cleanser, not with an
exfoliation product.
Cleansing program
The cleansing program consists of 3 treatment periods of 20 seconds.
- For optimal performance, start on the right cheek and switch to
the left cheek after 20 seconds. Use the last 20 seconds to treat
the forehead (Fig. 11).
You can also use the VisaPure Advanced for cleansing the neck
and décolleté.
Note:Do not use the brush head on the sensitive skin area around the
eyes.
Cleansing procedure
1Push the brush head onto the connection pin until it locks into
position with a click (Fig. 12).
2Moisten the brush head with water. Do not use the appliance with
a dry brush head, as this can irritate the skin.
3Moisten your face with water and apply a cleanser to your face or
directly to the brush head.
4Place the brush head on your right cheek.
5Press the on/off button once to switch on the appliance. The
appliance starts to operate at speed 1. If you want to use speed 2,
press the on/off button twice. Press three times to switch off the
appliance or wait until it switches off automatically (Fig. 13).
6Gently move the brush head across your skin from the nose
towards the ear (Fig. 14). Do not push the brush head too hard
onto the skin to make sure the treatment remains comfortable.
17
English

7After 20 seconds, the appliance pauses briefly to let you know that
you have to move the appliance to the left cheek (Fig. 15).
8Gently move the brush head across your skin from the nose to the
ear.
9After 20 seconds, the appliance pauses briefly to let you know that
you have to move the appliance to the forehead. Gently move the
brush head from left to right (Fig. 16).
Note: We advise you to not overdo the cleansing and to not
cleanse any zone longer than 20 seconds.
10 After the treatment, rinse and dry your face.Your face is now ready
for the next step of your daily skincare routine.
11 Clean the brush head with water and mild soap.
Cleaning
Never use scouring pads, abrasive cleaning agents or aggressive
liquids such as petrol or acetone to clean the appliance.
Cleaning the appliance and the brush head
Make sure the appliance is switched off before you start cleaning it.
Rinse the appliance and the brush head thoroughly with water and
mild soap after each use, to ensure optimum performance.
1Rinse the appliance and the brush head under the tap with warm
water and mild soap (Fig. 17) (max. 40°C / 104°F).
2Remove the brush head from the appliance (Fig. 18).
3Clean the back of the brush head and the connection pin of the
appliance under the tap at least once a week (Fig. 19).
4Dry the brush head and the appliance with a towel.
Cleaning the adapter and the charging stand
Danger: Always keep the adapter dry. Never rinse it
under the tap or immerse it in water.
1Make sure the adapter is unplugged when you clean it. Only wipe
it with a dry cloth.
2Always detach the charging stand from the adapter before you
clean it (Fig. 20).
18 English

3You can clean the charging stand with a moist cloth (Fig. 21). Dry
the charging stand before you reconnect it to the adapter.
Intelligent heads
Intelligent Head Recognition
The VisaPure Advanced operates with regular brush heads and
Intelligent heads. Your VisaPure type may not have all brush heads
listed below.
VisaPure Advanced has Intelligent Head Recognition. Each Intelligent
head that comes with VisaPure has specific levels of rotation,
vibration and duration. When you attach a different intelligent head
and switch on the appliance, it recognizes the intelligent head. You
hear a beep and the speed indications flash alternately. The
appliance then activates a customized program for the head in use
(Fig. 22).
Speed setting (SC527X only)
You can choose between two different speed settings depending on
your personal preference.
- Speed one, ‘gentle cleansing’, for a mild and soft cleansing.
- Speed two, ‘deep cleansing’, for a comfortable and more intensive
cleansing.
The first time you use the appliance we advise you to select speed 1. If
you do not experience any skin reactions, you can start using the
appliance at speed 2.
Skin zone timer
The skin zone timer indicates when you need to move the appliance
to another skin zone.
Fresh Skin head
The Fresh Skin head is suitable for all skin types. We advise you to
use it once a day in the morning or evening.
19
English

Using the Fresh Skin head
The Fresh Skin head program consists of 2 treatment periods of 20
seconds. You can use the Fresh Skin head on dry skin or after
applying cream/oil to your skin.
1Push the Fresh Skin head onto the connection pin until it locks
into position with a click (Fig. 23).
2Press the on/off button to switch on the appliance and choose
your preferred setting; speed 1 for vibration and speed 2 for
rotation of the Fresh Skin head.
Note: When you attach a different head, the appliance recognizes
it. You hear 2 beeps and the intensity setting indications flash
alternately (Fig. 24).
3You can focus on the preferred areas of your face. We advise you
to start on the right cheek. Make three strokes with the Fresh Skin
head from the center of the face towards the ear, covering the
whole cheek (Fig. 25).
4Continue the treatment on the right side of the forehead. Move
from the center of the forehead towards the temple.
Note: Do not push the head too hard onto the skin to make sure
that the treatment remains comfortable.
5After 20 seconds, the appliance pauses briefly to let you know that
you can move it to the left side of the face to perform the same
treatment (Fig. 26).
6When the program is finished, clean the Fresh Skin head with
water and mild soap.
7Store the Fresh Skin head on the storage palette or keep it
attached to the appliance in the charging stand. To enhance the
cooling effect and extend the cooling time, you can store the Fresh
Skin head in the fridge. You can also run cold water over the head
to cool it down slightly during the treatment. Make sure you dry
the head before you continue the treatment.
20 English
