Philips PET100/85 User manual

PET100
Register your product and get support at
www.philips.com/welcome
User Manual
Manual de usuario
Portable DVD Player
P001-021_pet100_85_eng.indd 1P001-021_pet100_85_eng.indd 1 2008-05-30 10:56:00 AM2008-05-30 10:56:00 AM

2
P001-021_pet100_85_eng.indd 2P001-021_pet100_85_eng.indd 2 2008-05-30 10:56:16 AM2008-05-30 10:56:16 AM

English
Español
3
English - - - - - - - - - - - - - - - - - - - - - 6
Español - - - - - - - - - - - - - - - - - - - 24
Nederlands - - - - - - - - - - - - - - - - 72
Italiano- - - - - - - - - - - - - - - - - - - - 89
Svenska - - - - - - - - - - - - - - - - - - -106
Dansk - - - - - - - - - - - - - - - - - - - - -123
P001-021_pet100_85_eng.indd 3P001-021_pet100_85_eng.indd 3 2008-05-30 10:56:16 AM2008-05-30 10:56:16 AM

4
1
5
6
7
!
1
2
3
4
8
0
9
P001-021_pet100_85_eng.indd 4P001-021_pet100_85_eng.indd 4 2008-05-30 10:56:17 AM2008-05-30 10:56:17 AM

5
2
1
3
5
7
9
P001-021_pet100_85_eng.indd 5P001-021_pet100_85_eng.indd 5 2008-05-30 10:56:17 AM2008-05-30 10:56:17 AM

6
English
1 Safety and maintenance
2 Your Portable DVD
Player
2.1 Unpacking
2.2 Placement
2.3 Playable disc formats
2.3.1 DVD-Video
2.3.2 Video CD
2.3.3 Audio CD / Mp3
2.3.4 Picture CD
3 Overview
3.1 Main unit controls
3.2 Remote Control
4 Preparation
4.1 Connect AC adaptor
4.2 Connect to TV
4.3 Power up the remote control
5 Adjust system setup
6 Play discs
6.1 Play DVD disc
6.2 Playback VCD or Super
(S)VCD
6.3 Playback Audio CD or
MP3-CD
6.4 Playback Picture-CD
7 Troubleshooting
8 Technology
Information
English
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers,
register your product at www.philips.com/welcome.
Contents
P001-021_pet100_85_eng.indd 6P001-021_pet100_85_eng.indd 6 2008-05-30 10:56:18 AM2008-05-30 10:56:18 AM

English
7
1 Safety and maintenance
Do not disassemble the unit for laser rays are dangerous to
eyes. Any service should be done by qualified service personnel.
Unplug the AC adaptor to cut the power if liquid or objects get
inside the unit.
Take care not to drop the unit or subject it to strong shocks,
which may cause malfunction.
Do not expose to excessive heat caused by heating equipment
or direct sunlight.
This product is not waterproof: do not allow your player to be
submersed in water. Water entering the player may cause major
damage.
Do not turn up the volume so high that you can’t hear what’s
around you.
You should use caution or temporarily discontinue use in
potentially hazardous situations.
Do not use headphones while operating a motorized vehicle,
cycling, skateboarding, etc.; it may create a traffic hazard and is
illegal in many areas.
Important (for models with by-packed headphones): Philips
guarantees compliance with the maximum sound power of
its audio players as determined by relevant regulatory bodies
only with the original model of provided headphones. In case
this one needs replacement, we recommend that you contact
your retailer to order a model identical to that of the original
provided by Philips.
Traffic safety: do not use while driving or cycling as you may
cause an accident.
When the player is in use for a long period of time, the surface
will be heated. This is normal.
•
•
•
•
•
•
•
•
•
•
•
P001-021_pet100_85_eng.indd 7P001-021_pet100_85_eng.indd 7 2008-05-30 10:56:19 AM2008-05-30 10:56:19 AM

8
English
Handling discs
Do not attach paper or tape to the disc.
Keep the disc away from direct sunlight or heat sources.
Store the disc in a disc case after playback.
To clean, wipe the disc outwards from the center with a soft,
lint-free clean cloth.
Do not use any cleaning agents containing alcohol, ammonia,
benzene, or abrasives as these may harm the player.
Apparatus shall not be exposed to dripping or splashing. Do not
place any sources of danger on the apparatus (e.g. liquid filled
objects , lighted candles)
Do not touch the lens!
2 Your Portable DVD Player
Your portable DVD player plays digital video discs conforming to
the universal DVD Video standard. With it, you will be able to
enjoy full-length movies with true cinema picture quality, and stereo
or multichannel sound (depending on the disc and on your playback
set-up).
The unique features of DVD-Video, such as selection of soundtrack
and subtitle languages, and of different camera angles (again
depending on the disc), are all included.
2.1 Unpacking
First check and identify the contents of your package, as listed
below:
Portable DVD player • Remote Control
(AY5513)
AC power adaptor(12V,AY4195)
•
•
•
•
•
•
•
•
•
•
P001-021_pet100_85_eng.indd 8 2008-05-30 10:56:19 AM
C
M
Y
CM
MY
CY
CMY
K
IFU_PET100_85_Eng.pdf 2008-08-04 4:54:39 PM

English
9
2.2 Placement
Place the player on a firm, flat surface.
Keep away from domestic heating equipment and direct
sunlight.
If the player cannot read CDs/DVDs correctly, try using a
commonly available cleaning CD/DVD to clean the lens before
taking the player to be repaired. Other cleaning methods may
destroy the lens.
Always keep the disc door closed to avoid dust on the lens.
The lens may cloud over when the player is suddenly moved
from cold to warm surroundings. It is then not possible to play
a CD/DVD. Leave the player in a warm environment until the
moisture evaporates.
2.3 Playable disc formats
In addition to DVD-Video disc, you will also be able to play all
Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.
2.3.1 DVD-Video
Depending on the material on the disc (a movie, video clips, a
drama series, etc.) these discs may have one or more Titles, and
each Title may have one or more Chapters. To make access easy
and convenient, your player lets you move between Titles, and also
between Chapters.
2.3.2 Video CD
Depending on the material on the disc (a movie, video clips, a
drama series, etc.) these discs may have one or more Tracks, and
tracks may have one or more indexes, convenient, your player lets
you move between tracks and between indexes.
•
•
•
•
•
P001-021_pet100_85_eng.indd 9P001-021_pet100_85_eng.indd 9 2008-05-30 10:56:20 AM2008-05-30 10:56:20 AM

10
English
2.3.3 Audio CD / Mp3
Audio CDs /Mp3 contain music tracks only .You can play them in
the conventional way through a stereo system using the keys on
the remote control and/or main unit, or via the TV using the On
Screen Display (OSD). Music bought from on-line music stores
are not supported because they are secured by Digital Rights
Management protection (DRM).
2.3.4 Picture CD
This device only supports picture file with the extension of .jpg.
P001-021_pet100_85_eng.indd 10P001-021_pet100_85_eng.indd 10 2008-05-30 10:56:20 AM2008-05-30 10:56:20 AM

English
11
3 Overview
3.1 Main unit controls (see figure 1)
1
3 , 4Up/down cursor
2
5,6 Skip to previous/next chapter, track or
title
32; Start playback or pause
4Menu Enter disc content menu or exit
59Stop playback
6Setup Enter system setup menu or exit
7Power Turn the power on or off
8Open Open the disc door to insert or
remove disc
9AV out Audio/Video output
0IR power Power and remote sensor indicator
!Dc in Power supply socket
3.2 Remote Control (see figure 2)
1SET UP Enter the system setup menu or exit
2DVD MENU Return to the DVD menu
3Navigation key Up/down/left/right
4OK Confirm a selection
5OSD View the playback status
6TITLE Return to the Title menu of DVD disc
7
∞ Skip to previous chapter track
§Skip to next chapter track
8
2; Start playback or pause
9MUTE Cut sound out
0 9Stop playback
P001-021_pet100_85_eng.indd 11P001-021_pet100_85_eng.indd 11 2008-05-30 10:56:21 AM2008-05-30 10:56:21 AM

12
English
!Number Keypad (0-9) Input the password or select the track
@SUBTITLE Select subtitle language for DVD disc
#AUDIO Select audio language for DVD disc
$RETURN Return to PBC menu for VCD disc
%A-B Repeat playback
^ZOOM Zoom in or out picture
4 Preparation
4.1 Connect AC adaptor
Connect the supplied adaptor to the set and to a AC power
outlet.
4.2 Connect to TV
To enjoy the DVD player, you need to connect it to a TV.
4.3 Power up the remote control
For first-time use:
Remove the protective tab to activate the remote control battery.
To replace the remote control battery
P001-021_pet100_85_eng.indd 12P001-021_pet100_85_eng.indd 12 2008-05-30 10:56:22 AM2008-05-30 10:56:22 AM

English
13
Open the battery compartment.
Insert one CR2025 3V lithium battery with correct polarity (+/-)
as indicated.
Close the battery compartment.
CAUTION
Batteries contain chemical substances, so they should be
disposed of properly.
Batteries shall not be exposed to excessive heat such as
sunshine, fire or the like.
Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
Incorrect use of batteries can cause electrolyte leakage and
will corrode the compartment or cause the batteries to burst.
Remove the batteries if the set is not to be used for a long
time.
Per-chlorate Material – special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
•
•
•
•
•
•
1
2
3
P001-021_pet100_85_eng.indd 13P001-021_pet100_85_eng.indd 13 2008-05-30 10:56:23 AM2008-05-30 10:56:23 AM

English
5 Adjust system setup
Press SETUP.
List of features is shown.
Use 12to highlight your selection.
Use 3412to highlight your desired setting
The SETUP menu includes:
General
TV display: Set screen display aspect ratio.
OSD Lang: Set On Screen Display (OSD) languages.
PBC: Set PBC (Playback control) menu on or off.
Screen Saver: Set screen saver on or off.
Audio
Set the digital output format
1
•
2
3
14
P001-021_pet100_85_eng.indd 14P001-021_pet100_85_eng.indd 14 2008-05-30 10:56:23 AM2008-05-30 10:56:23 AM

English
15
Dobly (Downmix): LT/RT
Stereo
Video
Sharpness: Adjust color of the screen.
Brightness: Adjust brightness of the screen.
Contrast: Adjust contrast of the screen.
Preference
TV type: Set video output format.
Audio: Set audio language
Subtitle: Set subtitle language
Disc Menu: Set disc menu language
P001-021_pet100_85_eng.indd 15P001-021_pet100_85_eng.indd 15 2008-05-30 10:56:24 AM2008-05-30 10:56:24 AM

16
English
Parental: Set parental options
Password: Change password (default: 9999)
Default: Restore factory settings
6 Play discs
6.1 Play DVD disc
Connect the DVD player to a TV .
Power on the DVD player and the TV.
Open the disc door and insert a DVD disc. The player will start
to play the disc automatically.
Use 3412to select an item from the DVD disc menu, such
as play now, select languages and subtitle, then press OK to
start play.
The following functions are available during playback:
Pause To pause playback, press 2;. You can resume
playback by pressing 2; again
Previous/Next Briefly press ∞or §repeatedly to skip to
previous or next chapter or track.
Fast backward/ Keep pressing ∞or §to initiate fast
backward/
Fast forward forward searching. When 2x is shown on
screen, press ∞or §briefly to change speed
to 4x, 8x, 16x, 32x or to resume normal
playback. You may also press 2; to resume
normal playback.
Stop Press
9to stop playback
Subtitle To change subtitle language, press SUBTITLE.
OSD Briefly press OSD to view the playback status
1
2
3
4
P001-021_pet100_85_eng.indd 16P001-021_pet100_85_eng.indd 16 2008-05-30 10:56:25 AM2008-05-30 10:56:25 AM

English
17
Language You can change audio language by pressing
AUDIO.
Note: Some VCDs only contain 2 languages for
selection.
Zoom You can press ZOOM to zoom in the screen,
and then use 3412to pan the screen. This
function is only available for playbacks DVD
video and Jpeg file.
A-B Repeat You can set loop repeat by: 1) press A-B to
set the starting point; 2) press A-B again to
set the ending point. Then, the player plays
the loop repeatedly. Press A-B to cancel the
loop layback. This function is only available for
playbacks DVD,CD,MP3.
Note: Depends on different type of discs and different playback
status, some functions may be disabled.
6.2 Playback VCD or Super (S)VCD
Connect the player to a TV
Power on the DVD player and the TV.
Open the disc door and insert a VCD disc. The player will start
to play the disc automatically.
Refer to the table in chapter 6.1 for different playback options.

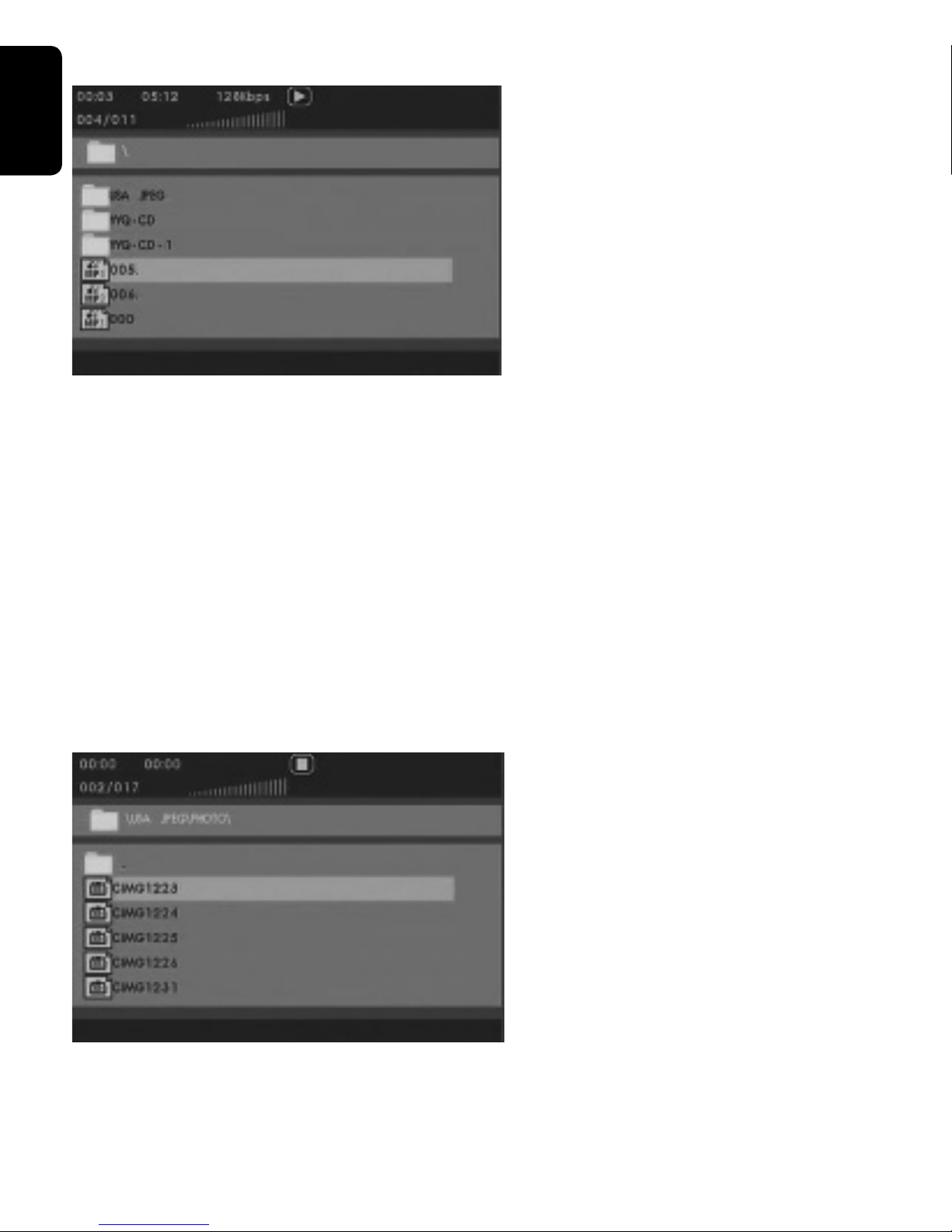

6.3 Playback Audio CD or MP3-CD
1Connect the player to a TV
2Power on the DVD player and the TV.
3Open the disc door and insert an audio CD or MP3 CD disc.
The set will start to play the disc automatically.
4Use
3412to select folder/track to be played.
1
2
3
4
•
P001-021_pet100_85_eng.indd 17P001-021_pet100_85_eng.indd 17 2008-05-30 10:56:25 AM2008-05-30 10:56:25 AM

18
English
5. Refer to the table in chapter 6.1 for different playback options.
6.4 Playback Picture-CD
The player can only read pictures in JPEG format.
1Connect the player to a TV
2Power on the DVD player and the TV.
3Open the disc door and insert a picture disc.
The set will start to play the disc automatically.
4Use
3412to select preferred folder and JPEG file to be
played.
5Refer to the table in chapter 6.1 for different playback options.
•
P001-021_pet100_85_eng.indd 18P001-021_pet100_85_eng.indd 18 2008-05-30 10:56:26 AM2008-05-30 10:56:26 AM

English
19
7 Troubleshooting
If you encounter problems when using this DVD player, check
the following points before requesting for service. If the problem
remains unsolved, go to the Philips web site (www.Philips.com/
support), or contact Philips (see Contact information). When you
contact Philips, ensure that your player is nearby and the model
number and serial number are available.
To Keep the warranty valid, never try to repair the DVD player by
yourself.
Problem Solution
No picture Ensure the DVD player is correctly
connected with the TV.
•
Disc can’t be played Ensure label side of the disc is facing
upward.
Clean the disc. And check if the disc is
defective by trying another disc.
•
•
The player does
not respond to the
remote control
Aim the remote control directly at the
sensor on the front of the player.
Avoid all obstacles that may interfere
with the signal path.
Inspect or replace the battery.
•
•
•
Distorted or B/W
picture with DVD
Use only discs formatted according to
the TV-set used (PAL/NTSC).
•
Player feels warm
When the player is in
use for a long period
of time, the surface
will be heated.
This is normal.•
P001-021_pet100_85_eng.indd 19P001-021_pet100_85_eng.indd 19 2008-05-30 10:56:26 AM2008-05-30 10:56:26 AM

20
English
Problem Solution
No power Check if both plugs of the mains cord
are properly connected.
Check if there is power at the AC
outlet by plugging in another appliance.
•
•
Distorted picture Check the disc for fingerprints and
clean with a soft cloth, wiping from
centre to edge.
Sometimes a small amount of picture
distortion may appear. This is not a
malfunction.
•
•
Completely distorted
picture / no colour in
The NTSC/PAL setting may be wrong.
Match your TV’s setting with the
player’s setting.
•
Disc can’t be played Ensure the disc label is upwards and
clean the disc.
Check if the disc is defective by trying
another disc. the brightness in the
SETUP menu
•
•
P001-021_pet100_85_eng.indd 20P001-021_pet100_85_eng.indd 20 2008-05-30 10:56:27 AM2008-05-30 10:56:27 AM
