Philips PET741D User manual

Register your product and get support at
www.philips.com/welcome
PET741D/05
EN User manual
PET741D_05_EN.indd Sec3:1PET741D_05_EN.indd Sec3:1 1/9/2009 5:27:25 PM1/9/2009 5:27:25 PM

3
Contents
1 Important 4
Important safety instructions 4
Notice 6
2 Your portable DVD player 8
Introduction 8
What’s in the box 9
Overview of the main unit 9
Overview of the remote control 11
3 Get started 13
Charge the battery 13
Install remote control battery 14
Connect additional equipment 14
4 Use your player 16
Turn on 16
Select OSD language 16
Play discs 16
Play options 17
Adjust brightness of screen backlight 17
5 Adjust settings 18
6 Product information 20
7 Troubleshooting 21
English
EN
PET741D_05_EN.indd Sec1:3PET741D_05_EN.indd Sec1:3 1/9/2009 5:27:26 PM1/9/2009 5:27:26 PM

4
1 Important
Important safety instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
i Protect the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
j Only use attachments/accessories specified by the manufacturer.
k Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
l Unplug this apparatus during lightning storms or when unused for
long periods of time.
m Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
n Apparatus shall not be exposed to dripping or splashing.
o Do not place any sources of danger on the apparatus (e.g. liquid filled
objects, lighted candles).
EN
PET741D_05_EN.indd Sec1:4PET741D_05_EN.indd Sec1:4 1/9/2009 5:27:26 PM1/9/2009 5:27:26 PM

5
p This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations. For
disposal or recycling information, please contact your local authorities
or the Electronic Industries Alliance: www.eiae.org.
Warning
Never remove the casing of this apparatus.
•
Never lubricate any part of this apparatus.
•
Never place this apparatus on other electrical equipment.
•
Keep this apparatus away from direct sunlight, naked flames or heat.
•
Never look into the laser beam inside this apparatus.
•
Ensure that you always have easy access to the power cord, plug or adaptor to
•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing.This
•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute.The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’ adapts
•
to higher volumes of sound. So after prolonged listening, what sounds
‘normal’ can actually be loud and harmful to your hearing.To guard
against this, set your volume to a safe level before your hearing adapts
and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
•
Slowly increase the sound until you can hear it comfortably and clearly,
•
without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also
•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate breaks.
•
English
EN
PET741D_05_EN.indd Sec1:5PET741D_05_EN.indd Sec1:5 1/9/2009 5:27:27 PM1/9/2009 5:27:27 PM

6
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.
•
Be careful not to adjust the volume as your hearing adapts.
•
Do not turn up the volume so high that you can’t hear what’s around
•
you.
You should use caution or temporarily discontinue use in potentially
•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of
the European Community.
This product complies with the requirements of the following directives and
guidelines: 2004/108/EC + 2006/95/EC.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the
packaging easy to separate into three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, exhausted batteries and old
equipment.
Recycling
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a
product, it means the product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of electrical
and electronic products.The correct disposal of your old product helps
EN
PET741D_05_EN.indd Sec1:6PET741D_05_EN.indd Sec1:6 1/9/2009 5:27:27 PM1/9/2009 5:27:27 PM

7
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive 2006/66/
EC, which cannot be disposed of with normal household waste.
When you see the crossed-out wheel bin symbol with the chemical
symbol ‘Pb’, it means that the batteries comply with the requirement
set by the directive for lead:
Please inform yourself about the local rules on separate collection of
batteries.The correct disposal of batteries helps prevent potentially negative
consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-
protected material, including computer programs,
files, broadcasts and sound recordings, may be an
infringement of copyrights and constitute a criminal offence.This equipment
should not be used for such purposes.
Recording and playback of material might require consent. See Copyright Act
1956 and The Performer’s Protection Acts 1958 to 1972.
“DivX, DivX” Certified, and associated logos are trademarks of
DivX, Inc. and are used under license.
This player includes this label:
English
EN
Pb
PET741D_05_EN.indd Sec1:7PET741D_05_EN.indd Sec1:7 1/9/2009 5:27:27 PM1/9/2009 5:27:27 PM

8
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
DVD-Video
Video CD
Audio CD
MP3 CD
DivX
Discs with JPEG files
EN
PET741D_05_EN.indd Sec1:8PET741D_05_EN.indd Sec1:8 1/9/2009 5:27:28 PM1/9/2009 5:27:28 PM

9
What’s in the box
Check and identify the contents of your package:
Portable DVD player
•
Remote control
•
AC power adaptor, DSA-9W-09 F (DVE) or AY4132 (Philips)
•
Car adaptor
•
AV cables
•
User Manual
•
Quick Start Guide
•
Overview of the main unit
a SETUP
Accesses or exits the setup menu.
•
b
Adjusts brightness of the screen backlight.
•
c STOP
Stops disc play.
•
d ,
Skips to the previous or next title, chapter, or track.
•
English
EN
PET741D_05_EN.indd Sec1:9PET741D_05_EN.indd Sec1:9 1/9/2009 5:27:29 PM1/9/2009 5:27:29 PM

10
e , , ,
Navigates through the menus.
•
,
• Searches backward/forward at different speeds.
/OK
Confirms an entry or selection.
•
Starts, pauses or resumes disc play.
•
f CHR/IR/
Charging indicator/Remote control sensor/Power indicator
•
g AV MODE
Turns off the front panel display when the player is connected to
•
TV.
h OPTION
Accesses options relating to the current activity or selection.
•
i DISC MENU
For DVD, accesses or exits disc menu.
•
For VCD, turns on or off PBC (Playback Control) mode.
•
For VCD version 2.0 or SVCD with PBC turned on, returns to the
•
menu.
j OPEN
Opens the disc compartment.
•
k POWER ON/OFF
Turns on/off DVD player.
•
l VOLUME
Increases or decreases volume.
•
EN
PET741D_05_EN.indd Sec1:10PET741D_05_EN.indd Sec1:10 1/9/2009 5:27:29 PM1/9/2009 5:27:29 PM

11
m
Headphone jack
•

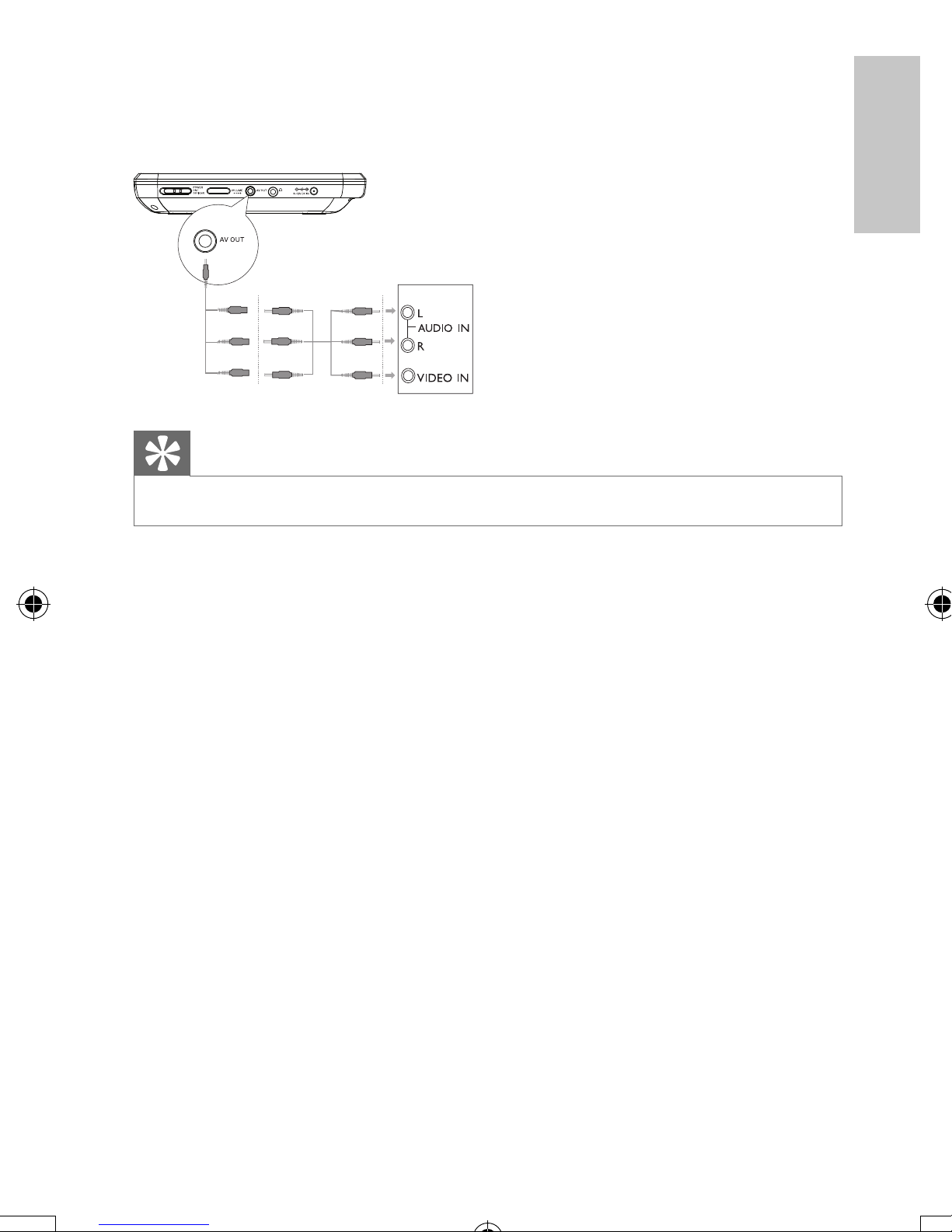

n AV OUT
Audio/video output jack
•
o DC IN
Power supply socket
•

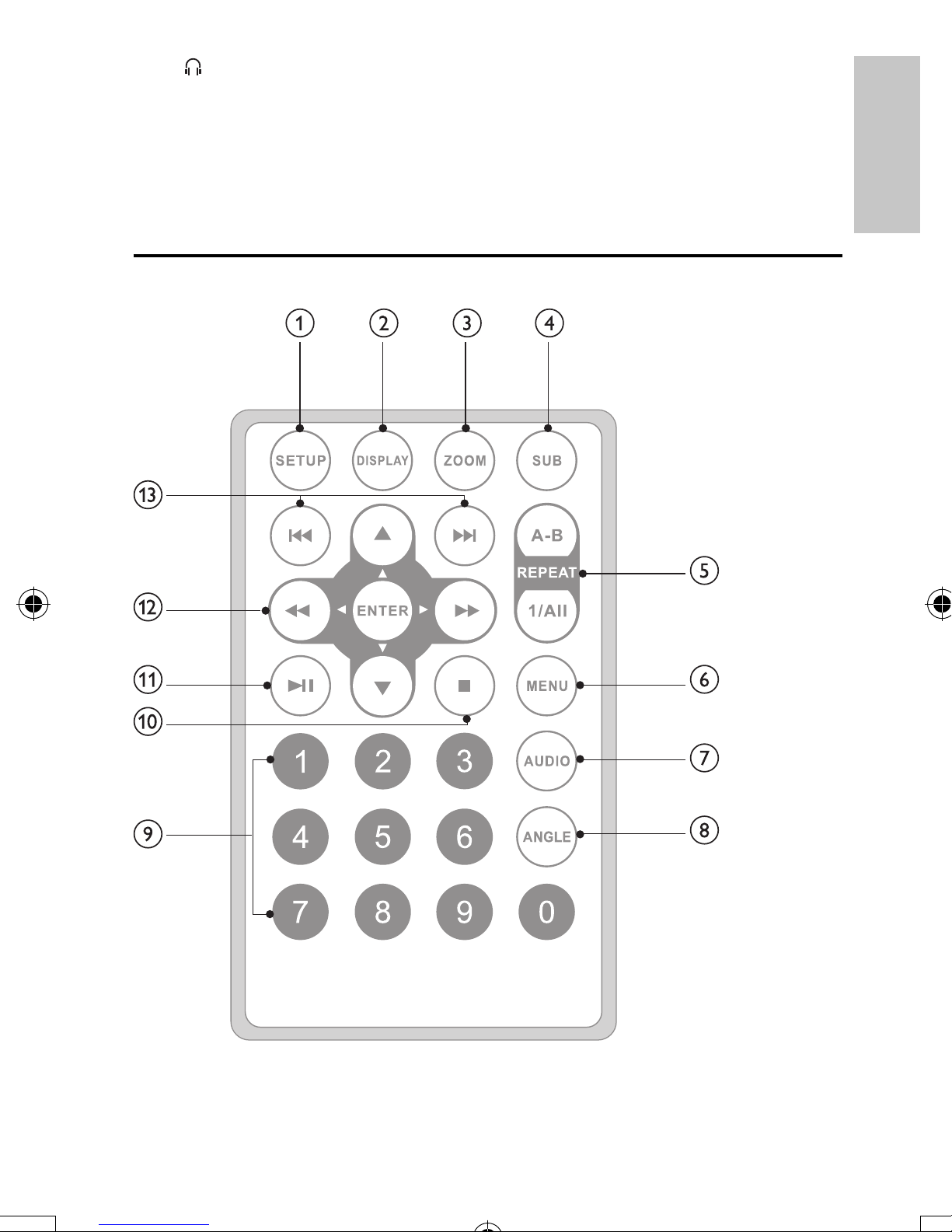

Overview of the remote control
English
EN
PET741D_05_EN.indd Sec1:11PET741D_05_EN.indd Sec1:11 1/9/2009 5:27:31 PM1/9/2009 5:27:31 PM

12
a SETUP
Access or exit the setup menu.
•
b DISPLAY
Display play information.
•
c ZOOM
Zoom in or out.
•
d SUB
Select DVD subtitle language.
•
e A-B REPEAT
Mark the section for repeat play.
•
REPEAT 1/ALL
Repeat a chapter/track/title.
•
f MENU
For DVD, access or exit disc menu.
•
For VCD, turn on or off PBC (Playback Control) mode.
•
g AUDIO
For DVD, select an audio language.
•
For VCD, select an audio mode.
•
h ANGLE
Select a different viewing angle of a DVD.
•
i Numeric Keypad 0 - 9
Input numbers.
•
j
Stops disc play.
•
k
Starts, pauses or resumes disc play.
•
l , , ,
Move cursor up/down/left/right.
•
,
Search backward or forward at diffent speeds.
•
ENTER
Confirms an entry or selection.
•
m ,
Skip to previous/next chapter, track or title.
•
EN
PET741D_05_EN.indd Sec1:12PET741D_05_EN.indd Sec1:12 1/9/2009 5:27:31 PM1/9/2009 5:27:31 PM

13
3 Get started
Caution
Use the controls only as stated in this user manual.
•
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the
•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.
• You can only charge the player when it is in power-off mode.
•
1 Slide the POWER ON/OFF switch to OFF position.
2 Connect the supplied AC adaptor to the player and to the AC outlet.
The charge indicator turns on. It takes about 4.5 hours to fully
»
charge the battery.
When the battery is fully charged, the charge indicator turns off.
»
English
EN
PET741D_05_EN.indd Sec1:13PET741D_05_EN.indd Sec1:13 1/9/2009 5:27:32 PM1/9/2009 5:27:32 PM

14
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard
•
batteries in fire.
Risk of decreased battery life! Never mix different brands or types of batteries.
•
Risk of product damage! When the remote control is not used for long periods, remove
•
the batteries.
Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/
•
perchlorate.
For first-time use:
1 Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert 1 CR2025 battery with correct polarity (+/-) as indicated.
3 Close the battery compartment.
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.
•
You can connect the player to a TV or an amplifier to enjoy DVDs or
Karaoke.
EN
PET741D_05_EN.indd Sec1:14PET741D_05_EN.indd Sec1:14 1/9/2009 5:27:33 PM1/9/2009 5:27:33 PM

15
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks: the yellow cable is for the yellow video jack, the red/
white cable is for the red/white audio jacks.
Tip
To conserve energy, press
• AV MODE to turn off the front panel display.
TV
English
EN
PET741D_05_EN.indd Sec1:15PET741D_05_EN.indd Sec1:15 1/9/2009 5:27:33 PM1/9/2009 5:27:33 PM

16
4 Use your player
Turn on
Slide the POWER ON/OFF switch to the ON position.
The
»PWR indicator turns on.
Select OSD language
You can choose a different language for the on-screen display text.
1 Press SETUP.
The setup menu appears.
»
2 Select [-- General Setup Page --] > [OSD Language].
3 Press to select an option.
4 Press /OK to confirm.
5 Press SETUP to exit.
Play discs
1 Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
Play starts automatically. If not, press
»/OK.
If a menu appears, select an item, then press
• /OK to start play.
To pause, press
• /OK. Press again to resume play.
To stop, press
• STOP twice.
To select the previous/next item, press
• or .
To start search within video/audio, press
• or once or more.
EN
PET741D_05_EN.indd Sec1:16PET741D_05_EN.indd Sec1:16 1/9/2009 5:27:33 PM1/9/2009 5:27:33 PM

17
Play options
1 During play, press OPTION to select some play options.
For DVD
• [Audio]
• [Subtitle]
• [Repeat]
• [Time Disp.]
For VCD
• [Audio]
• [Repeat]
• [Time Disp.]
For audio CDs
• [Repeat One]
• [Repeat Folder]
• [Repeat Off]
For JPEG CDs
• [Repeat One]
• [Repeat Folder]
2 Follow the on-screen instructions.
Adjust brightness of screen backlight
Note
You can adjusts brightness of the screen backlight to match lighting conditions.
•
During play, press repeatedly to select an option.
• [Dim]
• [Normal]
• [Bright]
Tip
To achieve the longest playtime, select
• [Dim].
To achieve the best view, select
• [Bright].
English
EN
PET741D_05_EN.indd Sec1:17PET741D_05_EN.indd Sec1:17 1/9/2009 5:27:35 PM1/9/2009 5:27:35 PM

18
5 Adjust settings
To maximize your play experience, use SETUP to fine tune your settings.
1 Press SETUP.
The setup menu is displayed.
»
2 Press to select an option and press /OK to confirm.
[-- General Setup Page --]
[OSD Language] Select on-screen display language.
[Screen Saver] Activate/deactivate screen saver.
[Resume] Select whether to start play from the
point where it was last stopped.
[Angle Mark] select angle mark display options.
[-- Display Setup Page --]
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[Screen Display] Select display ratio.
[-- Battery Life Setup Page --]
[LCD Backlight] Adjust the default brightness level of
screen backlight.
[-- Preference Page --]
[Audio] Select audio language.
[DVD Subtitle] Select DVD subtitle language.
[DivX Subtitle] Select DivX subtitle language.
[Disc Menu] Select disc menu language.
[Parental] Select parental level.
[Password] Change password (3308 by default).
[DivX VOD] Get DivX registration code.
[Default] Restore original settings.
EN
PET741D_05_EN.indd Sec1:18PET741D_05_EN.indd Sec1:18 1/9/2009 5:27:35 PM1/9/2009 5:27:35 PM

19
3 Press to go back to previous menu level.
4 Press SETUP to exit.
English
EN
PET741D_05_EN.indd Sec1:19PET741D_05_EN.indd Sec1:19 1/9/2009 5:27:36 PM1/9/2009 5:27:36 PM

20
6 Product information
Note
Product information is subject to change without prior notice.
•
Dimensions 195 x 154 x 38 mm
Weight 0.7 kg
Power supply Input: 100-240V 50/60Hz 0.3A
Output: DC 9V 1A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video system NTSC & PAL
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Audio distortion + noise -80 (1KHz)
Channel separation 80 dB
Dynamic range 80 dB
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Video out Output level: 1Vp - p ± 20%
Load impedance 75
EN
PET741D_05_EN.indd Sec1:20PET741D_05_EN.indd Sec1:20 1/9/2009 5:27:36 PM1/9/2009 5:27:36 PM

21
7 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of the player.
•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using the player, check the following points
before requesting service. If the problem remains unsolved, register your
player and get support at www.philips.com/welcome.
No power
Ensure that both plugs of the mains cord are properly connected.•
Ensure that there is power at the AC outlet.•
Check if the built-in battery is drained.•
No sound
Ensure that the AV cable is connected correctly.
•
Distorted picture
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards•
from the center.
Make sure that the video output format of the disc is compatible with•
the TV.
Change the video output format to match your TV or program.•
The LCD is manufactured using high precision technology. You may,•
however, see tiny black points and/or bright points(red, blue, green)
that continuously appear on the LCD. This is a normal result of the
manufacturing process and does not indicate a malfunction.
Cannot play disc
Ensure the disc label is upwards.•
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards•
from the center.
Check if the disc is defective by trying another disc.•
No response to the remote control
Ensure that the path between the remote control and the player is clear•
from obstacles.
From a close distance, point the remote control directly at the player.•
Replace the remote control batteries.•
The function does not work for this disc. Refer to the disc instructions.•
The player feels warm
When the player is in use for a long period of time, its surface will be
•
heated.This is normal.
English
EN
PET741D_05_EN.indd Sec1:21PET741D_05_EN.indd Sec1:21 1/9/2009 5:27:36 PM1/9/2009 5:27:36 PM
