Philips Soundmachine AZ202C/05 User manual

Register your product and get support at
AZ202C
EN User manual

English
1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.

j Only use attachments/accessories specied by the
manufacturer.
kUse only with the cart, stand, tripod, bracket,
or table specied by the manufacturer or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
lUnplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
nBattery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - as marked on the•
unit.
Do not mix batteries (old and new or carbon and•
alkaline, etc.).
Remove batteries when the unit is not used for a long•
time.
The batteries shall not be exposed to excessive heat•
suchassunshine,reorthelike.

oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g.
liquid lled objects, lighted candles).
Important notes for users in the U.K.
How to connect a plug
The wires in the mains lead are coloured with the following code:
blue = neutral (N), brown = live (L).
As these colours may not correspond with the colour markings
identifying the terminals in your plug, proceed as follows:
Connect the blue wire to the terminal marked N or•
coloured black.
Connect the brown wire to the terminal marked L or•
coloured red.
Do not connect either wire to the earth terminal in the plug,•
marked E (or e) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply over
the two wires.
Mains plug
Thisapparatusisttedwithanapproved13Ampplug.Tochange
a fuse in this type of plug proceed as follows:
aRemove fuse cover and fuse.
bFix new fuse which should be a BS1362 3 Amp, A.S.T.A. or
BSI approved type.
c Ret the fuse cover.
Ifthettedplugisnotsuitableforyoursocketoutlets,itshouldbe
cutoffandanappropriateplugttedinitsplace.
Ifthemainsplugcontainsafuse,thisshouldhaveavalueof3Amp.
If a plug without a fuse is used, the fuse at the distribution board
shouldnotbegreaterthan3Amp.

The severed plug must be disposed off to avoid a possible shock
hazardshoulditbeinsertedintoa13Ampsocketelsewhere.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keepthisapparatusawayfromdirectsunlight,nakedamesor•
heat.
Never look into the laser beam inside this apparatus.
•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect this apparatus from the power.
Where the MAINS plug or an appliance coupler is used as•
the disconnect device, the disconnect device shall remain
readily operable.
Caution
Use of controls or adjustments or performance of procedures•
other than herein may result in hazardous radiation exposure or
other unsafe operation.

Notice
This product complies with the radio interference
requirements of the European Community.
Anychangesormodicationsmadetothisdevicethatarenot
expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
Recycling
Your product is designed and manufactured with high
quality materials and components, which can be recycled
and reused.
When you see the crossed-out wheel bin symbol attached
to a product, it means the product is covered by the
European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products. The correct disposal of your old
product helps prevent potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed of with normal
household waste.
When you see the crossed-out wheel bin symbol with the
chemical symbol ‘Pb’, it means that the batteries comply
with the requirement set by the directive for lead:
Please inform yourself about the local rules on separate collection
of batteries. The correct disposal of batteries helps prevent

potentially negative consequences on the environment and human
health.
Recording and playback of material might require consent. See
CopyrightAct1956andThePerformer’sProtectionActs1958
to1972.
Environmental information
All unnecessary packaging has been omitted. We have tried
to make the packaging easy to separate into three materials:
cardboard (box), paper pulp (buffer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials which can be recycled and
reused if disassembled by a specialized company. Please observe
the local regulations regarding the disposal of packaging materials,
exhausted batteries and old equipment.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a double insulation
system.

2 Your CD Soundmachine
Introduction
With this CD Soundmachine, you can:
play audio discs•
listen to FM/MW radio•
enjoy music from external devices•
program the play sequence of tracks•
Dynamic Bass Boost (DBB) helps you to maximize music enjoyment.
What’s in the box
Check and identify the contents of the package:
Main unit•
AC power cord•
User Manual•

Overview of the main unit
aLIFT-OPEN
Open/close the disc compartment.•
bSource selector
Select a source: CD, FM, or MW.•
Turn off the unit.•
cMP3 LINK
Jack for an external audio device.•
d
Play track/tracks randomly.•
c
a
b
e
f
g
d
j
k
l
m
i
h
FM
MW
OFF
CD
MP
3-
LINK
CD SOUNDMACHINE AZ202
DBB ON
DBB OFF

Play track/tracks repeatedly.•
eVOLUME
Adjust volume.•
f/
Skip to the previous/next track.•
Search within a track.•
g
Stop play.•
h
Start or pause play.•
iDisplay panel
Display current status.•
jPROGRAM
Program tracks and browse the program.•
kTuning button
Tune to a FM/MW radio station.•
lDBB ON/OFF
Turn on/off dynamic bass boost.•
mAntenna

3 Get started
Caution
Use of controls or adjustments or performance of procedures•
other than herein may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of your apparatus.The model number and serial number are
on the bottom of your apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install batteries
Note
You can use both batteries and AC power as power supply of this•
apparatus.
Batteries are not supplied with the accessories.
•
1Open the battery compartment.

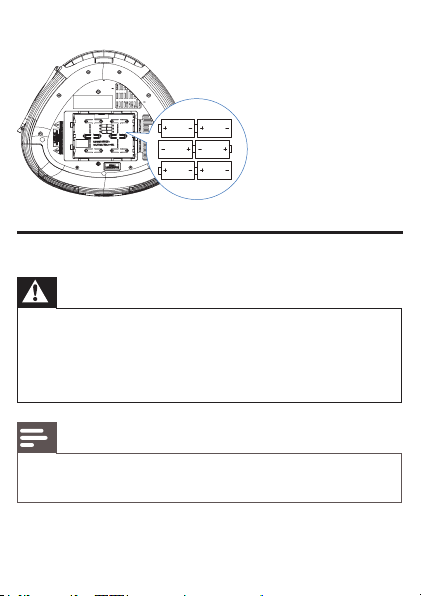

2 Insert6batteries(type:R14/UM2/C-cells)withcorrect
polarity (+/-) as indicated.
3Close the battery compartment.

Connect power
Warning
Risk of product damage! Ensure that the power supply voltage•
corresponds to the voltage printed on the back or the underside
of the apparatus.
Risk of electric shock! When you disconnect the AC power, always
•
pull the plug from the socket. Never pull the cord.
Note
Install the apparatus near the power supply socket and where the•
power plug can be easily reached.

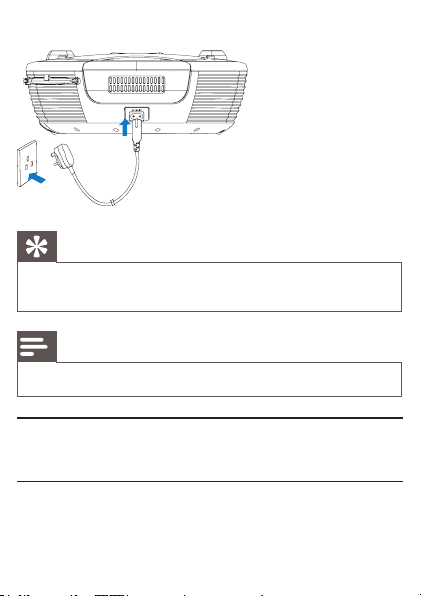

1Connect the power cord to:
the• AC MAINS jack on the unit
the power supply socket.•

Tip
To switch the apparatus off completely, disconnect the power cord•
from the power supply socket.
Note
To save energy: after use, turn off the apparatus.•
Turn on
1Push the source selector to CD, FM or MW.
Turn off
1Push the source selector to OFF.

4 Play
Play disc
1Push the source selector to CD.
2Lift to open the disc compartment.
3Insert a disc with the printed side facing up, then close the
disc compartment.
4Press to start play.
To pause/resume play, press• .
To stop play, press• .
To select another track, press• / .
To search within a track, press and hold• / , then
release to resume normal play.
Listen to the radio
Tune to a radio station
1Push the source selector to FM or MW.
2Turn TUNING to tune to a station.
Tip
Position the antenna as far as possible from TV, VCR or other•
radiation source.
For optimal reception, fully extend and adjust the position of the
•
antenna.

Listen to an external device
YoucanlistentoanMP3playerthroughthisapparatus.
Note
When you connect an external device to•MP3 LINK jack, the
apparatus switches to MP3 LINK source automatically.
1 Usea3.5mmplugscable(notsupplied)onbothendsto
connect MP3 LINKjack(3.5mm)onthisapparatusandthe
headphonejackonanMP3player.
5 Play options
Adjust volume
1During play, turn VOLUME to increase/decrease the volume
level.
Enhance bass
1During play, adjust DBB to ON/ OFF turn on/off dynamic
bass enhancement.
Select play modes
Repeat
1Press to play the current track or all tracks repeatedly.
• [REP] (repeat) – repeat a track.

• [REP ALL](repeat all) - repeat an entire CD/program.
Shufe
1Press to play all tracks randomly.
• [SHUFFLE](shufe)-playtracksrandomly.
Program tracks
You can program a maximum of 20 tracks.
1In CD mode, at the stop position, press PROGRAM to
activate the program mode.
2Press / to select a track number, then press
PROGRAMtoconrm.
3 Repeatsteps2to3toprogrammoretracks.
4Press to play the programmed tracks.
During play,»[PROG] (program) is displayed.
To erase the program, press• .
To review the program, in the stop position, press•
PROGRAM.

6 Product information
Note
Product information is subject to change without prior notice.•
Specications
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R, CD-RW
Audio DAC 24Bits/44.1kHz
TotalHarmonicDistortion <1%
Frequency Response 60Hz-16kHz
S/N Ratio >62dBA
Tuner
Tuning Range FM:87.5-108MHz;
MW:530-1600kHz
TotalHarmonicDistortion <3%
Signal to Noise Ratio >50dB

General
Power supply AC:220-240V,50/60Hz
DC:9V,1.5x6R14/UM2
Operation Power Consumption 15W
Standby Power Consumption <1W
Dimensions
-MainUnit(WxHxD) 297x112x264mm
Weight 1.6kg
Maintenance
Clean the cabinet
Use a soft cloth slightly moistened with a mild detergent•
solution. Do not use a solution containing alcohol, spirits,
ammonia or abrasives.
Clean discs
When a disc becomes dirty, clean it with a•
cleaning cloth. Wipe the disc from the centre
out.
Do not use solvents such as benzene, thinner,•
commercially available cleaners, or antistatic
spray intended for analogue records.
Clean the disc lens
After prolonged use, dirt or dust may accumulate at the disc
lens. To ensure good play quality, clean the disc lens with
Philips CD lens cleaner or any commercially available cleaner.
Follow the instructions supplied with cleaner.

7 Troubleshooting
Warning
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome).
When you contact Philips, ensure that the apparatus is nearby and the
model number and serial number are available.
No power
Ensure that the AC power plug of the unit is connected•
properly.
Ensure that there is power at the AC outlet.•
Insert the batteries with their polarities (+/– signs) aligned•
as indicated.
Replace the battery.•
No sound
Adjust the volume.•
No response from the unit
Take out the batteries and turn on the unit again.•
Disconnect and reconnect the AC power plug, then turn on•
the unit again.

No disc detected
Insert a disc.•
Check if the disc is inser ted upside down.•
Wait until the moisture condensation at the lens has cleared.•
Replace or clean the disc.•
UseanalizedCDorcorrectformatdisc.•
Poor radio reception
Increase the distance between the unit and your TV or VCR.•
Fully extend the FM antenna.•
