Philips SPC650NC User manual

SPC650NC
User manual

2
Need help?
Online help: http://www.philips.com/support
For interactive help, downloads and frequently asked questions.

EN
3
Please check that the following items are packed in the Philips
SPC650NC box.They are provided to help you set up and use
your Philips SPC650NC.
Philips SPC650NC Docking station for Installation CD-ROM
WebCam WebCam and including manual
USB devices
Quick Installation
Guide
SPC 650 NC
Installation CD v.1.00
9082 100 03367
What’s in the box?

EN
4

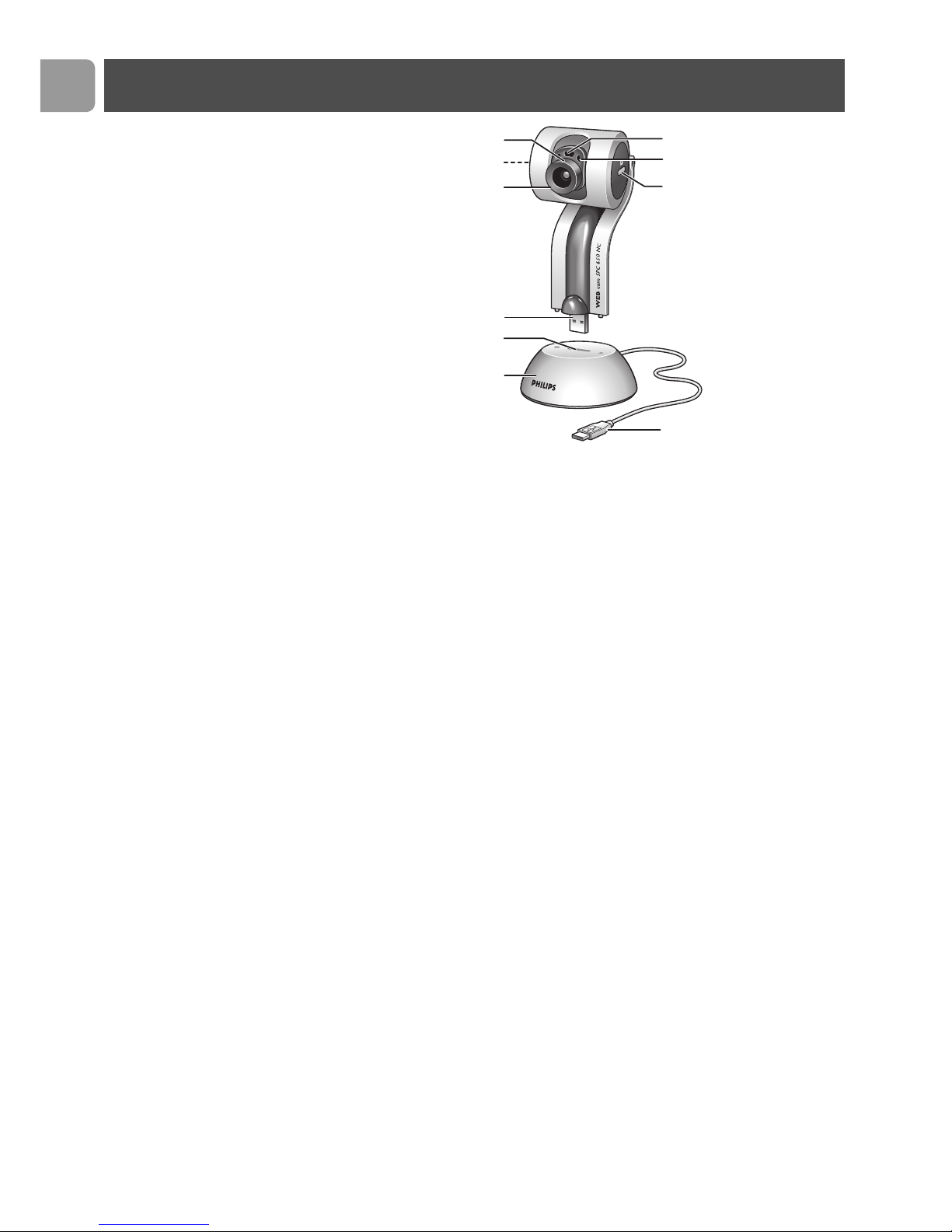

1 Viewing angle
For manually changing the vertical angle of the WebCam.
2 Quicklaunch button
For quick and easy start-up of the VLounge software.
3 Rotating lens
For adjusting the focus of the image manually.
4 USB connector
For connecting the WebCam to the USB port of the docking
base/stand.
5 USB port
For connecting the docking base/stand to the USB connector
of the WebCam.
6 Docking base/stand
– For stable placement of the SPC650NC WebCam.
– For connecting USB devices to your PC.
7 USB cable
For connecting the WebCam to the USB port of the PC.
The WebCam will derive its power from the PC when a USB
connection is made.
8 Snapshot button
For taking photos.
9 Built-in digital microphone
For adding sound when video chatting and recording.
10 Activity LED
Lights up when the WebCam is in use.
Legend of functions
2
3
1
4
5
6
7
0
9
8

EN
5
2 Need help?
3 What’s in the box?
4 Legend of functions
5 Contents
6 Welcome
7 Things you should know
7 Safety precautions
7 Copyright
8 Installation
8 Installing the WebCam software
10 Connecting the WebCam to your PC
11 WebCam settings
11 General controls
12 Picture controls
15 Audio controls
16 Using the applications
16 VLounge
16 Skype
17 MSN Messenger
18 Yahoo! Messenger
18 AOL Instant Messenger
18 Making snapshots using Windows®XP
19 Technical specifications
20 Important information
20 Disclaimer
20 FCC compliance
21 Environmental information
21 System requirements
21 Disclaimer of warranty
21 Limitations of damages
Contents

EN
6
The Philips SPC650NC WebCam you have just purchased is
manufactured to the highest standards and will give you years of
trouble-free use. Brilliant images and blazing colors, that's what
you get with the SPC650NC WebCam. Forget about installing
interface cards and separate power supplies, because you don't
need them any more. Power is supplied direct to the WebCam
through the USB cable and the WebCam returns audio and video
straight to your PC!
After installation, the new WebCam can be used for all sorts of
applications, such as:
•Video conferencing: use the Philips SPC650NC WebCam for
video chatting and conferencing (the Philips SPC650NC
WebCam works with Skype, MSN Messenger,Yahoo! Messenger
and AOL Messenger);
•Video e-mail / Video capture: create your own video
presentations, video mail, product demonstrations, training
videos, Internet clips etc.;
•Snapshot images: use images in presentations, create postcards,
or send them via e-mail or on diskette.The WebCam works
with all applications that use the TWAIN interface to acquire an
image.
•Editing and special effects: after recording the images you want
with the Philips SPC650NC WebCam, the images can be easily
edited using image or video editing programs.
The following sections in this manual give a step-by-step
description of the installation process and explain how to use the
Philips SPC650NC WebCam.
Welcome

EN
7
Please read the following instructions carefully, and retain them for
future reference. It may be helpful to have the instructions for use
for the PC at hand for reference.
Safety precautions
Observe the following guidelines to ensure that the WebCam will
operate safely and to prevent defects.
• Do not use your WebCam in environments outside the
following range: temperature: 0°C to 40°C, relative humidity:
45% ~ 85%.
• Do not use or store your WebCam in/under:
– direct sunlight exposure;
– very humid and dusty environment;
– near any kind of heat sources.
• If your WebCam gets wet, dry it with soft cloth as soon as
possible.
• If the lens is dirty, Do NOT touch the lens with your fingers.
• Clean the outside of the WebCam with a soft cloth.
• Do NOT use cleaning fluids based on alcohol, methylated spirit,
ammonia, etc.
• Do NOT attempt to disassemble or repair your WebCam by
yourself. Do not open the WebCam. In the event of technical
difficulties return it to your Philips retailer.
• Do NOT use your WebCam in the water.
•
Protect the WebCam from oil, vapour, steam, moisture, and dust.
• Never point the WebCam lens at the sun.
Copyright
Copyright©2003 by Philips Consumer Electronics B.V. All rights
reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual
or otherwise, without prior written permission from Philips.
Brands and product names are trademarks or registered
trademarks of their respective companies.
Things you should know

EN
8
Installation
Installing the WebCam software
The software supplied only works on PCs with the operating
systems Microsoft®Windows®98SE, ME, 2000 and XP.
Notes!
– Unplug all your USB devices (except USB keyboard and
USB mouse) before you start.
– Do not plug in your WebCam yet. Run the Installation CD-ROM
first.
– Have your Windows®CD-ROM at hand.
– The SPC650NC WebCam is 'XP Plug & Play'.This means if you are
running Windows XP and you have installed Service Pack 2 and
the latest Microsoft Windows XP updates you don't need to install
the SPC650NC WebCam driver. Simply plug in the WebCam and
you can start using your SPC650NC WebCam.
1Place the installation CD-ROM in your PC’s CD-ROM / DVD
drive.
> After a couple of seconds the ‘Language selection’ screen
appears automatically.
Note!
If the 'Language selection' screen does not appear automatically,
open the Microsoft®Windows®Explorer and double click on the
'Set-up.exe' icon in the CD-ROM directory.
2Select your language and click on the 'OK' button.
> The following screen appears.
3Select at least ‘SPC650NC WebCam Driver’ and ‘Philips
VLounge’
Click the 'Next' button.

EN
9
> The following software license agreement appears.
4Click on 'Yes' to continue the installation.
> The following screen, including a progress bar, appears.
> The following screen appears when the installation was
successful.
5Click on 'Finish'.
6Restart your PC when you have finished installing the
software.
> The V(ideo)-Lounge desktop shortcut will be installed after
installation.
> Via VLounge you have access to all WebCam-related software.
See ‘Using the applications’.
7You can now connect your WebCam.
Installation

Connecting the WebCam to your PC
1 Be sure to run the installation CD first,before connecting the
WebCam to the PC.
2 Turn on the PC.
3 Connect the USB plug of the USB cable to the USB port of the
PC.
4 Insert the WebCam’s USB connector into the USB port of the
docking base/stand. Push it downgently until it clicks into
position.
> The WebCam will now derive its power from the PC.
Installation
EN
10
3
4
4

The Philips SPC650NC video property can be changed from
within an application, or independently by clicking the VProperty
icon which can be found in the Windows taskbar bottom right
of your screen. Most applications can show a 'live preview' video
image on your monitor. Always use this option to see the effect of
changed settings on your screen.
General controls
1Flickerless
The Flickerless option should only be used under flickering
light conditions (e.g. fluorescent or neon lamps) to prevent
flickering or strangely colored video images.
If this option is used under normal lighting conditions the
video image may be overexposed.
2Region
If you are using the Philips SPC650NC in Europe, select
'50 Hz' and if you are using the Philips SPC650NC in North
America, select '60 Hz'. For Asia this setting is dependent on
the local mains output. E.g. for China, select ‘50 Hz’ and for
Taiwan, select ‘60 Hz’. For Japan the setting is region
dependent.
Please check your local mains output to find the correct
‘Region’ setting.
1
2
WebCam settings EN
11

EN
12
Picture controls
3Full automatic control: on/off
This full automatic control mode provides a very easy way to
get the best out of your Philips SPC650NC WebCam.
Or you can choose to have maximum manual control over
the WebCam settings by switching the full automatic control
mode off. Full automatic control 'on' is the preferred setting
for normal use.
Techniques active within full automatic control mode are:
– Automatic exposure control and automatic white balance
control, to provide the best video source signal possible;
– Automatic frame rate selection for improved WebCam
sensitivity in low light conditions.
4Frame rate
You can use the scroll open menu to set the frame rate of
the video you wish to capture. E.g. 30 fps means that the
WebCam will capture video at 30 frames per second.
3
8
4
6
7
9
!
@
0
#
$
%
^
5
WebCam settings

EN
13
5Auto Exposure & Exposure slider
The exposure is the amount of light received by the sensor
and is determined by how long the sensor is exposed to
capture a snapshot or video frame.The result depends on the
sensitivity of the sensor.The WebCam will find the optimal
setting if you select the automatic exposure option.You can
use the exposure slider if you would like to set the WebCam
according to your personal preferences.
6Reset
Press this button if you would like to reset the WebCam
settings to the default factory settings.
7Save
Press this button if you would like to save your personal
preferred settings.
8Restore
Press this button if you would like to restore your personal
preferred settings.
9Auto White Balance
Most light sources are not 100% pure white but have a
certain ‘color temperature’. Normally our eyes compensate
for lighting conditions with different color temperatures.
If the automatic white balance is selected, the WebCam will
look for a reference point which represents white. It will then
calculate all other colors based on this white point and
compensate the other colors accordingly, just like the human
eye.
You can also select fixed settings for ‘Indoor’,‘Outdoor’ and
‘Fluorescence’ conditions or use the ‘Red’ and ‘Blue’ sliders if
you would like to set the WebCam according to your
personal color temperature preferences.
WebCam settings

EN
14
0Brightness
Brightness enables you to adjust the brightness of the
displayed image or video to suit your own preference.
Use the slider to find your preferred setting.
!Contrast
Contrast enables you to control the ratio between dark and
light according to your own preference.
Use the slider to find your preferred setting.
@Gamma
Gamma enables you to brighten dark areas within the
displayed image or video and visualize more details without
over-exposing already light areas.
Use the slider to find your preferred setting.
#Saturation
Saturation enables you to set the color reproduction from
black and white to a full color image or video according to
your own preference.
Use the slider to find your preferred setting.
$Black and white
The 'Black and white' checkbox is used to switch from color
images to black and white and back.
%Backlight compensation
Turn on the backlight compensation to improve the image
quality when you have a scene where the background has a
high illumination level (for instance when you are sitting in
front of a bright light).
^Mirror
Clicking the 'Mirror Image' checkbox flips the image
horizontally.You can use this feature when you want to use
the Philips SPC650NC and monitor as a mirror, or to take
pictures of mirrored images.
WebCam settings

EN
15
Audio controls
&Volume slider
This slider provides manual control over the microphone
volume.
&
WebCam settings

EN
16
VLounge
All applications can be accessed via the Philips V(ideo)-Lounge
application.VLounge is the central application for easy access to
your Philips WebCam and all image and video applications
installed during setup.
• Start VLounge through the Windows QuickLaunch menu in
your taskbar, via the program group ‘SPC650NC WebCam’, or
by clicking the VLounge icon on the desktop.
> The VLounge application will now be initiated and the VLounge
selection screen appears.
•In the ‘Capture’ menu you can transfer, preview, edit, e-mail,
print and organise your photos and video recordings.
•For additional support read the 'Help' documentation within
the 'Help' option of the menubar of VLounge.
Skype
You can download and install Skype via the Skype website:
http://www.skype.com.
Please follow the on-screen instructions during downloading and
installation of Skype.
Using the applications

EN
17
MSN Messenger
You can download and install MSN Messenger via Microsoft MSN
Messenger websites. In the list below you will find the website
address for your country for downloading MSN Messenger:
Austria - http://messenger.msn.at
Belgium (Dutch) - http://messenger.msn.be
Belgium (French) - http://messenger.fr.msn.be
Denmark - http://messenger.msn.dk
Finland - http://messenger.msn.fi
France - http://messenger.msn.fr
Germany - http://messenger.msn.de
Italy - http://messenger.msn.it
The Netherlands - http://messenger.msn.nl
Norway - http://messenger.msn.no
Portugal - http://messenger.msn.com
Spain: - http://messenger.msn.es
Sweden - http://messenger.msn.se
Switserland (German) - http://messenger.msn.ch
Switserland (French) - http://messenger.fr.msn.ch
United Kingdom - http://messenger.msn.co.uk
USA - http://messenger.msn.com
Please follow the on-screen instructions during downloading and
installation of MSN Messenger.
Using the applications

EN
18
Yahoo! Messenger
You can download and install Yahoo! Messenger via Yahoo!
Messenger websites. In the list below you will find the website
address for your country for downloading Yahoo! Messenger:
Austria - http://messenger.yahoo.com
Belgium - http://messenger.yahoo.com
Denmark - http://dk.messenger.yahoo.com/
Finland - http://messenger.yahoo.com
France - http://fr.messenger.yahoo.com/
Germany - http://de.messenger.yahoo.com/
Italy - http://it.messenger.yahoo.com/
The Netherlands - http://messenger.yahoo.com
Norway - http://no.messenger.yahoo.com/
Portugal - http://messenger.yahoo.com
Spain - http://es.messenger.yahoo.com/
Sweden - http://se.messenger.yahoo.com/
Switserland - http://messenger.yahoo.com
United Kingdom - http://uk.messenger.yahoo.com
USA - http://messenger.yahoo.com
Please follow the on-screen instructions during downloading and
installation of Yahoo! Messenger.
AOL Instant Messenger
You can download and install AOL Instant Messenger via the
America Online website. Please find below the website address
for downloading AOL Instant Messenger:
http://www.aim.com/
Please follow the on-screen instructions during downloading and
installation of AOL Instant Messenger.
Making snapshots using Windows®XP
You can use Microsoft®Windows®XP to make snapshots with
your Philips SPC650NC WebCam.
If you need additional support, please refer to the ‘Help’ topics of
Microsoft®Windows®XP. Search for ‘Get picture’.
Using the applications

EN
19
Technical specifications
Sensor ...................................................................................VGA CMOS
Video resolution (Max.)...........................................VGA (640 x 480)
Image resolution (Max.) ...............................Super VGA (800 x 600)
Illumination....................................................................................< 5 lux
Integrated lens.................................................................................F=2.8
Data format ............................................................................I420, IYUV
Interfacing ............................USB 2.0 compatible (2.1 m USB cable)
Microphone................................................Built in digital microphone
Power.................................................................Supplied via USB cable
Voltage requirements...............................................5V ( ), 0.5A

EN
20
Disclaimer
Philips makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Philips assumes no responsibility for any error that may appear in
this document. Philips makes no commitment to update nor to
keep current the information contained in this document.
FCC compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including
interference that may cause undesired operation.
Note!
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized modification to this equipment could result in
the revocation of the authorization to operate the equipment.
Important information
