Phoenix Contact EEM-MA200 User manual

INTERFACE
UM EN EEM-MA200/250
Order No.: —
User manual

Designation:
Revision:
Order No.:
This user manual is valid for:
2011-06-08
INTERFACE
104415_en_00 PHOENIX CONTACT
Energy meter for single, two, and three-phase networks
UM EN EEM-MA200/250
00
—
Designation Revision Order No.
EEM-MA200 2901362
EEM-MA250 2901363
User manual

EEM-MA200/EEM-MA250
PHOENIX CONTACT 104415_en_00
Please observe the following notes
In order to ensure the safe use of the product described, you have to read and understand
this manual. The following notes provide information on how to use this user manual.
User group of this manual
The use of products described in this manual is oriented exclusively to
Phoenix Contact accepts no liability for erroneous handling or damage to products from
Phoenix Contact or third-party products resulting from disregard of information contained in
this user manual.
Explanation of symbols used and signal words
The following types of messages provide information about possible property damage and
general information concerning proper operation and ease-of-use.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety measures that follow this symbol to avoid possible
injury or death.
DANGER
This indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
This indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
This indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTE
This symbol and the accompanying text alert the reader to a situation which may cause
damage or malfunction to the device, hardware or software, or surrounding property.
This symbol and the accompanying text provide the reader with additional information,
such as tips and advice on the efficient use of hardware and on software optimization. It
is also used as a reference to other sources of information (user manuals, data sheets).

104415_en_00 PHOENIX CONTACT
General terms and conditions of use for technical documentation
Phoenix Contact reserves the right to alter, correct, and/or improve the technical
documentation and the products described in the technical documentation at its own
discretion and without giving prior notice, insofar as this is reasonable for the user. The
same applies to any technical changes that serve the purpose of technical progress.
The receipt of technical documentation (in particular data sheets, installation instructions,
user manuals, etc.) does not constitute any further duty on the part of Phoenix Contact to
furnish information on alterations to products and/or technical documentation. Any other
agreement shall only apply if expressly confirmed in writing by Phoenix Contact. Please
note that the supplied documentation is product-specific documentation only and that you
are responsible for checking the suitability and intended use of the products in your specific
application, in particular with regard to observing the applicable standards and regulations.
Although Phoenix Contact makes every effort to ensure that the information and content are
accurate, up-to-date, and state-of-the-art, technical inaccuracies and/or printing errors in
the information cannot be ruled out. Phoenix Contact does not offer any guarantees as to
the reliability, accuracy, or completeness of the information. All information made available
in the technical data is supplied without any accompanying guarantee, whether expressly
mentioned, implied or tacitly assumed. This information does not include any guarantees
regarding quality, does not describe any fair marketable quality, and does not make any
claims as to quality guarantees or guarantees regarding the suitability for a special purpose.
Phoenix Contact accepts no liability or responsibility for errors or omissions in the content
of the technical documentation (in particular data sheets, installation instructions, user
manuals, etc.).
The aforementioned limitations of liability and exemptions from liability do not apply, in so
far as liability must be assumed, e.g., according to product liability law, in cases of
premeditation, gross negligence, on account of loss of life, physical injury or damage to
health or on account of the violation of important contractual obligations. Claims for
damages for the violation of important contractual obligations are, however, limited to
contract-typical, predictable damages, provided there is no premeditation or gross
negligence, or that liability is assumed on account of loss of life, physical injury, or damage
to health. This ruling does not imply a change in the burden of proof to the detriment of the
user.

EEM-MA200/EEM-MA250
PHOENIX CONTACT 104415_en_00
Statement of legal authority
This manual, including all illustrations contained herein, is copyright protected. Use of this
manual by any third party is forbidden. Reproduction, translation, and public disclosure, as
well as electronic and photographic archiving and modification, require written consent
by Phoenix Contact. Violators are liable for damages.
Phoenix Contact reserves all rights in the case of patent award or listing of a registered
design. Third-party products are always named without reference to patent rights. The
existence of such rights shall not be excluded.
How to contact us
Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be
found on the Internet at:
www.phoenixcontact.com
Make sure you always use the latest documentation.
It can be downloaded at:
www.phoenixcontact.net/catalog
Subsidiaries If there are any problems that cannot be solved using the documentation, please contact
your Phoenix Contact subsidiary.
Subsidiary contact information is available at www.phoenixcontact.com.
Published by
Should you have any suggestions or recommendations for improvement of the contents and
layout of our manuals, please send your comments to:
[email protected]
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstraße 8
32825 Blomberg
DEUTSCHLAND
Telefon +49 - (0) 52 35 - 3-00
Telefax +49 - (0) 52 35 - 3-4 12 00

104415_en_00 PHOENIX CONTACT i
Table of contents
1 Safety notes ............................................................................................................................1-1
2 Device description ..................................................................................................................2-1
2.1 Displaying measured values...............................................................................2-2
2.2 Characteristics....................................................................................................2-3
3 Operating and indication elements .........................................................................................3-1
4 Mounting and installation ........................................................................................................4-1
4.1 Mounting ............................................................................................................4-1
4.2 Power supply connection....................................................................................4-1
4.3 Pin assignment...................................................................................................4-2
4.4 Termination resistor............................................................................................4-3
4.5 Installation ..........................................................................................................4-3
4.5.1 External current transformers ..............................................................4-3
4.5.2 Three-phase network with asymmetrical load (4NBL) .........................4-4
4.5.3 Three-phase network with asymmetrical load (3NBL) .........................4-5
4.5.4 Three-phase network with symmetrical load (3BL/4BL) ......................4-6
4.5.5 Two-phase network (2BL) ...................................................................4-7
4.5.6 Single-phase network (1BL) ................................................................4-7
5 Configuration ..........................................................................................................................5-1
5.1 Configuration mode (PROG) – COdE 100 ..........................................................5-3
5.2 Example: Configuring the device for a
three-phase network with asymmetrical load......................................................5-4
5.3 Current transformers ..........................................................................................5-5
5.4 Current measuring time ......................................................................................5-6
5.5 Power measuring time........................................................................................5-7
5.6 Reset..................................................................................................................5-8
5.7 Output type.........................................................................................................5-9
5.7.1 Output pulse value ............................................................................5-10
5.7.2 Pulse output length ...........................................................................5-11
5.8 Communication address (EEM-MA250) ...........................................................5-12
5.9 Communication speed (EEM-MA250)..............................................................5-13
5.10 Parity (EEM-MA250).........................................................................................5-14
5.11 Stop bits (EEM-MA250)....................................................................................5-15
5.12 Configuring the LCD .........................................................................................5-16
5.13 Operating hours counter...................................................................................5-17
5.14 Digital input.......................................................................................................5-18
5.15 Changing the configuration mode access code................................................5-19

EEM-MA200/EEM-MA250
ii PHOENIX CONTACT 104415_en_00
5.16 Displaying the software version and serial number..................................................5-20
5.17 Exiting configuration mode ...............................................................................5-20
6 Operation – Displaying measured values ................................................................................6-1
6.1 Displaying currents and the total
harmonic distortion (THD) ..................................................................................6-2
6.2 Displaying voltages, frequency, and the
total harmonic distortion (THD)...........................................................................6-4
6.3 Displaying the power and power factors.............................................................6-6
6.4 Displaying the energy .........................................................................................6-8
6.5 Displaying the operating hours and temperature ..............................................6-10
7 Function test ...........................................................................................................................7-1
7.1 Calling the function test ......................................................................................7-2
7.1.1 Automatic correction of current connections .......................................7-3
7.2 Repeat function test (started manually) ..............................................................7-4
8 Troubleshooting ......................................................................................................................8-1
9 MODBUS basics .....................................................................................................................9-1
10 MODBUS register tables .......................................................................................................10-1
11 Technical data ......................................................................................................................11-1
A Abbreviations.......................................................................................................................... A-1

Safety notes
104415_en_00 PHOENIX CONTACT 1-1
1Safetynotes
DANGER: Risk of electric shocks, burns or explosions
– The "attention symbol" on the device label means:
Read the installation note in its entirety. Follow the installation note to avoid impairing
the intended protection.
– Only qualified specialist personnel may install, start up, and operate the device.
Observe the national safety and accident prevention regulations.
– When working on the device, always disconnect it from the power supply. Short
circuit the secondary side of each current transformer.
– Use an appropriate voltage measuring device to ensure that no voltage is present.
– Mount all equipment, doors, and covers before switching on the device again.
– Installation should be carried out following the instructions provided in the operating
instructions. Access to circuits within the device is not permitted.
– The device does not require maintenance. Repairs may only be carried out by the
manufacturer.
Non-compliance with these safety precautions can result in serious injury.
NOTE: Risk of damage to the device
– Provide a switch/circuit breaker close to a device, which is labeled as the
disconnecting device for this device.
– Provide overcurrent protection (I ≤16 A) in the installation.
– Observe the maximum permissible values for the device supply (277 V AC), mains
frequency (50/60 Hz), maximum voltage at connection terminal blocks (519 V AC
phase/phase or 300 V AC phase/neutral conductor).

EEM-MA200/EEM-MA250
2-1 PHOENIX CONTACT 104415_en_00
2 Device description
The EEM-MA200/EEM-MA250 is a highly accurate multifunction measuring device for
measuring electrical parameters in low-voltage systems up to 500 V AC. It supports the
measurement, counting, and display of all electrical parameters and is mounted on a 35 mm
DIN rail according to EN 60715.
A parameterizable digital I/O is available for acquiring and evaluating signal states.
The ambient temperature is detected by an integrated temperature sensor.
The pushbuttons on the front of the device can be used to display measured values as well
as configure the device.
In addition, the EEM-MA250 is equipped with an RS-485 communication interface
(MODBUS/JBUS) for connection to a higher-level control system.
The following parameters can be measured or monitored:
Current – Actual values I1, I2, I3, IN
– Maximum value, average value I1, I2, I3, IN
– Total harmonic distortion of currents (THD I1, THD I2, THD I3)
Voltages/frequency – Actual phase/phase value (U12, U23, U31)
– Actual phase/N value (V1, V2, V3)
–Frequency(F)
– Total harmonic distortion of phase/phase conductor voltages (THD U12, THD U23,
THD U31)
– Total harmonic distortion of phase/N conductor voltages (THD V1, THD V2, THD V3)
Real, reactive, and
apparent power
– Actual value for each phase (P1, P2, P3, Q1, Q2, Q3, S1, S2, S3)
– Sum of actual values (ΣP, ΣQ, ΣS)
– Maximum values (ΣP, ΣQ, ΣS)
Power factor – Actual value for each phase (PF1, PF2, PF3)
– Sum of actual values (ΣPF)
Energy (power meter) – Positive real energy (EA+)
– Positive reactive energy (ER+)
Operating hours – Can be configured according to current, voltage, input signal or supply voltage
Temperature – Detection of ambient temperature via integrated sensor

Device description
104415_en_00 PHOENIX CONTACT 2-2
2.1 Displaying measured values
I button – Currents (I1, I2, I3., IN)
– Maximum value, average value of currents (I1, I2, I3, IN)
– Total harmonic distortion of currents (THD I1, THD I2, THD I3)
U/F button – Conductor voltages (U12, U23, U31)
– Conductor voltages to N (V1, V2, V3)
–Frequency(F)
– Total harmonic distortion of phase/phase conductor voltages (THD U12, THD U23,
THD U31)
– Total harmonic distortion of phase/N conductor voltages (THD V1, THD V2, THD V3)
P/PF button – Total real power (ΣP), total reactive power (ΣQ), total apparent power (ΣS)
– Real power per phase (P1, P2, P3), reactive power per phase (Q1, Q2, Q3), apparent
power per phase (S1, S2, S3)
– Maximum value, average value of real power (ΣP), reactive power (ΣQ), apparent
power (ΣS)
– Total power factor (ΣPF)
– Power factor per phase (PF1, PF2, PF3)
E button – Positive real energy (EA+)
– Positive reactive energy (ER+)
h/°C button – Operating hours
–Ambienttemperature
To switch over to the next measured values within a menu, the corresponding button must
be pressed once again.

EEM-MA200/EEM-MA250
2-3 PHOENIX CONTACT 104415_en_00
2.2 Characteristics
Current measurement
(TRMS)
Primary current transformer 9999 A
Secondary current transformer 5 A
Minimum measured current 5 mA
Display 0 ... 9999 A
Intrinsic consumption < 0.3 VA
Measured value update 1 s
Accuracy 0.2% (10 ... 110% IN)
Continuous overload 6 A
Short-term overload 10 x INfor 1 s
Voltage measurement
(TRMS)
Direct phase/phase 50 ... 519 V AC
Direct phase/N 28 ... 300 V AC
Measured value update 1 s
Accuracy 0.2%
Power measurement Display 0 ... 9999 kW/kvar/kVA
Measured value update 1 s
Accuracy 0.5% (-90 ... +90°C)
Power factor
measurement
Measured value update 1 s
Accuracy 0.5% (0.5 < PF < 1)
Frequency measurement Measuring range 45 ... 65 Hz
Measured value update 1 s
Accuracy 0.1% (45 ... 65 Hz)
Measurement of energy
amount
Real energy (IEC 62053-22) Class 0.5 S
Reactive energy (IEC 62053-23) Class 2

Operating and indication elements
104415_en_00 PHOENIX CONTACT 3-1
3 Operating and indication elements
Figure 3-1 Operating and indication elements
1. Pushbuttons with dual functionality:
Normal mode: Display measured values
Programming mode: Change configuration
2. Backlit LCD
3. Display measured values in relevant conductor
4. Measured value
5. Unit
6. Status indicator: Energy recording
7. RS-485 communication interface (EEM-MA250)
8. Status indicator: Communication active (EEM-MA250)
kW
kvarh
kVA
COM
L1
L2
L3
I
UF
PPF
E
12 14 16 2 18 8 10 20 22
135791146131517
V1 V2 V3 VN Input Aux Supply
S1 S2 S1 S2 S1 S2
I1 I2 I3 Output RS485
°C
TEST
OK
PROG
+- +-
C=0,1Wh/imp
1
6
87
25
3
4

EEM-MA200/EEM-MA250
4-1 PHOENIX CONTACT 104415_en_00
4 Mounting and installation
4.1 Mounting
The device is snapped onto a DIN rail in the control cabinet. The mounting position can be
freely selected, but will be determined by the readability of the LCD.

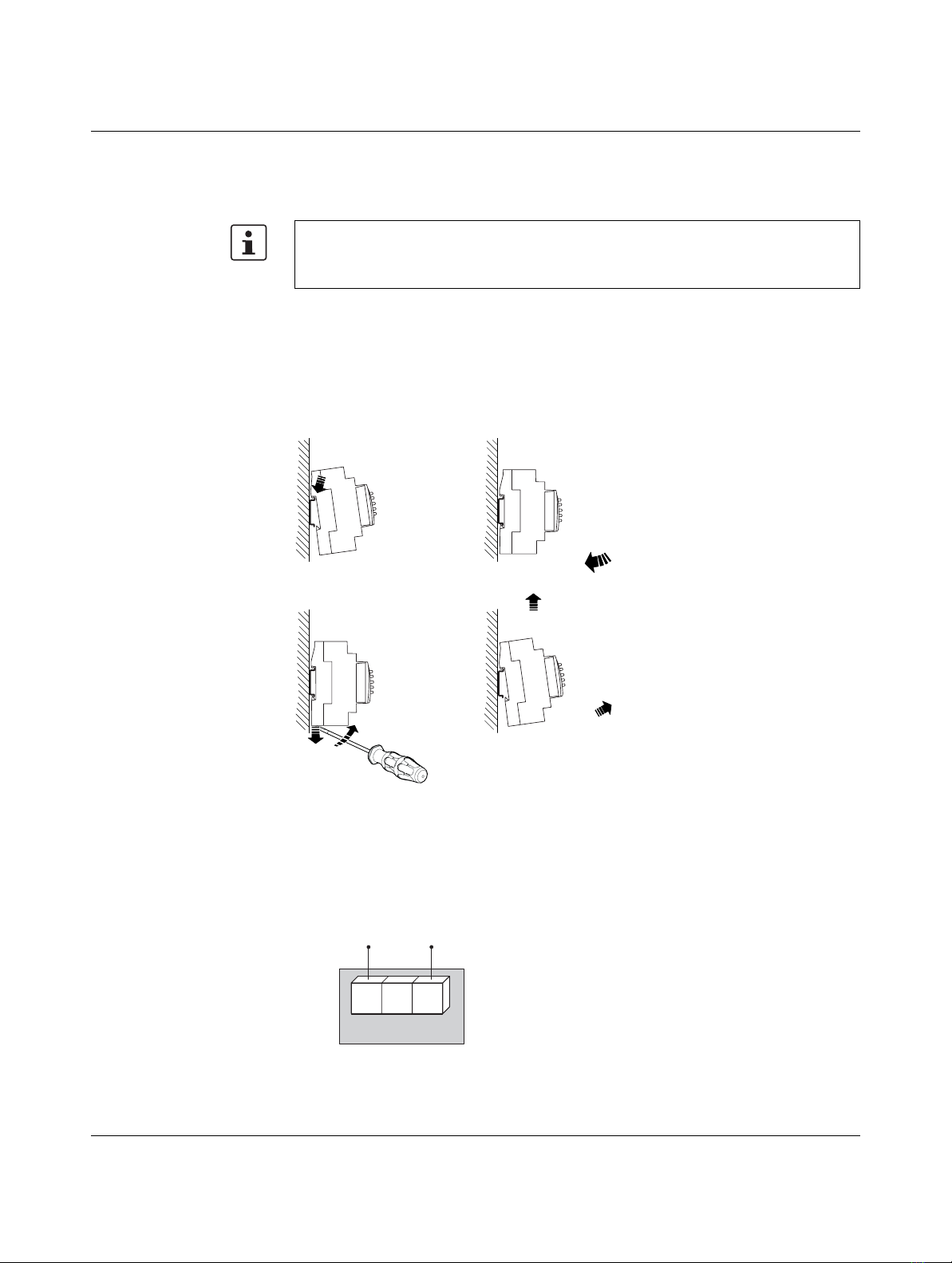

Figure 4-1 Mounting
4.2 Power supply connection
Avoid being in close proximity to systems that can generate electromagnetic interference.
In addition, avoid mechanical vibrations with acceleration rates greater than
1g (9.81 m/s2) at frequencies below 60 Hz.
B
A
B
A
20 22
AUX
200/277 V AC (IEC)

Mounting and installation
104415_en_00 PHOENIX CONTACT 4-2
4.3 Pin assignment
Figure 4-2 Pin assignment
Terminal block Description
12,14,16 Phase V1, V2, V3
2NeutralconductorVN
20,22 Power supply
1,3/5,7/9,11 Measuring transducer input I1/I2/I3
S1: Input
S2: Output
18 Grounding
13,15,17 RS-485 communication interface (MODBUS/JBUS)
4,6 Digital output OUT 1
8,10 Digital input IN 1
Maximum tightening torque for the relevant screws: 0.4 Nm.
DANGER: Risk of electric shock
If the device is disconnected, the secondary sides of the relevant current transformers
must be short circuited.
A URTK6 transformer disconnect terminal block (Order No. 3026272) can be used for
this.
22 1375911
13 15 1746 810
18
12 14 16 220
V1V2V3VNAUX
OUT 1IN1
NC +-
RS485
S1 S2 S1 S2 S1 S2
l1 l2 l3

EEM-MA200/EEM-MA250
4-3 PHOENIX CONTACT 104415_en_00
4.4 Termination resistor
For MODBUS communication, the RS-485 cable must be terminated at both ends of the bus
with a 120 Ωresistor (supplied with the device).
Figure 4-3 Termination resistor
RS-485 termination device: Connect the resistor between terminal blocks 15 and 17.
RS-485 device: No resistor connected between terminal blocks 15 and 17.
4.5 Installation
The device is designed for connection to various network types in two, three or four wire
networks with symmetrical or asymmetrical load. Current measurement must be
implemented using suitable current transformers.
4.5.1 External current transformers
When selecting the current transformer, the secondary nominal current must be 5 A. The
primary nominal current is determined by the current consumption of the load. Appropriate
PACT current transformers can be found in the Phoenix Contact INTERFACE catalog.
When measuring by means of current transformers, the accuracy is greatly influenced by
the quality of the transformers used.
Operation using voltage transducers is not supported.
DANGER: Risk of electric shock
Only install current transformers and corresponding measuring devices when the power
supply is disconnected.
Observe the order in which the current transformers are connected when wiring them
(direction of current flow). Primary circuit: K-P1 →L-P2; secondary circuit: k-S1 →I-S2
When the current transformer is operated with an open secondary circuit, hazardous
voltages may occur at the secondary terminal blocks.
Do not ground the secondary side of a current transformer in an IT network.
RS485
NC + -
LIYCY-CY
120 W
13 15 17

Mounting and installation
104415_en_00 PHOENIX CONTACT 4-4
4.5.2 Three-phase network with asymmetrical load (4NBL)
Figure 4-4 Three-phase network with asymmetrical load (4NBL)
1Supply voltage range: 200 … 277 V AC
2Fuse: 0.5 A gG/BS 88 2A gG/0.5 A class CC
V1 V2 V3 VN
1= Fuse 0.5 gG / 0.5 A Class CC
N
L1
L2
L3
I3I2I1
S2S1
P1
S2
S1
P1
111
S1 S2 S1 S2 S1 S2

EEM-MA200/EEM-MA250
4-5 PHOENIX CONTACT 104415_en_00
4.5.3 Three-phase network with asymmetrical load (3NBL)

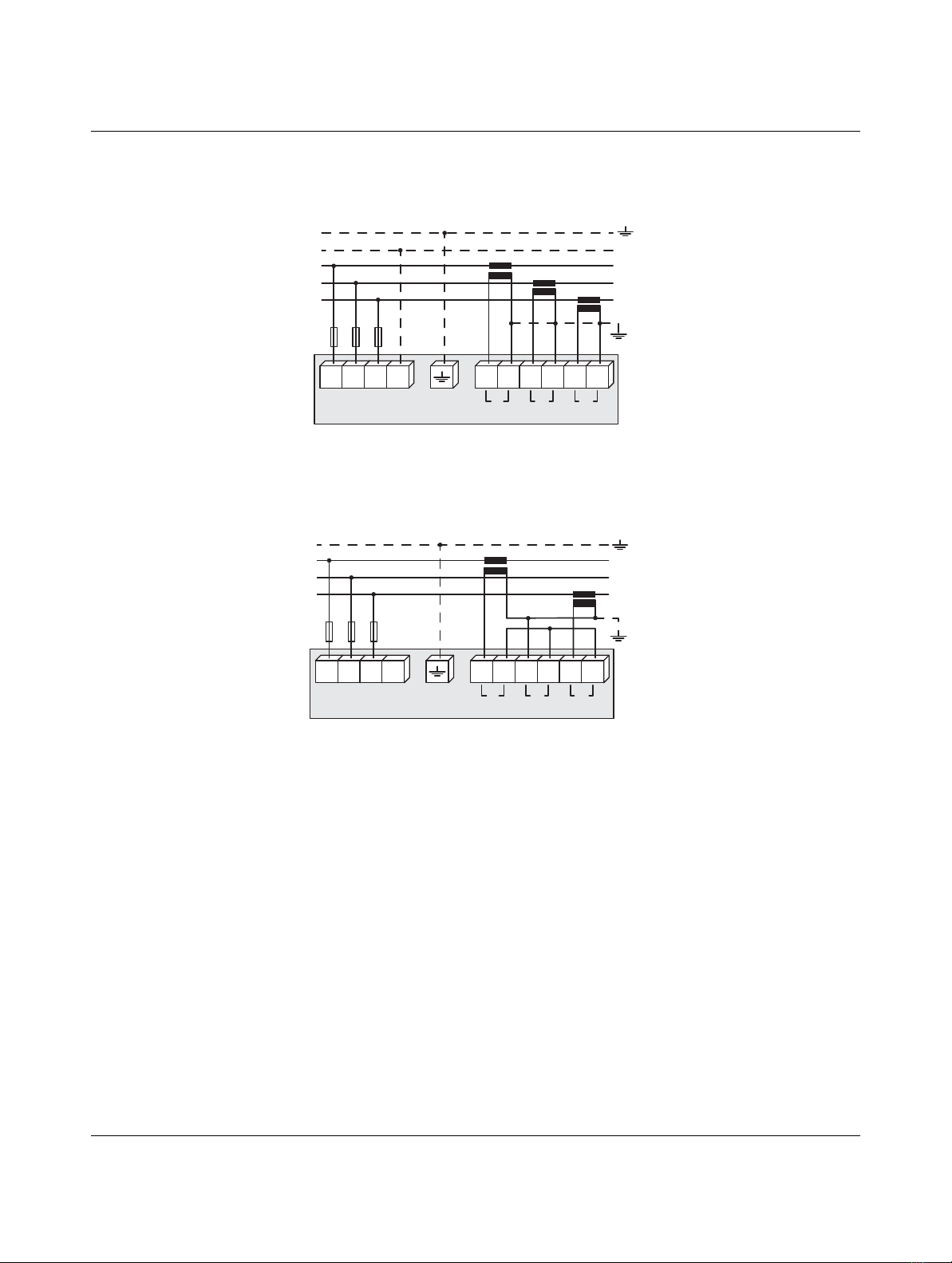

Figure 4-5 Measurement via 3 current transformers
Figure 4-6 Measurement via 2 current transformers
1Supply voltage range: 200 … 277 V AC
2Fuse: 0.5 A gG/BS 88 2A gG/0.5 A class CC
V1 V2 V3 VN
1= Fuse 0.5 gG / 0.5 A Class CC
N
L1
L2
L3
I3I2I1
S2S1
P1
S2
S1
P1
111
S1 S2 S1 S2 S1 S2
V1 V2 V3 VN
1= Fuse 0.5 gG / 0.5 A Class CC
L1
L2
L3
I3I2I1
S2S1
P1
S2
S1
P1
111
S1 S2 S1 S2 S1 S2

Mounting and installation
104415_en_00 PHOENIX CONTACT 4-6
Figure 4-7 Measurement via 2 current transformers
4.5.4 Three-phase network with symmetrical load (3BL/4BL)
Figure 4-8 Three-phase network with symmetrical load (3BL/4BL)
1Supply voltage range: 200 … 277 V AC
2Fuse: 0.5 A gG/BS 88 2A gG/0.5 A class CC
The solution with two current transformers reduces the degree of accuracy of phases by
0.5%, whereby their current is calculated vectorially (without current transformer).
1Supply voltage range: 200 … 277 V AC
2Fuse: 0.5 A gG/BS 88 2A gG/0.5 A class CC
The solution with one current transformer reduces the accuracy of phases by 0.5%,
whereby their current is calculated vectorially (without current transformer).
V1 V2 V3 VN
1= Fuse 0.5 gG / 0.5 A Class CC
L1
L2
L3
I3I2I1
S2
S1
P1
S1
P1
111
S1 S2 S1 S2 S1 S2
V1 V2 V3 VN
1= Fuse 0.5 gG / 0.5 A Class CC
N
L1
L2
L3
I3I2I1
S2
S1
P1
111
S1 S2 S1 S2 S1 S2

EEM-MA200/EEM-MA250
4-7 PHOENIX CONTACT 104415_en_00
4.5.5 Two-phase network (2BL)
Figure 4-9 Two-phase network (2BL)
4.5.6 Single-phase network (1BL)
Figure 4-10 Single-phase network (1BL)
1Supply voltage range: 200 … 277 V AC
2Fuse: 0.5 A gG/BS 88 2A gG/0.5 A class CC
1Supply voltage range: 200 … 277 V AC
2Fuse: 0.5 A gG/BS 88 2A gG/0.5 A class CC
V1 V2 V3 VN
1= Fuse 0.5 gG / 0.5 A Class CC
L1
L2
I3I2I1
S2
S1
P1
11
S1 S2 S1 S2 S1 S2
V1 V2 V3 VN
1= Fuse 0.5 gG / 0.5 A Class CC
L1
N
I3I2I1
S1
P1
1
S1 S2 S1 S2 S1 S2
S2
