Phoenix Contact RAD-900-DAIO6 User manual

User manual
UM EN RAD-900-IFS(DAIO6)
Radioline - 900 MHz wireless transmission
system for serial interfaces and I/O signals

2018-07-23
PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany
phoenixcontact.com
3827_en_B
Radioline - 900 MHz wireless transmission system for serial interfaces
and I/O signals
Designation Order No.
RAD-900-IFS 2901540
RAD-900-DAIO6 2702877
I/O extension modules:
RAD-AI4-IFS 2901537
RAD-PT100-4-IFS 2904035
RAD-AO4-IFS 2901538
RAD-DI4-IFS 2901535
RAD-DI8-IFS 2901539
RAD-DOR4-IFS 2901536
RAD-DO8-IFS 2902811
RAD-DAIO6-IFS 2901533
User manual
This user manual is valid for:
UM EN RAD-900-IFS(DAIO6), Revision B

Table of contents
3827_en_B PHOENIX CONTACT 1/138
Table of contents
1 For your safety............................................................................................................................5
1.1 Labeling of warning notes......................................................................................5
1.2 Qualification of users .............................................................................................5
1.3 Safety notes ..........................................................................................................6
1.4 Installation and operation.......................................................................................6
1.5 Safety regulations for installation in potentially explosive areas.............................7
1.6 Conformance.........................................................................................................8
2 Short description.........................................................................................................................9
2.1 RAD-900-IFS wireless module ..............................................................................9

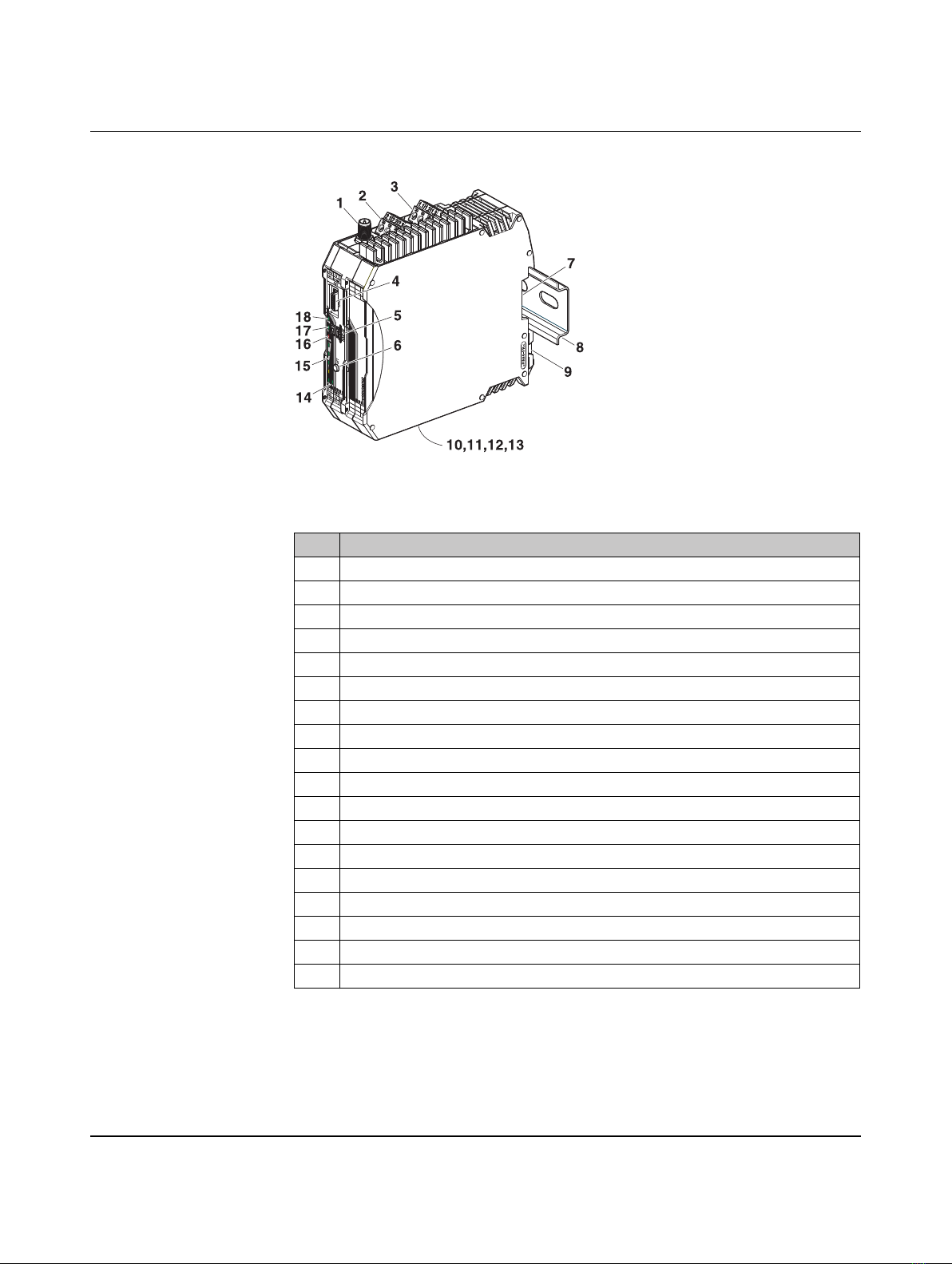

2.1.1 Structure .............................................................................................10
2.2 RAD-900-DAIO6..................................................................................................11

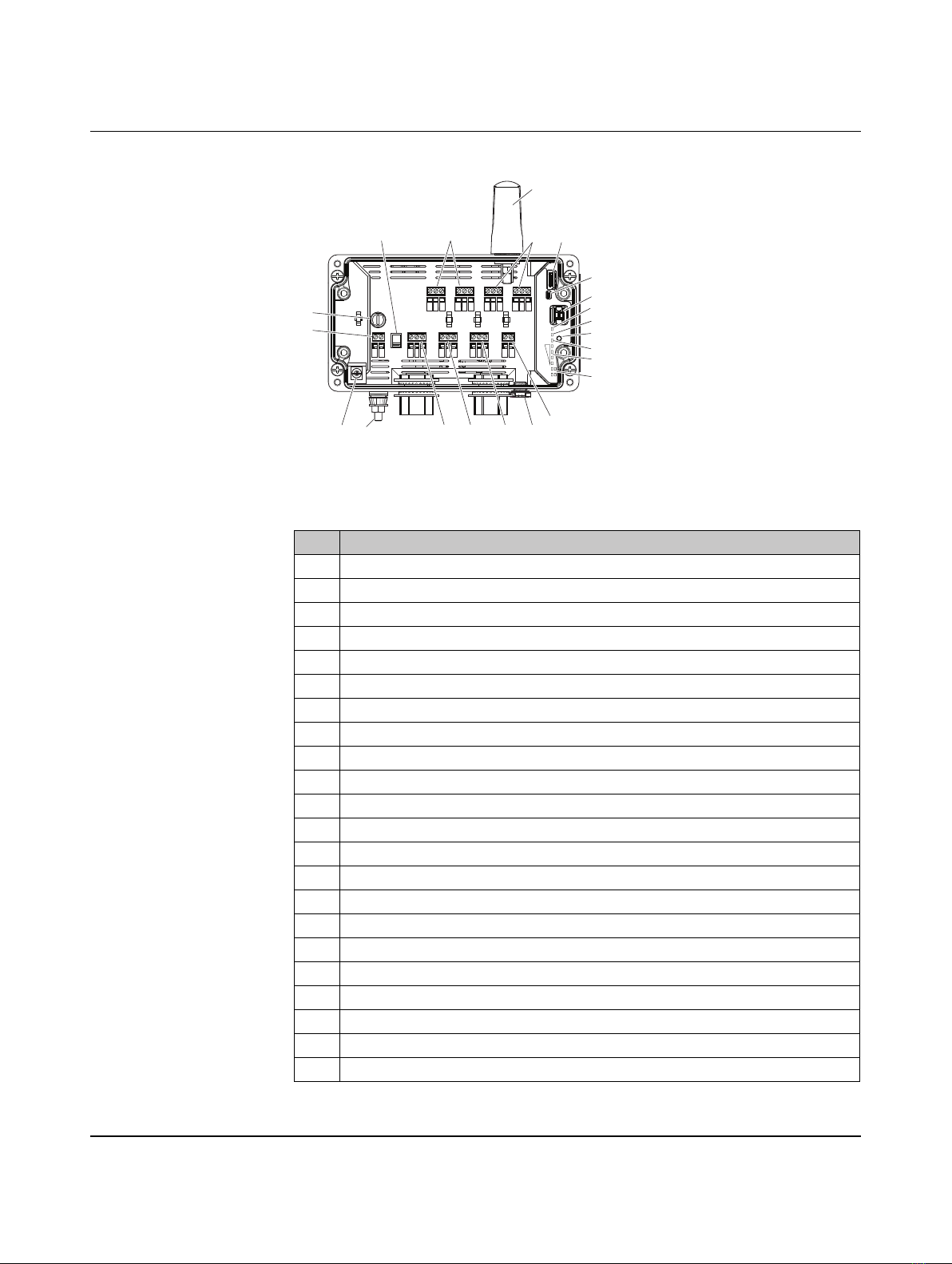

2.2.1 Structure .............................................................................................12
3 Description of I/O extension modules .......................................................................................15
3.1 RAD-AI4-IFS - analog extension module with four inputs ....................................16

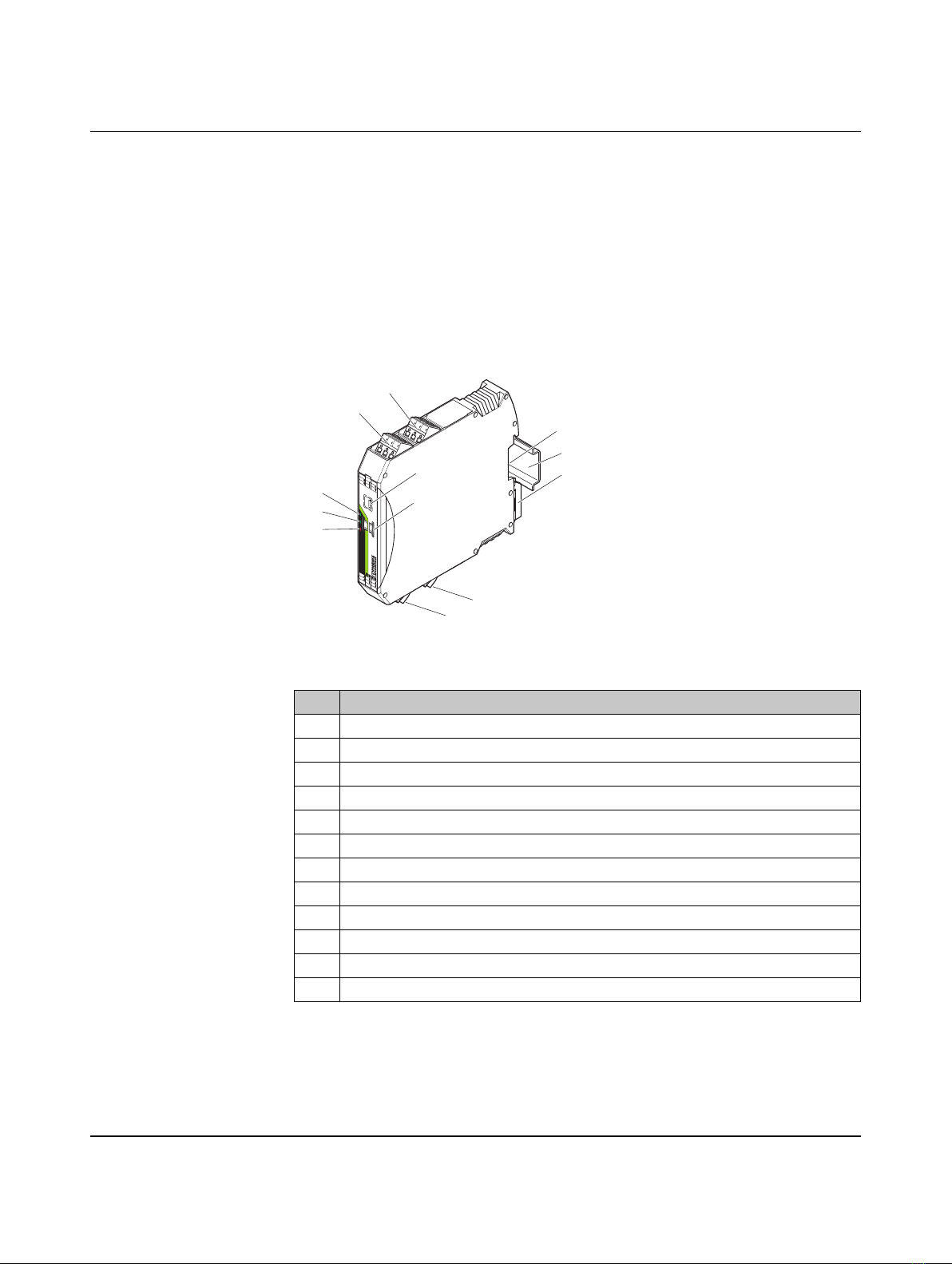

3.1.1 Structure ..............................................................................................16
3.1.2 Basic circuit diagram ............................................................................17
3.1.3 Setting the DIP switches ......................................................................17
3.1.4 Diagnostic LEDs ..................................................................................18
3.1.5 Setting the I/O-MAP address ...............................................................19
3.1.6 Process data in PLC/Modbus RTU mode ............................................19
3.2 RAD-PT100-4-IFS - extension module with four temperature inputs ...................20
3.2.1 Connecting sensors .............................................................................20
3.2.2 Measuring errors using 2-wire connection technology .........................22
3.2.3 Shielding of the sensor cables .............................................................24
3.2.4 Structure ..............................................................................................25
3.2.5 Basic circuit diagram ............................................................................26
3.2.6 Diagnostic LEDs ..................................................................................26
3.2.7 Setting the I/O-MAP address ...............................................................27
3.2.8 Process data in PLC/Modbus RTU mode ............................................27
3.3 RAD-AO4-IFS - analog extension module with four outputs ................................28
3.3.1 Structure ..............................................................................................28
3.3.2 Basic circuit diagram ............................................................................29
3.3.3 Setting the DIP switches ......................................................................29
3.3.4 Diagnostic LEDs ..................................................................................30
3.3.5 Setting the I/O-MAP address ...............................................................31
3.3.6 Process data in PLC/Modbus RTU mode ............................................31

RAD-900-...
2/138 PHOENIX CONTACT 3827_en_B
3.4 RAD-DI4-IFS - digital extension module with four inputs .....................................32
3.4.1 Structure ..............................................................................................32
3.4.2 Basic circuit diagram ............................................................................33
3.4.3 Diagnostic LEDs ..................................................................................33
3.4.4 Setting the I/O-MAP address ...............................................................34
3.4.5 Process data in PLC/Modbus RTU mode ............................................34
3.5 RAD-DI8-IFS - digital extension module with eight inputs....................................35
3.5.1 Structure ..............................................................................................35
3.5.2 Basic circuit diagram ............................................................................36
3.5.3 Setting the DIP switches ......................................................................36
3.5.4 Functions in pulse counter mode .........................................................37
3.5.5 Diagnostic LEDs ..................................................................................38
3.5.6 Setting the I/O-MAP address ...............................................................39
3.5.7 Process data in PLC/Modbus RTU mode ............................................40
3.6 RAD-DOR4-IFS - digital extension module with four outputs...............................41
3.6.1 Structure ..............................................................................................41
3.6.2 Basic circuit diagram ............................................................................42
3.6.3 Setting the DIP switches ......................................................................42
3.6.4 Diagnostic LEDs ..................................................................................43
3.6.5 Setting the I/O-MAP address ...............................................................44
3.7 RAD-DO8-IFS - digital extension module with eight outputs................................45
3.7.1 Structure ..............................................................................................45
3.7.2 Basic circuit diagram ............................................................................46
3.7.3 Setting the DIP switches ......................................................................46
3.7.4 Diagnostic LEDs ..................................................................................47
3.7.5 Setting the I/O-MAP address ...............................................................49
3.7.6 Process data in PLC/Modbus RTU mode ............................................49
3.8 RAD-DAIO6-IFS - analog/digital extension module with six channels .................50
3.8.1 Structure ..............................................................................................51
3.8.2 Basic circuit diagram ............................................................................52
3.8.3 Setting the DIP switches ......................................................................52
3.8.4 Diagnostic LEDs ..................................................................................53
3.8.5 Setting the I/O-MAP address ...............................................................54
3.8.6 Process data in PLC/Modbus RTU mode ............................................55
3.9 RAD-RS485-IFS modules....................................................................................55
4 Installation.................................................................................................................................57
4.1 DIN rail-mounted devices (RAD-900-IFS)............................................................57
4.1.1 Mounting/removal ................................................................................57
4.1.2 Connecting wires ................................................................................59
4.1.3 Connecting the power supply ...............................................................59
4.1.4 Serial interfaces ...................................................................................60
4.1.5 Connecting the antenna .......................................................................62

Table of contents
3827_en_B PHOENIX CONTACT 3/138
4.2 Wall-mounted devices (RAD-900-DAIO6) ...........................................................63
4.2.1 Mounting ..............................................................................................63
4.2.2 Wire entry .............................................................................................64
4.2.3 Connecting wires .................................................................................64
4.2.4 Connecting power ...............................................................................65
4.2.5 Connecting the antenna .......................................................................66
5 Configuration and startup..........................................................................................................67
5.1 Default settings of the wireless module................................................................67
5.1.1 Resetting to the default settings ...........................................................67
5.1.2 Firmware update ..................................................................................68
5.2 Operating mode of the wireless module ..............................................................68
5.3 Setting the address of the wireless module via the thumbwheel..........................71
5.4 Configuration via CONFSTICK ............................................................................71
5.5 Copying device settings via memory stick ...........................................................73
5.5.1 Saving parameters from the wireless module to the memory stick .......73
5.5.2 Reading the memory stick ....................................................................74
5.6 Configuration via PSI-CONF software .................................................................74
5.6.1 Extended configuration, individual settings ..........................................75
5.6.2 Data transmission speed of the wireless interface ...............................75
5.6.3 Device settings .....................................................................................77
5.7 Starting up I/O extension modules.......................................................................79
5.7.1 Combinations of extension modules ....................................................79
5.7.2 Setting the address of the extension modules via the thumbwheel ......80
5.7.3 Wireless module in PLC/Modbus RTU dual mode ...............................81
5.8 Starting up the RAD-900-DAIO6..........................................................................82
5.8.1 Setting the address of the RAD-900-DAIO6 via the thumbwheel .........82
5.8.2 RAD-900-DAIO6 in PLC/Modbus RTU dual mode ...............................83
5.9 Startup time of the wireless station ......................................................................84
6 Serial data mode (RAD-900-IFS only).......................................................................................85
6.1 Frame-based data transmission ..........................................................................87
7 PLC/Modbus RTU mode...........................................................................................................89
7.1 Configuration via PSI-CONF software .................................................................90
7.2 Addressing I/O extension modules ......................................................................91
7.3 Watchdog ............................................................................................................91

RAD-900-...
4/138 PHOENIX CONTACT 3827_en_B
8 PLC/Modbus RTU dual mode...................................................................................................93
8.1 Configuration via PSI-CONF software .................................................................94
8.2 Addressing I/O extension modules ......................................................................95
8.3 Watchdog ............................................................................................................95
9 Addressing I/O extension modules and RAD-900-DAIO6 with Modbus RTU ...........................97
9.1 Modbus function codes .......................................................................................97
9.2 Modbus protocol..................................................................................................97
9.3 Addressing registers............................................................................................98
9.4 Module type and error code register....................................................................99
9.4.1 Assigning I/O extension modules to the register ................................100
9.5 Modbus memory map........................................................................................100
9.5.1 RAD-AI4-IFS process data .................................................................101
9.5.2 RAD-PT100-4-IFS process data ........................................................102
9.5.3 RAD-AO4-IFS process data ...............................................................103
9.5.4 RAD-DI4-IFS process data ................................................................104
9.5.5 RAD-DI8-IFS process data ................................................................104
9.5.6 RAD-DOR4-IFS process data ............................................................106
9.5.7 RAD-DO8-IFS process data ...............................................................107
9.5.8 RAD-DAIO6-IFS and RAD-900-DAIO6 process data .........................108
9.5.9 Complete overview of the Modbus memory map ...............................109
9.6 Error codes and formats for analog input and output values..............................112
9.7 RSSI signal register ...........................................................................................113
10 Detecting and removing errors................................................................................................115
10.1 Loopback test during serial data transmission...................................................121
11 Diagnostics on the wireless module........................................................................................123
11.1 Diagnostic LEDs ................................................................................................123
11.2 LED bar graph ...................................................................................................125
11.3 Diagnostics via PSI-CONF software ..................................................................128
11.3.1 Recording parameters .......................................................................130

For your safety
3827_en_B PHOENIX CONTACT 5/138
1 For your safety
Read this user manual carefully and keep it to hand for future reference.
1.1 Labeling of warning notes
1.2 Qualification of users
The use of products described in this user manual is oriented exclusively to:
– Qualified electricians or persons instructed by them. The users must be familiar with the
relevant safety concepts of automation technology as well as applicable standards and
other regulations.
– Qualified application programmers and software engineers. The users must be familiar
with the relevant safety concepts of automation technology as well as applicable
standards and other regulations.
This symbol indicates hazards that could lead to personal injury.
There are three signal words indicating the severity of a potential injury.
DANGER
Indicates a hazard with a high risk level. If this hazardous situation is not
avoided, it will result in death or serious injury.
WARNING
Indicates a hazard with a medium risk level. If this hazardous situation is not
avoided, it could result in death or serious injury.
CAUTION
Indicates a hazard with a low risk level. If this hazardous situation is not avoided,
it could result in minor or moderate injury.
This symbol together with the NOTE signal word alerts the reader to a situation
which may cause damage or malfunction to the device, hardware/software, or
surrounding property.
Here you will find additional information or detailed sources of information.

RAD-900-...
6/138 PHOENIX CONTACT 3827_en_B
1.3 Safety notes
The use of antennas with a gain greater than 6 dBi may require that the transmit power be
reduced from the default setting of 30 dBm. Regulations limit the equivalent isotropically-
radiated power (EIRP) to 36 dBm. The EIRP may be calculated as the transmit power (Pt)
minus any cable loss (Lc) plus the antenna gain (Ga).
For example, in the case of a 12 dBi antenna used with a cable run with a 4 dB loss, the
transmit power must be reduced to 28 dBm or less such that the EIRP does not exceed 36
dBm.
1.4 Installation and operation
Follow the installation instructions.
Error-free operation of this device can only be ensured if transport, storage, and assembly
are carried out correctly and operation and maintenance are carried out with care.
When installing and operating the device, the applicable safety directives (including
national safety directives), accident prevention regulations, as well as general technical
regulations, must be observed.
Provide a switch/circuit breaker close to the device that is labeled as the disconnect device
for this device.
Provide overcurrent protection (I < 6A).
Please note that, in combination with antennas, the maximum permissible transmission
power may be exceeded. Please set the transmission power via the software.
EIRP = Pt - Lc + Ga
The PSI-CONF configuration and diagnostic software can be used to configure the
transmit power.
Operation of the wireless system is only permitted if accessories available from
Phoenix Contact are used. The use of other accessory components may invalidate the
device approval status
NOTE:
Installation, operation, and maintenance may only be carried out by qualified specialist
personnel.
WARNING: Risk of electrical shock
During operation, certain parts of this device may carry hazardous voltages. Disregarding
this warning may result in damage to equipment and/or serious personal injury.
NOTE:
Access to circuits within the device is not permitted.
During maintenance work, disconnect the device from all effective power sources.

For your safety
3827_en_B PHOENIX CONTACT 7/138
The radio should not be operated without an antenna or terminating load on the antenna
connector.
1.5 Safety regulations for installation in potentially ex-
plosive areas
Installation in areas with a danger of dust explosions
Installation in Class I, Div. 2 or Zone 2
NOTE:
The IP20 degree of protection (IEC 60529/EN 60529) of the RAD-900-IFS is intended for
a clean and dry environment. Do not subject the device to mechanical and/or thermal
loads that exceed the specified limits.
The RAD-900-DAIO6 provides an IP65 degree of protection.
NOTE:
Prolonged operation without an antenna or terminator may result in damage to the radio.
WARNING:
The device has not been designed for use in potentially dust-explosive atmospheres.
WARNING:
The device is designed for installation in Class I, Division 2/Zone 2 (UL/cUL) potentially
explosive areas. Observe the specified conditions for use in potentially explosive areas.
Install the RAD-900-IFS into a housing (control or distributor box) with at least IP54
protection (EN 60529) and is certified for use in Class I, Div. 2 or Zone 2.
The RAD-900-DAIO6 meets the IP65 degree of protection does not require an additional
housing.
When installing and connecting the supply and signal circuits observe the requirements of
EN 60079-14. Only devices suitable for operation in Ex zone 2 and the conditions at the
application site may be connected to the circuits in zone 2.
In potentially explosive areas, only connect and disconnect cables when the power is
disconnected.
Installation/removal of the devices on/from the TBUS DIN rail connector may only be
performed when no voltage is applied.

RAD-900-...
8/138 PHOENIX CONTACT 3827_en_B
1.6 Conformance
FCC
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment complies with the FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 cm between the radiator and your body.
– FCC certificate: SGV-SHR-900
Industry Canada (IC)
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that
permitted for successful communication.
This device has been designed to operate with the antennas listed in this document and
having a maximum gain of 12 dB. Antennas not included in this list or having a gain greater
than 12 dB are strictly prohibited for use with this device. The required antenna impedance
is 50 .
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than
that necessary for successful communication.
– IC certificate: IC4720C-SHR900
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference, in which case, the user will be
required to correct the interference at his own expense.

Short description
3827_en_B PHOENIX CONTACT 9/138
2 Short description
Radioline is a wireless system for the transmission of analog and digital I/O signals and
serial data. A Radioline network may contain up to 250 stations, and features a self-healing
network topology. The Radioline product family consists of a DIN rail-mounted 900MHz
transceiver, a variety of I/O extension modules for connection to the transceiver, an outdoor
NEMA 4X version with built in I/O, and an RS-485 multiplexer module for expansion of a
wireless I/O system.
2.1 RAD-900-IFS wireless module
In addition to an RS-232 and RS-485 two-wire interface, the RAD-900-IFS wireless module
supports the option of directly connecting up to 32 I/O extension modules in the station
structure via the DIN rail connector.
Addressing of the wireless module and I/O mapping of the extension modules is carried out
quickly and easily by means of the thumbwheel on the front. You can use the yellow
thumbwheel on the wireless module in order to set the RAD ID, and the white thumbwheel
on the extensions modules to set the I/O-MAP address. Programming knowledge is not
required. You can easily start up the wireless network without the need for software.
The PSI-CONF configuration and diagnostic software for special functions and diagnostics
options in the wireless module is available free of charge.
Features
– Flexible network applications: I/O data, serial data, PLC/Modbus RTU mode
– Adjustable data rates for the wireless interface
– Easy point-to-point or network structures (star, mesh)
– Yellow thumbwheel for the unique addressing of wireless modules in the wireless
network
– Integrated RS-232 and RS-485 interface
– Can be extended with up to 32 I/O modules per station via DIN rail connector
(hotswappable)
– 128-bit AES data encryption and authentication
– Unique network addressing via plug-in configuration memory (RAD-CONF) for
secure, parallel operation of multiple networks with different RF bands
– Data rates and ranges can be configured using the PSI-CONF software
– UL/cUL listed for installation in Class I, Div. 2/Zone 2 environments

RAD-900-...
10/138 PHOENIX CONTACT 3827_en_B
2.1.1 Structure
Figure 2-1 RAD-900-IFS structure
Table 2-1 RAD-900-IFS structure
Item Designation
1 RSMA antenna connection (socket)
2 Test output RSSI (0...3 V DC) for evaluation of the wireless signal strength
3 Device supply (+24VDC, 0V)
4 12-pos. programming interface (S-PORT)
5 RAD ID address setting via thumbwheel
6 SET button
7 Connection option for TBUS DIN rail connector
8 DIN rail
9 DIN rail release latch
10 Connection terminal block RS-485 interface
11 Connection terminal block RS-232 interface
12 Relay output with PDT contact (floating)
13 D-SUB 9 connector (RS-232 interface)
14 RS-232/485 serial interface status LED (RX/TX)
15 LED bar graph for displaying the wireless signal strength
16 ERR status LED, red (communication error)
17 DAT status LED, green (BUS communication)
18 PWR status LED, green (supply voltage)

Short description
3827_en_B PHOENIX CONTACT 11/138
Circuit diagram
Figure 2-2 RAD-900-IFS circuit diagram
2.2 RAD-900-DAIO6
The RAD-900-DAIO6 is a NEMA 4X-rated wireless device with one analog input, one
analog output, two digital inputs, and two digital outputs directly integrated. It does not have
a serial interface.
The RAD-900-DAIO6 may be AC- or DC-powered, and addressing of the wireless module
and I/O mapping of the extension modules is carried out quickly and easily by means of the
thumbwheel on the front. You can use the yellow thumbwheel on the wireless module in
order to set both the RAD ID and I/O-MAP address. Programming knowledge is not
required. You can easily start up the wireless network without the need for software. It is
interoperable with the RAD-900-IFS.
The PSI-CONF configuration and diagnostic software for special functions and diagnostics
options in the wireless module is available free of charge.
RF
5.1
5.2
5.3
RX
TX
RS232
GND
4.1
4.2
D(A)
D(B)
RS485
RAD-ID
S-Port
1.2
1.1 +24 V
0 V
2.1
2.2
RSSI+
RSSI-
U
IFS
IFS
µC
6.1
6.2
6.3
NC
1
NO
1
COM
1
DC
DC

RAD-900-...
12/138 PHOENIX CONTACT 3827_en_B
2.2.1 Structure
Figure 2-3 RAD-900-DAIO6 structure
Table 2-2 RAD-900-DAIO6 structure
Item Designation
1 N-type antenna
2 12-pos. programming interface (S-PORT)
3 DIP switches for configuring I/O
4 RAD ID address setting via thumbwheel
5 PWR status LED, green (supply voltage)
6 DAT status LED, green (I/O communication)
7 ERR status LED, red (communication error)
8 SET button
9 LED bar graph for displaying the wireless signal strength
10 Status LEDs of the digital VO
11 Relay output with floating PDT contact
12 Digital input as wide-range input
13 Analog input for 2-, 3-, and 4-wire measuring transducers
14 Analog output (current or voltage)
15 RF link
16 Test output RSSI (0...3 V DC) for evaluation of the wireless signal strength
17 Device supply (+24VDC/120 V AC, 0V/neutral)
18 Fuse
19 Power selection switch
20 Ground lug
21 Internal ground screw
22 Breather
ON-OFF
1 2
DIP
RSSI
ANALOG IN
ANALOG OUT
RF LINK
POWER
DC
FUSE
COM NO NC
DIGITAL OUT 2 DIGITAL OUT 1
DIGITAL IN 2 DIGITAL IN 1
COM NO NCLV HV COMLV HV COM COM NO NC
U I COM PWR +I -I + -+ -
230V
AC
RAD
ID
PWR
DAT
ERR
RF
LINK
SET
D1
D2
S-PORT
4-3-2-1
1
21112
3
4
5
6
7
8
9
10
131415
17
18
19
2021 22 16

Short description
3827_en_B PHOENIX CONTACT 13/138
Circuit diagram
Figure 2-4 RAD-900-DAIO6 circuit diagram
Table 2-3 DIP switches of the RAD-DAIO6-IFS
DIP switch
Setting Output signal 1 2 3 4
Analog IN 0 ... 20 mA OFF
Analog IN 4 ... 20 mA ON
Analog OUT RESET OFF
Analog OUT HOLD ON
Digital OUT1 RESET OFF
Digital OUT1 HOLD ON
Digital OUT2 RESET OFF
Digital OUT2 HOLD ON
µC
RF
S-Port
RAD-ID
RF LINK
RSSI +
RSSI -
V
LOOP
I
+I
1
PWR
1
-I
1
+24VDC/120VAC
0V/N
COM
1
NO
1
NC
COM
NO
NC
1
COM
2
NO
2
NC
2
DI
2L
DI
2H
DI
2
DI
1L
DI
1H
DI
1
U
I
U
1
1
I
1
U

RAD-900-...
14/138 PHOENIX CONTACT 3827_en_B

Description of I/O extension modules
3827_en_B PHOENIX CONTACT 15/138
3 Description of I/O extension modules
Various I/O extension modules are available for setting up the wireless system quickly and
easily. This allows the number and type of I/O signals to be configured for specific
applications.
For a detailed description of the available I/O extension modules, refer to the pages in Table
3-1.
Table 3-1 I/O extension modules
Module type Descriptor Order No. See
page
Analog Four analog inputs RAD-AI4-IFS 2901537 16
Four Pt 100 inputs RAD-PT100-4-IFS 2904035 20
Four analog outputs RAD-AO4-IFS 2901538 28
Digital Four digital inputs RAD-DI4-IFS 2901535 32
Eight digital inputs or
two pulse inputs
RAD-DI8-IFS 2901539 35
Four digital relay
outputs
RAD-DOR4-IFS 2901536 41
Eight digital transistor -
outputs
RAD-DO8-IFS 2902811 45
Analog/digital One analog
input/output, two digital
wide-range -
inputs/outputs
RAD-DAIO6-IFS 2901533 50

RAD-900-...
16/138 PHOENIX CONTACT 3827_en_B
3.1 RAD-AI4-IFS - analog extension module with four
inputs
The analog RAD-AI4-IFS I/O extension module can process up to four input signals
between 0/4 mA ... 20 mA. All inputs are electrically isolated from one another, from the
supply voltage, and from the electronics.
A supply voltage of 12 V DC, minimum, is available at the PWR1connection terminal block
for passive sensors (see Figure 3-1, item 1).
3.1.1 Structure
Figure 3-1 RAD-AI4-IFS structure
Item Designation
1 Analog input 2 for 2-, 3-, 4-wire measuring transducers
2 Analog input 1 for 2-, 3-, 4-wire measuring transducers
3 DIP switches for configuring the analog inputs (current/voltage input)
4 White thumbwheel for setting the I/O-MAP address
5 Connection option for DIN rail connector
6 DIN rail
7 Metal foot catch for DIN rail fixing
8 Analog input 3 for 2-, 3-, 4-wire measuring transducers
9 Analog input 4 for 2-, 3-, 4-wire measuring transducers
10 ERR status LED, red (communication error)
11 DAT status LED, green (bus communication)
12 PWR status LED, green (supply voltage)
IO-MAP RAD-AI4-IFS
PWR
DAT
ERR
1
2
3
4
OFFON
DIP-1
8
8
Pwr
1
Pwr
2
+I
1
+I
2
-I
1
-I
2
Pwr
3
Pwr
4
+I
3
+I
4
-I
3
-I
4
Pwr
1
Pwr
2
+I
1
+I
2
-I
1
-I
2
1
2
3
4
5
7
9
12
11
10
8
6

Description of I/O extension modules
3827_en_B PHOENIX CONTACT 17/138
3.1.2 Basic circuit diagram
Figure 3-2 Basic circuit diagram for the RAD-AI4-IFS
3.1.3 Setting the DIP switches
Using the DIP switches on the front, you can configure the inputs signals (0 mA ... 20 mA or
4 mA ... 20 mA). Any changes in the setting of the DIP switches will be directly applied.
In PLC/Modbus RTU mode, the setting of the input signals is evaluated for error diagnostics.
With the setting 4 mA ... 20 mA, it is, for example, possible to detect an open circuit.
Figure 3-3 DIP switches of the RAD-AI4-IFS
3 Wire
PWR IN
Out
GND
2.1
2.2
2.3
2 Wire
PWR IN
Out
2.1
2.2
4 Wire
Out
GND
U
S
2.2
2.3
IO-MAP
µC
DC
DC
IFS
IFS
3.1
3.2
3.3
I
VLOOP
PWR
2
+I
2
-I
2
4.1
4.2
4.3
VLOOP
PWR
3
+I
3
-I
3
I
2.1
2.2
2.3
VLOOP
PWR
1
+I
1
-I
1
I
5.1
5.2
5.3
VLOOP
PWR
4
+I
4
-I
4
I
-I4+I4PWR4
-I3+I3PWR3
-I2+I2PWR2
-I1+I1PWR1
OFF ON
DIP-1
1
2
3
4
PWR
DAT
ERR
44
3WR3
22
1WR1

RAD-900-...
18/138 PHOENIX CONTACT 3827_en_B
3.1.4 Diagnostic LEDs
The RAD-AI4-IFS I/O extension module uses a total of three LEDs to indicate the operating
states.
Figure 3-4 Diagnostic LEDs of the RAD-AI4-IFS
PWR LED
The green PWR LED indicates the supply voltage status.
DAT LED
The green DAT LED indicates the bus communication status.

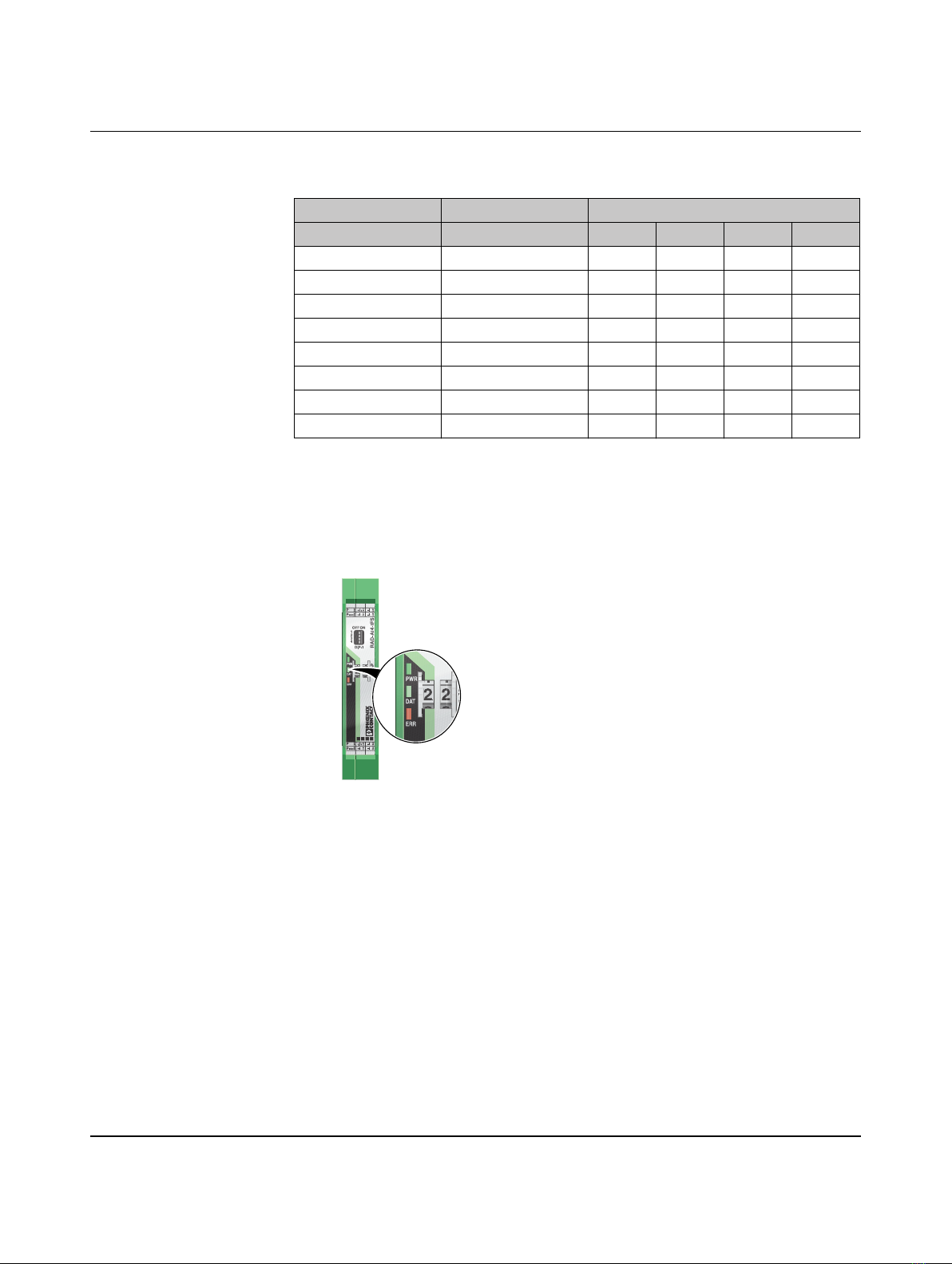

Table 3-2 DIP switches of the RAD-AI4-IFS
DIP switch
Setting Input signal 1 2 3 4
Analog IN1 0 mA ... 20 mA OFF
Analog IN1 4 mA ... 20 mA ON
Analog IN2 0 mA ... 20 mA OFF
Analog IN2 4 mA ... 20 mA ON
Analog IN3 0 mA ... 20 mA OFF
Analog IN3 4 mA ... 20 mA ON
Analog IN4 0 mA ... 20 mA OFF
Analog IN4 4 mA ... 20 mA ON
OFF No supply voltage
ON Supply voltage OK
OFF No communication
Flashing Configuration and addressing mode
ON Cyclic data communication
-I4+I4PWR4
-I3+I3PWR3
-I2+I2PWR2
-I1+I1PWR1
OFF ON
DIP-1
1
2
3
4
PWR
DAT
ERR
44
3WR3
22
1WR1
