Router-PSI-MODEM-3G/ROUTER-2314008
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Industrial UMTS/GSM router (850, 900, 1800, 1900, 2100 MHz) with Ethernet interface. Firewall, NAT and
IPsec VPN support. SMA-F female antenna connector. Sending via SMS. 6 digital inputs, 4 digital outputs.
Configuration via web-based management.
Why buy this product
Configuration via web-based management
Up to three VPN tunnels simultaneously
Starting of VPN via call
Can be used worldwide
2 SIM cards for maximum network availability
High electromagnetic compatibility
Starting of VPN via SMS
Authentication with X.509 certificates
Connection monitoring
Encryption of both SIM card PINs
Firewall
NAT table
10/100 Mbps automatic detection
Autocrossing
UMTS mobile phone network: 850, 1900, and 2100 MHz
Data rates of up to 7.2 Mbps
GSM mobile phone network: 850, 900, 1800, and 1900 MHz
Connection establishment via IP addresses
Key Commercial Data
Packing unit 1 STK
GTIN
GTIN 4046356594387
Weight per Piece (excluding packing) 200.000 g
Custom tariff number 85176200
Country of origin Germany
https://www.phoenixcontact.com/gb/products/2314008
12/23/2016Page2/8
Router-PSI-MODEM-3G/ROUTER-2314008
Note Made to Order (non-returnable)
Technical data
Dimensions
Width 45 mm
Height 99 mm
Depth 114.5 mm
Ambient conditions
Ambient temperature (operation) -25 °C ... 65 °C (not aligned)
Ambient temperature (storage/transport) -40 °C ... 85 °C
Permissible humidity (operation) 30 % ... 95 % (non-condensing)
Permissible humidity (storage/transport) 30 % ... 95 % (non-condensing)
Altitude 5000 m (For restrictions see manufacturer's declaration)
Degree of protection IP20
Noise immunity EN 61000-6-2
General
Electrical isolation VCC // UMTS // Ethernet // PE
Test voltage data interface/data interface 1 kV (50 Hz, 1 min.)
Test voltage data interface/power supply 1 kV (50 Hz, 1 min.)
Electromagnetic compatibility Conformance with R&TTE directive 1999/5/EC
Net weight 200 g
Housing material PA 6.6-FR
Color green
Conformance CE-compliant
UL, USA/Canada cULus listed UL 508
Power supply
Supply voltage range 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
Max. current consumption < 800 mA (At 10 V DC (incl. 4x 50 mA for the outputs))
Typical current consumption < 200 mA (24 V DC)
< 90 mA (stand by)
Serial interface
Interface 1 Ethernet interface, 10/100BASE-T(X) in acc. with IEEE 802.3u
Interface Ethernet
No. of channels 1
Connection method RJ45 socket, shielded
Transmission length 100 m (shielded twisted pair)
Protocols supported TCP/IP, UDP/IP, FTP, HTTP
Auxiliary protocols ARP, DHCP, PING (ICMP), SNMP V1, SMTP
Serial transmission speed 10/100 Mbps, auto negotiation
Radio interface
Interface description GSM / GPRS / EDGE
https://www.phoenixcontact.com/gb/products/2314008
12/23/2016Page3/8
Router-PSI-MODEM-3G/ROUTER-2314008
Technical data
Radio interface
Frequency 850 MHz (2 W (EGSM))
900 MHz (2 W (EGSM))
1800 MHz (1 W (EGSM))
1900 MHz (1 W (EGSM))
850 MHz (0.25 W (UMTS))
1900 MHz (0.25 W (UMTS))
2100 MHz (0.25 W (UMTS))
Transmission power 0.25 W
Data rate ≤ 7.2 Mbps (HSDPA)
≤ 5.7 Mbps (HSUPA)
Antenna 50 Ω impedance SMA antenna socket
SIM interface 1 1.8 volt, 3 volt
SIM interface 2 1.8 volt, 3 volt
GPRS Class 12, Class B
CS1 ... CS4
EDGE Multislot Class 10
UMTS HSPA 3GPP R6
Network function
4 time slots for receiving data, 4 time slots for transmitting data. The PIN
is saved in the modem. After a voltage interruption, there is automatic
redialing into the network. Integrated TCP/IP stack, firewall and VPN
support, independent connection establishment.
Network check LED bar graph to display receive quality
Function
Management Web-based management, SNMP
Digital outputs
Output name Digital output
Number of outputs 4
Voltage output signal 10 V DC ... 30 V DC (depending on the operating voltage)
Current output signal ≤ 50 mA (Short-circuit-proof)
Digital inputs
Description of the input Digital input
Number of inputs 6
Voltage input signal 10 V DC ... 30 V DC
Standards and Regulations
Electromagnetic compatibility Conformance with R&TTE directive 1999/5/EC
Type of test Free fall in acc. with IEC 60068-2-32
Test result 1 m
Type of test Vibration resistance in acc. with EN60068-2-6/IEC60068-2-6
Test result 5g, 10-150 Hz, 2.5 h, in XYZ direction
Type of test Shock in acc. with EN60068-2-27/IEC60068-2-27
https://www.phoenixcontact.com/gb/products/2314008
12/23/2016Page4/8
Router-PSI-MODEM-3G/ROUTER-2314008
Technical data
Standards and Regulations
Test result Operation: 15g, 11 ms period, half-sine shock pulse
Type of test Shock in acc. with EN60068-2-27/IEC60068-2-27
Test result Storage: 30g, 11 ms period, half-sine shock pulse
Noise immunity EN 61000-6-2
Standards/regulations EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN61000-4-6
Conformance CE-compliant
UL, USA/Canada cULus listed UL 508
Environmental Product Compliance
China RoHS Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Connection diagram
24V 0V I1 I2
NET
3G
PD
SIM1
SIM2
PSI-MODEM-3G/ROUTER
Ord.-No.2314008
POWER
VPN
ALR
LAN
RESET ANT
Device connections
Connection diagram
24V 0V I1 I2
–
+
Switching inputs
https://www.phoenixcontact.com/gb/products/2314008
12/23/2016Page5/8
Router-PSI-MODEM-3G/ROUTER-2314008
Dimensional drawing
NET
3G
PD
SIM1
SIM2
PSI-MODEM-3G/ROUTER
Ord.-No.2314008
POWER
VPN
ALR
LAN
RESET ANT
45
99
114,5
Schematic diagram
NET
3G
PD
SIM1
SIM2
PSI-MODEM-3G/ROUTER
Ord.-No.2314008
POWER
VPN
ALR
LAN
RESET ANT
1 2
3
4
5
6
2
Front view
Schematic diagram
A
B
Insert the SIM card
Schematic diagram
D
C
Insert the SIM card
https://www.phoenixcontact.com/gb/products/2314008
12/23/2016Page6/8
Router-PSI-MODEM-3G/ROUTER-2314008
Schematic diagram
24V 0V I1 I2
NET
3G
PD
SIM1
SIM2
PSI-MODEM-3G/ROUTER
Ord.-No.2314008
POWER
VPN
ALR
LAN
RESET ANT

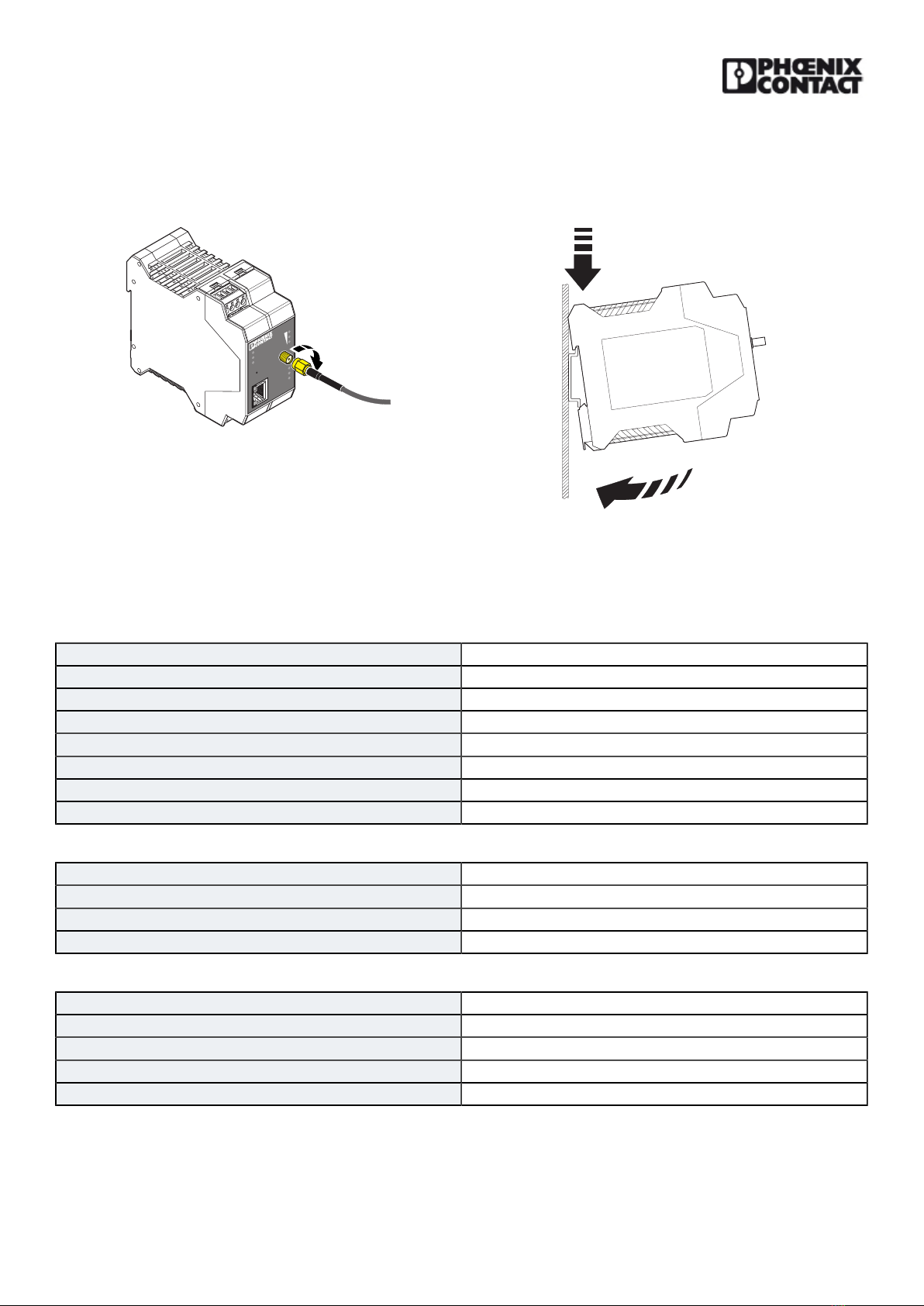

Connect the antenna
Schematic diagram
Assembly
Classifications
eCl@ss
eCl@ss 4.0 27230207
eCl@ss 4.1 27230207
eCl@ss 5.0 27230207
eCl@ss 5.1 27230207
eCl@ss 6.0 27230207
eCl@ss 7.0 27230207
eCl@ss 8.0 19170103
eCl@ss 9.0 19170103
ETIM
ETIM 3.0 EC000310
ETIM 4.0 EC000740
ETIM 5.0 EC001478
ETIM 6.0 EC001478
UNSPSC
UNSPSC 6.01 30211506
UNSPSC 7.0901 39121008
UNSPSC 11 39121008
UNSPSC 12.01 39121008
UNSPSC 13.2 43222609
https://www.phoenixcontact.com/gb/products/2314008
12/23/2016Page7/8
Router-PSI-MODEM-3G/ROUTER-2314008
Accessories
Accessories
Antenna
Antenna-PSI-GSM/UMTS-QB-ANT-2313371
GSM UMTS antenna, with omnidirectional characteristic, 2 m antenna cable with SMA round connector
Antenna-TC ANT MOBILE WALL 5M-2702273
Multiband mobile phone antenna with mounting bracket for outdoor installation. 5 m antenna cable with SMA round
plug
Coaxial cable
Antenna cable-PSI-CAB-GSM/UMTS- 5M-2900980
GSM/UMTS antenna cable, 5 m long; SMA (male) -> SMA (female), 50 Ohm impendence
Antenna cable-PSI-CAB-GSM/UMTS-10M-2900981
GSM/UMTS antenna cable, 10 m long; SMA (male) -> SMA (female), 50 Ohm impendence
Surge protection for transceiver systems
Surge protection device-CSMA-LAMBDA/4-2.0-BS-SET-2800491
Attachment plug with Lambda/4 technology as surge protection for coaxial signal interfaces. Connection: Male/female
SMA connectors.
