Overview

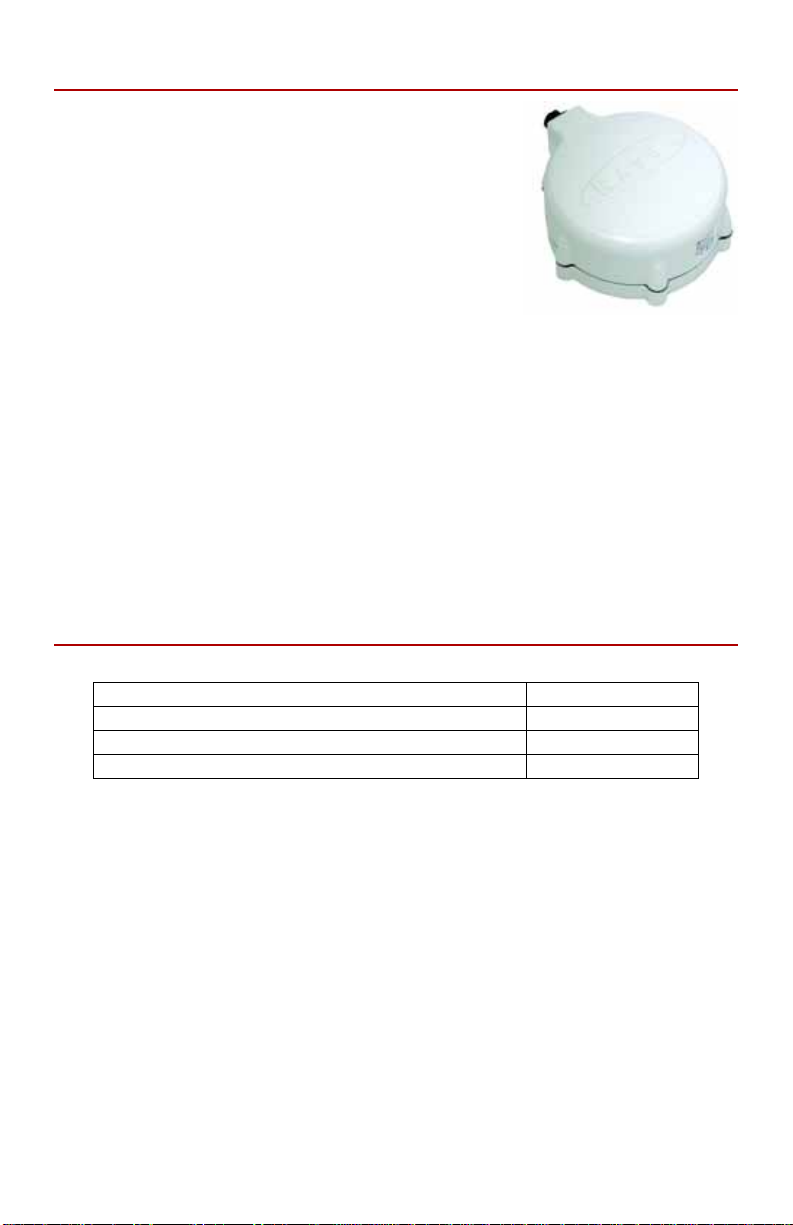

The Raven Phoenix 10™ is a compact GPS speed
sensor unit which is designed to output a simulated
radar speed signal to a rate control console or field
computer.
The Phoenix 10 is easy to install and in most cases
may be set up and ready for operation within a half
hour. This guide has been prepared to assist with
installation and initial set up of the Phoenix 10 speed
sensor.
Common Sources of GPS
Interference
GPS is a line of sight system which means that the Phoenix 10 requires an
unobstructed view of the sky during operation in order to provide a speed
signal. Please be aware of the following sources of interference commonly
encountered when installing and operating a GPS based system.
Installation
Table 1: Phoenix 10 Kit Contents
Refer to the following steps for best practices for mounting the Phoenix 10
speed sensor.
Note: Do not permanently mount or route cabling until setup is complete and
the speed sensor is working properly.
1. Select a location to mount the Phoenix 10 speed sensor. The antenna
should be mounted on the tallest point of the vehicle (usually on top of the
vehicle cabin) using the magnetic mount. Make sure that the antenna has
a clear 360° view of the sky.
2. Connect the 4-pin connector to the Phoenix 10 and route the cable into the
vehicle cabin. Route the cable to avoid tripping hazards and avoid pinch
points which could damage or break the cable.
3. Connect the 3-pin connector to the radar speed input connector or port for
the rate control console or field computer.
• Electrical Motors • Buildings
• Generators • Trees
• Alternators • Overhead Power Lines
• Radio Transmitters • Implement and Cabin Structures
• Radar • Transmitting Antennas or Towers
Description Part Number
Guide, Phoenix 10 Installation and Operation 016-0171-215
Sensor, Phoenix 10 Speed 063-0172-988
Cable, 15’ [4.5 m] Interface 115-0171-817

Manual No. 016-0171-215 Rev. B 3
Power Connections
Note: The Phoenix 10 speed sensor requires between 9 and 16 volts DC
power for operation. Verify that the vehicle has a negative ground
system before connecting the Phoenix 10 receiver.
1. Route the red and white power leads to a source of clean, controlled 12
volt DC power.
2. Connect the red lead wire (with 5 A fuse) to clean, switched power source.
3. Connect the white lead wire to negative or ground.
Initial Power Up
The following procedure is recommended for the first time the Phoenix 10 is
powered up. This process is only necessary during the initial operation of the
speed sensor and will help to identify and minimize possible sources of
interference.
GPS Initialization
When connected to an active power source for the first time, the Phoenix 10
will begin scanning for a satellite broadcast. During this initial start up, the
sensor may take up to 15 minutes to initialize and begin outputting valid
speed information.
Note: To help ensure the shortest possible start up time, move the vehicle
outside and away from the sources of interference listed in the
Common Sources of GPS Interference section on page 2.
During subsequent power up sequences, the Phoenix 10 should begin
outputting radar speed signals after approximately 20 seconds.
Verifying Operation
1. Turn off all radio and GPS equipment on the machine.
2. Connect the Phoenix 10 power leads as described in the Installation
section on page 2.
Allow several minutes for the speed sensor to obtain a signal.
3. On the Raven rate control console or field computer, set the speed sensor
type to “SP2/Radar” and enter an initial speed cal value of 785. Refer to
the Raven console instruction manual for details on setting the speed
sensor type and speed cal value.
Note: For non-Raven consoles, refer to the instructions provided with the
console for information on setting the speed cal value and associated
settings.
4. Check the Phoenix 10 initialization every few minutes by driving the vehicle
forward. When a speed is registered on the rate control console or field
computer, the speed sensor is tracking satellites and generating radar
speed information.
5. Begin checking for sources of interference by powering on other radio or
GPS systems one at a time while driving forward. Wait about 30 seconds
after each device is powered on and monitor the speed display on the
console.
If the console or field computer stops displaying speed information, the last
device powered on may be causing interference with the Phoenix 10.

4 Phoenix 10 Installation and Operation Guide
6. To minimize interference, try moving the Phoenix 10 away from the device
or antennas used with the system. If the console still does not display
speed, check the cable and power connections for the system or device
and verify that the system is functioning properly.
7. Once all radio and GPS equipment is powered up, continue driving the
vehicle and monitor the speed display on the console for a short period.
8. If no further problems are encountered, power down the vehicle and all
equipment. Mount the speed sensor securely and route the cable to avoid
tripping hazards and pinch points which may damage or break the cable.
9. Finally, repeat the power up steps to verify operation and complete the
installation.
Specifications
Phoenix 10 Speed Sensor
4-Pin Conxall Connector
Size 2.1” x 5.09”
Weight 18 oz. [0.51 kg]
Mounting Magnetic
Operating Temperature -40° to 158° F [-40° to 70° C]
Storage Temperature -40° to 176° C [-40° to 80° C]
Operating Humidity 5% to 95% R.H.
Non-condensing at 140° F [60° C]
Storage Humidity 100% Condensing
Power Consumption 2-3 Watts (Typical)
Voltage 9-16 VDC
Radar Out 45 Hz/mph
Radar Update Rate 4 Hz
Minimum Speed Output 0.5 mph [.8 km/h]
Minimum
Recommended
Operating Speed 2 mph [3.2 km/h]
Pin
Number Description
1 +12 VDC
2 Signal Ground
3 Ground
4 Radar
