Congratulations on choosing the Roger EasyPen from
Phonak. This universal, cutting-edge wireless microphone
helps people with a hearing loss to understand more
speech in loud noise and over distance. Designed with
discretion in mind, the Roger EasyPen features adaptive
wireless transmission, fully automated settings, TV
connectivity, and an audio input for listening to
multimedia. It can also be used alongside other Roger
Clip-On Mics, Roger Pens and Roger EasyPens in a
microphone network.
Your Roger EasyPen is a Swiss premium-quality product
developed by Phonak, the world’s leading hearing
healthcare company.
1. Welcome

5
Please read this User Guide thoroughly to benet from
all the possibilities your Roger EasyPen oers.
If you have any questions, please consult your hearing
care professional or local Phonak support center.
Phonak – life is on www.phonak.com

2.1 In the box
2. Getting to know your Roger
EasyPen
Roger EasyPen
Storage pouch
Docking station
Lanyard
Power supply with
country adapter and
charging cable
Quick Setup Guide
Audio cable
for docking station
micro-USB audio
cable (suitable for
traveling)
RCA / Cinch adapter
for TV or HiFi
6

7
2.2 How your Roger EasyPen works
Roger EasyPen transmits the speaker’s voice directly into
your ears. The system consists of three main elements:
your hearing aids, Roger receivers and your Roger
EasyPen.
Your Roger EasyPen and your hearing aid typically work
within a range of up to 10 meters / 33 feet. Note that
human bodies and walls may reduce this distance. The
furthest range is possible when you can see your Roger
EasyPen (i.e. line of sight).
SpeakerListener
Roger
EasyPen
Hearing
aid with
Roger
receiver

8
2.3 Device descriptions
Roger EasyPen
Docking station
c
b
aaSlot for Roger EasyPen
bCharger input (micro-USB)
cAudio input (3.5 mm /
1/8 inch jack)
2. Getting to know your Roger EasyPen
e
b
c
d
aaIndicator light (LED)
bMicrophones
cOn / O / Mute
dConnect
eCharging and audio input
(micro-USB)

9
2.4 Indicator lights (LED status)
Indicator light
Meaning
Switched on
Switching off
Audio input detected
Microphone /audio input muted
Charging
Fully charged
Low battery – charge your Roger EasyPen
Your Roger microphone cannot detect
the primary Roger microphone. Switch
on the primary Roger microphone and
make sure it is within range of your
Roger microphone. Alternatively, if you
don’t want to use your Roger EasyPen in
a microphone network, press 7 seconds
on the connect button until the LED
turns orange. After that, you have to
reconnect the Roger EasyPen with your
Roger receiver(s).

2.
3.
10
US EU UK AUS
3. Getting started
3.1 Setting up the docking station
The Roger EasyPen docking station is used to both
recharge the microphone and transmit audio from a TV or
other audio device to the Roger EasyPen (and into your
hearing aids).
Setting up the power supply
1. Select the power adapter that corresponds to your
country.
2. Insert the top (round) end of the
adapter in the top end of the
universal power supply.
3. Click the base of the adapter in to
lock it into place.

a.
b.
2.
3.
1.
11
Remove / Change:
a. Pull back the tab on the universal
power supply.
b. Gently pull the adapter upwards to
remove it.
c. Start over with step 1 (opposite).
Connecting the power supply to the docking station
1. Place the docking station next to your TV /audio device
and connect the smaller end of the charging cable to
the power input of the docking station .
2. Plug the larger end of the charging cable into the
universal power supply.
3. Plug the power supply into an easily accessible power
socket.

2.
1.
12
Connecting the docking station to a TV / audio device
1. Plug the audio cable
into the audio input of
the docking station:
2. Connect the other end
of the audio cable to
the headphone output
of your TV / audio
device.
Alternatively, connect the
other end of the audio
cable to your TV’s Cinch /
RCA adapter. Connect the
red and white plugs to the
matching red and white
output sockets on your TV.
3. Getting started

13

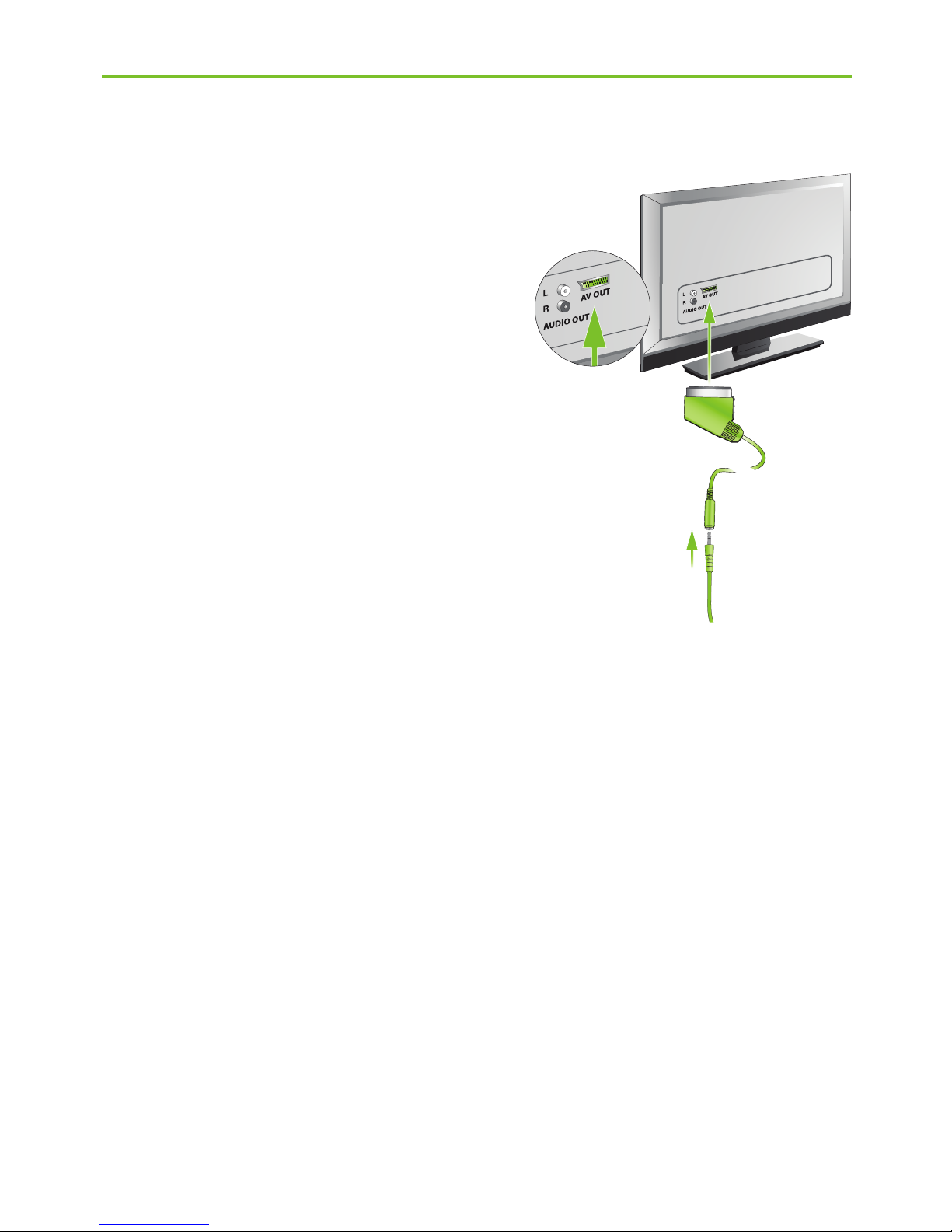

You can also connect via a
SCART adaptor, which can be
bought from an electronics
store or from your Phonak
dealer.
Connect the other end of the
audio cable to the SCART
adapter.
Then plug the SCART adapter
into a free SCART output
socket on your TV.
If your TV does not include an analog audio output, you
need a digital to analog converter. Such converters can be
found in electronics stores or may be purchased from
your Phonak dealer.

14
When the docking station is plugged into the headset
socket of your TV, you can adjust the volume via your
TV’s remote control.
Some TVs will switch o their loudspeakers when you
plug the jack into the headset socket – meaning
the TV will not be audible for other people. In such
cases use the Cinch / RCA or SCART output socket as
described overleaf.
The Roger EasyPen docking station can also be
connected to any other audio device such as an MP3
player, PC or HiFi system using the audio cable.
3. Getting started

15
3.2 Charging your Roger EasyPen
Roger EasyPen contains a
built-in lithium polymer
battery with fast-charge
capability.
To charge your Roger EasyPen,
slot it into the docking
station. The indicator light
will turn orange to
indicate it is charging.
Insert the device into the docking station as
indicated. Incorrect insertion may damage the device.
An empty battery will reach its maximum charge in
approximately 2 hours. Charging is complete when the
indicator light turns solid green.
When charging your Roger EasyPen for the rst time,
let it charge for at least two hours, even if the battery
indicator light is not lit or turns green earlier.

3.
1.
2.
16
Alternatively, you can also charge your Roger EasyPen
without the docking station. This may be useful when
traveling.
Using the micro-USB cable:
1. Plug the smaller end (micro-USB) of the charging cable
into your Roger EasyPen.
2. Plug the larger end (USB) of the charging cable into the
power supply.
3. Plug the power supply into an easily accessible power
socket.
3. Getting started

17
You can also charge your Roger EasyPen by using the
charging cable to connect your Roger EasyPen to one
of your computer’s USB ports.
If you connect the charging cable to your computer’s
USB port and the docking station at the same time,
your Roger EasyPen will not charge.
Indicator lights (battery status)
Indicator light Meaning
Charging
Fully charged
Low battery – charge your Roger
EasyPen. In addition, you will hear
beeps in your hearing aids.

18
3.3 Switching on and off
To switch your Roger EasyPen on, press the on /o
button for one second until the indicator light turns
green.
3. Getting started
Meaning
Powering on
Switched on
Indicator light (Switching on)
Indicator light

19
3.4 Using Roger receivers
Using Roger MyLink
If your Roger receiver is a
Roger MyLink, switch your
Roger MyLink on and hang
it around your neck.
Make sure your hearing aids
are set to T / MT / T-Coil mode.
The Roger MyLink User Guide provides more detailed
information on using Roger MyLink.
Using Roger receivers attached to your hearing aids
If you have Roger receivers
that attach directly to your
hearing aids, make sure these
are properly attached and
each hearing aid is set to its
Roger / FM / DAI / EXT / AUX
program.

0-10 cm /
0-4 inches
20
3.5 Connecting a receiver
Your hearing care professional may already have
connected your Roger EasyPen to your hearing aids. If
this is not the case, connect your receiver to your Roger
EasyPen as follows:
1. Make sure Roger EasyPen and the Roger receiver are
both powered on.
2. Hold Roger EasyPen within 10 cm / 4 inches of the
Roger receiver.
3. Press the Connect button on your Roger EasyPen.
3. Getting started
