Photon Focus MV1-D1312I CameraLink User manual

User Manual
MV1-D1312(I) CameraLink®Series
CMOS Area Scan Camera
MAN041 09/2010 V2.5

All information provided in this manual is believed to be accurate and reliable. No
responsibility is assumed by Photonfocus AG for its use. Photonfocus AG reserves the right to
make changes to this information without notice.
Reproduction of this manual in whole or in part, by any means, is prohibited without prior
permission having been obtained from Photonfocus AG.
1

2

Contents
1 Preface 7
1.1 AboutPhotonfocus...................................... 7
1.2 Contact............................................. 7
1.3 SalesOffices .......................................... 7
1.4 Furtherinformation...................................... 7
1.5 Legend ............................................. 8
2 How to get started (CameraLink®) 9
3 Product Specification 13
3.1 Introduction .......................................... 13
3.2 FeatureOverview ....................................... 14
3.3 TechnicalSpecification .................................... 15
3.4 Frame Grabber relevant Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.4.1 3TapMode ...................................... 21
4 Functionality 23
4.1 ImageAcquisition....................................... 23
4.1.1 ReadoutModes .................................... 23
4.1.2 ReadoutTiming.................................... 25
4.1.3 ExposureControl ................................... 28
4.1.4 MaximumFrameRate ................................ 28
4.2 PixelResponse......................................... 29
4.2.1 LinearResponse.................................... 29
4.2.2 LinLog®......................................... 29
4.3 ReductionofImageSize ................................... 34
4.3.1 Region of Interest (ROI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.3.2 ROIconfiguration................................... 39
4.3.3 Calculation of the maximum frame rate . . . . . . . . . . . . . . . . . . . . . . 39
4.3.4 Multiple Regions of Interest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4.3.5 Decimation....................................... 45
4.4 TriggerandStrobe ...................................... 48
4.4.1 Introduction ...................................... 48
4.4.2 TriggerSource..................................... 48
4.4.3 Exposure Time Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
4.4.4 TriggerDelay...................................... 52
4.4.5 BurstTrigger...................................... 52
4.4.6 SoftwareTrigger ................................... 53
4.4.7 StrobeOutput..................................... 53
4.5 DataPathOverview...................................... 56
4.6 ImageCorrection ....................................... 57
4.6.1 Overview........................................ 57
CONTENTS 3

CONTENTS
4.6.2 Offset Correction (FPN, Hot Pixels) . . . . . . . . . . . . . . . . . . . . . . . . . 57
4.6.3 GainCorrection .................................... 59
4.6.4 CorrectedImage.................................... 60
4.7 DigitalGainandOffset.................................... 62
4.8 Grey Level Transformation (LUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
4.8.1 Gain........................................... 62
4.8.2 Gamma......................................... 64
4.8.3 User-defined Look-up Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
4.8.4 Region LUT and LUT Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
4.9 Convolver............................................ 68
4.9.1 Functionality...................................... 68
4.9.2 Settings......................................... 68
4.9.3 Examples........................................ 68
4.10Crosshairs............................................ 71
4.10.1Functionality...................................... 71
4.11 Image Information and Status Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.11.1 Counters and Average Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.11.2StatusLine ....................................... 73
4.12TestImages........................................... 75
4.12.1Ramp .......................................... 75
4.12.2LFSR........................................... 75
4.12.3 Troubleshooting using the LFSR . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
4.13 Configuration Interface (CameraLink®) .......................... 78
5 Hardware Interface 79
5.1 Connectors........................................... 79
5.1.1 CameraLink®Connector ............................... 79
5.1.2 PowerSupply ..................................... 79
5.1.3 Trigger and Strobe Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
5.1.4 Status Indicator (CameraLink®cameras)...................... 81
5.2 CameraLink®DataInterface................................. 81
6 The PFRemote Control Tool 83
6.1 Overview............................................ 83
6.2 PFRemoteandPFLib ..................................... 83
6.3 OperatingSystem....................................... 83
6.4 InstallationNotes ....................................... 83
6.5 Graphical User Interface (GUI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
6.5.1 PortBrowser...................................... 84
6.5.2 Ports, Device Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.5.3 MainButtons ..................................... 86
6.6 DeviceProperties ....................................... 86
7 Graphical User Interface (GUI) 87
7.1 MV1-D1312(I)-40, MV1-D1312(I)-80, MV1-D1312(I)-160 and MV1-D1312-240 . . . . . 87
7.1.1 Exposure ........................................ 88
7.1.2 Window ........................................ 89
7.1.3 Trigger ......................................... 91
7.1.4 DataOutput...................................... 93
7.1.5 Data Output (MV-D1312-240 only) . . . . . . . . . . . . . . . . . . . . . . . . . 94
7.1.6 LUT(Look-Up-Table) ................................. 95
7.1.7 LinLog.......................................... 97
7.1.8 Convolver........................................ 98
4

7.1.9 Correction ....................................... 99
7.1.10Info ...........................................101
8 Mechanical and Optical Considerations 103
8.1 MechanicalInterface .....................................103
8.1.1 MV1 cameras with CameraLink®Interface.....................103
8.1.2 Board Level cameras with CameraLink®Interface . . . . . . . . . . . . . . . . 104
8.2 OpticalInterface........................................105
8.2.1 CleaningtheSensor..................................105
8.3 Compliance...........................................107
9 Warranty 109
9.1 WarrantyTerms ........................................109
9.2 WarrantyClaim ........................................109
10 References 111
A Pinouts 113
A.1 PowerSupplyConnector...................................113
A.2 CameraLink®Connector ...................................114
B Revision History 117
CONTENTS 5

CONTENTS
6

1
Preface
1.1 About Photonfocus
The Swiss company Photonfocus is one of the leading specialists in the development of CMOS
image sensors and corresponding industrial cameras for machine vision, security & surveillance
and automotive markets.
Photonfocus is dedicated to making the latest generation of CMOS technology commercially
available. Active Pixel Sensor (APS) and global shutter technologies enable high speed and
high dynamic range (120 dB) applications, while avoiding disadvantages like image lag,
blooming and smear.
Photonfocus has proven that the image quality of modern CMOS sensors is now appropriate
for demanding applications. Photonfocus’ product range is complemented by custom design
solutions in the area of camera electronics and CMOS image sensors.
Photonfocus is ISO 9001 certified. All products are produced with the latest techniques in order
to ensure the highest degree of quality.
1.2 Contact
Photonfocus AG, Bahnhofplatz 10, CH-8853 Lachen SZ, Switzerland
Sales Phone: [phone] Email: [email protected]
Support Phone: [phone] Email: [email protected]
Table 1.1: Photonfocus Contact
1.3 Sales Offices
Photonfocus products are available through an extensive international distribution network
and through our key account managers. Details of the distributor nearest you and contacts to
our key account managers can be found at www.photonfocus.com.
1.4 Further information
Photonfocus reserves the right to make changes to its products and documenta-
tion without notice. Photonfocus products are neither intended nor certified for
use in life support systems or in other critical systems. The use of Photonfocus
products in such applications is prohibited.
Photonfocus is a trademark and LinLog®is a registered trademark of Photonfo-
cus AG. CameraLink®and GigE Vision®are a registered mark of the Automated
Imaging Association. Product and company names mentioned herein are trade-
marks or trade names of their respective companies.
7

1 Preface
Reproduction of this manual in whole or in part, by any means, is prohibited
without prior permission having been obtained from Photonfocus AG.
Photonfocus can not be held responsible for any technical or typographical er-
rors.
1.5 Legend
In this documentation the reader’s attention is drawn to the following icons:
Important note
Alerts and additional information
Attention, critical warning
✎
Notification, user guide
8

2
How to get started (CameraLink®)
1. Install a suitable frame grabber in your PC.
To find a compliant frame grabber, please see the frame grabber compatibility
list at www.photonfocus.com.
2. Install the frame grabber software.
✎
Without installed frame grabber software the camera configuration tool PFRe-
mote will not be able to communicate with the camera. Please follow the in-
structions of the frame grabber supplier.
3. Remove the camera from its packaging. Please make sure the following items are included
with your camera:
• Power supply connector (7-pole power plug)
• Camera body cap
If any items are missing or damaged, please contact your dealership.
4. Remove the camera body cap from the camera and mount a suitable lens.
When removing the camera body cap or when changing the lens, the camera
should always be held with the opening facing downwards to prevent dust or
debris falling onto the CMOS sensor.

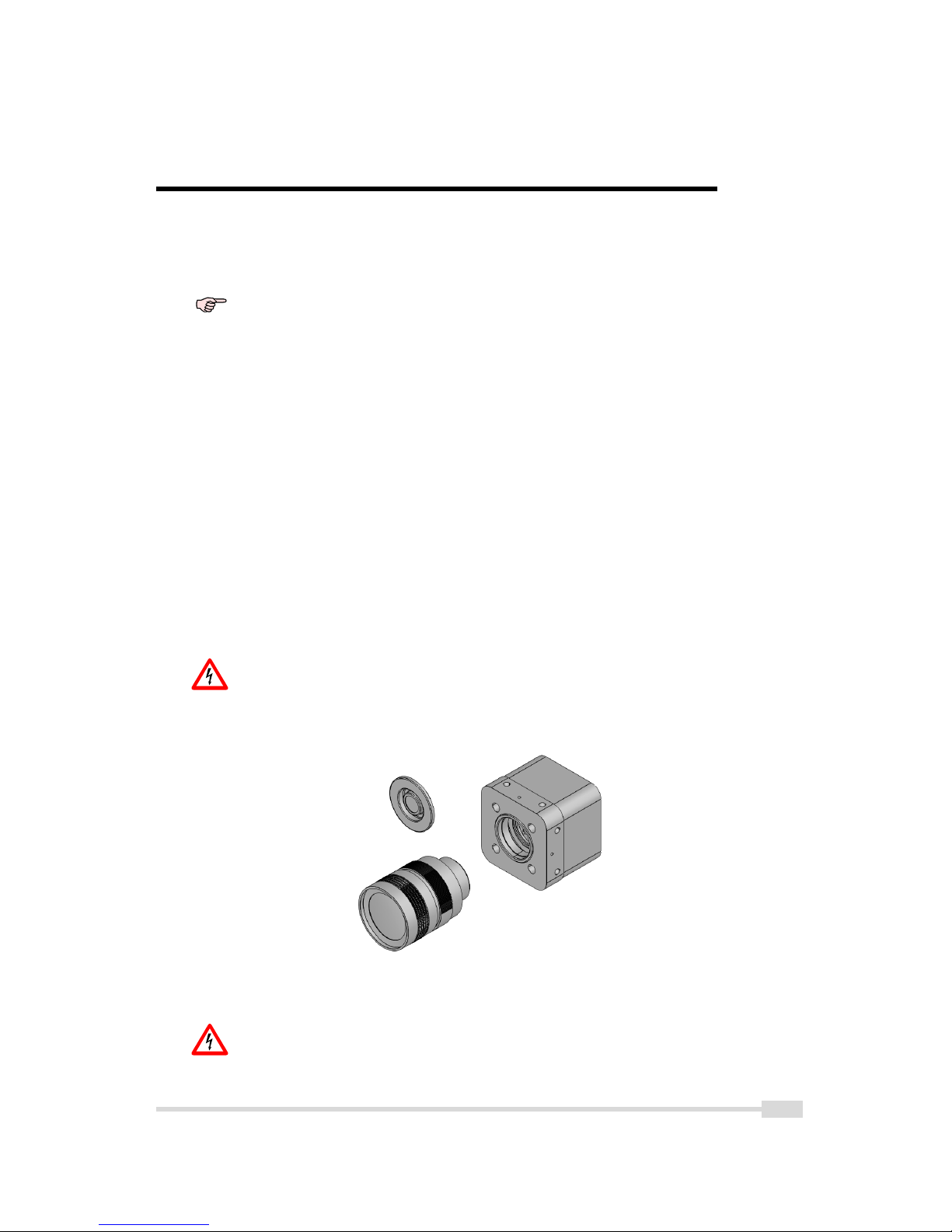

Figure 2.1: Camera with protective cap and lens.
Do not touch the sensor surface. Protect the image sensor from particles and
dirt!
9

2 How to get started (CameraLink®)
The sensor has no cover glass, therefore dust on the sensor surface may resemble
to clusters or extended regions of dead pixel.
To choose a lens, see the Lens Finder in the ’Support’ area at
www.photonfocus.com.
5. Connect the camera to the frame grabber with a suitable CameraLink®cable (see Fig. 2.2).
CameraLink®cables can be purchased from Photonfocus directly (www.photonfocus.com).
Please note that Photonfocus provides appropriate solutions for your advanced vision
applications.

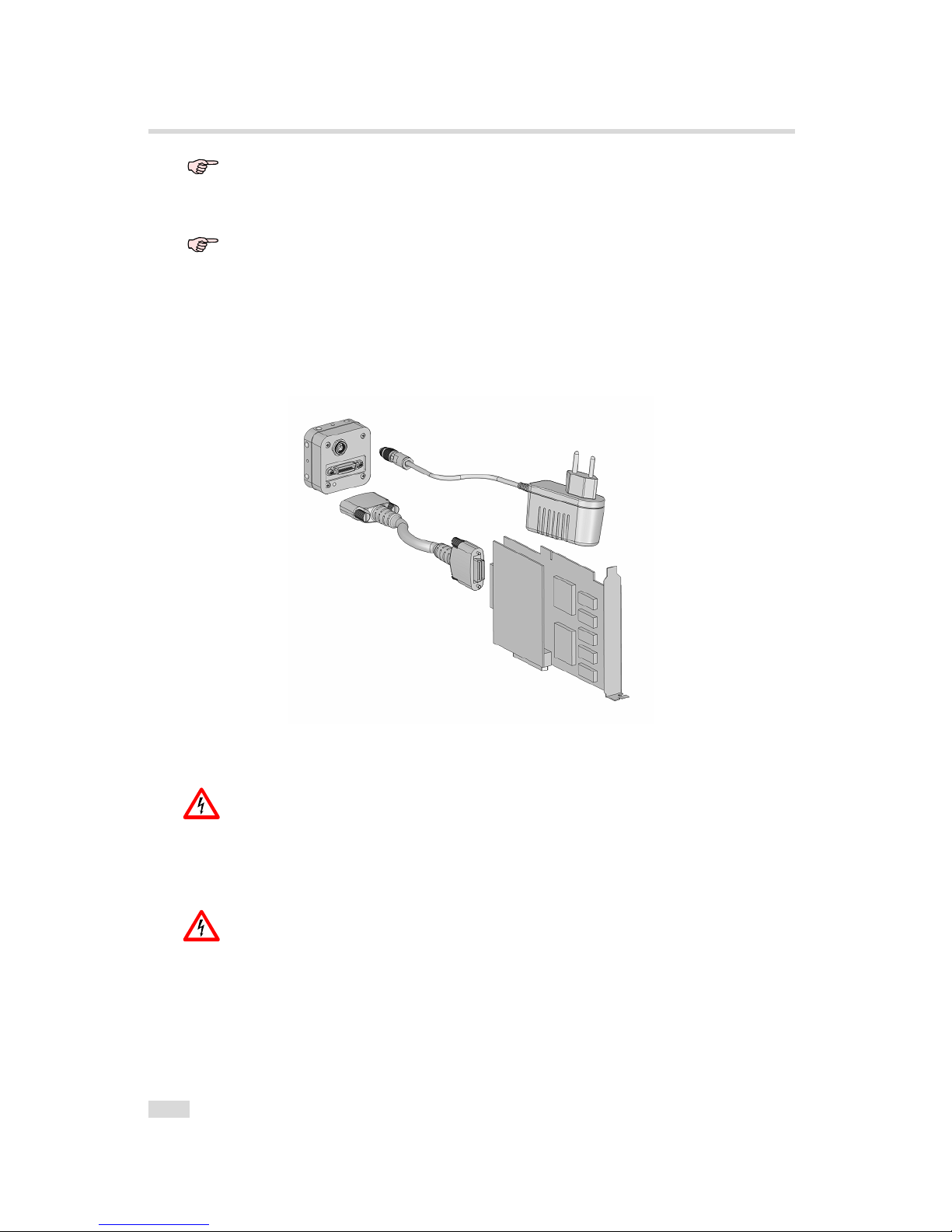

Figure 2.2: Camera with frame grabber, power supply and cable.
Do not connect or disconnect the CameraLink®cable while camera power is on!
For more information about CameraLink®see Section 4.13.
6. Connect a suitable power supply to the provided 7-pole power plug. For the connector
assembly see Fig. A.1. The pinout of the connector is shown in Appendix A.
Check the correct supply voltage and polarity! Do not exceed the maximum
operating voltage of +12V DC (±10%).
7. Connect the power supply to the camera (see Fig. 2.2).
✎
The status LED on the rear of the camera will light red for a short moment, and
then flash green. For more information see Section 5.1.4.
10

8. Download the camera software PFRemote to your computer.
You can find the latest version of PFRemote on the support page at
www.photonfocus.com.
9. Install the camera software PFRemote. Please follow the instructions of the PFRemote
setup wizard.

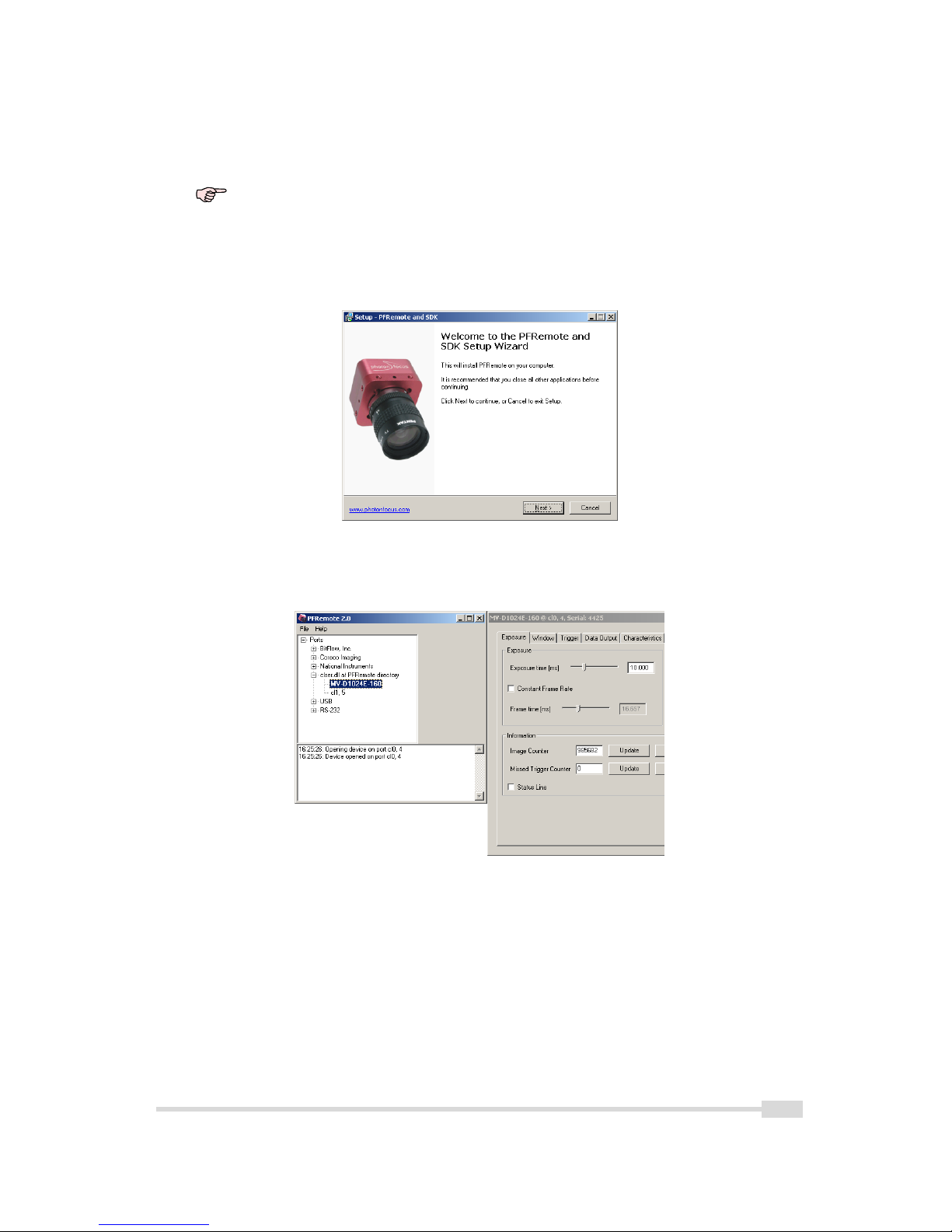

Figure 2.3: Screen shot PFremote setup wizard
10. Start the camera software PFRemote and choose the communication port.
Figure 2.4: PFRemote start window
11. Check the status LED on the rear of the camera.
✎
The status LED lights green when an image is being produced, and it is red when
serial communication is active. For more information see Section 5.1.4.
12. You may display images using the software that is provided by the frame grabber
manufacturer.
11

2 How to get started (CameraLink®)
12

3
Product Specification
3.1 Introduction
The MV1-D1312(I) and BL1-D1312(I) CMOS camera series are built around the monochrome
A1312(I) CMOS image sensor from Photonfocus, that provides a resolution of 1312 x 1082
pixels at a wide range of spectral sensitivity. It is aimed at standard applications in industrial
image processing. The MV1-D1312(I) and BL1-D1312(I) CMOS camera series are identicaly with
the exception of the camera housing. For the sake of readability the simultaneous use of MV1
and BL1 is omitted. All specification apply to both camera series.
The principal advantages are:
• Resolution of 1312 x 1082 pixels (1248 x 1082 for MV1-D1312-240).
• Wide spectral sensitivity from 320 nm to 1030 nm.
• Enhanced near infrared (NIR) sensitivity with the A1312I CMOS image sensor.
• High quantum efficiency (> 50%).
• High pixel fill factor (> 60%).
• Superior signal-to-noise ratio (SNR).
• Low power consumption at high speeds.
• Very high resistance to blooming.
• High dynamic range of up to 120 dB.
• Ideal for high speed applications: Global shutter.
• Greyscale resolution of up to 12 bit (8 bit for MV1-D1312-240).
• On camera shading correction.
• 3x3 Convolver for image pre-processing included on camera.
• Up to 512 regions of interest (MROI).
• 2 look-up tables (12-to-8 bit) on user-defined image region (Region-LUT).
• Crosshairs overlay on the image.
• Image information and camera settings inside the image (status line).
• Software provided for setting and storage of camera parameters.
• The camera has a digital CameraLink®interface.
• The compact size of 60 x 60 x 45 mm3makes the MV1-D1312(I) CMOS cameras the perfect
solution for applications in which space is at a premium.
The general specification and features of the camera are listed in the following sections.
This manual applies only to MV1-D1312(I) cameras with revision 2.0 or higher.
The camera revision information is displayed as uC Revision in the Info tab of the
PFRemote application.
.
13

3 Product Specification

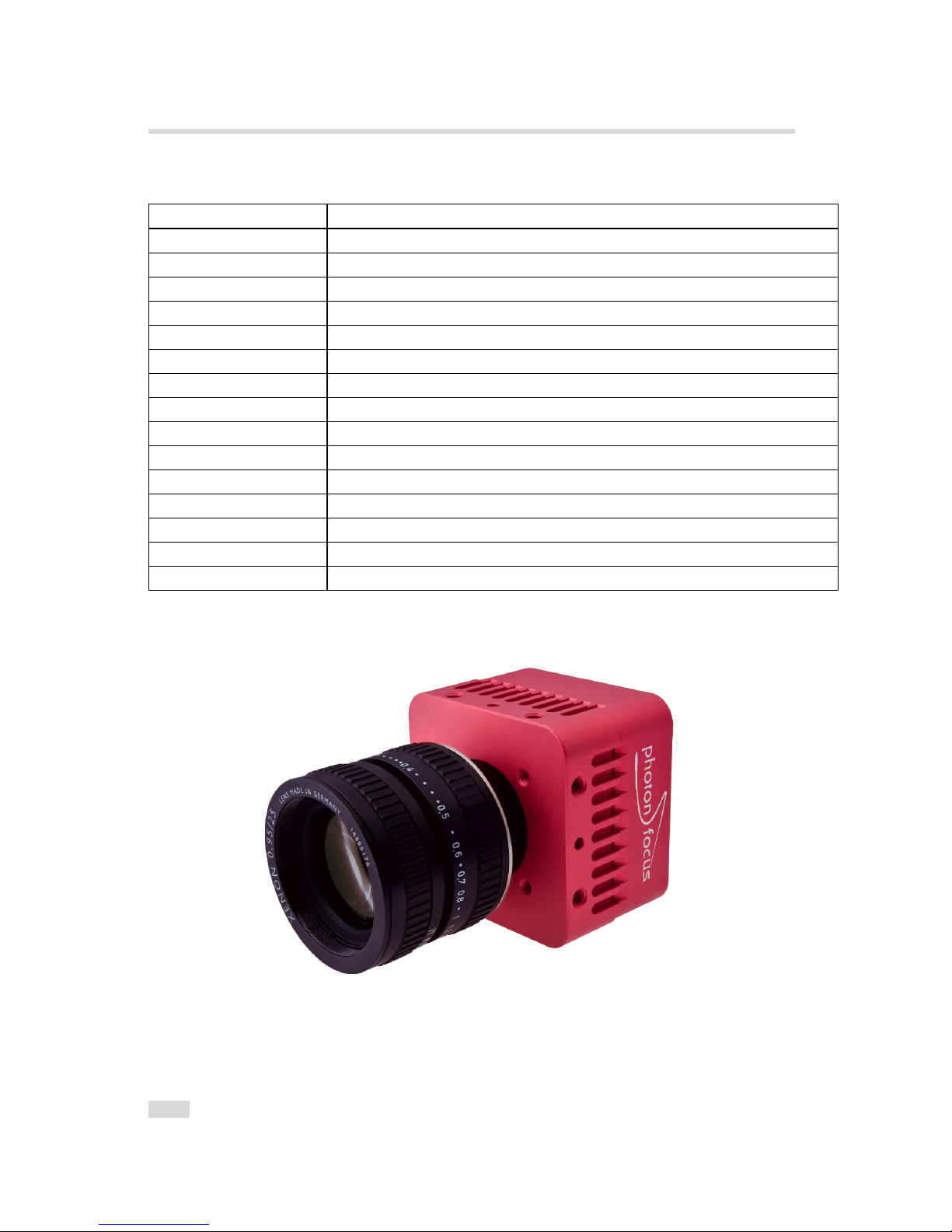

3.2 Feature Overview
Characteristics MV1-D1312(I) Series
Interfaces CameraLink®base configuration
Camera Control PFRemote (Windows GUI) or programming library
Configuration Interface CLSERIAL (9’600 baud or 57’600 baud, user selectable)
Trigger Modes Interface Trigger / External opto isolated trigger input
Image pre-processing Shading Correction (Offset and Gain)
3x3 Convolver included on camera
2 look-up tables (12-to-8 bit) on user-defined image region (Region-LUT)
Features Greyscale resolution 12 bit / 10 bit / 8 bit (MV1-D1312-240: 8 bit only)
Region of Interest (ROI)
Up to 512 regions of interest (MROI)
Test pattern (LFSR and grey level ramp)
Image information and camera settings inside the image (status line)
Crosshairs overlay on the image
High blooming resistance
Opto isolated trigger input and opto isolated strobe output
Table 3.1: Feature overview (see Chapter 4 for more information)

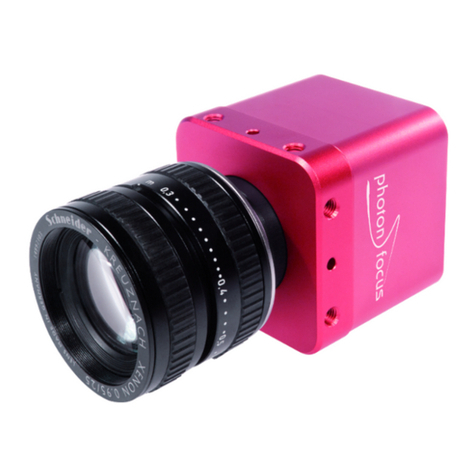

Figure 3.1: MV1-D1312(I) CMOS camera series with C-mount lens.
.
14

3.3 Technical Specification
Technical Parameters MV1-D1312(I) Series
Technology CMOS active pixel (APS)
Scanning system Progressive scan
Optical format / diagonal 1” (13.6 mm diagonal) @ maximum resolution
2/3” (11.6 mm diagonal) @ 1024 x 1024 resolution
Resolution 1312 x 1082 pixels (1248 x 1082 for MV1-D1312(I)-240)
Pixel size 8 µmx8µm
Active optical area 10.48 mm x 8.64 mm (maximum)
Random noise < 0.3 DN @ 8 bit 1) (TBD for MV1-D1312(I)-240)
Fixed pattern noise (FPN) 3.4 DN @ 8 bit / correction OFF 1) (TBD for MV1-D1312(I)-240)
Fixed pattern noise (FPN) < 1DN @ 8 bit / correction ON 1)2) (TBD for MV1-D1312(I)-240)
Dark current MV1-D1312 0.65 fA / pixel @ 27 °C
Dark current MV1-D1312I 0.79 fA / pixel @ 27 °C
Full well capacity ~ 100 ke−
Spectral range MV1-D1312 350 nm ... 980 nm (see Fig. 3.2)
Spectral range MV1-D1312I 350 nm ... 1100 nm (see Fig. 3.3) 3)
Responsivity MV1-D1312 295 x103DN/(J/m2) @ 670 nm / 8 bit
Responsivity MV1-D1312I 305 x103DN/(J/m2) @ 850 nm / 8 bit
Quantum Efficiency > 50 %
Optical fill factor > 60 %
Dynamic range 60 dB in linear mode, 120 dB with LinLog®
Colour format Monochrome
Characteristic curve Linear, LinLog®
Shutter mode Global shutter
Greyscale resolution 12 bit / 10 bit / 8 bit (MV1-D1312-240: 8 bit only)
Table 3.2: General specification of the MV1-D1312(I) camera series (Footnotes: 1)Indicated values are typi-
cal values. 2)Indicated values are subject to confirmation. 3)If operated above 1000 nm, the image will be
unsharp.)
3.3 Technical Specification 15

3 Product Specification
MV1-D1312(I)-40 MV1-D1312(I)-80 MV1-D1312(I)-160
Exposure Time 10 µs ... 1.68 s 10 µs ... 0.84 s 10 µs ... 0.42 s
Exposure time increment 100 ns 50 ns 25 ns
Frame rate3) ( Tint = 10 µs) 27 fps 54 fps 108 fps
Pixel clock frequency 40 MHz 40 MHz 80 MHz
Pixel clock cycle 25 ns 25 ns 12.5 ns
Camera taps 1 2 2
Read out mode sequential or simultaneous
Table 3.3: Model-specific parameters (Footnote: 3)Maximum frame rate @ full resolution)
MV1-D1312(I)-240
Exposure Time 10 µs ... 0.28 s
Exposure time increment 16.7 ns
Frame rate3) ( Tint = 10 µs) 170 fps
Pixel clock frequency 80 MHz
Pixel clock cycle 12.5 ns
Camera taps 3
Read out mode sequential or simultaneous
Table 3.4: Model-specific parameters (Footnote: 3)Maximum frame rate @ full resolution)
MV1-D1312(I)-40 MV1-D1312(I)-80 MV1-D1312(I)-160
Operating temperature 0°C ... 50°C
Camera power supply +12 V DC (±10 %)
Trigger signal input range +5 .. +15 V DC
Max. power consumption < 2.5 W < 3.0 W < 3.3 W
Lens mount C-Mount (CS-Mount optional)
Dimensions 60 x 60 x 45 mm3
Mass 265 g
Conformity CE / RoHS / WEE
Table 3.5: Physical characteristics and operating ranges

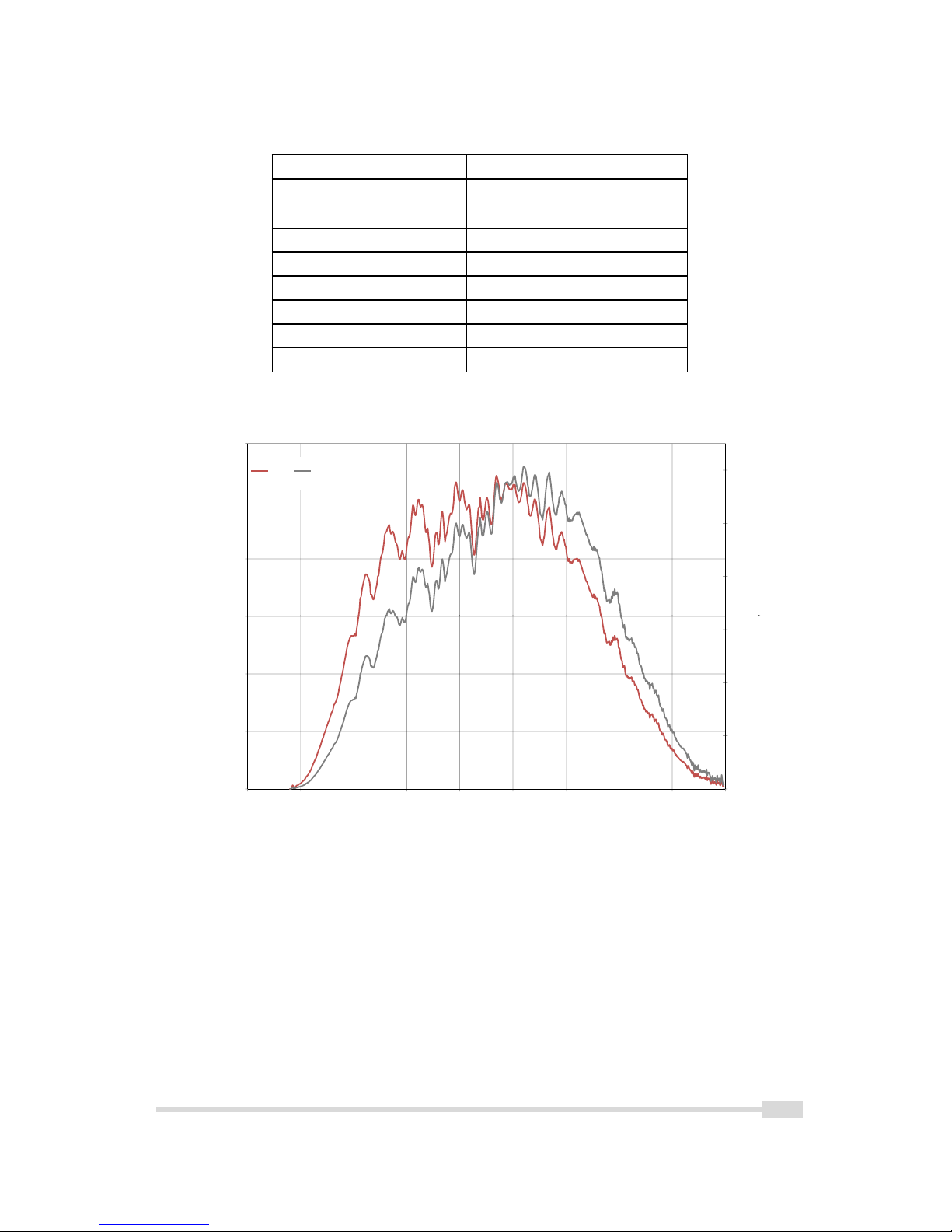

Fig. 3.2 shows the quantum efficiency and the responsivity of the A1312 CMOS sensor,
displayed as a function of wavelength. For more information on photometric and radiometric
measurements see the Photonfocus application notes AN006 and AN008 available in the
support area of our website www.photonfocus.com.
16

MV1-D1312(I)-240
Operating temperature 0°C ... 50°C
Camera power supply +12 V DC (±10 %)
Trigger signal input range +5 .. +15 V DC
Max. power consumption < 4.7 W
Lens mount C-Mount (CS-Mount optional)
Dimensions 60 x 60 x 45 mm3
Mass 265 g
Conformity CE / RoHS / WEE
Table 3.6: Physical characteristics and operating ranges
800
1000
1200
30%
40%
50%
60%
V
/J/m²]
m
Efficiency
QE Responsivity
0
200
400
600
0%
10%
20%
30%
200 300 400 500 600 700 800 900 1000 1100
Responsivity [
V
Quantu
m
Wavelength [nm]
Figure 3.2: Spectral response of the A1312 CMOS image sensor (standard) in the MV1-D1312 camera series

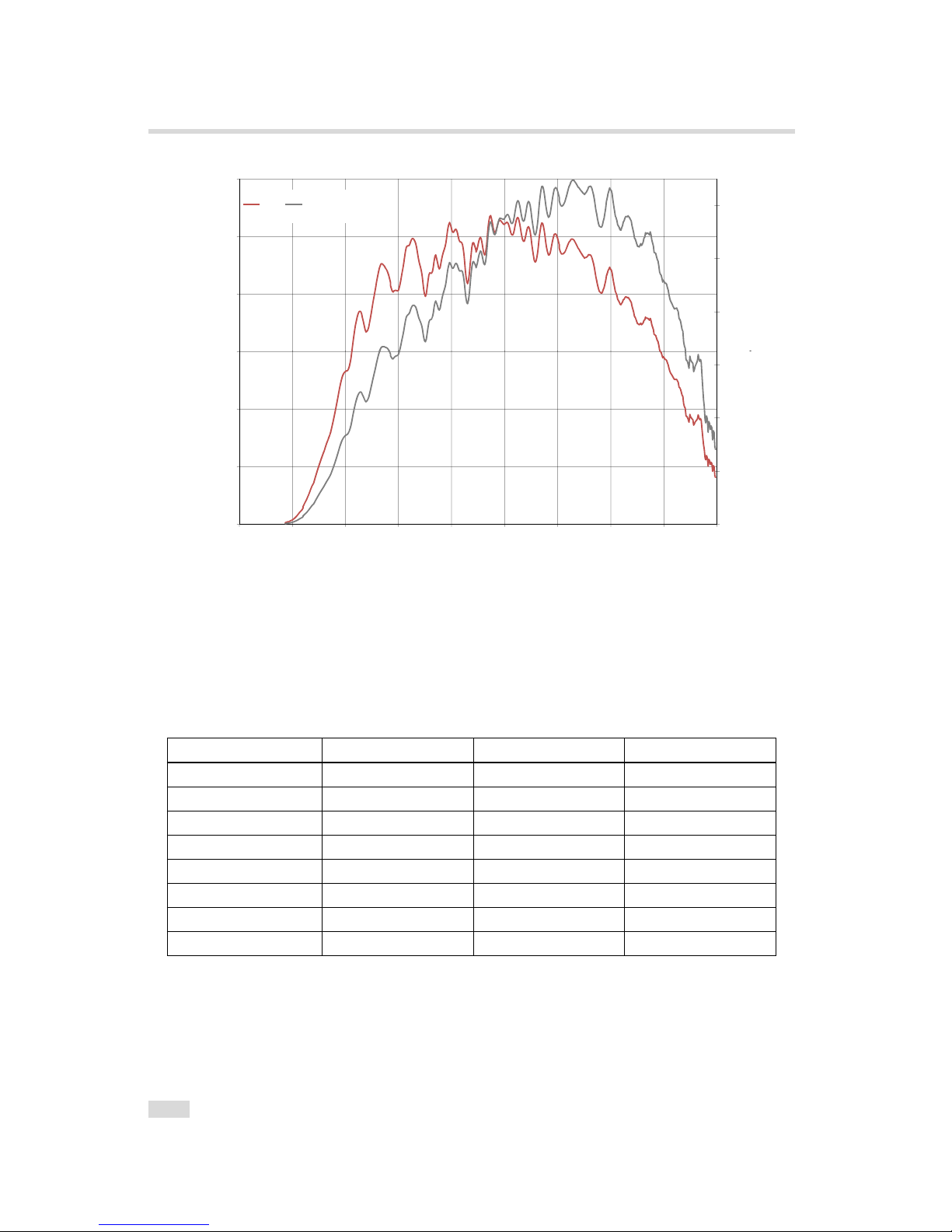

Fig. 3.3 shows the quantum efficiency and the responsivity of the A1312I CMOS sensor,
displayed as a function of wavelength. The enhancement in the NIR quantum efficiency could
be used to realize applications in the 900 to 1064 nm region.
.
3.3 Technical Specification 17

3 Product Specification
800
1000
1200
30%
40%
50%
60%
V
/J/m²]
m
Efficiency
QE Responsivity
0
200
400
600
0%
10%
20%
30%
200 300 400 500 600 700 800 900 1000 1100
Responsivity [
V
Quantu
m
Wavelength [nm]
Figure 3.3: Spectral response of the A1312I image sensor (NIR enhanced) in the MV1-D1312I camera series
3.4 Frame Grabber relevant Configuration
The parameters and settings, which are essential to configure the frame grabber are shown in
the following table. The timing diagrams of the camera are given in Section 4.1.2.
MV1-D1312(I)-40 MV1-D1312(I)-80 MV1-D1312(I)-160
Pixel Clock per Tap 40 MHz 40 MHz 80 MHz
Number of Taps 1 2 2
Greyscale resolution 12 bit / 10 bit / 8 bit 12 bit / 10 bit / 8 bit 12 bit / 10 bit / 8 bit
Line pause 36 clock cycles 18 clock cycles 18 clock cycles
CC1 EXSYNC EXSYNC EXSYNC
CC2 not used not used not used
CC3 not used not used not used
CC4 not used not used not used
Table 3.7: Summary of parameters needed for frame grabber configuration
CameraLink®port and bit assignments are compliant with the CameraLink®standard (see [CL]).
Table 3.9 summarizes the tap configurations for the MV1-D1312(I)-40 cameras. Table 3.10
shows the tap configurations for the MV1-D1312(I)-80 and MV1-D1312(I)-160 cameras. Table
3.11 shows the tap configurations for the MV1-D1312(I)-240 and cameras.
18
