Piazzetta G958 User manual

300914 PZPE.G958BODYA 5055.61-B
INSTALER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING: If the information in these
instructions is not followed exactly a fire or
explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.

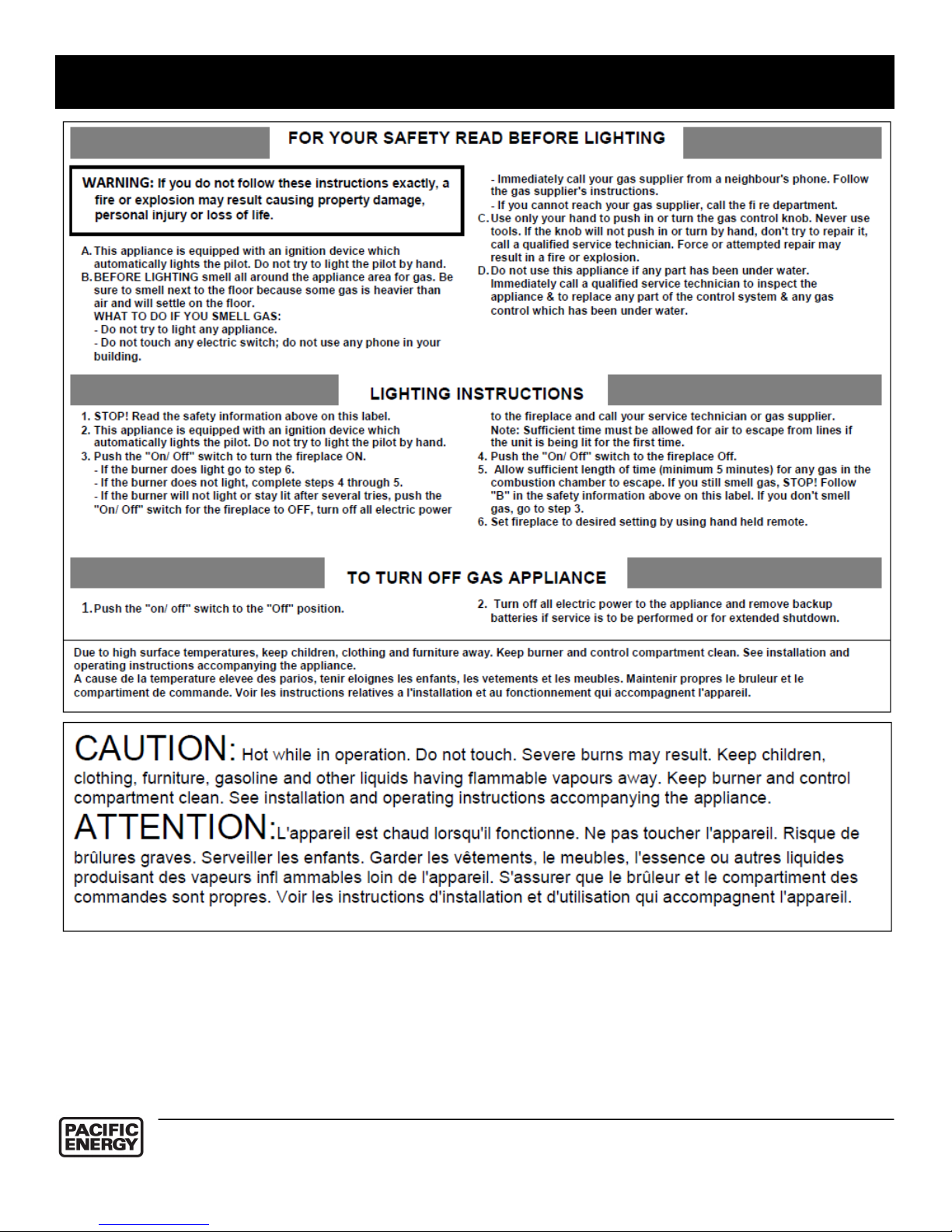

WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
If you cannot reach your gas supplier
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufacture home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
G958
INSTALLATION AND
OPERATING INSTRUCTIONS
MODEL: G958
SERIES: A
DIRECT VENT GAS STOVE
POWERED BY PACIFIC ENERGY

2

3
Table of Contents
Caution 4
Safety 5
Owners Information
First Fire 6
Remote Control Operation 7
Maintenance 13
Lighting Instructions 14
Installer information

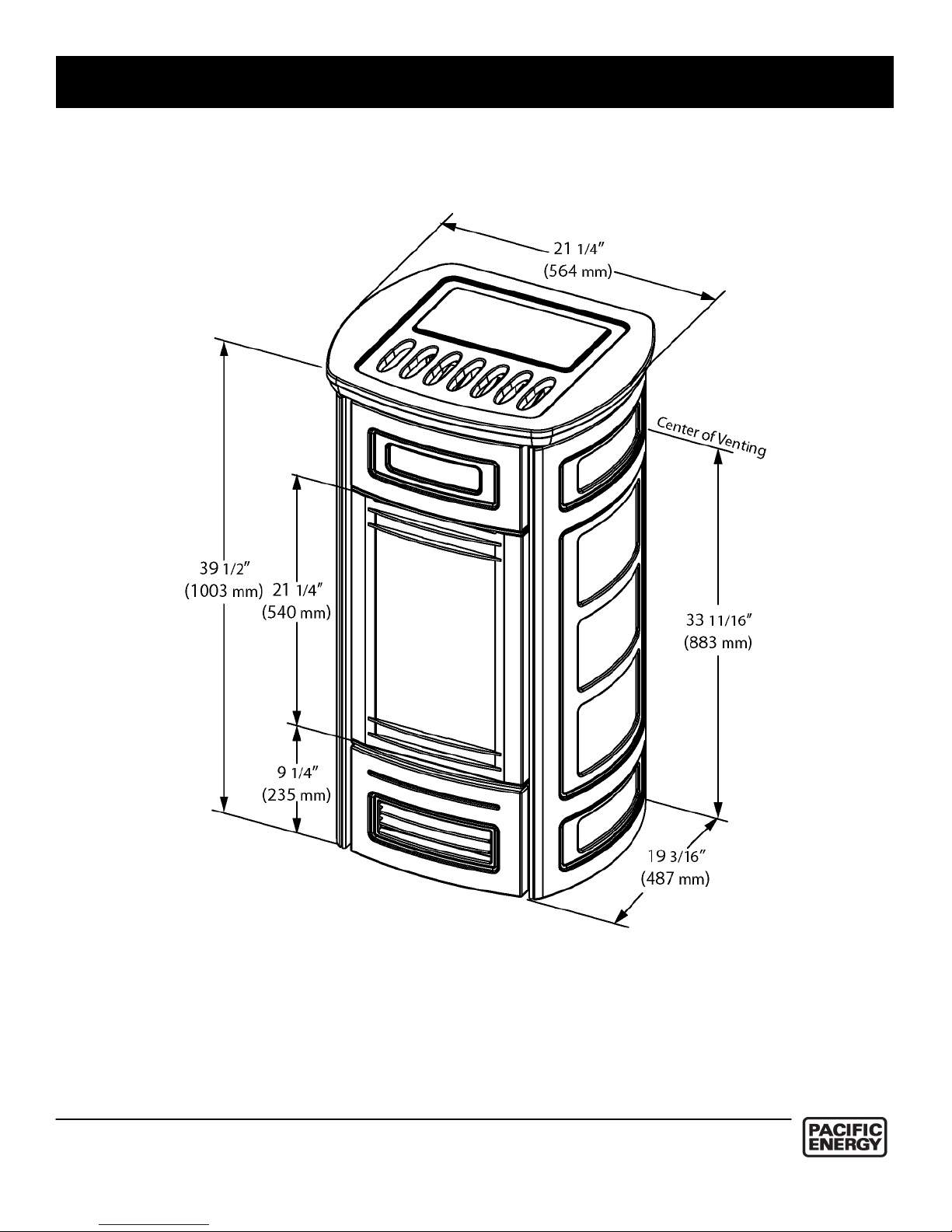

Fireplace Dimensions 15
Clearances to Combustibles 16
Locating the Fireplace 16
Venting 17
Plumbing and Electrical 19
Gas Supply 20
Gas Pressure Check 20
Gas Pressure Testing Procedure 21
Pilot Adjustment 21
Propane Conversion 22
Door Installation / Removal 23
Fan Installation/ Removal 23
Panel Installation/Removal 24
Burner Kit Installation/Removal 25
Glass Kit Installation 25
Log Set Installation 25
Cladding Installation/Removal 26
Venturi Adjustment 27
Replacement Parts 28
Aesthetic Options 28
Venting Components 29
Wiring Diagram 30
Installation Notes 31

4
FOR YOUR SAFETY - Do not install or operate your Pacific Energy gas fireplace without first
reading and understanding this manual. Any installation or operational deviation from the
following instructions voids the Pacific Energy Fireplace Products Warranty and may prove
hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi
(3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
Do not use the fireplace if any part has been under water. Immediately call a qualified service
technician to inspect the fireplace and to replace any part of the control system and / or any gas
control which has been under water.
This fireplace is equipped with a micro mesh safety screen for your protection and must
be installed with the unit. Removal of the safety screen will cause the fireplace to
become a burn hazard.
Caution

5
Due to high temperatures, this gas appliance should be located out of traffic and away
from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of the room and away from hot surfaces.
Clothing or other flammable material should not be placed on or near the appliance.
A barrier designed for to reduce the risk of burns from the hot viewing glass is provided
with the appliance and shall be installed.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturers
barrier for this appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating.
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
This appliance must not be connected to a chimney flue serving a separate solid fuel
burning appliance.
It is our policy that no responsibility is assumed by the Company or by any of its
employees or representatives for any damages caused by an inoperable, inadequate, or
unsafe condition which is the result, either directly or indirectly, of any improper operation
or installation procedures.
Safety

6
OWNER’S
INFORMATION
Congratulations on your purchase of a Pacific Energy Gas Fireplace.
Your fireplace has been professionally installed by:
Dealer name: ___________________
Phone Number: _________________
If you discover any problems with your gas fireplace contact your dealer immediately to have the
unit repaired.
Caution: Do not attempt to repair the fireplace because you may cause injury to yourself or other,
and risk causing damage to the unit.
Before operating your fireplace carefully read this manual and pay close attention to all Safety
Warnings. The manual contains important information on the unit’s safe operation and
maintenance.
When lit for the first time, the fireplace will emit a slight odour for a couple of hours. This is due to
the curing of paints, sealants, gaskets, and lubricants used in the manufacturing process. This
condition is temporary. Open doors and windows to ventilate the area. Odour caused by the curing
process may cause discomfort to some individuals.
It is normal for fireplaces fabricated from steel to give off some expansion and/or contraction
noises during the start up or cool down cycle. Similar noises are found with your furnace heat
exchanger or cook stove oven.
First Fire

7
OWNER’S
INFORMATION
`
Remote Control Operation
System Description
The Proflame Remote Control System consists of two elements:
1. Proflame Transmitter.
2. Proflame Integrated Fireplace Control (IFC) board and a wiring harness to connect the IFC
to the gas valve and stepper motor.
Transmitter (Remote Control with LCD Display)
The Proflame Transmitter uses a streamline design with a simple button layout and informative
LCD display (Figure 1). The transmitter is powered by 3 AAA type batteries. A mode key is
provided to index between the features and a thermostat key is used to turn on/off or index through
thermostat functions (Figure 1 & Figure 2).

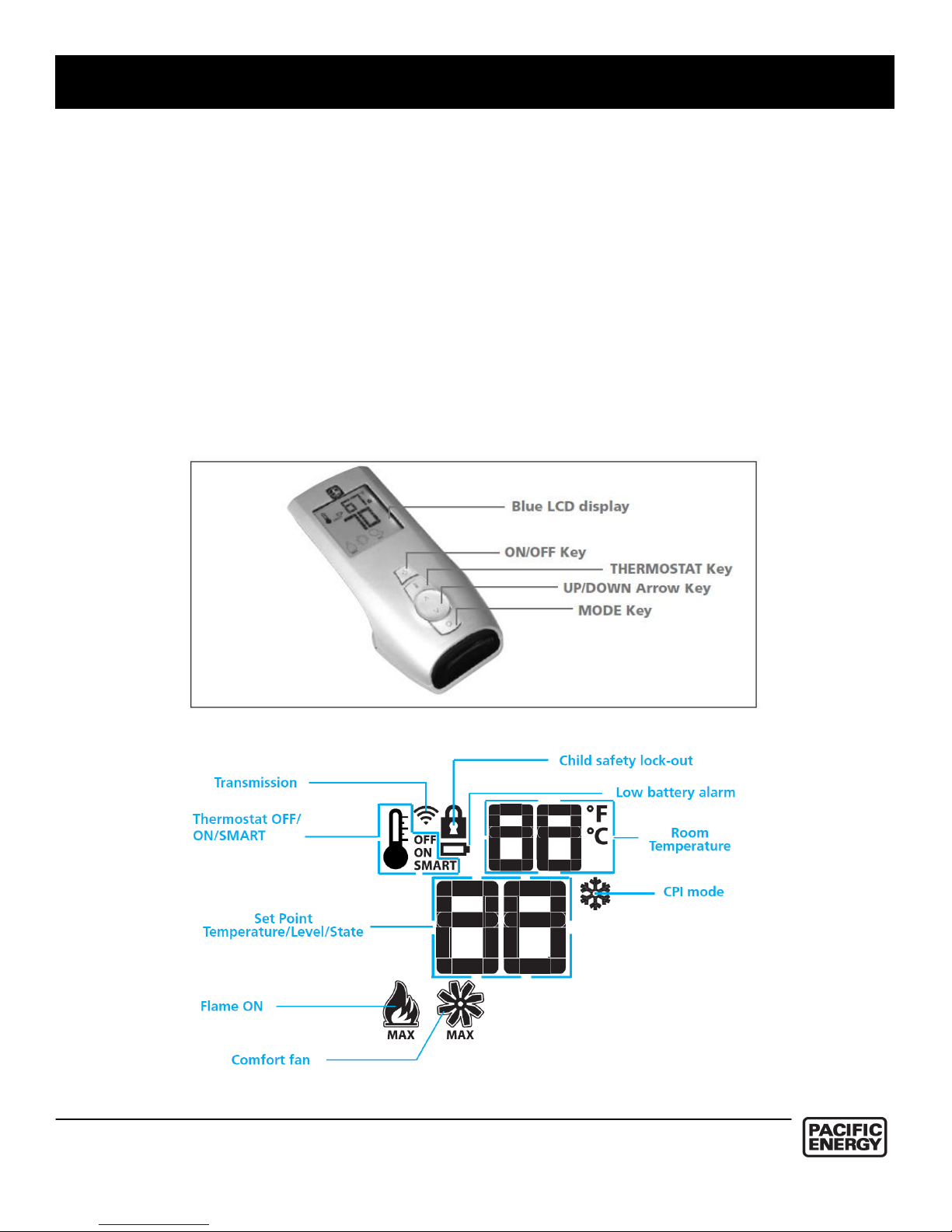

Figure 1: Proflame Transmitter
Figure 2: Transmitter LCD display

8
OWNER’S
INFORMATION
OPERATING PROCEDURE
Initializing the System for the first time
Install the 4 AA batteries into the battery bay. Note the polarity of the battery and insert into the
battery holder as indicated on the battery cover (+/-). Set the main ON/OFF and the CPI/IPI switch
in the closed position. Press the SW1 button on the IFC module. The IFC will “beep” three (3) times
to indicate that it is ready to synchronize with a transmitter. Install the 3 AAA type batteries in the
battery bay, located on the base of the transmitter. With the batteries already installed in the
transmitter, push the ON button. The receiver will “beep” four times to indicate the transmitter’s
command is accepted. If a second Transmitter must be registered it can be turned ON. The
receiver will beep again four (4) times and exit the synchronization phase. If only one transmitter is
used, then press the button SW1 to exit the synchronization phase.
The system is now initialized.
IFC Module
The Proflame 2 Integrated Fireplace Control (IFC) board is a device that allows the automatic
ignition and pilot flame supervision, to command the functions of a hearth appliance. It’s
configured to control the ON/OFF main burner operation, giving the choice of both IPI (intermittent
pilot ignition), and CPI (continuous pilot ignition) modes.
The Proflame 2 IFC board controls and connects directly to the pilot assembly and an automatic
valve of the Proflame 880, 886 and 885 families using low electric power.
The IFC Board can be powered by an AC and battery pack for back up (ATMO Systems only). The
Proflame 2 offers the added ability to control the comfort fan speed from OFF through six (6)
speeds, a remotely actuated auxiliary outlet and a dimmable light outlet. The external batteries can
provide DC power to the IFC allowing the batteries to be used only when line power is interrupted
or lost, and if the appliance does not use a combustion fan.

9
OWNER’S
INFORMATION
Temperature indication Display
With the system in the “OFF” position, press the thermostat key and the
mode key at the same time. Look at the LCD screen on the transmitter to
verify that a C or F is visible to the right of the room temperature display.
(Figure 3 & Figure 4)
Turn on the Appliance
First close the main ON/OFF switch on the wirings. With the system OFF,
press the ON/OFF Key on the transmitter. The transmitter display will show
all active icons on the screen. At the same time IFC will be commanded to
start the ignition process. Once the pilot flame is proven the IFC board will
open the main valve outlet and the appliance main burner will also ignite. A
single “beep” from the IFC module will confirm reception of the command.
Turn off the Appliance
With the system ON, press the ON/OFF key on the transmitter. The
transmitter LCD display will only show the room temperature. At the same
time the IFC will be commanded to turn off the burner. Depending on the
system mode (IPI or CPI) the pilot may shut off (IPI) or remain lit (CPI) and
the appliance burner turns OFF. A single “beep” from the receiver confirms
reception of the command.
Manual Bypass of the Remote System
If the batteries of the receiver or transmitter are low or depleted, the
appliance can be turned off manually using switch located on battery box.
This will bypass the remote control feature of the system.
Key Lock
This function will lock the keys to avoid unsupervised operation.
To activate this function, press the MODE and UP keys at the same time
(Figure 5).
To de-activate this function, press the MODE and UP keys at the same time.
Figure 5
Figure 4: Display in Celsius
Figure 3: Display in Fahrenheit

10
OWNER’S
INFORMATION

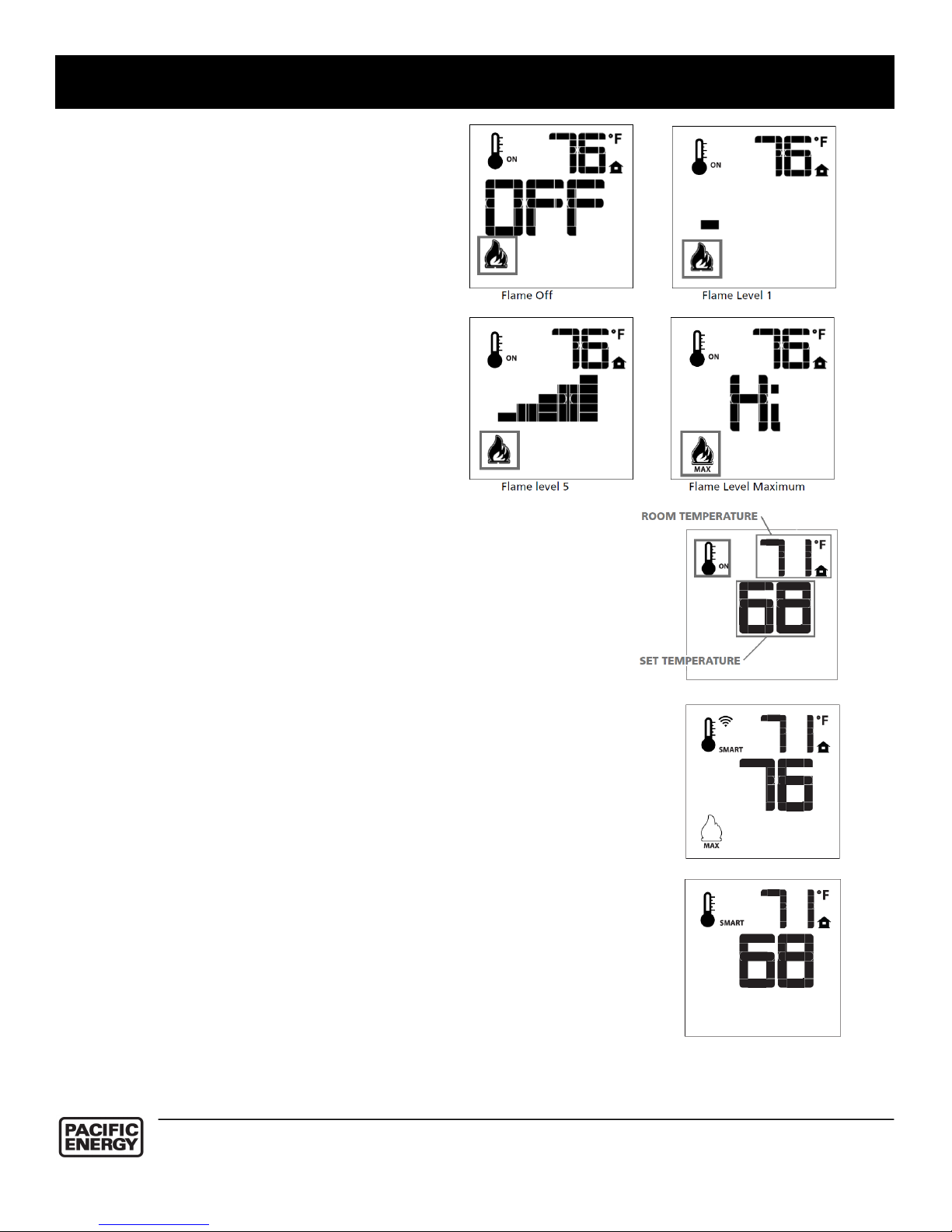

Remote Flame Control
The Proflame has six (6) flame levels.
With the system on, and the flame level
at the maximum in the appliance,
pressing the down arrow key once will
reduce the flame height by one step
until the flame is turned off.
The up arrow key will increase the flame
height each time it is pressed. If the up
arrow key is pressed while the system is
on but the flame is off, the flame will
come on in the high position. (Figure 6)
A single “beep” will confirm reception of
the command.
Figure 6
ROOM THERMOSTAT (Transmitter Operation)
The remote control can operate as a room thermostat. The
thermostat can be set to a desired temperature to control the
comfort level in a room.
To activate this function, press the thermostat key (Figure 1). The
LCD display on the transmitter will change to show that the room
thermostat is “ON” and the set temperature is now displayed
(Figure 7). To adjust the set point, press the up or down arrow
keys until the desired set point temperature is displayed on the
LCD screen of the transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the flame height in
accordance to the difference between the set point and the room
temperatures. As the room temperature gets closer to the set point
the Smart Function will modulate the flame down. If the room
temperature is cool the Smart Function will modulate the flame up.
To activate this function, press the THERMOSTAT key (Figure 1)
until the word "SMART" appears to the right of the temperature
bulb graphic (Figure 8). To adjust the set point, press the up or
down arrow keys until the desired set point temperature is
displayed on the LCD screen of the transmitter (Figure 9).
Figure 7
Figure 8: Smart Flame Function
Figure 9

11
OWNER’S
INFORMATION
Comfort Fan Speed Control
If the appliance is equipped with a hot air circulating fan, the speed of the fan can be
controlled by the Proflame System. The fan speed can be adjusted through six (6) speeds.
To activate this function use the Mode Key (Figure 1) to index to the fan control icon
(Figure 10). Use the Up/Down Arrow Keys (Figure 1) to turn on, off or adjust the fan speed
(Figure 10). A single “beep” will confirm reception of the command.
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection
With the system in "OFF" position press the Mode Key (Figure 1) to index to the CPI mode
icon (Figure 11).
Pressing the Up Arrow Key will activate the Continuous Pilot Ignition mode (CPI). Pressing
the Down Arrow Key will return to IPI. A single “beep” will confirm the reception of the
command.
Figure 10: Fan Control
Figure 11: CPI/IPI Selection

12
OWNER’S
INFORMATION
Low Battery Power Detection
Transmitter
The life span of the remote control batteries depends on various
factors: quality of the batteries used, the number of ignitions of
the appliance, the number of changes to the room thermostat set
point, etc.
When the transmitter batteries are low, an icon will appear on the
LCD display of the transmitter (Figure 12) before all battery
power is lost. When the batteries are replaced this icon will
disappear.
Receiver
The life span of the IFC batteries depends on various factors: quality of the batteries used, the
number of ignitions of the appliance, the number of changes to the room thermostat set point,
etc.
When the IFC batteries are low, a "double-beep” will be emitted from the IFC board when it
receives a command from the transmitter. This is an alert for a low battery condition for the IFC
board. When the batteries are replaced the “beep” will be emitted from the IFC board when a
key is pressed (See Initialization of The System).
Warnings and Cautions
WARNING
Fire Hazard. Can cause severe injury or death
The Receiver causes ignition of the appliance. The appliance can turn on suddenly. Keep
away from the appliance burner when operating the remote system or activating manual
bypass of the remote system.
WARNING
Shock Hazard. Can cause severe injury or death
This device is powered by line voltage. Do not try to repair this device.
In no way is the enclosure to be tampered with or opened.
Disconnect from line voltage before performing any maintenance.
Figure 12

13
OWNER’S
INFORMATION
Turn off gas and electrical power supply (if applicable) and allow ample time for unit to cool
before servicing appliance. It is recommended that the fireplace and its venting should be
inspected at least once a year by a qualified service person.
Glass Door:
Warning: Do not operate fireplace with glass door removed, cracked or broken. Replacement of
the glass door should be done by a licensed or qualified service person.
Do not strike or otherwise impact the glass in any way that may cause it to break. If the glass
becomes cracked or broken it must be replaced before using the fireplace. Replacement door can be
obtained from your nearest Pacific Energy dealer. Do not substitute with any other type.
To remove broken glass, remove door as noted in "Door Removal" section.
Annual Inspection:
a) Remove glass door and decorative media (such as logs and rocks). Inspect decorative media
and burner assemblies for soot buildup. If excessive buildup of soot is present, have a
qualified service person inspect and adjust unit for proper combustion. Clean burners with a
brush or vacuum cleaner, paying close attention to burner ports.
b) Check the pilot system for proper flame size and operation. Clean pilot free of soot, dust or
any other deposits.
c) Check that the vent pipe and vent terminal are open and free from blockage or debris. If the
venting is disassembled for cleaning, it must be properly assembled and re-sealed. Refer to
VENTING section for proper procedure.
d) Check glass panel gasket, replace if necessary. It is important that the glass seal be
maintained in good condition.
e) Check and replace batteries as needed.
Note: The appliance area must be kept clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
Periodically:
a) Viewing glass may be cleaned as necessary with fireplace glass cleaner.
b) Exterior finish may be cleaned with mild soap and water.
CAUTION:
Do not use abrasive cleaners on glass or any other part of the fireplace.
Do not clean glass when hot.
Maintenance

14
OWNER’S
INFORMATION
Lighting Instructions

15
INSTALLER
INFORMATION
MIRAGE:
Fireplace Dimensions
Figure 13: Fireplace dimensions

16
INSTALLER
INFORMATION
Clearances to Combustibles
Minimum Clearance to Combustible Materials
Mirage
INTERIOR SIDE WALL
4”
INTERIOR BACK WALL
4 “
INTERIOR CEILING
36”
IN FRONT OF APPLIANCE
36”
EXTERIOR SIDE WALL
8”
VENTING CLEARANCE
1”
EXTERIOR SOFFIT
30”
*NCR STANDS FOR NO CLEARANCE REQUIRED; YOU MAY USE COMBUSTIBLE CONSTRUCTION
MATERIALS IN DIRECT CONTACT WITH THE APPLIANCE ON THESE SURFACES.
Locating the Fireplace
In planning the installation for the fireplace, it is necessary to determine where the unit is to be
installed, location of vent system and where gas supply piping may be plumbed. Various
installations are possible, such as next to an existing wall, a corner, an alcove or a wall projection.
Due to high temperatures, do not locate this fireplace in areas of high traffic, near furniture or
draperies.

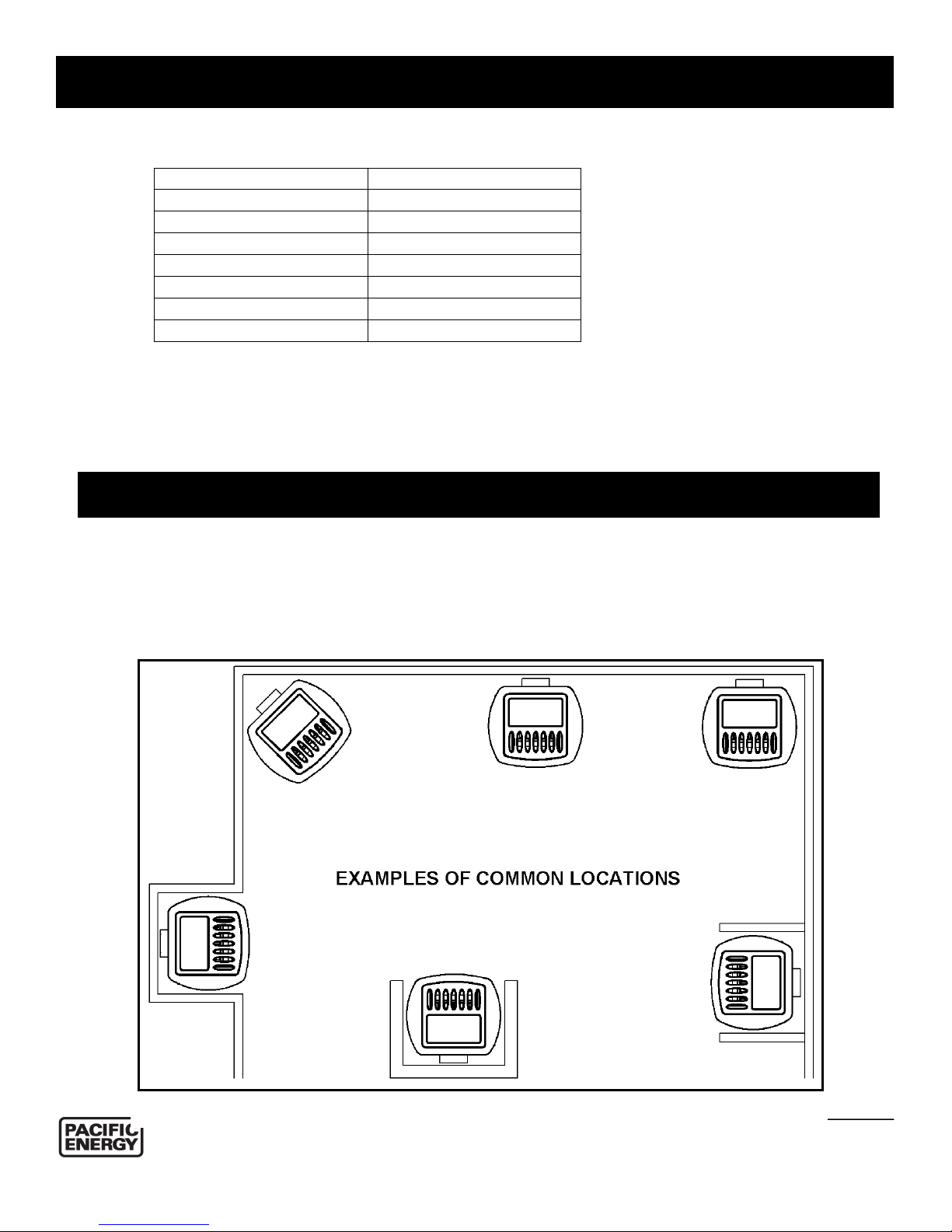

Figure 13: Common Installation Location
Figure 14: Minimum Clearances

17
INSTALLER
INFORMATION
Venting
Note: The vent must
not exceed a total
length of 28 feet.
Any combination of
rise and run may be
used but must be
constrained to the
boundaries of this
chart. A Maximum of
three (3) 90° elbows
may be used. Only
one (1) 90° elbow or
combination of other
elbows equalling 90°
can be used without
reducing horizontal
run. For each
additional 90° elbow,
or an equal
combination of
elbows, reduce
horizontal vent run
by 2 feet. Ensure
vent pipe is properly
supported.

18
INSTALLER
INFORMATION
Figure 17: Venting
This fireplace is certified for use with 4” x 6-5/8”coaxial venting components only. It is permitted to only use
certified venting for this appliance. See charts on page 29 for a list of approved venting components.

19
INSTALLER
INFORMATION
Figure 14: Gas and Electrical Connections
Plumbing and Electrical
Gas connection
To make the required electrical and gas connections, start by positioning the gas fireplace.
Connect the gas supply line to the 1/2” flare fitting at the rear of the unit as seen in Figure
14. Please see the gas supply section of the manual for requirements of the gas supply.
Electrical connection
Plug the provided IEC power cord into the receptacle at the rear of the unit as shown in
Figure 14.

20
INSTALLER
INFORMATION
Servicing of the appliance can be performed from the rear of the unit by removing the access panel
from the unit.
Caution: The gas line should be installed by a qualified service person in accordance with all
building codes. This section is intended as a guide for qualified technicians installing this
appliance. Consult local and/or national building codes before proceeding.
Gas supply line connection is located on the rear of the fireplace. Gas connection accepts a
½” 45° flare fitting. Correct gas line diameter must be used to assure proper operation and
pressure.

The fireplace input rating is shown in the chart below.
A drip leg must be installed in the gas supply line going to the gas control valve to -minimize
the possibility of any loose scale or dirt within the gas supply line from -entering the control
valve.
It is essential that a union or flanged connection be installed just upstream of the valve to
allow for repair or replacement of the gas valve.
Check local codes for additional requirements.
Turn on the gas supply and check that all connections are tight and leak free.
WARNING: The gas tray including gasket must be reinstalled after
conversion/installation or servicing has been completed.
Gas Pressure Check
Please refer to following page for gas pressure testing procedure.
Gas Supply
Gas pressure requirements
Input Pressure Natural Gas Propane
Minimum 4.0" WC 11.0" WC
Maximum 13.9" WC 13.9" WC
Manifold Pressure
High 3.5" WC 10" WC
Low 1.6" WC 6.4" WC
Mirage
Gas Orifice Output AFUE
NG 1.98mm 18,000 btu/hr 72%
LP 1.25mm 18,000 btu/hr 72%
