PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
Issue 4.1 June 2017
User Manual
PCI - PXI Control Interface
(Model Nos. 51-921 and 41-921)
pickeringtest.com pickering

Page (II) PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
Page (II) REED RELAY MODULE 40-110/115/120/125
pickering
© COPYRIGHT (2017) PICKERING INTERFACES. ALL RIGHTS RESERVED.
No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by
any means without the written permission of Pickering Interfaces.
Technical details contained within this publication are subject to change without notice.
ISO 9001
Reg No. FM38792

Page (III)
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
Page (III)
REED RELAY MODULE 40-110/115/120/125
pickering
TECHNICAL SUPPORT
For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.
WARRANTY
All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of
three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be
defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.
Products serviced and repaired outside of the warranty period are warranted for ninety days.
Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.
ENVIRONMENTAL POLICY
Pickering Interfaces operates under an environmental management system similar to ISO 14001.
Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the
environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and
safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can
be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
Worldwide Technical Support and Product Information
pickeringtest.com
Germany
Tel: [phone]
E-mail: [email protected]
Sweden
Tel: [phone]
E-mail: [email protected]
USA
Tel: (West) [phone]
Tel: (East) [phone]
E-mail: [email protected]
Czech Republic
Tel: [phone]
E-mail: [email protected]
France
Tel [phone]
E-mail [email protected]
Pickering Interfaces Headquarters
Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom
Tel: [phone]
E-Mail: [email protected]
China
Tel: [phone]
E-mail: [email protected]

Page (IV) PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
Page (IV) REED RELAY MODULE 40-110/115/120/125
pickering
MEANING / DESCRIPTION SYMBOL
PROTECTIVE EARTH (GROUND)
To identify any terminal which is intended for connection to an external conductor for
protection against electric shock in case of a fault, or the terminal of a protective earth
(ground) electrode.
DANGEROUS VOLTAGE
To indicate hazards arising from dangerous voltages.
WARNING / CAUTION
An appropriate safety instruction should be followed or caution to a potential hazard
exists.
Refer to the relevant instructions detailed within the product manual.
HEAVY
If this product is heavy reference should be made to the safety instructions for
provisions of lifting and moving.
STATIC SENSITIVE
To indicate that static sensitive devices are present and handling precautions should
be followed.
!
kg
SAFETY SYMBOLS
PRODUCT SAFETY
The following safety symbols may be used on the product and throughout the product documentation.

Page (V)
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
Copyright Statement ...................................................................II
Technical Support and Warranty................................................III
Product Safety .............................................................................IV
Contents (this page)....................................................................V
Warnings and Cautions ..............................................................VII
Section 1
Technical Specication...............................................................1.1
Section 2
Technical Description .................................................................2.1
Basic Architecture.................................................................2.1
Bus Architecture....................................................................2.1
Section 3
Installation....................................................................................3.1
Getting Started.......................................................................3.1
Pre Operation Checks...........................................................3.1
Software Installation .............................................................3.2
Hardware Conguration........................................................3.3
Hardware Installation ............................................................3.4
Interconnection Cabling .......................................................3.6
Section 4
Programming Guide....................................................................4.1
Programming Options For Pickering PXI Cards.................4.1
Section 5
Connector Information................................................................5.1
Section 6
Trouble Shooting.........................................................................6.1
Section 7
Maintenance Information............................................................7.1
CONTENTS

Page (VI) PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
THIS PAGE INTENTIONALLY BLANK

Page (VII)
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
WARNINGS AND CAUTIONS
WARNING - HAZARDOUS ENVIRONMENTS SYMBOL
These products are not specically designed for use in hazardous environments, for example in
explosive atmospheres. If the products are to be used in hazardous environments we recommend
that the user ensures suitable protective measures are taken.
!
WARNING - DANGER OF ELECTRIC SHOCK SYMBOL
These modules may contain hazardous voltages. Before removing the modules from the rack
remove all supplies and disconnect user I/O signals.
Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user
I/O signals that may be present. Blanking panels are available to order from Pickering in a variety
of slot widths. If the product is not used in this manner for example by using an extender card then
additional care must be taken to avoid contact with exposed signals.
CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL
Certain semiconductor devices used in this equipment are liable to damage due to static voltage.
Observe the following precautions when handling these devices in their unterminated state, or
sub-assemblies containing these devices:
1. Persons removing sub-assemblies from equipment using these devices must be earthed by a
wrist strap and a resistor at the point provided on the equipment.
2. Soldering irons used during the repair operations must be low voltage types with earthed tips and
isolated from the mains voltage by a double insulated transformer.
3. Outer clothing worn must be unable to generate static charges.
4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in
anti-static bags.
CAUTION - PRODUCT DOCUMENTATION SYMBOL
Suitably qualied & trained users should ensure that the accompanying documentation is fully read
and understood before attempting to install or operate the product.
!
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O
signals (refer to the Maintenance Section).
• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or
the combined weight of the modules & chassis.
• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the
chassis and the user I/O signals.
• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.
• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on
the front of the unit.

Page (VIII) PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
THIS PAGE INTENTIONALLY BLANK

Page 1.1
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - INTRODUCTION
Page 1.1
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 1 - INTRODUCTION
PXI Switch & Instrumentation
Pickering Interfaces www.pickeringtest.com
41-921, 51-921
PCI to PXI Remote Control Interface
●Provides Seamless Interface Between a PC
Controller PCI and PXI Chassis
●Supports Two PXI Chassis From A Single PCI
Card
●2.5Gb/s StarFabric™ Serial Interface
Ensures Fast Operation
●Supports 32/64 Bit & 33/66MHz PCI
Interfacing
●Uses RJ45 Connectors, Shielded Cat 5E
Cables
●Operating System Independent
●Low Power Consumption, Supporting 5V
and 3.3V PCI
●Single Slot 3U PXI Module (41-921)
●Single Slot Short PCI Card (51-921)
●1 Year Warranty

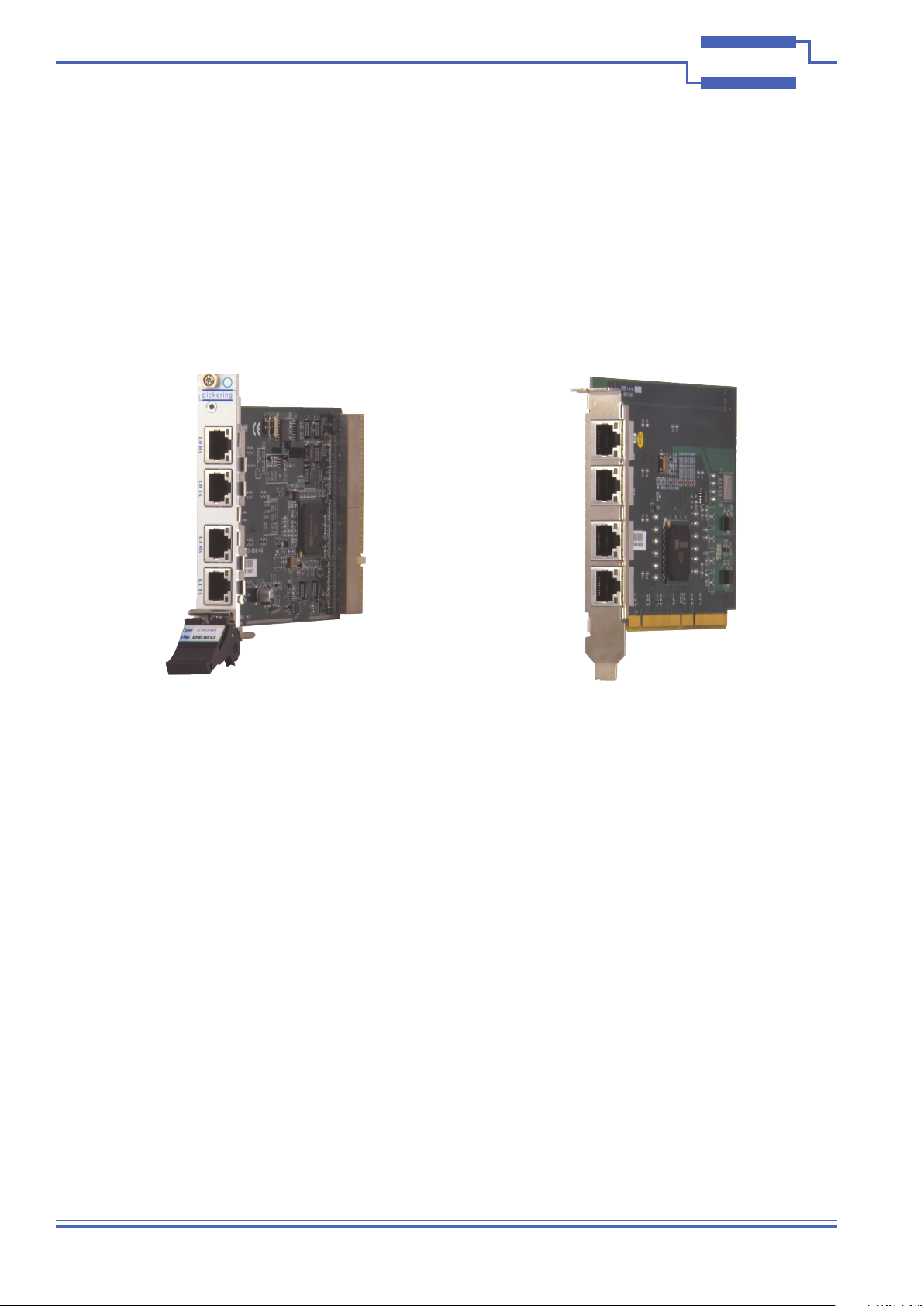

The 41-921 and 51-921 provide a seamless connection
between a control PC’s PCI interface and a PXI chassis.
The 51-921 resides in one of the controllers PCI slots
and provides two independent StarFabric™ serial
interfaces, each capable of driving a separate PXI
chassis.
The 41-921 resides in the Slot 1 position of a PXI
chassis and interfaces to the backplane of the PXI
chassis. When located in a generic peripheral slot the
41-921 can be used to drive two extension PXI chassis.
The use of the StarFabric™ interface operating at
2.5Gb/s minimizes the impact on system speed. The
PCI interface of the 51-921 supports both 32 bit and
64 bit operation and backplane speeds of 33MHz and
66MHz, ensuring the highest speed operation under
all conditions. The StarFabric™ interface ensures the
modules perform seamlessly with no impact on the test
system software.
REMOTE CONTROL INTERFACE
41-921, 51-921
The serial interface connections are made using RJ45
connectors and shielded twisted pair cables (2 per
interface connection) to cover distances up to 10m.
The 41-921 and 51-921 are designed to minimize the
space taken, and the cost, of control interfaces in both
the controller and the PXI chassis for larger systems
requiring multiple chassis.
The 41-921 and 51-921 are the ideal choice of PXI
chassis control, providing the highest performance
and the most cost effective solution with the smallest
system mechanical occupancy.
Typical PXI System Using the 41-921 Remote
Control Interface
ISSUE 6.1 DEC 2 011
NOTE: The 41-921/51-921 StarFabric™ interface
is not compatible with the Windows 7 operating
system.
The 41-921A/51-921A is available which includes
Windows 7 support and existing 41-921/51-921
modules can be upgraded - contact your Pickering
sales office for information.
For new applications we recommend the use
of the 41-924-001-KIT to provide the simplest
support for Windows 7 (and future operating
systems) and modern PC platforms.

Page 1.2 PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 1 - TECHNICAL SPECIFICATION
Page 1.2
SECTION 1 - INTRODUCTION
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
Pickering Interfaces are sponsor members of the PXI Systems Alliance www.pxisa.org
www.pickeringtest.com E-Mail [e-mail]
1 off 51-921
1 off 41-921
1 off 51-921
1 off 51-921
2 off 41-921
4 off 41-921
2 off 51-921
4 off 41-921
Typical System Configurations
Based on Single 51-921 module.
The 41-921 and 50-921 modules each support two serial interfaces allowing the cost effective expansion of PXI test systems with
the minimum number of slots being consumed.
Based on Dual 51-921 modules.

Page 1.3
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering SECTION 1 - TECHNICAL SPECIFICATION
SECTION 2 - SPECIFICATION
Page 2.1
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 2 - SPECIFICATION
PXI Switch & Instrumentation
Pickering Interfaces www.pickeringtest.com
Product Order Codes
PCI To PXI Remote Control Kit 41-921-001-KIT
(complete kit: 51-921-001, 41-921-001, 2 x Cat5E 1.5m cables)
PCI To Star Fabric Module 51-921-001
Star Fabric To PXI Module 41-921-001
Mating Connectors & Cabling
Please refer to the
Pickering Interfaces
“Connection Solutions”
catalog for a full list
of connector/cabling
options, including
drawings, photos and
specifications. This is
available in either print or
as a download.
Alternatively our web site
has dynamically linked
connector/cabling options,
including pricing, for all
Pickering PXI modules.
Latest Details
Please refer to our Web Site for Latest Product Details.
www.pickeringtest.com
Functionality
51-921provides two ports between PCI backplane and
independent Star Fabric serial interfaces.
41-921 provides a StarFabric™ serial interface connection to
the PXI backplane. When placed in a generic PXI slot the 40-
921 provides two StarFabric™ interfaces that extend the PXI
chassis connection to two further chassis. Further chassis can
be added in daisy chain or tree arrangements.
Operation of the modules is operating system and test
system software independent.
Chassis Compatibility
51-921 is suitable for any PC with a single PCI slot.
41-921 is suitable for any chassis compliant with the PXI/cPCI
standard
Maximum Data Transfer
132 Mbytes/sec (32 bit, 33 MHz PCI)
528 Mbytes/sec (64 bit, 66 MHz PCI)
Maximum Connection Distance
10 m using shielded RJ 45 Cat 5E cables (two per link)
Mechanical
51-921: 1 PCI slot of the control PC
41-921: 1 slot of 3U or 6U PXI/cPCI chassis (using a
mechanical adaptor)
Each module supports two StarFabric™ serial interfaces.
Serial interface connectors use RJ45 connectors, 2 pairs per
interface.
Power Requirements
+3.3V +5V +12V -12V
51-921 250mA 190mA 0 0
41-921 0540mA 0 0
Width and Dimensions
51-921: Single slot short PCI Card
41-921: Single slot 3U PXI module (CompactPCI card)
PXI & CompactPCI Compliance
All Pickering Interfaces PXI modules comply with the PXI
Specification 2.2. Local Bus, Interrupts, Trigger Bus and Star
Trigger are not implemented.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable EU
directives: Low-voltage safety EN61010-1:2001,
EMC Immunity EN61000-6-1:2001, Emissions EN55011:1998.
Comparison With National Instruments MXI-4™
National Instruments launched the orginal MXI-3 serial
remote interface for PXI in the late 90’s. Pickering’s 41-
921/51-921 has all the capabilities of the original MXI-3 but
with much improved capacity, operating speed, bus width and
value and all built around an industry standard interconnect,
StarFabric™.
Pickering
41-921/51-921
National Instruments
MXI-4
Transparent
Operation
Yes Yes
Supports All
OS’s
Yes Yes
Supports Both
3.3V and 5V PCI
Yes Yes
Uses Industry
Standard
Interconnect
Yes, StarFabric™ No, Proprietary
Bus Speeds
Supported
33MHz and
66MHz
33MHz only
Bus Widths
Supported
32 Bit and 64 Bit 32 Bit only
Uses Low Cost
Cabling
Yes No, Proprietory only
Supports 1 or 2
PXI Chassis
Yes 1 only
For further information on StarFabric visit www.starfabric.org
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0°C to +55°C
10 to 90% non-condensing
5000m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20°C to +75°C
10 to 95% non-condensing
15000m

Page 1.4 PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 1 - TECHNICAL SPECIFICATION
Pickering Interfaces are sponsor members of the PXI Systems Alliance www.pxisa.org
www.pickeringtest.com E-Mail [e-mail]
© Copyright (2011) Pickering Interfaces. All Rights Reserved Pickering Interfaces maintains a commitment to continuous product development, consequently we reserve the right to vary from the description given in this data sheet.
41-921A PXI Module
(Resides in Slot 1 of PXI Chassis)
51-921A PCI Card
(Resides In Host Computer)

Page 2.1
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering SECTION 2 - TECHNICAL DESCRIPTION
SECTION 2 - TECHNICAL DESCRIPTION
BASIC ARCHITECTURE OF PCI EXTENSION MODULE
The 51-921 and 41-921 extension module is basically a PCI-to-PCI bridge. The PCI-to-PCI bridge function in
the 51-921 and 41-921 supports legacy address routed trafc, which provides 100% capability with PCI drivers,
application software,
BIOS, O/Ss, etc. This functionality allow users to transfer their designs without extra effort. The functional block
diagram of 51-921 and 41-921 is shown in Figure 2.1.
The interface uses serial interconnect technology operating at 622 Mbps based on low voltage differential signaling
(LVDS). Each interface connection uses two data links, named as Link 1 and Link 2. Each link is divided into
transmit (TX) and receive (RX). Four TX and RX differential pairs in each link are used to provide 2.5Gbps full duplex
link bandwidth or 5Gbps of total bandwidth. Incorporated with the high speed serial LVDS, it is easy to extend the
transmission up to 10 meters through shielded twisted pair copper cables.
Inside the PCI-to-PCI bridge, a PCI-to-StarFabric/StarFabric-to-PCI converter is used to translate PCI transactions
into StarFabric frames and StarFabric frames into PCI transactions. The PCI interface of the 51-921 and 41-921 is
capable of 64-bit/66MHz. The maximum data throughput can up to 528Mbytes/s. The secondary side PCI interface
of PCI-to-PCI bridge is responsible to the central resources and system clocks generation.
Figure 2.1 Block diagram of 51-921 and 41-921
BUS ARCHITECTURE
Each 51-921 and 41-921 extension module has two link ports. Users can use one of them to extend PCI bus to a
PXI chassis or both of them to extend PCI bus to two PXI chassis.

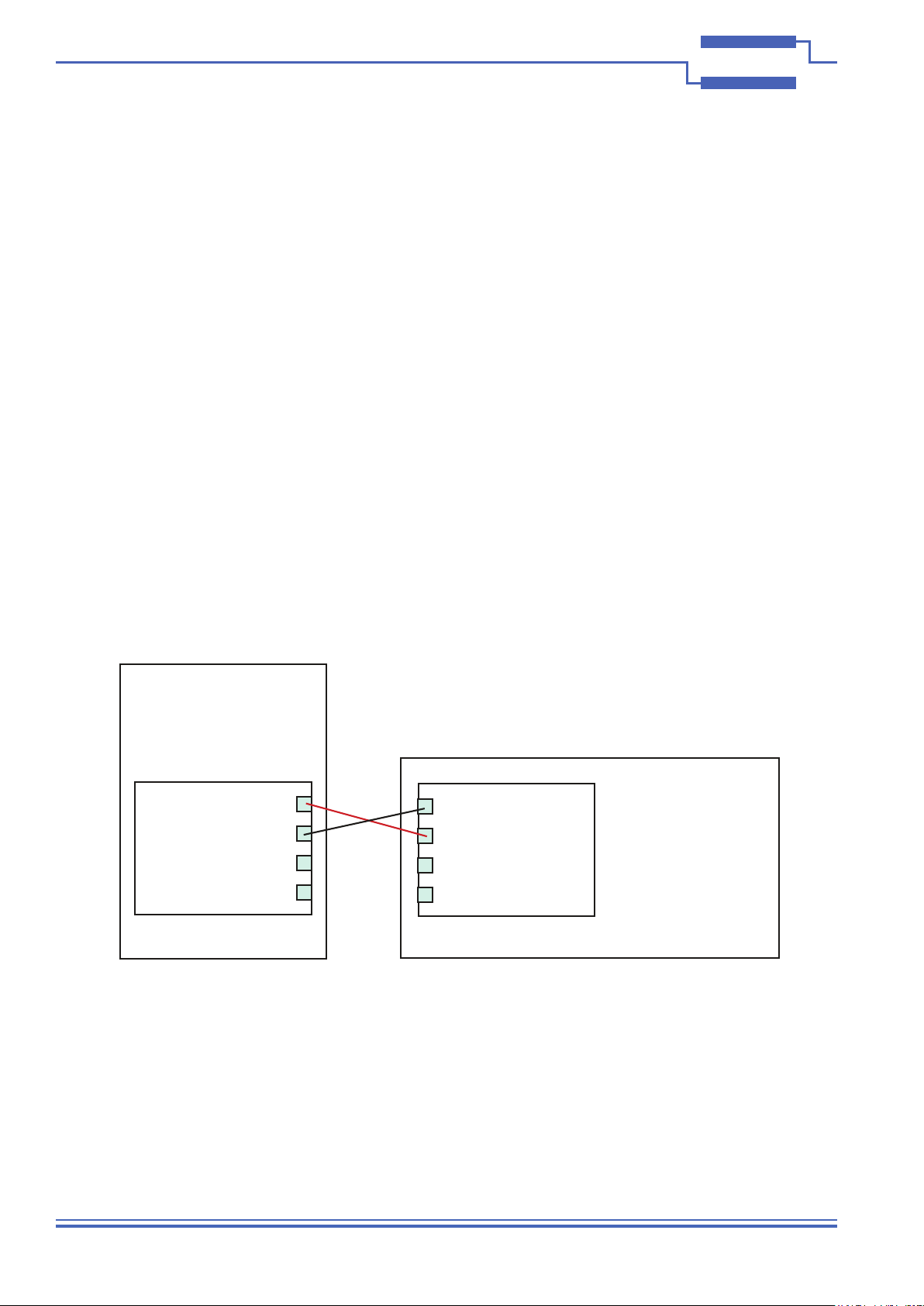

The following gure represents an example of the PCI extension architecture. The desktop PC or PXI system
extends the PCI bus to two PXI chassis via 51-921 and 41-921 modules. From the system view, the three 51-921
and 41-921 modules act as three PCI-to-PCI bridges. Thus the serial interconnection between these bridges is also
a bus, i.e. bus 1 in this example, although it’s not PCI architecture.
SECTION 4 - FUNCTIONAL DESCRIPTION
Page 4.1
pickering
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
SECTION 4 - FUNCTIONAL DESCRIPTION
BASIC ARCHITECTURE OF PCI EXTENSION MODULE
The 51-921 and 41-921 extension module is basically a PCI-to-PCI bridge. The PCI-to-PCI bridge function in the 51-
921 and 41-921 supports legacy address routed trafc, which provides 100% capability with PCI drivers, application
software,
BIOS, O/Ss, etc. This functionality allow users to transfer their designs without extra effort. The functional block
diagram of 51-921 and 41-921 is shown in Figure 4.1.
The interface uses serial interconnect technology operating at 622 Mbps based on low voltage differential signaling
(LVDS). Each interface connection uses two data links, named as Link 1 and Link 2. Each link is divided into
transmit (TX) and receive (RX). Four TX and RX differential pairs in each link are used to provide 2.5Gbps full duplex
link bandwidth or 5Gbps of total bandwidth. Incorporated with the high speed serial LVDS, it is easy to extend the
transmission up to 10 meters through shielded twisted pair copper cables.
Inside the PCI-to-PCI bridge, a PCI-to-StarFabric/StarFabric-to-PCI converter is used to translate PCI transactions
into StarFabric frames and StarFabric frames into PCI transactions. The PCI interface of the 51-921 and 41-921 is
capable of 64-bit/66MHz. The maximum data throughput can up to 528Mbytes/s. The secondary side PCI interface
of PCI-to-PCI bridge is responsible to the central resources and system clocks generation.
Figure 4.1 Block diagram of 51-921 and 41-921
BUS ARCHITECTURE
Each 51-921 and 41-921 extension module has two link ports. Users can use one of them to extend PCI bus to a
PXI chassis or both of them to extend PCI bus to two PXI chassis.
The following gure represents an example of the PCI extension architecture. The desktop PC or PXI system
extends the PCI bus to two PXI chassis via 51-921 and 41-921 modules. From the system view, the three 51-921
and 41-921 modules act as three PCI-to-PCI bridges. Thus the serial interconnection between these bridges is also
a bus, i.e. bus 1 in this example, although it’s not PCI architecture.

Page 2.2 PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 2 - TECHNICAL DESCRIPTION
Figure 2.2 - Bus architecture of the basic conguration which is shown in Fig 3.6
Page 4.2
SECTION 4 - FUNCTIONAL DESCRIPTION pickering
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
Figure 4.2 Bus architecture of the basic conguration which is shown in Fig 3.4

Page 3.1
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering SECTION 3 - INSTALLATION
kg
PREOPERATION CHECKS (UNPACKING)
1. Check the modules for transport damage and report any damage immediately to Pickering Interfaces.
Do not attempt to install the products if any damage is evident.
2. Position the two chassis relative to any other equipment the modules will connect with. Ensure the chassis are
not connected to the electrical supply.
3. Ensure that the designated area for the two chassis containing the modules is of at and solid construction to
withstand and support the combined weight of the module(s) and chassis.
SECTION 3 - INSTALLATION
!
Refer to the Warnings and Cautions at the front of this manual
Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only.
GETTING STARTED
To set up (PC to PXI chassis connection) and use the PCI bus extension module, you need the following:
• A 51-921 card and a 41-921 card.
• Two RJ-45 Copper cables (Pickering Interfaces offers various lengths of shielded copper cable.
Please contact your local sales or dealer for more information)
Note: Pickering Interfaces will have supplied foil twisted pair (FTP) leads with RJ45 connectors if ordered. Standard
unscreened twisted pair (UTP) RJ45 Cat 5e (i.e. commonly used for 100 base T Ethernet) leads can be used but
may increase susceptibility or emissions, and couldimpact compliance with CE specications
• Primary bus – A computer with a PCI backplane, or a PXI controller embedded in a PXI/CompactPCI chassis
• Secondary bus – A PXI/CompactPCI chassis

Page 3.2 PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 3 - INSTALLATION
SOFTWARE INSTALLATION
Once Windows 98/2000/XP has started, the Plug and Play function of the Windows system will nd the new
51-921 and 41-921. If this is the rst time the 51-921 and 41-921 have been installed in your Windows system,
you will be asked to input the device information. Please follow these steps to install 51-921 and 41-921.
For Windows 98 users:
1. Insert the Pickering Interfaces Installation CD. Under X:\PXI_Platform\PXI Extension\Win98\, you can nd starfab
1.inf (X is the drive letter of your CDROM). Copy this le to system information folder (C:\Windows\inf)
2. When you complete the hardware installation, turn on your system.
3. You will be informed to input the device information source, please point the source directory at C:\Windows\inf.
The Hardware Install Wizard will locate the MACHINE2.inf le and install the device automatically.
For Windows 2000/XP users:
1. Insert the Pickering Interfaces Installation CD.
2. Execute 8570install.exe to start the setup.
The path is: X:\PXI_Platform\PXI Extension\NT\8570install.exe. (X is the drive letter of your CDROM)
3. This setup program will copy the necessary les to your hard drive automatically.
When the hardware installation process is complete, reboot the computer for the changes to take effect.

Page 3.3
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering SECTION 3 - INSTALLATION
HARDWARE CONFIGURATION
Jumper Setting (only for 41-921-001)
The 41-921 includes two jumpers that can be set by the user to enable a spread spectrum PCI clock or force 33 MHz
operation. For many applications the status of these jumpers will not effect system operation.
Spread Spectrum Jumper Setting
When 41-921-PXI is plugged into the chassis system slot 1, it provides a discrete clock signal to each of the
peripheral slots (dened as a PCI clock CLK0, CLK1, CLK2, CLK3, CLK4, CLK5, and CLK6).
An important feature of the 51-921 and 41-921 extension modules is that they support 33MHz/66MHz clock operating
environment. As the system clock frequency increases, electromagnetic interference (EMI) becomes an increasing
challenge for the system designers. 41-921-PXI can provide a spread-spectrum clock generator to help user to
deal with this difcult task. Spread spectrum clocking speeds up and slows down the clock within a few percent of
its fundamental frequency. By reducing the average amplitude in a given BW, the system will more likely meet EMI
emission compliance standards. The use of spread spectrum clocking distributes the energy that was originally
concentrated on one frequency over a wider band. This method dramatically reduces the amount of EMI in a narrow
bandwidth. Use the settings shown in Figure 3.1 to control the spread spectrum clock generator.
Figure 3.1 - Spread Spectrum Jumper Settings
M66EN Jumper Setting
41-921-PXI supports 64-bit or 32-bit PCI buses operating at 66MHz or 33MHz. A bundled link can support
the full bandwidth of 64-bit/66MHz PCI bus. You can utilize the following conguration to set the operation
frequency of your system.
Figure 3.2 - M66EN Jumper Settings
A 51-921 and 41-921 interface supports the following primary and secondary bus frequency combinations:
• 66MHz primary bus, 66MHz secondary bus
• 66MHz primary bus, 33MHz secondary bus
• 33MHz primary bus, 33MHz secondary bus
51-921 and 41-921 doesn’t support 33MHz primary/66MHz secondary bus operation.

Page 3.4 PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 3 - INSTALLATION

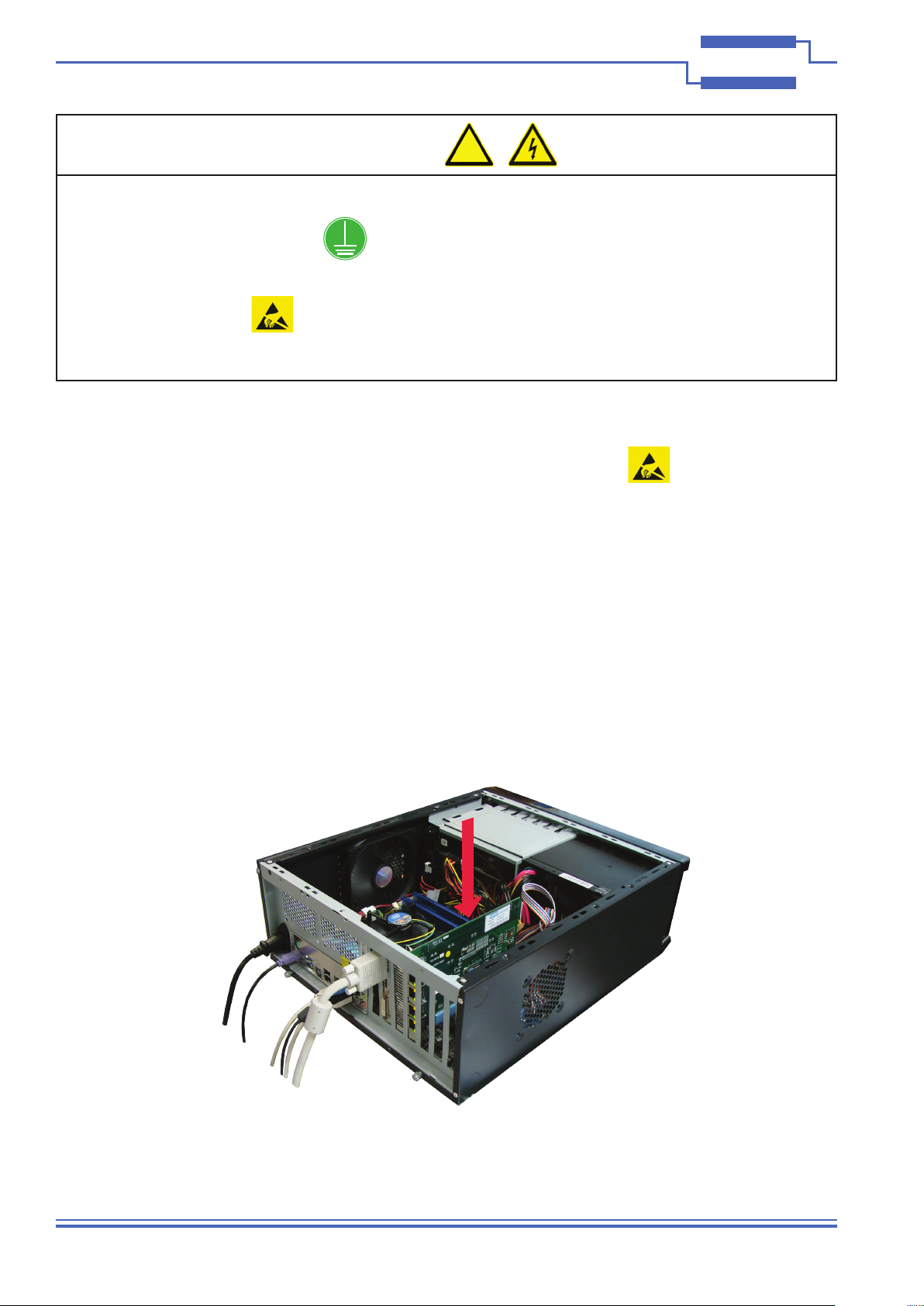

INSTALLING THE 51-921 MODULE
Follow these steps to install the 51-921-001 card into your desktop computer.
1. Ensure that the system is turned OFF but still connected to mains so that it remains grounded.
2. Remove the chassis cover(s).
3. Choose an appropriate free PCI slot in the host system.
4. Remove the blanking plate for the chosen slot and retain the xing screw.
5. Carefully remove the new card from its anti-static bag and insert the card’s edge connector into the free slot in
the host system (refer to Figure 3.3).
6. Ensure the card is fully inserted into the edge connector and the front panel is fully in contact with the back of
card aperture in the host chassis.
7. Use the xing screw to secure the front panel of the card to the host chassis’ mounting rail.
8. Replace the chassis cover(s).
Figure 3.3 - Installing the 51-921 PCI Card
!
HARDWARE INSTALLATION
ELECTRICAL CONNECTION (CHASSIS)
1. The chassis must be electrically installed in accordance with local regional electrical codes by a qualied
engineer.
2. The chassis must be grounded.
Electrostatic discharge can damage the components on the module. To avoid such damage in handling the
board refer to page VII.
Ensure that there is adequate ventilation.

Page 3.5
PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering SECTION 3 - INSTALLATION
The module should be installed in accordance with the following procedure:
1. Ensure that the system is turned OFF but still connected to mains so that it remains grounded.
2. Choose an appropriate slot in the rack.
a. For use in secondary PXI bus – Must choose the system slot (slot 1) of your chassis.
b. For use in primary PXI bus – Choose any unused PXI or CompactPCI peripheral slot except slot 1 (Slot 1
is reserved for the system controller.)
3. Remove the blanking plate for the chosen slot.
4. Ensure that the injector/ejector handle is in its downward position. Align the module with the card guides on
the top and bottom of the slot.
WARNING: Do not raise the injector/ejector handle whilst inserting the module. The module will not insert properly
unless the handle is in its downward position.
5. Hold the handle whilst slowly sliding the module into the card guides until the handle catches on the injector/
ejector rail (refer to Figure 3.4).
6. Raise the injector/ejector handle until the module rmly seats into the backplane. The front panel of the module
should be ush with the front panel of the chassis.
7. Screw the front panel of the module to the front panel mounting rail.
8. Fit the cabling appropriately to the system design (See Section 1 and later in this section)
9. After connecting the PC to the PXI chassis or to link multiple chassis, power-up the system as follows:
a. For a system comprising a PC and one chassis, power up the chassis before powering up the PC.
b. For a system comprising more than one chassis, turn ON the last chassis in the system followed by the
penultimate, etc, and nally turn ON the PC or chassis containing the system controller.
10. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up
sequence.
Figure 3.4 - Installing a PXI
module into a PXI / cPCI / LXI
Chassis
INSTALLING THE 41-921 MODULE

Page 3.6 PCI - PXI CONTROL INTERFACE (51-921 AND 41-921)
pickering
SECTION 3 - INSTALLATION
INTERCONNECTION CABLING
Because 51-921 and 41-921 extension module functions as a standard PCI-to-PCI bridge, it can take advantage
of a variety of extension congurations. Figure 3.5 & 3.6 show the most basic PCI extension conguration. Each
primary extension module can connect to two secondary extension modules. Figure 3.7 & 3.8 show the Star
and Daisy-chain congurations to extend to more than two PXI chassis. Each 51-921 to 41-921 (or 41-921 to
41-921) connection requires two connections to be made (Link 0 and Link 1), providing an up link and a downlink
respectively. Please follow these steps to link the primary and secondary extension modules:
1. Connect the cables to both primary and secondary extension modules. Two cables are required for linking the
primary and secondary modules. The rst cable is used for connecting the PCI to PXI communication link. This
cable is connected from L0 Tx on the 51-921 PCI card to the L0 Rx on the 41-921 PXI module.
The other is used for connecting the PXI to PCI communication link. The cable is connected from L0 Rx on the
51-921 PCI card to the L0 Tx on the 41-921 PXI card. Please refer to Figure 3.5 and 3.6 for connection details.
2. Power on the system with the secondary extension module rst (PXI Chassis). Then turn on the system with the
primary extension module (Computer).
Notes:
• If the interconnection is correct, the indicated LED of primary extension module is extinguished (OFF) and the
LED of secondary extension module is illuminated (ON).
• If you turn on the system with primary extension module rst and then secondary extension module, the indicator
LED’s of both modules will keep blinking.
• If the communication between primary and secondary extension modules is broken, the indicated LED of primary
module is illuminated (ON) and the LED of secondary module is extinguished (OFF).
• If Star or Daisy-chain congurations are implemented, please always turn on the secondary system rst.
Figure 3.5 - Basic PCI extension conguration: Extend one PCI segment
(Rx)CN2
(Tx)CN1
(Rx)CN4
(Tx)CN3
41-921-PXI
System Slot #1 Secondary Chassis (PXI)
(Rx)CN2
(Tx)CN1
(Rx)CN4
(Tx)CN3
41-921-PXI
System Slot #1 Secondary Chassis (PXI)
(Rx)CN2
(Tx)CN1
(Rx)CN4
(Tx)CN3
41-921-PXI
System Slot #1 Secondary Chassis (PXI)
(Rx)CN2
(Tx)CN1
(Rx)CN4
(Tx)CN3
Primary Chassis
(Computer)
Peripheral Slot
51-921-PCI
(Rx)CN2
(Tx)CN1
(Rx)CN4
(Tx)CN3
Primary Chassis
(Computer)
Peripheral Slot
51-921-PCI
