PIHSIANG MACHINERY SUNRUNNER User manual

APT®Power Assist Electric Tricycle
USER MANUAL
1

Table of Contents
Introduction..................................................................................3
Features ………………………………………………………………3
Safety Warnings ..........................................................................5
User Guidance ...........................................................................6
Battery and Charging...................................................................10
Maintenance................................................................................17
Trouble Shooting …………………………………………………….18
Notes…………………………………………………………………..19
Disclaimer ……………………………………………………………20
2

Introduction
Thank you for purchasing the SUNRUNNER®APT®Power Assist Electric Tricycle
(hereinafter referred to as “E-Trike”) designed and manufactured by PIHSIANG
MACHINERY MFG. CO., LTD. (hereinafter referred to as “PMMC”).
The user’s manual contains important information concerning the operation and the safe
use of your E-Trike. Please read this manual carefully and thoroughly before riding your
E-Trike and make sure that you fully understand the operation of the E-Trike as instructed
in this manual. If you have any queries about the spare parts for the maintenance or any
other concerns of your E-Trike, please contact your authorized dealer for assistance.
※SUNRUNNER®is a registered trademark of the PMMC products.
※ APT® is registered for “Advanced Power Technologies” developed and owned by
PMMC.
※ PMMC reserves the right to change the wording and specification without prior notice.
Features
1. Latch 3. Go-Button Kit＊5. Gear-Shift Handle＊
2. Bell 4. Speedometer＊6. Throttle Handle Kit＊
＊: Optional or Equipped with the model as ordered
2
1
46
5
3
5Ah / 6Ah C-LiFePO4
Battery Pack 10Ah / 13.5Ah C-LiFePO4 Battery Pack
3

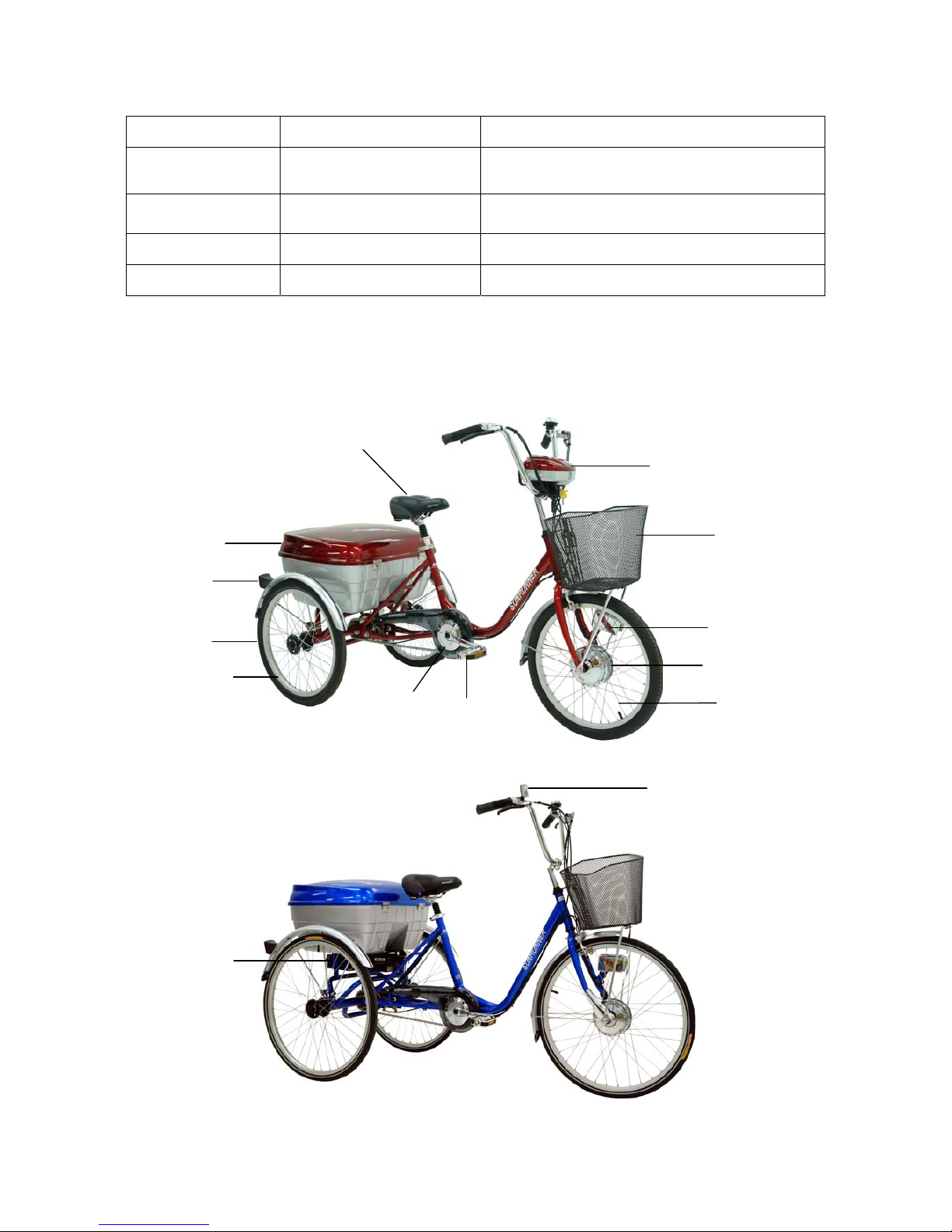

Features
1. Saddle 6. Actuator & Sensor Kit 11. Basket
2. Lockable Box 7. Pedal 12. 5Ah / 6Ah C-LiFePO4Battery Pack＊
3. Reflector 8. Spoke
13.
10Ah / 13.5Ah C
-
LiFePO
4
Battery Pack
＊
4. Pneumatic Tire 9. Hub Motor Assembly 14. Reflector
5. Wheel Rim 10. Controller (w/ Light)
＊: Optional or Equipped with the model as ordered
1
2
3
4
5 6
12
4
14
13
11
10
9
8
7

5
Safety Warnings
1. Do not operate your E-Trike before reading this user manual thoroughly.
2. Do not disassemble the battery pack and modify the unit or your warranty will be void
and you will be responsible for the modification.
3. The maximum load for the carry basket is 2 Kgs.
4. Check the tire pressure of front and rear wheels pressure to be around 50PSI (or 3.5bar)
before riding.
5. Make sure that the battery pack has been fully charged before first use, and remove the
charger after fully charged. Turn the main battery switch off while charging or not using.
6. Check that all electrical connections and mechanical parts are securely locked and
fastened before using your E-Trike.
7. Your E-Trike is not recommended for competition, stunt, any aggressive or off-road
riding. Refer to your warranty terms and conditions.
8. The performance and mileage of the unit will be varied with the battery condition,
temperature, terrain, wind speed, tire pressure, rider weight and the maintenance, etc.
9. Your E-Trike is able to sense your feet’s force on the pedal to provide you the assist
power once you ride it. Before depressing pedal on your E-Trike, please ensure the
road ahead is clear of obstacles and traffic.
10. Adjust the height of the saddle to fit your body size. Take heed of the maximum height
markings on the post of the saddle. Your authorized dealer will give you assistance if
requested.
11. Refer to the instruction sheet of the SunRace Inter-3 Gear to switch 3 stages of gears
for a more comfortable riding at different slopes.
12. Always consult your doctor for advice on your physical condition and follow local traffic
rules while riding.
13. Ensure you wear safe footwear and keep loose articles of clothing clear of moving
parts of your E-Trike while riding.
14. Always handle the battery pack with care and do not drop it.
15. Do not connect the terminals of battery pack with any foreign object.

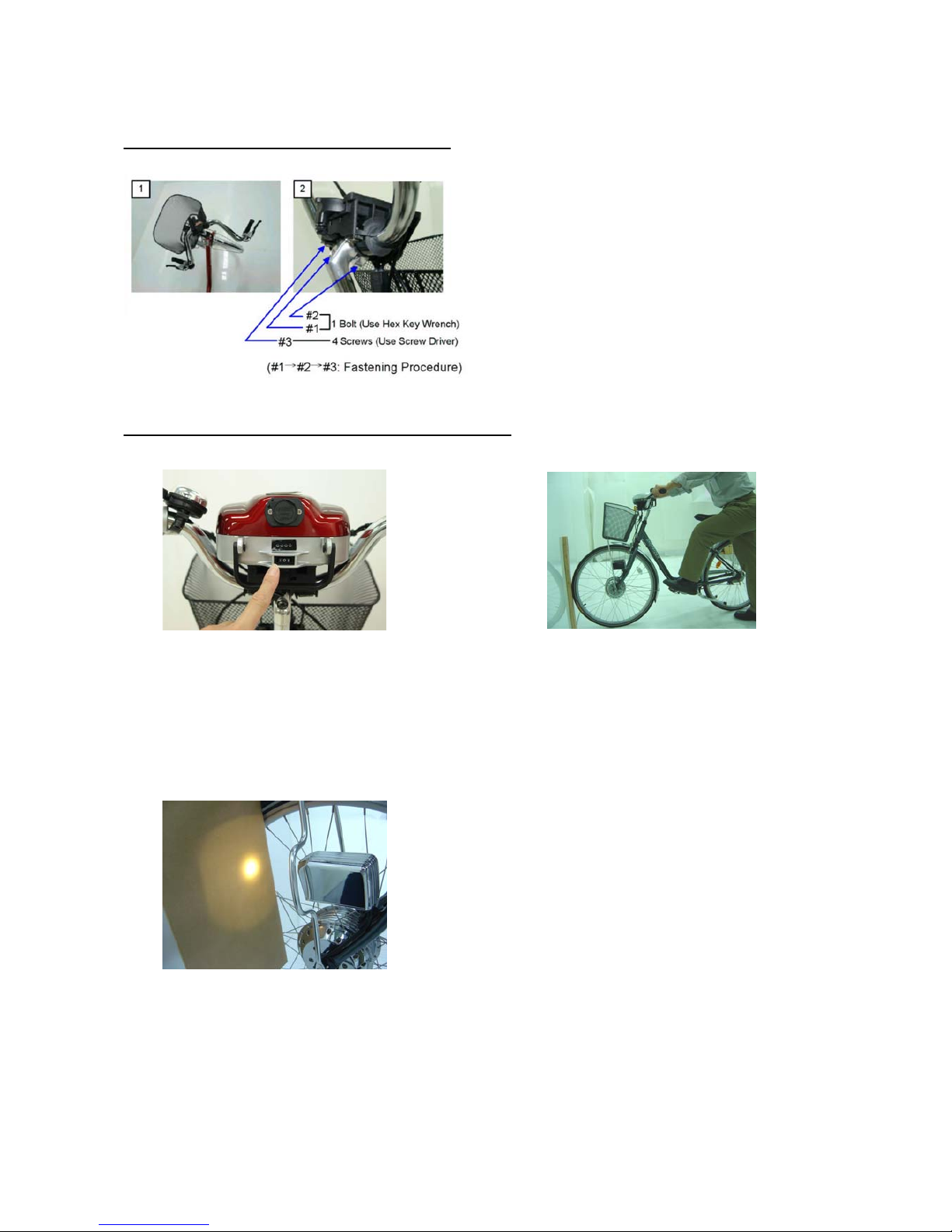

User Guidance
Restore the handle bar before using
10 Stages PowerAssist Output Adjustment
1. Turn off the power and depress
the pedal while the bike is faced
against the wall.
2. Press the main switch to either left (I)
care to ensure bolt is fully
or right (II) position while depressing
tightened before using the bike.
the pedal continuously.
3. After 10 seconds, the light of
controller will flash as below.
The 1st flash means the 1st stage.
The 2nd flash means the 2nd stage.
….
….
The 10th flash means the max. (the 10th stage)
output from the controller. Release the pedal
at once after selecting your desired stage.
4. Turn off the battery-then on to complete adjustment.
Note: 1. It’s recommended you use the 1st or lower stages to save battery charge if
you are riding on level ground frequently.
2. The 10th stage is the default setting on your new E-Trike.
Use the allen key supplied to
adjust the handlebars back to
the normal user position. Take
6

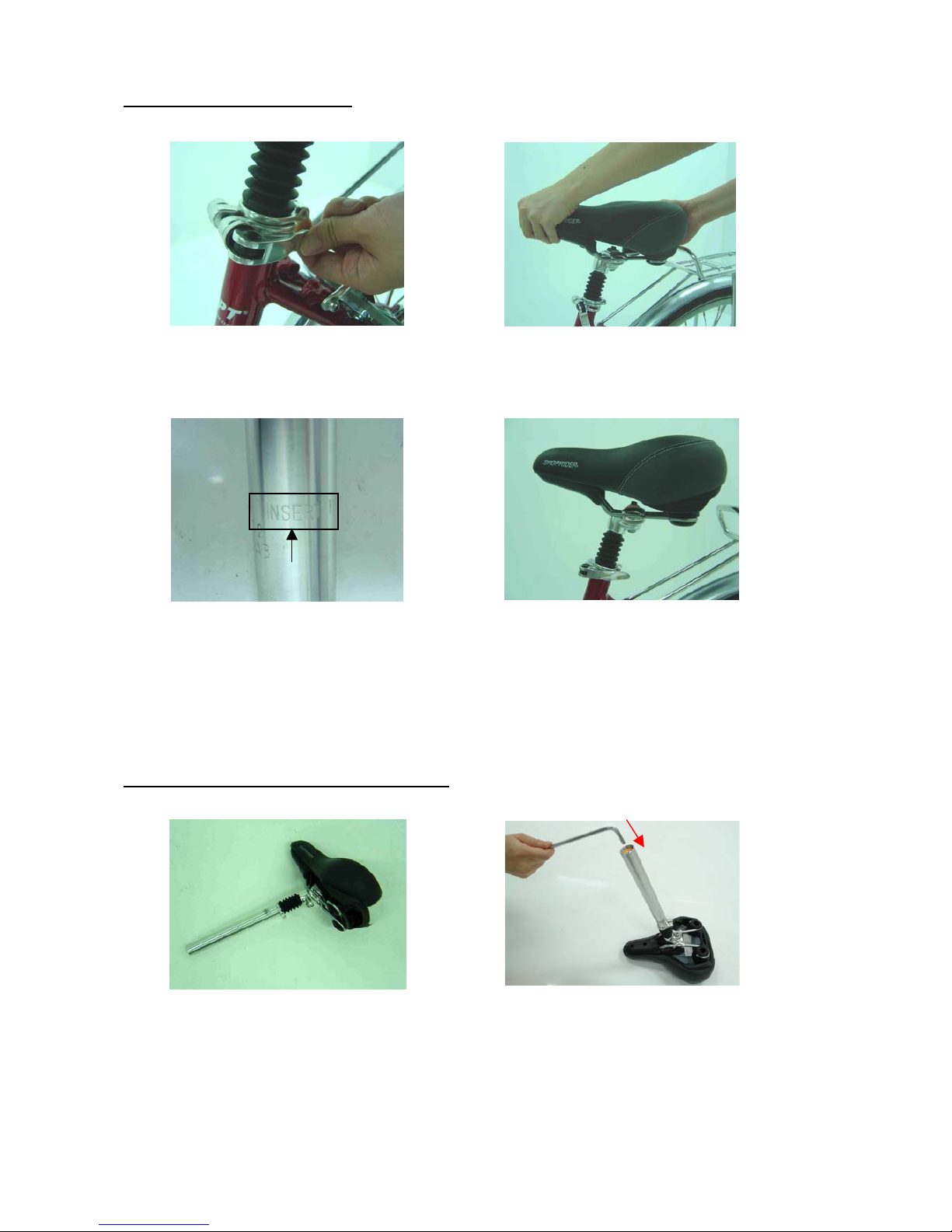

Adjustment of the Saddle
2. Adjust the seat post to the
desired height position.
1. Loosen the clamp lever.
INSERT MIN ||||||||
3. Be aware of the maximum
height markings (MIN.
INSERTION as shown) on
the tube of the saddle.
4. Ensure the saddle is aligned
on your E-Trike and then
tighten the clamp lever when
your saddle has completely
positioned.
Cushion Adjustment for the Saddle
1. Loosen the clamp lever and
withdraw the saddle connected
with seat post.
2. Using the Hex Wrench to loosen
or depress the cushion to adjust
to your personal comfort.
7

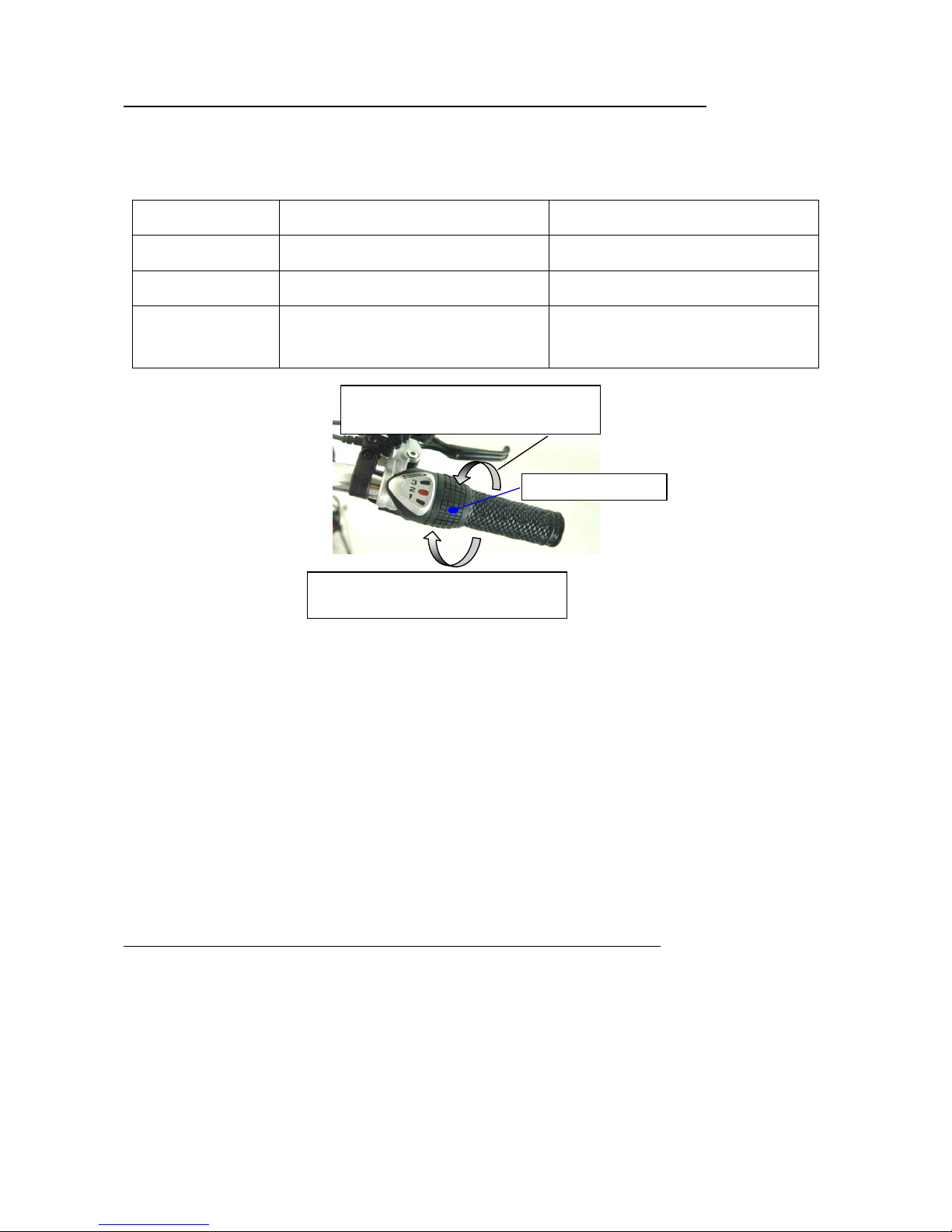

Operating Instructions of Derailleur (SunRace Inter-3 Shift Gear)
Your E-Trike is equipped with the Sunrace Inter-3 (3-speed shift gear) at the rear wheel axle.
It is easy to change the gear ratio by shifting the gear-change handle while riding.
Handle position Riding Gradient Speed / Gear Ratio
3 Level road High
2 Level road with a slight slope Middle
1 At a moderate gradient Low (To save your energy while
mounting a slope)
Pedaling becomes heavier
(Indicator moves：1 →2 →3)
8
Revo-shift lever
Pedaling becomes lighter
(Indicator moves：3 →2 →1)
If the gear changes cannot be performed smoothly, please contact your authorized dealer
for adjustment. To smoothly shift the derailleur, the steps as below should be followed.
1. Stop pedaling before shifting the gears while riding.
2. Only shift one gear one time while switching the gear-change handle (Revo-shift lever
shown as above).
3. Resume pedaling.
Note : If you shift the gears while pedaling, a clash noise may be heard due to gears shifting
over dynamic moving parts.
Operating Instructions of Go-Button and Throttle Handle Kit＊(Optional)
The power assist of your E-Trike will remain on continuously when the Go-Button is held on
or the Throttle Handle is twisted.
Note: 1. Do not use Go-Button or Throttle Handle without pedaling especially when
traveling on a slope.
2. The use of the Go-Button or Throttle Handle will reduce the battery range during
your ride.

9
Regular Check for Safety before Riding
1. Check Tire Pressure before riding:
The tire pressure on front and rear tires is to be maintained at 50PSI (or 3.5Bar).
Check if the tire tread is worn excessively. If so the tire needs to be replaced.
2. Check Power Assist:
The power assist should cut off when one of handbrakes is engaged or the pedaling has
being stopped for over 3 seconds.
3. Check Battery:
Check the battery pack fits into the battery mount firmly and the LED Light of the battery
pack lights up when the main switch is switched on at the II position.
Check the battery is fully charged before use.
1. Check Motor and Control System:
Must check the motor and control system ensuring normal operation.
2. General Inspection:
Check if brake shoes are worn and need to be replaced.
Check if the braking function is operating correctly.
Check if the front and rear wheels are operated smoothly.
Check if all connectors on E-Trike are firmly secured without any damage.
If you have any questions after checking, please refer to the Page 19 for trouble shooting or
contact your authorized dealer for inspection and maintenance.
Riding Safety
˙Always follow local traffic rules while riding.
˙Check the battery gauge if the charge is sufficient to keep the power assist for your
planned riding.
˙The maximum loading capacity of the lockable box & front basket is 20 kgs & 2 kgs
respectively. Do not overload the lockable box or basket.
˙Do not keep riding your E-Trike if a problem has occurred. Refer to the solutions for
trouble shooting (page 18) or contact your authorized dealer for further inspection and
maintenance. Ensure to use the spare parts supplied by PMMC for replacement.
E-Trike Care
The lifetime of your E-Trike will be adversely affected by exposures to aggressive road
conditions, such as dirt, rain, water or salt spray, etc. Ensure your E-Trike, including the
battery pack, are used as instructed in this manual and are protected for transportation.
Always store your E-Trike indoors when not in use. This will prolong the lifespan of your
E-Trike.

Battery & Charging
Dismounting the Battery Pack (5Ah / 6Ah)
1
Unlock the battery pack by using your battery key turned flat.
Note: Make sure the battery pack handle is latched as shown
before sliding out the battery.
3
2
Hold the battery pack
handle and remove it.
Depress the key to release the
lock and use the other hand to
push the battery pack and slide
it out from the battery mount.
Mounting the Battery Pack (5Ah / 6Ah)
1 2
Please secure the battery pack mount with
one hand and slide the battery pack onto
the rail of mount all the way down to lock
the battery pack with the other hand as shown.
Note: If the battery pack can be removed without
depressing the key, this means that the
battery pack has not been properly locked.
Repeat the above procedures again.
The battery pack will be securely
locked and can’t be removed
when the key is switched toward
the vertical position as shown.
10

Dismounting the Battery Pack (10Ah / 13.5Ah)
1
11
2
Switch the battery pack off. Unlock the battery pack by using your
battery key switched to be level. Depress
the key to release the lock and use the
other hand to push the battery pack
sliding out from the battery slide.
Mounting the Battery Pack (10Ah / 13.5Ah)
2
1
Slide the battery pack onto the
rail and all the way down to
lock the battery pack with the
other hand as shown.
The battery pack will be securely
locked and can’t be removed
when the key is switched toward
the vertical position as shown.

Steps to Charge the Battery Pack (5Ah / 6Ah/ 10Ah / 13.5Ah)
1. Turn off the main switch of battery pack.
2. Dismount the battery pack (shown as Page 10, 11) and then place it at a ventilated
place to be charging.
3. Swivel the charging port cover of battery pack and then connect the charger plug of the
charger.
4. Plug the power plug of the charger into secure power source to start charging battery.
Note: 1. Ensure that the charger plug is dry and securely connected to the charger port of
battery pack.
2. Ensure the battery pack is switched off and removed prior to charging.

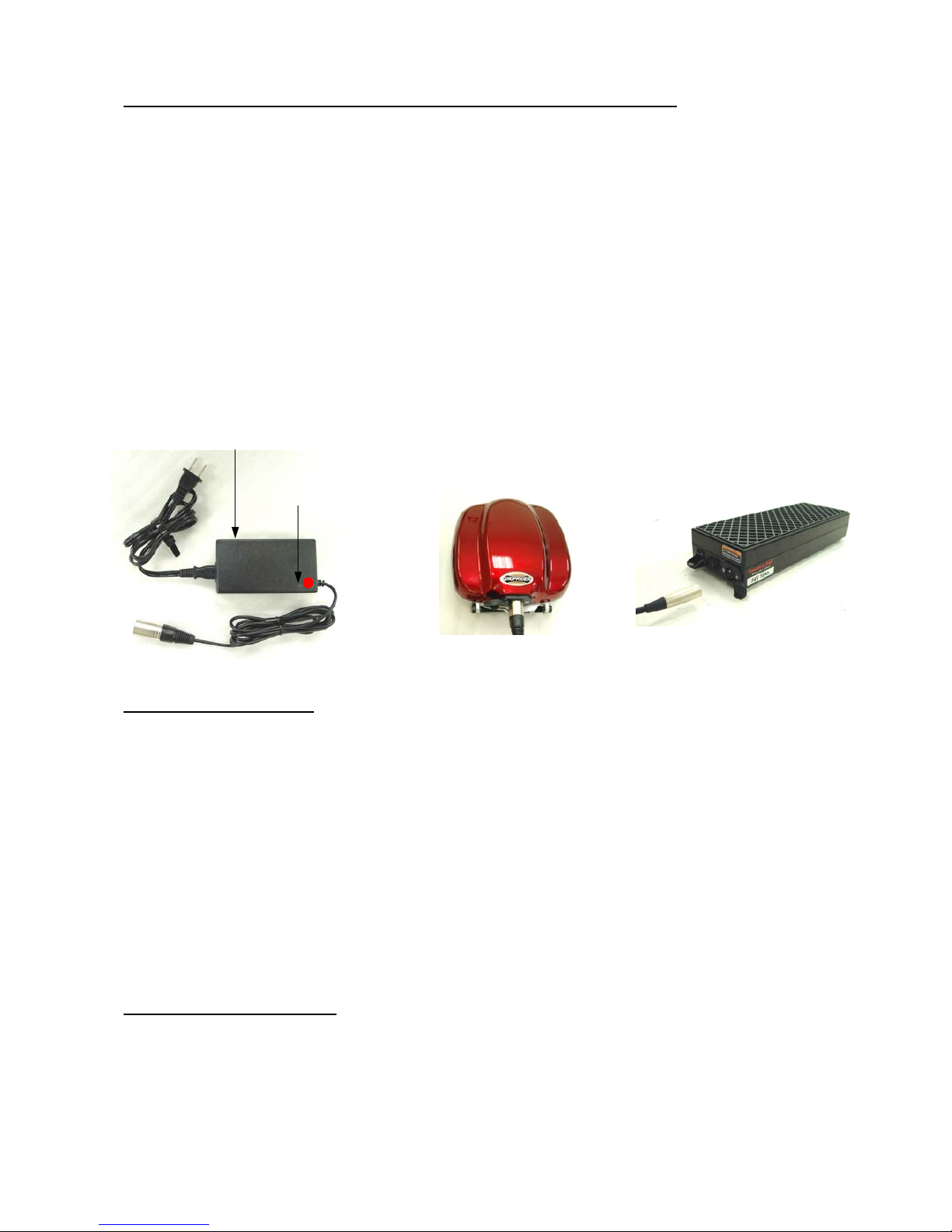

Charging Indicator LED
Charger
Operating Instruction
1. Ensure the input voltage is between 100V~240V.
2. Ensure the battery to be charged is a C-LiFePO4(C-Coated Lithium Iron Phosphate
Based) Battery Pack supplied by PMMC.
3. Make sure the power cord, battery cable, and battery terminals are in good condition.
4. Make sure the connecting battery rating is the same as the charger output voltage
(24V).
5. While charging, the charging indicator LED will display RED. When the light turns
GREEN, the battery is fully charged.
Charger LED Indication
1. LED (GREEN) – Power On, when not connected to the batteries.
2. LED (RED) – Charging
3. LED (GREEN) – Fully Charged, when connected to the batteries.
12

13
Trouble Shooting
1. If the LED light is “OFF” all the time while charging:
Check if the power connections are in good condition. If the LED light is still off all the
time while charging, the battery charger may have malfunction.
Please consult your authorized dealer for further assistance.
2. If the LED light does not switch from GREEN to RED when the charging process begins:
Check if the connection between charger plug and charging port of the battery is
correctly inserted.
Check if the battery pack is already fully charged.
Check if the battery is functioned properly, and consult your local authorized dealer for
assistance.
3. The charging time continues for a long duration (Irregular):
Check if the battery is faulty or aged, and consult your local authorized dealer for
assistance.
4. The battery overheats:
Check your battery and charger if connected properly. Stop charging immediately and
consult your authorized dealer for a detailed check if there is concern or issue with your
charger or batteries.
Caution
1. All charging will be completed within 7hrs dependant on different on the size of battery
pack and charger. Do not charge the batteries for longer than 24 hours.
2. Do not expose the charger to the rain, water or a humid place. Do not use the battery
charger near flammable articles or in unventilated places.
3. The battery pack is not allowed to be disassembled and should not be exposed to water
or fire.
4. For your safety, do not short circuit the output plug, or it may cause unexpected danger
or damage.
5. Use the specified charger only for C-LiFePO4(C-Coated Lithium Iron Phosphate Based)
Battery Pack (24V) supplied by PMMC.
6. Always use the battery charger and power cord supplied by PMMC.
7. Before plugging in the power cord of the charger, please confirm that the local power
supply corresponds with the requirement of the charger.
8. The manufacturer will not be responsible for any damage or injury due to improper or
unsafe use of the battery charger.

Battery Pack Feature
˙Main Switch Function：
How to operate LED Lights
Function
I Controller Controller & Battery Pack
II Controller & Battery Pack None
Activate
Power Assist
○Power off Stop
˙The LED Light on controller and battery pack utilizes the 1W Warm White LED Light, which
is a green energy and provides moderate light in the dark.
˙The positions of LED light on battery pack and controller are referred to the photos as
below.
14
˙The portable battery pack (5Ah/6Ah) can be stored in a carrying bag supplied with each
E-Trike and can be used for individual lightening system, the same as a
flashlight device. Dependant on the charge of the battery, the warm white LED light can
last for 3~6 days.
˙The threaded hole available underneath the (5Ah/6Ah) battery pack is a connection
interface to other devices for illumination, such as the camera stand as shown.
5Ah / 6Ah
Battery Pack (5Ah/6Ah)
mounted on a came
r
a stand
Carrying Bag of Battery Pack (5Ah/6Ah)
10Ah / 13.5Ah
LED light of controlle
r
(starts on I & II if existed)
LED Light of Battery Pack
5Ah / 6Ah (starts on II)

Battery Capacity LED Light Indicator
LEDs Illuminated Percent Left of
Battery Capacity Battery Remaining Charge
All LEDs on 100%~90% Battery pack has adequate power.
3 LEDs on, 1 LED off 65%~55% About three-fifth capacity is remaining.
2 LEDs on, 2 LEDs off 45%~ 40% About two-fifth capacity is remaining.
1 LED on, 3 LEDs off 25%~15% About one-fifth capacity is remaining.
Last indicator light flashing 10%~0% Charging the battery is recommended.
Please note that the percent left of battery capacity and battery remaining charge shown as
above are listed for reference.
Warning: For your safety, do not check the LEDs of battery remaining charge while in
motion it may affect your attention to the road condition.Always check the LEDs
of battery remaining charge only when stopped and in a safe place.
15

16
Riding Range per Different Capacity of a Fully Charged Battery Pack
Type-Environfriendly®C-LiFePO4，5 Ah / 6Ah / 10Ah / 13.5Ah
Battery Capacity Configuration or Option
(Capacity/Weight) 5Ah (1.8kg) 6Ah (1.9kg) 10Ah (3.4kg) 13.5Ah(3.9kg)
Reference Range
(Remark)
Set to the top
scale of power
assist 60~80Kg 15~20 Km 20~25 Km 35~40 Km 50~55 Km
Charger
Capacity 2A(Standard) for 5Ah / 6 Ah / 10 Ah / 13.5Ah, 4A (Option) for 10 Ah / 13.5Ah
Specified Charger
for C-LiFePO4
Batteries Charging Time Approx. 2.5 ~ 7hrs depending on the charger capacity
Remark:
1. Your riding range will vary with your weight, battery condition, temperature, terrain, wind
speed, tire pressure and the maintenance, etc.
2. As the last battery indicator light starts flashing, you may continue to ride the E-Trike for
approx. 1.2 Miles (2 KMs) further.
3. The maximum weight capacity of the E-Trike is around 100 Kgs.
Conditions that Effect Your Riding Range
Item Conditions Effects
1 Ambient temperature
Extreme cold and heat can consume the battery’s charge
more quickly.
2 Headwinds Riding into a strong headwind will cause the motor to use
more energy.
3 Road conditions Hilly and rough terrain will cause the motor to use more
energy.
4 Carrier Carrying extra luggage on the carrier or in a basket will cause
the motor to use more energy.
5 Acceleration from a
standing stop
Since more energy is used during initial acceleration, riding in
traffic conditions (i.e. city) that force you to start and stop
often will cause the motor to use more energy.
6 Rider weight A heavier rider will cause the motor to use more energy than
with a lighter rider.
7 Proper gear usage Pedaling in a proper gear for the terrain will help save energy
for both you and the battery.
8 Poor maintenance Adry or dirty chain and under-inflated tires can cause the
motor to use more energy.

17
Maintenance
Periodic Maintenance
Please contact your authorized dealer to maintain your E-Trike periodically：
˙Make sure the front and rear wheel in good condition.
˙Maintain the battery pack and charger in good condition.
˙Maintain the motor and controller in good condition.
˙Check and maintain the brake system to keep it in good condition.
˙Use lubricant to maintain metal parts of the unit, however do not lubricate the brake
shoes.
˙Check all electrical connections and mechanical parts are securely locked
and fastened.
Routine Maintenance
˙Check the tire tread and tire pressure are in good condition.
˙Check the battery capacity remaining charge and charger in good condition.
˙Clean up the surface of your unit without spraying over all electrical connections.

18
Trouble Shooting
PROBLEM POSSIBLE CAUSE SOLUTION
Battery pack is loose
Loosening issue. (such
as, battery pack could be
removed when the key
on battery pack is not
depressed.)
Battery pack has not been
totally locked onto the
battery holder.
Follow the instruction to dismount
then remount battery pack again to
check if battery pack cannot be
removed without depressing the
key.
Battery gauge LEDs has
no display when power
on.
Battery pack charge is low
or battery not connected. Check if battery pack has been fully charged before use. Refer
above if the battery pack has a
loosening issue.
Power assist fails to
perform its intended
function when pedaling.
Controller may go to sleep
mode to preserve battery
charge after being idle for
few minutes.
Or, if one of handbrakes
fails to restore to its
disengaged position.
Switch power off and then back on
to remove from sleep mode.
Check handbrakes are totally
disengaged when the levers have
been released.
Power assist function
discontinued when
riding.
Battery pack with an empty
charge. As the last battery indicator light start flashing then the battery pack
must be recharged as soon as
possible, or the power assist will be
discontinued after approximately 2
KMs of further riding.
Poor traveling range Frequent riding on
gradients, poor tire
pressure, battery pack with
insufficient charge, or
battery aging, etc.
Decrease chance to ride on
gradients to check if a longer range
is acquired, fill up tire pressure to
50 PSI, fully charge the battery
daily after use, or replace a new
battery pack, etc.
Unusual motor/gear
sound (noise) Check if any foreign object obstructs wheels or motor. Clean up obstacles around the wheels and motor.
Note: You must use the genuine SUNRUNNER®charger dedicated for C-LiFePO4Battery
Pack to be charged.
Please contact your authorized dealer if the above solution has been checked and the
problem is still exists.

APT®Power Assist Electric Tricycle
DISCLAIMER
Congratulations on your purchase of SUNRUNNER®APT®Power Assist Electric Tricycle.
This APT®Power Assist Electric Tricycle is not intended to be used by individuals with
physical limitations that could prevent the user from operating the APT®Power Assist
Electric Tricycle safely. PMMC disclaims all responsibility for any personal injury or
property damage, which may occur as a result of improper or unsafe use of its products.
Mechanical or electrical defects will be dealt with on a contingency liability basis.
Warranty is only valid when genuine SUNRUNNER®parts are used. All modifications on
the APT®Power Assist Electric Tricycle, unless approved and authorized by
SUNRUNNER®, will automatically invalidate the warranties. Standard warranty does not
extend to consumable items and parties other than the original purchaser.
The preceding guidelines are intended to assist you in the safe operation of this APT®
Power Assist Electric Tricycle. Should you have any questions about the correct operation
of the APT®Power Assist Electric Tricycle, please contact your authorized dealers.
Model Name –SUNRUNNER®SerialNo.
Provider’s Stamp
PIHSIANG MACHINERY MFG. CO., LTD.
www.pihsiang.com.tw
[email protected]
P/N
：
300905
29
19
