Pinnacle MS01109 User manual

PAGE 2
TABLE OF CONTENTS
1.PREFACE AND INTRODUCTION
2. SAFETY NOTICE
2.1 Before driving
2.2 While driving
2.3 Labelling
2.4 EMI
3. PARTS INTRODUCTION
Parts description
4. OPERATION
4.1 Control panel
4.2 How to operate your scooter
4.3 Assembling and disassembling
5. BATTERY CHARGING AND CARE
5.1 Charging the battery
5.2 Battery
6. INSPECTION AND MAINTENANCE
6.1 Inspection
6.2 Regular checking record
6.3 Battery, fuse and tyre
6.4 Storage
6.5 Moving about
7. TROUBLE SHOOTING AND SPECIFICATION
8. WARRANTY
1
2
8
9
18
22
27
28

PAGE 1
1. PREFACE AND INTRODUCTION
Please carefully read this owner’s manual before using the vehicle. Improper use of the
vehicle could result in harm, injury or trac accidents. Therefore, for maximum pleas-
ure while using the vehicle please read this owner’s manual.
»This owner’s manual includes operation instructions for every aspect of the vehicle,
assembly instructions, as well as instructions for how to deal with possible accidents.
»The symbols used in this manual are explained below:
Read especially the notes marked with these symbols:
»This manual includes a repair and maintenance record chart and warranty
information. Please keep it in a safe place or in the scooter.
»If someone else uses the scooter, please make sure that you provide them with the
instruction manual for his or her consideration.
»As designs change some illustrations and pictures in the manual may not correspond
to the vehicle that you purchased. We reserve the right to make design modications.
Our scooters have been designed and manufactured to provide a comfortable and
secure yet aordable solution for some mobility requirements.
Warning Improper usage could result in serious injury or death
Attention Improper usage could lead to injury and/or damage
to your scooter.
Suggestion Follow these instructions to keep your vehicle in a
good operating order.
Suggestion
To maximize your batteries’ eciency and service life, please fully recharge
your new battery before its rst time use.

PAGE 2
2. SAFETY NOTICE
2.1 BEFORE DRIVING
The user needs to be familiar with the usage and operation of this vehicle before
driving. Therefore, please always keep the following safety notices in mind.
The same trac rules apply to the use of this vehicle as apply to pedestrians
For your safety, please therefore follow the rules that apply to pedestrians.
»Ride on the pavement or pedestrian areas only. Never ride on motorways or dual
carriageways.
»Please do not drive your scooter after consuming alcohol or when you are tired.
»Please be careful when driving your scooter in low light. It has not been designed
for use at night.
»Be extremely cautious when driving your scooter on busy street or in shopping
malls.
Practice operating your vehicle
Before using the scooter in busy or potentially dangerous areas, familiarize yourself
with the operation of your scooter. Please practice in a wide and open area like a park.
In order to avoid accidents with your scooter while driving, please bear in mind driving
motions, such as accelerating, stopping, turning, reversing, up-and down ramps.
»Please turn the speed dial to low speed position for your initial practice.
»Only use higher speed setting when you are condent that you can easily
operate and control your scooter.
The WT-T4SC9 Scooter is only to be used by one person at a time
»Do not carry passengers on your scooter (including children)
Do not use this vehicle to carry or haul goods
»As the maximum weight can be carried please refer to
“MAX USER WEIGHT” in “7. SPECIFICATION”
» Maximum loading weight for the basket is 3 kg .
Please carry out daily inspections.
»Refer to the section entitled “DAILY CHECKING”

PAGE 3
2.2 WHILE DRIVING
Please carry out daily inspections. Refer to the section entitled “DAILY CHECKING”
Do not move your body out of the vehicle while moving
»Such action may cause you to lose balance and risk injury from falling.
»Pay attention that your clothes do not tangle in the wheels.
Do not use your vehicle under the circumstances below.
»Do not use on the road, other than to cross a road at a safe crossing point or if a
pavement is not available.
»Keep away from places where you might get the wheels stuck.
»Do not drive at night or when it is raining, snowing, misty, or windy.
»Do not drive your vehicle in an “S” pattern or make erratic turnings.
»Do not take the scooter onto escalators.
»UNDER NO CIRCUMSTANCES SHOULD THE SCOOTER BE USED AS A SEAT
IN A MOTOR VEHICLE (E.G. CARS, BUSES, TRAINS, ETC).
About Mobile Phones and other electrical equipment
»Do not use a mobile phone or other wireless communication devices while
driving.
»Always switch o the scooter and remove the ignition key before using a mobile
phone.
»Do not charge the mobile phone or any other electrical devices from your
scooter’s battery.
Automatic Power Shut Down
In order to avoid accidental battery run down, your scooter is equipped with an
automatic power shut down facility. If the scooter is switched on, after remaining
undisturbed for a period of fty minutes it will automatically turn o. Should this occur,
simply switch your scooter o and back on and it will be ready to use once again.
Ramps, inclines and drops
»Do not drive onto steep ramps greater than the specied gradient. Refer to the
section entitled “CLIMBING ANGLE” in “7. SPECIFICATION“
»Always use a low speed setting when ascending or descending a gradient.
»Do not drive on paths with large drops or potholes.
»Please slow down when driving on paths with inclines.
»Do not make sudden turns when driving on gravel or ramps.
»Always lean forward when climbing a steep gradient.
2. SAFETY NOTICE

PAGE 4
2. SAFETY NOTICE
Starting and Driving
1. Make sure the seat is installed properly.
2. Make sure the tiller has been secured properly.
3. Fold down the armrests so you can rest your arms on them.
4. Turn the power switch to “ON”. If necessary, turn on the headlights.
5. Check battery indicator to see whether there is enough power for your journey.
If you have any doubt about the remaining power, please recharge the batteries
before departure.
6. Set the speed dial to a position you feel safe and comfortable with.
7. Check the forward/reverse speed lever works correctly.
8. Make sure the electromagnetic brake works correctly.
9. Make sure it is safe around you before you drive on the street.
Warning!
»Do not set in freewheel mode when driving on a gradient.
»Always re-engage the anti-freewheel device before use. Fail to do so may
result in injury.
»To protect your safety, the power will automatically cut o and
electromagnetic brake system will activate while you are driving down a
steep gradient. This will limit the speed to a safe level. Turn the power on
again to re-start your scooter.
»Maximum User Weight Limit
Refer to section entitled “MAX. USER WEIGHT” in “ 8. SPECIFICATION “.
Overloading past the weight limit may lead to damage of your scooter or
cause it to malfunction and will endanger your safety. The warranty does
not cover this type of damage.

PAGE 5
2. SAFETY NOTICE
Stopping
»Release the speed control lever completely. The vehicle will naturally brake and
stop.
»Turn the power switch to (OFF). Then pull out the key.
Driving on the pavement
»Do not exceed 6kmh / 4mph when using the scooter on the pavement.
»This will limit the scooter to a maximum speed of 6 km/h. It is an oence to travel
at more than 6 km/h on the pavement.
»The limit switch can be set to the fastest setting for use on the road or on private
ground.
Attention
1. Do not push both RH & LH sides of the speed control lever
simultaneously. This might leave you unable to control your scooter.
2. Do not turn the power switch to OFF while driving as this will lead to an
emergency stop and possible risk of accident and injury.
3. Do not set to the highest speeds while driving indoors.
4. Do not adjust the speed dial while driving, a sudden change in speed may
cause danger to you and others, and may cause damage to your scooter.
5. Do not place magnetic devices near the area of the operation handle as
this could aect the safe operation of your scooter.
6. Do be careful while driving in heavy trac or crowded areas.
7. While reversing the vehicle, beware of people or objects behind you.

PAGE 6
2. SAFETY NOTICE
Please carefully read all labels on the scooter before driving it. For your future
reference, do not remove them.
WARNING EMI LABEL
TILLER DUMPING WARNING LABEL
CE LABEL
FREEWHEEL LABEL
SEAT PINCH WARNING LABEL

PAGE 7
2. SAFETY NOTICE
2.4 EMI
This portion of the content will provide the user with basic information that describes
the problems with EMI, known sources of EMI, protective measures either to lessen the
possibility or exposure or to minimize the degree of exposure, and suggested action
should unexpected or erratic movement occur.
Caution
It is very important that you read this information regarding the possible
eects of electromagnetic interference on your electric scooter.
Electromagnetic Interference (EMI) from radio wave sources
Powered vehicle may be susceptible to electromagnetic interference (EMI), which is
interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV
stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The
interference (from radio wave sources) can cause the powered vehicle to release its
brakes, move by itself, or move in unintended directions. It can also permanently
damage the powered vehicle’s control system. The intensity of the interfering EM
energy can be measured in volts per meter (V/m). Each powered vehicle can resist EMI
up to a certain intensity. This is called its “immunity level”. The higher the immunity
level, the greater the protection. At this time, current technology is capable of achieving
at least a 20 V/m immunity level, which would provide useful protection from the more
common sources of radiated EMI. This powered vehicle model as shipped, with no
further modication, has an immunity level of 20 V/m without any accessories.
There are a number of sources of relatively intense electromagnetic elds in the
everyday environment. Some of these sources are obvious and easy to avoid. Others
are not apparent and exposure is unavoidable. However, we believe that by following
the guidelines listed below your risk to EMI will be minimized.
The sources of radiated EMI can be broadly classied into three types:
1. Hand-held portable transceivers ( transmitter-receivers with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios, “ walkie
talkie”, security, re, and police transceivers, cellular telephones and other personal
communication devices.
2. Medium-range mobile transceivers, such as those used in police cars, re trucks,
ambulances and taxis. These usually have the antenna mounted on the outside of the
Vehicle,
3. Long-range transmitters and transceivers, such as commercial broadcast
transmitter (radio and TV broadcast antenna towers) and amateur (HAM) radios.

PAGE 8

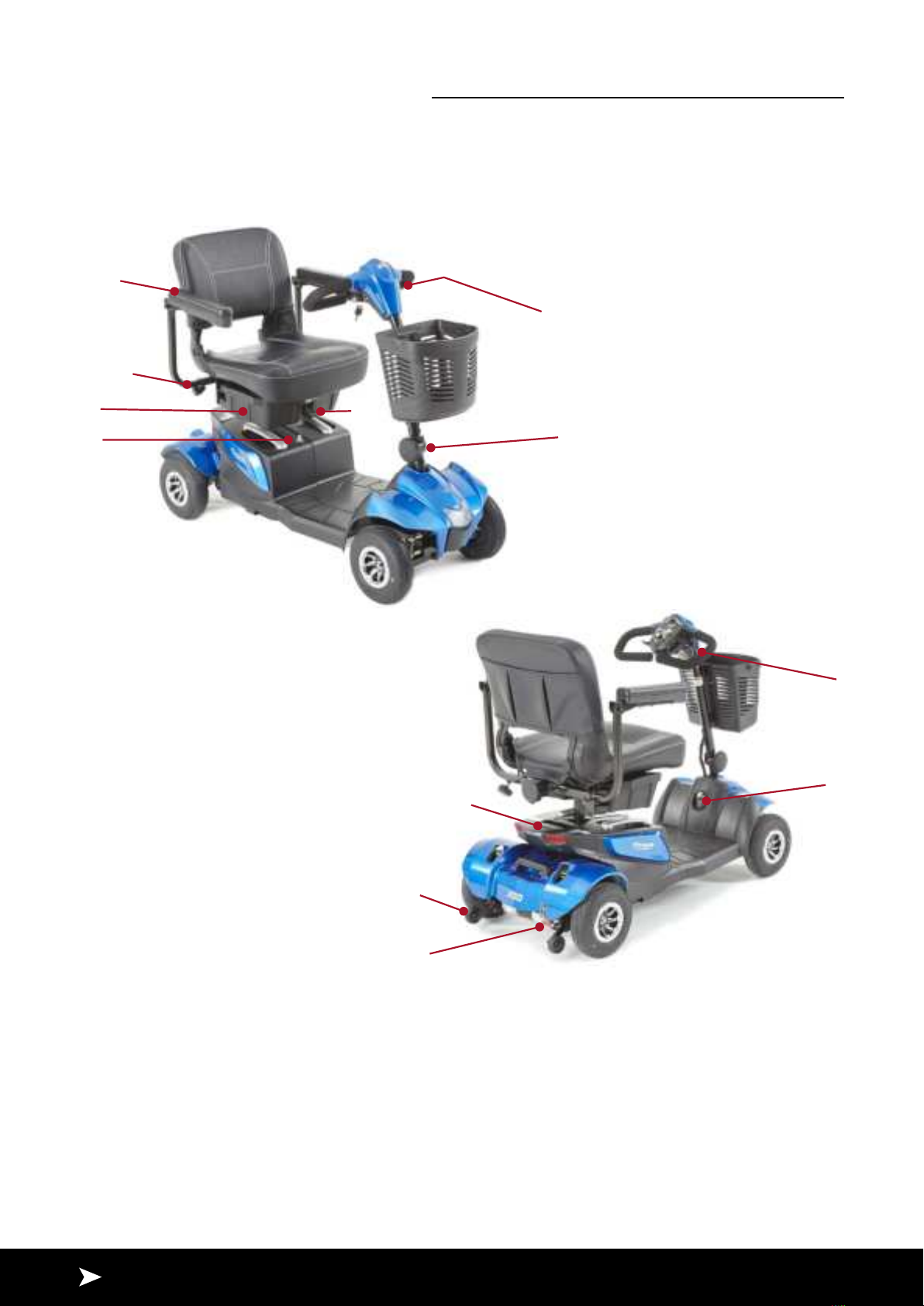

3. PARTS INTRODUCTION
Parts Description
1. Charger Socket
2. Circuit Breaker
3. Tiller Adjust Knob
4. Seat Rotate Lever
5. Armrest
6. Under-seat Storage Box
7. Width Adjustable
Armrests Knob
8. Freewheel Lever
9. Anti-tip Wheel
10. Connecting Device
11. Front Wheel Lock knob
12. Power Switch
8
9
10
11
12
3
1
2
6
7
5
4

PAGE 9
4. OPERATION

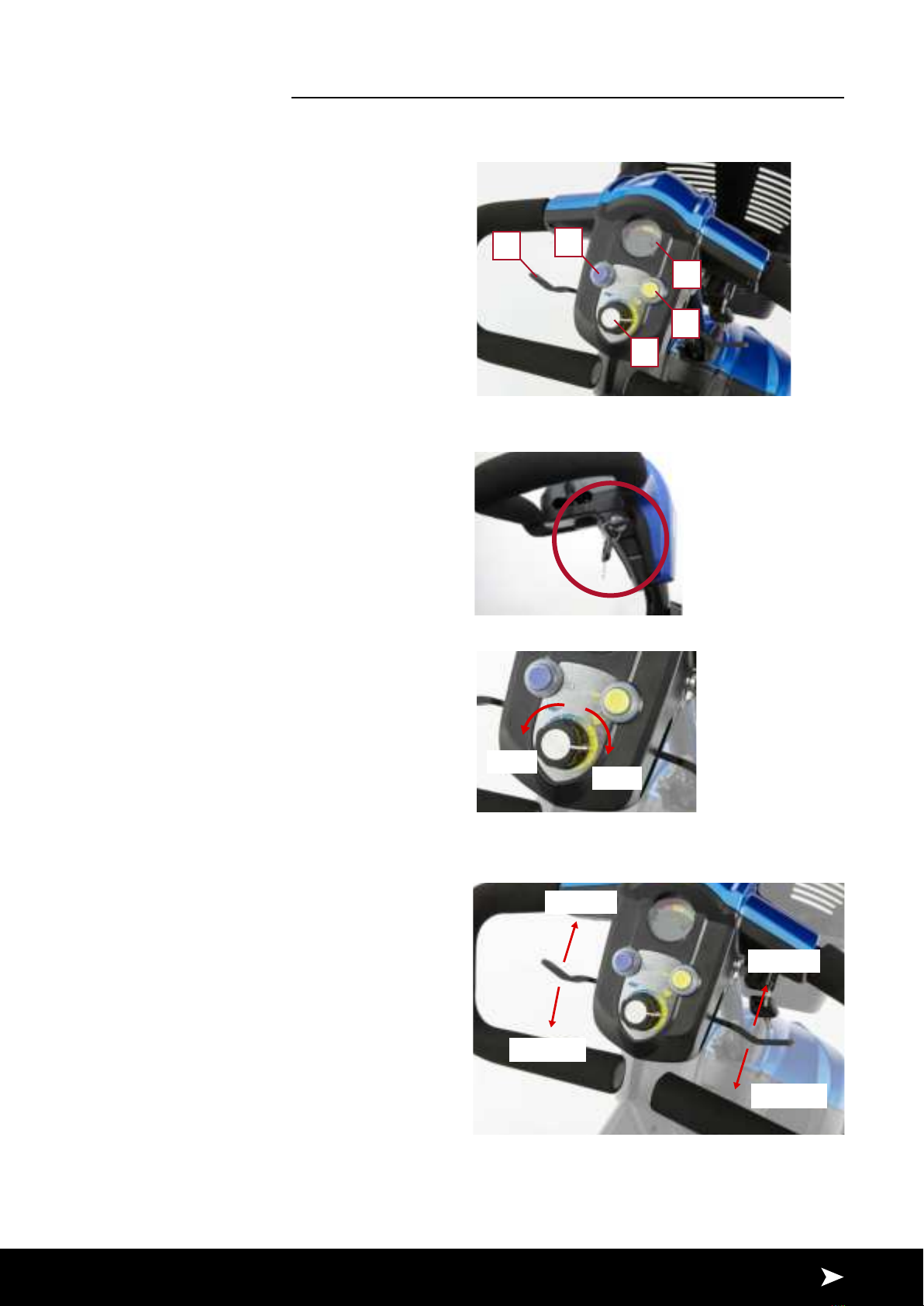

4.1 CONTROL PANEL
1. Battery Level Indicator
2. Speed Dial
3. Horn
4. Wigwag Paddle
5. Headlight button
4.2 HOW TO OPERATE YOUR
SCOOTER
Turn the key to power ON or OFF
(ON) : Power is turned on
(OFF) : Power is turned o
Speed Dial
Press the slowest or fastest setting
to determine the maximum speed
of the scooter.
Forward, Reverse, and Braking
»Pull the wig wag lever towards
you on the left or right hand
side to go forward
»Push the wigwag lever away
from you on the left or right
hand side to reverse.
»The horn will beep when the
vehicle is in reverse.
»Release the wig wag lever
freely while either going
forward or reverse, and the
electromagnetic brake in the
motor will be activated, and
the vehicle will stop.
Forward
Forward
Reverse
Reverse
Slow
Fast
5
2
3
1
4

PAGE 10
Horn Button
Press the horn button to sound the horn. Release the button to stop the horn.
How To Set Freewheel Mode
The motor on the scooter can be disengaged to allow the scooter to be pushed.
»Drive Mode – To put the scooter in to “drive” mode, push the freewheel
lever down completely
»Freewheel Mode – To put the scooter in to “Neutral” mode, pull the freewheel
lever up completely and the scooter can be moved manually.
»Please note that this will put the scooter in to freewheel mode, so scooter’s
motor and brake will be disengaged.
Battery Indicator
The battery indicator on the tiller console uses a
colour code to indicate the approximate power
remaining in your batteries. Green indicates
(40-100%) capacity, yellow a draining charge
(10-30%),and red indicates that an immediate
recharge is necessary.
4. OPERATION
RED YELLOW GREEN
»The remaining power suggested by the battery indicator will vary by the actual
driving time incurred and how you drive. Repeated starting, stopping, climbing
will consume the power more quickly.
NEUTRAL
DRIVE

PAGE 11
Braking
»Electro-magnetic brake: Release the speed control lever completely, and the
electromagnetic brake will be activated automatically, and the scooter will stop.
Parking
»After stopping, turn the main key to OFF and remove the key. The lights will turn
OFF. The electromagnetic brake is engaged (locked).
How to adjust the armrest width
Loosen the knobs at the back of the seat frame
rstly, then adjust the armrest width by sliding
the armrest. Once satised with the width,
tighten the knob.
Seat
»The seat can be turned to 45 degrees
or 90 degrees.
»Pull the seat adjustment lever up and
swivel seat.
»Release the lever, then continue
swivelling the seat until it locks
in position.
4. OPERATION
Warning!
When on a gradient NEVER switch the vehicle to the freewheel mode. The
electromagnetic brakes will not be applied. This may result in injury.
Attention
»Return the seat to the forward position before driving.
»Ensure the limit switch is set to the slowest setting when using the
scooter on the pavement. It is an oence to drive faster than 4mph on
the pavement.

PAGE 12
How to re-position the seat
You can swivel the seat from side to side
locking it in various positions using the lever
cirlcled in the image.
Main Circuit Breaker (Reset Button)
When the voltage in your scooter’s batteries
becomes low or the scooter is heavily
strained because of excessive loads or
steep inclines, the main circuit breaker may
tip to protect the motor and electronics
from damage.
Tiller Adjustment
The tiller can be adjusted in to many
dierent positions to suit each driver.
»Loosen the lever to adjust the tiller
to positions you want.
»Once decide the position, tighten the
lever to secure the tiller.
4. OPERATION
USB Charging Hole
Connect the USB cord to the charging hole
to charge your electronic devices

PAGE 13
How to use the Under-seat storage
To operate under-seat storage
»Lift up slightly on the latch on the side of the under-seat storage bin and swing
the under-seat storage bin out and away from the travel chair.
»To close the under-seat storage bin, push the under-seat storage bin toward the
center of the travel chair until you hear the latch engage.
To remove the under-seat storage
1. Lift up slightly on the latch on the side of the under-seat storage bin (See gure
12) and swing the under-seat storage bin out and away from the travel chair until
it is fully open.
2. Lift the under-seat storage bin up and o the travel chair.
To install the under-seat storage
1. Align the slot on the under-seat storage bin over the securement post.
2. Lower the under-seat storage pin onto the securement post and push the under-
seat storage bin toward the center of the travel chair until you hear the latch
engage.
4. OPERATION
Warning!
Ensure both under-seat storage bins are latched prior to operating your
travel chair

PAGE 14
4.3 ASSEMBLING AND DISASSEMBLING
Assembling The Scooter
No tools are required to disassemble or assemble your scooter.
1. Place the freewheel mode lever in the drive position.
2. Set the rear section in the up position and make sure the hook for the front
section is connected to the axle of the rear section.
3. Put down the front and rear sections until the scooter is level.
4. Set down the battery pack on the scooter, and make sure it is in the correct
position.
5. Set down the seat on the seat post until the swivel lock engages and you hear a
click.
6. Turn key switch to “ON”. Make sure battery gauge indicates sucient power.
Disassembling The Scooter
4. OPERATION
Warning!
To avoid personal injury, ask for assistance, if necessary, while disassembling
or assembling your scooter.

PAGE 15
Please follow the steps.
1. Make sure the tiller is raised before reassembling the scooter.
2. Turn key switch to “OFF”.
3. Place the free wheel mode lever in the drive position.
4. Take o the basket.
5. Push the Seat Rotate Lever whilst pulling up on the seat to remove.
6. Unlock the battery lock part and rotate the battery lock part.
7. Pick up the battery pack and remove it from the scooter.
8. Loosen the tiller adjustment knob and fold down the tiller and re-tighten knob.
9. Lock the front wheel and tiller by turn and pull the wheel lock catch down.
10.Pull the connecting device upward to the rear section and stand upright.
11.Take o the front section with both hands and lower the shaft.
4. OPERATION

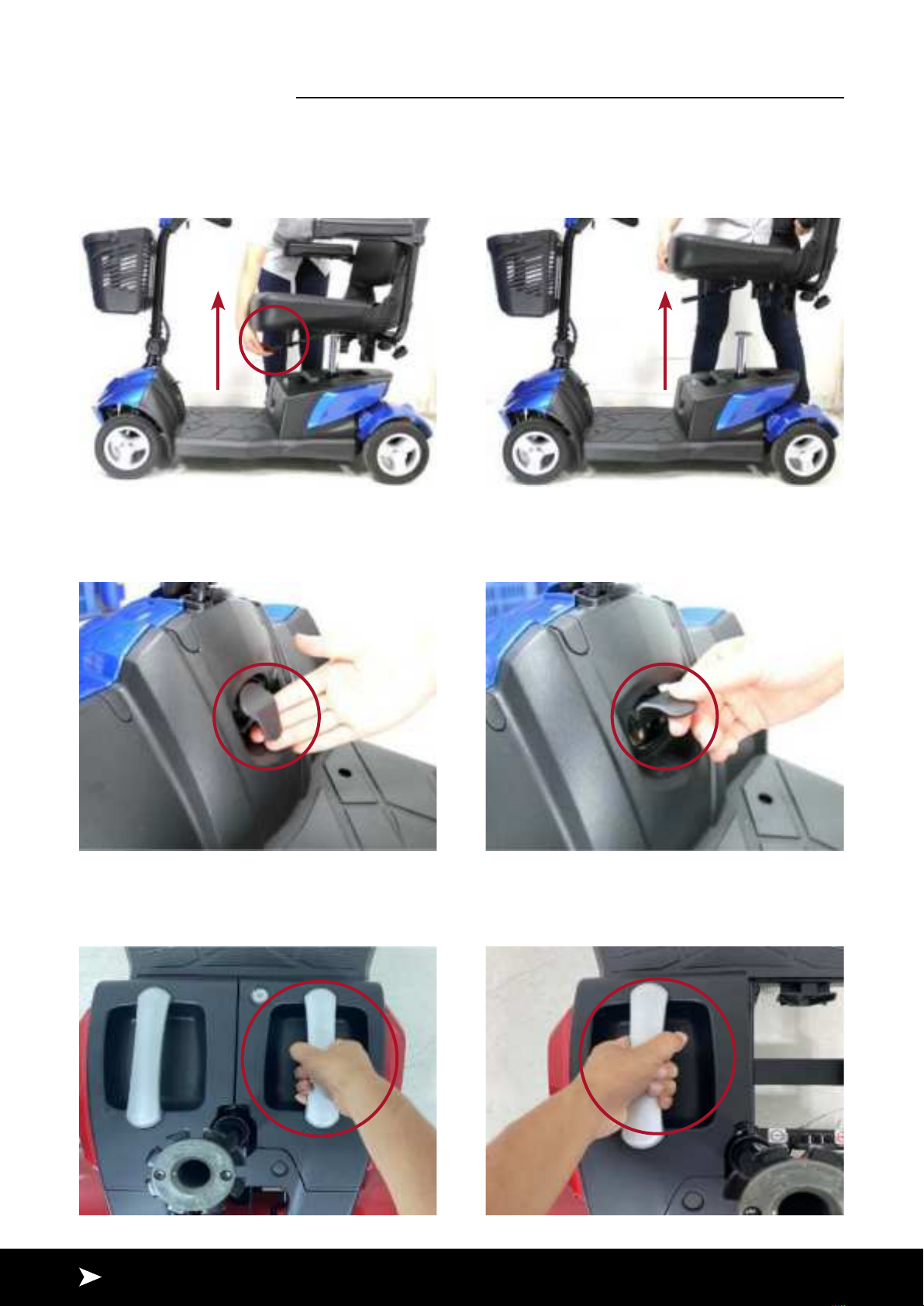

PAGE 16
4. OPERATION
2. Pull up the wheel lock knob to x the front wheel.
3. Pick up the battery pack and remove it from the scooter.
1. Remove the seat by pulling the seat rotate lever.

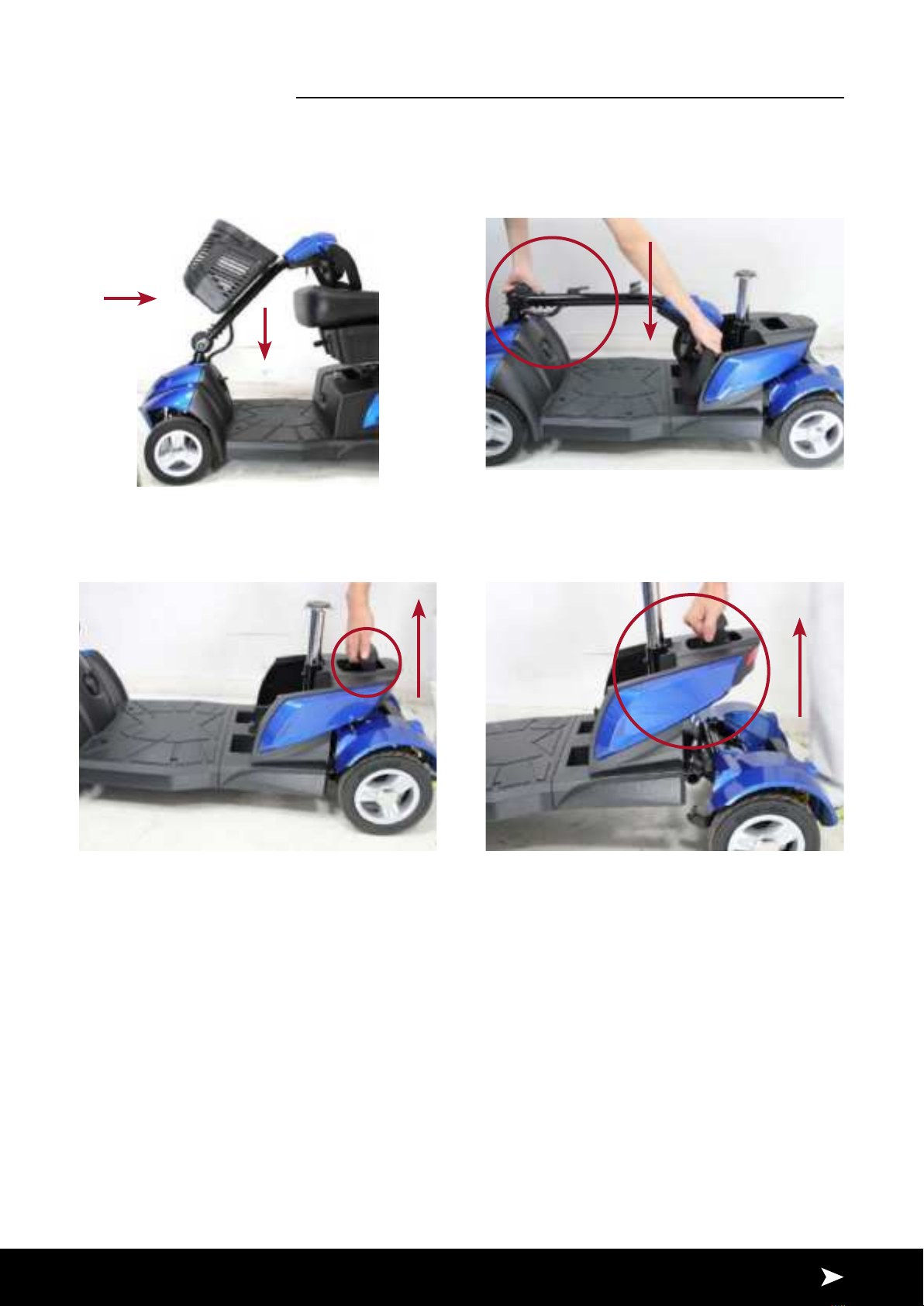

PAGE 17
4. OPERATION
5. Pull the connecting device upward to the rear section and stand upright.
4. Loosen the tiller adjustment knob and fold down the tiller and re-tighten knob.

PAGE 18
5. BATTERY CHARGING AND CARE
5.1 CHARGING THE BATTERY
Follow the procedure below step by step:
1. Turn the power switch to (OFF)
2. Connect the charger’s power cord into the
power outlet.
3. Open the charging socket cap on the battery
pack. Then connect the charger’s round plug
to the charging socket.
4. Turn on the switch on the charger.
5. The charger’s LED will be lit green when
the power is on, and will turn red when
charging. The charging duration is about 6
hours. To ensure optimum performance a
10-hour charge is recommended. But we do
not recommend a charging more than 24
consecutive hours.
6. The charger’s LED will be lit RED during the
charging process. The LED will turn green
when charging is completed.
7. Turn o the charger; disconnect the power
cord and the round plug from charger socket
on the scooter.
8. In addition, charging sockets on the back of
the battery case are also available. Open the
anti-dust plug of charging socket, and then
connect the Y-type cable to the charging
socket on right and left battery cases.
Warning!
»The fan inside the charger will be activated accordingly when you turn on
the charger. If the fan does not work when connected to the charger or
the green light is not showing, DO NOT use this charger. It may lead to
overheating of the charger and cause a re as a result.
»There is a red LED present on the charger to illustrate operation. If this LED
does not illuminate the charger is defective, please contact your dealer.
Table of contents
