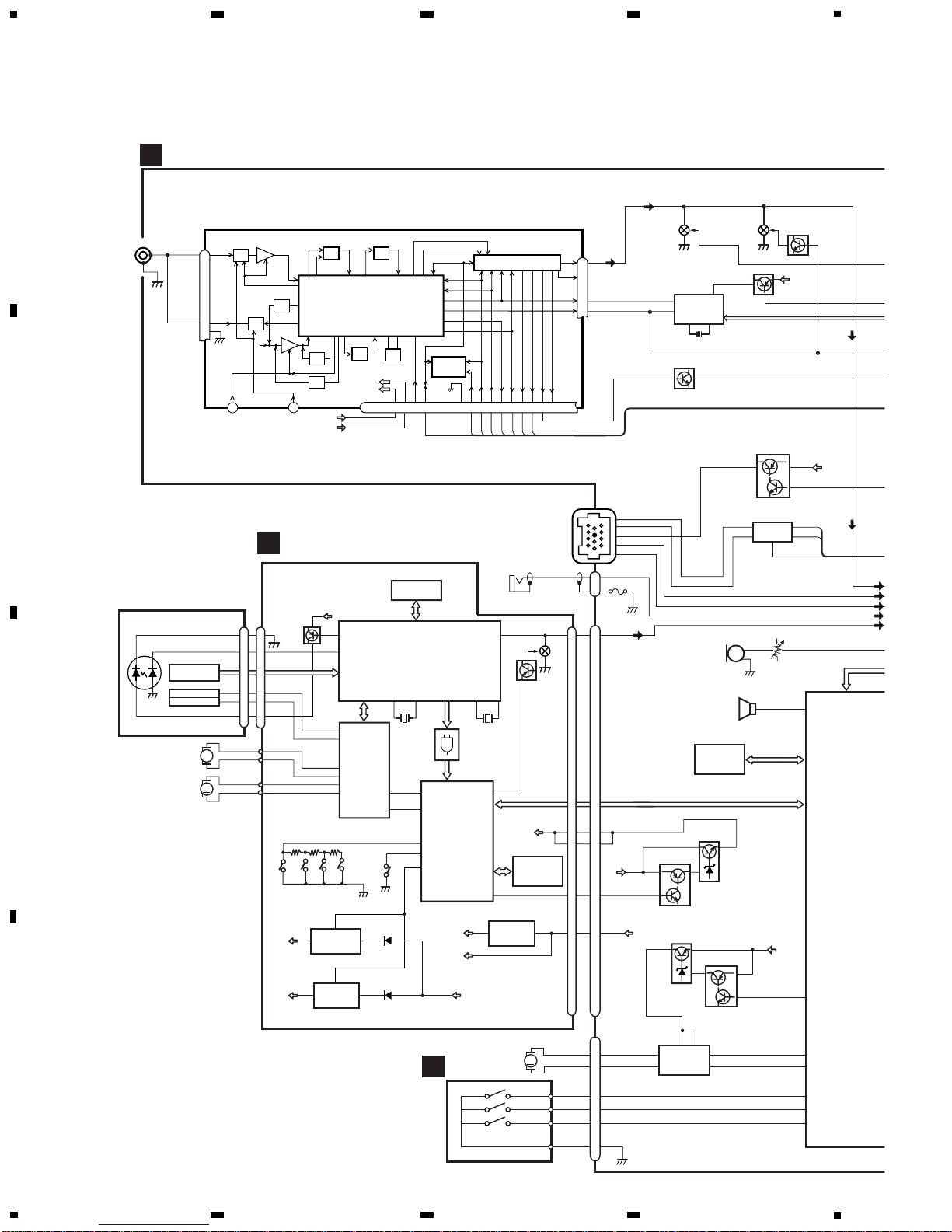

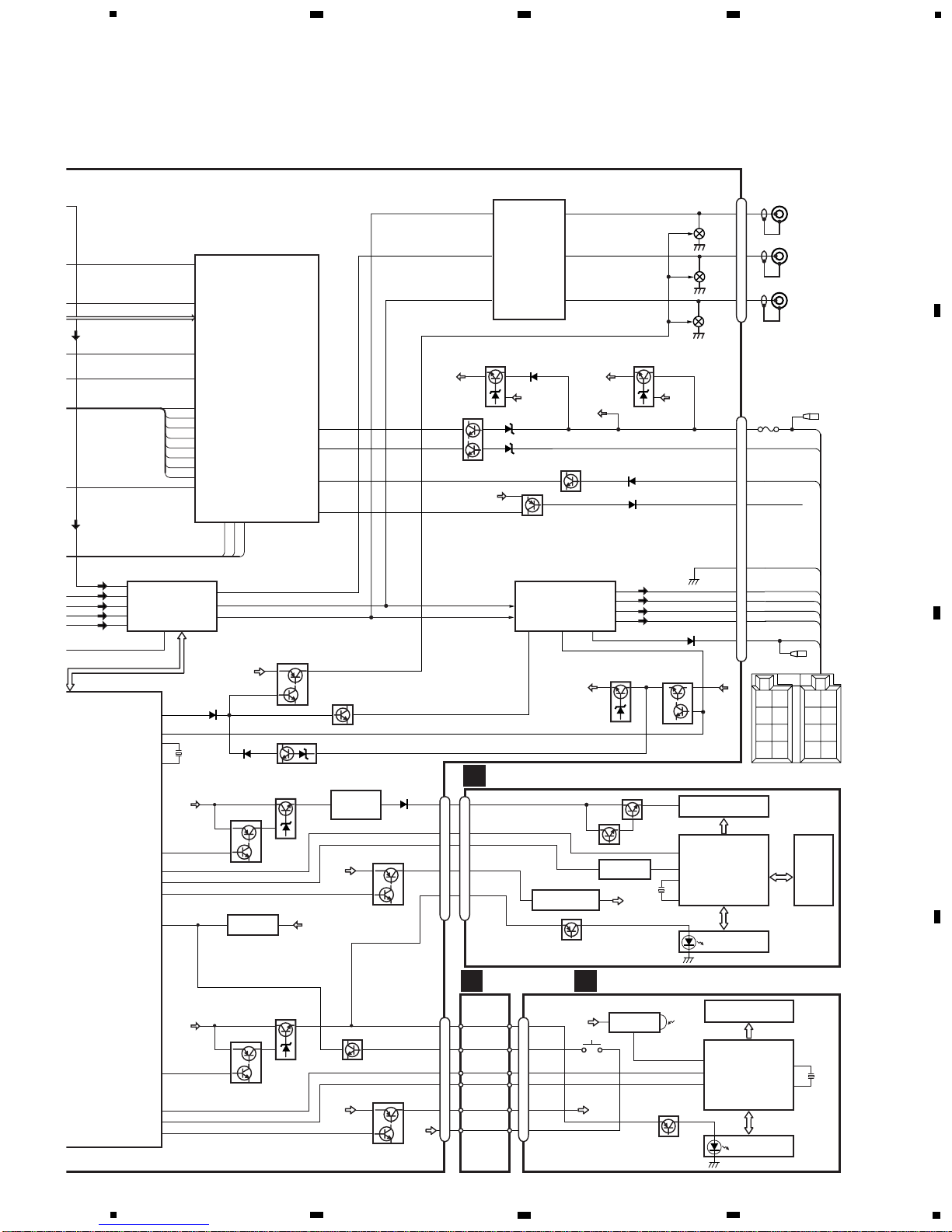

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12
4. PCB CONNECTION DIAGRAM ................................32
5. ELECTRICAL PARTS LIST ........................................42
6. ADJUSTMENT..........................................................49
7. GENERAL INFORMATION .......................................59
7.1 DIAGNOSIS ........................................................59
7.1.1 DISASSEMBLY .........................................59
7.1.2 CONNECTOR FUNCTION DESCRIPTION.......68
7.2 PARTS .................................................................69
7.2.1 IC................................................................69
7.2.2 DISPLAY....................................................84
7.3 OPERATIONAL FLOW CHART...........................85
7.4 CLEANING ..........................................................85
8. OPERATIONS AND SPECIFICATIONS.....................86
For details, refer to "Important symbols for good services".
ORDER NO.
CRT2846
Service
Manual
MULTI-CD/DAB CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH RDS TUNER
DEH-P8400MP XN/EW

2
DEH-P8400MP
-CD Player Service Precautions
1. For pickup unit(CXX1550) handling, please refer
to"Disassembly"(see page 59)
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a jumper-solder).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 53).
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

3
DEH-P8400MP
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
2. A “CLASS 1 LASER PRODUCT” label is affixed to the
bottom of the player.
3. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
CLASS 1
LASER PRODUCT
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replaced only with the same or equivalent type recommended by the manufacture.
Discord used batteries according to the manufacture's instructions.

4
DEH-P8400MP
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
17 18
18
19
20
21 22
23
24
25
26
29
28
27
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING

5
DEH-P8400MP
1-1 Owner’s Manual CRD3565
1-2 Owner’s Manual CRD3566
1-3 Owner’s Manual CRD3567
1-4 Installation Manual CRD3568
* 1-5 Caution Card CRP1268
* 1-6 Passport CRY1013
* 1-7 Warranty Card CRY1157
1-8 Polyethylene Bag CEG1116
2 Cord Assy CDE6562
3 Accessory Assy CEA3141
4 Screw CBA1002
5 Screw Assy CEA3140
6 Screw BPZ20P060FMC
* 7 Polyethylene Bag CEG-127
8 Handle CNC5395
9 Bush CNV3930
* 10 Polyethylene Bag E36-615
11 Polyethylene Bag CEG1088
12 Case Assy CXB8574
* 13 Battery CEX1030
14 Sub Carton CHA3258
15 Carton CHG4660
16 Contain Box CHL4660
17 Protector CHP2538
18 Protector CHP2539
19 Protector CHP2541
20 Protector CHP2546
21 Remote Control Assy CXB9202
22 Screw Assy CZE3169
* 23 Polyethylene Bag CEG-127
* 24 Hexagonal Wrench CZE3176
* 25 Screw RMZ30H060FBK
26 Belt CZN7661
27 Holder Assy CZX3172
28 Holder Assy CZX3173
29 Remote Control Assy CZX3257
Mark No. Description Part No. Mark No. Description Part No.
-PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
-For the applying amount of lubricants or glue, follow the instructions in this manual.
( In the case of no amount instructions, apply as you think it appropriate.)
-Owner's Manual, Installation Manual
Part No. Language
CRD3565 English, Spanish
CRD3566 German, French
CRB3567 Italian, Dutch
CRD3568 English, Spanish, German, French, Italian, Dutch

6
DEH-P8400MP
2.2 EXTERIOR(1)

7
DEH-P8400MP
1 Screw BMZ26P040FMC
2 Screw BSZ26P060FMC
3 Screw BSZ30P050FZK
4 Screw BSZ30P080FMC
5 Screw BSZ30P160FMC
6 Cord Assy CDE6562
7 Fuse(10A) CEK1136
8 Cap CKX-003
9 Cap CNS1472
10 Resistor RS1/2PMF102J
11 Flat Cable CDE7021
12 Cord Assy CDE7025
13 Antenna Cable CDH1266
14 Holder CNC6469
15 Holder CNC8659
16 Holder CNC9708
17 Cushion CNM4870
18 Insulator CNM7543
19 Panel CNS6863
20 Tuner Amp Unit CWM8041
21 Screw ASZ26P080FMC
22 Screw BMZ26P140FMC
23 Clamper CEF1008
24 Clamper CEF1009
25 Plug(CN981) CKM1278
26 Plug(CN811) CKS-787
27 Plug(CN291) CKS1049
* 28 Plug(CN101) CKS1058
29 Connector(CN832) CKS1082
* 30 Connector(CN831) CKS2211
31 Connector(CN351) CKS3606
32 Connector(CN723) CKS3835
33 Pin Jack(CN402) CKX1046
34 Holder CNC5399
35 Holder CNC9711
36 Holder CNC9713
37 Heat Sink CNR1615
38 FM/AM Tuner Unit CWE1562
39 Holder CNC8815
40 Case Unit CXB8524
41 Remote Control Assy CZX3257
42 Cover CZN7655
43 CD Mechanism Module(S9MP3) CXK5556
44 IC(IC301) PAL007A
45 Screw ISS26P055FUC
46 Transistor(Q752,921) 2SD2396
Mark No. Description Part No.
-EXTERIOR(1) SECTION PARTS LIST

8
DEH-P8400MP
2.3 EXTERIOR(2)
For lubricants points, please refer
to"Disassembly"(see page 59)

9
DEH-P8400MP
1 Screw BPZ20P060FMC
2 Screw BPZ20P080FZK
3,4 •••••
5 Screw(M2x2) CBA1250
6 Holder CNC9800
7 Flexible PCB CNP6498
8 Keyboard Unit(OEL) CWM8050
9 Connector(CN1801) CKS4175
10 Holder CNC9649
11 Tape CNM7514
12 Holder CNV6916
13 OEL Unit MXS8018
14 Sub Grille Assy CXB9361
15 Case Unit CXB7967
16 Detach Grille Assy CXB8091
17 Screw BPZ20P080FZK
18 Button(EJECT) CAC7241
19 Button(OPEN/BAND) CAC7242
20 Button(SRC/TEXT/TA) CAC7243
21 Button(1-6) CAC7246
22 Button(CROSS) CAC7247
23 Button(EQ) CAC7248
24 Spring CBH2543
25 Insulator CNM7649
26 Sheet CNM7824
27 Lighting Conductor CNV6913
28 Arm CNV6963
29 Keyboard Unit(LCD) CWM8055
30 LCD(LCD1901) CAW1704
31 Connector(CN1901) CKS4549
32 Holder CNC9648
33 Sheet CNM7512
34 Lighting Conductor CNV6914
35 Connector CNV6915
36 Grille Unit CXB7940
37 Knob Assy CXB8026
38 Spring CBL1321
39 Screw(M2x2) CBA1250
40 Screw CBA1561
41 Spring CBH2530
42 Cushion CNM7551
43 Arm CNV6962
44 Guide CNV6967
45 Guide CNV6968
46 Flexible PCB CNP6869
47 Screw ISS26P055FUC
48 Case Unit CXB7968
49 Cover Unit CXB8127
50 Spring CBH2545
51 Cushion CNM7550
52 Panel Unit CXB7953
53 Drive Unit CXB8138
54 Screw BMZ26P040FMC
55 Screw(M2x3) CBA1061
56 Screw(M2x2) CBA1250
57 Screw(M2x1.4) CBA1562
58 Spring CBH2525
59 Spring CBH2526
60 Spring CBL1557
61 Cord CDE6737
62 Holder CNC9678
63 Holder CNC9679
64 Gear CNV6932
65 Gear CNV6933
66 Gear CNV6935
67 Gear CNV6936
68 Lever CNV6937
69 Switch(S951) CSN1051
70 Spring Switch(S952) CSN1052
71 Switch(S953) CSN1058
72 Chassis Unit CXB7956
73 Holder Unit CXB7959
74 Holder Unit CXB7960
75 Arm Unit CXB7961
76 Arm Unit CXB7962
77 Arm Unit CXB7963
78 Arm Unit CXB7964
79 Arm Unit CXB7965
80 Arm Unit CXB7966
81 Motor Unit(M951) CXB8939
82 Gear Unit CXB8940
83 Washer YE15FUC
84 Screw CBA1559
85 Sheet CNM7839
86 PCB CNX3607
87 Switch Unit CWS1370
Mark No. Description Part No. Mark No. Description Part No.
-EXTERIOR(2) SECTION PARTS LIST

10
DEH-P8400MP
2.4 CD MECHANISM MODULE

11
DEH-P8400MP
Mark No. Description Part No. Mark No. Description Part No.
1 CD Core Unit(S9MP3) CWX2618
2 Connector(CN901) CKS4188
3 Connector(CN101) CKS3486
4 Screw BMZ20P025FMC
5 Screw BSZ20P040FMC
6 Screw(M2x4) CBA1362
7 Screw(M2x3) CBA1527
8 Screw CBA1545
9 Washer CBF1037
10 Washer CBF1038
11 Washer CBF1039
12 Washer CBF1060
13 Spring CBH2378
14 Spring CBH2379
15 Spring CBH2514
16 Spring CBH2533
17 Spring CBH2382
18 Spring CBH2383
19 Spring CBH2384
20 Spring CBH2527
21 Spring CBH2386
22 Spring CBH2537
23 Spring CBH2390
24 Spring CBH2391
25 Spring CBH2523
26 Spring CBH2426
27 Spring CBH2444
28 Spring CBL1561
29 Spring CBL1553
30 Shaft CLA3845
31 Roller CLA3910
32 Frame CNC9654
33 Lever CNC9664
34 Lever CNC8949
35 Arm CNC9661
36 Arm CNC9016
37 Arm CNC9017
38 Bracket CNC9123
39 Frame CNC9656
40 Belt CNT1086
41 Gear CNV6886
42 Gear CNV6316
43 Gear CNV6317
44 Gear CNV6318
45 Gear CNV6319
46 Gear CNV6320
47 Arm CNV6322
48 Arm CNV6323
49 Arm CNV6324
50 Arm CNV6888
51 Arm CNV6889
52 Guide CNV6327
53 Arm CNV6924
54 Guide CNV6921
55 Rack CNV6923
56 Clamper CNV6331
57 Arm CNV6332
58 Guide CNV6333
59 Cover CNV6334
60 Arm CNV6335
61 Guide CNV6336
62 Roller CNV6338
63 Damper CNV6175
64 Damper CNV6662
65 Guide CNV6925
66 Chassis Unit CXB7980
* 67 Arm Unit CXB7983
68 Arm Unit CXB7984
69 Arm Unit CXB7985
70 Motor Unit(M2) CXB5903
71 Screw Unit CXB5904
72 Gear Unit CXB8076
73 Bracket Unit CXB7982
74 Motor Unit(M1) CXB6007
75 Arm Unit CXB8504
76 Screw(M2x5) EBA1028
77 Screw JFZ20P020FMC
78 Screw JGZ17P020FZK
79 Washer YE15FUC
80 Washer YE20FUC
81 Pickup Unit(Service)(P9MP3) CXX1550
82 Screw IMS26P030FMC
83 Guide CNV6922
84 Roller CNV6887
85 Spring CBH2509
86 Spring CBH2512
87 Spring CBH2536
88 Collar CNV6906
-CD MECHANISM MODULE SECTION PARTS LIST

12
DEH-P8400MP
A
1234
B
C
D
1234
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
Q434 Q431
Q437
Q433
Q436
IC 431
PM4009A
IC 102
HA12187FP
X431
RDS
DECODER
IP-BUS DRIVER
1211
20
8
PEE
24
SYSTEM CONTR
IC 601(2/2)
CN402
VDD
VCC
ANT 1
2
BUS-
BU
BUS+
BUSL+
BUSL-
1
2
8
6
5TX
RX
IPPW
CN723
TUNER AMP UNIT
14
24
VDD
ASENB1
TUN L
BUSL+
BUSL-
CD L
Q101
Q102
TEL
FUSE
200mA
2
1
CN291
TEL
P-BUS
P-BUS
VDD
Q602
Q603
MUTE
5
8
1
7
CN101
11
BUZZER
IC 3
EEPROM
FM/AM TUNER UNIT
28
27
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51 CF52 CF53
IC1
MIXER, IF AMP, DET.
6
21
18
LDET
COMP
22
25 10 14 12 15 16 8 13 2 3 4
CF202
VDD
VCC
DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2
IC 2 FM MPX
AMANT
FMANT
ATT
ATT
AMRF
FMRF
RF ADJ
ANT2 ADJ
X901
10.25MHz
ANT1 ADJ
LOCL
23 LOCH
AMDET
MPXREF 41kHz
AM 2ND IF
450kHz
19
CREQ
11
DGND
1
STIND
L ch
5
R ch
924
NC FMLOCL
20177
NC NC WC
26 RFGND
CN901
Q101
M
LASER
DIODE
MONITOR
DIODE
CLAMP
SENSE
DISC
SENSE
FOCUS ACT.
SPINDLE
MOTOR
M
CARRIAGE
MOTOR
LOAD/
TRACKING ACT.
LD-
MD
FO+
TO+
15
5
1
4
PICKUP UNIT
(SERVICE)(P9MP3)
HOLOGRAM
UNIT
IC 301
BA5996FM
IC 201
UPD63760GJ
IC 703
+3.3V REGULATOR
RF-AMP,CD DECODER,
MP3 DECODER,
DIGITAL SERVO / DATA PROCESSOR
CD
DRIVER
2
VD
VD
3VDD
14
L-OUT
1
CN101
TOP
FOP
16 SOP
15 SOM
18 LCOP
17 LCOM 22
4,5
LOEJ
43
35
LOUT
42
9
CONT
12 FOP
TD/FD
AC,BD
F,E
SD/MD
1
13 TOP
S901
HOME
12EJ
SENSE 8EJ
SENSE
LD+ 14
142 LD
141 PD
20
8
21
CD CORE UNIT(S9MP3)
3938
X201 X202
DSCSNS
CONT
LOEJ
HOME
78
80
31
29
5VDD
IC 203
BA033SFP
+3.3V REGULATOR
V3R3D 2
4VD
CD3VON
28
VDCONT 27
1
S-818A33AUC-BGN
CD CONTROLLER
IC 701
PE5269A
33
CDMUTE
319
V3R3D
WAIT,
RFOK
IC 501
UPD61002GC
DRAM
IC 202
MSM51V4265EP-70TS
WMA DECODER
TC74VHCT08AFT
IC 702
XWINT,
XWAIT,
FOK
PD5740A
Q751
7VDCONT
Q752
BU
15
IC 251
BA3834F
SPECTRUM ANALYZER
VR231
MIC231
6
4
1
2
3
5
CN811
VD
FEJSW1
FOPSW1
FCLSW1
MOTOR2
MOTOR1 IC 811
BA6288FS
3
14
Q812
Q811
BU
FLPPW
11
45
6
11
66
65
FLPOPN
FLPCLS
69
68
67
fclssw
fopnsw
flpejsw
M
AUTOMATIC
FLAP MOTOR
CLOSE
OPEN
EJECT
SWITCH PCB
IC 502
BA25BC0WFP
2
4
V2R5
1
+2.5V REGULATOR
A
E
D

DEH-P8400MP
5678
A
B
C
D
567813
19
48
52
12 1
TMUTE
NL2DT
VDD
BU
74
73
SD
SL
TUNPCE
TUNPCK
TUNPDO
ASENBO
10
FL 11
RL
87
MUTE
XOUT
XIN
3
5
23
21
FL-
FL+
RL-
RL+
51
50
97
IN3-L
42
IN4+L
43
IN4-L
44
IN2-L
41
72
57
71
55
82
30 29 81
FLIN
12
RLIN
14
22 4
RESET
POWER AMP
IC 601(1/2)
TEM CONTROLLER
IC 601(2/2)
IC 131
PML009A
IC 651
S-80735ANDZI
IC 301
PAL007A
RESET
VDD
Q901
Q931
SYSPW
TX RX IPPW
ELECTRONIC VOLUME/
SOURCE SELECTOR
STBYMUTE
13
X601
15
2
ACC
VST,VCK,VDT
TUN L
USL+
USL-
D L
SYS+B BU
Q922
Q923
23
SYSPW
Q301
FL
Q351
FL
Q352
RL
Q353
RL
SW
12
PL
MUTE
SYSTEM CONTROLLER
Q941
Q951
VDD
83
TELIN 10
25
B.REMOTE
EL 40 IN1-L
VDD REGULATOR
ILL SENSE
BACKUP SENSE
ACC SENSE
TELEPHONE MUTE
SYS+B REGULATOR
5
9
11
12
10
1
3
8
4
2
IC 571
PA2028A
HIGH OUT
OUT1 18
OUT3 16
OUT5 14
11
7
9
IN5
IN1
IN3
PL
FL
RL
CN981
Q503
BU
CN351
NL1
SDBW
95
53
BACK UP
GND
RR
+
RR
-
FR
+
FR
-
FL
+
FL
-
RL
+
RL
-
ACC
GND
BACK
UP
B.
REM
ACC
ILL
TELMUTE
B.REM
ILL
FL-
FL+
RL-
RL+
Q921
Q501 MUTE
11
7
3
SW
bsens
asens
isens
AM_fm
ldet PD5740A
PD5740A
tunpce@
13
MIC_IN
Q872
Q871
BU
OELPW 22
IC 871
NJM2360M
615
CN831
4
6
OEL+B
DPDT1
KYDT1
DPDT1 31
KYDT1 32
Q831
Q832
VDD2
SWVDD1 40
1
SWVDD5V
Q963
Q962
BU
ILMPW2 43
4
CN832
10
11
ILM+B
DPDT2
KYDT2
DPDT2 35
KYDT2 36
Q971
Q972
VDD2
SWVDD2 79
6
SWVDD5
2
ILM+B2
OEL+B REGULATOR
ILM+B REGULATOR
4
10
11
6
4
5
3
8
7
CN1801
OEL+B
DPDT2
KYDT2
SWVDD5V2
ILM+B2
CN1901
ILM+B
DPDT
KYDT
SWVDD5V
KEYBOARD UNIT(LCD)
KEYBOARD UNIT(OEL)
Q651
5
RST1 5RST
VDD2
Q911
ACC
5V REGULATOR
IC 1801
PD5745A
GRILLE µ-COM
KEY MATRIX
IC 1802
PD8091A
ROM
OEL UNIT
Q1807
Q1806
4IC 1806
TC7SET08FU
228
27 DPDT
KYDT
5IC 1805
S-818A33AUC-BGN
13.3V
Q1801
8
XOUT
XIN
11
X1801 13
IC 1902
PD6340A
GRILLE µ-COM
KEY MATRIX
LCD
20
18 DPDT
KYDT
XO
XI
22
X1901
23
SW5V Q1901
4IC 1901
RS-140
1
17 REM
OPT IN
SW5V
VDD 77
RESET
B
C
CONNECTOR PCB
F
10A
FUSE B.UP
ACC
ILM
MUTE
GND
FL-
FL+
RL-
RL+
B.REM

AE
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST". A-a
>
The >mark f
the importanc
Therefore, wh
identical desig
DCN901
BCN1801 F
FM/AM TUNER UNIT
M
SWITCH PCB
E
M951
AUTOMATIC FLAP
CXB8939
CSN1052 (CLOSE) CSN1051 (OPEN) CSN1058 (EJECT)
IP-BUS
DRIVER
VD REG TEL IN
E-VOL
OEL+B REG
SW VDD
FLAP MOTOR
AND SENSE
RDS
DECODER
SYSTEM C
FM(100%):-15.5dBs
AM(30%):-26.0dBs
FM:-16.5dBs
AM:-27.0dBs
IP-BUS:+2.2dBs
CD:0.0dBs
TUNER
PD57
TEL IN
14
DEH-P8400MP
A
1234
B
C
D
1234
3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
AE

A-b
A
BACKUP
GND
RL—
RL+
FL—
FL+
B.REM
ILL
ACC
TEL
CEK1136
10A
RR—
RR+
FR—
FR+
>
FRONT
L CH
SUB
WOOFER
L CH
RCA OUT
SUB
WOOFER
R CH
FRONT
R CH
REAR
L CH
REAR
R CH
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
k found on some component parts indicates
nce of the safety factor of the part.
when replacing, be sure to use parts of
signation. ATUNER AMP UNIT
RR
+
RR
-
FR
+
FR
-
FL
+
FL
-
RL
+
RL
-
ACC
GND
BACK
UP
B.
REM
ILL
OL
ASL
SPECTRUM
ANALYSER
HI-OUT
MUTE
POWER AMP
RESET
5V REG
VDD REG
SENSE
TEL MUTE
SYS+B REG
MUTE
SW
VDD
BL+B
REG
ILM+B
REG
CONTROLLER
FM:+4.6dBs
AM:-3.9dBs
IP-BUS:+8.3dBs
CD:+8.1dBs
FM:+12.1dBs
AM:+3.6dBs
IP-BUS:+15.8dBs
CD:+15.6dBs
FM:+30.6dBs
AM:+22.1dBs
IP-BUS:+34.3dBs
CD:+34.1dBs
5740A
12
11
10
9
8
7
6
5
4
3
2
1
PAL007A
15
DEH-P8400MP
5678
A
B
C
D
5678
A

A-a A-b A-a
A-a
A-b 1
>
The >ma the importa Therefore, identical de
DCN901
IP-BUS DRIVER
VD REG TEL IN
E-V
5.5dBs
6.0dBs
FM:-16.5dBs
AM:-27.0dBs
IP-BUS:+2.2dBs
CD:0.0dBs
TUNER
TEL IN
16
DEH-P8400MP
A
1234
B
C
D
1234
A-a A-b
A-a

A-a A-b A-a
Aa
A-b
E
2
BCN1801 F
FM/AM TUNER UNIT
M
SWITCH PCB
E
M951
AUTOMATIC FLAP
CXB8939
CSN1052
(CLOSE)
CSN1051
(OPEN)
CSN1058
(EJECT)
OEL+B REG
SW VDD
FLAP MOTOR AND SENSE
RDS DECODER
SYSTEM
FM(100%):-15.5dBs
AM(30%):-26.0dBs
PD
17
DEH-P8400MP
5678
A
B
C
D
5678
A-a A-b
A-a
E

b1
BACKUP
CEK1136 10A
>
FRONT L CH
SUB WOOFER L CH
RCA OUT
SUB WOOFER R CH
FRONT R CH
REAR L CH
REAR R CH
e >mark found on some component parts indicates
e importance of the safety factor of the part.
erefore, when replacing, be sure to use parts of
ntical designation. ATUNER AMP UNIT
E-VOL
ASL
SPECTRUM ANALYSER
HI-OUT
MUTE
POWER AMP
RESET
5V REG
SYSTEM CONTROLLER
FM:+4.6dBs
AM:-3.9dBs
IP-BUS:+8.3dBs
CD:+8.1dBs
FM:+12.1dBs
AM:+3.6dBs
IP-BUS:+15.8dBs
CD:+15.6dBs
FM:+30.6dBs
AM:+22.1dBs
IP-BUS:+34.3dBs
CD:+34.1dBs
PD5740A
12 11 10
9 8 7 6 5 4 3 2 1
PAL007A
18
DEH-P8400MP
A
1234
B
C
D
1234
A-a A-b
A-b

A-a A-b
A-b
2
BACKUP
GND
RL—
RL+
FL— FL+
B.REM
ILL
ACC
TEL
CEK1136 10A
RR—
RR+
FR— FR+
>
Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022
←
←
Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors.
NOTE :
Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors.
F
RR
+
RR
-
FR
+
FR
-
FL
+
FL
-
RL
+
RL
-
ACC
GND
BACK
UP
B.
REM
ILL
VDD REG
SENSE
TEL MUTE
SYS+B REG
MUTE
SW VDD
BL+B REG
ILM+B REG
SYSTEM CONTROLLER AM:+22.1dBs
IP-BUS:+34.3dBs
CD:+34.1dBs
PD5740A
19
DEH-P8400MP
5678
A
B
C
D
5678
A-b
A-a A-b

20
DEH-P8400MP
A
1234
B
C
D
1234
3.3 KEYBOARD UNIT(OEL)
B
ACN831
B
