Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, put them away
in a safe place for future reference.
Before You Start
About this unit 3
About this manual 3
Precautions 3
In case of trouble 3
Protecting your unit from theft 3
Removing the front panel 3
Attaching the front panel 4
Whats What
Head unit 5
Power ON/OFF
Turning the unit on
Selecting a source
Turning the unit off
Tuner
Listening to the radio 8
Storing and recalling broadcast
fre uencies 8
Tuning in strong signals 9
Storing the strongest broadcast
fre uencies 9
RDS
Introduction of RDS operation 10
Switching the RDS display 10
Receiving PTY alarm broadcasts 10
Selecting alternative fre uencies 10
Using PI Seek 11
Using Auto PI Seek for preset
stations 11
Limiting stations to regional
programming 11
Receiving traffic announcements 11
Responding to the TP alarm 12
PTY list 12
Cassette Player
Playing a tape 13
Radio intercept 13
Multi-CD Player
Playing a CD 14
Changing the display 14
Repeating play 14
Pausing CD playback 15
50-disc multi-CD player 15
Audio Adjustments
Introduction of audio adjustments 16
Using balance adjustment 16
Using the BTB (bass treble booster) 16
Adjusting BTB 1
Adjusting loudness 1
Adjusting source levels 1
Initial Settings
Adjusting initial settings 18
Setting the FM tuning step 18
Switching Auto PI Seek 18
Additional Information
Cassette player 19
Cassette tapes 19
Cleaning the playback head 19
Specifications 20
Contents
En
2

Black plate (3,1)
<CZR2959-A>3
About this unit
This product complies with the EMC Directives
(89/336/EEC, 92/31/EEC) and CE Marking Di-
rective (93/68/EEC).
The tuner fre uencies on this unit are allo-
cated for use in Western Europe, Asia, the
Middle East, Africa and Oceania. Use in other
areas may result in improper reception. The
RDS function operates only in areas with FM
stations broadcasting RDS signals.
About this manual
This unit features a number of sophisticated
functions ensuring superior reception and op-
eration. All the functions have been designed
for the easiest possible use, but many are not
self-explanatory. This operation manual will
help you benefit fully from this productspo-
tential and to maximize your listening enjoy-
ment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin
using this unit. It is especially important that
you read and observe precautions on this
page and in other sections.
Precautions
!The Pioneer CarStereo-Pass is for use only
in Germany.
!Keep this manual handy as a reference for
operating procedures and precautions.
!Always keep the volume low enough so you
can hear sounds outside of the car.
!Protect this product from moisture.
!If the battery is disconnected or dis-
charged, the preset memory will be erased
and must be reprogrammed.
In case of trouble
Should this product fail to operate properly,
contact your dealer or nearest authorized Pio-
neer Service Station.
Protecting your unit from
theft
The front panel can be detached from the
head unit and stored in the protective case
provided to discourage theft.
!Keep the front panel closed while driving.
Important
!Never use force or grip the display and the
buttons tightly when removing or attaching.
!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press DETACH to release the front
panel.
Press DETACH and the right side of the panel
is released from the head unit.
2 Grab the front panel and remove.
Grab the right side of the front panel and pull
away to the left. The front panel will be de-
tached from the head unit.
Before You Start
En 3
English
Section
01
HHHHHHHHHHHHHH

Black plate (4,1)
<CZR2959-A>4
3 Put the front panel into the protective
case provided for safe keepin .
Attaching the front panel

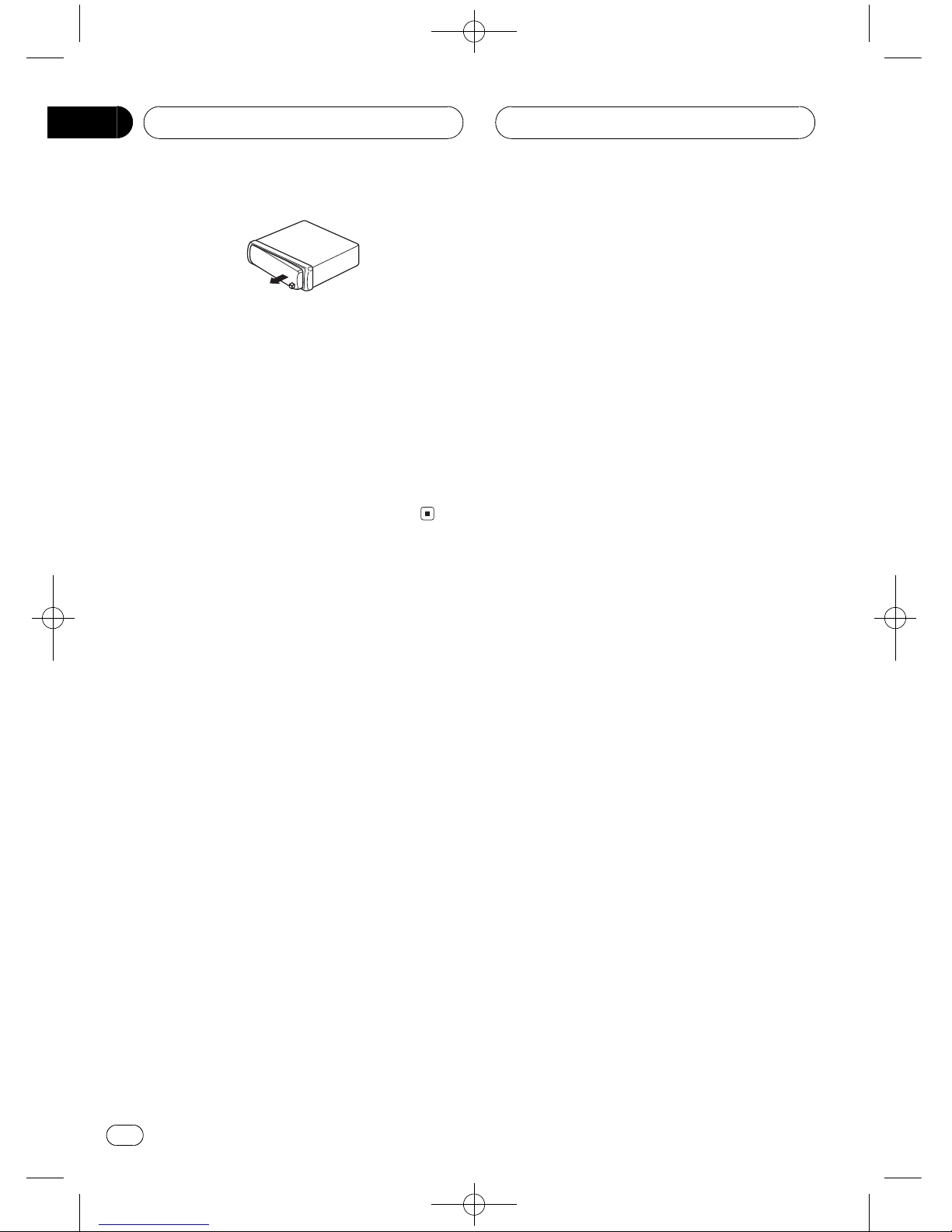

1 Place the front panel flat a ainst the
head unit.
2 Press the front panel into the face of
the head unit until it is firmly seated.
Before You Start
En
4
Section
01
HHHHHHHHHHHHHH

Black plate (5,1)
<CZR2959-A>5

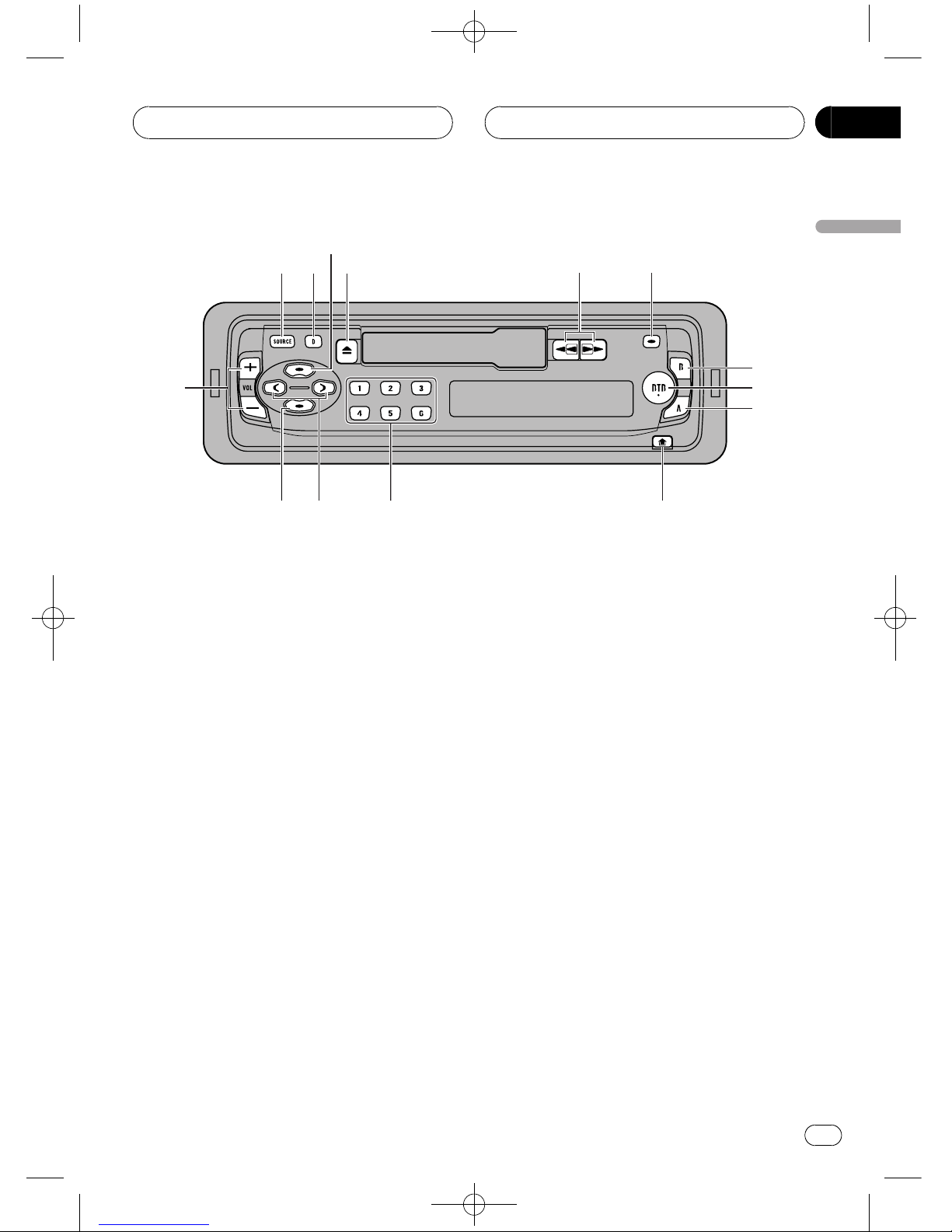

Head unit
1SOURCE button
This unit is turned on by selecting a source.
Press to cycle through all of the available
sources.
2DISP/REG button
Press to select different displays.
Press and hold to turn the regional function
on or off.
Also, press to control external unit.
3TA/AF button
Press to turn TA function on or off. Press
and hold to turn AF function on or off.
4TAPE EJECT button
Press to eject a tape from your cassette
player.
5m/nbuttons
Press to fast forward or rewind the tape.
6LOCAL/BSM button
Press to turn local function on or off when
tuner is selected as a source.
Press and hold to turn BSM function on or
off when tuner is selected as a source.
Press to turn pause on or off when multi-CD
is selected as a source.
Press and hold to turn repeat on or off when
multi-CD is selected as a source.
Also, press to control external unit.
7BAND button
Press to select among two FM and MW/LW
bands and cancel the control mode of func-
tions.
8BTB button
Press to select various BTB (bass treble
booster) setting.
9AUDIO button
Press to select various sound uality con-
trols.
aDETACH button
Press to remove the front panel from the
head unit.
12
3
456
7
8
9
abcd
e
Whats What
En 5
English
Section
02
HHHHHHHHHHHHHH

Black plate (6,1)
<CZR2959-A>6
b16 buttons
Press for preset tuning and disc number
search when using a multi-CD player.
Also, press to control external unit.
cc/dbuttons
Press to do manual seek tuning. Also used
for controlling functions.
dLOUDNESS button
Press to turn loudness on or off.
eVOLUME button
Press to increase or decrease the
volume.
Whats What
En
6
Section
02
HHHHHHHHHHHHHH

Black plate (7,1)
<CZR2959-A>7
Turning the unit on
%Press SOURCE to turn the unit on.
When you select a source the unit is turned
on.
Selecting a source
You can select a source you want to listen to.
To switch to the cassette player, load a cas-
sette tape in this unit (refer to page 13).
%Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
TunerCassette playerMulti-CD player
External unit
Notes
!In the following cases, the sound source will
not change:
When a unit corresponding to each source
is not connected to this unit.
When no cassette is set in this unit.
When no magazine is set in the multi-CD
player.
!External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this unit. Only one external
unit can be controlled by this unit.
!When this units blue/white lead is connected
to the cars auto-antenna relay control term-
inal, the cars antenna extends when this
units source is turned on. To retract the an-
tenna, turn the source off.
Turning the unit off
%Press SOURCE and hold until the unit
turns off.
Po er ON/OFF
En
English
Section
03
HHHHHHHHHHHHHH

Black plate (8,1)
<CZR2959-A>8
Listening to the radio
123
4
This units AF (alternative fre uencies search)
function can be turned on and off. AF should
be off for normal tuning operation (refer to
page 10).
1Band indicator
Shows which band the radio is tuned to,
MW, LW or FM.
2Frequency indicator
Shows to which fre uency the tuner is
tuned.
3Stereo (5) indicator
Shows that the fre uency selected is being
broadcast in stereo.
4Preset number indicator
Shows what preset has been selected.
1 Press SOURCE to select the tuner.
2 Use VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/, the volume
is lowered.
3 Press BAND to select a band.
Press BAND until the desired band is dis-
played, F1,F2 for FM or MW/LW.
4 To perform manual tunin , press cor
dwith quick presses.
The fre uencies move up or down step by
step.
5 To perform seek tunin , press and hold
cor dfor about one second and release.
The tuner will scan the fre uencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by pressing either
cor dwith a uick press.
#If you press and hold cor dyou can skip
broadcasting stations. Seek tuning starts as soon
as you release the buttons.
Note
When the fre uency selected is being broadcast
in stereo the stereo (5) indicator will light.
Storing and recalling
broadcast frequencies
If you press any of the preset tuning buttons
16you can easily store up to six broadcast
fre uencies for later recall with the touch of a
button.
%When you find a frequency that you
want to store in memory press a preset
tunin button 16 and hold until the preset
number stops flashin .
The number you have pressed will flash in the
preset number indicator and then remain lit.
The selected radio station fre uency has been
stored in memory.
The next time you press the same preset tun-
ing button 16the radio station fre uency is
recalled from memory.
Note
Up to 12 FM stations, 6 for each of the two FM
bands, and 6 MW/LW stations can be stored in
memory.
Tuner
En
8
Section
04
HHHHHHHHHHHHHH

Black plate (9,1)
<CZR2959-A>9
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Press LOCAL/BSM to turn local seek
tunin on.
LOC appears in the display.
2 When you want to return to normal
seek tunin , press LOCAL/BSM to turn local
seek tunin off.
Storing the strongest
broadcast frequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
uencies under preset tuning buttons 16and
once stored there you can tune in to those fre-
uencies with the touch of a button.
%Press LOCAL/BSM and hold until the
BSM turns on.
BSM begins to flash. While BSM is flashing
the six strongest broadcast fre uencies will be
stored under preset tuning buttons 16in
order of their signal strength. When finished,
BSM stops flashing.
#To cancel the storage process, press
LOCAL/BSM.
Note
Storing broadcast fre uencies with BSM may re-
place broadcast fre uencies you have saved
using 16.
Tuner
En 9
English
Section
04
HHHHHHHHHHHHHH

Black plate (10,1)
<CZR2959-A>10
Introduction of RDS operation
1
23 4
RDS (radio data system) is a system for provid-
ing information along with FM broadcasts.
This inaudible information provides such fea-
tures as program service name, program type,
traffic announcement standby and automatic
tuning, intended to aid radio listeners in find-
ing and tuning in to a desired station.
1Pro ram service name
Shows the type of broadcast program.
2AF indicator
Shows when AF (alternative fre uencies
search) function is on.
3TA indicator
Shows when TA (traffic announcement
standby) function is on.
4TP indicator
Shows when a TP station is tuned in.
Notes
!RDS service may not be provided by all sta-
tions.
!RDS functions like AF and TA are only active
when your radio is tuned to a RDS station.
S itching the RDS display
When you tune in a RDS station its program
service name is displayed. If you want to know
the fre uency you can.
%Press DISP/REG to switch the display.
Press DISP/REG repeatedly to switch between
the following settings:
Program service namePTY information
Fre uency
PTY (program type ID code) information is
listed on page 12.
#PTY information and the fre uency of the cur-
rent station appears on the display for eight sec-
onds.
Receiving PTY alarm
broadcasts
PTY alarm is a special PTY code for announce-
ments regarding emergencies such as natural
disasters. When the tuner receives the radio
alarm code, ALARM appears on the display
and the volume adjusts to the TA volume.
When the station stops broadcasting the
emergency announcement, the system re-
turns to the previous source.
!An emergency announcement can be can-
celled by pressing TA/AF.
Selecting alternative
frequencies
If you are listening to a broadcast and the re-
ception becomes weak or there are other pro-
blems, the unit will automatically search for a
different station in the same network which is
broadcasting a stronger signal.
!AF is on as a default.
1 Press TA/AF and hold until the AF turns
on.
AF indicator is displayed.
2 Press TA/AF and hold until the AF turns
off.
RDS
En
10
Section
05
HHHHHHHHHHHHHH

Black plate (11,1)
<CZR2959-A>11
Notes
!Only RDS stations are tuned in during seek
tuning or BSM when AF is on.
!When you recall a preset station, the tuner
may update the preset station with a new fre-
uency from the stations AF list. (This is only
available when using presets on the F1 band.)
No preset number appears on the display if
the RDS data for the station received differs
from that for the originally stored station.
!Sound may be temporarily interrupted by an-
other program during a AF fre uency search.
!When the tuner is tuned to a non-RDS station
the AF indicator flashes.
!AF can be turned on or off independently for
each FM band.
Using PI Seek
If the unit fails to find a suitable alternative fre-
uency, or if you are listening to a broadcast
and the reception becomes weak, the unit will
automatically search for a different station
with the same programming. During the
search, PI SEEK is displayed and the output is
muted. The muting is discontinued after com-
pletion of the PI Seek, whether or not a differ-
ent station is found.
Using Auto PI Seek for preset
stations
When preset stations cannot be recalled, as
when travelling long distances, the unit can
be set to perform PI Seek during preset recall.
!The default setting for Auto PI Seek is off.
See Switching Auto PI Seek on page 18.
Limiting stations to regional
programming
When AF is used to automatically retune fre-
uencies, the regional function limits the se-
lection to stations broadcasting regional
programs.
%Press DISP/REG and hold until the re io-
nal function turns on or off.
Notes
!Regional programming and regional networks
are organized differently depending on the
country (i.e., they may change according to
the hour, state or broadcast area).
!The preset number may disappear on the dis-
play if the tuner tunes in a regional station
which differs from the originally set station.
!The regional function can be turned on or off
independently for each FM band.
Receiving traffic
announcements
TA (traffic announcement standby) lets you re-
ceive traffic announcements automatically, no
matter what source you are listening to. TA
can be activated for both a TP station (a sta-
tion that broadcasts traffic information) or an
enhanced other networks TP station (a station
carrying information which cross-references
TP stations).
1 Tune in a TP or enhanced other net-
works TP station.
When you are tuned into a TP or enhanced
other networks TP station the TP indicator will
light.
2 Press TA/AF to turn traffic announce-
ment standby on.
Press TA/AF and the TA indicator appears in
the display. The tuner will standby for traffic
announcements.
#To turn traffic announcements standby off,
press TA/AF again.
RDS
En 11
English
Section
05
HHHHHHHHHHHHHH

Black plate (12,1)
<CZR2959-A>12
3 Use VOLUME to adjust the TA volume
when a traffic announcement be ins.
When you press VOLUME up/+, the volume is
raised and when pressed down/, the volume
is lowered.
The newly set volume is stored in memory and
recalled for subse uent traffic announce-
ments.
4 Press TA/AF while a traffic announce-
ment is bein received to cancel the an-
nouncement.
The tuner returns to the original source but re-
mains in the standby mode until TA/AF is
pressed again.
Notes
!The system switches back to the original
source following traffic announcement recep-
tion.
!Only TP and enhanced other networks TP sta-
tions are tuned in during seek tuning or BSM
when TA is on.
Responding to the TP alarm
When a TP or enhanced other networksTP
station is lost due to a weak signal the TP indi-
cator is extinguished and a series of short
beeps, about five seconds long, sound to re-
mind you to select another TP or enhanced
other networks TP station.
%When listenin to the tuner, tune in an-
other TP or enhanced other networksTP
station.
PTY list
Specific Type of program
NEWS News
AFFAIRS Current affairs
Specific Type of program
INFO General information and advice
SPORT Sports
WEATHER Weather reports/meteorological infor-
mation
FINANCE Stock market reports, commerce,
trading, etc.
POP MUS Popular music
ROCK MUS Contemporary modern music
EASY MUS Easy listening music
OTH MUS Non categorized music
JAZZ Jazz
COUNTRY Country music
NAT MUS National music
OLDIES Oldies music, golden oldies
FOLK MUS Folk music
L.CLASS Light classical music
CLASSIC Serious classical music
EDUCATE Educational programs
DRAMA All radio plays and serials
CULTURE National or regional culture
SCIENCE Nature, science and technology
VARIED Light entertainment
CHILDREN Childrens
SOCIAL Social affairs
RELIGION Religion affairs or services
PHONE IN Phone In
TOURING Travel programs, not for announce-
ments about traffic problems
LEISURE Hobbies and recreational activities
DOCUMENT Documentaries
RDS
En
12
Section
05
HHHHHHHHHHHHHH

Black plate (13,1)
<CZR2959-A>13

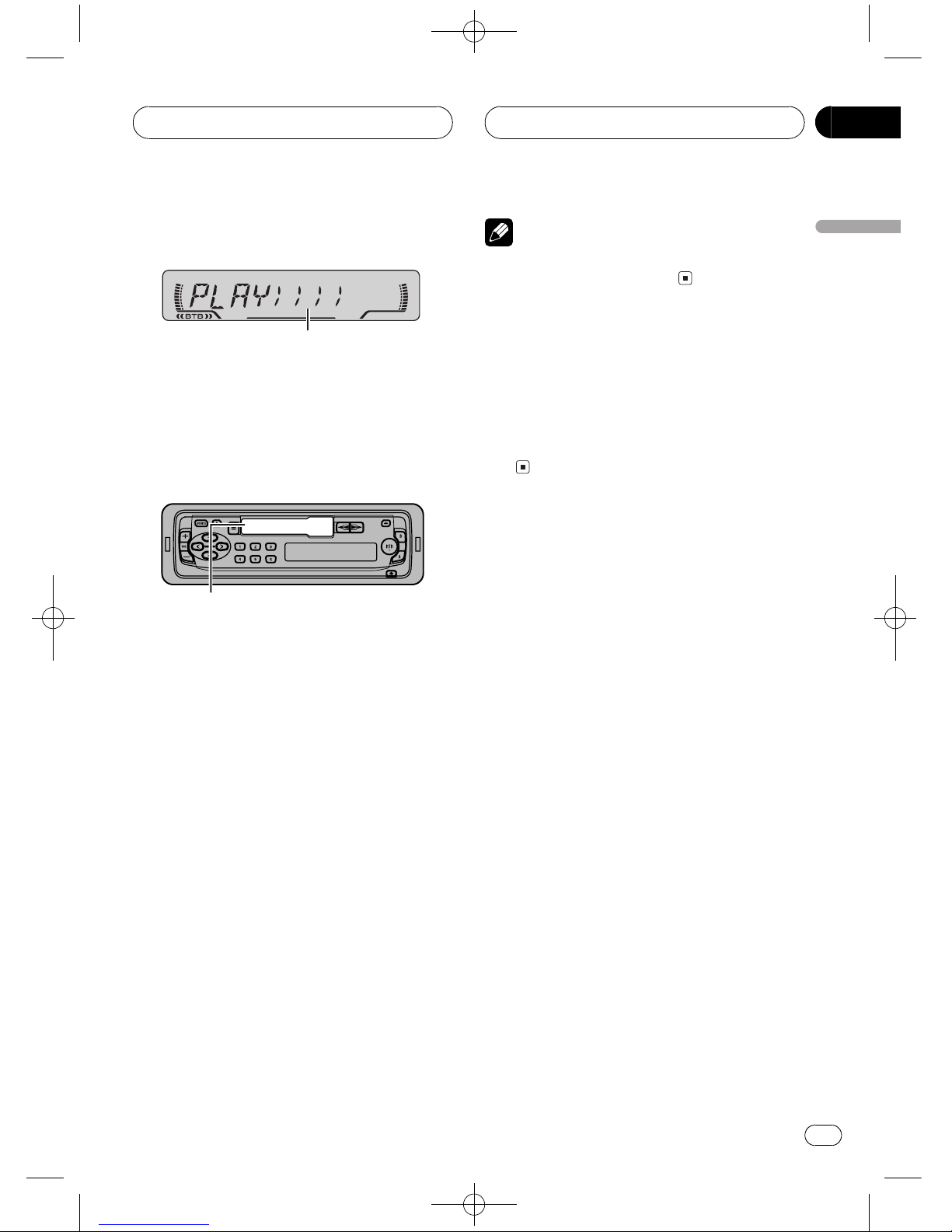

Playing a tape
1
1Tape direction indicator
Shows the direction of the tape transport.
1 Insert a cassette tape into the cassette
loadin slot.
Playback will automatically start.
Cassette loading slot
#You can eject a cassette tape by pressing
TAPE EJECT.
2 After a cassette tape has been inserted,
press SOURCE to select the cassette player.
Press SOURCE until cassette player is selected
as the source.
3 Use VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/, the volume
is lowered.
4 To perform fast forward or rewind,
press mor n.
#You can cancel fast forward or rewind by
pressing mor nin the opposite direction
lightly.
5 To chan e the direction of the tape
transport, press mand nsimulta-
neously.
Note
Do not insert anything other than a cassette tape
into the cassette loading slot.
Radio intercept
Radio intercept allows you to listen to the
radio during tape fast-forwarding/rewinding.
%Press 6 to turn radio intercept on or
off.
Cassette Player
En 13
English
Section
06
HHHHHHHHHHHHHH

Black plate (14,1)
<CZR2959-A>14
Playing a CD
12
You can use this unit to control a multi-CD
player, which is sold separately.
1Disc number indicator
Shows the disc currently playing.
2Play time indicator
Shows the elapsed playing time of the cur-
rent track.
1 Press SOURCE to select the multi-CD
player.
2 Use VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/, the volume
is lowered.
3 Select a disc you want to listen to with
the 16 buttons.
For discs located at 1 to 6, press the corre-
sponding number button.
If you want to select a disc located at 7 to 12,
press and hold the corresponding numbers
such as 1for disc 7, until the disc number ap-
pears in the display.
4 To perform fast forward or reverse,
press and hold cor d.
5 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
Notes
!When the multi-CD player performs the pre-
paratory operations, READY is displayed.
!If the multi-CD player does not operate prop-
erly, an error message such as ERROR-11
may be displayed. Refer to the multi-CD player
owners manual.
!If there are no discs in the multi-CD player ma-
gazine, NO DISC is displayed.
Changing the display
You can change the display.
%Press DISP/REG to switch the display.
Press DISP/REG repeatedly to switch the dis-
play in the following order:
Disc number and track number Disc num-
ber and play time
Repeating play
There are three repeat play ranges for the
multi-CD player: MCD (multi-CD player re-
peat), TRK (one-track repeat) and DSC (disc re-
peat).
%Press and hold LOCAL/BSM repeatedly
to select the desired repeat ran e.
!MCD Repeat all discs in the multi-CD
player
!TRK Repeat just the current track
!DSC Repeat the current disc
Notes
!If you select other discs during repeat play,
the repeat play range changes to MCD.
!If you perform track search or fast forward/re-
verse during TRK, the repeat play range
changes to DSC.
Multi-CD Player
En
14
Section
0
HHHHHHHHHHHHHH

Black plate (15,1)
<CZR2959-A>15
Pausing CD playback
Pause lets you temporarily stop playback of
the CD.
1 Press LOCAL/BSM to turn pause on.
PAUSE appears in the display. Play of the cur-
rent track pauses.
2 Press LOCAL/BSM to turn pause off.
Play will resume at the same point that you
turned pause on.
50-disc multi-CD player
50-disc multi-CD players can not be operated
with this unit.
Multi-CD Player
En 15
English
Section
0
HHHHHHHHHHHHHH

Black plate (16,1)
<CZR2959-A>16
Introduction of audio
adjustments
1
2
3
1BTB indicator
Shows when the BTB other than FLAT is se-
lected.
2Audio display
Shows the audio adjustments status.
3LOUD indicator
Appears in the display when loudness is
turned on.
%Press AUDIO to display the audio func-
tion names.
Press AUDIO repeatedly to switch between
the following audio functions:
FAD (balance adjustment)BAS (bass adjust-
ment)TRE (treble adjustment)LOUD
(loudness)SLA (source level adjustment)
#When selecting the FM tuner as the source,
you cannot switch to SLA.
#To return to the display of each source, press
BAND.
Note
If you do not operate the audio function within
about 30 seconds, the display is automatically re-
turned to the source display.
Using balance adjustment
You can select a fader/balance setting that
provides an ideal listening environment in all
occupied seats.
1 Press AUDIO to select FAD.
Press AUDIO until FAD appears in the display.
#If the balance setting has been previously ad-
justed, BAL will be displayed.
2 Press VOLUME up/+ or down/to ad-
just front/rear speaker balance.
Each press of VOLUME up/+ or down/
moves the front/rear speaker balance towards
the front or the rear.
FAD F15 FAD R15 is displayed as the front/
rear speaker balance moves from front to rear.
#FAD 0 is the proper setting when only two
speakers are used.
3 Press cor dto adjust left/ri ht speaker
balance.
When you press cor d,BAL 0 is displayed.
Each press of cor dmoves the left/right
speaker balance towards the left or the right.
BAL L 9 BAL R 9 is displayed as the left/right
speaker balance moves from left to right.
Using the BTB (bass treble
booster)
There are five stored BTB settings such as
DYNAMIC,POWER,MAX,CUSTOM and
FLAT that can easily recall at any time.
!CUSTOM is an adjusted BTB setting that
you create.
!When FLAT is selected no supplement or
correction is made to the sound. This is
useful to check effect of the BTB settings
by switching alternatively between FLAT
and set BTB setting.
%Press BTB to select the desired BTB set-
tin .
Press BTB repeatedly to switch between the
following BTB setting:
MAXCUSTOMFLATDYNAMIC
POWER
Audio Adjustments
En
16
Section
08
HHHHHHHHHHHHHH

Black plate (17,1)
<CZR2959-A>17
Adjusting BTB
You can adjust the currently selected BTB set-
ting as desired. Adjusted BTB settings are
memorized in CUSTOM.
Adjusting bass
You can adjust the bass level.
1 Press AUDIO to select BAS.
Press AUDIO until BAS appears in the display.
2 Press VOLUME up/+ or down/to ad-
just the bass level.
Each press of VOLUME up/+ or down/in-
creases or decreases the bass level. +6 6is
displayed as the level is increased or de-
creased.
Adjusting treble
You can adjust the treble level.
1 Press AUDIO to select TRE.
Press AUDIO until TRE appears in the display.
2 Press VOLUME up/+ or down/to ad-
just the treble level.
Each press of VOLUME up/+ or down/in-
creases or decreases the treble level. +6 6
is displayed as the level is increased or
decreased.
Adjusting loudness
Loudness compensates for deficiencies in the
low- and high-sound ranges at low volume.
1 Press AUDIO to select LOUD.
Press AUDIO until LOUD appears in the dis-
play.
2 Press VOLUME up/+ to turn loudness
on.
LOUD indicator is displayed.
#To turn loudness off, press VOLUME down/.
3 Press cor dto select a desired level.
Each press of cor dselects level in the fol-
lowing order:
LOW (low)HI (high)
Note
You can also turn loudness on or off by pressing
LOUDNESS.
Adjusting source levels
SLA (source level adjustment) lets you adjust
the volume level of each source to prevent ra-
dical changes in volume when switching be-
tween sources.
!Settings are based on the volume level of
the FM tuner, which remains unchanged.
1 Compare the FM tuner volume level
with the level of the source you wish to ad-
just.
2 Press AUDIO to select SLA.
Press AUDIO until SLA appears in the display.
3 Press VOLUME up/+ or down/to ad-
just the source volume.
Each press of VOLUME up/+ or down/in-
creases or decreases the source volume.
SLA +4 SLA 4is displayed as the source vo-
lume is increased or decreased.
Notes
!Since the FM tuner volume is the control, it is
not possible to apply source level adjustments
to the FM tuner.
!The MW/LW tuner volume level can also be
adjusted with source level adjustments.
Audio Adjustments
En 1
English
Section
08
HHHHHHHHHHHHHH

Black plate (18,1)
<CZR2959-A>18
Adjusting initial settings
Initial settings lets you perform initial set up of
different settings for this unit.
1 Press SOURCE and hold until the unit
turns off.
2 Press AUDIO and hold until STEP ap-
pears in the display.
Press AUDIO repeatedly to switch between
the following settings:
STEP (FM tuning step)A-PI (Auto PI Seek)
Use the following instructions to operate each
particular setting.
#To cancel initial settings, press BAND.
#You can also cancel initial settings by holding
down AUDIO until the unit turns off.
Setting the FM tuning step
Normally the FM tuning step employed by
seek tuning is 50 kHz. When AF or TA is on,
the tuning step automatically changes to 100
kHz. It may be preferable to set the tuning step
to 50 kHz when AF is on.
1 Press AUDIO to select STEP.
Press AUDIO repeatedly until STEP appears in
the display.

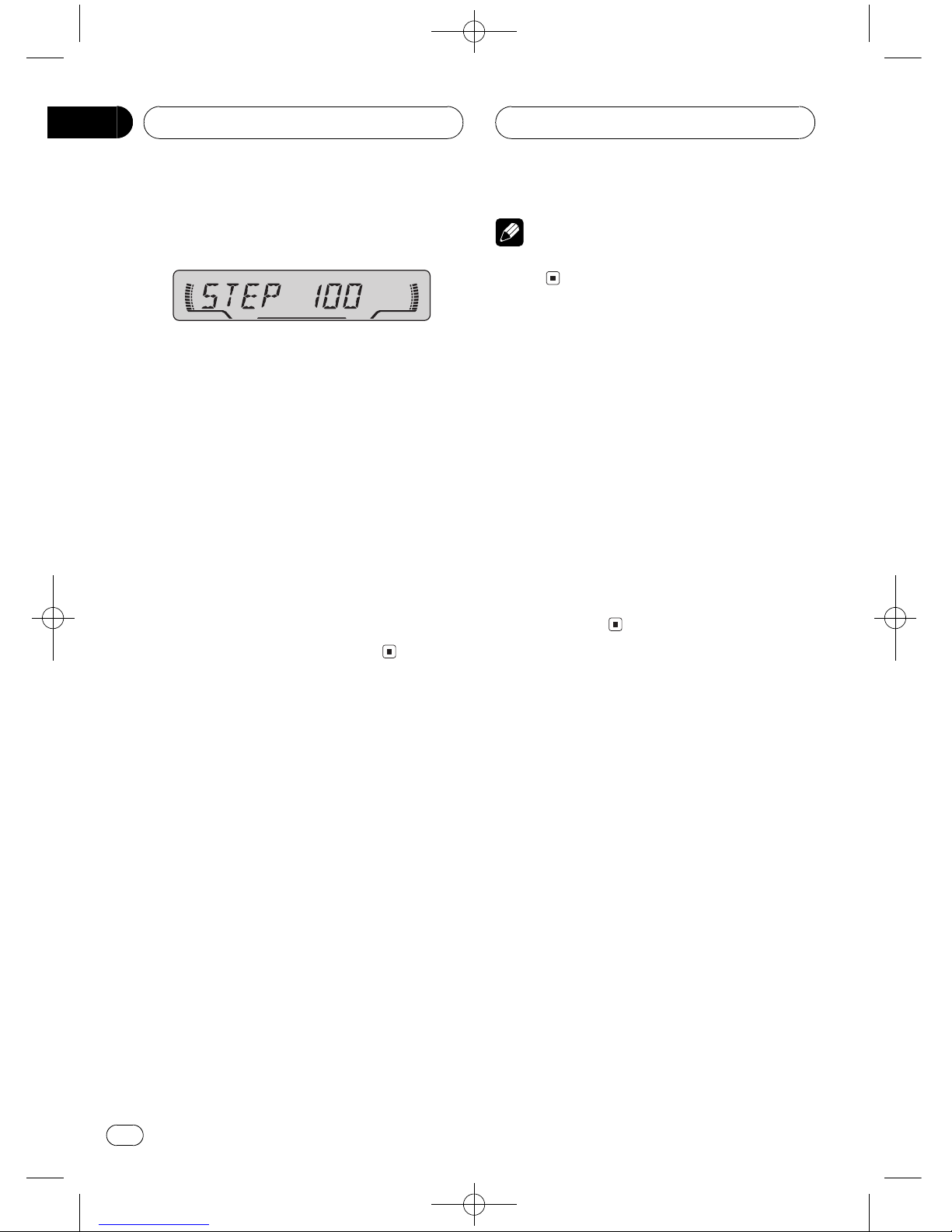

2 Press cor dto select the FM tunin
step.
Pressing cor dwill switch the FM tuning
step between 50 kHz and 100 kHz while AF or
TA is on. The selected FM tuning step will ap-
pear in the display.
Note
The tuning step remains at 50 kHz during manual
tuning.
S itching Auto PI Seek
The unit can automatically search for a differ-
ent station with the same programming, even
during preset recall.
1 Press AUDIO to select A-PI.
Press AUDIO repeatedly until A-PI appears in
the display.
2 Press VOLUME up/+ or down/to
switch the Auto PI seek on or off.
Pressing VOLUME up/+ or down/will turn
A-PI on or off and that status will be displayed
(e.g., A-PI :ON).
Initial Settings
En
18
Section
09
HHHHHHHHHHHHHH

Black plate (19,1)
<CZR2959-A>19
Cassette player
!A loose or warped label on a cassette tape
may interfere with the eject mechanism of
the unit or cause the cassette to become
jammed in the unit. Avoid using such
tapes or remove such labels from the cas-
sette before attempting use.
!Be sure to eject tape when the vehicles
ignition is turned off. Leaving the tape in
the unit can deform the pinch roller caus-
ing wow and flutter during tape
playback.
Cassette tapes
!Loose tapes should be rewound with the
aid of a pencil and unevenly wound tapes
rewound with the use of the fast forward
function.
!A loose, torn or warped label on a cassette
tape can jam the cassette player. Do not
use cassette tapes with loose, torn or
warped labels.
!Cassette tapes longer than C-90 (90-minute
tapes) can cause the tape to jam in the cas-
sette player. Do not use tapes longer than
C-90.
!Cassette tapes exposed to high tempera-
tures may warp and jam the cassette
player. Keep cassettes out of direct sunlight
or places where there are high tempera-
tures.
!Store unused tapes in a tape case where
there is no danger of them becoming
loose, dirty or dusty.
Cleaning the playback head
If the head becomes dirty, the sound uality
will get bad and there will be sound dropouts
and other problems. If you have any of these
problems the head may need cleaning.
Additional Information
En 19
English
Appendix
HHHHHHHHHHHHHH

Black plate (20,1)
<CZR2959-A>20
Specifications
General
Power source ............................. 14.4 V DC (10.8 15.1 V al-
lowable)
Grounding system ................... Negative type
Max. current consumption
..................................................... 8.5 A
Dimensions (W × H × D):
Chassis ............................... 178 × 50 × 155 mm
Nose ..................................... 188 × 58 × 20 mm
Weight .......................................... 1.4 kg
Audio
Maximum power output ....... 40 W × 4
Continuous power output ... 22 W × 4 (DIN 45324,
+B=14.4 V)
Load impedance ...................... 4 W(4 8Wallowable)
Preout max output level/output impedance
..................................................... 2.2 V/1 kW
Bass/Treble:
Bass
Fre uency ................ 100 Hz
Gain ............................ ±12dB
Treble
Fre uency ................ 10k Hz
Gain ............................ ±12dB
Loudness contour
Low ....................................... +7 dB (100 Hz), +4 dB (10
kHz)
High ..................................... +10 dB (100 Hz), +6.5 dB
(10 kHz)
(volume: 30 dB)
Cassette player
Tape ................................................ Compact cassette tape (C-
30 C-90)
Tape speed .................................. 4.8 cm/sec
Fast forward/rewinding time
..................................................... Approx. 100 sec (C-60)
Wow & flutter ............................. 0.13 % (WRMS)
Fre uency response ............... 30 16,000 Hz (±3 dB)
Stereo separation .................... 45 dB
Signal-to-noise ratio ............... 52 dB (IEC-A network)
FM tuner
Fre uency range ...................... 87.5 108.0 MHz
Usable sensitivity ..................... 9 dBf (0.8 µV/75 W, mono,
S/N: 30 dB)
50 dB uieting sensitivity ..... 15 dBf (1.7 µV/75 W, mono)
Signal-to-noise ratio ............... 70 dB (IEC-A network)
Distortion ..................................... 0.3 % (at 65 dBf, 1 kHz,
stereo)
Fre uency response ............... 30 15,000 Hz (±3 dB)
Stereo separation .................... 40 dB (at 65 dBf, 1 kHz)
MW tuner
Fre uency range ...................... 531 1,602 kHz (9 kHz)
Usable sensitivity ..................... 18 µV (S/N: 20 dB)
Selectivity .................................... 50 dB (±9 kHz)
LW tuner
Fre uency range ...................... 153 281 kHz
Usable sensitivity ..................... 30 µV (S/N: 20 dB)
Selectivity .................................... 50 dB (±9 kHz)
Note
Specifications and the design are subject to pos-
sible modifications without notice due to im-
provements.
Additional Information
En
20
Appendix HHHHHHHHHHHHHH
