Pioneer RX-1180 User manual

dQ) PIONEER’
The future of sound and vision.
ORDER NO.
ARP 1387
90
31
|
|
97 Original
Ss2
92
MODEL RX-1180 COMES IN THREE VERSIONS DISTINGUISHED AS FOLLOWS:
MODEL RX-1190 COME IN ONE VERSION DISTINGUISHED AS FOLLOWS:
Applicable model
RX-1180 | RX-1190 | RX-1181 | RX-1191 | RX-11B2 | RX-1192
Power requirement Export destination
AC120V only U.S.A
AC120V only U.S.A and Canada
AC110V, 120V-127V, 220V, 240V (switchable) | Kingdom of SaudiArabia
and general market
ACLIOV, 120V-127V, 220V, 240 (switchable) | U.S.Military
¢ This service manual is applicable to the RX-1180/KU,SD,SD/G, RX-1190/KUC, RX-1181/KUC,
RX-1191/KUC, RX-1182/KU and RX-1192/KU,
* As to the RX-1180/SD,SD/G and RX-1190/KUC please refer to pages 64.
¢ As to the RX-1181/KUC and RX-1191/KUC please refer to the additional service manual
(ARP1388).
* As to the RX-1182/KU and RX-1192/KU please refer to the additional service manual
(ARP1408).
PIONEER ELECTRONIC CORPORATION = 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760, Long Beach, California 90801 U.S.A.
PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive, Markham, Ontario L3R 6B8 Canada TEL: [416] 479-4411
PIONEER ELECTRONIC [EUROPE] N.V. Keetberglaan 1, 2740 Beveren, Belgium TEL: 03/775 - 28 - 08
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [03] 580-9911
IMW@©APR. 1987 Printed in Japan

RX-1180, RX-1190
CONTENTS
1. SAPETY INFORMATION--+++++++-++e+s++esseseeseeeseeeeseeees 2
2. SPECIFICATIONS*-+++++e+se+esserssoeeseseesseseeseseeesesens 3
3. CONNECTION DIAGRAM Pererrr errr rr rrr reer err rrr rrr ere reer ers 4
A. PANEL PACILITIBS+-+-++-s-esserseseeseseeseseeseessseeeeecs 6
5. EXPLODED VIEWS AND PARTS LIST <-+-+++-++++s++++++++ 15
6. SCHEMATIC DIAGRAMS--------++++e+sesesessseeseeeeteenees 21
7. P.C.BOARDS CONNECTION DIAGRAM -+---+--+++-++++++0++ 33
1. SAFETY INFORMATION
1.SAFETY PRECAUTIONS
The following check should be performed for the con-
tinued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a teakage current tester
such as Simpson Model 229-2 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, con-
trol shaft, etc.). Plug the AC line cord of the appliance
directly into a 120V AC 60Hz outlet and turn the AC
power switch on. Any current measured must not exceed
0.5mA.
Leakage
current
tester
Reading should
not be above
0.5mA
Device
under
test
Test ail
exposed metal
surfaces
) 2-wire cord
Also test with
plug reversed
(Using AC adapter
plug as required)
AC Leakage Test
8. PACKING PPrrrrerrrrrrrrrrrrrrrrrerrri retiree TT irre errr Terry ery 45
9. ADJUSTMENTS comer cece cree cece cer ce se ceccecer eee ececnseseeee 46
10. ELECTRICAL PARTS LIST -s-s++sssessssessseeeeeseseeeteee5D
Ths Ic INFORMATION Pree eccccccesccreccensereseseessereerseseee 57
12. REMOTE CONTROL UNIT -s-+-+s-ssesssesesseeeresseesseeeees 60
13. FOR RX-1180/SD,SD/G AND RX-1190/KUC -+-+++++-++ 64
ANY MEASUREMENTS NOT WITHIN THE LIMITS OUT-
LINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED
BEFORE RETURNING THE APPLIANCE TO THE
CUSTOMER.
2.PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are often
not evident from visual inspection nor the protection af-
forded by them necessarily can be obtained by using re-
placement components rated for voltage, wattage, etc. Re-
placement parts which have these special safety charac-
teristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a A\ on the schematics and on the parts
list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire, or
other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Serv-
ice Manual. A subscription to, or additional copies of,
PIONEER Service Manual may be obtained at a nominal
charge from PIONEER.

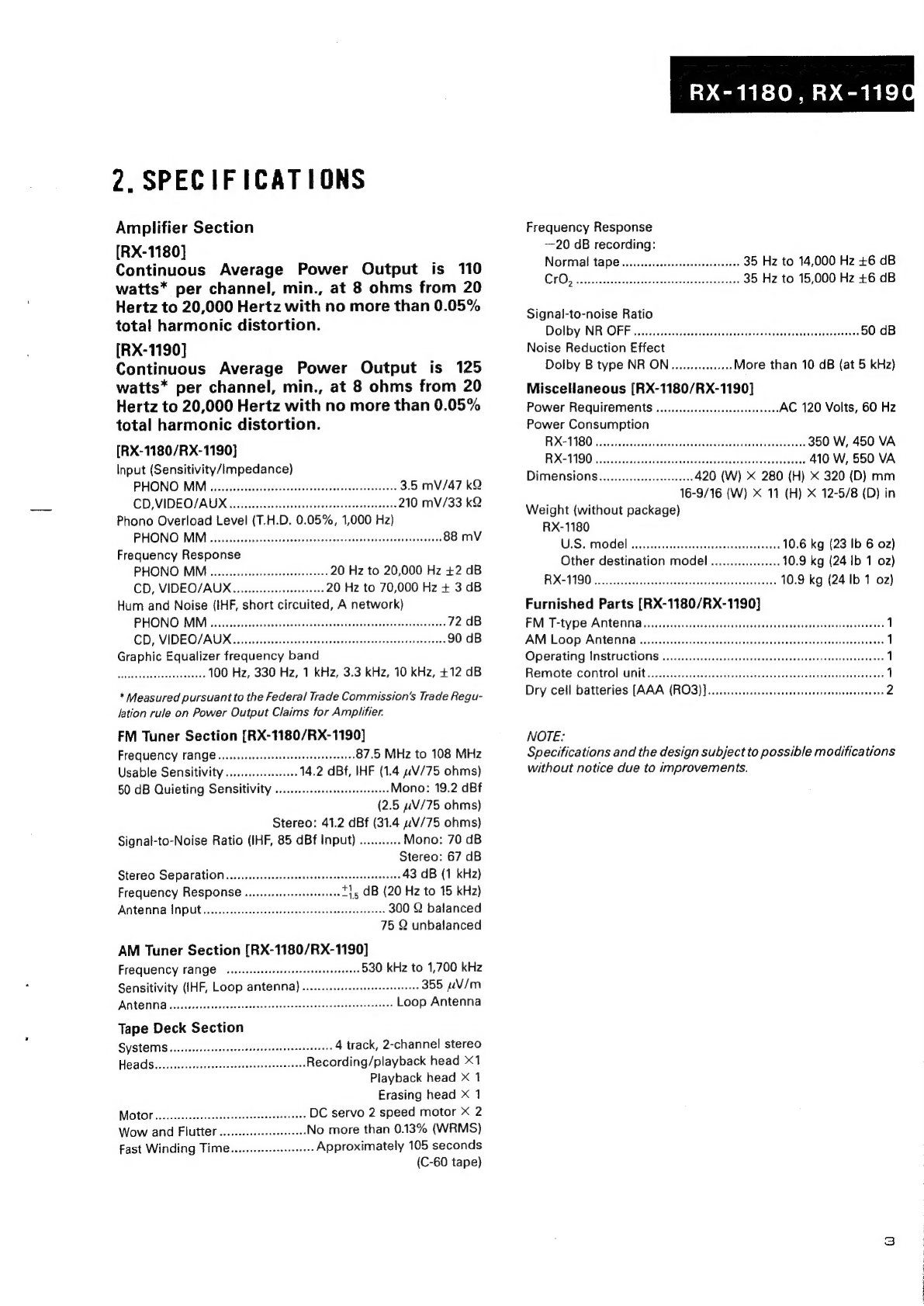

2, SPECIFICATIONS
Amplifier Section
[RX-1180]
Continuous Average Power Output is 110
watts* per channel, min., at 8 ohms from 20
Hertz to 20,000 Hertz with no more than 0.05%
total harmonic distortion.
[RX-1190]
Continuous Average Power Output is 125
watts* per channel, min., at 8 ohms from 20
Hertz to 20,000 Hertz with no more than 0.05%
total harmonic distortion.
[RX-1180/RX-1190}
Input (Sensitivity/Impedance)
PHONO: MM bio ccscivsciaseceesceseess svevec¥ectenesnevesetend 3.5 mV/47 kQ
CD,VIDEO/AUX .......0ccscscccrccececesssesenseeneesenees 210 mV/33 kQ
Phono Overload Level (T.H.D. 0.05%, 1,000 Hz)
PHONG’ MIM seccccctsesaccehcivs cosggucsecduecctvanten csaeenseccvuvevonns 88 mV
Frequency Response
PHONO MM. ........cccsccceceeseeereneees 20 Hz to 20,000 Hz +2 dB
CD, VIDEO/AUX .... ce ecseeeeeseeeeee 20 Hz to 70,000 Hz + 3 dB
Hum and Noise (IHF, short circuited, A network)
PHONO: MM sissies svocssevstavvessessecsunsesscesvacessseenecseesecennees
CD, VIDEO/AUX
Graphic Equalizer frequency band
daidavsandel seauieietes 100 Hz, 330 Hz, 1 kHz, 3.3 kHz, 10 kHz, +12 dB
* Measured pursuant to the Federal Trade Commission's Trade Regu-
lation rule on Power Output Claims for Amplifier.
FM Tuner Section [RX-1180/RX-1190]
FreQUeNCY FANGE ......seececsessseneeseetseeeeeetnes 87.5 MHz to 108 MHz
Usable Sensitivity... 14.2 dBf, IHF (1.4 «V/75 ohms)
50 dB Quieting Sensitivity ........... cesses Mono: 19.2 dBf
(2.5 xV/75 ohms)
Stereo: 41.2 dBf (31.4 uV/75 ohms)
Signal-to-Noise Ratio (IHF, 85 dBf Input) ........... Mono: 70 dB
Stereo: 67 dB
Stereo Separation .......ceeccsssecvessssreesssesesseneens 43 dB (1 kHz)
Frequency RESponse ..........:eccseesereees *1, dB (20 Hz to 15 kHz)
Antenna INDUt......-ceeecseeseeceeeseceeeeesneensesseeeens 300 Q balanced
75 Q unbalanced
AM Tuner Section [RX-1180/RX-1190]
FrEQUENCY LANGE .....ceecesecseesseeeetseeteteeenes 530 kHz to 1,700 kHz
Sensitivity
(IHF,
Loop
antenna)........ceeeeeeeeeeseerees
355
nV/m
ANTONIA
...eccsecessecsecccsveccescevensnenseeceescseeeeeeeresenons
Loop
Antenna
Tape Deck Section
SYSTEMS
....ceccecceseseesseeseeeeteeersaeteneeees
4
track,
2-channel
stereo
HEAR
Sov
cpevsisverte
nsiedasca
dbacuteebaccneene
Recording/playback
head
x1
Piayback head X 1
Erasing head X 1
MOtOl........:ccereeceeneeeneeeeeeeenereetes
DC
servo
2
speed
motor
X
2
Wow
and
Flutter
........eeeeeeees
No
more
than
0.13%
(WRMS)
Fast
Winding
Timeé............-.:-
Approximately
105
seconds
(C-60 tape)
RX-1180, RX-1190
Frequency Response
—20 dB recording:
Normal [email protected] 35 Hz to 14,000 Hz +6 dB
CIOs anise seceteerttooentetetheasess 35 Hz to 15,000 Hz +6 dB
Signal-to-noise Ratio
Dolby NR: OFF vascicesibetivaccossaeieedeaens ites ova faetecasduerreeeeee 50 dB
Noise Reduction Effect
Dolby B type NR ON.............06 More than 10 dB (at 5 kHz)
Miscellaneous [RX-1180/RX-1190]
Power Requirements .........cccscccscseeeseessseees AC 120 Volts, 60 Hz
Power Consumption
RXC1180 vi iscitssaeties Aaeasimidetesees aaa aandiees 350 W, 450 VA
RXPV19O weed sccseiseasas seal ohatess Tesueaaeh aetasien thaaeees 410 W, 550 VA
DIMENSIONS........cccceseceeeesenee 420 (W) X 280 (H) X 320 (D) mm
16-9/16 (W) X 11 (H) X 12-5/8 (D) in
Weight (without package)
RX-1180
U.S. MOE] oo... .eceeeseseereeseeessssteeeteneee 10.6 kg (23 lb 6 oz)
Other destination model ...............06 10.9 kg (24 Ib 1 02)
RMEV19O wisivicisativcecsdscvsaeeb kes vavveniaerteys 10.9 kg (24 Ib 1 02)
Furnished Parts [RX-1180/RX-1190]
FIM T-type: ANt@ nina cvccessescscecsdessocadecresssedsstenecerssvnessactusccasensies
AM Loop Antenna
Operating Instructions .............
ReMote-CONtOl UM Ite. ccice. ceteessaseces chases teseeecasncsenduaceteesecedenses
Dry ceil batteries [AAA (RO3)]
NOTE:
Specifications and the design subject to possible modifications
without notice due to improvements.

RX-1180, RX-1190
3. CONNECTION DIAGRAM
¢ ANTENNA CONNECTIONS
RADIO RECEPTION IS NOT POSSIBLE UNLESS
THE ANTENNA IS PROPERLY CONNECTED.
The strength of broadcast signal varies from one area to
another (signal propagation is especially poor in metropolitan
areas, where there are may tall buildings, and in mountainous
areas). Proper antenna installation is vital to good reception.
AM ANTENNA
The AM loop antenna supplied with the cassette deck receiver
should be connected to the AM antenna terminals. The
antenna should be placed at a distance from the cassette deck
receiver, and should not be allowed to touch metallic objects.
Avoid placing it near CD players, personal computers, televi-
sion sets, and other devices generating radio frequencies.
Setting up the AM antenna
¢ Fold out the supports on the bottom of the antenna. Insert
the stopper in the hole in the antenna to lock them in place.
* Place theantenna on a level surface and rotate it to locate
the orientation that yields the best reception.
AM Loop Antenna Set-up Hole
Stopper
AM Loop Antenna Connection
The accessory AM loop antenna must be connected to ensure
proper reception.
External AM antenna
Indoor AM antenna
Provide a vinyl-coated wire (5 to 6 meters long). Secure one
end to the AM terminal and the other end to a wall or other
high location.
Outdoor AM antenna
If receptionis still poor even when a lead antenna has been
stretched out indoors, stretch out a vinyl-coated wire and se-
cure it outdoors.
Connecting the external AM antenna
Outdoor AM antenna
Indoor AM antenna
NOTE:
Do not detach the AM loop antenna when using the external AM
antenna.
FM ANTENNA
FM T-type antenna attachment
Connect the accessory FM T-type antenna to the FM termi-
nals. Stretch the antenna out to its full length, and affix it to
a wall, etc.
Stretch out both ends.
Toth ee.
Correct Wrong Wrong
The accessory FM T-type antenna must be connect to ensure
proper reception.
External FM antenna installation
Use an external antenna when the signals from the station are
weak and cannot be picked up by the accessory FM T-type
antenna, or when the sound heard is accompanied by large
amounts of noise. There are two ways of connecting the
external FM antenna to the ANTENNA terminals with 3000
feeder wire, or with a 752 coaxial cable.
itis recommended that you use the 752 coaxial cable, so that
the effects of extraneous noise are reduced to a minimum.
When the connecting cable
is a 752 coaxial cable
75Q coaxial cable
When the connecting
cable is a 3000
feeder wire
3000 feeder

RX-1180, RX-1190
° CONNECTIONS
Proceed as follows with the set-up and connections
Connect the FM antenna and the AM antenna to the cassette deck receiver's ANTENNA terminals. (See page 4)
(Use an antenna ground as necessary. See page 6.)
. Connect the turntable’s cords to the cassette deck receiver's TURNTABLE jacks (and GND terminal). If any other stereo component is
to be used, connect in the same way to the cassette deck receiver's input jacks.
. Connect the speaker cords to the SPEAKERS terminals.
. Finally, connect the power cord to the AC wall socket. * RX-1180 is not equipped with GND terminal.
Connecting the input/output R ii
AM + cords
) loop a Red plug ore os aa White plug
antenna
FM
T-type
antenna Py
Connect the plugs properly. Faulty connections can cause
noise and also breakdowns and failures.
The white terminal is for the left channel and the red
terminal is for the right channel.
Connecting the speaker cords.
Turntable
Cutter
2 —s 2 :
Twist the strands.
10 mm
When using
another turntable When using 3 Pp
ush toward
(RX-1190 only) PL-888Z or PL-777AZ : Push toward
the outside the inside
turntable
insert
(e) Speaker system A
L channel R channel
fa EN
© ©
Speaker system B
L channel R channel
wall socket
ie LaserVision player CD player
or VCR etc.
To cassette deck
receiver's AC
OUTLET

RX-1180, RX-1190
Antenna ground
Although grounding is not necessary for reception it is recom-
mended for protection against damage from lightning if an out-
door FM antenna is used. Grounding is recommended as well
to help reduce noise and hum.
NOTE:
Never make the ground connection to a gas pipe as sparks could
cause the gas to ignite.
NOTE ABOUT SPEAKER CONNECTIONS
© Speaker systems used should have an impedance of be-
tween 82 and 162.
¢ Be sure that connections are secure. Check to make sure
that wires do not protrude from their terminals.
¢ Do notallow the speaker cords to become shorted.
Damage may result to your equipment.
To control a unit other than this receiver using the re-
mote control unit
@® In the case of a PIONEER equipment marked 8] which is
provided with a remote sensor, operate the equipment by
aiming the remote control unit at the remote sensor on the
equipment.
@ For equipment with the Fal mark, but without a remote
sensor, operation of the equipment by facing the remote con-
trol unittowards the remote sensor of the cassette deck receiv-
er possible with connection from the CONTROL OUT jack to
the CONTROL IN jack. Use a commercially available cable with
mini-plugs for the connection.
4. PANEL FACILITIES
(@
© Do not attempt to simultaneously connect two sets of
speakers to a single side (A or B). When using two sets of
speakers, connect one set to side A and one set to side B.
AC OUTLET
SWITCHED 100W MAX
Power supplied through this outlet is turned on and off by this
equipment’s POWER switch. Total electrical power consump-
tion of connected equipment should not exceed 100 W.
NOTE:
Do not connect appliances with high power consumption such
as heaters, irons, or television sets to the AC OUTLET, inorder
to avoid overheating or fire risk.
This can cause this equipment to malfunction.
IN
IN
OUT
Cw ChE
NTROL
co CONTROL
CD player Equipment with
the {fq} mark.
Cassette deck receiver
©
—
N
al

TUNER SECTION
G@STATION CALL switches
These are used to recall preset broadcasting stations and to
preset the station.
@FREQUENCY/STATION NUMBER DISPLAY
@INDICATORS
[TUNED]
This lights to indicate that a station has been optimally tuned
in.
[STEREO]
This lights during FM stereo reception.
IFM MONO}
Lights when the FM MONO switch is pressed to select
monaural FM reception.
(AUTO TUNING]
Lights when the auto tuning mode is selected during FM/AM
reception.
@ MEMORY switch
This
switch
is
used
to
memorize
stations.
When
the
switch
is
pressed,
the
FREQUENCY
indicator
will
flash.
To
memorize
the
frequency
of
any
station,
press
the
STATION
CALL
switch
while
the
frequency
indicator
is
flashing.
©FM MONO switch
Normally, the FM MONO indicator remains off. However, it
may
not
be
possible
to
tune
in
a
desired
FM
station
because
it
is
too
far
away
or
because
its
signals
are
too
weak.
In
cases
like
these,
press
the
switch
to
set
the
reception
to
the
mon-
aural
mode
(FM
MONO
indicator
lights)
and
tune
in
the
station.
The
program
of
an
FM
stereo
broadcast
will
be
heard
in
mono.
This switch will not function for AM reception.
@AUTO/MANUAL switch
Use
to
select
either
the
AUTO
mode
or
MANUAL
mode
for
FM/AM reception.
@TUNING switch (—, +)
The
function
of
this
switch
differs
according
to
whether
AUTO
tuning or MANUAL tuning is selected.
[AUTO tuning mode]
When
this
mode
is
selected,
AUTO
TUNING
indicator
light
(press
AUTO/MANUAL
switch
if
the
indication
is
not
lighting).
When
the
“’
+”
switch
is
pressed,
the
frequencies
are
scanned
in
ascending
order;
when
the
‘‘
—
‘’
switch
is
pressed,
they
are
scanned
in
descending
order.
Scanning
stops
as
soon
as
a
Sta-
tion
has
automatically
been
tuned
in.
Auto
scanning
is
terminated
when
either
TUNING
(—,
+),
AUTO/MANUAL,
BAND,
or
MEMORY
switch
is
pressed.
{MANUAL tuning mode]
When
this
mode
is
selected,
AUTO
TUNING
indicator
turns
off
(press
AUTO/MANUAL
switch
if
the
indicator
is
lighting).
When
the
‘‘+’’
switch
is
kept
pressed,
the
frequency
increases
and
when
the
‘‘—‘’
switch
is
kept
pressed,
it
decreases.
RX-1180, RX-1190
(®)BAND selector switch (FM/AM)
This is used to select the band of the desired station. The
bands
change
alternately
each
time
the
switch
is
pressed.
eed FM reception AM reception |
AMPLIFIER SECTION
()POWER
(STANDBY/ON)
switch
When this switch is set to the ON position, the STAND-
BY/SLEEP indicator goes out and power is supplied to the main
circuits of the cassette deck receiver.
Disconnect the power cord from the power outlet when you
do not plan to use the cassette deck receiver for a long period
of time.
The cassette deck receiver has a backup function, so it will return
to the original status when the power cord is unplugged and soon
again plugged into the power outlet.
4) STANDBY/SLEEP indicator
This indicator lights in stand-by status or when the SLEEP
function is operating when the power cord is connected to a
power outlet.
When the SLEEP key on the remote control unit is pressed,
the sleep function activated for approximately 60 minutes,
then enters the standby mode. (The SLEEP indicator flashes
faster as the end of the remaining time nears.)
di) PHONES jack
This is a ‘’standard plug-type jack’’ for headphones.
NOTE:
Sound is not heard from the speakers when headphones are in
use.
(2 SPEAKERS switch ( m@ A, = A+B)
This is used to select the speaker through which you wish to
listen,
BA : When the speakers connected to A terminals are
in use.
am A+B _ : When the speakers connected to A and B ter-
minals are in use.
(There is no sound if A + B is selected when
speakers are connected only to the A terminals.)
Be sure to use A terminals when you use a pair of speakers
only. No sound will be heard through the speakers when only
a pair of speakers are connected to B terminals.
43 GRAPHIC EQUALIZER controls
The equalizer is divided into five frequency ranges (100 Hz,
330 Hz, 1 kHz, 3.3 kHz, 10 kHz) to tailor music to the
individual taste of the listener.
NOTE:
Effective only for audio playback. Does not work for recording
and copying operations.

RX-1180, RX-1190
(FUNCTION switches/indicators
The indicators light for the specified functions.
[VIDEO/AUX]
Press when listening to a stereo component connected to the
VIDEO/AUX jacks.
[TAPE]
Press when listening to a cassette tape.
[TUNER]
Press when listening to a radio broadcast.
[PHONO]
Press when playing records on a turntable connected to the
PHONO jacks.
[CD]
Press when listening to a CD player connected to the CD jacks.
(5) REMOTE SENSOR window
(6) VOLUME/BALANCE indicator
The indicator shows volume level. When either of BALANCE
switches is pressed, the indicator shows BALANCE between
left and right channels.
The indicator flashes during muting.
() VOLUME switch
This switch is pressed to adjust the volume.
+: Increases volume.
—: Decreases volume.
(@® BALANCE switches
Use to adjust the balance between the sounds from the left
and right speakers.
L: Press to decrease the sound on the right side.
R: Press to decrease the sound on the left side.
CENTER: The display returns to CENTER when both L and R
are pressed simultaneously.
(2 MUTING switch
Pressing this switch alternately interrupts and returns the
sound. VOLUME/BALANCE indicator flashes during muting.
@0) MIC jack (excluding U.S. and Canadian models)
Used toconnect microphones equipped with standard plugs.
@) MIXING LEVEL (excluding U.S. and Canadian
models)
Adjusts the volume of the microphone.
Increasing the microphone volume reduces the source volume.
CASSETTE TAPE DECK SECTION
e Thecassette deck receiver is provided with an automatic
tape selector function.
Deck | ... NORMAL/CrOz, METAL
Deck I... NORMAL/CrO2
@) Deck | switches
OAS (STOP/EJECT) .. Stops tape travel. Ejects cassette if
pressed when tape is stopped.
[> (PLAY).............. Playback.
PFE) oc eeecee eee Fast forward
a (REW)............... Rewind
@)Deck Il switches
GO(PAUSE)............ Temporarily stops tape travel. Can-
cels pause mode when pressed
again.
L/S (STOP/EJECT).... Stops tape travel. Ejects cassette if
pressed when tape is stopped.
E> (PLAY) .3acectesswens Playback
Leal (let ER ee Fast forward
aa (REW)............... Rewind
@ (REC)... Set to the recording mode.
@ DECK Il TAPE COUNTER
3-digital display measures tape travel on deck Il.
@) DECK Il TAPE COUNTER RESET button
@)Recording indicator (REC)
Lights during recording. Flashes during tape copy standby
mode or remote control pause.
@) COPY MODE switches/indicators
These switches and indicators are used to select the copy
mode.
SYNCHRO ........ Normal speed copying (Permits you to lis-
ten to playback normally.)
HIGH SPEED..... High speed copying (double-speed, half-
time copying)
(8) DOLBY NR switch/indicator
Press to activate noise reduction system. Use to play back
tapes recorded using Dolby B NR noise reduction.
¢ Tapes recorded using Dolby B NR noise reductior should
always be played back with the noise reduction system on.
Sound quality will be adversely affected if they are played
back with the system off, or if tapes recorded usinga differ-
ent noise reduction system are played back with the Dolby
B NR system on.
* It is recommended that tapes recorded using Dolby B NR
be so marked on the label. This will help to prevert incor-
rect setting of the noise reduction switch during ph-yback.
Noise reduction manufactured under license from Dolby
_ Laboratories Licensing Corporation.
“’Dolby’’ and the double-D symbol are trademarks ¢ Dolby
Laboratories Licensing Corporation.

RX-1180 , RX-1190
* REMOTE CONTROL UNIT FACILITIES
Range of remote control
When
the
remote
control
unit
is
pointed
at
the
REMOTE
SEN-
SOR
window
on
the
deck
receiver
and
any
of
its
keys
is
pressed,
the
cassette
deck
receiver
and
other
components
can
be
operated
by
remote
control.
Distance:
Within
a
range
of
about
7
meters
from
the
REMOTE
SENSOR
window
Angle:
Within
approx.
30
degrees
from
the
center
of
the
REMOTE
SENSOR
window
Remote
control
will
not
be
possible
if
there
is
an
obstacle
be-
tween
the
remote
control
unit
and
the
REMOTE
SENSOR
window.
bet a GS
SLEEP u DOWN UP |
STATION
@ co
REMOTE
CONTROL UNIT
CU-RX001
@ POWER key
@ MUTING key
@) VOLUME (DOWN, UP) key
@ SLEEP key
Pressing this key sets the sleep timer to approximately 60
minutes. The STANDBY/SLEEP indicator flashes while the
sleep timer is operating. The SLEEP indicator flashes faster as
the end of the remaining time nears.
@ FUNCTION selector keys
@STATION key
UP:
Used
to
tune
in
the
station
numbers
in
ascending
order.
DOWN:
Used
to
tune
in
the
station
numbers
in
descending
order.
@TAPE PAUSE key
Use to pause during tape playback or recording.
Press again to release the pause.
Refer to ‘‘Remote control pause”’ for details.
@®CD keys
>
(Play)
........
eee
Function
on
the
amplifier
section
is
set to CD mode.
Begins CD playback.
BE
(Pause).............
Press
to
temporarily
pause
playback.
WM
(Stop)...
Press
to
stop
playback.
DISGeseeesextetet
Disc
numbers
can
be
selected
when
used together with a Pioneer maga-
zine type CD player.
mi
(Track
search)...
When
pressed
once,
play
advances
to
the
beginning
of
the
next
track;
when
pressed
continuously,
ad-
vances
to
further
tracks.
<<
(Track
search)
...
When
pressed
once,
play
returns
to
the
beginning
of
the
currently
playing
track;
when
pressed
continuously,
returns
to
earlier
tracks.
Remote Control Pause
(When remote contro! pause is possible)
Deck | Deck Il |Retay Play} Source | SYNCHRO
PLAY PLAY REC. REC.
Deck t YES _ YES* _** YES***
Deck II - YES YES* YES YES***
*When pause is applied while the deck is playing back.
* * se remote control pause only for Deck II during tape dub-
bing. The Deck II pause will not be released even if Deck |
is played back in this status.
***Both Deck | and Deck II will pause.
Pressing the remote control PAUSE key again releases the
pause.
~~]
NOTES:
¢ Remote control pause is also released when the deck oper-
ating status is changed by using any of the main unit operat-
ing switches except for the Deck If PAUSE switch (except for
item * * above). When pause is applied from the remote con-
trol, it is recommended that the pause also be released from
the remote control.
*°
/f
apause
is
applied
while
one
deck
is
playing
back,
the
pause
will
not
be
released
even
if
the
FF,
REW,
STOP/EJECT
switches
of
the
other
deck
are
operated.
(Pressing the PLAY switch releases the pause and enters the
relay playback mode.) |

RX-1180, RX-1190
¢ GRAPHIC EQUALIZER
CONTROLS
The advantage of the GRAPHIC EQUALIZER over conventional
tone controls is that with the five controls of the GRAPHIC
EQUALIZER it is possible to control five different narrow. With
conventional tone controls a setting for a bass or treble boost or cut
will also affect the lower or upper mid frequencies. The frequency
bands controlled by the five slide controls have been chosen to yield
the maximum possible control action within the audio spectrum.
100 Hz: The 100 Hz control is very useful for enhancing
low bass notes as in organ music.
330 Hz: The 330 Hz control will allow you to vary the
upper bass frequencies.
1 kHz: The 1 kHz control is the presence control and can
be used very effectively to emphasize, or de-
emphasize vocalists.
3.3 kHz: The 3.3 kHz control will add brilliance and clarity
to brass instruments and violins.
10 kHz: The 10 kHz control can be used to make up for
missing high frequencies absorbed by the environ-
ment and to add a natural crispness to music.
S46
Emphasize
frequency
5
range
~10
De-emphasize
f
(Hz)
100
330
tk
33k
10k
(He)
inde:
PRL DLG
10
* PRELIMINARY OPERATIONS
¢ PERFORM THE FOLLOWING PROCEDURES BEFORE
STARTING ANY OF THE OPERATIONS.
1.Press the POWER switch to the ON.
© The STANDBY/SLEEP indicator will go out.
2. Select the SPEAKERS button.
3. Select the FUNCTION switches before operat-
ing any of the equipment.
® To listen to equipment connected to the VIDEO/AUX jacks:
[VIDEO/AUX]
@ To listen to a cassette tape: [TAPE]
™ To listen to an FM or AM broadcast: [TUNER}
® To listen to a record: [PHONO]
® To listen to a compact disc: [CD]
When a function key is pressed, the corresponding indicator
lights.

¢ BASIC OPERATIONS
LISTENING TO THE BROADCASTS
AUTO/MANUAL switch
TUNING switch
MEMORY switch BAND
selector switch
STATION CALL switch
Auto tuning
The electronic tuning circuit inside the cassette deck receiver
will automatically search for the station.
1. Perform the preliminary operations on page 10.
2.
Select
the
desired
broadcasting
band
using
the
BAND
selector
switch.
3.
Press
the
AUTO/MANUAL
switch
to
establish
the
auto
tuning
mode
(the
AUTO
TUNING
indicator
will
light).
4.
Press
the
‘‘+'’
or
‘’—’’
TUNING
switch
for
higher
or
lower
frequency.
The
frequency
will
change
rapidly
during
scanning.
The
auto
tuning
will
stop
automatically
when
the
station
is
located
and
the
TUNED
indicator
will
tight
up.
NOTE:
When
the
auto
tuning
is
in
use,
reception
may
not
be
possible
over
long
distances
or
when
signals
are
weak. At
these
times
manual
tuning
is
recommended.
5.
Adjust
the
volume
with
the
VOLUME
control
and
the
tone
with
the
GRAPHIC
EQUALIZER
controls.
Manual tuning
1, Perform the preliminary operations on page 10.
2.
Select
your
desired
broadcasting
band
using
the
BAND
selector
switch.
3.
Press
the
AUTO/MANUAL
switch
to
establish
the
manual
tuning
mode
(the
AUTO
TUNING
indicator
goes
off).
4.
Press
the
TUNING
switch
to
locate
the
frequency
of
your
desired
station.
For
step-by-step
searching,
press
the
TUNING
switch
once
and
release
it
immediately.
For
continuous
rapid
scanning
keep
the
TUNING
switch
pressed.
The
TUNED
indicator
will
light
up
when
the
station
is
tuned
in
best.
NOTE:
The TUNED indicator will not function for broadcasts received
over long distances or when signals are weak.
5. Adjust the volume with the VOLUME control and the tone
with the GRAPHIC EQUALIZER controls.
RX-1180, RX-1190
PRESETTING STATIONS
Presetting
From
1
to
24
FM/AM
stations
can
be
preset
at
random.
Press
the
STATION
CALL
switch
once
for
1
— 12
(Mode
1)
and
twice
for
13
—
24
(Mode
2).
1. Tune in desired station.
e
See
the
auto
tuning
section
for
information
on
recep-
tion using auto tuning.
e
See
the
manual
tuning
section
for
information
on
recep-
tion using manual tuning.
2. Press the MEMORY switch.
© The display will flash (about 3 seconds).
MEMORY [J =o
FM mi
3. Press the STATION CALL switch.
e
While
the
display
is
flashing,
press
the
switch
cor-
responding
to
the
station
which
you
wish
to
preset
or
re-preset.
When
presetting
a
station
to
Mode
1
(e.g.
presetting
a
sta-
tion
to
No.
9):
By
pressing
the
STATION
CALL
switch
once,
the
station
will
be
preset
to
Mode
1.
9/21
—,
[
Frequency
display
D STATION CALL
Press once switch number
Frequency
display
When
presetting
a
station
Mode
2
(e.g.
presetting
a
sta-
tion
to
No.
21):
Mode 2 stations are preset by pressing the STATION CALL
switch twice within about 2 seconds.
9/21
S
[|
Frequency
display
p STATION CALL
Press twice switch number
e After you press the STATION CALL switch, the display will
flash for about 2 seconds, then the station will be memo-
rized. If you press another switch (except the FM Mono and
auto-manual switch) while the display is flashing, the sta-
tion will not be memorized.
Pressing the STATION CALL switch twice within about 2
seconds switches alternately between Mode 1 and Mode
2.
Mode 1—————— » Mode 2
(1~ 12) _ Press twice (13 ~ 24)
within about 2 sec.
a

RX
-1180, RX-1190
RECEPTION USING PRESET TUNING
1.
2.
Perform the preliminary operations on page 10.
Press the STATION CALL switch into which the desired
station has been memorized.
* To listen to a Mode 1 broadcast, press the switch once,
and to listen to a Mode 2 broadcast, press it twice.
In this way, simple and accurate reception of any desired
station is possible.
NOTE:
* The contents of the STATION CALL switches will be
preserved for several days, even if the power cord is un-
plugged.
¢ /fa preset station has been erased, re-preset it.
Last Station Memory
When the POWER switch is pressed to turn power on, the
last station received before the power was previously
turned STANDBY mode will be received again.
When power is ON, if the BAND selector switch is pressed,
the last station received before the BAND selector switch
was previously pressed will be received again.
TAPE PLAYBACK
S
1.
2.
3.
6.
ingle Playback (a function of both Decks | and Il)
Perform the preliminary operations on page 10.
Press the STOP/EJECT switch and load a pre-recorded cas-
sette tape then close the cassette door.
Select the DOLBY NR switch.
. Press the PLAY (>) switch.
¢ Press the PLAY (>) switch of the deck into which the
cassette tape is loaded.
. Adjust the volume with the VOLUME control and the tone
with the GRAPHIC EQUALIZER controls.
To stop playback, press the STOP/EJECT switch.
Relay playback (Continuous playback Deck | >
Deck II, or Deck Il — Deck 1)
=
A deck will enter the standby mode if its PLAY switch is
pressed while the other deck is in the play mode.
When the deck presently playing is stopped, the deck in
the standby mode will automatically enter the play mode
for relay play.
While the second tape is playing, a new tape can be
replaced in the first deck in order to perform continuous
playback of different tapes. This is a convenient feature for
party background music, etc.
. Perform the preliminary operations on page 10.
. Load pre-recorded cassette tapes into both Deck | and
DECK Il. (Press the STOP/EJECT switch and load the
cassettes.) Close the cassette doors.
. Select the DOLBY NR switch.
. Press the PLAY (C>) switch for the deck you wish to be-
gin playing first, then press the PLAY (>) switch for the
other deck.
@ When the tape which is playing back reaches the end
and automatically stops, the other deck automatically
starts playback.
12
5. Adjust the volume with the VOLUME control and the tone
with the GRAPHIC EQUALIZER controls.
6. To stop playback, press the STOP/EJECT switches.
NOTES:
* Pressing Pause from the remote control during relay playback,
stops the playback from one deck and starts playback from
the other deck.
¢ Starting playback from one deck after pressing Pause from
the remote control while one deck is playing back, cancels the
pause and starts playback from the previous deck in the re-
lay playback mode.
TAPE RECORDING (A Function of Deck II Only)
PLAY switch DOLBY NR switch
REC switch STOP/EJECT switch
1. Perform the preliminary operations on page 10.
® Select the recording source with the FUNCTION switch.
2. Press the STOP/EJECT switch and load the cassette tape
to be used for recording into Deck Il. Close the cassette
door.
3. Select the DOLBY NR switch.
4. Starts playback of the source being recorded.
¢ When recording the sound from Deck | on Deck II {tape
dubbing), start playback of Deck | after loading the cas-
sette tape.
5. Hold down the REC (@) switch first and then press the
PLAY (>) switch.
¢ The REC indicator will light.
* Tape recording is unaffected by the VOLUME and
GRAPHIC EQUALIZER setting.
NOTE:
¢ Beat may occur and be included in recordings when record-
ing AM broadcasts. In such cases, set the BEAT CUT switch
on the rear panel to the side where beat is less.
¢ Use remote control pause only for Deck Il during tape dub-
bing. The Deck I! pause will not be released even if Deck /is
played back in this status.
6. To stop recording, press the STOP/EJECT switch.
Erasing the tape (function of Deck Il only)
When recording on a previously recorded tape, the previous-
ly recorded sounds will be erased and new recording entered
on the tape. To erase a previously recorded tape without
recording anew, perform the following operations.

1. Load the cassette tape into Deck II.
2. Set Deck | to the stop mode.
3.
Use
the
FUNCTION
switch
to
set
to
TAPE.
4. Hold down the REC (@) switch first and then press the
PLAY (>) switch to start erasing.
¢
Press
the
STOP/EJECT
switch
to
stop
erasing
at
any
time.
AUTO-STOP
MECHANISM
(The
Function
of
both
Decks
| and
II)
When
the
tape
is
fully
wound
onto
right
ree!
during
recording
or
playback,
the
auto-stop
mechanism
is
activated
without
the
STOP/EJECT
switch
having
to
be
pressed,
and
the
tape
will
automatically
stop.
¢ TAPE COPYING
Tape
copying
is
accomplished
by
playing
back
the
original
on
Deck
|
and
recording
on
Deck
Il.
(Note
that
the
reverse
is
not
possible.)
If
a
tape
recorded
using
Dolby
NR,
is
copied,
the
copy
as
well
will
have
the
same
noise-reduction
characteristics.
Copies
of
tapes
originally
recorded
without
noise
reduction
will
have
no
noise
reduction
effects.
¢
Tape
copying
with
added
graphic
equalizer
effects
is
not
possible.
NORMAL SPEED COPYING
1.
Perform
the
preliminary
operations
on
page
10.
2.
Press
the
STOP/EJECT
switch;
then
load
the
original
cas-
sette
tape
into
Deck
|
and
the
cassette
tape
to
be
used
for
recording
into
Deck
Il.
Close
the
cassette
doors.
(3.Use
the
FUNCTION
switch
to
set
to
TAPE.)
e
Tape
copying
is
possible
regardless
of
the
FUNCTION
switch
setting.
However,
the
sound
from
the
speakers
will
be
that
of
the
program
source
selected.
4.
Press
the
SYNCHRO
switch
of
the
COPY
MODE
switches.
©
The
SYNCHRO
indicator
will
light.
5.
Hold
down
the
REC
(@)
switch
and
then
press
the
PLAY
(t>)
switch
of
Deck
Il.
e The REC indicator will flash.
©
The
tape
will
remain
stopped.
NOTE:
Make
sure
that
the
SYNCHRO
indicator
is
lit.
If
not
lit,
the
tape
cannot
be
copied
so
press
the
STOP/EJECT
switch,
return
to
item
4
and
repeat
the
operation.
6.
Press
the
PLAY
(>)
switch
of
Deck
I.
¢
Deck
|
will
start
playing
back
and
Deck
I!
will
start
recording.
¢
The
SYNCHRO
indicator
will
flash
(it
will
continue
to
flash
when
PAUSE
is
used
with
the
remote
control)
and
the
REC
indicator
will
light.
*
Tape
copying
is
unaffected
by
the
volume
and
graphic
equalizer
settings.
¢ When setting the FUNCTION Switch to TAPE and listen-
ing to playback from Deck |, set the volume and graphic
equalizer controls.
7. To stop while making a copy, press the STOP/EJECT
switches on both decks.
HIGH SPEED COPYING
1. Perform the preliminary operations on page 10.
2. Press the STOP/EJECT switch; then load the original cas-
sette tape into Deck | and the cassette tape to be used for
recording into Deck II. Close the casette doors.
3. Press the SYNCHRO switch of the COPY MODE switches.
¢ The SYNCHRO indicator will light.
* Tape copying is possible regardless of the FUNCTION
switch setting; however, the sound from the speakers
will be that of the selected program source.
4. Press the HIGH SPEED switch of the COPY MODE
switches.
¢ The HIGH SPEED indicator will light.
5. Hold down the REC (@) switch and then press the PLAY
(>) switch of Deck Il.
¢ The REC indicator will flash.
¢ The tape will remain stopped.
NOTE:
Make sure that both the SYNCHRO and HIGH SPEED indicators
are lit. High speed copying is not possible unless both are lit so
press the STOP/EJECT switch, return to item 3 and repeat the
operation.
6. Press the PLAY (>) switch of Deck |.
¢ The REC indicator will light.
¢ The SYNCHRO and HIGH SPEED indicators will flash (it
will continue to flash when PAUSE is used with the re-
mote control).
7. To stop while making a copy, press the STOP/EJECT
switches on both decks.
NOTE:
© When using in the same roomas a television set, position for
enough away from the set to avoid interference, or turn off
power to the television set.
© Beat may occur and be included in recordings when copying .
while receiving AM broadcasts. In such cases, set the BEAT
CUT switch on the rear panel to the side where beat is less.
There is no need to operate the BEAT CUT switch except for
AM broadcasts.
When Deck | is stopped while copying, restart from step 6.
When Deck II is stopped, restart from the beginning.
NOTE:
Pressing Pause from the remote control, operating the Deck |
switches {except PLAY switch) cancels the Deck If pause mode
and enters the SYNCHRO REC STANDBY mode. Playing Deck
lin this status restarts SYNCHRO REC.
13
RX-1180, RX-1190
¢
RECORDING
AND
PLAYBACK
USING
THE
AUDIO
TIMER
UNATTENDED RECORDING (Deck II only)
1.
ah Wh
NO
Set the POWER switch to the standby position and con-
nect the power cord to the outlet on the audio timer.
. Set the POWER switch to ON.
. Load a tape for recording in the Deck Il.
. Select the DOLBY NR switch.
. Press the TUNER FUNCTION switch and tune in the sta-
tion to be recorded.
. Turn down the volume control to minimum position.
. Set the audio timer so that the power comes on at the
desired time. (Power to the components should be off at
this point.)
. Hold down the REC (@) switch and then press the PLAY
(>) switch of Deck I.
. Power will be turned on automatically at the preset time,
and recording will start.
WAKE-UP PLAYBACK (Deck I and Il)
1.
oR WN
oO
Set
the
POWER
switch
to
the
stand-by
position
and
con-
nect
the
power
cord
to
the
outlet
on
the
audio
timer.
. Set the POWER switch to ON.
. Select the DOLBY NR switch.
. Load the tape which is to be played back.
.
Adjust
the
volume
control
to
produce
the
level
of
volume
required when timer playback starts.
.
Set
the
time
on
the
audio
timer
so
that
the
power
comes
on
at
the
desired
time.
(Power
to
the
cassette
deck
receiver
should
be
off
at
this
point.)
. Press the PLAY (C>) switch.
At
the
preset
time,
the
power
is
switched
on
and
the
play-
back
starts
automatically.
Depress
both
PLAY
(
>)
switches
(Deck
|
and
Deck
fl).
At
the
preset
time,
the
POWER
is
switched
on
and
the
relay
playback
starts
automatically.
Operations
will
vary
according
to
the
audio
timer
used.
For
details,
see
the
operating
instructions
supplied
with
the
audio
timer.
¢
MIC
MIXING
(excluding
U.S.
and
Canadian
models)
MIXING KNOW-HOW
Mixing involves combining the signals from two input sources
(a microphone and a tape, for example)
SINGING ALONG WITH A PROGRAM SOURCE
Operate after setting the MIXING LEVEL control tominimum.
BWN >
an oD
©
. Perform the preliminary operations on page 1¢.
. Plug a microphone into the MIC jack.
. Adjust the volume to a suitable level.
. Set the MIXING LEVEL control to the center position.
¢ If howling occurs (a high-pitched sound fromthe speak-
ers), take the following steps.
(1) Move the microphone away from the speakers.
(2) Lower the volume.
. Select the desired program source using the FUNCTION
switches.
. Start playback of the program source.
. Adjust the overall volume.
. Using the MIXING LEVEL control, adjust the sound balance
between the microphone and the program souce.
. Sing along with the program using the microphone.
NOTE:
Recording of mixed sound is not possible.
When not using the MIXING function, be sure to se the MIX-
ING LEVEL control to SOURCE and remove the mcrophone
plug from the MIC jack.
14

de
2 5 Pe]
x
lu
_ ”
|
~”
— co
< a. e
=
<< ”
= Lal
—_
eo Lil
a | onal a. ae Lid
Lo
Oo Oo
rr
”
t
<
ec
oO 0
bed
el
'
x<
a

arts List of Exterior
NOTES:
e Parts without part number cannot be supplied.
© The A, mark found on some component parts indicates the importance of the safety
factor of the part. Therefore, when replacing, be sure to use parts of identical designa-
tion.
e For your parts Stock Control, the fast moving items are indicated with the marks * *
and*.
* * GENERALLY MOVES FASTER THAN *
This classification shall be adjusted by each distributor because it depends on model
number, temperature, humidity, etc.
© Parts marked by “®” are not always kept in stock. Their delivery time may be longer
than usual or they may be unavailable.
Jark No. Part no. Description
1 ANE1065 Bonnet case
Nok 2 ATS1OT2 Power transformer (T1)
3 AWZ1371 CONTROL assembly
4 AADLOTI Knob (POWER)
5 AMBI1232 Front panel assembly
6 AXAL004 Damper assembly
7 =&AAKI227 FL filter
8 AAKI217 Tuner panel
Q AAKI224 Amp sash
10 AAKI221 Function sheet
11 AAX1054 Fluorescent sheet
12 AAK1218 Amp panel
13 AANLO36 Door L
14 AANLO35 Door R
15 AMK1222 Door panel L
16 AAK1223 Door panel R
17 AAK1225 Deck sash
18 AAKI219 Deck display panel
19 AsK1220 Copy panel
20 ABH1026 Door spring L
21 = ABHI025 Door spring R
22 AWM1054 Complex assembly A
23 AEP-313 Mica sheet
Niek 24 2541302 Transistor (Q3, 4)
Akk 25 2803281 Transistor (Q1,Q2)
ANk® 26 ABK-122 Fuse (2A,125V, FU2, FU3)
Ak*& 27 ABK-309 Fuse (6.3A,125V, FUL)
A 28 AKP1015 IP AC socket (AC OUTLET)
A 29 = AEP-113 AC strain relief
A 30 ADG-OTT AC power cord
kk 31 AEB-310 Counter belt
32. AAWL001 Tape counter
33 ABC-784 Foot assembly
34 ANE1052 Knob (REC)
35 ANELO53 Knob (PAUSE)
Parts List of Tape Transport Unit
=
Mark No. Part no. Description Mark No. Part no. Description
[ae ees)
1 AZN1273 Pause arm kk 46 AZX1011 Motor
Mark No. Part no, Description 2 AZNI274 AS arm kk = AT AZS1031 Leaf switch (Cr0z)
3 AZN1241 Pack spring tok 48 AZS1032 Leaf switch (REC)
36 AAEO154 Knob (REW) 4 AZN1275 Pause lever kk 49 AZPi012 REC/P.B head
37 AAE1055 Knob (FF) 5 AZNL276 Stop lever * 50 AZP1013 Erase head
38 AAE1056 Knob (PLAY)
39 AAE1057 Knob (STOP/EJECT) 6 AZNi277 Play lever 51 AZB1061 Screw (A)
40 FBT40PO80FZK Screw (48) 7 AZN1278 FF lever 52 AZB1062 Screw (B)
8 AZN1279 Rew lever 53 AZB1063 Sems screw B
41 BPZ30P080FZK Screw (3X8) 9 AZN1280 Rec lever 54 AZB1064 Tap tite screw
42 VBZ30P080FMC Screw (3X8) 10 AZN1281 Rew arm (S) 55 AZB1065 Tap tite screw
43 BBZ30P080FZK Screw (38)
44 ABA-258 Screw (3X19) 11 AZN1282 Lock cam (A) assembly 56 AZB1066 Binding screw
45 ABZ20PO80FMC Screw (2X8) 12 AZN1242 Capstan shaft 57 AZB1067 Washer head screw
kk 13 AZN1243 Sensor cap 58 AZB1070 Tap tite screw
46 AWZ1373 MAIN assembly 14 AZN1244 Head base 59 AZB1071 Tap tite screw
AT AMRIO06 Plastic rivet 15 AZN1245 Rec sensor 60 AZB1072 Bush
101 REG.B assembly 16 AZN1246 Idler arm 61 AZB1073 Poly slide washer on
102 REG. A assembly 17 AZN1247 Lever base (A) 62 AZB1074 Poly slide washer
103 SP TERM assembly 18 AZN1248 Lever base (B) 63 AZB1075 Poly slide washer
104 SP SW assembly 19 AZN1249 Pause cam 64 AZB1076 Poly slide washer
105 TAPE assembly 20 AZN1250 Clutch arm assembly (R) 65 AZBIOT7 Poly slide washer
106 Rear panel | 21 AZN1251 Reel assembly 66 AZB1078 Plain washer
107 Sub-heat sink 22 AZN1252 S reel 67 AZB1108 Tap tite screw
108 Heat sink holder 23 AZN1253 FF gear 68 AZN1284 Flywheel assembly
109 Heat sink 24 §AZN1254 Tape guide 69 AZN1359 Idler arm assembly G
110 Rear cover 25 AZN1255 Eject lever (F) kk 70 AZX1012 Motor assembly
1li PCB holder 26 AZN1256 Eject lever (W) 101 Chassis (W) assembly
112 PCB support tok 27 AZN1257 Idler 102 Head chassis
113 PCB support A 28 AZN1258 P roller arm assembly 103 Motor bracket (FW)
114 PCB support B kk 29 &ZN1259 Belt 104 Button bracket (RF)
115 Chassis 30 AZN1260 Housing assembly 105 Button bracket (LW)
116
Bottom
plate
81
AZN1261
Head
chassis
spring
106
Button
bracket
(C)
—
117 Tape transport unit 32 AZN1262 Head spring 107 Flywheel weight
118 Keep plate 33 AZN1263 Idler arm spring 108 Sub bracket
119 Pin-grommet 34 AZN1264 Auto arm spring 109 SW bracket (F)
V20% ia 35 AZN1265 Pause lever spring 110 Button shaft (W)
121
Barth
lead
36
AZN1266
Lever
spring
(A)
111
Flywheel
122 Binder 37 AZN1267 Cam spring 112 Motor pulley
38 AZNI268 Clutch arm spring 113 Insulator seat
39 AZNI269. Eject spring 114 SW guard D
40 AZNi270 Back tension spring 115 Nylon band
4] AZNI271 Lever spring (E) 116 5P head wire assembly
42 AZN1272 P roller arm spring 117 3P head wire assembly
43 ANG1113 Mecha bracket 118 12P wire assembly
kkk 44 AZS1029 Leaf switch (Play) 119 10P wire assembly
wk* = =45 = AZS1030 Leaf switch (Power) 120 Earth wire
17
Tape Transport |

=
on
th (Cr0z)
ch (REC)
a
|
B
iCrew
Crew
crew
id screw
icrew
icrew
: washer
: washer
» washer
: washer
: washer
ier
crew
issembly
_ assembly C
mbly
') assembly
18
ket (FW)
cket (RF)
cket (LW)
cket (C) —
eight
t
(F)
ft (W)
ey
seat
re assembly
re assembly
ssembl y
ssembly
Tape Transport Unit
RX-1180,
RX-1190
|

RX-1180,
RX-1190
2
3
4
5
6
6. SCHEMATIC DIAGRAMS
6.1
OVERALL
WIRING
DIAGRAM
Bw
1, RESISTORS: 4. OTHERS:
ms meee ce ee cee ees meee ee ee ee ee ee ee ee ee mes ee ee ee ee ee we ee es ee ee Indicated in Q, 1/4, 1/6W and 1/8M, +5% tolerance unless >; Signal route.
CS
SS
FSS
Se
eee
SS
SS
5
7
otherwise
noted
ki
k&,
Mj
MOQ,
(F)21%,
(G)i+2%,
(KS
10%,
Qi
Adjusting
point,
=
(4);
+20%
tolerance.
The
A
mark
found
on
some
component
parts
indicates
the
|
-
_—_—_e.keRea«nraxKIRee_ee
ee
l
|
~:
|
importance
of
the
safety
factor
of
the
part,
Therefore,
l
[
!
|
]
2,
CAPACITORS:
when
replacing,
be
sure
to
use
parts
of
identical
designation,
|
'
Indicated
in
capacity
(uF)/voltage
(V)
unless
otherwise
noted
%&
marked
capacitors
and
resistors
have
parts
numbers.
|
1
|
|
pipF.
Indication
without
voltage
is
SOV
except
electrolytic
1
1
1
CONTROL
ASSEMBLY
r]
capacitor.
This
is
the
basic
schematic
diagram,
but the
actual
circuit
may
|
TAPE
ee
AWZ
1371
Bak
aeerine
‘ah
11]
se sw
assemecy
|
vary
due
to
improvements
in
design,
ASSEMBLY
3,
VOLTAGE,
CURRENT:
r
|
DOLBY
IND
(GRAPHIC
EQUALIZER)
I
|
|
VJ
3
Signal
voltage
at
110¥+110W,892
output
(1kHz).
5.
SWITCHES:
(The
underlined
indicates
the
switch
position)
300
Pees
toot
PHONES
\__]
3
DC
voltage
(V)
at
no
input
signal.
(RX-1180/S0,
Sp/G)
FM
ANT
b
|
GUO
|
|
]
Value
in
(
)
is
DC
voltage
at
rated
power,
S13
LINE
VOLTAGE
SELECTOR
751
in
©
mA
;
DC
current
at
no
input
signal,
220V
—
110
120-127¥—240¥
aS
]
°
|
nV}
5
Signal
voltage
at
FM
400Hz+
75Hz
DEV.
S2
LINE
VOLTAGE
SELECTOR
AM
LOOP
=a
|
2
i
2
5
|
I
|
10v—127¥
—
220V-240V
ANT
LT
‘ oeao0 1 «= og
ouwz
Za
>
ow
i]
geez
eS
FA
aoe
>Zet
1
Io
Se.»
ge
nFeg
o-am
2328
wer
og
Fees
y
Lo
—-——————~-—
~~ ——
—
—
Soe
Soe
|
22288
beeuezzscere?
Boe
21
zZeet2
oH
i
a
Ces
I
90009090
-
$2:
PLAY
1
7
J
|
7
]
$3:
POWER
I
Le
ee
ee
ee
ee
ee
|
H
DECK
|
|
AMP
SECTION
(P27)
ede
Pp T SS: REC
pcocccccc
See
Sa
Boor
uate
|.
CONTROL
pECK
SECTION
(=P25)
SB:
Erb,
!
|
7
S
ST:
PLAY
|
I
!
1
|
wk > o>
oubaeaR
!
'
229
3
a+
]
aa
aa
!
c)
I
I
‘
L
|
-[o
igi
I
FM
ANT
3000
(
:
|
Lr
|o
PLAY
£Q
Croz
REMOTE
Oo)
]
DECK
2
P/R
GND
R
|
GND
|
-lo
BIAS
OSC
ase.x
)
SPEAKERS
|
AM
LOOP
ANT
a
pace
H
[77m
Jex-i180
|
Lu
1O}
Oz
=
NUH
EQ
[s1.6v7en
|
31.6V/8N |RX-1190
I
COMPLEX
ASSEMBLY
A
PBR
®}
(srewen]
I
]
'
AWM1054
(RX-1180/
KU,
RX-1190/
KUC)
PBL
L
|
1
AWMI060
(RX-1180/
SD,
SD/G)
REC
L
1S}
|
rte
REC
R
iz
8
|
+5.6V
PHON
=a
|
on
TUNER
SECTION
(=>P23)
BEC
MUTE
la
R
]
|
Bisa}
Lre@
AMP
SECTION
(=>P27)
|
| DECK SECTION (=#P25)
|
r
LC
+12v
POWER
SUPPLY
CIRCUIT
FOR
RX-1180/SO0,
SD/G
TYPES
l
—12v
|
co
woron
tev
-
seine
woitace
|
f
zizmv]
Lope
MOTOR
GND
02
=
AKX
1004
|
l
TUNER
GND
A
!
Fu2,3
AEK- 122
+5V
|
1
—.é
:
:
wa
l GND IN |
VIDEO
7
AUX
L
Q1,2
28¢3281
GND
REG.
8
REG.
A
|
LRre
Q3,4
28A1302
woreR
ene
ASSEMBLY
4
ASSEMBLY
1
l
+lav
Nn
L
“sas
eae
ane
MOTOR
+i2v
|
ww
[ie
oe
a
a
MAIN
ASSEMBLY
ACHOW,
|
I
|
AWZ1373
(RX-1180/
KU)
220v,
|
1
i]
AWZ1407
(RX-1180/
SD,
SD/G)
-
-
:
“230Y
|!
it
=
=
AWZ1408
(RX-1190/
KUC)
f
|
|
-
1]
AC
POWER
CORD
I
.
ce
—----------+
-L|---
}
power.
]
1!
il
—
i
|
I
MiesRSSEM
OLY.
1
Ir
a
fas
a
aS
ee
EI
So
cu
a
|!
AWF
1004
i]
{1
is!
!
I
4
I
!
'
|
1
i]
|
!
|
}
ac
OUTLET
y
MIC
]
<
i
J
SWITCHED
|
|
!
|
|
g
Q|
I
|
100W
MAX
|
|
Fa
fa
BECKS
AKP
IONS
'
|
|
a
4
PLAYBACK
Fu2,3:
e--4
|
|
‘
|
rau]
ical
weap
aenmize
|
I
1
I
I
per
!
|
Fu2
2A
|
!
'
Vl
l
]
St:
LINE
VOLTAGE
|
|
'
1
ae
gt
ag
eS
hau
tae
oe
SELECTOR
«
2
KX-
rh rt sf 28 £8 woe $3 03 38 28 worn. 11
!
=
a
f
|
!
38
zg
gg
AZX1011
es
rd 5g
ag
fee
|
|
|
GND 5, ena eree beaten seni SE’ f
Ii
¥
|
|
DECK
IT
DECK
DECK
-
.
I!
ax
1180/50,
sore
REC/
P.B
I]
Ac
J20v
|
u -_ ae SS 4 HEAD i
|
ia
nce
vel
a
a
reas
|
|
AZPIOI2
|
|
|
iI
|
|
im]
|
|
AC
POWER
CORD
I
1
AMP
SECTION
(=#P27)
|
|
ADG-O77
|
eH
-—-
ee
—
—
~~
I
||
TAPE
TRANSPORT
UNIT
es
|
|
HEAD
D
I
AZP
1013
!
]
L-4
I
I
DEGKSSERTLOM.
Cote
25)
|
SE
eT
dy
ata
|
!
]
AC
OUTLET
|
SWITCHED
I
1
1OOW
MAX
|
1
,
-
AKPIOIS
L
De
ee
a
a)
a
a
es
eS
es
i
a
a
ee
ee
21
1
2
3
4
5 6

6.2
TUNER
SECTION
COM!
PLEX ASSEMBLY A (1/3)
T1201: FM SENSITIVITY
cn)
AWM!1060 (RX-1180/S0, SD/G)
AWM1054
(RX=
11807
KU,
RX-1190
/KUC
)
1202: FM SENSITIVITY R216
DISTORTION ADJ 6.8k
Rit
100. 1202 @® Rais F201 R2i5
100 220) 4
L202
is -
ec2o2l
Tey!
S
R212
Ra
L201
&
33°—p
jaioz01
B
1
fas
i
bite
aa
Sc201y
j=l
erage.
3
3000 S330 Ay
FM
ANT
F-
.
Q204
750
FM
IF
AMP
a
AM
LOOP
cae
ANT
LL
c2i2
00
Can
0.01
ie
264
Ce!)
0205
0.08 if
Q201- 203, 212
FRONT
END
kK
- 208.1. R204$ cz09gR206 |
15p
yen
33p
7
'2k
1
(-
e
,
CF)
car
1000p
Q205, 206
1203
@
fee0
REGULATOR
== 1
220
1 oot
T203,TC2O1:
AM
SENSITIVITY
Reet
ADJ 47k
l
L206,
Tc202:
223
AM TUNING 10/25
1c201 LAI265S
1c202 LM7001
1c203 AN7470P
Q201 2S8K241
Q202 2SC2786
Q203,204 2SC2668
Q205 RN2203
(DTAI24ES)
(2SA1346)
Q206 RNI203
(28C3400)
Q207 RN220!
(DTAI43ES)
Q208,209 2SC1I740SLN
Q212 2SK161
0201-203 1SV147
D207 KVO714
0209-215 1SS131
2SK246
1$$131
as ate ie
VOLTAGE ADJ
F202
R248. MI
470
9204
C218
pt TMETER ADJ
L208 ®@ R238
10
R27 +0263
330 6.01
240 th cae? A
0.022 WN6
L201: ATC1001
L202 : aTcio02
L203 : ATCIO03
L204,205 : LAUZR2M
L206 : ATBIOO3
L207 :LTAS72J
L208 : ATEI003
T201 : ATC-194
T202 : ATE-063
T203 = ATB-095
F201 : ATF-107
F202 : ATF-N9
F203 : ATF- 208
1€201,202 : ACM-O1S
vR202 : VRTBEVS472
x201 PATE-125
x202 : ASSI009
$201: ASHI009
z29 REFERENCE ORIVER
ce [cr | pata
ros o o
CNG [CNG [CNG
=o |-S |-6
CL DATA
JE-10 J6-5 6-6 “——"
ey
COMPLEX
ASSEMBLY A (2/3)
CONTROL
ASSEMBLY (2/2)
oe
eee
vco
TP
10
eee Ee ee
1C203 . FM OEMODULATOR
11
c25t
40/16 (NP)
STEREO
7, MONO
SWITCH
Age
(9
R259
75k
2 1
R2529 C254
[a) ¢ x
12
aS
——-—- _+12V
KC253, 254 1000p (RX-1180/S0,S0/G)
ee
1500p
(RE=11997
Ku2)
/16
RX-119O/KUC
'
[112]
pa
R248
TUNER
COMPLEX
.
22k
%
22k
LY
TPS
“fe
,
a
(273)
aa
aioe
L
6259
Gn
1800p tro] &
\)
R256 C260 Avl0-5
12k 18000
TUNER
R
7k
10k
R250
ch | cNto MAIN
TUNER ~5 ASSEMBLY (172)
R
COMPLEX
i
MOTOR ASSEMBLY A
-<
ide
|
(373)
47k
4—
i] cn
a)
i ima 201 | \—STEREOY ageu
1
oo
|
INO.
\ soys
FM © SOK
i AM: OK
I
J6-9
1
$201
PGOAQCNE-4
6-4
DE-EMPHASIS
7CHANNEL STEP
|
1 Por Jens "5, 6-3
|
Po2kcn6-2,
16,
|
CONTROL
i) ASSEMBLY
gens | (272)
RX-1180/SD, SD/G
J6-8
6-7
c225
0.01
C226 R223)
10.47/50 6.8k|
=O) "ee
1c202° PLL FREQ
SYNTHESIZER
ee
R22Tr
10
+sv} (sl +5V
710 TENS ee
-6 a
J5-4
SMIOrS CONTROL
MAIN ASSEMBLY (2/2)
ASSEMBLY
ave)
10
O23
——_—_—_—_—_—_——— A
-—-
1.
RESISTORS:
;
Indicated
in
@,
1/44,
1/6W
and
1/8W,
5%
tolerance
unless
otherwise
noted
ki
kQ,
Mi
HQ,
(F)3#1%,
(6)i
2%,
(kK);
+
10%,
(W);+20%
tolerance.
, CAPAC! TORS:
Indicated
in
capacity
(sF)/voltage
(V)
unless
otherwise
noted
pipF.
Indication
without
voltage
is
50V
except
electrolytic
capacitor.
. VOLTAGE, CURRENT:
LW]
3
Signal
voltage
at
110W+110H,89
output
(ThHz),
\\~
]
3
DC
voltage
(¥)
at
no
input
signal.
Value
in
( )
is
DC
voltage
at
rated
power.
©
aA
3
DC
current
at
no
input
signal.
|
aV1
3
Signal
voltage
at
FH
400Hz+
75Hz
DEV,
|. OTHERS:
>; Signal route,
@ i Adjusting point.
The
A
mark
found
on
sone
component
parts
indicates
the
importance
of
the
safety
factor
of
the
part.
Therefore,
when
replacing,
be
sure
to
use
parts
of
identical
designation,
3%
marked
capacitors
and
resistors
have
parts
numbers,
This
is
the
basic
schematic
diagram,
but
the
actual
circuit
may
vary
due
to
improvements
in
design.
5,
SWITCHES:
(The
underlined
indicates
the
switch
position)
COMPLEX ASSEWBLY (RX-1180/SD, SD/G)
$201 : DE-EMPHASIS/CHANNEL STEP
SOus/FH:50k,
AN:9k
—
75us/FH:
100k,
AW:
10k
—————
FH
SIGNAL
ROUTE
11
12
C

1
2
3
4
5
RX-1180,
RX-1190
6.3 DECK SECTION
10k vrao4: DECK D Ra2t
LOGIC NORMAL SPEED
ADs
403,408,409: DECK I
MOTOR ORIVE
Value in ( ) is OC voltage at rated power.
© mA ; DC current at no input signal.
Ca) ; Signal voltage at FH 400Hz+ 75Hz DEV.
Omnnen
MOTOR : Loy
AZXION
4, OTHERS:
MAIN ASSEMBLY (2/2) AWZ1373 (RX-1180/KU) AWZ 1407 (RX-1180/SD, SO/G) AW2 1408 (RX-1190/KUC ) Si . COMPLEX ASSEMBLY A (3/3) AWM 4054 (RX-1180/KU, RX-1190/ KUC) AWM 1060 (RX -1180/SD , SD/G Us
1C601,902 MS218P Q603,604 2SK373 Q616, 617 2SK246 0601— 607, 609 — 614 L601,602 : ATMIOO2 523-526
Icg9o4 TC4069UBP Q609 2501515 Q618,619 25y103 188134 L603 LTato2zs ; PB LEVEL amp 1c4o1 PDEOIB Lao : Lau2etK :
1 Q601, 602 ,605—607, 612 Q610,611 28C3377 1901,902 : LTA3920 t (C402 TC4069UBP 1503,504 : ATM1001 b
(seciraces ABS E19, 828, ees 901-908 i601: GSE bid: 621.685 Rese EO! b ATX1002 VRS03 : DECK I LCH LEVEL ADJ 521,522 1c501 CXAtIOOP F501,502 : ATF-210 1 z
N1203 (2SC34 * 5 Oreos 10k = C625 : ACE 1006 VR S00: DECK 1: A.CH LEVEL" ADS ; RE Q401,403 2801515 VR401,403 : VRTM6V202 b
eu (28C2603) 615,620 ANZZOS (oTAizaeS) PB EQUALIZER AMP VR601,602. VRTM6V504 eu Fa | A BRS REE BEG: Level 80 PRS MET ING 405,406 2SAioae VR402,404 : VRTM EV 102 4
¢ (2SA1115) , (2SA933S) VRSOt-506 > VRTMEV203 ‘
i
Q601,602,
BOs,
606,
Q408,412
RN
1203
(25C3400)
i
0616 —620 409,410 RN1201 (DTC143ES) hk
DECK I Q407, 411,413, 501— 510,
PLAYBACK SWITCH Q521—526 2562458
AZP 1012 Q511,512 RN2203 (OTAI24ES), (2501346)
D401,402 ,404—411, ‘
R
0501,502
1SS131
0403 RO6.BESB
Q603,604,607,
"Q615 : 1C402
cng
REC/P.B
SWITCH
o¢o3
7
~6/6
s
DECK 0 2A, <PLay MUTE -————— H
re : a ee =
REC/PB cute a ae le
HEAD © o <1 @505 ,506 : icdO26 76" O6it:
ie | COMPLEX ALC CONTROL -6/6, ‘
enrg | 602 — ASSEMBLY VOLTAGE GENERATOR P.B MUTING
AZPIOIZ -3 is 1650 A (2/3)
PBR
cine
cn
Q507,
508
TPI3
a. 6) 1c501 ieee ees PB MUTING ¥
ame Tare PeL
DOLBY NR
cove | Y et
; iat i
1 TPi2
aia [eal] ores I
10/7; ves
ft] &
i LINE
ee a iat BE] Ig
: & 1500p COMPLEX
on! '
rors ASSEMBLY A :
ro rszegcsea= (Sp) | (273) ;
4.7k 2 1500p CY nase) tee
‘ 1C902, Q901 - 908: > Rk
REC EQUALIZER AMP bees 509,510: |
REC LEVEL
VRG601,602
:
REC
BIAS
H
wee
AMP
LEVEL ADJ '
IRCH) te cH)
wneoz one pee
500k a
e@rTe wew) i
e620 = = cers L603 -
1 7880 | | 7806, 9501~ 504
Hema
eay
ALC
‘
x
geo 1g
case
ong]
ET
|
Aeris = ’ a
O > ;
“a
°
VRS501:
LCH
REC
MAIN
seo) q pt: Sarg SIGNAL LEVEL ADJ 1 ASSEMBLY
7 p—O
ape GED, R502: RCH REC (172)
beat er) H SIGNAL LEVEL ADJ reaoe CN 9-42
i J9
BEAT CUT Q609 - 612: 22
eee | | REC BIAS OSC | : ea
PLAY EQ CrOz
SP
TERM
Yons
ASSEMBLY (3/3) 5 Seaireriseena Mi ES va
ee
a
ee
eo,
o
-
-
} }
ASSEMBLY
. MAIN cngrs — Jons-2 [went TAPE ASSEMBLY 5 use contac
assewety
{
J3-3
tS
Q512
,
1C402-1/6
,4/6
ASSEMBLY
(172) u9-5 REC MUTING (272)
TAPE TRANSPORT UNIT [ ee =, 57 °
_—_____
Q401,407
:
DECK
I
MOTOR
DRIVE
:
.
[ ‘ ; 0405 DECK 1 SPEEDO
cuts CONTROL | 3
7 croz om (5) fa]
AzZS1031 St Pre] +ev
PLAY oo Et sh auch) oS SS
azstozs (“se [Tall R4a06
irae vor
azsto30
3a.
°
vr4o2:
DECK
I
tonnes”
NORMAL
SPEED
ADJ
ASSEMBLY
A
(2/3)
\ 2 an on =e
L408
MOTOR: o 33k
AZXION [| ‘R401: DECK I er a wae 7
Cj CI HIGH SPEED ADJ
we ie ime :
ee I 47 0.01
116
27 2 #25 24 23 22 2 20 «19 «(1B 1S fe : ; indi F ae: Sees
Pc2 PCI PCO PAS PA2 PA! PAO VDD PGO PF3 _ ori PFO I, ei Q, 1/4M, 1/6W and 1/8M, +5% tolerance unless 5. Sear me lined indicates the switch position)
Hiv COPY CrOz REC PLAY PLAY TAPE PLAY N/H = REC_ == BIAS. DECK 1C40!: DECK CONTR baer gs 5 OPat nit lde ASSEMBLY
SPEED 1 2 2 4 FUNC MUTE EQ. «MUTE «OSC SEL DECK CONTROL otherwise noted ki kQ, Wi WO, (FIS41%, (G)5+2%, (Ki 10%, S601: BEAT CUT A - B
PowER a Ma ok eae ree (W)i+20% tolerance. TAPE TRANSPORT UNIT”
281030 [a ° WI-SPEED COPY PLAY Ea ieae! NORM NORM DOLBY DECK 2 DECK [
;
AND:
IND
e
reo)
2
MODE
P/R
2.
CAPACITORS:
$1:
Cr0.
‘gzetond Gs “i if 3 EXTAL TAL TNT: ary er pei aes Indicated in capacity (s4F)/voltage (V) unless otherwise noted S22 PLAY
© ' DPF. Indication without voltage is SOV except electrolytic $3: POWER
crO2 oo capacitor, DECK IT
251031 *
azsiost
[—s6
:
S43
POWER
PLAY 9% 3. VOLTAGE, CURRENT: $5: REC
azsioz9 [57 (3H 5 Signal voltage at 110W+110W,82 output (kHz). S6:Cr0,
Q410 ,411: CONTROL ‘\~] 5 BC voltage (V¥) at no input signal, S72 PLAY -
'
t
LAYBACK SIGNAL ROUTE D
‘ignal route.
@; Adjusting point.
The A\ mark found on some component parts indicates the
importance of the safety factor of the part. Therefore,
when replacing, be sure to use parts of identical designation.
BAS? Mago
72w) aw) wew)
Rast
6.8
VR403: DECK I
cane =e
3% marked capacitors and resistors have parts numbers.
[nec | SPEED | COPY meee POWER
=
=
re
oh
Aino.
_
LIND.
Tg
riev
dpause
|e
t2v
Ps
AMOTOR
GND
paree
Cals
a
This
is
the
basic
schematic
diagram,
but the
actual
circuit
may
0406 DECK 0 ' CN3-5 JCN3-4 JCN3-2 CNS-2 [CNS-7 J10-3 310-4 CNG~12 vary due to improvements in design,
SPEED CONTROL carte S35 3-4 B-2 JS-2 8-7 cN10-3 cNI0-4 56-12
ASSEMBLY
A
TAPE
ASSEMBLY
CONTROL
MAIN
ASSEMBLY
(272)
(173) ASSEMBLY (2/2) ASSEMBLY (4/2)
1 2 3 4 ) 6 -

RX-1180, RX-1190
6.4 AMPLIFIER SECTION
27
Rx-11807S0, Sb/G.
MIC
ASSEMBLY
AWF
1004
(RX-1180/SD,
SD/G)
!
(C951 MICA 2 1C950 | BUFF a i ROURIEER
1
MP.
t
BUFFER
AMP
ie
'
ASSEMBLY
A
(1/3)
se
eseMeLy
CONTROL
ASSEMBLY
(1/2)
AWZ1371
Mic
H
H
pata
cu
p88?
aren
AWM
1060
(RX-1180/SD,
SD/G)
=
SSS
R9s5 C987, cane 20m a 4 4 CNS-5 Ki COMPLEX ASSEMBLY A (2/3) AWM 1054 (RX-1180/ KU, RX-1190/KUC)
5 = - = ae peel he A se EE A Sa
°
wom
i
u
3
1C304.
FLAT
amp
curv?
1
+
|
esac
UNC
S
Vou
a
3
Skriv
bee
mf
wy
74
~4
+i2v
1
AL
nf
ouT
R339
ic
102
AKNIO09
$
t
SSasdosetecs)
220
a
+]
cee
O87
mv]
u
i
r
ngae
323
1
1
TM
a7/16
t
oe
re
ae
ef)
eg,
lk
gone
ee
Vaal
-St ' = 8 ouTh-3
J
SWITCHING
MOS
6
POLY-Si
REGISTOR
PATTERN
;
(9)
eg
a0
iN
+
7
* C955 | H EVEL
ee, Lda our Tar
een
Stick
T
t
et
real
SWITCHING
SwitcHing
LEVEL
|
Tevet
REGISTER
DRIVER
329
|
Jefe
i
ares
MODE
| fe) 5 5 J-tav i ty cHanwen. 4 Lf STR OBE
oT { SELECTER DECODER
1c950,951
MS5218P
enna
Mb.
er]
aya)
cae
—
=
fsevecree
|
vu
pire
! psf oare SWITCHING ' '
Vises
be0
.
LATCH
(x8)
oRIVER
ean
\
/ RUX N v
1C301. PHONO EE) Mel. -elain
elem
R303
—Q
AMP.
*
R330
R
560
I
SWITCHING
MOS
8
POLY-SI
REGISTOR
PATTERN
i
00
iz 3
DN
RX-1BOsKU
1
VRIO!
~—
105
RX-11907
KUC
GRAPHIC
EQUAL'ZER
*
Be
ne
7350
+
asay,
aes
IC101,
102
BA3B12L
22k
22a
R306
1c30t
M5218P
GRAPHIC
EQUALIZER
ge
fh
1¢302
TC9164N
1
1¢303 -Cxo1120P '
1€304 MS218PF
0301- 303 RNIZOI (DTCI43ES)
0301
RD5
1€SB
'
028? 9303 0302 RO6.2ESB
PHONO
©
Ft
cioa
RRS
C302
CF)
(3
ic1or
|
12000
12000
3900
390
3900p
7
Gr a GG
co © | |_| [|
R304
‘
GQ
Q &
Q
=)
oe
af
-
a
3
e
|
|
93
|
$3
|
* 5
VIDEO
ee
ee
|
Ic
302:
=
1
7
BUX
e302
FUNCTION
c
Pe
yaen
(ees
'
)
:
a
)
WITCH
ee wake -| i
i
pate
<
ies
a
fa)
=
me
TUNER
ONS
jar
a7
z
|.
|
COMPLEX ¢ t MAIN GNO ti2v 6
ASSEMBLY
a{
Cu
OR
ASSEMBLY
(2/2)
Contteci:
GOMPLER?
at
“f>
3
asad
10
1a
our
k's
R
sa,
(e
2
-
SP_
TERM
O73)
>
ne
our
ne
aon
CONTROL
Pera
ter
TE
AWZ
1408
(RX-1190/KUC)
cle
os
PS
ota
+B
ASSEMBLY
(1/3)
COMPLEX
+i2v
4
-12v
(272)
AWZ
1907
(RX-1180/SD,
SD/G)
4.7750
x
Bk
7100p
4.7750
-4
ASSEMBLY
A
(3/3)
cn
emo
fenso
MAIN
ASSEMBLY
(1/2)
|
AWZ1373
(RX-1180/KU)
a
yt
contro.
|
a
a
a
—_
—
—__
=
se
|
‘OUT
ie
0608
—RNI203
(2SC3400)
O755
©
28C2235
Rx-1180/KU,(0707%,
708
28C2705
i
re
is
|
ce.
0701-704,758
250992
Q80!1,802
25C3377
<6
sors
{arise
28C2238
|
;
oom
LY
b0
D503,804
RDS
6eSo
&
9705,706,751,752
28C2240
9803
25a1515
0713,714
250968
ond,
V\
@ad4
DaCcs
RDISESe
+S
(281845)
,
(
25¢2389)
0753,754,804
25C2458
0707,708
2Sc2705P_
I
—
———
=
a
!
gore
oa
|
BELAY
D807
RDIOESB
0709,
710,759
25C2603
(2817408),
(2862603)
RX-1190/KUC
{or
712
28c223eB
cae
Cr)
0808-611
1162
(55566)
Q713,714
25A968B
REMOTE
9
Re
0812
RD6.2ESB
=
=
———- 4 SP SW ASSEMBLY
POWER
8
an
chs
Tarra
an
RP
is
D701 - 704,707, 708, 751 - 754 R733 L701 O TyH C757 r
MUTING
7
RX-1190
,
.
’
.
Se
150p
y
ay
758
$701
$708
tatee
|
aseule
615
AB
Rg
oe
as
0757-760,
806,813,
814
155131
2
ee
"h.
ree
t{F)
"308
<1
ASSEMBLY. stor 5 a 8809 aos user) 0705, 706, 709, 710
(272)
peier
:
RD5.
6ESBIRX-1180/KU,
SD,
SD/G
)
Ge
oes
2
LA
Bi
D755
HZSI2BL
Te
ores
wawy’
are
RAP
Y
TON
ace.gv oso! 05S820F 22k hoo tty2wh xX rah)
sot
pate
Q80!'
+5.6v
0802
RBI52
n?27
rr
a
'
i
a
ed
& ‘OG Reo 68 | '~ REGULATOR 6.8% e725 ;
CNS = [25] fivewie, rat 0 082 (iP |
!
.
?
G
:
Cy)
'
PHONES
comp
ex
1
[45/8
con
3797
QD)
wre
-
crss!
dais
+
18k
~---
66
+
[envren]
ASSEMBLY
A
(19)
pent
cos
HS
——
Lad
1
8]
REG.
A
ASSEMBLY
Hoo!
1
(3/3)
1
A\raciso
Bd
Rees
sei
:
=
1
AKNI010
&
1CB802
HAI7TBI2W
S701.
SPEAKERS.
cane ost peace 2Z ASG - 413
TeO1
w
BOS
0
O1/ACI25
[RX-
118O/
KU,
RX-1190/7KUC)
1
tears
[3
{|
cee]
!
E
3
iNer
-
0.0174C250
=
78s
qe
!
RX-118O/SD, SO/G) .
pees
ep
5
—_
=)
4
Fur 4 oe
$80
“hea-309
i
AgYs
co
weies
&
Rep]
TcBOr
1805/60}
H
SRS
pPC 78M12H fey
' .
1c80! (
3 us) 0608
ces cei?
aci20v
ft,
'9
47/16
0710
slorse]
—
Eoaet
SPEAKERS
60H:
‘
708]
Q751-
755,
+[ cso 1 c724. Q758,759, 29.7v/8n
Ac
POWER
CORO
iH
199
=
0706
[736
0082
>
Q608
:
RX=1180
AvG-077
REG.
B
ASSEMBLY
|
220
ae
PROTECTION
Breven
0704 R746 RK-1180
T TSIO72 -
msiuone:
trx-waovKur
f
AEK~i22
gy?|
wing
4
c cud iT TSIO76
BX
1807
KUC
peer
ea
(Rx-1199
ree}
')
1301.
802,
eos
[C6
(iz)
S
L(y)
|
eoiein REGULATOR “on ie abt’ SIA
+
AKPIONS
oa
wet
@
ae02
“Boo
28734
LOZ_S
~
15k
Ex)
7500
§
47
SP
TERM
caos
ty,
ASSEMBLY
(2/3)
are
2739,
740
1
1. RESISTORS: ca08 to 0805 9701-714, 01-4 Bice sisec soe; aed (007, 814,815 ACGIOO5
bl
.
x
.702:
ATHIOOS
RY8O
SRIOIZ
Indicated
in
@,
1/4%,
1/6W
and
1/8M,
5%
tolerance
unless
{
aust
=
—————
woror
|moror
POWER"
AMP
03,4
2581302
—caorleoe
acniose
casmions)
«REC
otherwise
noted
k;
kQ,
Wi
MO,
(F)I21%,
(6);
£2%,
(KIS
+102,
E08,
|
ea
Cs
(8
os
te
£805,806
ACG
1002
os
URE
a
(W);+20%
tolerance,
tee
j@
0803
TUNER
[CNIO-5
JCNIO-6
JontO-4
CNS
R807 COMPLEX lz
>
s
(S33)
“89”
C20)
Eras}
JIO-5y10-6
sio-4
10-3
ASSEMBLY
A
v9-12+~
2.
CAPACITORS:
|.
OTHERS:
‘
j :
,
(373)
Indicated in capacity (sF)/voltage (V) uniess otherwise noted +3 Signal route.
. COMPLEX COMPLEX
DipF, Indication without voltage is 50V except electrolytic
capacitor,
3, VOLTAGE, CURRENT:
_.z¥! 3 Signal voltage at 110W+110W,8Q output (1kHz).
DC voitage (V) at no input signal.
Value in ( ) is OC voltage at rated power,
© mh ; OC current at no input signal.
14 Signal voltage at FH 400Hz+ 75Hz DEV,
woods
@i Adjusting point.
2
The A mark found on some component parts indicates the
importance of the safety factor of the part. Therefore,
when replacing, be sure to use parts of identical designation.
%& marked capacitors and resistors have parts nunbers,
This is the basic schematic diagram, but the actual circuit may
vary due to improvements in design,
5. SWITCHES: (The underlined indicates the switch position)
SP SW ASSEMBLY
S701: SPEAKERS
3
ASSEMBLY A (1/3)
A A+B
ASSEMBLY A (3/3)
een PLAYBACK SIGNAL ROUTE
4
=~ ——— RECORDING SIGNAL ROUTE
