Pioneer Steez STZ-D10Z-R User manual

Operating Instructions
PORTABLE MUSIC SYSTEM
STZ-D10Z-R

2En
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture. D3-4-2-1-3_A1_En
WARNING
Before plugging in for the first time, read the following
section carefully.
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the AC adapter label.
D3-4-2-1-4*_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
WARNING
Store small parts out of the reach of children and infants.
If accidentally swallowed, contact a doctor immediately.
Please use the specific USB cable provided with the
product for connections.
Otherwise the product will not conform to the EMC
standard or regulations that apply in your country or area.
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 10 cm at top, 10 cm at rear, and 10 cm at each
side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet
or a bed. D3-4-2-1-7b*_A1_En
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light) D3-4-2-1-7c*_A1_En
If the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
The equipment should be disconnected by removing
the mains plug from the wall socket when left unused
for a long period of time (for example, when on
vacation). D3-4-2-2-1a_A1_En
CAUTION
The POWER switch on this unit will not completely
shut off all power from the AC outlet. Since the power
cord serves as the main disconnect device for the
unit, you will need to unplug it from the AC outlet to
shut down all power. Therefore, make sure the unit
has been installed so that the power cord can be
easily unplugged from the AC outlet in case of an
accident. To avoid fire hazard, the power cord should
also be unplugged from the AC outlet when left
unused for a long period of time (for example, when
on vacation). D3-4-2-2-2a*_A1_En
When using this product, confirm the safety
information shown on the bottom of the unit and the
AC adapter label. D3-4-2-2-4_B1_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period. K041_A1_En

3
En
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
D3-7-13-69_En
11)
12)
13)
14)
IMPORTANT NOTICE
THE MODEL NUMBER AND SERIAL NUMBER OF
THIS EQUIPMENT ARE ON THE REAR OR BOTTOM.
RECORD THESE NUMBERS ON YOUR ENCLOSED
WARRANTY CARD AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE. D36-AP9-1_A1_En
WARNING: Handling the cord on this product or
cords associated with accessories sold with the
product may expose you to chemicals listed on
proposition 65 known to the State of California and
other governmental entities to cause cancer and
birth defect or other reproductive harm.
D36-P5_B1_En
This product contains mercury. Disposal of this
material may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronics
Industries Alliance : www.eiae.org. K057_A1_En
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a safe
level – a level that lets the sound come through clearly
without annoying blaring or distortion and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time, your hearing “comfort
level” adapts to higher volumes of sound, so what sounds
“normal” can actually be loud and harmful to your
hearing. Guard against this by setting your equipment at a
safe level BEFORE your hearing adapts.
ESTABLISH A SAFE LEVEL:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Once you have established a comfortable sound level,
set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
Do not turn up the volume so high that you can’t hear
what’s around you.
Use caution or temporarily discontinue use in
potentially hazardous situations.
Do not use headphones while operating a motorized
vehicle; the use of headphones may create a traffic
hazard and is illegal in many areas. S001a_A1_En
[U.S. model only]
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help. D8-10-1-2_A1_En

4En
[U.S. model only]
[For U.S.A. customers / Pour la clientèle aux États-Unis]
[European model only]
[Canadian model only] [For Taiwan exclusively]
[Except european model]
Information to User
Alterations or modifications carried out without
appropriate authorization may invalidate the user’s
right to operate the equipment.
D8-10-2_A1_En
CAUTION
This product satisfies FCC regulations when shielded cables
and connectors are used to connect the unit to other
equipment. To prevent electromagnetic interference with
electric appliances such as radios and televisions, use shielded
cables and connectors for connections.
D8-10-3a_A1_En
Information for users on collection and disposal of old equipment and used batteries
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries should not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please
take them to applicable collection points in accordance with your national legislation.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of sale
where you purchased the items.
These symbols are only valid in the European Union.
For countries outside the European Union:
If you wish to discard these items, please contact your local authorities or dealer and
ask for the correct method of disposal. K058a_A1_En
Symbol examples
for batteries
Symbol for
equipment
Pb
This Class B digital apparatus complies with
Canadian ICES-003. D8-10-1-3_A1_En
These symbols are only valid
in the European Union.
K058c_A1_En
(Symbol examples for batteries)
Pb
Taiwanese two pin flat-bladed plug
K056_A1_En
FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Product Name: PORTABLE MUSIC SYSTEM
Model Number: STZ-D10Z-R
Responsible Party Name: PIONEER ELECTRONICS (USA) INC.
SERVICE SUPPORT DIVISION
Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A.
Phone: [phone]
URL: http://www.pioneerelectronics.com
D8-10-4*_C1_En

5
En
Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to
operate your model properly. After you have finished reading the instructions, put them away in a safe place for future
reference.
Contents
01 Introduction
Checking what’s in the box........................................................................ 6
Installing the unit........................................................................................ 6
About drip proofing .................................................................................... 6
When in use ................................................................................................ 7
Caution when opening and closing the iPod cover................................. 7
02 Before you start
Before using the remote control ............................................................... 8
Replace the battery................................................................................ 8
Connecting the unit to the AC adapter / Installing batteries.................. 9
Connecting the AC adapter .................................................................. 9
Installing batteries ............................................................................... 10
The icons used in this Operating Instructions....................................... 10
03 Controls and displays
Remote control unit.................................................................................. 11
Front/Top panel......................................................................................... 12

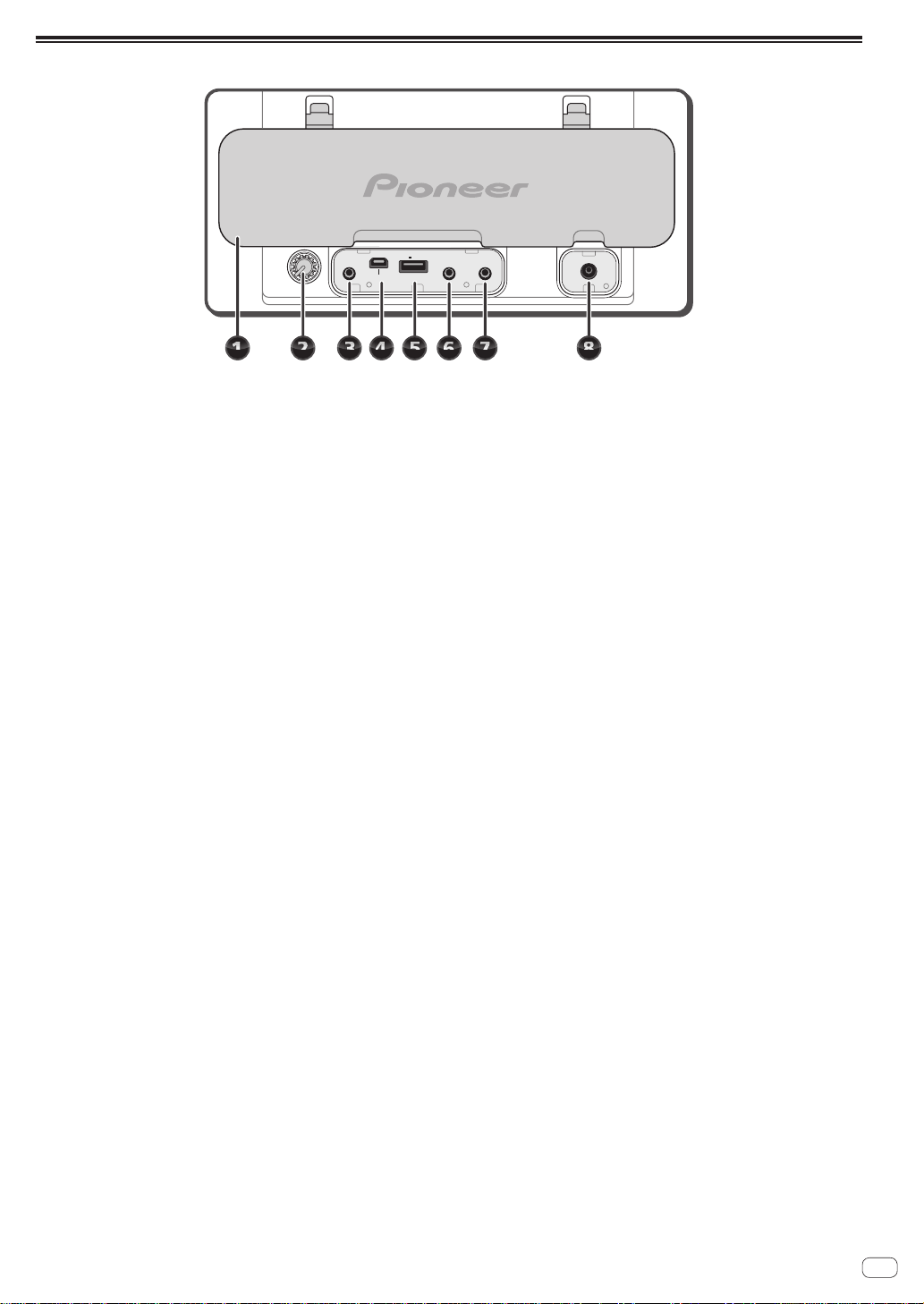

Rear panel ................................................................................................. 13
04 Basic playback
How to use................................................................................................. 14
Playing tracks from an internal memory or USB memory ................... 15
Select a Playback mode ...................................................................... 16
Playback in a Folder mode ................................................................. 17
Playing tracks from a STEEZ PORTABLE .............................................. 17
Playing tracks from an iPod/iPhone ...................................................... 17
Confirm what iPod/iPhone models are supported ........................... 17
Connecting your iPod/iPhone ............................................................ 18
Playing tracks....................................................................................... 18
Connecting auxiliary components .......................................................... 19
05 Various dance functions
Using the Battle mode ............................................................................. 20
Start a battle in a Battle mode ............................................................ 21
Using the DJ Mix mode ........................................................................... 22
Using the Rhythm Machine mode ......................................................... 22
Use various playback control functions ................................................ 23
Tempo Control function ...................................................................... 23
Eight Skip function .............................................................................. 23
Using Cue control................................................................................ 23
06 Connecting a PC
Using MIXTRAX......................................................................................... 24
Steps to music playback ..................................................................... 24
Updating the firmware ........................................................................ 25
07 Using the Setup menu
Configure the Playback settings ............................................................. 26
Configure the power saving settings ...................................................... 27
Configuring the display settings ............................................................. 27
Confirming the device information ......................................................... 27
Resetting the device ................................................................................. 27
08 Additional information
Troubleshooting........................................................................................ 28
General.................................................................................................. 28
USB memory device ............................................................................ 28
iPod/iPhone.......................................................................................... 29
Condensation............................................................................................ 29
If problem occurs...................................................................................... 29
Playable music file formats ..................................................................... 30
About iPod/iPhone ................................................................................... 30
Software license Notice ........................................................................... 30
Cleaning the unit ...................................................................................... 31
Specifications............................................................................................ 31

6En
Introduction
Checking what’s in the box
!Remote control unit
!Lithium battery (CR2025)
!USB cable
!AC adapter
!Power cord
!Warranty card
!Quick start guide
Installing the unit
!When installing this unit, make sure to put it on a level and stable surface.
Don’t install it on the following places:
– on a color TV (the screen may distort)
– near a cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound.
– in direct sunlight
– in extremely hot or cold areas
– in places where there is vibration or other movement
– in places that are very dusty
– in places that have hot fumes or oils (such as a kitchen)
CAUTION
!When in use, do not stand the device up, prop it up against anything or hang it from anything.
!Do not sit or stand on top of the device.
!When carrying the device, hold the entire device firmly. Do not swing the device around by the frame.
About drip proofing
Observe the following precautions in regard to the device's drip proofing.
!Do not place the unit in water.
!Do not expose the unit to a large amount of water.
!Do not splash the unit with water.
!Do not expose to the rain for long periods of time.
!Do not pour or place in warm water or water containing soap or detergent.
!Do not use in a humid environment such as a bathroom.
!Do not use near or on the beach.
This could cause rust. When exposed to seawater, thoroughly wipe off the moisture immediately with a dry cloth.
!Ensure that the battery cover, the iPod cover and the outlet cover are closed during use.
The rubber packing on the cover drip-proofs the device. Make sure this packing does not get soiled or damaged.
If the rubber packing does become soiled, wipe it clean with a dry, clean cloth.
!Do not open the battery cover, the iPod cover or the outlet cover in humid environments in which the device could get exposed to water.
Do not replace batteries or insert or remove an iPod when your hands are wet.
!If the device is exposed to a large amount of water or moisture, immediately wipe it down with a dry cloth.
Only open or close the battery cover, the iPod cover or the outlet cover after having completely wiped off any moisture around them, with dry hands
and in an environment where the unit would not get exposed to water again.
!If the device does get exposed to water, thoroughly dry all of the crevices on the unit’s body into which water might have reached.
The water might have reached the interior of the device. Do not carry the unit if it is still wet.
!Do not use the remote control, AC adapter or headphones when in proximity to water.
Only the device itself has been treated to be drip proof.
This unit has been designed with water-resistance equivalent to standards IPX2(*) as defined by the International Electrotechnical Commission (IEC).
Malfunctions due to water damage caused by improper use are not covered by product warranty, even if they occur within the warranty period.
!Depending on conditions of use, the properties of the drip proofing are not necessarily guaranteed even during the warranty period.
*IPX2: The unit must be protected from water drops that fall vertically onto it when the unit is at an angle of 15 degrees or less.

7
En
When in use
Noise and etiquette
Playing music is fun but depending on circumstances, annoying. Please be considerate of others when using the device. It is up to your consideration
whether the volume is turned high or low.
In particular, even the smallest noise can be a nuisance in public places and during the night when it’s quiet. Be considerate of others and create a
pleasurable environment.
When used by children
When children are using the device, a parent or guardian should teach them how to use it. Also, please make sure that they are using the device as
instructed.

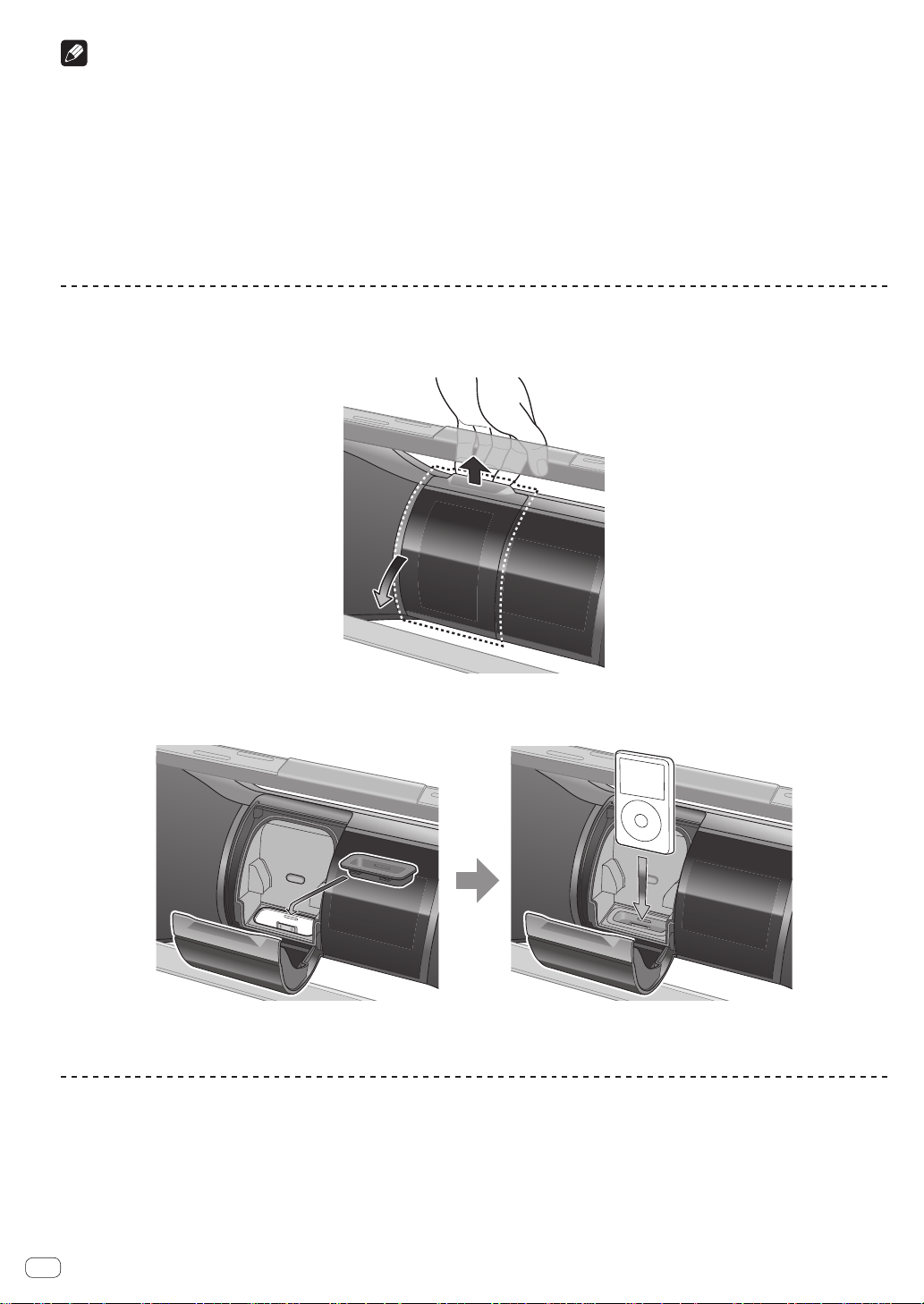

Caution when opening and closing the iPod cover
When opening the iPod cover, raise the red lock lever from behind the frame. It cannot be opened from the front of the frame.
When closing the iPod cover, press down on the lock lever until you hear a click sound, and the cover is firmly locked. If the cover is not completely
locked, waterproof performance may not be maintained.
CAUTION
!When raising the lock lever, do not hold down the iPod cover with your finger; the product may break.
!If you forcefully depress the lever when it is locked, the product may break.

8En
Before you start

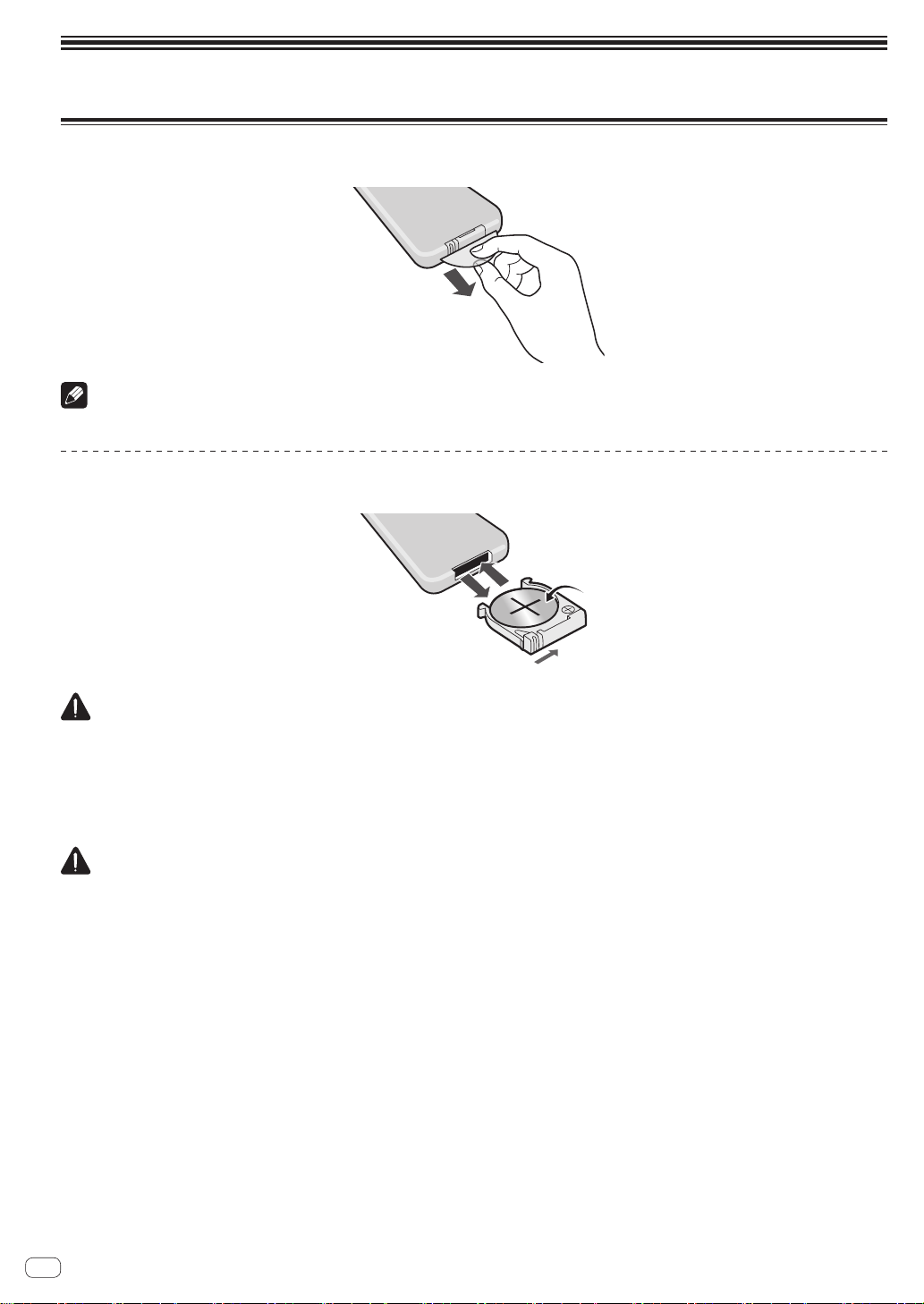

Before using the remote control
The battery supplied with this unit is stored in the battery casing. Remove the protective seal from the battery casing.
Note
When you notice a decrease in the operating range, replace the battery.
Replace the battery
When replacing the battery, use a commercially available Lithium CR2025 battery.
1
1
32
WARNING
About lithium battery
!Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
!Dispose of used battery cells immediately after replacement. Keep away from children.
!If swallowed, please contact a doctor immediately.
!Lithium batteries may present a fire or chemical burn hazard if misused. Do not disassemble, heat above 100 °C, or incinerate.
!Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak,
overheat, explode or catch fire. It can also reduce the life or performance of batteries.
CAUTION
Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:
!Remove the battery if the unit isn’t going to be used for a month or more.
!When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your
country or area.
“ Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.) “
1 Flip the remote control and pull out the battery holder by pushing the tab to the right.
2 Place a new battery in the casing.
Make sure the + side of the battery is facing up when you place it in the space provided.
3 Push back the battery holder.

9
En
Using the remote control
The remote has a range of about 7 m (23 ft.) at an angle of about 30º from the remote sensor.
30°
30°
7 m (23 ft.)
VOL
FUNC
CALL
MEMO
BATTLE
RHYTHM
DJMIX
EXIT
CUE
MENU
TOOLS
8SKIP 8SKIP
TEMPO
TEMPO
ENTER
STANDBY/ON
Keep in mind the following when using the remote control:
!Make sure that there are no obstacles between the remote and the remote sensor on the unit.
!Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.
!Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
Connecting the unit to the AC adapter / Installing batteries
This unit can operate on power from the supplied AC adapter, or from batteries.
!Batteries for the device are not included. Please use 10 D-size batteries, available at retailers. (Use of alkaline or nickel-metal hydride batteries is rec-
ommended. Use of manganese batteries and certain alkaline or nickel-metal hydride batteries may not allow use of the full capacity of the device.)
!When connecting the device to a PC, always use the AC adapter.
Connecting the AC adapter
CAUTION
!The unit should be disconnected by removing the mains plug from the wall socket when not in regular use, e.g., when on vacation. Before unplug-
ging the power cord, switch the power into standby.
!Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as
this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in
any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped
on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your
nearest Pioneer authorized independent service company for a replacement.
!Make sure to grasp the body of the AC adapter when removing it from the power outlet. If you pull the power cord, it may become damaged which
could lead to fire and/or electrocution.
!Do not attempt to plug in or remove the AC adapter with wet hands. This may result in electrocution.
!Do not insert the power cord of AC adapter into a power outlet where the connection remains loose despite inserting the prongs all the way into the
outlet. Heat may be generated which could lead to fire. Consult with the retailer or an electrician regarding replacement of the power outlet.
Store the AC adapter out of the reach of children and infants.
The AC adapter cord may accidentally wind around the neck and it may cause suffocation.
!Use the appropriate power plug for the respective country’s power outlet.
1 Open the outlet cover on the back of the unit.
2 Plug the supplied AC adapter into the DC IN socket on the back of the unit.
3 Plug the supplied power cord into the AC adapter then plug the other end into an AC outlet.
To AC outlet
AC adapter
(supplied)
Power cord
(supplied)
DC IN 18V

10 En
Installing batteries
WARNING
Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:
!Never use new and old batteries together.
!Do not mix and use nickel hydride battery with different charges.
!Insert the plus and minus sides of the batteries properly according to the marks in the battery case.
!Batteries with the same shape may have different voltages. Do not use different batteries together.
!When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your
country/area.
!Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak,
overheat, explode or catch fire. It can also reduce the life or performance of batteries.
CAUTION
Leaving the battery cover off entirely or insufficiently tightening it will comprise drip proofing. Make sure that the battery cover is firmly attached in place.
1 Remove the battery cover on the back of the unit.
2 Insert 10 D-size batteries into the battery compartment following the indications (+,-) inside the compartment.
3 Close the battery cover.
Line up the three positions and place the cover back in its original position.
The icons used in this Operating Instructions
Functions (input) may be limited if the functions and operations discussed in this manual have the following label.
!
Memory / USB / STEEZ : Only songs analyzed by MIXTRAX can be used on the internal memory, USB, and STEEZ PORTABLE functions.
!
Memory
: Can be used by the internal memory function.
!
USB
: Can be used by the USB memory function.
!
STEEZ
: Can be used by the STEEZ PORTABLE function.
!
iPod
: Can be used by the iPod function.

11
En
Controls and displays
Remote control unit
VOL
FUNC
CALL
MEMO
BATTLE
RHYTHM
DJ MIX
EXIT
CUE
MENU
TOOLS
8 SKIP 8 SKIP
TEMPO
TEMPO
ENTER
STANDBY/ON
1
1
1
1
1
1
1
2
2
2
2
2
2
2
6
6
6
6
6
6
6
8
8
8
8
8
8
8
7
7
7
7
7
7
7
9
9
9
9
9
9
9
10
1
1
10
10
10
10
10
10
3
3
3
3
3
3
3
5
5
5
5
5
5
5
4
4
4
4
4
4
4
1 uSTANDBY/ON
Switches the unit between standby and on. (page 14)
2 TOOLS
Memory
USB
STEEZ
Configures settings such as the playback method of files for the selected
input function. (page 16, 21, 22)
3 abcd/ENTER
Used when configuring the settings.
!8 SKIPo/p
Memory / USB / STEEZ
Fast forwards/rewinds the track being played by one-eighths (or
2/4/8-eighths). (page 23)
!TEMPO+/-
Memory / USB / STEEZ
Accelerates or slows down the track’s tempo. (page 23)
4 MENU
Sets various device options. (page 21, 22)
5 Playback control buttons
Memory
USB
STEEZ
iPod
In iPods, the operation follows the playback functions of the iPod.
!f
Starts/pauses playback.
!o
Goes back to the beginning of the track. Goes back to the begin-
ning of the previous track by pressing twice. Rewinds rapidly by
pressing and holding.
!p
Proceeds to the next track. Fast forwards by pressing and
holding.
6 Cue control buttons
Memory / USB / STEEZ
!CUE CALL
Moves to the position configured by the cue settings and plays
back. (page 23)
!CUE MEMO
By pressing the button during playback, a cue is placed at that
position.
7 FUNC
Use to change the input function. The source changes as below.
Memory (internal memory) dUSB/STEEZ PORTABLE diPod d
AUX IN (external input) d(Memory)
8 VOL+/-
Use to set the listening volume. (page 14)
9
Confirm and exit the current menu screen.
10 Playback mode buttons
!BATTLE
Memory / USB / STEEZ
Press to select Battle mode. (page 20)
!DJ MIX
Memory / USB / STEEZ
Press to select DJ Mix mode. (page 22)
!RHYTHM
Memory
Press to select Rhythm Machine mode. (page 22)
!EXIT
Closes the selected playback mode.

12 En
Front/Top panel
VOLUME TEMPO POWERFUNCTION DJ MIX BATTLE
1
1
1
1
1
1
1
2
2
2
2
2
2
2
5
5
5
5
5
5
5
6
6
6
6
6
6
6
4
4
4
4
4
4
4
3
3
3
3
3
3
3
7
7
7
7
7
7
7
8
8
8
8
8
8
8
10
1
1
10
10
10
10
10
10
12
1
1
12
12
12
12
12
12
13
1
1
13
13
13
13
13
13
14
1
1
14
14
14
14
14
14
9
9
11
1
1
11
11
11
11
11
11
1 POWER
Switches the unit between standby and on. (page 14)
2 Power indicator
When the power is on, this indicator lights.
3 FUNCTION
Use to change the input function. The source changes as below.
Memory (internal memory) dUSB/STEEZ PORTABLE diPod d
AUX IN (external input) d(Memory)
4 VOLUME+/-
Use to set the listening volume. (page 14)
5 Playback control buttons
Memory
USB
STEEZ
iPod
In iPods, the operation follows the playback functions of the iPod.
!f
Starts/pauses playback.
!o
Goes back to the beginning of the track. Goes back to the begin-
ning of the previous track by pressing twice. Rewinds rapidly by
pressing and holding.
!p
Proceeds to the next track. Fast forwards by pressing and
holding.
6 TEMPO+/-
Memory / USB / STEEZ
Accelerates or slows down the track’s tempo. (page 23)
7 Playback mode buttons
!DJ MIX
Memory / USB / STEEZ
Press to select DJ Mix mode. (page 22)
!BATTLE
Memory / USB / STEEZ
Press to select Battle mode. (page 20)
8 Passive radiator
9 Speaker units
10 iPod cover
11 Lock lever
If you raise the lock lever from the behind the frame, the iPod cover will
open.
12 Front panel display
While the power is on, the display will show the following.
!AC adapter in use
Playlist
Distortion
Distortion
Beat
Chill
Thumb
Energetic
!Battery in use (Remaining: High)
Playlist
!Battery in use (Remaining: Low)
Playlist
13 Remote sensor (page 9)
14 Subwoofer

13
En
Rear panel
5V 500mA
PHONESMIC
MIN
VOL
MAX
USB
PC connect
AUX IN DC IN 18V
1
1
1
1
1
1
1
2
2
2
2
2
2
2
3
3
3
3
3
3
3
5
5
5
5
5
5
5
6
6
6
6
6
6
6
7
7
7
7
7
7
7
8
8
8
8
8
8
8
4
4
4
4
4
4
4
1 Battery cover
2 Microphone volume knob
Use to adjust the volume of the sound inputted through the microphone.
The sound from the microphone is always outputted when the device’s
power is on, but not outputted when headphones are connected.
3 Microphone jack
Use to connect your microphone.
4 PC connect terminal
Use the supplied USB cable to connect the PC. (page 24)
5 USB terminal
Use to connect your USB mass storage devices or STEEZ PORTABLE an
audio source. (page 15, 17)
6 PHONES jack
Use to connect headphones. When the headphones are connected,
there is no sound output from the speakers.
7 AUX IN terminal
Connect a mobile portable music player device, etc. using a commer-
cially available stereo mini-jack cable. (page 19)
8 DC IN terminal
Plug the supplied AC adapter. (page 9)

14 En
Basic playback
How to use
This is the device’s basic playback operation. If you select a different function at step 3, the device will switch to a sound source from an external input,
USB or iPod.
1 Press uSTANDBY/ON on the remote control (or POWER on the main unit) to turn on the power of this unit.
The display will show the volume after the STEEZ logo, then the screen will finally show the input function last selected.
MIXTRAX Library
Dance Genre
Dance Genre
Playlist
Artist
All
Now Playing
Volume Memory
2 Connect a device with music files to the product. (except an internal memory)
iPod/iPhone dPlaying tracks from an iPod/iPhone on page 17
USB memory or STEEZ PORTABLE dPlaying tracks from an internal memory or USB memory on page 15 , Playing tracks from a STEEZ PORTABLE on page 17
Auxiliary playback component, etc. dConnecting auxiliary components on page 19
3 Press FUNC on the remote control (or FUNCTION on the main unit) repeatedly to select the input function you want
to play.
When you use the device for the first time the Memory function will be selected by default.
The source changes as below.
Memory
AUX IN
USB
iPod
STEEZ PORTABLE
!Memory: Internal memory
!USB/STEEZ PORTABLE: USB memory device or STEEZ PORTABLE
!iPod: iPod/iPhone
!AUX IN: External input (Portable music player, etc.)
4 Select from a genre or a category.
Memory
USB
STEEZ
Looking at the screen on the device, select a track using the ab/ENTER buttons on the remote control.
!Press to confirm and exit the current menu.
<Track Selection Example>
TEMPO
TEMPO
ENTERENTER
TEMPO
TEMPO
ENTER
TEMPO
TEMPO
Artist
Artist2
Artist1
Artist2
Artist3
Artist4
Artist5
MIXTRAX Library
Artist
Dance Genre
Playlist
Artist
All
Now Playing
Artist1
Song3 124
Song1 115
Song2 108
Song3 124
Song4 102
Song5 130
Memory
Song3
Artist1
0:34 4:20
124 +20%
BPM
5 Play the music tracks.
This unit’s remote control buttons can be used for basic playback.
!In iPods, the operation follows the playback functions of the iPod.
f- Starts/pauses playback.
o- Goes back to the beginning of the track. Goes back to the beginning of the previous track by pressing twice. Rewinds rapidly by pressing and holding.
p- Proceeds to the next track. Fast forwards by pressing and holding.
6 Use VOL+/- on the remote control (or VOLUME+/- on the main unit) to adjust the volume level.
The volume will vary between the range of 0 and 50. When the headphones are connected, there is no sound output from the speakers.
7 Enjoy dance music more with various dance functions.
Memory / USB / STEEZ
See Various dance functions on page 20.
Note
!While the iPod or AUX IN function is on, and the dance function is selected by pressing the BATTLE or DJ MIX button, a Battle or DJ Mix playback
using the internal memory will begin.
!If the RHYTHM button is pressed regardless of the chosen function, rhythm playback using internal memory will start playing.

15
En
Playing tracks from an internal memory or USB memory
Memory
USB
Listen to music by connecting a USB memory device that has your music files to the device. Further, you can listen to music anytime by storing music
files in the internal memory of the device using the music management software “MIXTRAX” via a PC.
More so, you can enjoy a variety of dance functions on the device with the music files analyzed with “MIXTRAX”. For details, see Various dance functions
on page 20.
Important
!The battery life will be shorter if using the USB memory function compared with the internal memory function when the battery is in use. In particular,
if a large USB device that consumes a large amount of power is connected, such as portable hard drives, the battery life will become extremely short.
!This unit may not recognize a USB memory device, play files or supply power to a USB memory device. For details, see page 28.
!Pioneer does not guarantee that any file recorded on a USB memory device will play or that power will be supplied to a USB memory device. Also
note that Pioneer will accept no responsibility whatsoever for loss of files on USB memory devices caused by connection to this unit.
!The product is not guaranteed to be drip-proof when the terminal cover on the back of the product is left opened to connect a USB memory device.
Notes
!The maximum number of songs that this device can play is 24,000.
!The dance function will not work with tracks that have not undergone music analysis or tracks that were played in the folder mode (page 17). These
songs will display the Dance function OFF symbol ( ).
1 Press uSTANDBY/ON to turn on the power of this unit.
2 When playing back a track on a USB memory device: Connect a USB memory device to the USB terminal on the back
of the product.
5V 500mA
PHONESMIC
USB
PC connect
AUX IN
USB memory device
3 Press FUNC repeatedly to select “Memory” (internal memory) or “USB”.
The display will show the screen to select a track category.
The USB memory device will first select the MIXTRAX Library. (Even when MIXTRAX Library is selected, there will be no track playback if there are no
analyzed songs. In this case, please playback using the Folder mode. Please refer to page 17 for more information on the Folder mode.
Internal memory
USB memory
ENTER
USB
MIXTRAX Library
Dance Genre
Dance Genre
Playlist
Artist
All
Now Playing
MIXTRAX Library
Dance Genre
Dance Genre
Playlist
Artist
All
Now Playing
Track
MIXTRAX Library
MIXTRAX Library
Folder
Memory
!If a previous playback has been stopped in a Memory or USB function, the playback will resume from the last location.
4 Select a category from a Dance Genre or select a track by Playlist or Artist, or from All tracks.
The BPM (tempo) that is displayed in the track list screen can be switched to time display or dance genre display. For details, see Switch the track list
screen on page 16.
Dance Genre
Hip Hop
Break
Lock
Pop
Hip Hop
House
MIXTRAX Library
Dance Genre
Dance Genre
Playlist
Artist
All
Now Playing
Hip Hop
Song1 113
Song1 113
Song2 109
Song3 80
Song4 98
Song5 120
4:24
4:24
3:11
6:32
3:41
5:07
Break
Lock
Pop
Hip Hop
House
Dance1
Dance2
All
1 2 3
Dance function OFF
1BPM display: This displays the BPM (tempo).
2Time display: This displays the total track time.
3Genre display: This displays the track’s genre.

16 En
5 Start a track playback.

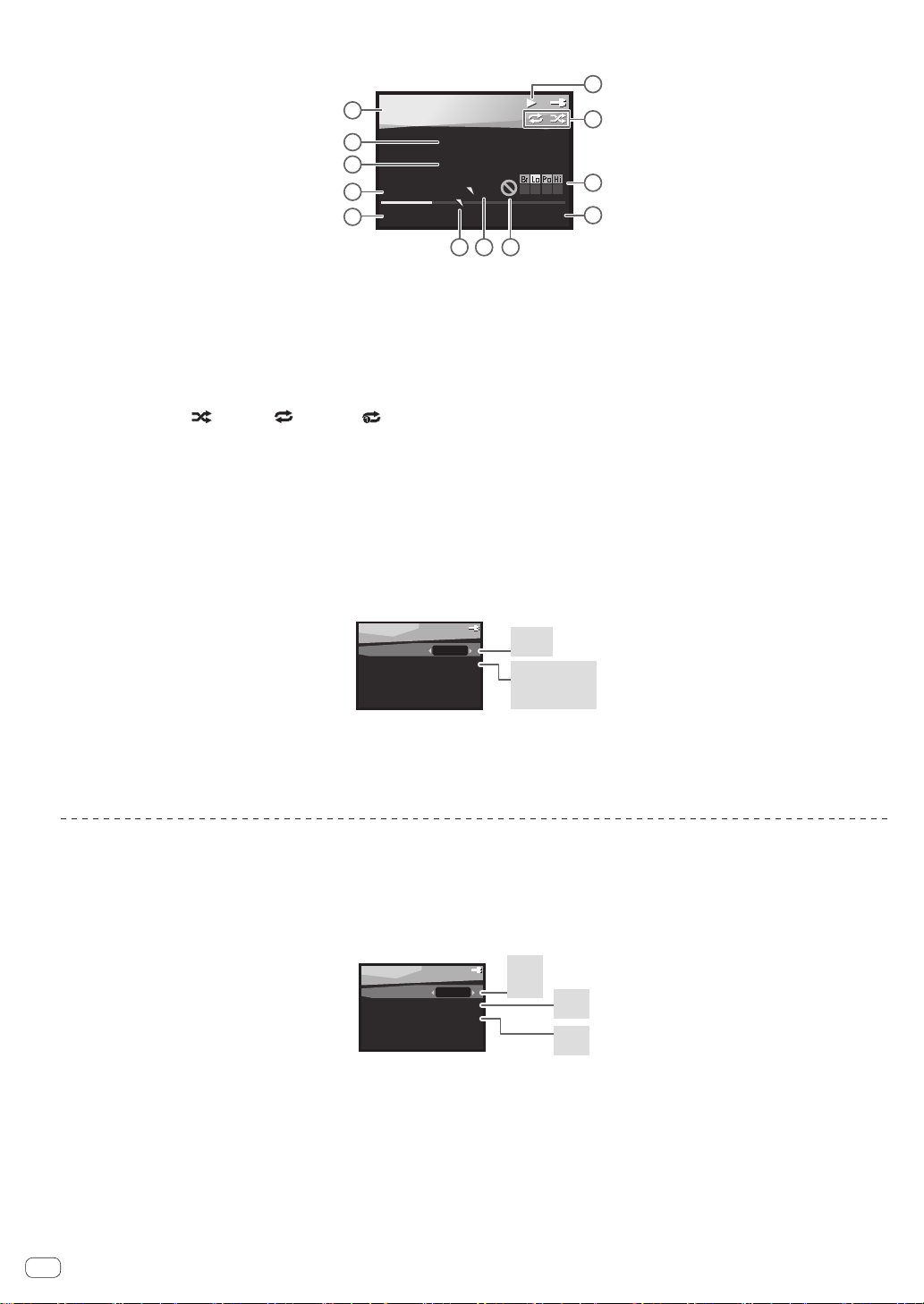

The following will be displayed on the playback screen.
Memory
Song2
Artist1
1:40 5:25
109 +10% CUE
BPM
1
2
3
4
5
6 7 8
9
10
11
12
1Function
2Song name
3Artist name
4BPM (tempo)
5Elapsed time
6Cue location
7Cue settings ON
8Dance function OFF
9Playback status
aPlayback mode ( Random / Repeat All / Repeat One）
bDance genre
cTotal time
!Some of the above may not be displayed simultaneously.
Switch the track list screen
You can change the list order and display on the track list screen.
1 Press TOOLS on the track list screen.
Tools appears on the display.
2 Select the list order and the information to be displayed with the track title.
Tools
Sort
Sort List
Display BPMBPM
Time
Dance Genre
List
BPM
!Sort (list order) is selected from List (track title order or track order in playlist) and BPM (tempo).
!Display (list order) is selected from BPM (tempo), Time, and Dance Genre.
3 Press TOOLS to return to the track list screen.
A track list will be displayed according to the new display settings.
Select a Playback mode
You can set the playback to repeat, random, or cross/fade playback.
1 Press TOOLS on the playback screen.
Tools appears on the display.
2 Select Repeat, Random, or Cross/Fade playback.
Tools
Repeat
Repeat Off
Random Off
Cross/Fade Off
Off
On
Off
One
All
Off
On
!Repeat is selected from One (repeat one track), All (repeat all tracks), or Off. By selecting All, all tracks in the selected Genre or Artist will be
played back repeatedly.
!Random is selected from On and Off. By selecting On, tracks in the selected Genre or Artist will be played back randomly.
!Cross/Fade is selected from On and Off. By selecting On, sequentially ordered tracks will be mixed and played back continuously.
3 Press TOOLS to return to the playback screen.
Tracks will be played back according to the new display settings.

17
En
Playback in a Folder mode
USB
You can playback tracks stored in a USB memory device by selecting a folder.
!The dance function cannot be used in a folder mode playback.
!This unit can display folders up to 20 hierarchies.
1 Select Folder in the initial screen of the USB memory and select folders and tracks for a playback.
Track
Folder
MIXTRAX Library
Folder
Folder
Song1.mp3
Favorites
Album
Song1.mp3
Song2.mp3
Song3.mp3
2 Start a track playback.
Playing tracks from a STEEZ PORTABLE
STEEZ
You can playback tracks by connecting STEEZ PORTABLE (sold separately) to the product. You can enjoy various dance functions by using the Dance
Genre and playlists stored in STEEZ PORTABLE and New Five Stars Playlists created by STEEZ PORTABLE itself.
Important
The product is not guaranteed to be drip-proof when the terminal cover on the back of the product is left opened to connect a STEEZ PORTABLE.
1 Press uSTANDBY/ON to turn on the power of this unit.
2 Connect a STEEZ PORTABLE to the USB terminal on the back of the product.
Connect with the USB cable provided by STEEZ PORTABLE.
5V 500mA
PHONESMIC
USB
PC connect
AUX IN
STEEZ
PORTABLE
3 Press FUNC repeatedly to select “STEEZ PORTABLE”.
!When using an AC adapter, the device will automatically switch to the STEEZ PORTABLE function upon connecting STEEZ PORTABLE.
The display will show the screen to select a track category.
MIXTRAX Library
New Five Stars
New Five Stars
Hip Hop
Distortion
Chill
Artist
STEEZ PORTABLE
!If a previous playback has been stopped in a STEEZ PORTABLE function, the playback will resume from the last location.
4 Select and play back a track from a Dance Genre, playlist or New Five Stars Playlist.
Notes
!Please refer to Playing tracks from an internal memory or USB memory on page 15 for more information on playing back tracks or switching displays.
!When STEEZ PORTABLE is connected, “Battle” as shown in this manual is displayed as “Battle-STEEZ PORTABLE” and “DJ Mix” as “DJ Mix-STEEZ
PORTABLE”.
!For more information on how to use STEEZ PORTABLE, please refer to STEEZ PORTABLE’s operating instructions.
Playing tracks from an iPod/iPhone
iPod
You can playback tracks by connecting your iPod and iPhone to the product. You can playback from iPod and iPhone using the remote control provided
by the product.
Confirm what iPod/iPhone models are supported
The product can playback sound from the following iPod/iPhone. (Not compatible with iPod shuffle. Also, some functions may be restricted according
to the model.)
!iPod 5G, iPod classic, iPod touch (1G/2G/3G/4G), iPod nano (1G/2G/3G/4G/5G/6G), iPhone, iPhone 3G, iPhone 3GS and iPhone 4

18 En
Notes
!This device has been developed and tested for the software version of iPod/iPhone indicated on the website of Pioneer.
http://pioneer.jp/homeav/support/ios/na/ -- North America
http://pioneer.jp/homeav/support/ios/sa/ -- South America
http://pioneer.jp/homeav/support/ios/eu/ -- Europe
http://pioneer.jp/homeav/support/ios/ao/ -- Asia, Middle East, and Oceania
!Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone may result in incompatibility with this device.
!iPod and iPhone are licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
!Features such as the equalizer cannot be controlled using this unit, and we recommend switching the equalizer off before connecting.
!Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded
material resulting from the iPod failure.
!Does not support video playback using iPod or iPhone.
!For more information on how to use iPod, please refer to iPod’s operating instructions.
Connecting your iPod/iPhone
1 Open the iPod cover.
Raise the lock lever (red part) of the iPod cover from behind the frame.
2 Attach the iPod adapter suited to your iPod/iPhone.
3 Connect your iPod/iPhone firmly to the connector.
4 Close and lock the iPod cover by depressing the lock lever until you hear a click sound.
Playing tracks
1 Press uSTANDBY/ON to turn on the power of this unit.
2 Connect your iPod/iPhone.
See Connecting your iPod/iPhone on page 18.
3 Start a track playback by repeatedly pressing the FUNC and selecting ‘iPod’.
The display will show the playback screen. The following will be displayed.

19
En
iPod
Song3
Artist2
2:20 4:45
1
2
3
4
5
1Song name
2Artist name
3Elapsed time
4Playback status
5Total time
About iPhone playback
!Sound will only switch from iPhone to the device after authentication process is completed in approximately 10 seconds.
!Incoming calls will pause the playback and iPhone ringtones will be heard from the device speakers only.
!Once the calls are answered, the conversation can only be heard through the built-in iPhone speaker. Turn on the iPhone speaker or remove the
iPhone to start conversation.
About iPod/iPhone’s battery charge function
An iPod/iPhone will automatically begin recharging when it is connected while the product is connected to a power source by an AC adapter.
!The battery will continue to recharge even when a function other than one for the iPod is selected.
!The iPod/iPhone will not be recharged while the product is using batteries.
Connecting auxiliary components
You can connect an audio device, such as a portable music player, to the product’s external input terminal and play the sound from the product.
Connect by using a commercially available stereo mini-jack cable.
Important
The product is not guaranteed to be drip-proof when the terminal cover on the back of the product is left opened to connect a auxiliary playback
component.
1 Press uSTANDBY/ON to turn on the power of this unit.
2 Connect your auxiliary playback component to the AUX IN terminal on the rear panel.
5V 500mA
PHONESMIC
USB
PC connect
AUX IN
Digital audio
player, etc.
When a playback component is connected to the AUX IN terminal, the product will automatically switch to the AUX IN function.
!If the product does not switch to the AUX IN function, please press the FUNC button repeatedly and select AUX IN.
AUX IN
3 Start a track playback by controlling an audio device.
Notes
!This method can be used to play music on this unit from iPods that do not support use of an iPod connector.
!When a player is connected to an external input terminal, the playback of that player cannot be controlled from this product. Please control from
the player itself.
!If the AUX IN jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the
sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.

20 En
Various dance functions
The product features excellent dance functions that allows you to enjoy dancing using your own music data. The dance function can be used using the
music stored in the internal memory or your own USB memory device. However, to exploit all functions, you must analyze the music data in advance on
a PC using the music software [MIXTRAX]. Please refer to Using MIXTRAX on page 24 for more information.
Using the Battle mode
Memory / USB / STEEZ
The Battle mode is a function that plays back tracks that belong to a genre for practicing dance battles. The tracks will be played back by the configured
duration.
!There are two battle modes: the Normal Battle mode and the Circle Battle mode.
Normal Battle mode
Two dancers (first dancer and second dancer) can take turns and do a Dance Battle within a given time allocated to each.
First, the first dancer will perform to a track from the first Genre, followed by the second dancer, who will perform to the same track. Next, the first
dancer will perform to a track from the second Genre, followed by the second dancer, who will perform to the same track.
In this way, the battle will be repeated by the configured number of times, in which the first and second dancers will perform.
Configure the following before starting a battle.
!Genre
Select one each for Genre 1 and Genre 2 from: Free (All genre) / Break / Lock / Pop / Hip Hop / House / Dance1 / Dance2 / New 5☆*. When a
battle is played back, tracks will be selected randomly from the selected Genre.
* The New 5 ☆can only be selected when connected to STEEZ PORTABLE.
!Move time
Select the duration of the performance for each dancer: 30 sec / 45 sec / 60 sec / 75 sec / 90 sec.
!Number of rounds
Select from the following: 1 / 2 / 3 / 4 / 5 / 6 / Unlimited.
(One round is equivalent to one dance performed by both the first and second dancers).
<Example> Move time: 30 seconds, Number of rounds: 3
Round 1 Round 2 Round 3
Start Finish
5 sec 1st dancer
30 sec
2nd dancer
30 sec
2nd dancer
30 sec
2nd dancer
30 sec
1st dancer
30 sec
1st dancer
30 sec
End advance notice sound
(10 sec before end)
End notice sound
Genre 1 song: 60 sec
(plus 5 sec before start)
Genre 2 song: 60 secGenre 1 song: 60 sec
!There is a five-second countdown (for preparation) before the battle begins (the track for Round 1 will start playing back).
!When the battle is finished, a voice will playback announcing the completion of the battle (randomly selected from multiple voices).
!A time call announcing the remaining 10 seconds of each MOVE and another declaring the completion of the battle will be played back.
Circle Battle mode
A battle will be played back by selecting only the Genre and the total time.
This is suitable when you do not want to allocate a set time for each dancer, and for battles in which multiple dancers take turns and improvise during
the entire duration of the battle.
Configure the following before starting a battle.
!Genre
Select from: Free (All genre) / Break / Lock / Pop / Hip Hop / House / Dance1 / Dance2 / New 5☆*. When a battle is played back, tracks will be
selected randomly from the selected Genre.
* The New 5 ☆can only be selected when connected to STEEZ PORTABLE.
!Total battle time
Select from: 3 min / 4 min / 5 min / 6 min / 7 min / 8 min / 9 min / 10 min / 15 min / 20 min / 25 min / 30 min / 35 min / 40 min / 45 min / 50 min / 55
min / 60 min.
....
Dancer A
A selected genre song will be played back during the total time selected
Dancers switch between each other in a random timing
End advance notice sound
(10 sec before end)
End advance notice sound
(1 min before end)
End notice sound
Dancer B Dancer DDancer C
Start
Start
Finish
Finish StartFinish StartFinish StartFinish
5 sec
