Pioneer ND-MDT10 User manual

IOwner's Manual
Mode d'emploi
MSN® Direct Tuner
Tuner MSN® Direct
ND-MDT10
Register your product at
Enregistrez votre produit au
http://www.pioneerelectronics.com
See "Visit our website"page
Voir fa page "Visitez notre site Web"
PIONEER CORPORATION
4-1, MEGURO 1-CHOME, MEGURO-KU
TOKYO 153-8654, JAPAN
PIONEER ELECTRONICS (USA) INC.
P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.
TEL:
[phone]
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R OP2, Canada
TEL:
1-8n-283-5901
TEL: [phone]
PIONEER ELECTRONICS
DE MEXICO, S.A. de C.V.
Blvd.Manuel Avila Camacho 138 10 piso
Col.Lomas de Chapultepec, Mexico, D.E 11000
TEL: [phone]
<
KYTZX> <09EOOOOO>
Published by Pioneer Corporation.
Copyright ©
2009 by Pioneer Corporation.
All rights reserved.
Publie par Pioneer Corporation. Copyright
©2009 par Pioneer Corporation. Tous
droits reserves.
Printed
in China
Imprime
en Chine
<CZR5159-A>
UC

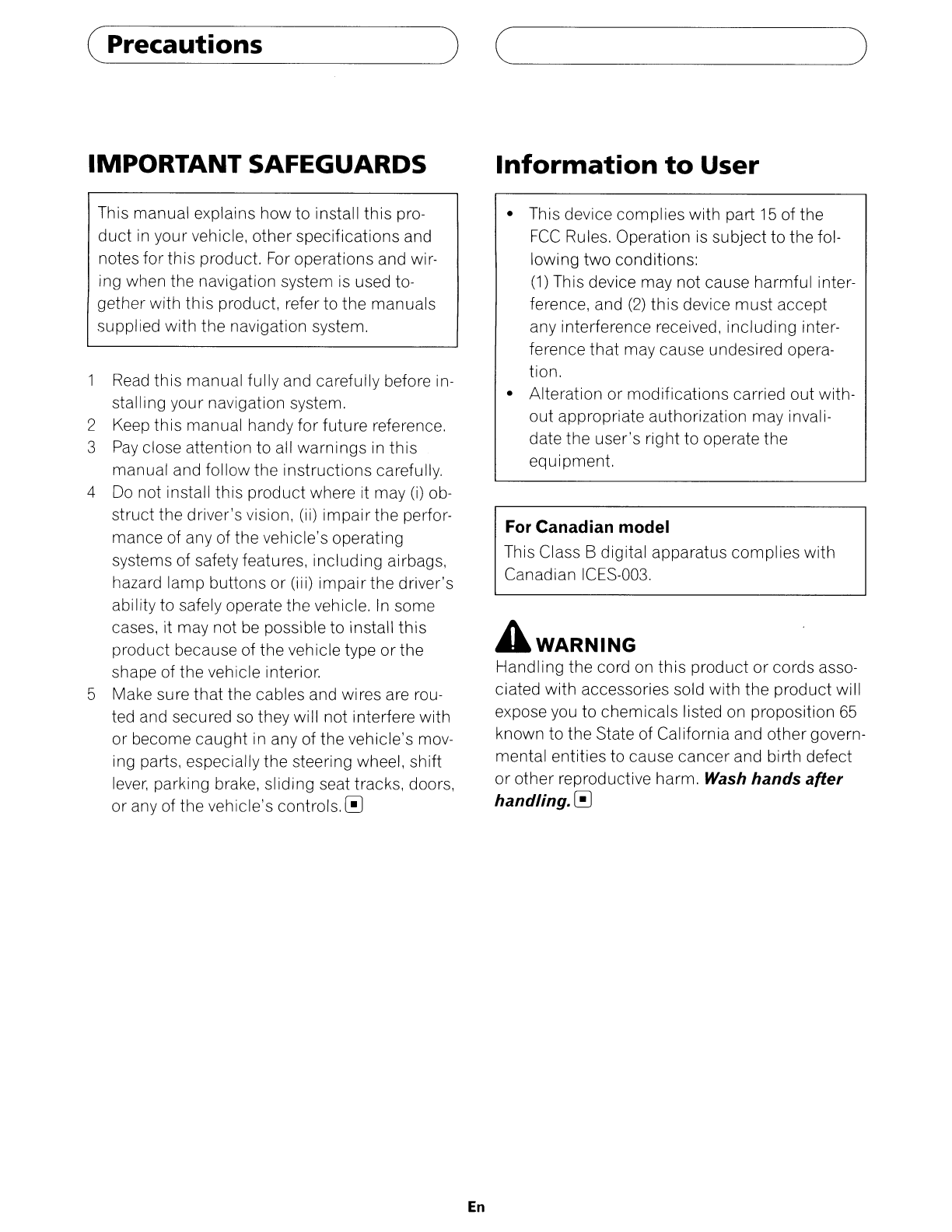

( Precautions
IMPORTANT SAFEGUARDS
)
(~_--_~)
Information to User
This manual explains how to install this pro-
duct in your vehicle, other specifications and
notes for this product. For operations and wir-
ing when the navigation system is used to-
gether with this product, refer to the manuals
supplied with the navigation system.
Read this manual fully and carefully before in-
stalling your navigation system.
2Keep this manual handy for future reference.
3
Pay close attention to all warnings in this
manual and follow the instructions carefully.
4
Do not install this product where it may (i) ob-
struct the driver's vision, (ii)
impair the perfor-
mance of any of the vehicle's operating
systems of safety features, including airbags,
hazard lamp buttons or (iii)
impairthe driver's
ability to safely operate the vehicle.
In some
cases. it may not
be possible to install this
product because of the vehicle type or the
shape of the vehicle interior.
5 Make sure that the cables and wires
are rou-
ted and secured so they will not interfere with
or become caught
in any of the vehicle's mov-
ing parts, especially the steering wheel, shift
lever, parking brake, sliding seat tracks, doors,
or any of the vehicle's controls. 0
En
•This device com pi ies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful inter-
ference, and
(2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion.
•Alteration
or modifications carried out with-
out appropriate authorization may invali-
date the user's right to operate the
equipment.
For Canadian model
This Class Bdigital apparatus complies with
Canadian
ICES-003.
AWARNING
Handling the cord on this product or cords asso-
ciated with accessories sold with the product will
expose you to chemicals listed
on proposition 65
known to the State of California and other govern-
mental entities to cause cancer and birth defect
or other reproductive harm. Wash hands
after
handling.0

( Connecting the System)
( Installation
)
Precautions before
connecting the system
A CAUTION
- Do not route wires where they will be
exposed to high temperatures.
If the
insulation heats up, wires may become
damaged, resulting
in ashort circuit or
malfunction and permanent damage to
the product.
•When disconnecting aconnector, pull the
connector itself.
Do not pull the lead, as
you may pull it out of the connector. ~
Connection diagram
The navigation unit
30 cm
(12 in.)
i
l
Vehicle Antenna This product
En
Precautions before
i nsta lIation
• Do not install this product in places where
it may become subject to high tempera-
tures or humidity, such as:
-Places close to aheater, vent or air con-
ditioner.
-Places exposed to direct sunlight, such
as on top of the dashboard.
-Places
that may be splashed by rain, for
example close to the door.
•Make sure to connect this product to the
navigation system afterthe system
is
turned off. (ACC OFF)
•Thoroughly wipe off the surface before af-
fixing the adhesive tape.
•Use separately sold adhesive tapes to
se-
cure this product so that it does not move.
It
is extremely dangerous if cords are ex-
posed on the floor as they may become en-
tangled with the brake pedal etc. Hide
cords
so that they do not get in the way
when you are driving.
To guard against
electromagnetic interference
In order to prevent interference, set the follow-
ing items as far as possible from this naviga-
tion system, other cables or leads:
• FM, AM antenna and its lead
•
GPS antenna and its lead
In addition you should lay or route each anten-
na lead as far as possible from other antenna
leads.
Do not bind them together, lay or route
them together,
or cross them. Such electro-
magnetic noise will increase the potential for
errors in the location display.

( Installation
)(
Appendix
)
2Attach this product using separately
sold adhesive tapes. C!J
Installing this product
1Decide on the installation position. IMPORTANT:
Notice about MSN Direct
Pioneer is not responsible for the accuracy of the
MSN Direct content.
The MSN Direct content
may not
be current or available at times, and is
subject to change without notice. C!J
To receive MSN® Direct on an MSN Direct-ready
device, you must
be within an MSN Direct cover-
age area;
see http://www.msndirect.com/pioneer
for current coverage maps. Coverage areas are af-
fected
by reception limitations of the FM network
as well as other factors, which may affect the
ability to receive
FM broadcasts. Coverage areas
are subject to change. Not all content
is available
in all coverage areas.
© 2009 Microsoft Corporation, All rights reserved.
Microsoft, MSN, and the MSN logo are trade-
marks of the Microsoft group of companies,
I
I
'--:>
/)~\0
~~Yj
~Adhesive tape
I(sold separately)
Specifications
Power source """ .. """""" ... ",,. DC 13,8V (allowable voltage
range:
10 Vto 14,5 V)
Grounding system .... """""."" Negative type
Maximum current consumption
""" .. """""""".""""""""""""", Approx. 50 mA
BNote
Specifications and design are subject to possible
modifications without notice due to im-
provements.
C!J
En

Temporarily disconnecting the battery of your vehicle may
cause a previously "Active" subscription status of your
MSN® Direct tuner to become "Inactive".
If you have a valid subscription and experience this
condition, please reactivate your tuner by visiting
www.msndirect.com/support and selecting "Reactivate",
or by calling MSN® Direct at 1-866-658-7032.
Make sure to have your MSN,ij) Direct Product Key available
when reactivating.
Subscription Status and Product Key can be found in the
"Status" menu under MSN® on your navigation device.
Deconnecter temporairement la batterie de votre vehicule
peut faire qu'un abonnement de votre tuner MSN® Direct
actuellement aI'etat "Active" change sur I'etat "Inactive".
Si vous possedez
un abonnement valide et faites I'experience
de ce probleme, veuillez reactiver votre
tuner en consultant la
page web www.msndirect.com/support et en selectionnant
"Reactivate", ou en appelant MSN® Direct au 1-866-658-7032.
Assurez·vous d'avoir la cle du produit MSN® Direct sous la
main pour la reactivation.
L'etat d'abonnement
et la cle du produit peuvent etre
trouves dans
Ie menu "Status" de MSN® de votre appareil
de navigation.
<KMZZX> <CZR5184-A>
