Pittway NOTIFIER XP Series User manual

;36HULHV7UDQVSRQGHU
0DQXDO
12
Cli
ntonv
ill
e Roa
d
Northford, CT 06472
[phone]
[phone] (Fax)
'RFXPHQW
 5HYLVLRQ G
31 * (&1 
127,),5(1(7 is a trademark of Notifier, 1994.

Installation Precautions–
Adherence to the following will aid in problem-free installation with long-term reliability:
WARNING -
Several different sources of power can be connected to
the fire alarm control panel.
Disconnect all sources of power before
servicing. Control unit and associated equipment may be damaged by
removing and/or inserting cards, modules, or interconnecting cables
while the unit is energized. Do not attempt to install, service, or
operate this unit until this manual is read and understood.
CAUTION -
System Reacceptance Test after Software Changes: To
ensure proper system operation, this product must be tested in
accordance with NFPA 72-1993 Chapter 7 after any programming
operation or change in site-specific software. Reacceptance testing is
required after any change, addition or deletion of system components,
or after any modification, repair or adjustment to system hardware or
wiring.
All components, circuits, system operations or software functions
known to be affected by a change must be 100% tested. In addition, to
ensure that other operations are not inadvertently affected, at least
10% of initiating devices that are not directly affected by the change,
up to a maximum of 50 devices must also be tested and proper system
operation verified.
This system meets NFPA requirements for operation at
0-49OC/32-120OF and at a relative humidity of 85% RH
(non-condensing) at 30OC/86OF. However, the useful life of the
system's standby batteries and the electronic components may be
adversely affected by extreme temperature ranges and humidity.
Therefore, it is recommended that this system and its peripherals be
installed in an environment with a nominal room temperature of
15-27OC/60-80OF.
Verify that wire sizes are adequate for all initiating device loops.
Most devices cannot tolerate more than a 10% I.R. drop from the
specified device voltage.
Like all solid state electronic devices, this system may operate
erratically or can be damaged when subjected to lightning induced
transients. Although no system is completely immune from lightning
transients and interferences, proper grounding will reduce
susceptibility.
Overhead or outside aerial wiring is not recommended,
due to an increased susceptibility to nearby lightning strikes.
Consult
with the Technical Services Department if any problems are
anticipated or encountered.
Disconnect AC power and batteries prior to removing or inserting
circuit boards. Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing, reaming
or punching of the enclosure. When possible, make all cable entries
from the sides or rear. Before making modifications, verify that they
will not interfere with battery, transformer and printed circuit board
location.
Do not tighten screw terminals more than 9 in-lbs. Over tightening
may damage threads, resulting in reduced terminal contact pressure
and difficulty with screw terminal removal.
This system contains static-sensitive components Always ground
yourself with a proper wrist strap before handling any circuits so that
static charges are removed from the body. Use static suppressive
packaging to protect electronic assemblies removed from the unit.
Follow the instructions in the installation, operating and
programming manuals. These instructions must be followed to avoid
damage to the control panel and associated equipment. FACP
operation and reliability depend upon proper installation.
Fire Alarm System Limitations
An automatic fire alarm system - typically made up of smoke
detectors, heat detectors, manual pull stations, audible warning
devices and a fire alarm control with remote notification capability can
provide early warning of a developing fire. Such a system, however,
does not assure protection against property damage or loss of life
resulting from a fire.
Any fire alarm system may fail for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot reach the
detectors such as in chimneys, in walls, or roofs, or on the other side of
closed doors. Smoke detectors also may not sense a fire on another
level or floor of a building. A second floor detector, for example, may
not sense a first floor or basement fire. Furthermore, all types of
smoke detectors - both ionization and photoelectric types, have
sensing limitations. No type of smoke detector can senseevery kind of
fire caused by carelessness and safety hazards like smoking in bed,
violent explosions, escaping gas, improper storage of flammable
materials, overloaded electrical circuits, children playing with matches,
or arson.
IMPORTANT!
Smoke detectors must be installed in the same room
as the control panel and in rooms used by the system for the
connection of alarm transmission wiring, communications, signaling
and /or power.
If detectors are not so located, a developing fire may
damage the alarm system, crippling its ability to report a fire.
Audible warning devices such as bells may not alert people if these
devices are located on the other side of closed or partly open doors or
are located on another floor of a building.
A fire alarm system will not operate without any electrical power. If
AC power fails, the system will operate from standby batteries only for
a specified time.
Rate-of-Rise heat detectors may be subject to reduced sensitivity
over time. For this reason, the rate-of-rise feature of each detector
should be tested at least once per year by a qualified fire protection
specialist.
Equipment used in the system may not be technically compatible
with the control panel. It is essential to use only equipment listed for
service with your control panel.
Telephone lines needed to transmit alarm signals from a premise to a
central monitoring station may be out of service or temporarily
disabled.
The most common cause of fire alarm malfunctions, however, is
inadequate maintenance. All devices and system wiring should be
tested and maintained by professional fire alarm installers following
written procedures supplies with each device. System inspection and
testing should be scheduled monthly or as required by National and/or
local fire codes. Adequate written records of all inspections should be
kept.
FCC Warning
WARNING: This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the
instruction manual, may cause interference to radio communications,
It has been tested and found to comply with the limits for class A
computing device pursuant to Subpart B of 15 of FCC Rules, which is
designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which
case the user will be required to correct the interference at his own
expense.
Canadian Requirements
This digital apparatus does not exceed the Class A limits for radiation
noise emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la
classe A prescrites dans le Reglement sur le brouillage radioelectrique
edicte par le ministere des Communications du Canada.
While installing a fire alarm system may make lower insurance
rates possible, it is not a substitute for fire insurance!

XP Series Transponders Manual PN 15888:G 6/11/98 i
Contents
6HFWLRQ7KH;37UDQVSRQGHU 
Introduction ...................................................................................................................1
Related Documentation ................................................................................................. 2
6HFWLRQ;37UDQVSRQGHU,QYHQWRU\ 
BE-XP Basic Equipment Package.................................................................................3
XP Transponder Expansion Modules............................................................................4
XP Transponder Power Supplies...................................................................................5
Optional XP Transponder Components.........................................................................6
6HFWLRQ;37UDQVSRQGHU,QVWDOODWLRQ  
Mounting the Cabinet Backbox.....................................................................................8
Installing a CHS-4 Chassis............................................................................................8
Installing the Main Power Supply.................................................................................8
Installing the XPP-1 into the CHS-4.............................................................................9
Installing an AVPS-24/AVPS-24E..............................................................................10
Installing an APS-6R...................................................................................................10
Installing the XP Modules...........................................................................................10
6HFWLRQ7KH3RZHU6XSSOLHV 
The MPS-24A/MPS-24AE Main Power Supply.........................................................12
The MPS-24B/MPS-24BE Main Power Supply ......................................................... 15
The MPS-400 Main Power Supply..............................................................................18
The AVPS-24/AVPS-24E Audio Visual Power Supply.............................................19
The APS-6R Auxiliary Power Supply.........................................................................19
The NR45-24 and NR45-24E Remote Battery Chargers............................................20
The CHG-120 Battery Charger ...................................................................................21
6HFWLRQ)LHOG:LULQJWKH;37UDQVSRQGHU 
The XPP-1 Processor...................................................................................................23
The XPM-8 Module (Style B).....................................................................................28
The XPM-8 Module (Style D).....................................................................................30
The XPM-8L Module (Style B Only) .........................................................................32
The XPC-8 Module (Style Y)......................................................................................34
The XPC-8 Module (Style Z)......................................................................................35
Supplying Power to a Style Y XPC-8 Circuit.............................................................37
The XPR-8 Module With Eight Form-C Relays.........................................................40
The XPR-8 Module With Four Dual Form-C Relays .................................................41
Internal Connection of Relay Contacts for Multi-Channel Applications....................42
Typical XP Transponder Cabinet Wiring....................................................................43
Typical XP Transponder Cabinet Wiring Notes .........................................................44
Dual Stage Operation (For Use in AM2020/AFP1010 Systems in Canada Only)...... 45
6HFWLRQ3URJUDPPLQJWKH;37UDQVSRQGHU 
The XRAM-1............................................................................................................... 46
Programming the XP Transponder for Rapid All Call Activation..............................47
6HFWLRQ2SHUDWLQJWKH;37UDQVSRQGHU  
Normal (No alarm or trouble) Condition.....................................................................49
Alarm Condition..........................................................................................................49
Acknowledging Alarms...............................................................................................49
Lamp Test and System Reset ......................................................................................49

ii XP Series Transponders Manual 15888:G 6/11/98
Trouble Condition .......................................................................................................49
Acknowledging Troubles ............................................................................................ 50
$SSHQGL[$1)3$&RGH6SHFLILF5HTXLUHPHQWV
NFPA 72-1996 Protected Premises Fire Alarm System..............................................51
NFPA 72-1996 Auxiliary Supervising Station Fire Alarm System ............................52
NFPA 72-1996 Proprietary Supervising Station Fire Alarm System..........................54
$SSHQGL[%3RZHU6XSSO\&DOFXODWLRQV 
The AC Branch Circuit................................................................................................ 56
The Filtered Supply.....................................................................................................56
Secondary Power Source Requirements...................................................................... 58
$SSHQGL[&$)3$)33RZHU6XSSO\&DOFXODWLRQV
$SSHQGL['7URXEOHVKRRWLQJWKH;37UDQVSRQGHU 

XP Series Transponder PN 15888:G 6/11/98 1
6HFWLRQ7KH;37UDQVSRQGHU
,QWURGXFWLRQ The XP Series Transponders provide the Fire Alarm Control Panel with an efficient
multiplex subsystem capability. XP Transponder communicates with the FACP and
functions as a data-gathering panel for alarm Initiating Device Circuits (IDC) and as a
remote switching center for Notification Appliance Circuits (NAC), telephone circuits
or relays. The XP Series Transponder is designed to be used anywhere a cost-effective,
remote data-gathering, control panel is needed. The XP Transponders are extremely
effective in both high-rise and low-rise buildings where power losses over long wiring
distances dictate the use of remote control equipment, amplifiers, or audio/visual power
supplies.
The Initiating Device Circuits of the XP Transponder may be used to monitor multiple
zones of conventional two-wire and four-wire smoke detectors and normally open
contact initiating devices. The Notification Appliance Circuits may be used to control
multiple zones consisting of horns, speakers, two-way fire fighter's telephones, or dry
contact relays.
Each XP Transponder communicates with, and is controlled by, a Signaling Line
Circuit (SLC) loop of the host FACP. If communication between the control panel and
the XP Transponder is lost, the XP Transponder will automatically switch over to
degraded local mode operation (if so programmed), in which it functions as an
independent Fire Alarm Control Panel.
To the control panel, the XP Transponder appears to be a cluster of sequentially
addressed monitor and control modules, starting from a base SLC address (one module
SLC address for every XP point). The XP may share the same SLC loop with other
addressable devices such as intelligent detectors or addressable modules. Multiple XP
Transponders may be placed on the same SLC loop provided the module address
capacity of 99 is not exceeded.
The XP Series Transponders can be used with the following
127,),(5
Fire Panels:
• the AM2020/AFP-1010
• the AFP-300/AFP-400
)HDWXUHV
• Stand-alone operation during communications failure with the Fire Alarm Control
Panel
• Up to 26 field-configurable circuits.
• Style B or Style D Initiating Device Circuits.
• Style Y or Style Z Notification Appliance Circuits, Speaker Circuits, or Telephone
Circuits.
• Single Form-C or dual Form-C dry contact relays.
• Alarm and trouble status displayed by LEDs for each point.
• Display of output point ON/OFF status.
• Transponder status displays and controls including: Power/On-Line LED, Local
AlarmLED,LocalTroubleLED,Reset,SignalSilenceandLampTestcontrolswitch.
• MPS-24A/MPS-24AE and MPS-24B/MPS-24BE power limited power supplies,
charger, and battery capability in same cabinet. The "E" suffix on the power
supplies represents an export product which requires 220/240 VAC, 50/60 Hz
primary power.
• Isolation from the Signaling Line Circuit.
• Multiple Transponders may be mounted in the same cabinet.
• Plug-in terminal blocks for ease of installation and service.
• Type of trouble indication for ease of troubleshooting.

7KH ;3 7UDQVSRQGHU Related Documentation
2XP Series Transponder PN 15888:G 6/11/98
5HODWHG'RFXPHQWDWLRQ
To obtain a complete understanding of specific features of the XP Series Transponder,
or to become familiar with functions in general, make use of the documentation listed in
Table 1 below.
Table 1 Related Documentation
Title Number Title Number
AM2020/AFP1010 Fire Alarm
Control Panel 15088 Annunciator Control System 15842
Liquid Crystal Display (LCD-80) 15037 Lamp Driver Modules (LDM) 15885
Network Reporting Terminal (NRT) 15090 Voice Alarm Multiplex 15889
Intelligent Network Annunciator (INA) 15092 The XP Series Transponder System 15888
Universal Zone Coder
Installation (UZC-256) 15216 Network Adaptor Module
(NAM-232) 50038
Product Installation Document (CCM-1) 15328 The UDACT Universal Digital
Alarm Communicator/Transmitter 50050
Product Installation Document (MPS-TR) 15331 FCPS-24/FCPS-24E Field Charger/ Power Supply Installation,
Operation and Application Manual 50059
AM2020/AFP1010 Operator Instructions 15337 Video Graphics Annunciator System
(VGAS) Installation Manual 50251
Notifier Device Compatibility Document 15378 Media Interface Board (MIB) 50255
Analog Fire Panel (AFP-200) 15511 Repeater (RPT) 50256
Canadian Requirements for
the AM2020/AFP1010 15631 NOTI•FIRE•NET 50257
Network Interface Board (NIB-96) 15666 Telephone/Panel Interface (TPI-232) 50372
Smoke Control Manual 15712 Media Evaluation Tool (MET-1) 50480
Analog Fire Panel (AFP-300/AFP-400) 50253 50259
50260
Automatic Fire Alarm Warden
Station Series Product Installation
Drawing 50705
NR45-24 Charger 15760 MMX-2 Installation Instructions M500-03-00
APS-6R Auxiliary Power Supply 50702 CHG-120 Battery Charger 50641
$OOQGRFVIP 

BE-XP Basic Equipment Package ;3 7UDQVSRQGHU ,QYHQWRU\
XP Series Transponder PN 15888:G 6/11/98 3
6HFWLRQ;37UDQVSRQGHU,QYHQWRU\
The XP Transponder is comprised of the following two categories:
• Basic Equipment Package (BE-XP)
• Optional XP Transponder Components
The Basic Equipment package includes the minimum parts required in each
Transponder system. To complete a remote installation, additional components such as
a cabinet and a power supply are needed. For larger systems, up to four XP
Transponders can be installed in a single D-size CAB-3 Series cabinet.
%(;3%DVLF(TXLSPHQW3DFNDJH
;33

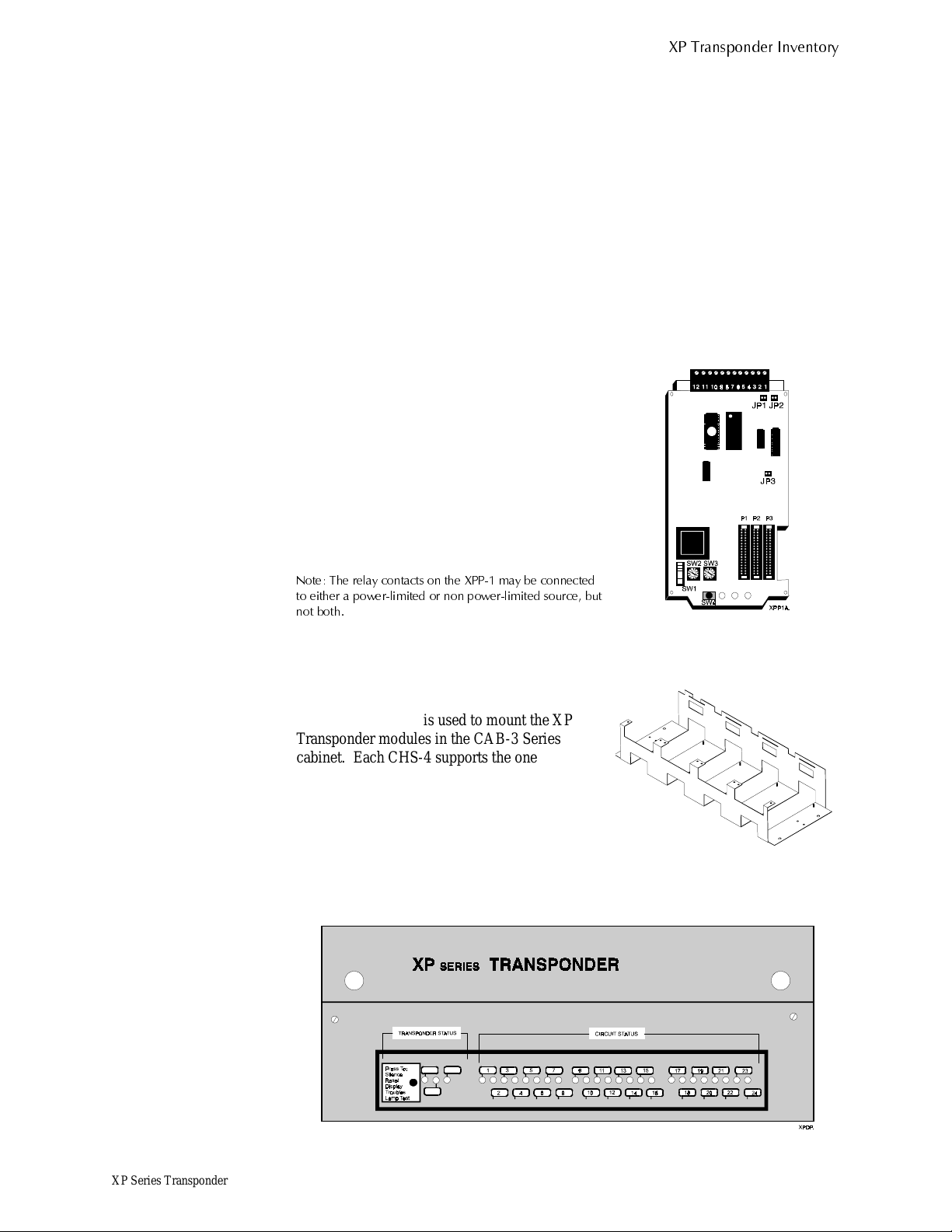

The XPP-1 is the only required module in the XP
Transponder system. This module controls up to
three XPC, XPR, or XPM expansion boards
installed in any combination in the system.
The XPP-1 provides two Form-C relays plus one
monitoring point that can be mapped into the
FACP system. The base address for the XP
Transponder is set by two rotary switches on this
module.
1RWH 7KH UHOD\ FRQWDFWV RQ WKH ;33 PD\ EH FRQQHFWHG
WR HLWKHU D SRZHUOLPLWHG RU QRQ SRZHUOLPLWHG VRXUFH EXW
QRW ERWK
&+6
The CHS-4 Chassis is used to mount the XP
Transponder modules in the CAB-3 Series
cabinet. Each CHS-4 supports the one required
XPP-1 module (mounted in the far left-hand
position) and up to three additional XPC, XPR, or
XPM modules.
;3'3
TheXPDressPanelcoversonerowofXPTranspondermodulesinaCAB-3Seriescabinet.

;3 7UDQVSRQGHU ,QYHQWRU\ XP Transponder Expansion Modules
4XP Series Transponder PN 15888:G 6/11/98
;37UDQVSRQGHU([SDQVLRQ0RGXOHV
;303RZHUOLPLWHG
The XPM-8 provides eight Style B or four Style D Initiating
Device Circuits. These circuits can employ two-wire
detectors and any normally open-contact alarm initiating
device (manual pull stations, heat detectors, four-wire
smoke detectors, etc.). Each circuit assumes a separate SLC
address in the system and has a separate or dual red status
LED at the bottom of the XPM-8 board. The XPM-8
assumes one position in a CHS-4 Chassis. It includes eight
2.2K End-of-Line Resistors.
;30/3RZHUOLPLWHG
Similar to the XPM-8, the XPM-8L permits 1000 ohm line
resistance, but does not support two-wire smoke detectors or
Style D wiring.
The XPM-8L assumes one position in a CHS-4 Chassis. It includes eight 10K End-of-
Line Resistors.
;3&3RZHUOLPLWHG
The XPC-8 provides eight Style Y or four Style Z
Notification Appliance Circuits (NAC). Each circuit
assumes a unique SLC address in the system and has a
separate or dual green status LED.
With the FFT-7 Fire-Fighter’s Telephone, the XPC-8
circuits can be employed as telephone circuits by installing
phone jacks.
When used with Audio Message/Tone Generators and
Audio Amplifiers, the XPC-8 can distribute audio signals
and messages throughout the installation. Power for
notification appliances and audio circuits is fed into the
XPC in circuit pairs of two or more.
The XPC-8 assumes one position in a CHS-4 Chassis. It includes eight 47K ohm
End-of-Line Resistors..
;35
The XPR-8 controls up to eight SPDT Relays. The XPR-8
can alternately employ up to four dual Form-C relays. Each
relay assumes a unique SLC address in the system and has a
separate or dual green status LED at the bottom of the
XPR-8 board.
1RWH 7KH UHOD\ FRQWDFWV RQ WKH ;35 PD\ EH FRQQHFWHG WR HLWKHU D
SRZHUOLPLWHG RU QRQ SRZHUOLPLWHG VRXUFH EXW QRW ERWK
The XPR-8 assumes one position in a CHS-4 Chassis.

XP Transponder Power Supplies ;3 7UDQVSRQGHU ,QYHQWRU\
XP Series Transponder PN 15888:G 6/11/98 5
;37UDQVSRQGHU3RZHU6XSSOLHV
036$036$(3RZHUOLPLWHG
The MPS-24A or MPS-24AE supplies the filtered power
needed to run the XP Transponder modules. It also
supplies up to 3 amps of filtered notification appliance
power, permitting the use of a variety of standard UL
listed 24 VDC notification appliances. Up to one amp of
resettable power is available for four-wire smoke
detectors. The MPS-24A/MPS-24AE contains an
integral battery charger. See the Notifier Device
Compatibility Document for a list of batteries for use
with MPS-24A/MPS-24AE.
036%036%(3RZHUOLPLWHG
The MPS-24B or MPS-24BE may be used to power
smaller Transponder systems. It supplies up to 2.0 amps of
filtered notification appliance power, permitting the use of
a variety of standard UL listed 24 VDC notification
appliances. Up to 200 mA of resettable power is available
for four-wire smoke detectors. The MPS-24B/MPS-24BE
contains an integral battery charger. See the Notifier
Device Compatibility Document for a list of batteries for
use with the MPS-24B/MPS-24BE.
$$$$($$$$($$$$(
The AA-30/AA-30E Audio Amplifier provides up to 30
watts of audio power at 25 Vrms for driving speaker
circuits. The AA-120/AA-120E provides up to 120 watts
at 25 Vrms and the AA-100/AA-100E provides up to 100
watts at 70.7 Vrms. The AA-30/AA-30E, AA-100/AA-
100E, and the AA-120/AA-120E amplify the audio signal
generated by the Audio Message/Tone Generators (AMG-
1 or ATG-2). The AA-30/AA-30E mounts to one-half of a
CHS-4L Chassis, while the AA-120/AA-120E and AA-
100/AA-100E mount directly to the cabinet backbox and
consume an entire row.
For more information on the audio amplifiers, refer to the Voice Alarm Multiplex
Manual listed in the Related Documentation Chart in Section 1 of this manual.
$936DQG$936(3RZHUOLPLWHG
The AVPS-24/AVPS-24E Audio/Visual Power Supply
provides up to 3 amps of unfiltered, unregulated specific
application power for XPC modules. The AVPS-24/
AVPS-24E mounts to one-fourth of a CHS-4 Chassis. In
space-critical applications, the AVPS-24/AVPS-24E can
be mounted underneath XP Transponder modules on the
CHS-4 Chassis. See the Notifier Device Compatibility
Document listed in the Related Documentation Chart of
this manual for a list of compatible, UL listed notification
appliances.

;3 7UDQVSRQGHU ,QYHQWRU\ Optional XP Transponder Components
6XP Series Transponder PN 15888:G 6/11/98
$365$X[LOLDU\3RZHU6XSSO\
The APS-6R Auxiliary Power Supply is designed to
power devices that require filtered, non-resettable power,
such as XP Transponder modules, Notification Appliance
Circuit modules, and Control modules. It provides two
24 VDC (filtered) output circuits (3 A each, 6 A total, 4
A continuous). For more information on the APS-6R,
refer to the APS-6R Manual listed in the Related
Documentation Chart of this manual.

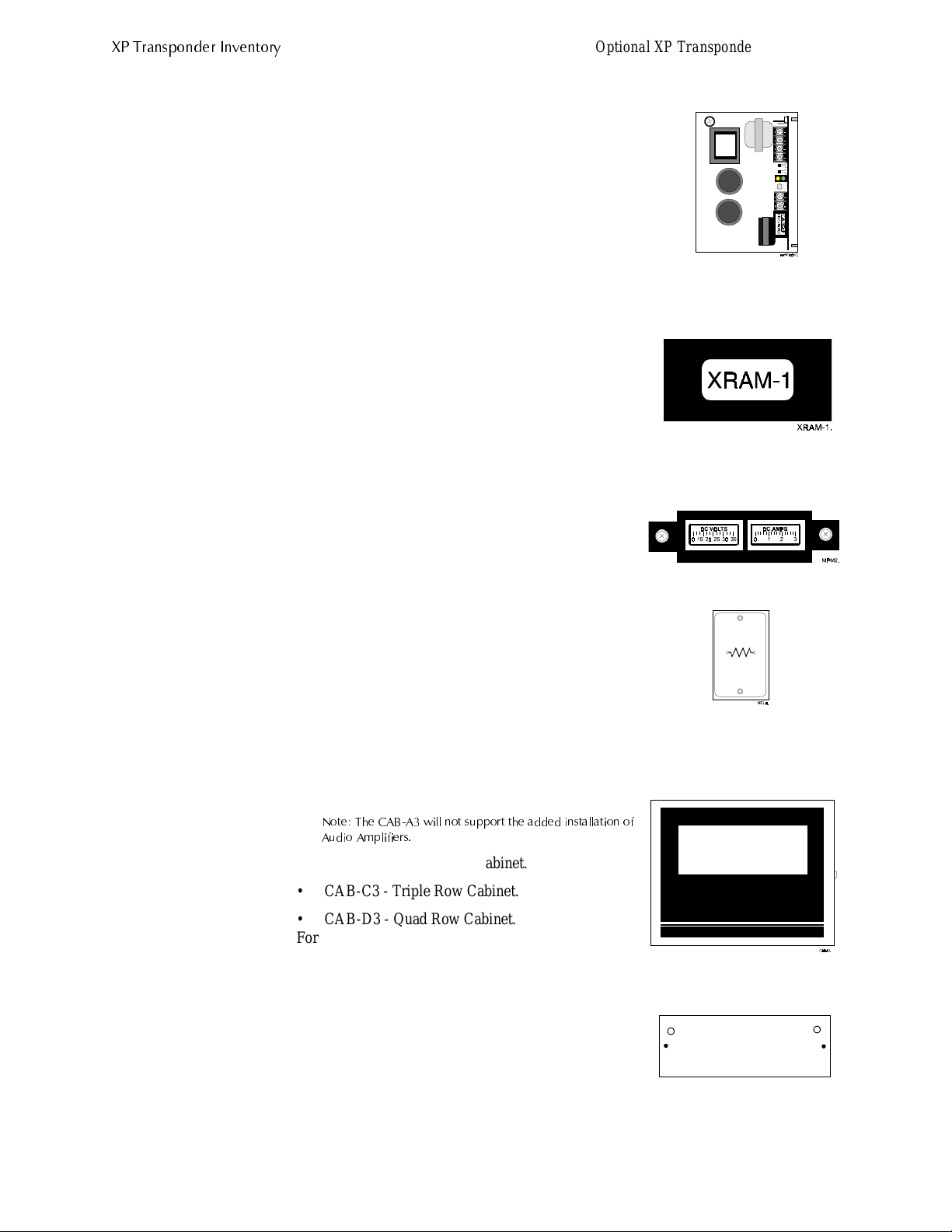

2SWLRQDO;37UDQVSRQGHU&RPSRQHQWV
;5$02SWLRQDO
The XRAM-1 nonvolatile RAM chip is required when
the XPP-1 will be programmed for specific local mode
operation or "Rapid All Call" Audio Operation. All
information programmed into the XPP-1 is stored on the
XRAM-1. The XRAM-1 replaces a RAM chip on the
XPP-1.
030
The Main Power Meter-2 provides a voltmeter and
ammeter that may be used in conjunction with the
MPS-24A and MPS-24AE Main Power Supplies only.
1(/5
An N-ELR Resistor Mounting Plate is required in
Canada for mounting End-of-Line (ELR) resistors.
One N-ELR Resistor Mounting Plate is used for each
ELR resistor.
&DELQHWV
Cabinets for the XP Transponder system include the
door and backbox and are offered in the following four
sizes:
• CAB-A3 - Single Row Cabinet (illustrated).
1RWH 7KH &$%$ ZLOO QRW VXSSRUW WKH DGGHG LQVWDOODWLRQ RI
$XGLR $PSOLILHUV
• CAB-B3 - Double Row Cabinet.
• CAB-C3 - Triple Row Cabinet.
• CAB-D3 - Quad Row Cabinet.
For door and backbox dimension, refer to the
Installation Drawing, Document 15330, packaged with
each cabinet.
'3
The Dress Panel (DP-1) covers one row assembly in an
XP Transponder cabinet.

Optional XP Transponder Components ;3 7UDQVSRQGHU ,QYHQWRU\
XP Series Transponder PN 15888:G 6/11/98 7
&+6/
The low-profile CHS-4L is used to mount AA-30/
AA-30E Audio Amplifiers, Audio Message/Tone
Generators, the Fire Fighters Telephone, or AVPS-24/
AVPS-24E Audio-Visual Power Supplies in the same
cabinet as the XP Transponder.
%3
The BP-3 Battery Dress Panel covers the
Main Power Supply and the batteries in
an XP Transponder cabinet. One BP-3
is required per Transponder cabinet.
93
Use the VP-2 Vented Dress Panel when
an XP Transponder is installed in the top
row of a cabinet (required in Canada).
The VP-2 covers the gap between the
Transponder Dress Panel (XPDP) and
the top of the cabinet. The VP-2 is
secured to the cabinet with two screws
(provided).

;3 7UDQVSRQGHU ,QVWDOODWLRQ Mounting the Cabinet Backbox
8XP Series Transponder PN 15888:G 6/11/98
6HFWLRQ;37UDQVSRQGHU,QVWDOODWLRQ
0RXQWLQJWKH&DELQHW%DFNER[
In a clean, dry area, mount the backbox
using the four holes provided in the back
surface of the cabinet. For backbox
dimensions and mounting hole locations,
refer to Notifier Document 15330
included with each cabinet.
,QVWDOOLQJD&+6&KDVVLV
In each row of the cabinet that will
employ XP Transponder modules, install
a CHS-4 or CHS-4L Chassis. For proper
grounding of the XPP-1 to the cabinet,
connect the grounding cable (provided
with the XPP-1) to the left chassis
mounting screw as illustrated.
,QVWDOOLQJWKH0DLQ3RZHU6XSSO\
In the bottom of the cabinet, ensuring
that the upper bracket engages the
support tab on the cabinet, install a
main power supply.
Secure the bottom of the power supply
to the bottom cabinet support with the
two self-tapping screws provided.
%DFNER[
0RXQWLQJ
+ROHV
)LJXUH  0RXQWLQJ WKH &DELQHW %DFNER[
)LJXUH  ,QVWDOOLQJ WKH &KDVVLV
)LJXUH  ,QVWDOOLQJ WKH 0DLQ 3RZHU 6XSSO\

Installing the XPP-1 into the CHS-4 ;3 7UDQVSRQGHU ,QVWDOODWLRQ
XP Series Transponder PN 15888:G 6/11/98 9
,QVWDOOLQJWKH;33LQWRWKH&+6
Follow Steps 1 through 4 in Figure 4 below to install an XPP-1 into the CHS-4 chassis.
)LJXUH  ,QVWDOOLQJ WKH ;33 LQWR WKH &+6
Step 1
Insert the XPP-1 into the left-most
slot on the CHS-4, angling the
upper end of the module into
position as shown above.
Step 3
Pull the XPP-1 down until the
module engages the slot in the
chassis.
Step 4
Align the module screws with the
threaded holes in the chassis and
secure into place.
Step 2
Carefully push the XPP-1 toward
the back of the cabinet until the
module is vertical.

;3 7UDQVSRQGHU ,QVWDOODWLRQ Installing an AVPS-24/AVPS-24E
10 XP Series Transponder PN 15888:G 6/11/98
)LJXUH  ,QVWDOOLQJ WKH ;33 LQWR WKH &+6

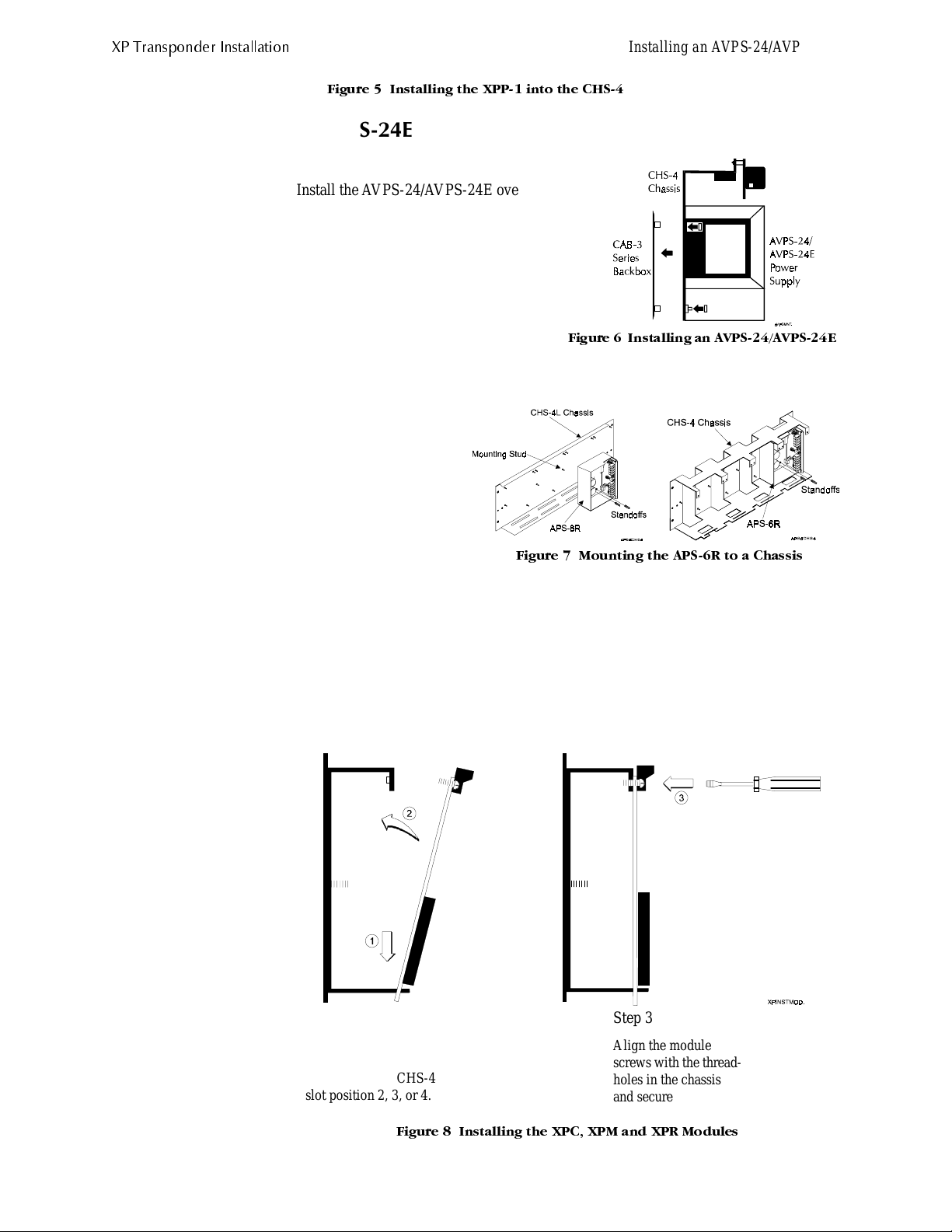

,QVWDOOLQJDQ$936$936(
Install the AVPS-24/AVPS-24E over the
screw mounts on the CHS-4/4L Chassis
and secure with two nuts.
,QVWDOOLQJDQ$365
Install the APS-6R over
the mounts on the CHS-4/
4L Chassis and secure
with standoffs inserted
into the APS-6R
mounting slots.
,QVWDOOLQJWKH;30RGXOHV
After the XPP-1 module has been installed into the CHS-4, the remaining system
modules may be installed. Interconnecting ribbon cables must be installed at the same
time as each XPC, XPM, or XPR module, as outlined on the following pages.
The procedure for mechanical installation of XP Transponder modules into the CHS-4
Chassis (Figure 8 and Figure 9) and connection of the module ribbon follows on the
next two pages.
)LJXUH  ,QVWDOOLQJ WKH ;3& ;30 DQG ;35 0RGXOHV
)LJXUH  ,QVWDOOLQJ DQ $936$936(
)LJXUH  0RXQWLQJ WKH $365 WR D &KDVVLV
Step 1
Insert the bottom edge
of the XPC, XPM or
XPR board into CHS-4
slot position 2, 3, or 4.
Step 3
Align the module
screws with the thread-
holes in the chassis
and secure in place.
Step 2
Swing the
upper edge of
theboardtoward
the chassis.

Installing the XP Modules ;3 7UDQVSRQGHU ,QVWDOODWLRQ
XP Series Transponder PN 15888:G 6/11/98 11
)LJXUH  ,QVWDOOLQJ WKH ;3 0RGXOHV
Step 1
Install an expansion module
(XPC-8, XPM-8, or XPR-8)
in chassis slot 4.
Step 2
Connect a ribbon cable (Part
No. 75095) between XPP-1
Plug P3 and Plug P1 on this
module.
Step 3
Install a module in Slot 3 and
connect a ribbon cable (Part
No. 75095) between XPP-1
Plug P2 and Plug P1 on this
module.
Step 4
Install one end of a ribbon
cable (Part No. 75095) into
XPP-1 Plug P1. Install an
expansion module in chassis
Slot 2. Connect the other end
of the ribbon cable to Plug P1
on this module.
1RWH 7KLV LOOXVWUDWLRQ LV EDVHG XSRQ WKH XVH RI WKUHH WUDQVSRQGHU H[SDQVLRQ PRGXOHV ,I WZR H[SDQVLRQ PRGXOHV DUH XVHG VWDUW DW 6WHS
 ,I RQH PRGXOH LV XVHG VWDUW DW 6WHS 

7KH 3RZHU 6XSSOLHV The MPS-24A/MPS-24AE Main Power Supply
12 XP Series Transponder PN 15888:G 6/11/98
6HFWLRQ7KH3RZHU6XSSOLHV
7KH036$036$(0DLQ3RZHU6XSSO\
The MPS-24A and MPS-24AE Main Power supplies are capable of powering the XP
Transponder continuously during non-alarm and alarm conditions. A total of 3.0 amps
(internal) @ 24 VDC filtered is available from the MPS-24A/MPS-24AE main power
supply for operating the system during non-fire alarm conditions. Up to 6.0 amps @ 24
VDC can be drawn from the MPS-24A/MPS-24AE during an alarm condition, when
the transponder is functioning in local mode. If the XP Transponder is being used as a
peripheral panel of an FACP, only a total of 3.0 amps may be drawn from the MPS-
24A/MPS-24AE. This is because the charger circuit of the MPS-24A is not turned off
during alarm unless the transponder is operating in local mode and not communicating
to the FACP or the charger is disabled because an NR45-24 external charger is
connected and JP1 has been cut. If the charger is operating there is only a 3.0 amp
capacity for both internal (transponder modules) load and external load such as
notification appliances. Six amps are available continuously (alarm and non-alarm)
when JP1 is cut and the external NR45-24/NR45-24E battery charger is employed, in
both peripheral and local mode. JP2 must be cut for all Transponder applications!
1RWH )LJXUH  LOOXVWUDWHV FRQQHFWLRQV IRU SULPDU\ DQG VHFRQGDU\ SRZHU WR WKH 036$036$(
PDLQ 3RZHU 6XSSO\
The MPS-24A/MPS-24AE can charge batteries up to 60 amp hours. Use the BB-55
Battery Enclosure for batteries larger than 25 amp hours.
&RQQHFWLQJWKH3ULPDU\3RZHU6RXUFH
The MPS-24A requires 120 VAC, 50/60 Hz primary power and the MPS-24AE requires
220/240 VAC, 50/60 Hz primary power. The transponder requires connection to a
dedicated AC fire alarm circuit, which must be labeled “FIRE ALARM”. This AC
circuit must connect to the line side of the main light and power feed of the protected
premises. No other equipment may be powered from the fire alarm circuit. The AC
circuit wire run must run continuously, without disconnect devices, from the power
source to the transponder power supply. Overcurrent protection for this circuit must
comply with Article 760 of the National Electrical Code (NEC) as well as local codes.
Use 12 AWG (3.25 mm2) wire with 600 volt insulation for this circuit. With the circuit
breaker at the main power distribution panel turned off, remove the plastic insulating
cover from Terminal Block TB1 on the MPS-24A/MPS-24AE. Connect the system
primary AC power source. Connect the service ground to TB1-3 and ground the power
supply assembly to the cabinet with a chassis ground cable (71073) from TB1-3.
Connect the AC Neutral line to TB1-4 and the AC Hot wire to TB1-6. Do not route AC
wiring in the same conduit as other XP Transponder circuits. After completion of these
connections, reinstall the plastic insulating cover over the terminal block. Leave the
main power breaker off until installation of the XP Transponder is complete.
&RQQHFWLQJWKH6HFRQGDU\3RZHU6RXUFH9'&
Secondary power (batteries) is required to support the XP Transponder during loss of
primary AC power. Batteries may reside in the XP Transponder cabinet, or in a
separate NR45-24/NR45-24E Remote Battery Charger cabinet or BB-55 cabinet, which
can be mounted up to 20 feet away from the XP Transponder (for connection of an
NR45-24/NR45-24E, refer to Figure 16). Connect the Battery Positive Cable (71071)
to TB2-1 (+) and Battery Negative Cable (71072) to TB2-2 (-) on the MPS-24A/MPS-
24AE.
1RWH 'R QRW FRQQHFW WKH %DWWHU\ ,QWHUFRQQHFW &DEOH  DW WKLV WLPH 7KLV FRQQHFWLRQ ZLOO EH PDGH
MXVW DIWHU LQLWLDO V\VWHP SULPDU\ SRZHUXS

The MPS-24A/MPS-24AE Main Power Supply 7KH 3RZHU 6XSSOLHV
XP Series Transponder PN 15888:G 6/11/98 13
*URXQG)DXOW'HWHFWLRQ
The MPS-24A/MPS-24AE automatically employs Ground Fault Detection (required in
Canada) unless resistor R27 is removed. The detector circuit does not make a distinction
between positive and negative faults. It is normal for the MPS-24A/MPS-24AE to
indicate Ground Fault Trouble during power-up. This feature must be disabled on all but
one power supply if multiple power supplies are present and share a common signal
reference.
5HVHWWDEOH)RXUZLUH6PRNH'HWHFWRU3RZHU 9'&$  3RZHUOLPLWHG
Up to one amp of current for four-wire smoke detectors can be drawn from TB3
terminals 1 (+) and 2(-) on the MPS-24A/MPS-24AE. Power is removed from these
terminals during system reset. This 24 VDC filtered four-wire smoke detector source is
power limited, but must be supervised via an end-of-line power supervision relay. This
power supervision relay is energized by the four-wire power circuit and its contact must
be connected in series with an XPM-8 or XPM-8L Initiating Device Circuit (IDC).
1RQUHVHWWDEOH1RWLILFDWLRQ$SSOLDQFH3RZHU 9'&$  3RZHUOLPLWHG
Up to 3 amps of filtered current for powering notification appliances can be drawn from
TB3 terminals 3 (+) and 4(-) on the MPS-24A/MPS-24AE. The actual amount of
power that may be drawn is determined by the calculations in Appendix B. If the MPS-
24A/MPS-24AE power supply is powering more than one XPP-1, all these current
draws must be added together. Power is not removed from these terminals during a
system reset. If a resettable power circuit is desired (2 amps maximum), cut JP5 on the
MPS-24A/MPS-24AE.
0DLQ3RZHU+DUQHVVDQG6XSHUYLVRU\&RQQHFWLRQV
Internal power for the XP Transponder is provided via the Power Harness, 75100 (42
inches, or 1.067 meters) or 75099 (16 inches, or 406.4 millimeters). Connect this
harness from P2 or P4 on the MPS-24A/MPS-24AE to plug P9 on the XP Transponder.
Connect the supervisory cable (71031) from MPS-24A/MPS-24AE plug P3 to XPP-1
plug P7. Refer to Figure 10 for MPS-24A/MPS-24AE connections.

7KH 3RZHU 6XSSOLHV The MPS-24A/MPS-24AE Main Power Supply
14 XP Series Transponder PN 15888:G 6/11/98
)LJXUH  7KH 036$036$( 0DLQ 3RZHU 6XSSO\
7KH2SWLRQDO0DLQ3RZHU0HWHU
The optional Main Power Meter (MPM-2)
can be installed on the Main Power Supply
(MPS-24A/MPS-24AE only). One scale on
the MPM-2 provides an indication of the
voltage across the batteries in the system. A
second scale indicates the battery charging
current in amps. Refer to Figure 11 for
installation steps.
3ULPDU\ 3RZHU
 9$&  +=  DPSV PD[ 036$
 9$&  +]  DPSV PD[ 036
$(
6
HFRQ
G
DU\
3
RZHU
 9'& VXSHUYLVHG DQG SRZHUOLPLWHG
)DVW FKDUJH  DPSV WULFNOH FKDUJH  P$
)RXUZLUH 6PRNH 'HWHFWRU 3RZHU
 9'&   P9
ULSSOH  DPS PD[ )LOWHUHG
UHVHWWDEOH 3RZHUOLPLWHG EXW PXVW
EH VXSHUYLVHG YLD D 3RZHU
6XSHUYLVLRQ 5HOD\
030 9ROWPHWHU$PPHWHU &RQQHFWRU
-3  0XVW EH FXW RWKHUZLVH D
VKRUW RQ WKH QRWLILFDWLRQ
DSSOLDQFH SRZHU FLUFXLW
7HUPLQDOV  DQG  ZRXOG
UHJLVWHU LQFRUUHFWO\ DV D ORVV RI
SULPDU\ $& SRZHU
-3  &XW WR PDNH QRWLILFDWLRQ
DSSOLDQFH SRZHU RQ 7%
7HUPLQDOV  DQG  D UHVHWWDEOH 
DPS PD[ FLUFXLW
/(' ,QGLFDWRUV
*URXQG )DXOW
%DWWHU\ )DLO
$& 3RZHU )DLO
1L&DG +LJK &KDUJH 5DWH
QRW XVHG ZLWK WKH ;3
7UDQVSRQGHU
&XW 5 WR GLVDEOH *URXQG )DXOW
'HWHFWLRQ
3  0DNH QR FRQQHFWLRQ KHUH
3RZHU +DUQHVVHV 3 3
&RQQHFW WR 3 RQ WKH ;33 
DPSV PD[ 3 DQG 3 FRPELQHG
RU DQ\ RWKHU PRGXOH RU ERDUG
UHTXLULQJ LQWHUQDO SRZHU
3RZHU 5LEERQ
&RQQHFWRU
&RQQHFW WR 3
RQ WKH ;33
1RWLILFDWLRQ $SSOLDQFH
$QQXQFLDWRU 3RZHU
3RZHUOLPLWHG ILOWHUHG QRQ
UHVHWWDEOH  DPSV LQ DODUP PD[
-3 PD\ EH FXW WR FRQYHUW WKLV
QRWLILFDWLRQ DSSOLDQFH SRZHU 7%
7HUPLQDOV  DQG  WR D UHVHWWDEOH 
DPS PD[LPXP FLUFXLW 7KLV RXWSXW
FDQ DOVR EH XVHG WR SRZHU $&6 VHULHV
DQQXQFLDWRUV GR QRW FXW -3
+

(DUWK *URXQG
&RQQHFW WR FKDVVLV
YLD D *URXQGLQJ
&DEOH $VVHPEO\
+RW ,Q
+RW 2XW
1HXWUDO 2XW
1HXWUDO ,Q
%DWWHU\

%DWWHU\ 
+
%DWWHU\ )XVH
$$*
-3 :KHQ
HPSOR\LQJ DQ
1515
( RU &+*
5HPRWH %DWWHU\
&KDUJHU -3 PXVW
EH FXW

The MPS-24B/MPS-24BE Main Power Supply 7KH 3RZHU 6XSSOLHV
XP Series Transponder PN 15888:G 6/11/98 15
)LJXUH  ,QVWDOOLQJ DQ 2SWLRQDO 0DLQ 3RZHU 0HWHU
7KH036%036%(0DLQ3RZHU6XSSO\
The MPS-24B/MPS-24BE Main Power Supply is capable of powering the
XP Transponder continuously during an alarm and non-alarm conditions. A total of
750 mA @ 24 VDC filtered is available from the MPS-24B/MPS-24BE Main Power
Supply for operating the system during standby conditions.
1RWH )LJXUH  LOOXVWUDWHV FRQQHFWLRQV IRU SULPDU\ DQG VHFRQGDU\ SRZHU WR WKH 036%036%(
0DLQ 3RZHU 6XSSO\
&RQQHFWLQ
J
WKH3ULPDU
\
3RZHU6RXUFH
The MPS-24B requires 120 VAC, 50/60 Hz primary power and the MPS-24BE requires
220/240 VAC, 50/60 Hz primary power. With the circuit breaker at the main power
distribution panel turned off, remove the plastic insulating cover from TB1 on the MPS-
24B/MPS-24BE and connect the system primary power source. Connect the service
ground to TB1-2 on the MPS-24B/MPS-24BE. Connect Earth Ground from the power
supply to the cabinet with a Chassis Ground cable (71073) to TB1-2. Connect the AC
neutral line to TB1-3 and the AC Hot line to TB1-4 on the MPS-24B/MPS-24BE. Do
not route AC wiring in the same conduit as other XP Transponder circuits. After
completion of these connections, reinstall the plastic insulating cover over the terminal
block. Leave the main power breaker off until the entire XP Transponder is complete.
&RQQHFWLQ
J
WKH6HFRQGDU
\
3RZHU6RXUFH9'&
Secondary power (batteries) is required to support the XP Transponder during loss of
primary power. These batteries reside in the cabinet or in a separate NR45-24/NR45-
24E Remote Battery Charger cabinet. Connect the Battery Positive Cable to TB3-1 (+)
and the Battery Negative Cable TB3-2 (-) on the MPS-24B/MPS-24BE.
1RWH 'R QRW FRQQHFW WKH %DWWHU\ ,QWHUFRQQHFW &DEOH DW WKLV WLPH 7KLV FRQQHFWLRQ ZLOO EH PDGH MXVW
DIWHU LQLWLDO SULPDU\ V\VWHP SRZHUXS
Step 1
Remove the two screws in the bottom left-
hand corner of the MPS-24A/MPS-24AE
Step 2
Feed long screws through the MPM-2 and
standoffs, as shown at right. Fasten screws
in holes that were opened in Step 1.
Step 3
Complete the installation of the MPM-2
by plugging the female connector on the
meter cable into Plug P7 on the MPS-24A/
MPS-24AE

7KH 3RZHU 6XSSOLHV The MPS-24B/MPS-24BE Main Power Supply
16 XP Series Transponder PN 15888:G 6/11/98
*URXQG)DXOW'HWHFWLRQ
The MPS-24B/MPS-24BE automatically employs Ground Fault Detection (required in
Canada) unless resistor R55 is removed. This feature must be disabled on all but one
power supply if multiple power supplies are present and share a common signal
reference.
5HVHWWDEOH)RXU:LUH6PRNH'HWHFWRU3RZHU  9'&  P$ 3RZHU
OLPLWHG
Up to 200 mA of current for 24 VDC four-wire smoke detectors can be drawn from
TB2 Terminals 1 (+) and 2 (-) on the MPS-24B/MPS-24BE. Power is removed from
these terminals momentarily during system reset (unless jumper JP1 is removed to
configure the output for continuous annunciator power). This filtered four-wire smoke
detector power is power limited but must be supervised via an end-of-line power
supervision relay. This power supervision relay is energized by the four-wire smoke
detector power and the relay contact must be wired in series with an XPM-8 or XPM-
8L IDC.
0DLQ3RZHU+DUQHVV&RQQHFWLRQV
Internal power for the XP Transponder is provided via the Power Harness 75100 or
75099. Connect this harness from P2 on the MPS-24B/MPS-24BE to P9 on the XPP-1.
Supervisory information is transferred between the XPP-1 and the MPS-24B/MPS-
24BE through the Supervisory Power Ribbon Cable (71031) which is connected from
P7 on the XPP-1 to P3 on the MPS-24B/MPS-24BE.
