i
SAFETY INSTRUCTIONS
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or damage the equipment.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or damage the equipment.
The voltage rating of the equipment appears
on the label above the power connector.
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Standard
compass Steering compass
FA-1501
FA-1502
GVA-100
0.3 m 0.3 m
DB-1
0.3 m 0.3 m
PR-240-CE
0.9m 0.6 m
Attach securely protective
earth to the ship's body.
The protective earth is required
to the power supply to prevent
electrical shock.
UAIS Transponder
Monitor unit
1.2 m 0.8 m
0.45 m 0.3 m

ii
TABLE OF CONTENTS
SYSTEM CONFIGURATION................................................................................iii
EQUIPMENT LISTS............................................................................................. iv
1. MOUNTING.......................................................................................................1
1.1Antenna Units..................................................................................................................1
1.1.1 GPS antenna unit ...............................................................................................1
1.1.2 VHF antenna ......................................................................................................3
1.1.3 GPS/VHF combined antenna ..............................................................................5
1.2 Monitor Unit.....................................................................................................................8
1.3 UAIS Transponder.........................................................................................................10
1.4 Power Supply (option)...................................................................................................11
1.5 Pilot Plug (option)..........................................................................................................11
2. WIRING ........................................................................................................... 12
2.1 Connection....................................................................................................................12
2.2 Changing Ship’s Mains Specifications............................................................................17
3. SETTING AND ADJUSTMENT....................................................................... 18
3.1 Setting MMSI IMO No., Name and Call Sign .................................................................18
3.2 Setting GPSAntenna Position.......................................................................................20
3.3 Setting Ship Type ..........................................................................................................21
3.4 Setting I/O Port..............................................................................................................21
4. ATTACHING LAN KIT (OPTION)....................................................................25
5. IEC61162-1/2 DATA SENTENCES ................................................................. 27
OUTLINE DRAWINGS...................................................................................... D-1
INTERCONNECTION DIAGRAM ......................................................................S-1

iii
SYSTEM CONFIGURATION
: Standard
: Option
GPS/VHF
combined antenna
GVA-100
GPS antenna
GSC-001
GPA-017S
Distributor unit
DB-1
VHF antenna
Power suppy
PR-240-CE
100-115/
200-230 VAC
1
φ, 50/60Hz
12-24 VDC
: Local supply
Either
24 VDC
MONITOR UNIT
FA-1502
12-24 VDC
UAIS TRANSPONDER
FA-1501
External display, NAVNET2, Pilot plug unit
Sensor
PC, BEACON RECEIVER
Alarm system
UNIVERSAL AIS
STATUS
NAV
FA-150
PWR
DISP DIM
MENU ENT
LAN
Category of the units
GSC-001 Exposed to the weather
GPA-017S Exposed to the weather
GVA-100 Exposed to the weather
FA-1501 Protected from the weather
FA-1502 Protected from the weather
DB-1 Protected from the weather
PR-240-CE Protected from the weather

i
v
EQUIPMENT LISTS
Standard supply
No. Name Type Code no. Qty Remarks
1 UAIS Transponder FA-1501 - 1
2 Monitor Unit FA-1502 - 1
GSC-001 -
GPS Antenna GPA-017S -
3
GPS/VHF Combined Antenna GVA-100 -
1 Select one.
MJ-A10SPF0012-050 000-150-216 1 Cable for FA-1501
CP24-00501 005-955-550 For FA-1501
CP24-00400 000-041-980 1
For FA-1502
CP14-06001 & Cable
MJ-A3SPF0013-035
CP24-00101 005-950-730 1 For DB-1
CP24-00141 005-952-330 1 For GVA-100
4 Installation Materials
CP24-00502 005-955-560 1 For GPA-017S/GSC-001
5 Accessories FP14-02801 004-366-960 1 For FA-1502
6 Spare Parts SP24-00101 - 1 For FA-1502
Optional supply
No. Name Type Code no. Remarks
1 Monitor unit FA-1502 -
CP20-02700 004-381-160 8D-FB-CV(30m)+CP20-02701
2 Antennacableset CP20-02710 004-381-170 8D-FB-CV(50m)+CP20-02701
CP24-00300 000-041-938 8D-FB-CV(30m)+CP24-00301
3 Antennacableset CP24-00310 000-041-939 8D-FB-CV(50m)+CP24-00301
4 Coaxial cable TNC-PS-3D-15 000-133-670 TNC-TNC, 15m
5 Mast mount fixture CP20-01111 004-365-780 For GSC-001
6 Right-angle antenna base No.13-QA330 000-803-239 For GSC-001
7 L-angle antenna base No.13-QA310 000-803-240 For GSC-001
8 Antenna base for rail mount No.13-RC5160 000-806-114 For GSC-001
9 Whip antenna FAB-151D 000-572-029 For Japan only
10 Antenna fixing bracket 4-310071 000-572-184 For FAB-151D
11 Whip antenna 150M-W2VN 000-113-498 For outside Japan
12 AC-DC power supply PR-240-CE - Include installation materials CP24-00151*
13 Pilot plug OP24-3 000-053-911
14 AD-100 AD-100 - For gyrocompass
MJ-A10SPF 0012-050 000-150-216 5m
MJ-A10SPF 0012-100 000-150-217 10m
MJ-A10SPF 0012-250 000-150-218 25m
MJ-A10SPF 0012-500 000-150-219 50m
15
Cable assy.
MJ-A10SPF 0012-1000 000-150-220 100m
Transponder-display,
connector attached at one end
Flush mount kit S OP20-17 000-040-720
16 Flush mount kit F OP20-29 000-041-405 For monitor unit
17 ɸ80 Mast mount kit OP24-5 005-954-510 For GVA-100
18 GPS antenna GSC-001-FA-T -
19 LAN kit OP24-8 005-956-020 See page 25.

1
1. MOUNTING
1.1 Antenna Units
1.1.1 GPS antenna unit
Install the GPS antenna unit referring to the drawing on page D-1 at the back of this
manual. When selecting a mounting location for the antenna, keep in mind the
following points.
• Select a location out of the radar beam. The radar beam will obstruct or prevent
reception of the GPS satellite signal.
• There should be no interfering object within the line-of-sight to the satellites. Objects
within line-of-sight to a satellite, for example, a mast, may block reception or prolong
acquisition time.
• Mount the antenna unit as high as possible to keep it free of interfering objects and
water spray, which can interrupt reception of GPS satellite signal if the water freezes.
Extending antenna cable
Three types of antenna cable extensions are optionally available.
a) Antenna cable set CP20-02700
Antenna Unit
Antenna Cable
30m 1 m
Fabricate locally. (See next page.)
N-P-8DFB
FA-1501
: Connector
Conversion
Cable Assy.
NJ-JP-3DXV-1
TNCP-NJ
0.6m
◆ Waterproofing connector
Wrap connector with vulcanizing tape and then vinyl tape. Bind the tape end with
a cable-tie.
Waterproofing connector
b) Antenna cable set CP20-02710 (8D-FB-CV, 50m)
Connect the cable the same as a) above.
c) Cable type RG-10/UY (shipyard supply)
Note: The length of this cable should be less than 20 m to prevent signal loss.
The coax. coupling cable assy.(type: NJ-TP+3DXV-1, code no.
000-123-809), coaxial connector(N-P-8DFB; supplied), vulcanizing tape
and vinyl tape are required. Fabricate both ends of the cable as shown in
the figure on the next page.

2

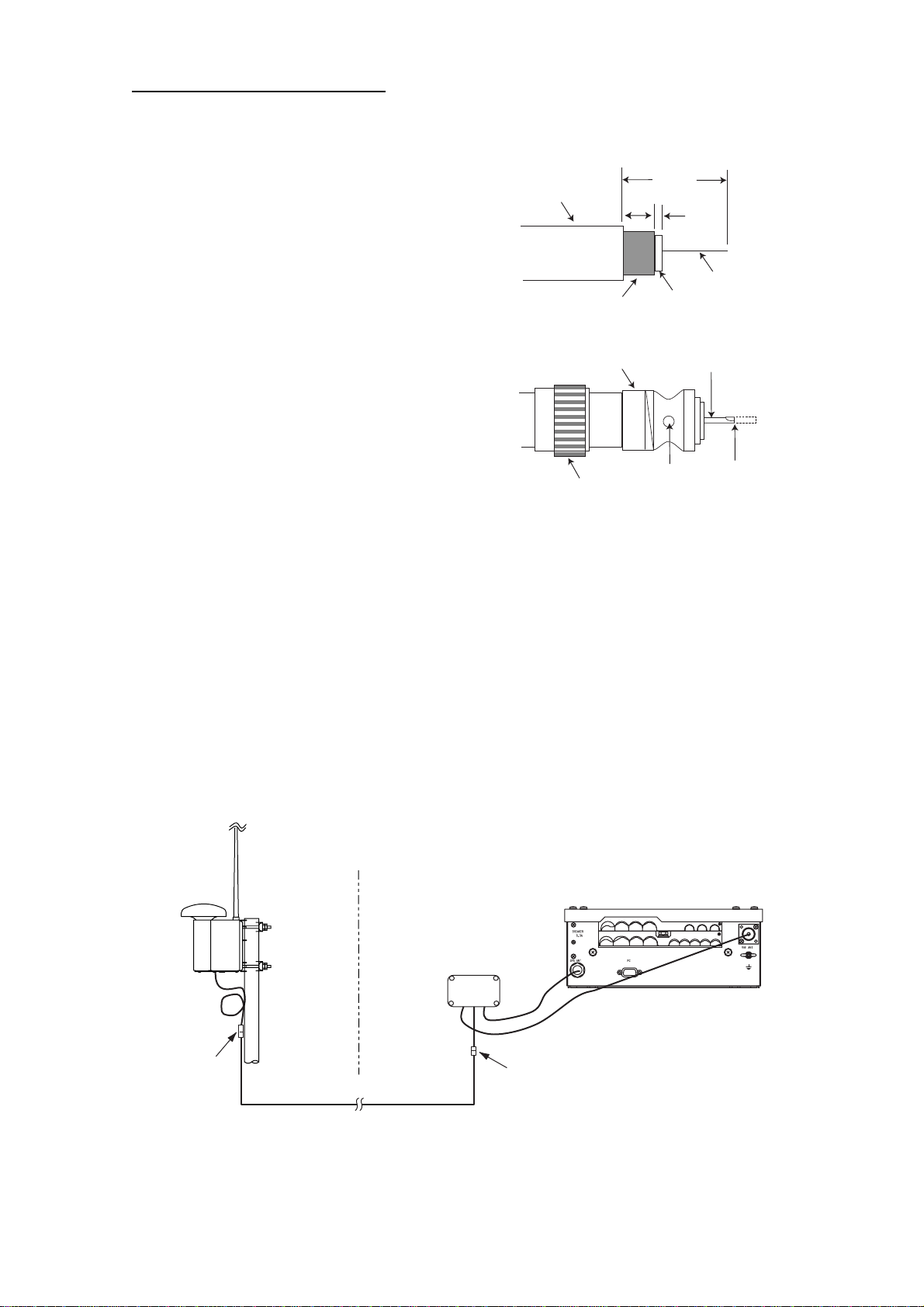

How to attach the connector N-P-8DFB for cable 8D-FB-CV
Outer SheathArmor Dimensions in millimeters.
Inner Sheath Shield Remove outer sheath and armor by the dimensions
shown left.
Expose inner sheath and shield by the dimensions
shown left.
Cut off insulator and core by 10mm.
Twist shield end.
Slip on clamp nut, gasket and clamp as shown left.
Fold back shield over clamp and trim.
Cut aluminum foil at four places, 90°from one
another.
Fold back aluminum foil onto shield and trim.
Expose the insulator by 1mm.
Expose the core by 5mm.
Slip the pin onto the conductor. Solder them together
through the hole on the pin.
Insert the pin into the shell. Screw the clamp nut into
the shell.
(Tighten by turning the clamp nut. Do not tighten by
turning the shell.)
Cover with heat-shrink tubing and heat.
30 10
Clamp
Nut Gasket
(reddish
brown)
Clamp
Aluminum Foil
Trim shield here.
Trim aluminum
tape foil here.
Insulator
1
5
Clamp Nut Pin
Shell
Solder through
the hole.
50 30
How to attach connector N-P-8DFB

3
1.1.2 VHF antenna
Location
The location of the mandatory AIS VHF-antenna should be carefully considered.
Digital communication is more sensitive than analog/voice communication to
interference created by reflections in obstructions like masts and booms. It may be
necessary to relocate the VHF radiotelephone antenna to minimize interference
effects.
To minimise interference effects, the following guidelines apply:
• The AIS VHF antenna should be placed in an elevated position that is as free as
possible with a minimum of 0.5 meters in the horizontal direction from constructions
made of conductive materials. The antenna should not be installed close to any large
vertical obstruction. The objective for the AIS VHF antenna is to see the horizon
freely through 360 degrees.
• The AIS VHF antenna should be installed safely away from interfering high-power
energy sources like radar and other transmitting radio antennas, preferably at least 3
meters away from and out of the transmitting beam.
• There should not be more than one antenna on the same plane. The AIS VHF
antenna should be mounted directly above or below the ship’s primary VHF
radiotelephone antenna, with no horizontal separation and with a minimum of 2.8
meters vertical separation. If it is located on the same plane as other antennas, the
distance apart should be at least 10 meters.
Cabling
• The cable should be kept as short as possible to minimize signal attenuation.
Coaxial cables equal to or better than RG10U/Y are recommended.
• All outdoor-installed connectors on coaxial cables should be fitted with preventive
isolation such as vulcanizing tape to protect against water penetration into the
antenna cable.
• Coaxial cables should be installed in separate signal cable channels/tubes and at
least 10 cm away from power supply cables. Crossing of cables should be done at
right angles (90°). The minimum bend radius of the coaxial cable should be 5 times
the cable's outer diameter.
• Install the VHF whip antenna referring to the outline drawing at the back of this
manual. Separate this antenna from other VHF radiotelephone antennas as shown
on the next page to prevent interference to the FA-150.

4
• When coaxial cable RG-10U/Y (shipyard supply) is used, attach the coaxial plug
M-P-7 (dockyard supply) as shown on the next page.
Horizontal separation distance
More than 10 m
More than 0.5 m
More than
2.8 m
Vertical separation distance
Other VHF whip antenna
Whip antenna for AIS
(GPS/VHF combined
antenna)

5
How to attach the plug M-P-7
Lay the coaxial cable and attach an M-type plug (if necessary) to the cable as
follows.
1. Remove the sheath by 30 mm.
2. Bare 23 mm of the center conductor. Trim
braided shield by 5 mm and tin.
3. Slide coupling ring onto cable.
4. Screw the plug assembly on the cable.
5. Solder plug assembly to braided shield
through solder holes. Solder contact sleeve
to conductor.
6. Screw coupling ring into plug assembly.
1.1.3 GPS/VHF combined antenna
Install the combined antenna unit referring to the outline drawing. When selecting a
mounting location for the antenna, keep in mind the following points.
• Select a location out of the radar beam. The radar beam will obstruct or prevent
reception of the GPS satellite signal.
• There should be no interfering object within the line-of-sight to the satellites. Objects
within line-of-sight to a satellite, for example, a mast, may block reception or prolong
acquisition time.
• Mount the antenna unit as high as possible. Mounting it this way keeps it free of
interfering objects and water spray, which can interrupt reception of GPS satellite
signal if the water freezes.
• Also, refer to the antenna installation guidelines page 3.
Outdoor Indoor
N-P-8DFB
N-P-8DFB
Distributor DB-1
GPS UAIS Transponder
VHF
RG-10U/Y
Installation overview of GPS/VHF combined antenna
Sheath
30 mm
5 mm 2 mm
Conductor
Insulator
Braided shield
Plug assembly Contact sleeve
Cut conductor here.
Solder both
sides of hole.
Coupling ring

6
Mounting procedure
1. Dismount the bottom cover, cut the cable-tie inside the unit and take out the
coaxial connector attached to the combined box.
2. Loosen four screws to loosen whip antenna fixture and pull out the coaxial
connector coming from the combined box through the hole in the whip antenna
fixture.
3. Connect the coaxial connector to the whip antenna base and wrap the junction
part of the whip antenna with vulcanizing tape and then vinyl tape for
waterproofing.
4. Insert the whip antenna from the top of the combined antenna.
5. Secure the whip antenna with whip antenna fixture.
6. Using a new plastic band (supplied), secure the cables and coaxial connector
inside the antenna case.
7. Mount the bottom cover.
8. Fix the GPS/VHF combined antenna to the ship’s stanchion (40 to 50 mm
diameter) with antenna fixing brackets, flat washers and hex. nuts.
Note: Coat the exposed parts of bolts and nuts with silicon sealant.
Antenna fixing bracket
Loosen four screws.
(M5x16)
Bottom cover
Combined box
Whip antenna fixture
GPS/VHF Combined antenna

7
Stanchion
Thetopofthestanchioncomes
intocontactwiththeflange.
Installing distributor unit DB-1
The length of the cable between the distributor unit and transponder unit is 1 m so
locate the distributor unit within 1 m from the transponder unit. Fix the distributor
unit on the bulkhead, facing the cable entrance downward. Remove the lid of the
distributor unit and secure the unit with two self-tapping screws.
Self-tappingscrew
(4x30)
Note: Be sure no foreign material or water enters the distributor unit.

8
1.2 Monitor Unit
The monitor unit can be installed on a desktop or flush mounted in a panel. Install it
on the chart table or near the steering place, referring to the outline drawing.
When selecting a mounting location for the monitor unit, keep the following in mind:
• Keep the unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
(Operating temperature range: -15°C to +55°C)
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as
motor, generator.
• For maintenance and checking purposes, leave sufficient space at the sides and
rear of the unit and leave slack in cables. Refer to the outline drawing.
• A magnetic compass will be affected if the unit is placed too close to it. Observe
the following compass safe distances to prevent disturbance to the magnetic
compass:
Standard compass: 0.45 meters
Steering compass: 0.3 meters
Desktop mounting
1. Fasten the hanger with four self-tapping screws (5x20).
2. Fasten the monitor unit to the hanger with two knobs.
Tabletop Overhead
Flush mounting

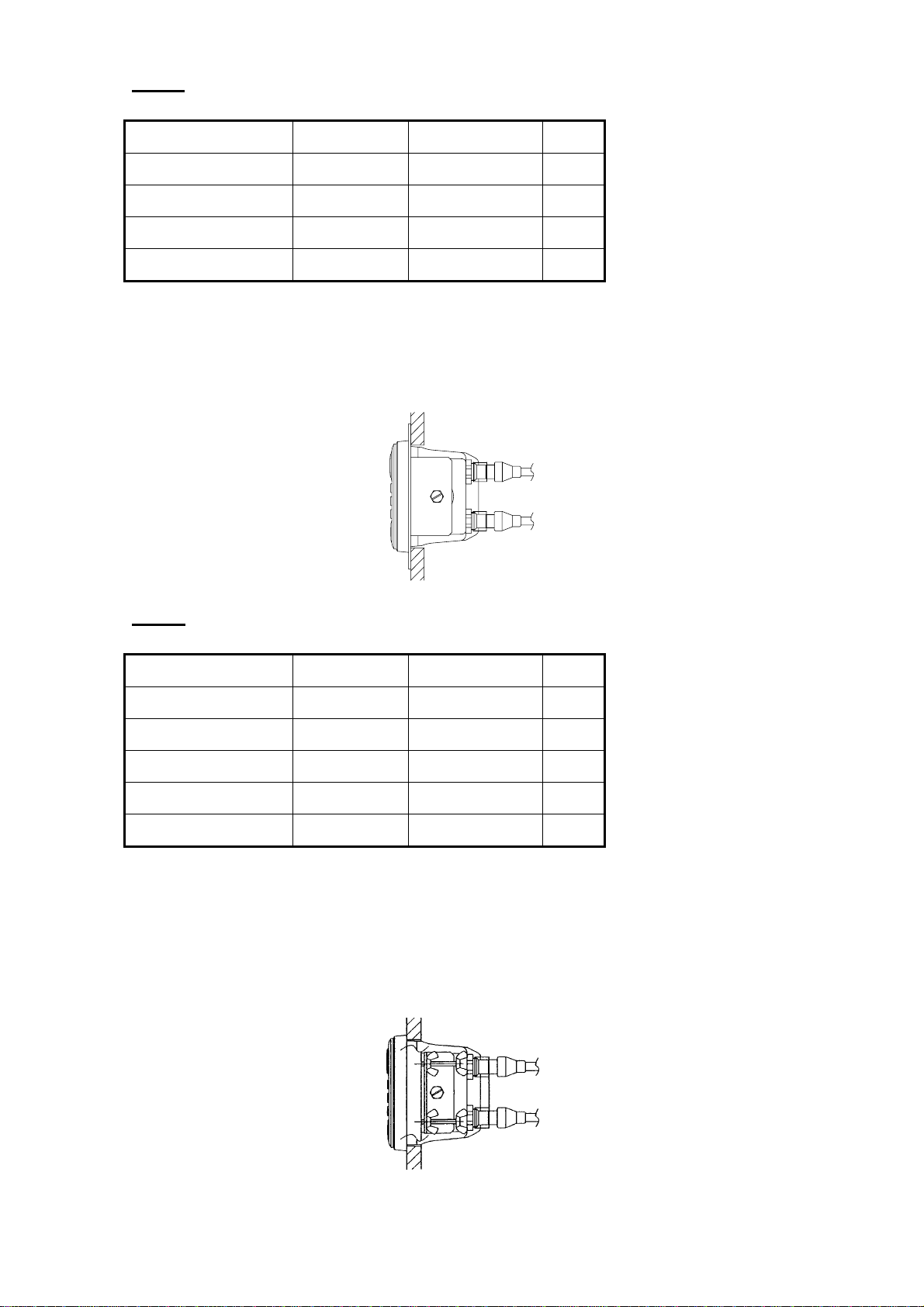

There are two types of flush mount kits, F type and S type. For details, see the
outline diagrams at the back of this manual.

9
F type
Use the optional flush mount kit OP20-29.
Name Type Code No. Qty
Cosmetic panel 20-016-1051 100-251-370 1
Self-tapping screw 5X20 000-802-840 4
Hexagon-head bolt M6X12 000-862-127 2
Spring washer M6 000-864-260 2
1. Prepare a cutout in the mounting location whose dimensions are 183 (W) X 92
(H) mm.
2. Attach the cosmetic panel (20-016-1051) to the unit with two hex head bolts
(M6X12) and two spring washers (M6).
3. Fix the unit to the mounting location with four self-tapping screws (5X20).
S type
Use the optional flush mount kit OP20-17.
.Name Type Code No. Qty
Fixing plate 20-007-2401 100-183-190 2
Hexagon-head bolt M6X12 000-862-127 2
Wing bolt M4X30 000-804-799 4
Wing nut M4 000-863-306 4
Spring washer M6 000-864-260 2
1. Prepare a cutout in the mounting location whose dimensions are 167 (W) X 92
(H) mm.
2. Insert the unit to the cutout.
3. Attach two fixing plates (20-007-2401) to the unit with two hex bolts (M6X12)
and two spring washers (M6).
4. Screw four wing bolts (M4X30) to wing nuts (M4).
5. Fasten the unit with four wing bolts and nuts.

10
1.3 UAIS Transponder
Mount the transponder, where it is protected from rain and water splash.
This unit can be installed on a bulkhead. Install it, referring to the outline drawing.
When selecting a mounting location for the transponder, keep the following in mind:
• Keep the transponder out of direct sunlight.
• The temperature and humidity should be moderate and stable.
(Operating temperature range: -15°C to +55°C)
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as
motor, generator.
• For maintenance and checking purposes, leave sufficient space at the sides and
rear of the unit and leave slack in cables. Refer to the outline drawing.
• A magnetic compass will be affected if the unit is placed too close to it. Observe
the following compass safe distances to prevent disturbance to the magnetic
compass:
Standard compass: 1.2 meters
Steering compass: 0.8 meters
Mounting
●Fix the unit with four self-tapping screws.
POWER
385 420
7
180 1
250
R3.5
405 1 7.5
180 1
2- 7Fixingholes
100

11
1.4 Power Supply (option)
When selecting a mounting location for the unit, keep the following in mind:
• Keep the unit out away from areas subject to water splash.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• A magnetic compass will be affected if the unit is placed too close to it. Observe
the following compass safe distances to prevent disturbance to the magnetic
compass:
Steering compass: 0.6 m
Standard compass: 0.9 m
Fix the unit with four self-tapping screws (4x16) to a desktop or the deck as shown
in the figure below. It is not necessary to open the cover.
1.5 Pilot Plug (option)
The pilot plug should be mounted near where the pilot steers the ship. This plug is
used to connect a PC to displayAIS information for use by the pilot. Refer to the
outline drawing at the back of this manual for mounting dimensions.

12
2. WIRING
2.1 Connection
Connect the equipment, referring to the interconnection diagram at the back this
manual.
GPS Antenna
GSC-001 or
GPS-017S
PC
150M-W2VN
or FAB-151D
Either one
RG-10U/Y
RG-10U/Y
Attached to Distributor
(approx. 1m)
Distributor unit
DB-1
AC
IN DC
IN DC
OUT
12-24 VDC
(Connect to the alternative
power source.)
100/110/115/200/
220/230 VAC
Power Supply
PR-240-CE
DPYC-2.5
GPS/VHF Conbined
Antenna GVA-100
8D-FB-CV, 30 m/50 m: Option
RG-10U/Y: Local supply
: Standard
: Option
: Local Supply
DPYC-1.5**
0.6 m
*
*
*
0.8 m
: Ground is not required.
BREAKER
6.3A
GPS ANT
PC
VHF ANT
Other external device
(See next page.)
Ground
IV-2.0sq
Transponder unit
FA-1501
*,**: See page 14.
12-24 VDC
Monitor unit
FA-1502
IV-1.25sq
MJ-A3SPF0013
3.5m
MJ-A10SPF0012
5/10/25/50/100m
IV-1.25sq
LAN

13
EXT ALM: Connect ship's alarm system.
DISP: Connect the monitor unit.
COM4
COM2
COM3
COM1
DC (-)
DC (+)
COM6
COM5
Internal ports of the Transponder
COM1: Long range communication device (Inmarsat C, etc.) or
External display (Radar,ECDIS,Pilotplug)
COM2 & COM3: External display, NAVNET 2, Pilot plug
COM4-COM6: GPS, Gyrocompass, Speedlog, ROT, etc.
Note: A plastic sheet is placed across the cable glands of the transponder to keep
out foreign material. Cut out holes in the plastic where cables are to be lead in.

14

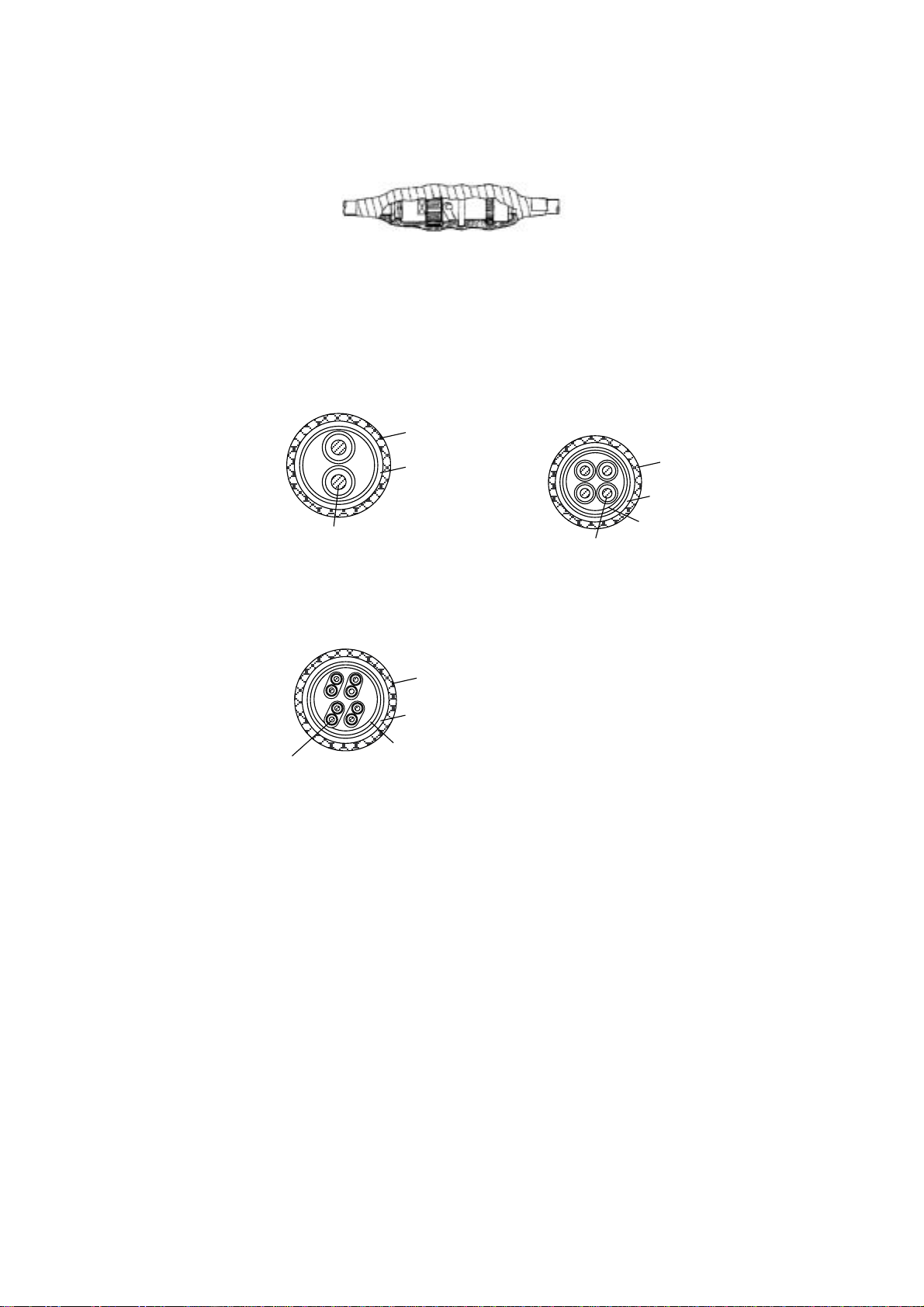

*: Waterproofing connectors
Wrap connector with vulcanizing tape and then vinyl tape. Bind the tape end with
a cable-tie.
Waterproofing connector
**: DPYC-2.5, TTYCS-1Q and TTYCS-4 are Japan Industry Standard cables.
Use them or the equivalents.
Conductor
S = 2.5 mm
φ= 2.01 mm
2
DPYC-2.5
Armor
Sheath
φ = 12.8 mm Conductor
S = 0.75 mm
φ= 1.11 mm
2
TTYCS-1Q (Four core twisted)
Armor
Shield
Sheath
φ = 11.3 mm
Conductor
S = 0.75 mm
φ= 1.11 mm 2
TTYCS-4 (Four twisted pairs)
Armor
Shield
Sheath
φ = 16.3 mm
