Planar PT1545R User manual

PT1545R / PT1545P
Touch Screen Monitor
USER’S GUIDE
www.planar.com

The information contained in this document is subject to change without notice.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be reproduced,translated to another language
or stored in a retrieval system, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission. Windows is a registered
trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective
holders.
For more information on how to recycle your product, please visit
WWW.PLANAR.COM/GREEN.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING: (FOR FCC CERTIFIED MODELS)
This LED LCD Monitor has been tested and found compliant with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
proper protection against harmful interference to a residential installation. This LED LCD
Monitor generates, uses, and can radiate radio frequency energy. Harmful interference
to radio communication may be the result if it‘s not properly installed and used. However,
there is no guarantee that interference will not occur in a particular installation. If this LED
LCD Monitor does cause serious interference to radio or television reception, resetting may
correct it. Moreover, users are encouraged to reduce interference by doing one or more of
the following:
• Reorient or relocate the receiving antenna.
• Move the LED LCD Monitor and the receiver further away from each other.
• Connect the LED LCD Monitor into an outlet on a circuit different from that to which the
receiver is connected.
• Consult your local dealer or a qualied technician.
FCC Warning:
To assure a continued FCC compliance, a user must use a grounded power supply cord and
the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized
changes or modications to this LED LCD Monitor would void the user‘s authority to operate
this device.
Note: If necessary, shielded interface cables and AC power cord must be used to meet the
emission level limits.

COMMUNIQUE D’AVERTISSEMENT DE LA FCC CONCERNANT LES
INTERFERENCE DE FREQUENCE RADIO: (SEULEMENT POUR
MODELES CERTIFIE PAR LA FCC)
Ce moniteur a été testé et à été trouvé conforme aux limites pour un appareil numérique de
Classe B, suivant la partie 15 des règlements de la FCC. Ces limites ont été développées
pour offrir une protection satisfaisante contre les interférences nuisibles dans une installation
résidentielle. Ce moniteur génère, utilise et peut radier de l’énergie de fréquence radio. Ceci
peut causer des interférences nuisibles à des communication radio si l’appareil n’est pas
convenablement installé et utilisé. Il n’y à néanmoins aucune garantie que des interférences
n’apparaîtront pas dans une installation particulière. Si ce moniteur cause de sérieuses
interférences à la réception de signaux radios ou télévisées, une possibilité est de réinitialiser
le moniteur. Les usagers sont aussi encouragés à corriger les interférences en appliquant
une ou plusieurs des démarches suivantes:
• Réorientez ou déplacez l’antenne de réception.
• Placez le moniteur et le récepteur plus loin l’un de l’autre.
• Connectez le moniteur à une prise différente de celle à laquelle le récepteur est
connecté.
• Consultez votre revendeur local ou un technicien qualié.
Avertissement de la FCC:
Pour assurez une conformité continue au règlements de la FCC, l’utilisateur doit utiliser un
cordon d’alimentation mis à terre et le câble d’interface vidéo protégé avec noyaux en ferrite,
fourni avec l’appareil. Chaque modication ou changement non-autorisé appliqué à ce
moniteur peut faire perdre à l’utilisateur sont droit d’opération de cet appareil.
Note: Si nécessaire, des câbles d’interface protégés et un cordon d’alimentation alternante
doivent être utilisé pour être conforme aux limites d’émission.

Table of Contents
Usage Notice
Precautions ............................................................................................................................ 1
Introduction
About PT1545R/PT1545P ..................................................................................................... 3
Touch Screen for PT1545R .. ................................................................................................. 4
Touch Screen for PT1545P .. ................................................................................................. 4
Package Overview ................................................................................................................. 5
Installation
Product Overview .................................................................................................................. 6
Front View .......................................................................................................................... 6
Bottom View (Without Stand) ............................................................................................ 6
VESA Mount Your Monitor...................................................................................................... 7
Start Your Installation.............................................................................................................. 8

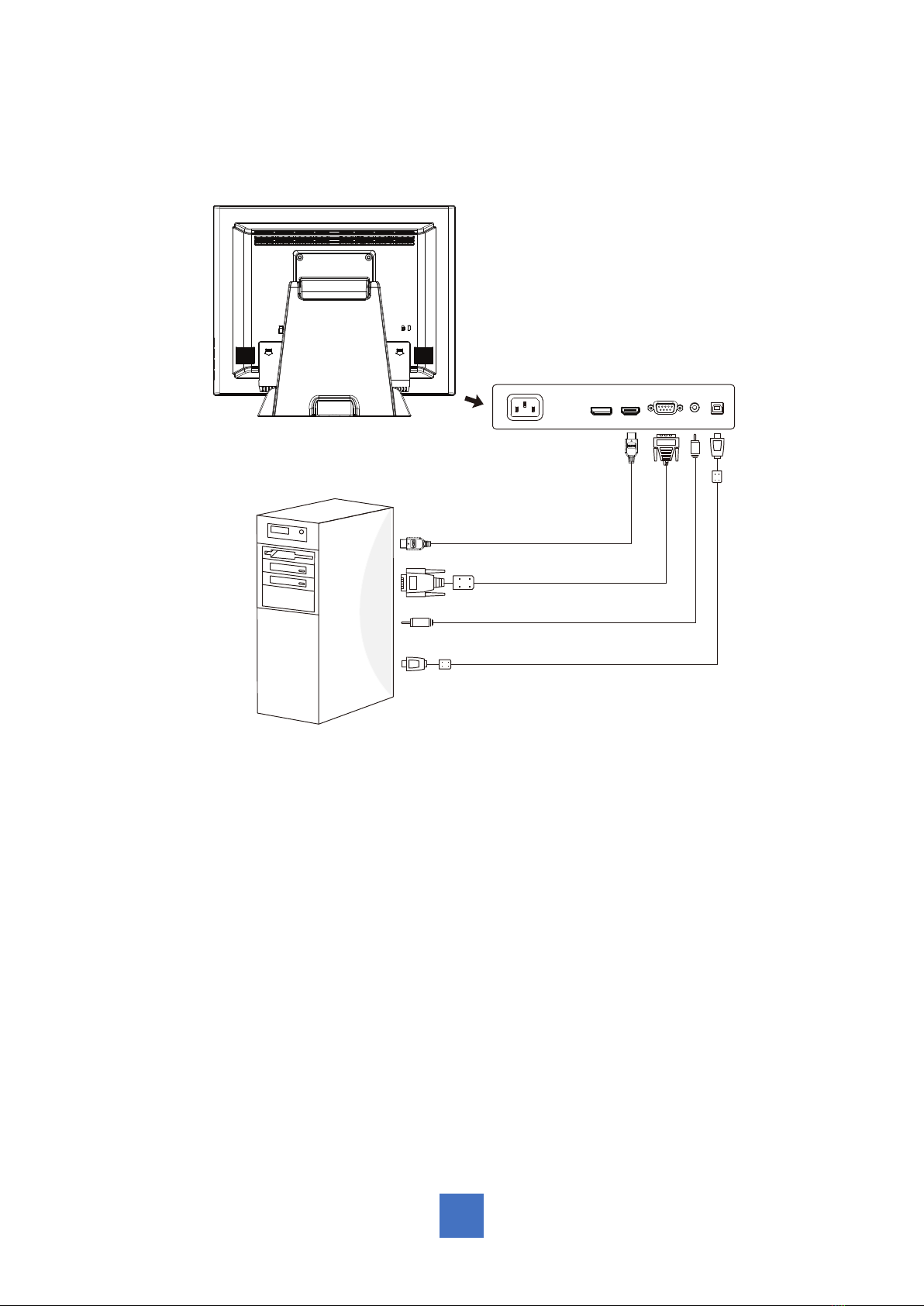

Connecting the Display(Figure 10.1)...................................................................................... 9
(Figure 10.1) .................................................................................................................... 10
Kensington Security Slot ......................................................................................................11
User Controls
Side Panel Controls ............................................................................................................. 12
How to Use the OSD Menus ................................................................................................ 13
On-Screen Display Menus.................................................................................................... 15
Appendix
Troubleshooting ................................................................................................................... 16
Warning Signal .................................................................................................................... 17
No Signal ............ .............................................................................................................17
Going to Sleep ................................................................................................................. 17
Out of Range ................................................................................................................... 17
Product Dimensions ............................................................................................................. 18
PT1545R .......................................................................................................................... 18
PT1545P........................................................................................................................... 19
Compatibility Modes ............................................................................................................. 20
Touch Screen Driver Installation .......................................................................................... 21
PT1545R Optional Calibration Tool Install........................................................................ 21
PT1545P Optional Calibration Tool Install ........................................................................ 22
PT1545R Install Instructions............................................................................................. 24
PT1545P Install Instructions............................................................................................. 26
Technical Support ................................................................................................................ 27

Usage Notice
! Warning - To prevent the risk of re or shock hazards, and do not expose the
product to moisture.
! Warning - Please do not open or disassemble the product as this may
cause electric shock.
! Warning - Power cord shall be connected to a socket-outlet with earthing
connection.
! Warning - The cable cover cannot be removed under normal use conditions.
! Warning - Stability Hazard. The touch monitor may fall, causing serious personal
injury or death. To prevent injury, this touch monitor must be securely
attached to the wall in accordance with the installation instructions.
Safety Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to
maximize the life of your unit.
Do:
• Turn off the product before cleaning.
• Surface may be cleaned using a soft clean cloth moistened with mild window glass
commercial cleaners or 50/50 mixture of water and isopropyl alcohol.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not going to be used for an
extended period of time.
Don’t:
• Do not touch the LED display screen surface with sharp or hard objects.
• Do not use abrasive cleaners, waxes or solvents for your cleaning.
• Do not operate the product under the following conditions:
• Extremely hot, cold or humid environment.
• Areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic eld.
• In direct sunlight.
• For over 16 hours per day.
• If smoke, abnormal noise or odor emits from your LED LCD Monitor, remove the power
cord immediately and call your service center.
• Never remove the rear cover of your LED LCD Monitor. The display unit inside contains
high-voltage parts and may cause electric shock.
• Never try to repair your LED LCD Monitor yourself. Always call your service center or a
qualied technician to x it.
• Due to safety concerns, if the VESA mounting kit is purchased separately, please
make sure the mounting kit is UL-listed, and replaceable only by service personnel.
1

2
! Mise en garde- Pour prévenir les risques d’incendie ou d’électrocution,
ne pas exposer le produit à l’humidité.
! Mise en garde- Prière de ne pas ouvrir ou démonter le produit, car cela
pourrait entraîner l’électrocution.
! Mise en garde- Le cordon d’alimentation doit être branché à une prise pourvue
d’une mise à la terre.
! Mise en garde- La gaine du câble ne doit pas être retirée en conditions
normales d’utilisation.
! Mise en garde- Risque de renversement. Le moniteur tactile peut se
renverser et causer de graves blessures corporelles, voire la
mort. Pour prévenir les blessures, ce moniteur tactile doit être
solidement xé au mur selon les instructions d’installation.
Consignes de sécurité
Respectez tous les avertissements, les précautions et conseils d’entretien recommandés
dans ce manuel de l’utilisateur pour maximiser la durée de vie de votre appareil.
A faire :
• Éteindre le produit avant de le nettoyer.
• La surface de l'écran tactile peut être nettoyée avec un chiffon doux et propre imprégné d’un
nettoyant doux du commerce pour vitres ou d'un mélange à 50/50 d'alcool isopropylique et
d'eau.
• Utilisez un chiffon doux imprégné d'un détergeant doux pour nettoyer le carter de
l'afchage.
• Débranchez la che d’alimentation de la prise de courant secteur si le produit ne doit pas
être utilisé pendant une période prolongée.
A ne pas faire :
• Ne touchez pas la surface de l’écran LED avec des objets coupants ou durs.
• N'utilisez pas des produits de nettoyage abrasifs, de la cire ou des solvants pour le
nettoyage.
• N’utilisez pas le produit dans les conditions suivantes :
• Environnement extrêmement chaud, froid ou humide.
• Endroits poussiéreux ou sales.
• Près d’appareils générant un fort champ magnétique.
• Sous la lumière directe du soleil.
• Plus de 16 heures par jour
• Si de la fumée, un bruit anormal ou une odeur s'échappait de votre moniteur LCD LED,
débranchez immédiatement le cordon d'alimentation et appelez votre centre de réparation.
• Ne retirez jamais le couvercle arrière de votre moniteur LCD LED. L’unité d’afchage
contient des éléments où circule un voltage élevé et présentant un risque d'électrocution.
• N’essayez jamais de réparer vous-même votre moniteur LCD LED. Faites toujours appel à
votre centre de service ou à un technicien qualié pour toute réparation.
• Pour des raisons de sécurité, si vous achetez séparément le kit de xation VESA,
assurez-vous que celui-ci est certié UL, et qu’il peut être remplacé uniquement par un
technicien qualié.

Introduction
About PT1545R/PT1545P
The PT1545R/PT1545P is a 15" at panel screen with an active matrix, thin-lm transistor
(TFT) liquid crystal display (LCD).
This unit is to be used as commercial and light industrial equipment only.
Features include:
• Analog signal input
• Dual digital signal inputs (HDMI & DP)
• Active matrix TFT LCD technology
• 1024 x 768 XGA resolution
• 15" viewable display area
• 31.5 ~ 60 KHz horizontal scan
• 56 ~ 75 Hz high refresh rate
• 0.297mm x 0.297mm pixel pitch
• Auto adjustment function
• Multilingual OSD user control
• Kensington security slot
• 100 mm VESA mount
• Removable base for exible mounting solutions.
• PT1545R - 5-wire resistive touch screen with USB controller
• PT1545P - Projected Capactive touch screen with USB controller
• Build-in audio-1W x 2
3

Touch Screen for PT1545R
• Number of Touch Points: 1
• 5-wire resistive touch screen for nger and stylus input
• Surface: Anti-glare treatment
• Interface: USB controller
• Transmittance: 82%±5%
• HID: Windows® 7/8
• Driver: VISTA, XP, 2000, CE, XP Embedded, Linux kernel 2.x.x / 3.x.x / 4.x.x / 5.x.x
(32 bit & 64 bit), Apple® Mac OS, Android 2.3.X Upwards
Touch Screen for PT1545P
• Number of Touch Points: 10
• Projected Capactive touch screen for nger input only
• Surface: Glare treatment
• Interface: USB controller
• Transmittance: 90±2%
• HID: Windows® 7/8
• Driver: VISTA, XP, 2000, CE, XP Embedded, Linux kernel 2.x.x / 3.x.x / 4.x.x / 5.x.x
(32 bit & 64 bit), Apple® Mac OS, Android 2.3.X Upwards
4

5
Package Overview
LCD Display Power Cord VGA Signal Cable
HDMI CableUSB Cable ( A to B) Audio-in Cable
Landing Strip User’s Guide
xxxxxxxxx
/
xxxxxxxxx
xxxxxxxxx
USER’S GUIDE
www.planar.com
Cable Cover Screw

Installation
Product Overview
• Front View
• Bottom View (Without Stand)
6
VGA
AC IN
USB
POWER SWITCH
AUDIO
HDMI
DP

VESA Mount Your Monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard
which denes a physical mounting interface for at panel monitors, and corresponding with
the standards of at panel monitor mounting devices, such as wall and table arms. The VESA
mounting interface is located on the back of your monitor.
To mount the monitor on an UL-listed swing arm or other mounting xture, follow the
instructions included with the mounting xture to be used.
VESA
Mounting
Interface
100.0 mm
Slots (x4)
100.0 mm 75.0 mm
! Warning!
Please select the proper screws!
The distance between the back cover surface and the bottom of the screw hole
is 11 mm. Please use four M4*16 screws diameter with proper length to mount
your monitor.
Please note: the mounting stand must be able to support at least 11 lbs ( 5Kg).
7

8
Start Your Installation
Please follow these instructions so that you can hookup the cables to associated connector.
1. Lay the display at on an even surface.
2. Move the stand into position as seen in the step 2 diagram.
3. Remove the cable cover as seen in the step 3 diagram.
4. Connect the cables to the appropriate connectors as seen in the step 4 diagram.
5. Position all cables under the cover lip as seen in the step 5 diagram.
6. Re-attach the cable cover . Remove the screw (CBM M3x6) from the accessory box, and
insert the screw into the cable cover and monitor as seen in the step 5 diagram.
HDMI
VGA
USB
AUDIO
POWER

Connecting the Display (Figure 10.1)
To setup this display, please refer to the following gure and procedures.
1. Be sure all equipment is turned off.
2. Connect the AC power cord to the power connector on the monitor and the other end
into an electrical outlet (10.1).
3. Connect the HDMI, DP or VGA cable from the display’s HDMI, DP or VGA input
connector to the HDMI, DP or VGA connector of your host computer and tighten the
screws (10.1).
4. If using VGA, connect the audio-in cable from the audio input port of your display to
the audio out port of your computer (10.1).
5. Connect the USB cable from the USB port of your display to the USB port (10.1) of
your computer.
6. Congure the touch screen. Refer to the “Touch Screen Driver Installation” section on
page 21.
7. Once the touch screen is congured, the monitor is ready for use.
! Notice!
To ensure the display works well with your computer, please congure the display
mode of your graphics card to make it less than or equal to 1024 x 768 resolution and
make sure the timing of the display mode is compatible with the display.
We have listed the compatible “Video Modes” of your display in the appendix
(on page 20) for your reference.
9

(Figure 10.1)
10

Kensington Security Slot
The monitor can be secured to your desk or any other xed object with Kensington lock
security products. The Kensington lock is not included.
11

User Controls
Side Panel Controls
Power
Icon Key Name
Menu
Up
Down
Enter
OSD
Key Menu off status Menu on status
Menu appear Exit. Returns to previous menu or exits OSD.
Brightness Main item select up/ Adjust up
Mute Main item select down/ Adjust down
Source Select or Enter. Proceeds to next menu or
conrms selection.
Power On/Off
12

How to Use the OSD Menus
Icon Key Name
Menu
Up
Down
Enter
Power
How to Operate OSD
1. Press the “MENU” button to pop up the “on-screen menu”
2. Press “Up” or “Down” button to navigate in the main menu and sub menu.
3. Choose the adjustment items by pressing the “”SELECT “ button.
4. Adjust the value of the adjustment items by pressing the “Up” or “Down” button
5. Press “SELECT” to Enter, press “MENU” to exit.
6. The OSD menu will automatically close, if left idle for a pre-set time.
Lock/Unlock OSD/Power buttons
1. To Lock or Unlock the OSD / Power buttons, press “Menu” and “Down” at the same
time. This will activate an OSD window as follows:
2. Choose to activate OSD or Power Key lock. Choose Yes or No to lock or unlock.
Note:
When the OSD Key function is locked, all the buttons except “power” button are now
disabled. When the Power Lock function is locked, the power key is disabled. User cannot
turn off the monitor by “Power” key.
Enable/Disable Touch Function
1. To disable the touch function, press “Menu” and “Enter” Key, at the same time.
2. To enable the touch function, press “Menu” and “Enter” Key, at the same time for ve
seconds.
13

14
Powering off the monitor
Powering off the monitor requires 3 presses to the power key. This is designed to prevent
accidental power off.
1. Press the power key once, an OSD window will pop up “Do you want to turn off”.
2 Press the power key again. Another OSD window will pop up “Please press the power
button again”
3. Press the power key one last time to turn off.
4. If you do not press the power key in ve seconds, the OSD window will be gone and
return to the normal status instead.
Source Select
During On mode: Pressing “Select” key for 3 seconds, will pop up “source select” OSD.
During Sleep Mode: Pressing “Select” key for 1 seconds, will pop up “source select” OSD.
Factory Mode
This mode is reserved for maintenance.

15
On-Screen Display Menus
Main OSD Menu:
ITEM CONTENT
Contrast The monitor luminance level control.
Brightness The monitor backlight level control.
H-Positon Moving screen image horizontal position to left or right.
V-Positon Moving screen image vertical position to up or down.
Phase The screen image horizontal dot clock adjustment.
Clock The screen image pixel phase adjustment.
Auto Adjust Fine-tune the image to full screen automatically.
Color Temp Color temperature selection. (9300K, 6500K, 5500K, 7500K, User)
Sharpness Adjust the screen sharpness.
OSD Timeout OSD auto-disappear time selection.
OSD Positon Moving OSD menu position.
OSD H-Positon Moving OSD menu horizontal position to left or right.
OSD V-Positon Moving OSD menu vertical position to up or down.
Reset Factory default value restored.
OSD Language OSD menu language selection. ( English, French, Deutsch, Italian,
Spanish, Japanese, Traditional Chinese and Simplied Chinese)
Source Sele Select Input function.(Auto, VGA,HDMI,DP)
Display port Display current resolution related information.
Volume Audio volume adjustment.
Mute Audio On/Off control.
Factory Factory mode related adjustment items.
