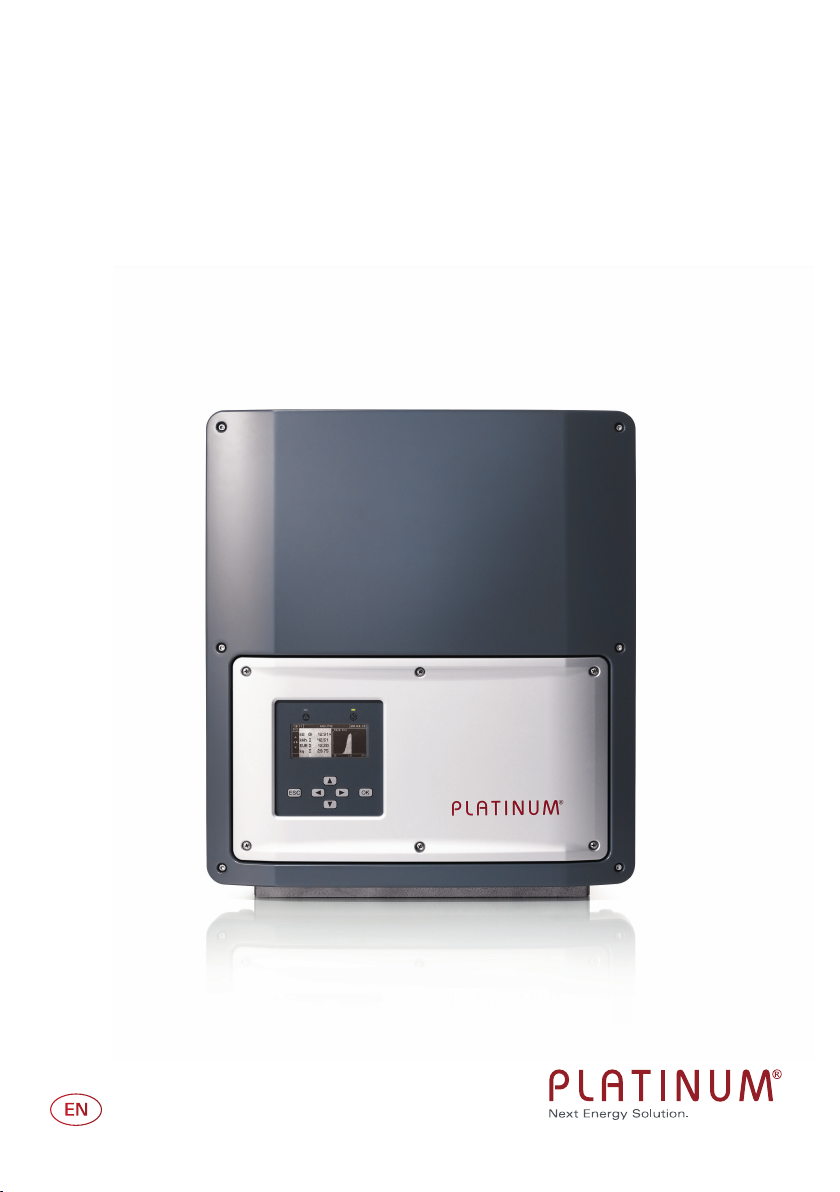

Platinum 7000 R3 User manual

Installation and user guide Inverter
7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
As at 11/2013, Mat. no. 758 266-AD
EN

2Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3

3
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Contents
1 Introduction 5
1.1 PLATINUM®R3 5
1.2 About this guide 5
1.3 Symbols used 5
1.4 Symbols on product and packaging 6
2 Safety 7
2.1 Intended usage 7
2.2 Improper usage 7
2.3 Personnel requirements 7
2.4 General safety instructions 7
3 Installation 8
3.1 Scope of delivery 8
3.2 Unpacking 8
3.3 Assembly 9
3.4 Connection 12
4 Initial operation 20
4.1 Switch on 20
4.2 Initial operation 20
4.3 Initial operation menu 21
5 Operation 25
5.1 Display 25
5.2 Operation display 26
5.3 Isolatefromgeneratoreld(DCisolator) 28
6 Menu 29
6.1 Operate and navigate in the menu 29
6.2 Menu tree 30
6.3 Settings menu 31
6.4 Information menu 33
6.5 Service menu 34
Contents

4Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
7 Maintenance and cleaning 37
7.1 Maintenance 37
7.2 Cleaning 37
8 Errors and troubleshooting 38
8.1 Error display 38
8.2 Event list 40
9 Technical data 44
10 Taking out of operation 47
11 Disposal 47
Contents

5
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Introduction
1 Introduction
1.1 PLATINUM®R3
PLATINUM®R3-series inverters are three-phase feed-in inverters for different power
ranges; see "Technical data" on page 44.

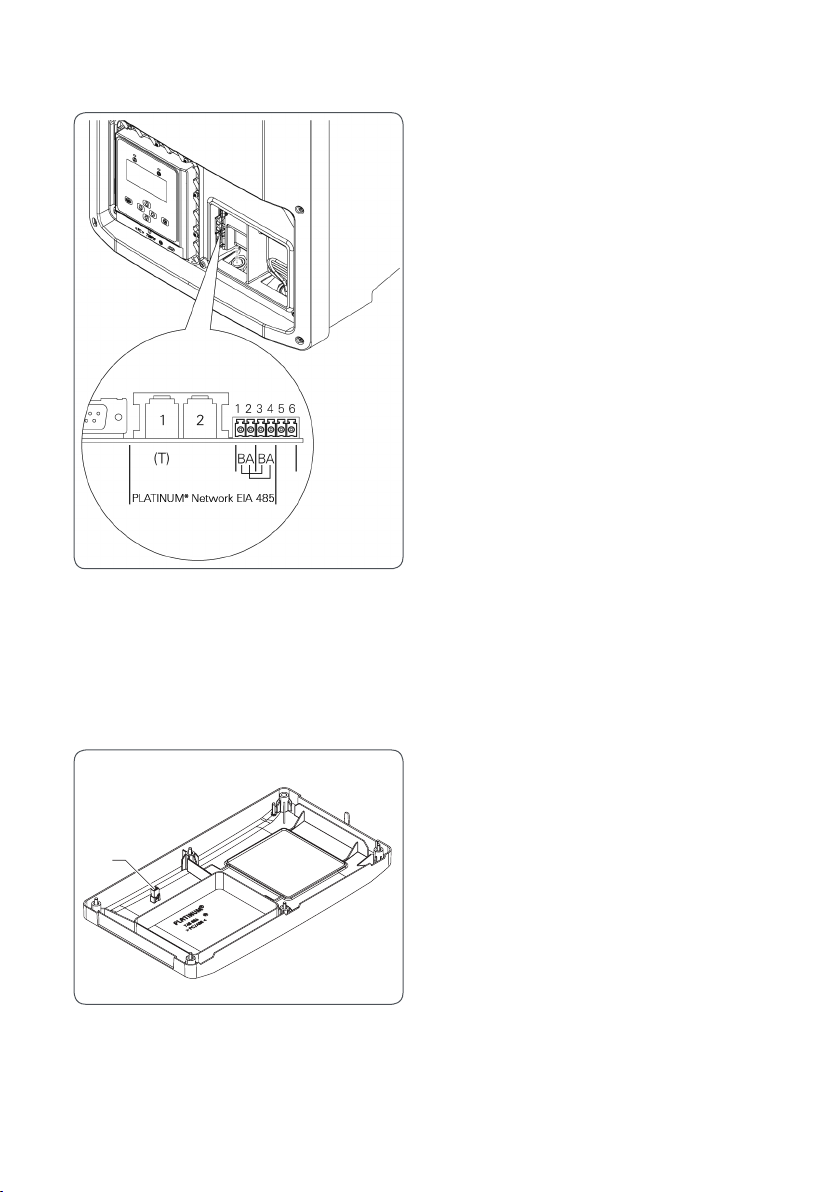

The PLATINUM®network(EIA485)canbeusedtoconnectupto50PLATINUM®
inverters to one inverter system.
Options
The following options are available to enhance an inverter or inverter system:
▪Remote monitoring/readout with PLATINUM® WebMaster
▪Evaluation of system data with PLATINUM®PV monitor
▪Remote controlled AC power reduction via an external monitoring device
1.2 About this guide
This installation and user guide explains how to
install and operate PLATINUM®inverters of type
7000 R3-MDX, 9000 R3-MDX, 11000 R3-MDX, 14000 R3-MDX, 16000 R3-MDX.
Additional documents
The following additional documents are available in the download area of our website
www.platinum-nes.com.
▪Detailed installation and user guide
▪Information on fault current protection devices
▪Complete event list for detecting/eliminating errors
▪Overview of country and grid codes
▪Declarationofconformityandcerticates
▪Manufacturer's warranty
1.3 Symbols used
1.3.1 Structure of warnings
SIGNAL WORD
Type, source and consequence of the hazard!
fMeasures to avoid the hazard.

6Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Introduction
1.3.2 Hazard levels in warnings
Symbol Warning word Probability of occurrence Consequences of non-
observance
DANGER Imminent danger Death, serious injury
WARNING Potential danger Death, serious injury
CAUTION Potential danger Minor injury
– CAUTION Potential danger Damage to property
1.3.3 Notes
Notes give tips on how to work easily and safely or contain further
information.
1.4 Symbols on product and packaging
Thefollowinglabelisafxedtotheinverter.

7
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Safety
2 Safety
2.1 Intended usage
▪Inverters are to be used solely to feed solar energy converted photovoltaically into
the public grid.
▪All other usage does not comply with the regulations.
2.2 Improper usage
▪The inverters are not to be used in island grids.
▪The inverters are not to be used in vehicles.
▪Theinvertersarenottobeusedinareasatriskofexplosion(ourdust,sawdust
etc.).
▪The inverters are not to be exposed to direct sunlight.
▪The inverters are not to be used in areas in which the ammonia content of the air
exceeds20ppm.
▪In the event that the warranty conditions and the information in this installation and
user guide are not observed, all warranty claims expire.
2.3 Personnel requirements
The inverter may only be installed and put into operation in accordance with this
installation and user guide by trained specialist personnel, for example:
▪Service partners authorised by PLATINUM®
▪Authorised specialist personnel with knowledge of the applicable guidelines and
standards
2.4 General safety instructions
▪Theinvertersaretobeusedintheiroriginalstatewithoutindependentmodications
and in a technically perfect condition.
▪Steps must be taken to ensure that the following are adhered to when assembling
and connecting the inverter and the PV system:
–Guidelines and regulations valid in the respective country
–Provisionsofthetradeassociations,TÜV,VDE(AssociationforElectrical,
Electronic&InformationTechnologies)
–Technical connection conditions of the energy supplier responsible
–National and international regulations and provisions
▪Ensure that all protection devices are working correctly.
▪Observe conditions of use; see "Technical data" on page 44.

8Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
3 Installation
3.1 Scope of delivery
▪Inverter
▪Wall bracket
▪Brief guide
3.2 Unpacking
CAUTION
The inverter weighs 45 kg!
fGet another person to help you unpack it.
fWear safety shoes when unpacking.
fEnsurethatyouhavermandsecurefooting.
1
2

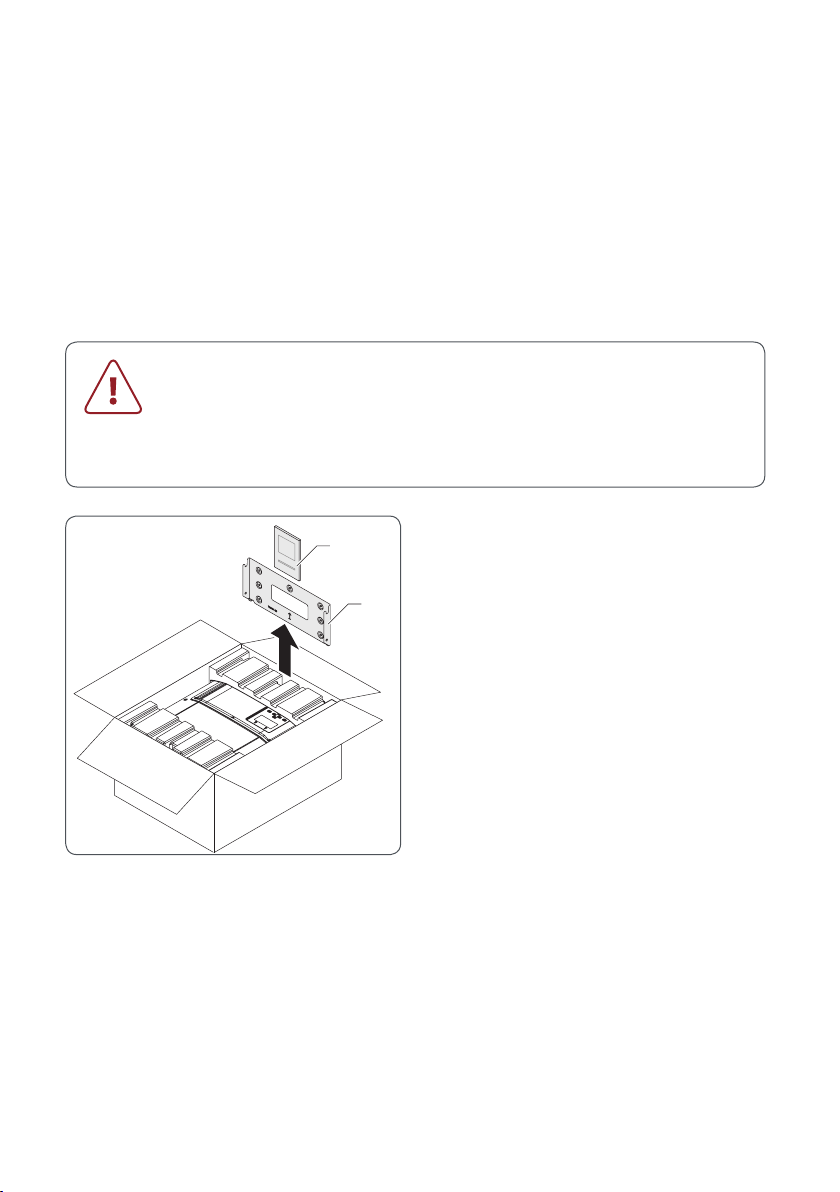

1. Open the box.
2. Pulloutthebriefguide(1)andwall
bracket(2)attheside.
3. Removetheinverter(withpadding)
from the box.

9
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
4.
6.
5.

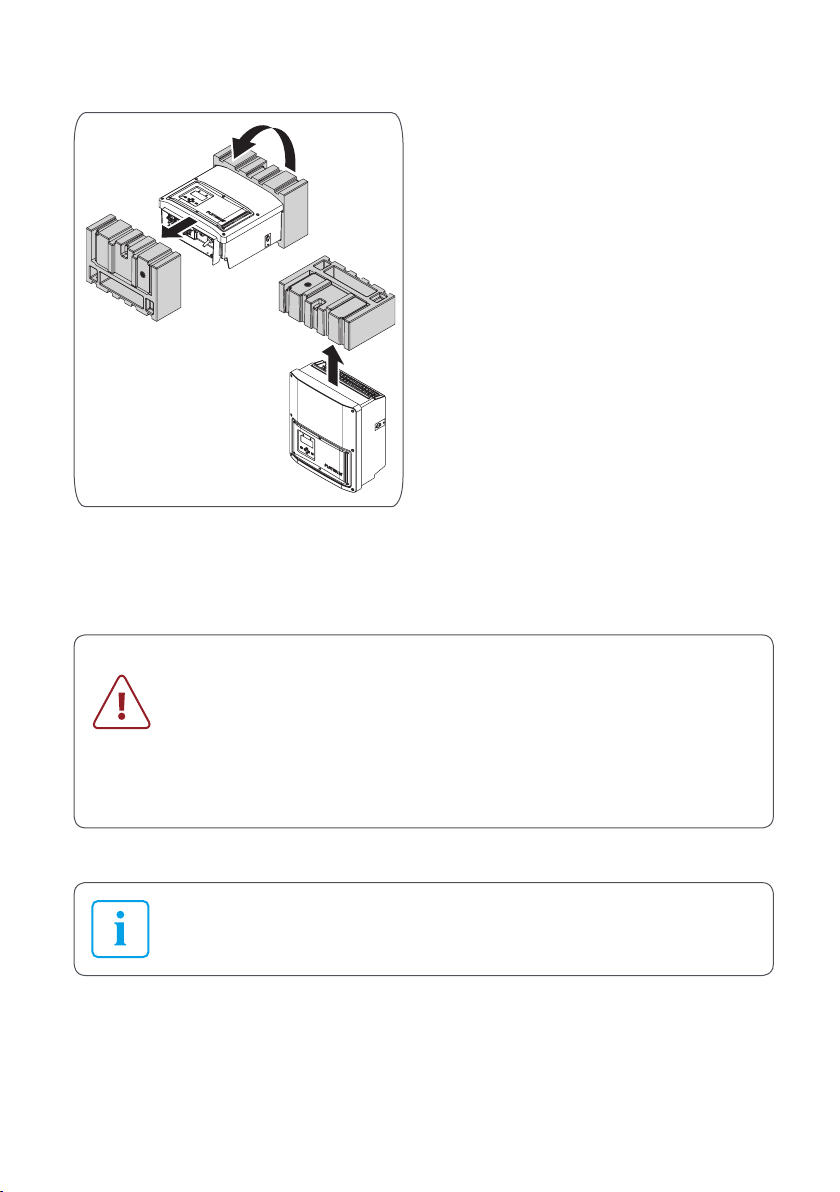

4. Remove the padding from the
underside.
5. Set the inverter down.
6. Remove the top padding.
3.3 Assembly
3.3.1 Safety instructions
WARNING
Injury may result if the inverter falls!
fUsexingmaterialssuitedtotheassemblywallandtheweightof
the inverter.
fGet a second person to help with assembly and disassembly.
fWear safety shoes during assembly and disassembly.
fEnsurethatyouhavermandsecurefooting.
3.3.2 Assembly
PLATINUM®recommends that the inverter not be installed in living
quarters.

10 Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
≥150
≥150
≥400
≥500 ~
626
≥208 ≥238.5
≥489
≥1037
≥327
547
Dimensions in mm
1. Choose a suitable location for mounting. When doing so, note the following:
–The inverter must be suspended so that it is not exposed to vibrations.
–Dimensions and distances
–Thedisplayshouldbeateyelevel(approx.1.60mofftheoor).
–The inverter must be easily accessible without additional tools or equipment.
2. Fixthewallbrackettotheassemblywallwithsuitablexingmaterials.

11
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
3
3
4
4

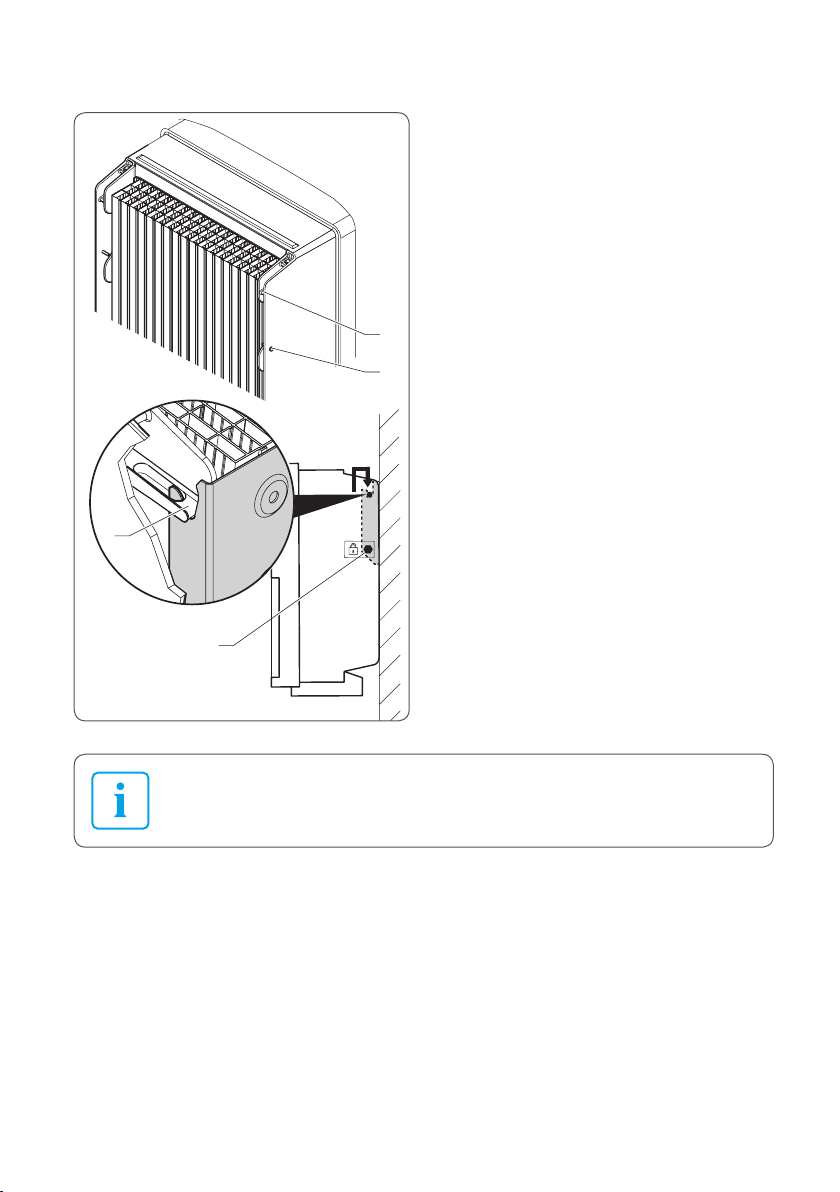

3. Loosen, but do not remove, the safety
screwsonthesides(3).
4. Hanguptheinverter(4),startingfrom
the bottom and moving upwards, by
slotting it into the wall bracket.
5. Ensurethattheinverteristted
correctly on the wall bracket.
6. Secure the inverter by tightening the
safety screws on the sides.
The 7000 R3 and 9000 R3 inverters are not equipped with the cooling
nsshownabove.

12 Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
3.4 Connection
3.4.1 Preparatory work

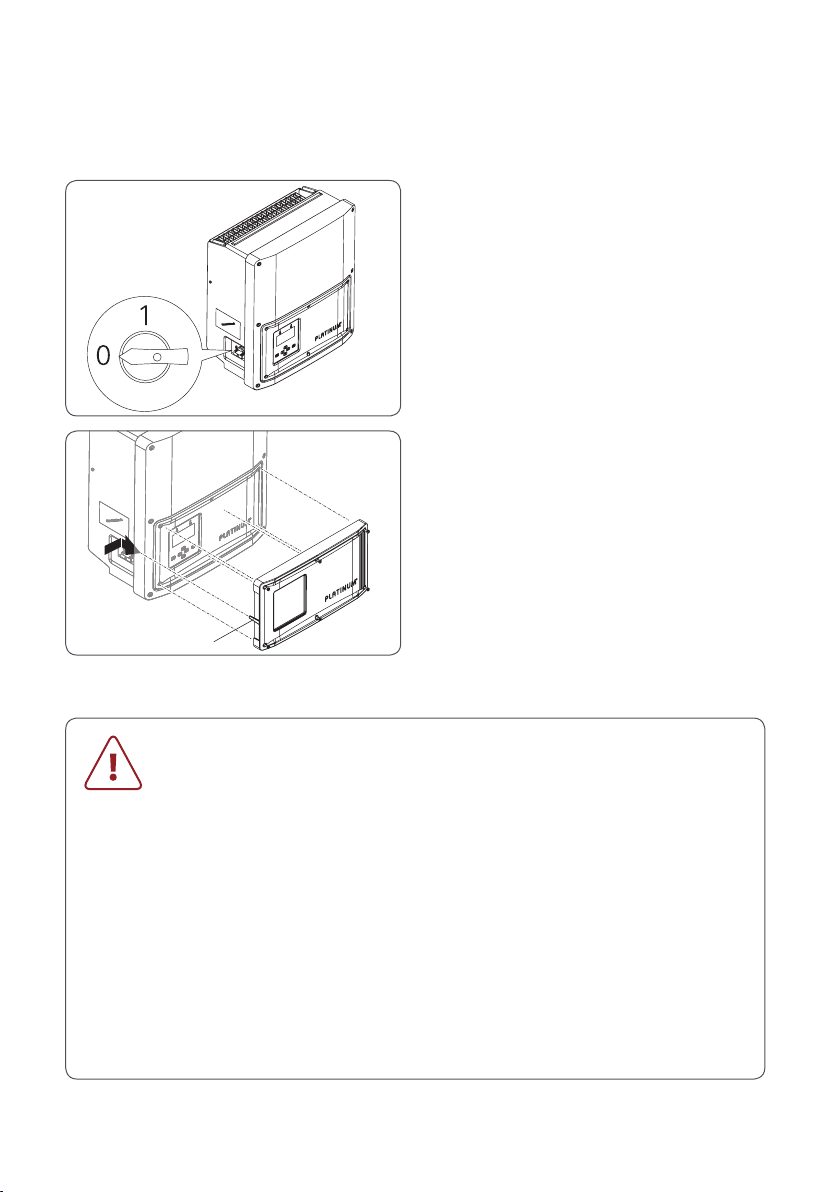

1. Move the switch knob of the DC
isolator to position 0.
5
2. Loosen 6 screws on service cover.
3. To remove the service cover, push the
nose(5)forwardsonthesideofthe
handle recess.
3.4.2 Connect the AC voltage
DANGER
Risk of death due to high AC voltage!
fSwitchoffthemainsvoltagesupply(ACside)beforeconnectingthe
inverter(safetydevice).
fMake sure that the central isolation device can be accessed freely.
fOnlyconnecttheinvertertoTNorTTnetworks(seeIEC60364-1)
with230V.
fObserve max. fuse protection permitted on the AC voltage side; see
"Technical data" on page 44.
fMake the AC voltage connection with a circuit breaker.
PLATINUM®recommends a type C miniature circuit breaker.
fIf an external residual current protective device is required,
PLATINUM®recommends using a residual current protective device
(RCD)oftypeA.

13
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
CAUTION
Destruction of the inverter!
fNever mix up the phases with PE or N.
Prepare the connection cable for the AC voltage
Dimensioning the wire cross section is the responsibility of the
electrician and depends on the cable length and installation situation.
▪Min. cross section 4 mm2
▪Max. cross section 16 mm2
1. Secure the three-phase AC voltage connection lines accordingly; see "Technical
data" on page 44.
2. Strip 18 mm of insulation from the AC voltage connection lines and add wire-end
sleeves.
Connection
6
1. UnfastentheACscrewconnection(6)
with seal from the underside of the
inverter.
2. Direct the prepared AC voltage
connection line through the AC screw
connection and seal.
3. Feed the AC voltage connection line
into the housing from below.
4. Tighten the AC screw connection.

14 Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
L1
L2
L3
PE
N
5. Connect the AC voltage connection
line in the inverter. To do so, insert the
prepared wires in the terminal board.
Terminal Assignment
L1 black phase 1
L2 black phase 2
L3 black phase 3
N blue neutral conductor
PE yellow protective conductor
3.4.3 Connect DC voltage
DANGER
Risk of death due to high DC voltage! As soon as the sun shines, volt-
age is applied to the PV modules.
fBefore connecting the inverter, check whether voltage is applied to
the generator's DC voltage connection.
fBefore connecting the inverter, check whether the polarity of the DC
voltage is correct.
fIf voltage is applied, wear insulating protective clothing and face
protection.
fEnsure that the cable plug has engaged completely with the socket.
fDetach the DC voltage cable only if the inverter is not in operation.
fMake sure that the DC isolator or a central isolation device can be
accessed freely.
fDo not earth PV modules. The inverter does not have a transformer.

15
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
CAUTION
Damage to property!

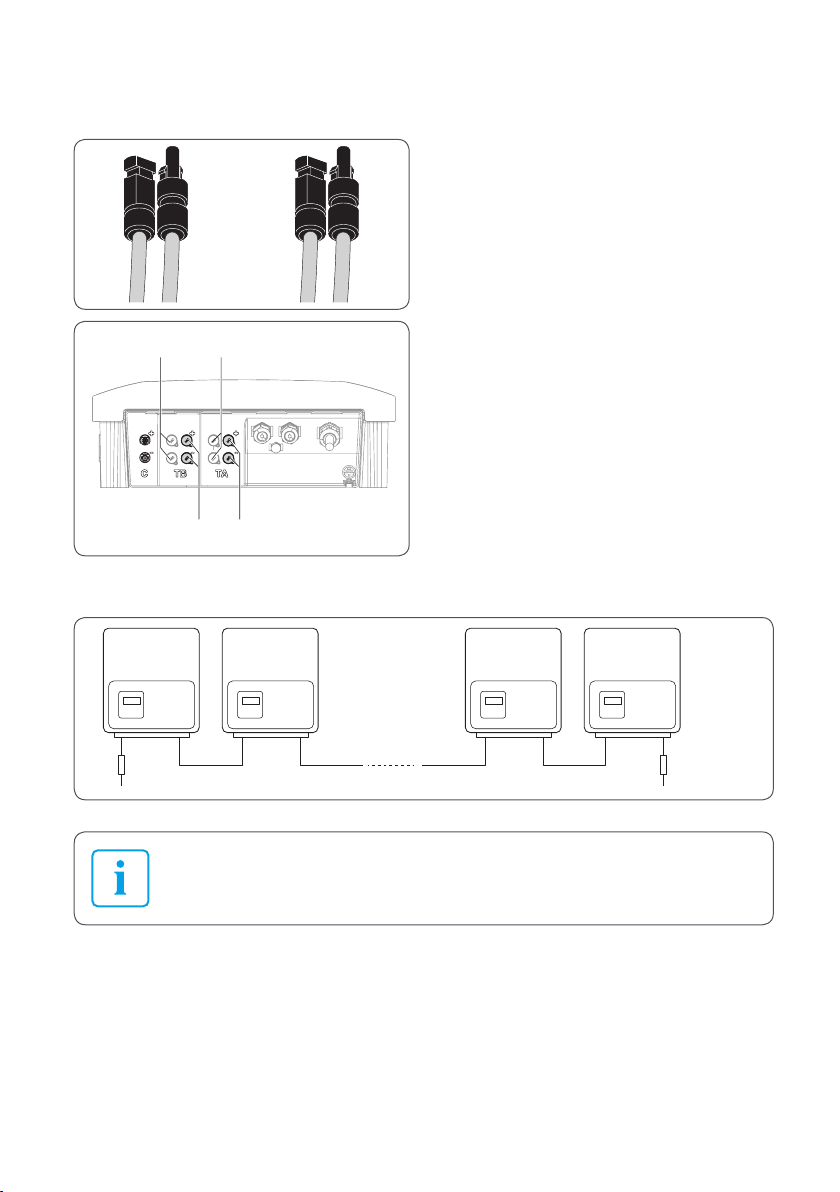

fUse only the original DC voltage Multi-Contact MC4 cable plug.
fOnly connect PV modules that meet the requirements of IEC 61730
class A.
fEnsure that the max. DC voltage permitted is not exceeded.
fEnsure that the max. direct current permitted per string is not
exceeded.
fIf national provisions require an external disconnect device, one
disconnect must be installed for TA and one for TB.
▪Ensure that the number and type of solar modules and the PV power
are the same in every string.
▪Always connect an even number of strings:
–String1(TA)andstring2(TB)
– or –
–String1andstring3(TA),string2andstring4(TB)
▪The inputs TA and TB must be symmetrically wired.

16 Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation

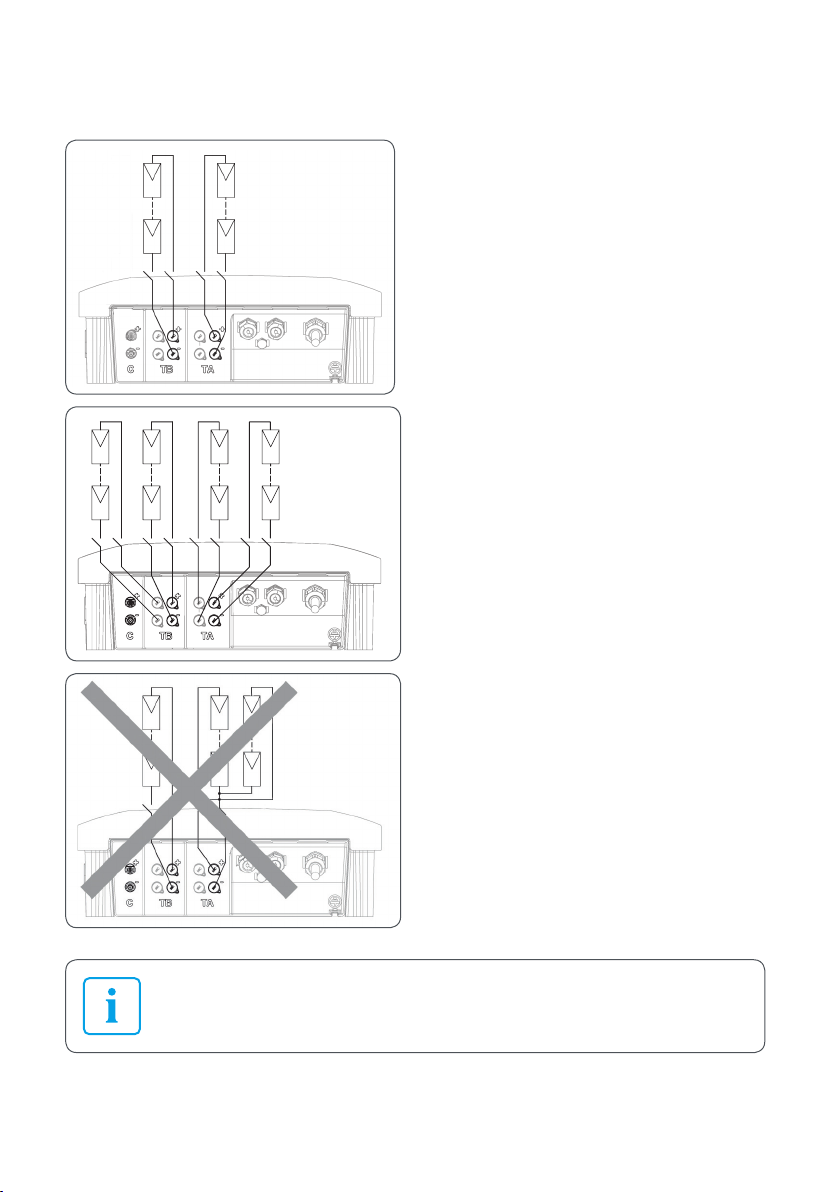

Connection examples
Example 1
▪1stringonTA(connectionsonright)
▪1stringonTB(connectionsonright)
▪Same number of PV modules on TA
and TB
Example 2
▪2 strings on TA with the same number
of PV modules
▪2 strings on TB with the same number
of PV modules
▪Same number of PV modules on TA
and TB
Incorrect!
▪Number of strings on TA and TB not
identical
▪Number of PV modules on TA and TB
not identical
Connection C is not used.

17
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
Connection
–+–+
1. Furnish the DC voltage cable for
every string with original Multi-
Contact MC4 plugs. Make sure that
the polarity is correct here.
String 3
String 1String 2
String 4
2. Remove protective caps from the
required DC connections.
3. Insert prepared DC voltage
connectors in the DC connections,
ensuring that the plugs lock in place
correctly.
4. To ensure the type of protection,
place protective caps on unused plug
connectors.
3.4.4 Connecting to the PLATINUM®network (EIA 485)
Up to 50 PLATINUM®inverters can be connected to a network together
with monitoring devices.
Network cable
▪CAT-5cablewithtwistedwiresandshielding,withprefabricatedRJ45plugs(Pin3=
BandPin6=A)
– or –
▪Twisted wire pair of a CAT-5 cable

18 Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
Connection
87

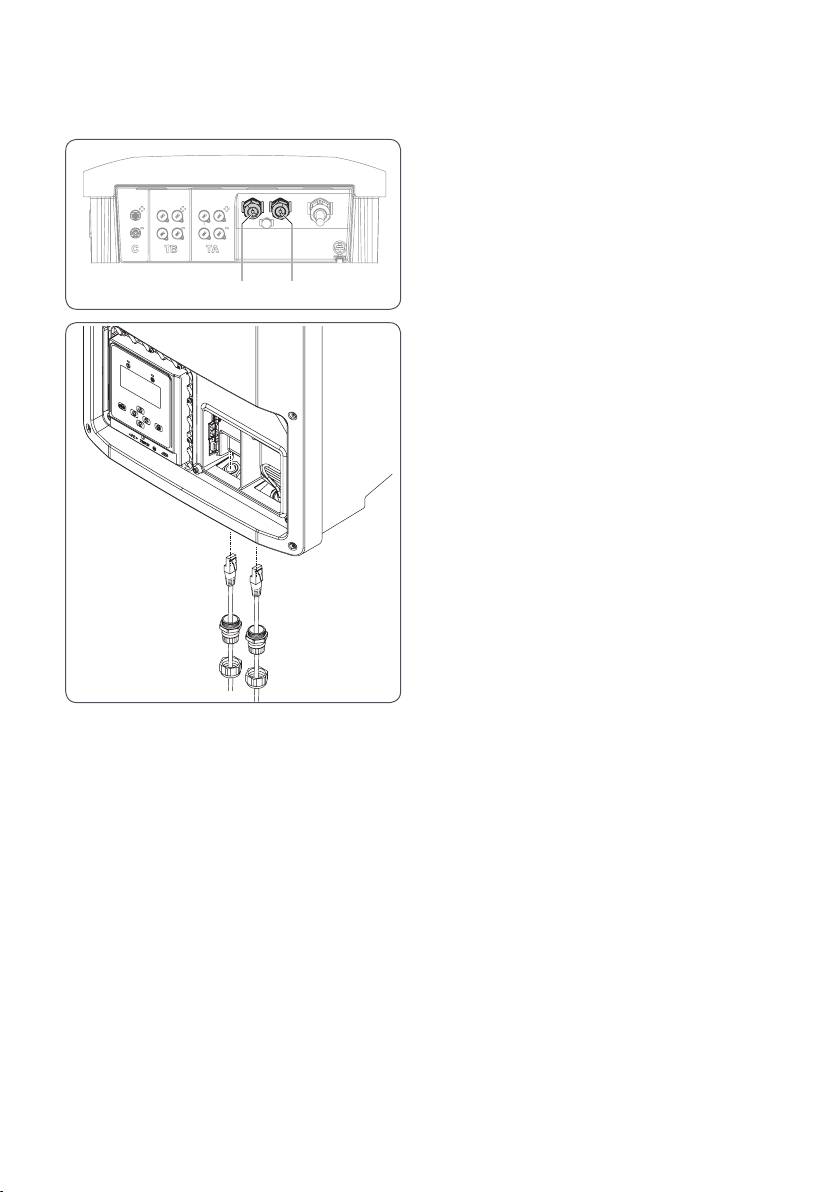

1. Unfasten the network screw
connections(7)and(8)withsealfrom
the underside of the inverter.
2. Direct the network cable through the
screw connection and seal.
3. Feed the network cable into the
housing from below.
Incoming cable: left
Outgoing cable: right
4. Tighten the network screw
connections.

19
Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Installation
5. Connect the network cables in the
inverter.
CAT-5 cable with RJ45 plug
▪Incoming cable: socket 1
▪Outgoing cable: socket 2
CAT-5 cable with 2 twisted wires
▪Incoming cables:
Cable A: Terminal 2
Cable B: Terminal 1
▪Outgoing cables:
Cable A: Terminal 4
Cable B: Terminal 3
tEnsurethatsignallinesAandBare
not connected incorrectly.
Termination
An integrated terminating resistor can be activated at both open ends of the network
(attherstandlastinverters).
Terminating ensures that the network functions correctly.
Always terminate on socket 1.
9
1. Removetheterminatingplug(9)from
the service cover.
2. Activate termination. To do so,
connect the terminating connector
tosocket1ontherstandlast
participant in the network.
3.4.5 Final tasks
tSecure the service cover on the inverter with six screws.

20 Installation and user guide PLATINUM®Inverter 7000 R3, 9000 R3, 11000 R3, 14000 R3, 16000 R3
Initial operation
4 Initial operation
4.1 Switch on
1. Switchonmainsvoltagesupply(safety).
2. Switch on DC voltage via the DC isolator on the
left side of the inverter.
The inverter type appears in the display along
with the prompt START?.
4.2 Initial operation
▪To transfer all settings correctly, initial operation must be conducted
in full once.
▪When installing several inverters that are linked with each other via
the PLATINUM®network(EIA485),initialoperationcanbeperformed
onanyinverter(masterprogramming).Forthistobepossible,all
inverters in the network must be switched on.
▪The inverter automatically transfers the setting values to the other
inverters via the PLATINUM®network(EIA485).
▪Every inverter is allocated a number automatically during initial
operation. This number can be changed and freely assigned in a
further step.
▪The inverters on which no data is entered display different screen
content depending on the menu. If data cannot be entered, the
inverter displays the start screen.
▪During initial operation, all inverters connected to the PLATINUM®
network are blocked.
