PlayActive B28 User manual

• Suitable for 37~96 months
•Maximum user weight: 30kgs
•Adult assembly required
Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 4-6 hours.
OWNER'S MANUAL
Read and understand this entire manual before using!
CHILDREN'S
ELECTRONIC TOY CAR
Products features may vary
from the pucture above.

118 x 66 x 52CM
Use the vehicle on generally level ground ONLY!
caution
About Your New Vehicle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
WARNING!
Suitable age: 37~96 months
6V10AH x1(Fuse: 10A)
Load Capacity:
Under 30KGS
Size of car:
Speed: 3KM/H 3~5KM/H
Power way:
Charging type
Charger: Input: depend on local voltage
Output: DC 6V800mA or DC6V1A
or DC12V1A
Average
battery life:
Approximately
300 times
Charge time: 8-12 Hours
Battery &
Fuse:
1WD
2WD
1WD
1WD
2WD
2WD
IMPORTANT
WARNING
This label means the information or assembly for One Wheel Drive version ONLY!
This label means the information or assembly for Two Wheels Drive version ONLY!
CHOKING HAZARD - Small parts.
Not suitable for children under 37
months.
VER:SMS-B28-EN-130226
6V10AH x1 (Fuse: 10A), 12V7AH x1 (Fuse: 13A)
H/LSPEED This label means the information for High/Low Speed version ONLY!
12V7AH x1 (Fuse: 13A and 5A)
H/LSPEED

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
1
8
4
1
1
1
1
1
2
2
1
x1
x2
x3
x2
x3
x2
x1
x2
x1
x2
1
4
x4
x8
1
2
2
12
A
B
C
D
E
F
Vehiclebody
Steeringcolumn
Ø12Washer
Ø10Locknut
Steeringwheel
M5x50machinescrew
Ø5Nut
Windshield
Seat
M5x20machinescrew
Sidesupport
Rearaxle
Drivingwheel
Wheel
Ø12bushing
Gearbox
Motorhood
Charger
4 pcs placed on the front axle,
4 pcs placed on the rear axle.
2 pcs placed on the front axle,
2 pcs placed on the rear axle.
Placed on the steering wheel.
Placed on the steering wheel.
Placed on the vehicle bdoy.
1 pcs labeled “R”, 1 pcs labeled “L”
REMARKS
Assembly package
2WD
PART NAME
Q’ty (pcs)
Hubcap
Ø4x12Screw
Ø10Washer
Splitpin
Spanner
Ø3.5x12screw
2WD
2WD
2WD
2WD
2WD
Parts List

E
1
2
3
3
A
B
C
D
C
F
5
7
8
9
10
11
12
13
15
17
16
18
14
4
6
Parts Diagram
Tools Required
Screwdriver(not included)
Spanner
Pliers(not included)

1
2
Assembly Steps
• Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
• Assembly tool for need: screwdriver(not included) and spanner.
Ø12 Washer
Rear axle
Rear axle

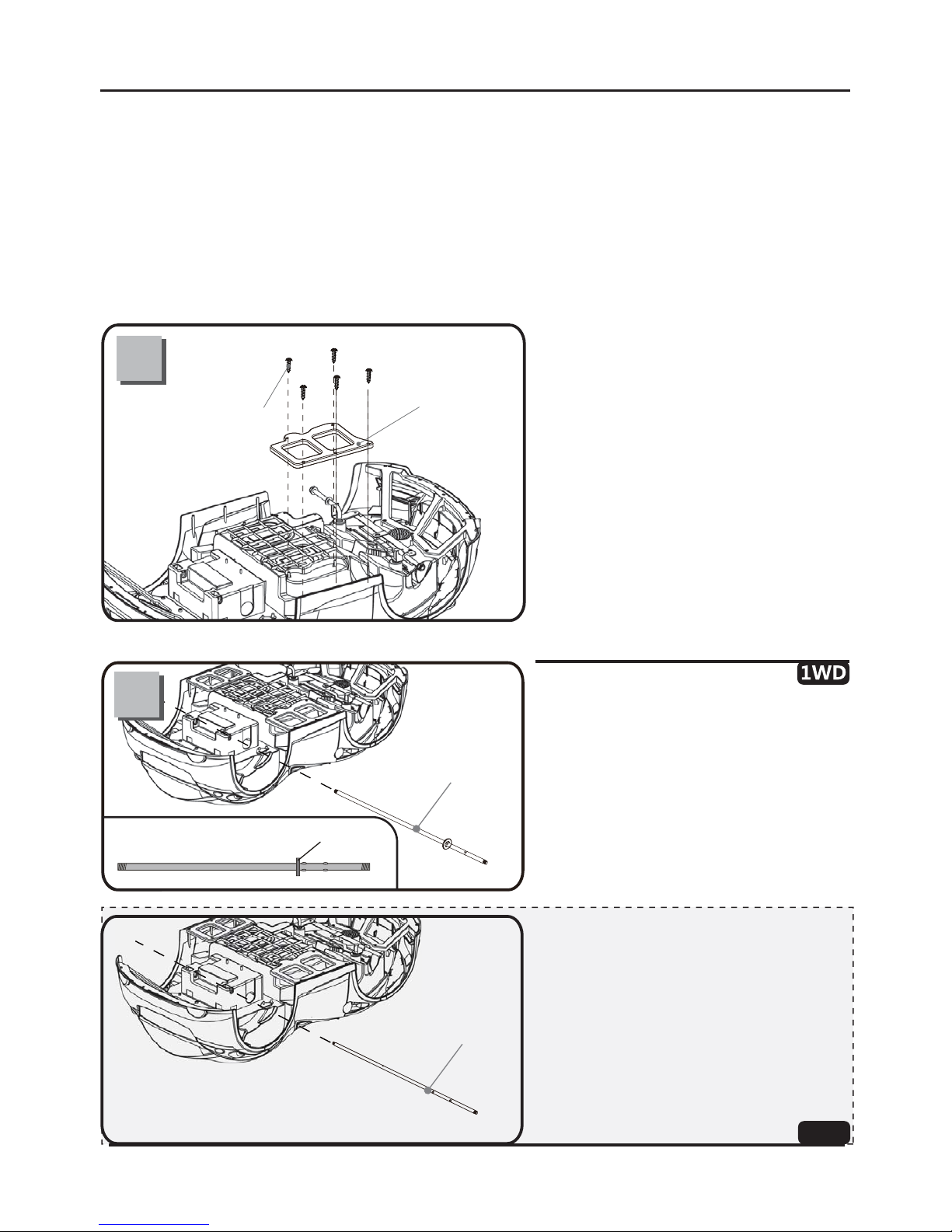

● Fit the side support to the vehicle
body.
(NOTE: If the side support does not
seem to fit, change the other one and
try again! )
● Insert five Ø3.5x12 screws and
tighten with a screwdriver.
●Repeat for the other side.
Ø3.5x12 screws Side support
●Turn the vehicle body downside
up.
● Remove all the parts from the rear axle.
● Slide a Ø12 washer onto the rear axle
from the longer end.
● Insert the rear axle through the hole in
vehicle body.
2WD
●Turn the vehicle body downside up.
● Remove all the parts from the rear axle.
● Insert the rear axle through the hole in the
vehicle body.

3
4
Assembly Steps
Hubcap
Hubnut
Gear box
Ø12
Washer
Ø12
Washer
Ø12 washer
Ø12
bushing
Rear axle
Driving wheel
Wheel
Ø10 Locknut
Ø10 Locknut
●Slide the gear box (standing at back of vehicle body) onto the rear axle. “R” labeled gear box should be fit
to the “R” labeled side of vehicle body; “L” labeled gear box should be fit to “L” labeled side of vehicle body.
●Slide the driving wheel onto rear axle, make it match with the gear box.
●Slide a
Ø 12 washer.
●While holding the rear axle with a pliers, fit the Ø10 locknut to the end of the rear axle with a spanner.
●Insert the hubcap.
●Repeat for the other side.
●Fit the gear box onto the rear axle
from the left side (Standing at the rear of the
vehicle body). And make the motor on the
gear box pass through the hole in the vehicle
body.
●Fit the driving wheel onto the rear axle,
make it match with the gear box.
●Fit a Ø12 washer onto the rear axle.
●While holding the rear axle with a pliers, fit
the Ø10 locknut to the end of the rear axle
with a spanner.
●Insert the tabs on the hubcap into slots in
the driving wheel.
Hint: An extra spanner has been provided to hold the Ø10 lock nut on the other side of the
rear axle while tightening the lock nut on the other side.
2WD
●Remove the parts from the front axle.
●Fit a
Ø 12 washer onto the axle.
●Fit a
Ø 12 bushing onto the axle.
●Fit a wheel onto the axle, make the wheel
match with the bushing.
●Fit a
Ø 12 washer onto the axle.
●Tighten the
Ø 10 locknut with a spanner. (Do
not over tighten)
●Insert the Hubcap.
●Repeat for the other wheel(s).

5-1
5-2
5
6
Ø5x50
machine
screw
Ø5 nut
Assembly Steps

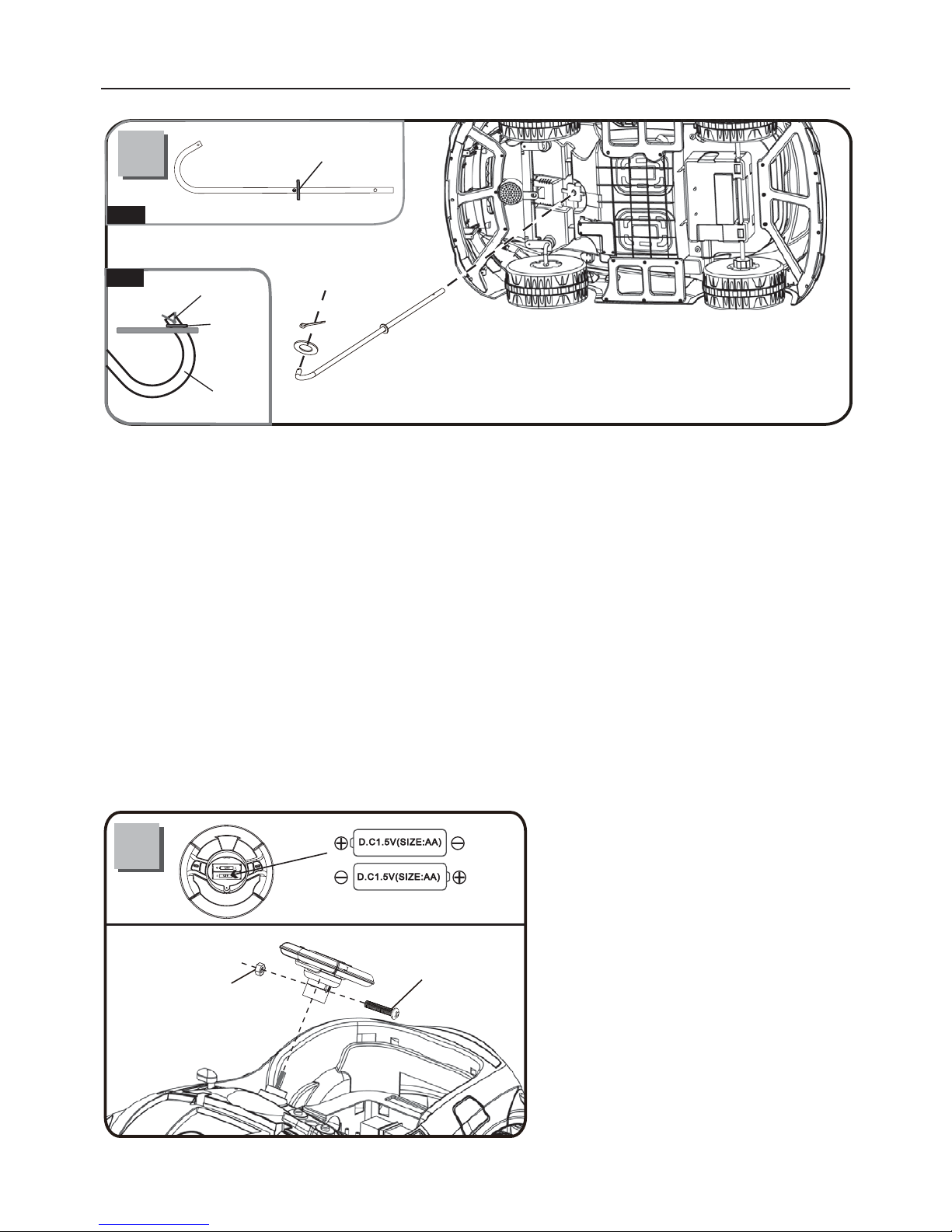

●Use a screwdriver to remove the
battery cover and insert two dry(AA)
batteries, replace the battery cover.
NOTE: The product does not included
dry(AA) battery.
●Turn the vehicle body over.
●Remove the M5x50 machine screw*1
and
Ø 5 nut*1 from the steering wheel.
●Insert the steering wheel onto the end
of the steering shaft.
●Insert the M5x50 machine screw*1
through the steering wheel and steering
shaft, and tighten the
Ø 5 nut*1.
●Turn the vehicle body on its side.
●Slide a
Ø 10 washer onto the steering shaft from the straight end(PIC 4-1).
●Insert the straight end of steering shaft up through the hole on the front of vehicle body from
bottom side, and out through the hole in dash.
●Insert the bent end of steering shaft through the hole in the front axle plate, insert a
Ø 10 washer
onto the steering shaft and insert a split pin into the hole in the steering shaft, bend the ends of
split pin back using a pair of pliers(PIC 4-2).
●Turn the vehicle body over.
Ø10 washer
Ø10 washer
Split pin
Steering shaft

7
8
Assembly Steps
BATTERY INFORMATION

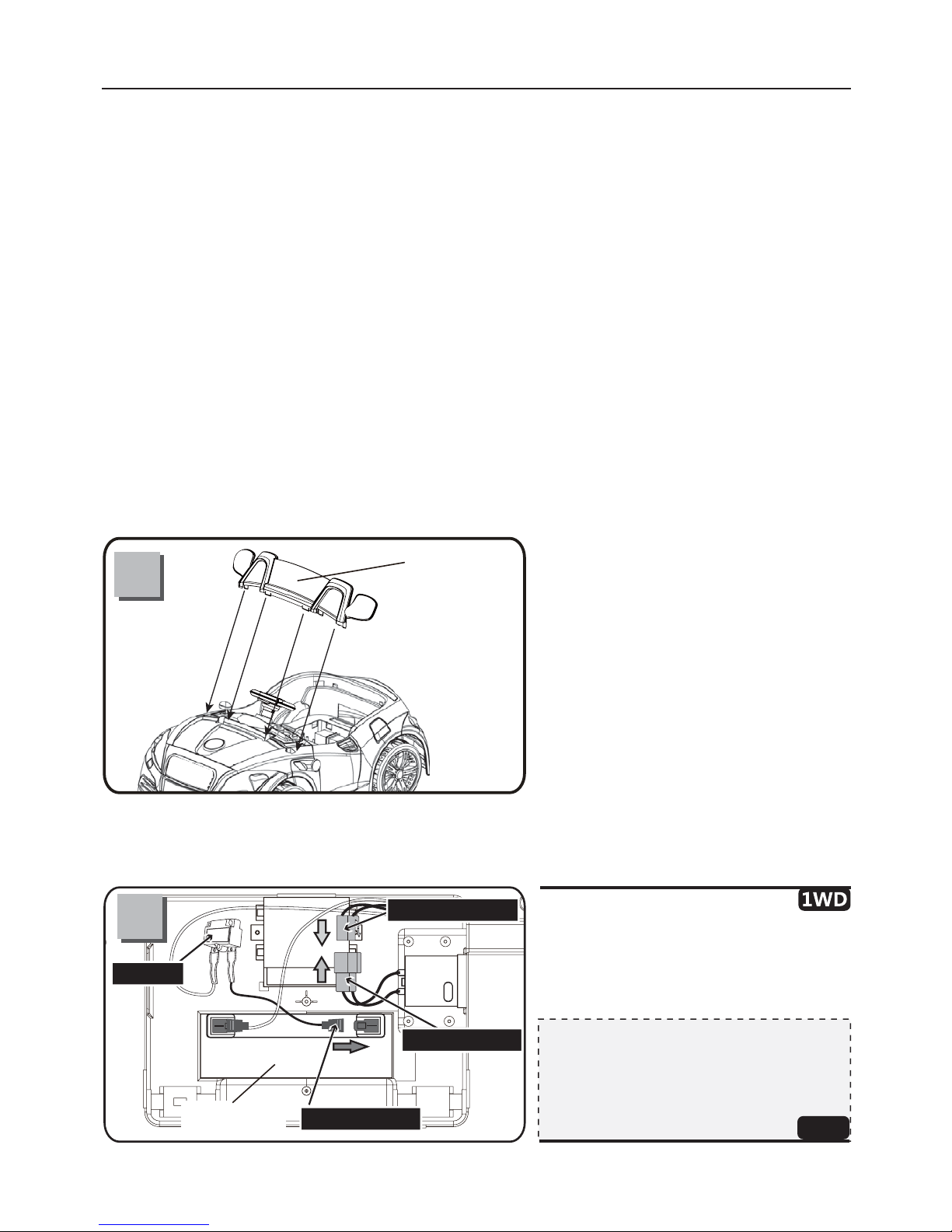

Windshield
●Fit the tabs on the windshield onto the
slots located at the front of the vehicle.
Push until you hear this click into place.
BATTERY
Batteries may leak fluids that can cause chemical burn injury or ruin your product. To avoid battery leakage:
●Do not mix old and new batteries.
●Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
Insert batteries as indicated inside the battery compartment.
●Remove batteries during long periods of non-use. Always remove exhausted batteries from the product.
Battery leakage and corrosion can damage this product. Dispose of batteries safely.
●Do not dispose of batteries in a fire. The batteries may explode or leak.
●Never short circuit the battery terminals.
●Non-rechargeable batteries are not to be recharged.
●Use only batteries of the same or equivalent type as recommended.
●If removable rechargeable batteries are used, the are only to be charged under adult supervision.
●Remove rechargeable batteries from the product before charging.
●Batter chargers used with toys must be ecamined regularly for damage to the cord, plug, enclseure and
other parts. In the event that such damage is found, the toy must not be used with the battery charger until
the damage has been repaired.
●When sound becomes faint or stops, it’s time to replace the batteries.
2WD

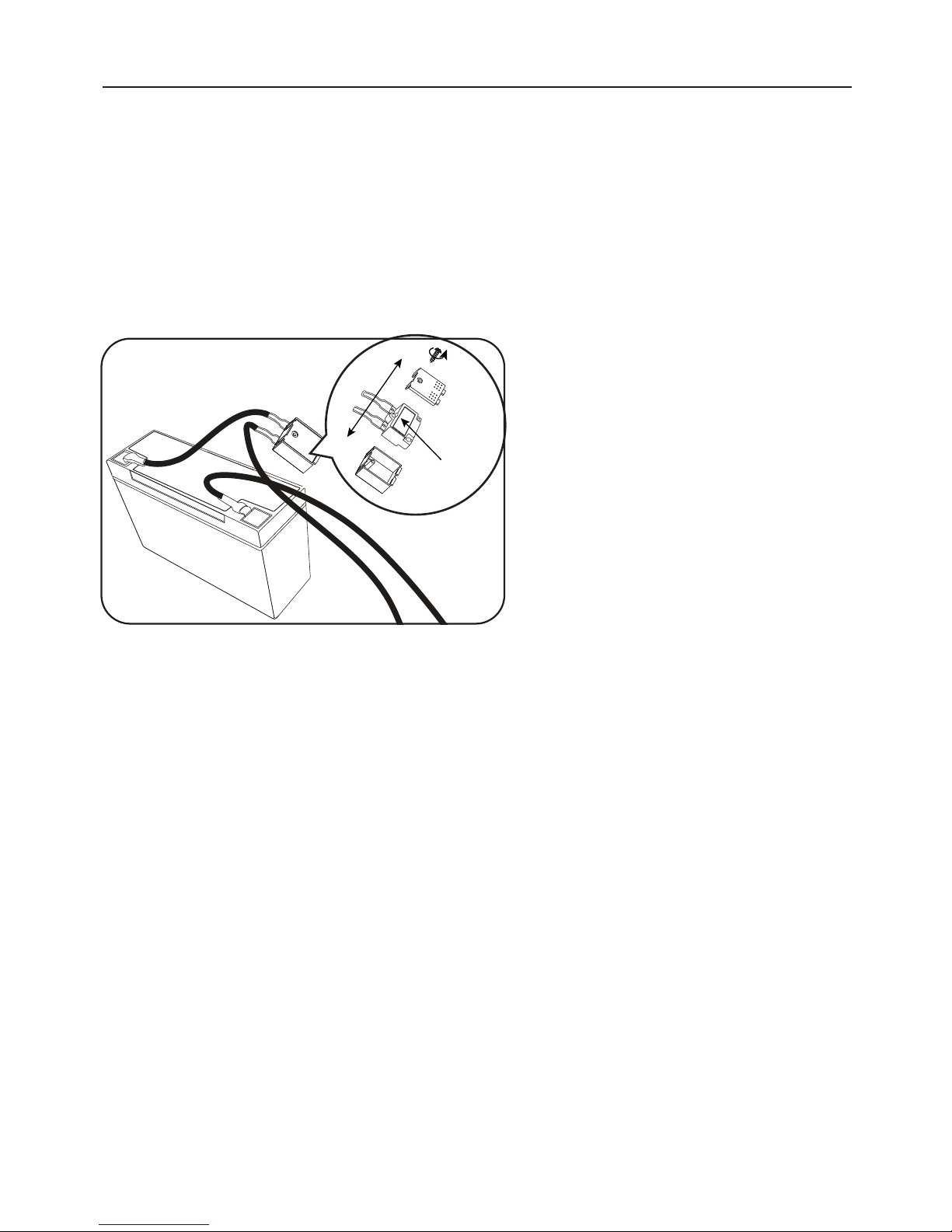

●Plug the power connector into the
terminal on battery as shown.
●Plug the vehicle connector into the motor
connector.
●Plug the power connector into the terminal
on battery as shown.
●Plug the vehicle connector into the motor
connector.
●Repeat for the other side.
Vehicle connector
Motor connector
Power connector
Fuse box

9
10
Assembly Steps
IMPORTANT SUPPLEMENT TO INSTRUCTION MANUAL
After assembling any wheel to the axles, please check the gap
between the screw thread and the collapsible (refer to below
picture), if the gap is too big, please add two or three washers inside
the wheel, But after tightening the nut outside the wheel, please turn
the wheel by your finger to check if the wheel can run smoothly, this
is very important, because if the wheel can run smoothly, it is OK,
but if the nut press the wheel and the wheel can’t run smoothly, the
motor will be broken easily! Then you need to decrease one or two
washers to make sure the wheel can run smoothly!

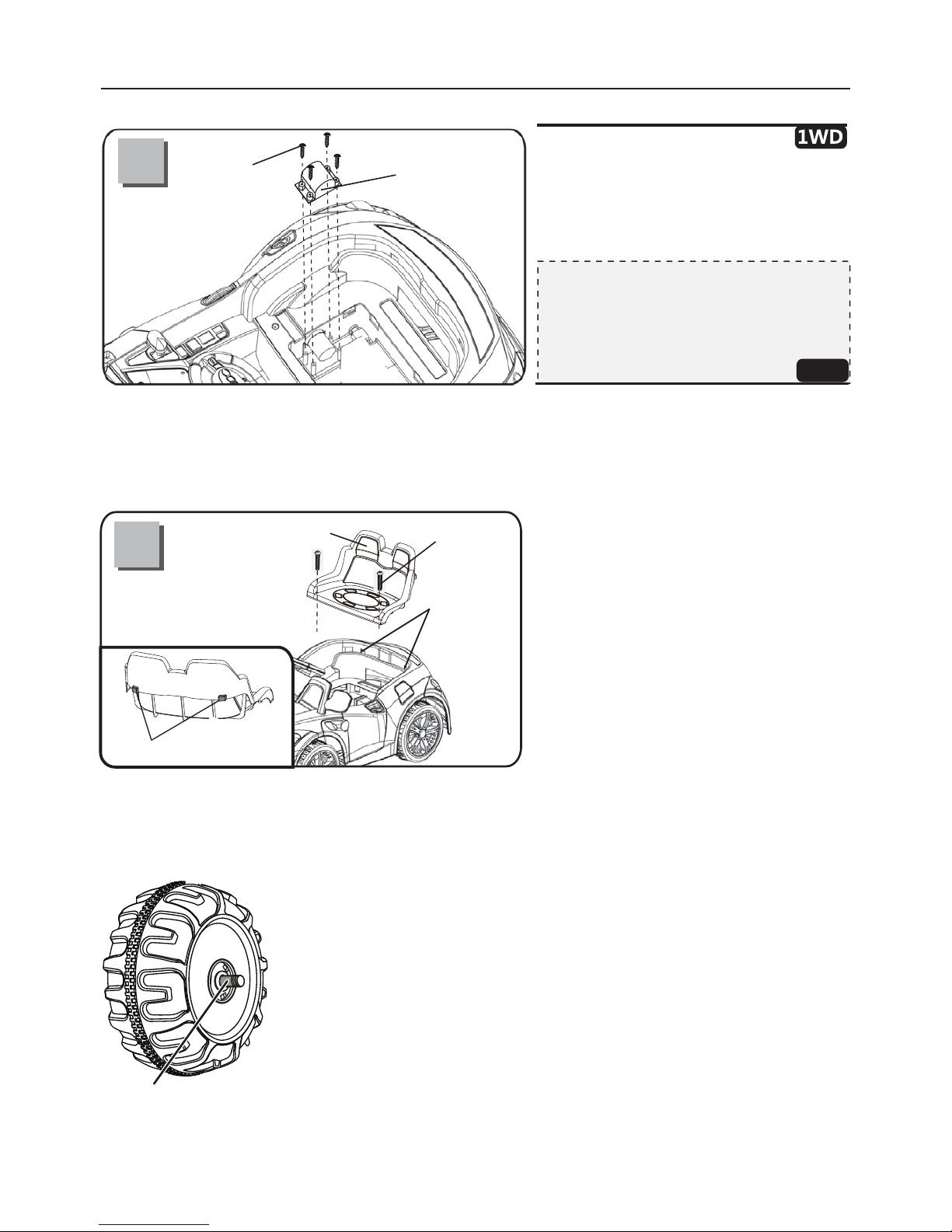

GAP
M5x20 machine
screw
Ø4x12 screw Motor hood
Seat
Tabs
Slots
●Insert the tabs at the back of the seat
into the slots in the vehicle body.
●Tighten the M5x20 machine screws*2
2WD
●Fit the motor hood on the motor.
●Tighten four
Ø 4x12 screws to secure it.
●Repeat for the other side.
●Fit the motor hood on the motor.
●Tighten four
Ø 4x12 screws to secure it.

How To Operate Your Vehicle
WARNING!
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
• Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Suitable for age 37~96 months; Maximum user weight is 30kgs.
Rules for Safe Riding
READTHESE RULESALOUD TOYOUR CHILDANDTHEIR PLAYMATESAND MAKE SURE
THEY UNDERSTAND THEM!
• Important! Before using the vehicle for the first time, the battery needs to be charged for 4 to 6 hours, no
more than 10 hours. Only an adult can charge or recharge the battery.
• Finishing the complete car to assemble according to the steps that the manual described. The plug-in
package of storage battery has already been inserted well, the power has already been put through.
• All places to need the screw guarantee the screw has already been locked.
Must confirm before using that following work which is already finished:
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before using,
guarantee the security.
• Always wear a helmet when riding.
• Direct Adult Supervision Required.
• Keep Children within Safe Riding Areas:
• Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming
pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the
vehicle only in the daytime or a well-lit area.
• It is not recommended to drive the vehicle on wet surfaces or on lopes of greater than 15 degrees.
• Do not use this vehicle outdoors when it is raining or snowing.
• Make sure you come to a complete stop before changing directions from forward to back.
• Please follow the correct weight and age limits allowed to drive this vehicle.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• In order to avoid accidents, please ensure the vehicle is safe before riding.
• Do not let any child touch the wheels or be near them when the car is moving .

How To Operate Your Vehicle
Forward-backward
switch
Foot pedal
Audio input
Sounds buttons
Power switch
Forward-backward
switch
Foot pedal
Audio input
Sounds buttons
Power switch
High/Low speed
swtich
IMPORTANT!
Always stop vehicle
when changing the
speed or direction to
avoid damage the gears
and motor.
Make sure your child
knows how to steer, how
to start and stop the
vehicle and knows the
rules for safe driving. The
vehicle can be driven at a
maximum of 3~5 km/h.
ADVANCED USE -
High speed Drive
FORWARD
1.Press the “Forward-backward switch” on the “Forward” position.
2.Press the “Foot pedal”, the vehicle drives forward.
STOP
The vehicle will stop automatically, when your child’s foot remove from the “Foot pedal”.
REVERSE
1.Press the “Forward-backward switch” on the “Backward” position.
2.Press the “Foot pedal”, the vehicle drives backward.
SOUNDS BUTTON
Press the buttons on the dash and rear light bar for sound playing.
HIGH/LOW SPEED SWITCH (OPTIONAL)
The switch operates the vehicle to move in low or high speed.
Use Operation
Use Operation B
H/LSPEED
A

Charging Your Vehicle
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
• PREVENT FIRE AND ELECTRIC SHOCK:
- Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery
or the charger with another brand. Using another battery or charger my cause a fire or explosion.
- Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or
explosion or my permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge
the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a
fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm. Wash hands after
handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and
corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.•
Only adults may handle or charge the battery. NEVER allow child to handle or charge the
battery. Battery is heavy and contains lead acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a
month if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips
over.
WARNING!
• The charging input socket is UNDER THE SEAT.
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than
10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at most.

1
23
Charging Your Vehicle
WARNING!
This product with CHARGING PROTECTION: When charging, all the functions will be cut off!

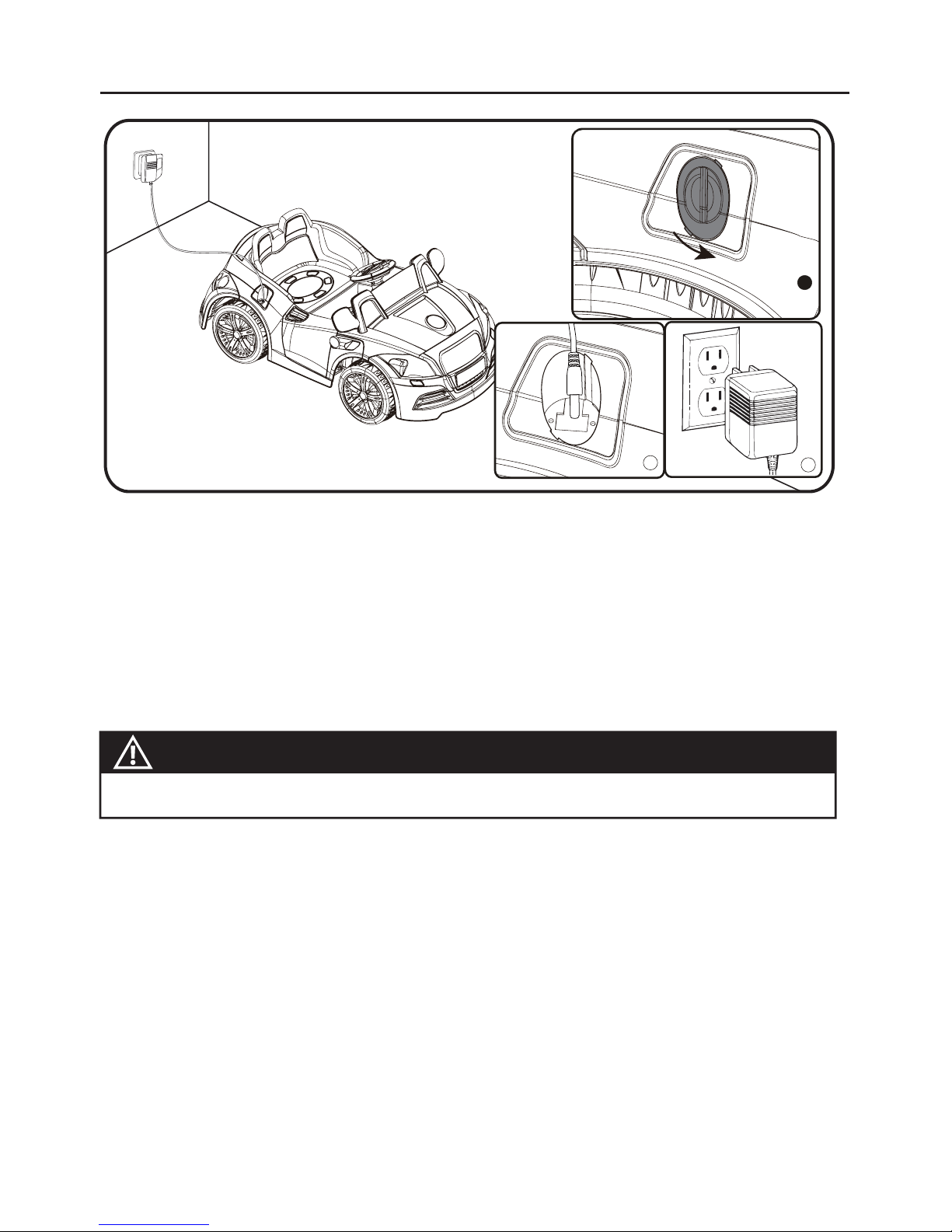

1. Counterclockwise rotate the cover of socket , and remove it;(The cover is ABOVE THE
DRIVING WHEEL).
2. Plug the charger port into the input socket;
3. Plug the charger plug into a wall outlet. The battery will begin charging.

Troubleshooting Guide
PROBLEM: The vehicle does not run
PROBLEM CAUSE: The battery may low on power.
After each use, or once a month minimum, charge the battery for a full 10 hours. Do not leave the
battery on the charger for more than 20 hours.
POSSIBLE CAUSE: Thermal fuse has tripped.
POSSIBLE CAUSE: Wheel nuts are loose.
POSSIBLE CAUSE: Battery connector or wires are loose.
POSSIBLE CAUSE: Battery is dead.
POSSIBLE CAUSE: Electric system is damaged.
Water may have corroded the system, or loose dirt, gravel or sand might have jammed the switch.
Make sure the battery connector and adapter connector are firmly plugged together.
Make sure the charger is plugged into the wall outlet and the power flow to the outlet is on.
POSSIBLE CAUSE: Motor is damaged.
The motor needs professional repair.
If the nuts are not tight, the wheels will not engage the forward gears. Tighten the nut with the nut wrench.
Make Sure the battery connectors are firmly plugged in to each other.
Have you properly maintained the battery according to the directions? Is the battery old? Your
battery may need to be replaced.
■
■
PROBLEM: The battery will not recharge.
POSSIBLE CAUSE: Battery connector or adapter connector is loose.
POSSIBLE CAUSE: Charger is not plugged in.
POSSIBLE CAUSE: Charger is not working.
Is the charger warm while charging? If not, the charger may be broken and may need to be replaced.
To avoid the fuse cut off the power, follow these
guidelines:
DO NOT overload the vehicle, Maximum weight
allowed :30kg
DO NOT tow anything behind the vehicle.
DO NOT drive up steep slopes.
DO NOT drive into fixed objects, which may cause the
wheels to spin, causing the motor to overheat.
DO NOT drive in very hot weather, components may
overheat.
DO NOT tamper with the electric system, Doing so may
create a short circuit, causing the fuse to trip.
The vehicle is equipped with a self-resetting fuse. When the vehicle is overloaded or operated
incorrectly; the self-resetting fuse will be cut off for 5-20seconds before becoming operational
again. The self-resetting fuse is under the seat (Refer to the picture.)
Fuse
Battery

Troubleshooting Guide
Maintaining Your Vehicle
POSSIBLE CAUSE: Battery may be undercharged.
POSSIBLE CAUSE: Battery is old.
PROBLEM: Battery buzzes or gurgles when charging.
PROBLEM: Charger feels warm when recharging battery.
This is normal and not a cause for concern.
PROBLEM: The vehicle does not run very long.
■
■
■
You may not be charging the battery long enough. After each use, or once a month minimum, charge the
battery for 8 to 10 hours. Do not leave the battery on the charger for more than 20 hours.
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and
varying conditions, the battery should operate for one to three years. Replace the battery with a
new one.
This is normal and not a cause for concern. It may also be silent when charging, which is also normal.
• It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential
hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and
that in the event of such damage, the toy must not be until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least
once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle
in rainy or snowy weather. Water will damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do
not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage moving parts, motors or the
electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the
battery connection.

Disposal Of Battery
DisposalOfBattery
●Your sealed lead-acid battery must be recycled or disposed of in an environmentally
sound manner.
●Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
●Do not dispose of a lead-acid battery in your regular, household trash. The incineration,
land filling or mixing of sealed lead-acid batteries with household trash is prohibited by
law.
●Return an exhausted battery to your local approved lead-acid battery recycle, such as a
local seller of automotive batteries.
●Contact your local waste management officials for other information regarding the
environmentally sound recycling and disposal of lead-acid batteries.
Our products are suitable for
ASTM F963; GB6675; EN71 and EN62115 standard.
