PlayActive MINI Hatch User manual

MINI Hatch
Children Electric RIDE ON
Owner’s Manual
with Assembly Instructions
Styles and colo(u)rs may vary.
Made in China.
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.

On the purchase of your new Ride-On.
This ride-on car will provide your child with many miles of riding of
enjoyment. To help assure you and your rider a safe ride we ask you to
please read this manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to improve
the safety and operation of your ride-on car and it’s rider.
Battery
Charger
6V4Ah*1 or 6V7Ah*1 or 6V10Ah*1
6V500mA or 6V1000mA
6V4Ah*2 or 12V7*1
12V1000mA
Suitable age:
Load Capacity:
Speed:
Size of car:
Power way:
Charge time:
37~96 Months
Under 30 kgs
2.5 km/h 2.5~5 km/h
110x62x51 CM
Charging type
8 ~ 12 hours
About Your New Ride-On │1
VER: SMS-JE195-EN-160125
MINI Hatch Children Electric Ride On manufactured by Zhejiang Jiajia
Ride-On Co., Ltd.
(Add: Xincang Industrial Zone, Pinghu City, Zhejiang Province,
P.R.China). The MINI logo and the MINI word mark are trademarks of
BMW AG and are used under license.
1WD 2WD

2
4
2
3
1
19
1
A
B
C
D
E
F
G
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
1
8
1
3
3
4
1
1
1
1
1
1
1
1
1
1
2
1
1
1
2
2
6
2
2
2
22
1
1
1
H
i
J
1
1
1
23
2~3
PART
NO.
REMARKS
PART NAME
Q’ty (pcs)
Gear box
Driving wheel
Ø10 washer
Motorhood
Front wheel
Bushing
Ø10 locknut
Dash
Vehicle body
Steering column
Front axle
Rear axle
Seat
Steering wheel
M5x35 machines screw
Ø5 nut
Windshield
View mirror
Rear window
Rear support
Charger
M5x12 machine screw
Hubcap
Split pin
Ø10 washer
Spanner
Ø4x12 screw
Ø4x12 BLACK screw
Placed on the steering wheel
Placed on the steering wheel
One pair
1pc labeled “L”, and 1pc labeled “R”
Placed in a plastic bag
2pcs placed on the front axle, 2pcs placed on the rear axle.
8pcs for front axle, 7pcs for rear support, the others for motor hood.
1 pcs for spare
For dash only
1WD 2WD
Parts List │2
Assembly package
R/C type: 2 pcs, Normal type: 3 pcs. 1 of them for spare
Remote controller
Ø5 nut
M5x22 machine screw
R/C driver
IF EQUIPPED, for R/C type only
IF EQUIPPED, for R/C type only
IF EQUIPPED, for R/C type only
IF EQUIPPED, for R/C type only

1
2
3
3
4
5
7
B
9
10
11
17
8
18
18
F
12
19
20
CD
D
21
E
6
15
16
14
13 A
F
F
F
F
G
D
22
J
Hi
NOTE: Some parts shown are assembled on both sides of vehicle
Parts Diagram │3
R/C Type
Normal Type

Before You Begin Assembly │4
• Make sure that the power switch is turned “OFF” before assembling the ride-
on.
• Before first time use, charge the battery for at least 4 to 6 hours.
• Assembly tools required:
Screwdriver
(not included)
Long nose pliers
(not included)
Spanner
●Non-rechargeable batteries are not to be recharged.
●Rechargeable batteries are to be removed from the toy before being charged.
●Rechargeable batteries are only to be charged under adult supervision.
●Different types of batteries or new and used batteries are not to be mixed.
●Batteries are to be inserted with the correct polarity.
●Exhausted batteries are to be removed from the toy.
●The supply terminals are not to be short-circuited.
BATTERY INFORMATION
• CHOKING HAZARD - Small parts. Not suitable for children under 36 months.
The product contains small parts, keep children away when assembling.
• ADULT ASSEMBLY REQUIRED.
• Always remove protective material and poly bags and dispose before assembly.
WARNING!

1
2
1. Fit the tabs on the rear window into
the slots on the rear vehicle.
2. Turn the vehicle body over and tighten
two Ø4x12 screws to secure it.
Attach the Rear Window │5

x7
x4
4
3
1
2
1. Fit the rear support to the vehicle body.
2. Tighten seven Ø4x12 screws to secure it with a screwdriver.
3. Fit the front axle to the vehicle body.
4. Insert eight Ø4x12 screws through the front axle
and into the vehicle body wall, and tighten with
a screwdriver.
Attach the Rear Support & Front Axle │6

1
2
Attach the Rear Axle │7
Remove all the parts from the rear axle.
1. Insert the rear axle into the hole in the vehicle body from Left side.
2. Make the square part on the rear axle match with square opening on the
vehicle body.

1
3
4
10
56
7
89
10
2
1. Slide the gear box onto the rear axle (Left Side). “R” labeled gear box should be fit to
the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle
body.
2. Slide the driving wheel onto the rear axle. And keep the driving wheel match with the
gear box.
3. Slide the Ø10 Washer onto the rear axle.
4. Tighten a Ø10 Locknut to the end of the rear axle with a spanner.
Attach the Rear Wheels │8
Rear axle
Tools required: Spanner
1WD
5. Slide the Ø10 Washer onto the rear axle (Right Side).
6. Slide the Bushing(ring end first) onto the rear axle .
7. Slide the Normal wheel onto the rear axle. And keep it match with the Bushing.
8. Slide the Ø10 Washer onto the rear axle.
9. Tighten a Ø10 Locknut to the end of the rear axle with a spanner.
10. Fit a hubcap to the wheel cover. Repeat for the other side.
HINT: If your vehicle was Two Wheels Driving Type, see the next page
please.

1
3
4
9
2
5
6
78
9
1. Slide the gear box onto the rear axle (Left Side). “R” labeled gear box should be fit to
the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle
body.
2. Slide the driving wheel onto the rear axle. And keep the driving wheel match with the
gear box.
3. Slide the Ø10 Washer onto the rear axle.
4. Tighten a Ø10 Locknut to the end of the rear axle with a spanner.
5. Slide the gear box onto the rear axle (Right Side). “R” labeled gear box should be fit to
the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle
body.
6. Slide the driving wheel onto the rear axle. And keep the driving wheel match with the
gear box.
7. Slide the Ø10 Washer onto the rear axle.
8. Tighten a Ø10 Locknut to the end of the rear axle with a spanner.
9. Fit the hubcaps to the wheel cover. Repeat for the other side.
Attach the Rear Wheels │9
Rear axle
2WD
Tools required: Spanner

1
2
3
4
5
6
Front axle
Tools required: Spanner

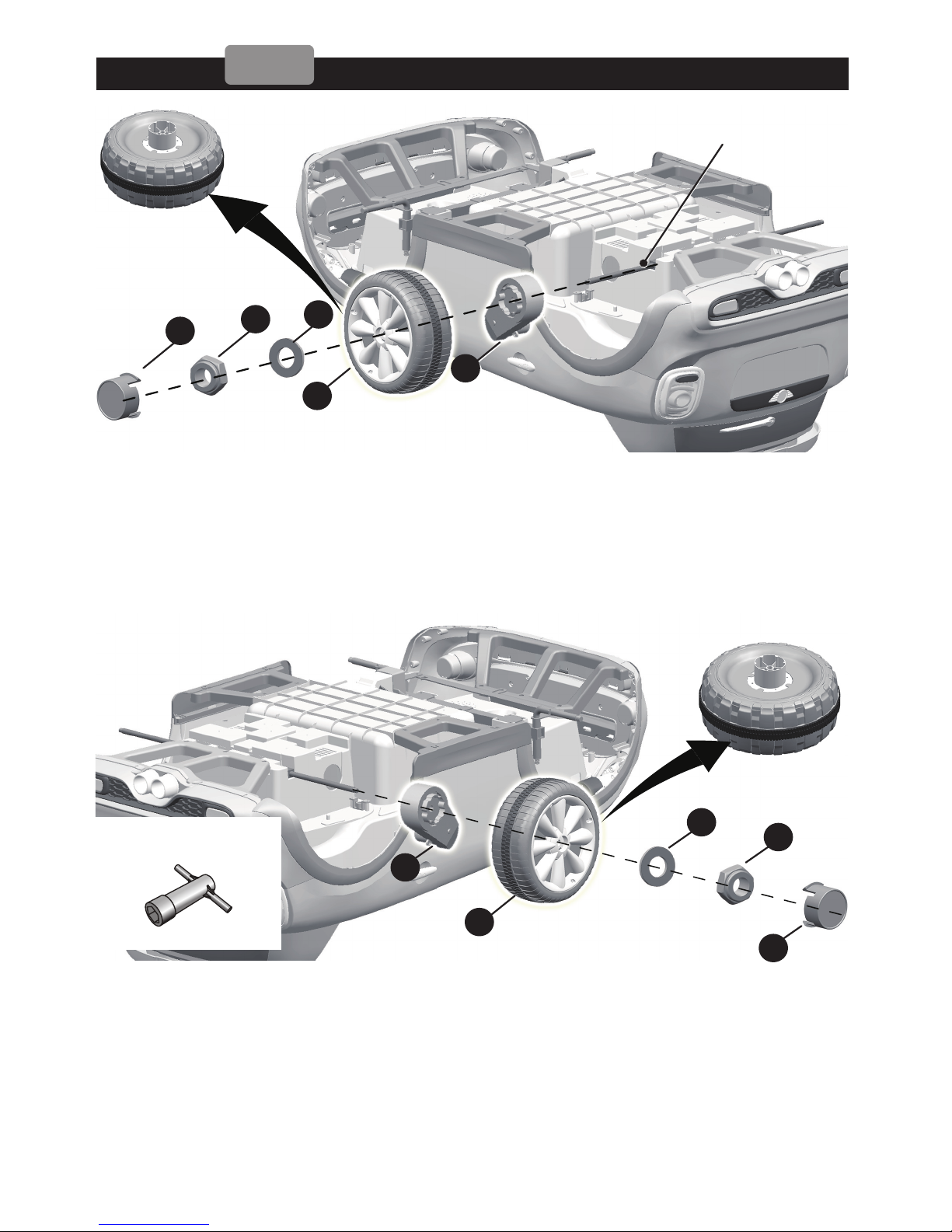

Remove all the parts from the front axle.
1. Slide a Ø10 washer onto the front axle.
2. Slide the bushing (ring end first) onto the front axle.
3. Slide the normal wheel (with wheel hubcap) onto the rear axle. and keep the
normal wheel match with the bushing.
4. Slide a Ø10 washer onto the front axle.
5. Tighten a Ø10 Locknut to the end of the front axle with a spanner.
6. “Snap” the hubcap to the wheel cover.
Repeat this step for the other side.
GAP
After assembling any wheel to the axles, please check the gap
between the screw thread and the collapsible (refer to below picture), if
the gap is too big, please add two or three washers inside the wheel, But
after tightening the nut outside the wheel, please turn the wheel by your
finger to check if the wheel can run smoothly, this is very important,
because if the wheel can run smoothly, it is ok, but if the nut press the
wheel and the wheel can’t run smoothly, the motor will be broken easily!
Then you need to decrease one or two washers to make sure the wheel
can run smoothly!
Attach the Front Wheels │10

4
1
32
Hole in the
front axle linkage

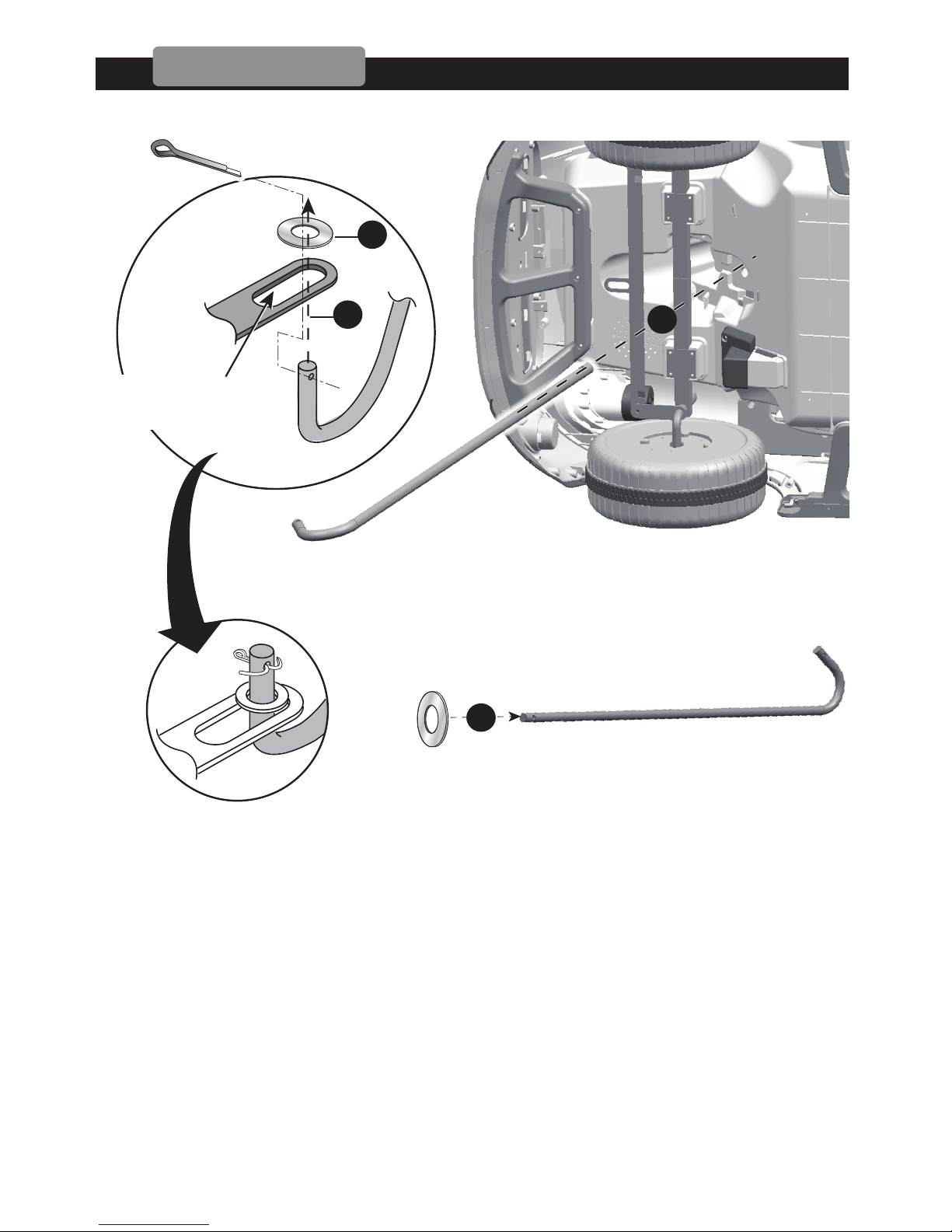

Turn the vehicle body on its side.
1. Slide a Ø10 washer onto the steering column from the straight end.
2. Insert the straight end of steering column up through the hole at the front of
vehicle body from bottom side, and out through the hole in the dash.
3. Insert the bent end of steering column through the hole in the front axle
linkage.
4. Fit a Ø10 washer onto the steering column.
5. Insert a split pin into the hole in the steering column, bend the ends of split pin
back using a long nose pliers.
Attach the Steering Column │11
Normaltype
HINT: If your vehicle equipped with Remote Control Function, see the
next page please!
Steering Gear Box

4
1
32
1
2
23
3
1
5
4
2
2
2
2
2
2
2
2
22
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
22
2
2
2
2
2
2
Hole in the
front axle linkage
Attach the Steering Column │12
R/Ctype

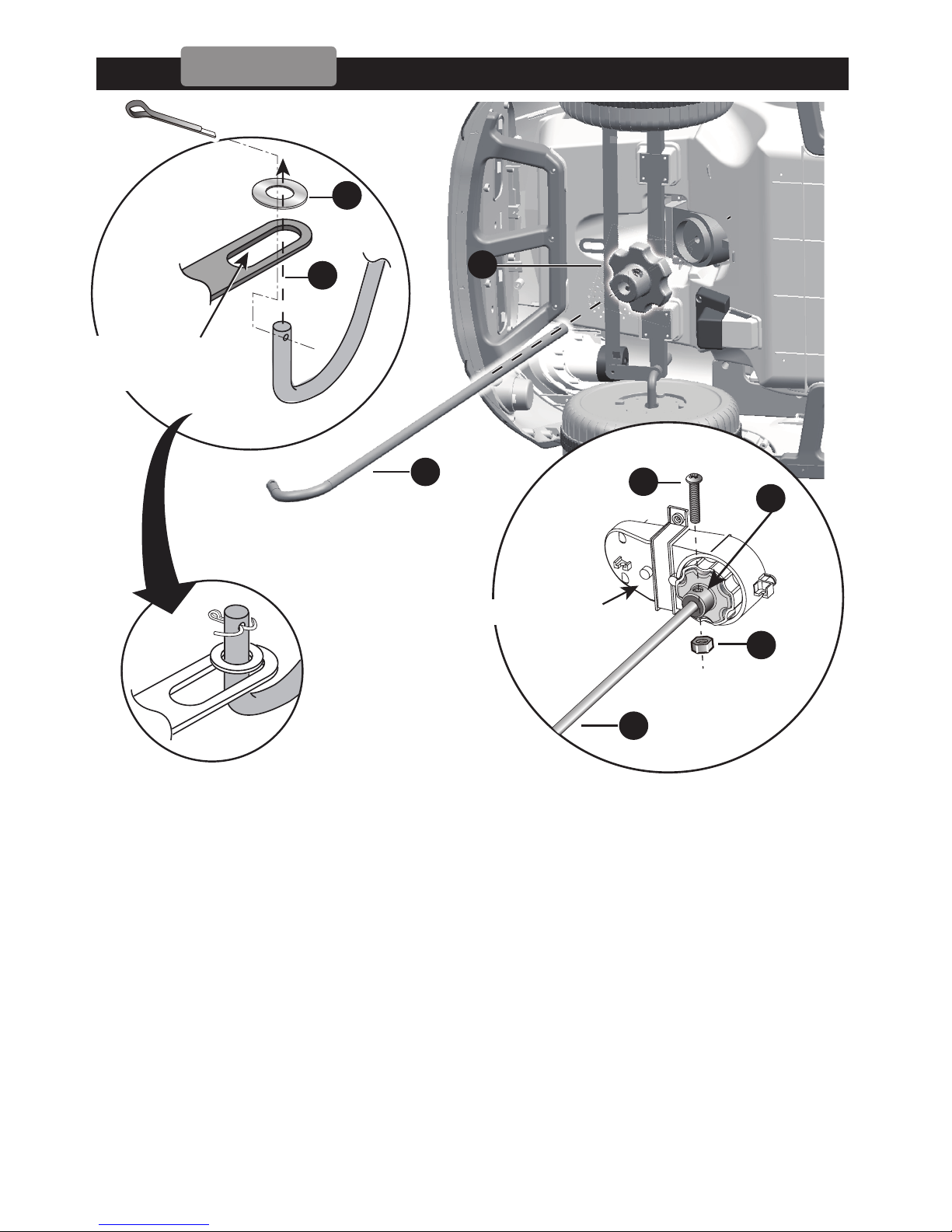

Turn the vehicle body on its side. Remove the M5x22 machine screw and Ø5
nut from the R/C driver with a screwdriver.
1. Attach the R/C driver to the steering gear box, and make it match with
steering gear box.
2. Insert the straight end of steering column up through the hole in the R/C
diver, the hole in the steering gear box from the bottom side, and out
through the hole in the dash.
3. Line up the holes in the R/C driver and the hole in the steering column,
tighten a M5x22 machine screw and Ø5 nut back in the same location with a
screwdriver.
4. Insert the bent end of steering column through the hole in the front axle
linkage.
5. Fit a Ø10 washer to the steering column.
6. Insert a split pin into the hole in the steering column, bend the ends of split pin
back using a long nose pliers.
Steering Gear Box

2
1
3

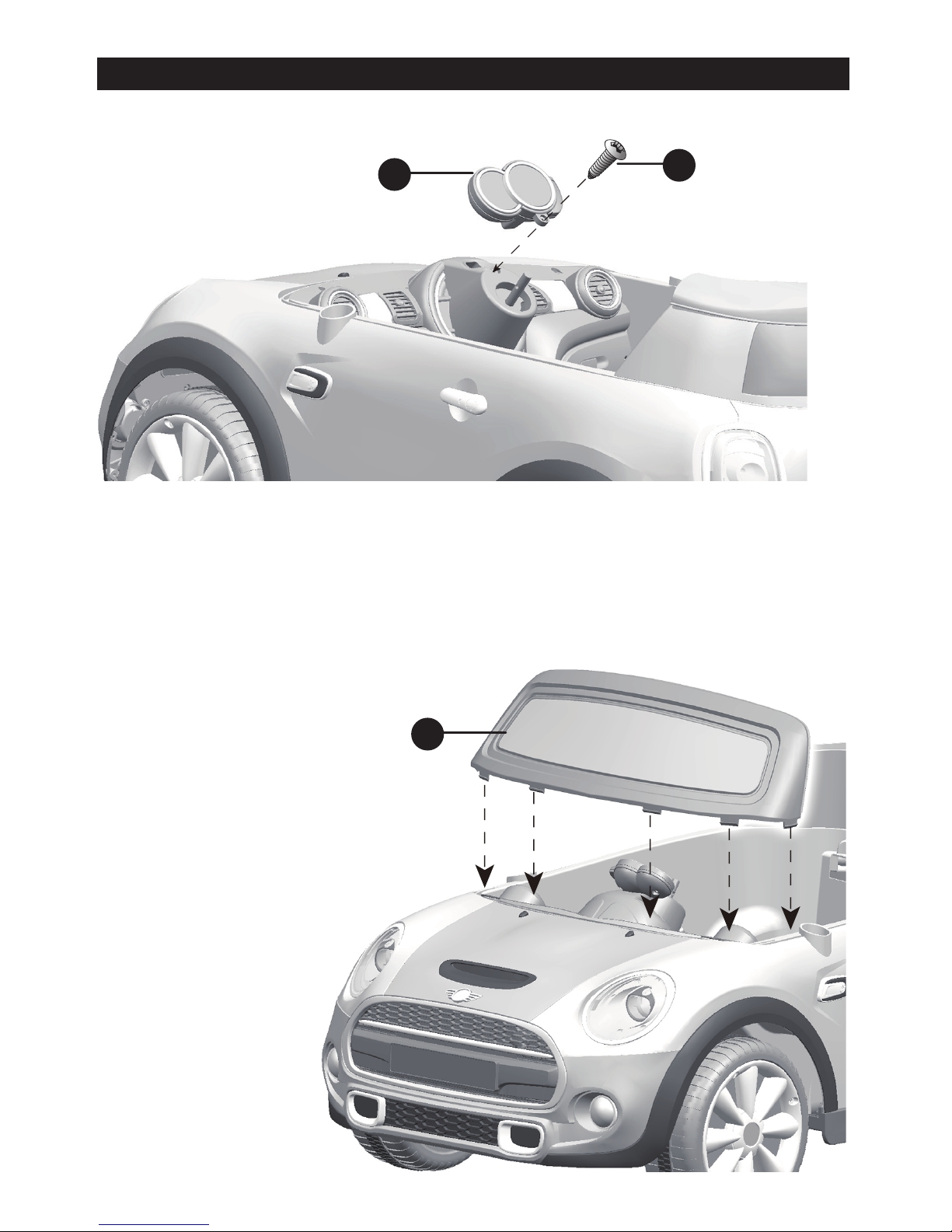

Turn the vehicle body upright.
1. Insert the tab on the dash into the slot on the vehicle body.
2. Insert the Ø4x12 BLACK screw through the dash and into the dashboard, and
tighten it with a screwdriver.
3. Insert the tabs on the windshield in the slots on the vehicle body, push until you
hear it click into place.
Attach the Dash & Windshield │13

42
1
3
7
6
5
End of the steering column
Attach the Steering Wheel │14
Turn the vehicle body upright. Remove the M5x35 machine screw and Ø5 nut from the
steering wheel.
5. Place the steering wheel over the steering column, protruding from the middle of the
steering wheel base.
6. Align the holes on each side of steering wheel with the holes at the end of the steering
column.
7. Fasten a nut on the opposite
end of the screw to
secure the steering
wheel to the steering
column.
1. With a screwdriver remove the
screw on the battery cover located
in the center of the steering wheel.
2. Remove the battery cover from the
top of the battery compartment.
3. Insert two AA batteries in their
correct polarities.
4. Place the battery cover over the
battery compartment and fasten
with the screw you removed in step
one.
Add the Batteries (NON PROVIDED) of Steering Wheel
Attache the Steering Wheel
HINT: Batteries not included, refer to the battery information on page 4.

1
2
Connect the Power Supply │15
Vehicle
connector
Motor connector
Fuse box
Battery
1WD
2WD
1. Plug the Vehicle Connector into the Motor Connector on
body as shown above.
2. Plug the Red fuse connector into the terminal on battery.
1. Plug the Vehicle Connector into the Motor Connector on
body as shown above. Repeat for the other side.
2. Plug the Red fuse connector into the terminal on battery.

2
1
x4
Attach the Motor Hood │16
1WD
2WD
1. Fit the motor hood on the motor.
2. Tighten four Ø4x12 screws to secure it.
1. Fit the motor hood on the motor.
2. Tighten four Ø4x12 screws to secure it.
Repeat the above steps for the other Motor hood.

1
1
2
2
Attach the Seat │17
1. Fit the tabs at back of the seat to the holes in the vehicle body.
2. Tighten two M5x16 machine screws with a screwdriver.
Tabs

1
2
Attach the View Mirrors │18
1. Fit the tabs on the mirror into the holes in the vehicle body. Push until you
hear it click into place.
2. Repeat for the other side.

PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED.
Always keep child in view when child is in vehicle.
• This toy should be used with caution since skill is required to avoid falls or
collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum
speed; Maximum user weight is 30 kgs.
• This toy has no brake.
Rules for Safe Riding
• This vehicle has adjustable play seat belts. Please instruct children how to tie the
safety belt before using, guarantee the security.
• Keep Children within Safe Riding Areas:
- Never use in roadway, near motor vehicles, on lawn space, on or near steep
inclines or steps, swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or
playground.
• Never use in the dark. A child could encounter unexpected obstacles and have
an accident. Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .
WARNING!
Use the vehicle on generally level ground ONLY! DO NOT Use the vehicle on Lawn space!
Safety │19
