Plinth 503C User manual

Podiatry Chair
Models: 503C, 503CD, 503CT & 503CDT
USER MANUAL

Podiatry Chair User Manual
2 | P a g e
Contents
1. Introduction 3
General Warnings 3
2. Installation 4
Retractable Castors 4
Adjustable Foot 4
Power Supply 5
Lifting and Moving 5
3. General Operation 6
Electric Operation 6
Manual Head Section 7
Manual Foot Section 7
Castor Operation 8
Armrest Operation 8
4. Accessories Operation 9
Paper Roll Holder 9
Battery Backup 9
Fold Down Cot Sides 10
Footswitch 10
5. Cleaning and Decontamination 11
6. Troubleshooting 12
7. Maintenance 13
8. Guarantee and Service 14
9. Technical Specification 15
10. Revisions to Manual 16
Plinth Medical Ltd is an ISO Audited company to ISO9001:2008
Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC

Podiatry Chair User Manual
3 | P a g e
1. Introduction
Thank you for purchasing a product from Plinth Medical Ltd. We use the highest
quality components and manufacturing techniques to ensure that our products are
simple to use and will last a long time. It is recommended that all users read and
retain this User Manual for reference.
Throughout this manual notice is made of a Warning and Caution system to highlight
to the user practices, procedures or conditions that should either not be allowed to
happen or happen with caution.
Warnings are in a box with bold type and identify potential hazards, procedures or
conditions which could result in death, injury or serious damage.
Cautions are in a box with plain type and identify conditions or procedures where if
caution is not taken it may result in damage or failure of equipment.
General Warnings
WARNING
Maximum Load (SWL) is 250kg distributed evenly.
Do not use flammable gasses in proximity to an electrically operated chair.
Do not concentrate weight on either side or either end of the chair.
Use only accessories approved for use with this chair.
Disconnect power supply before moving chair.
Children must be adequately supervised in the presence of the chair.
Do not allow children to play with the chair at any time.

Podiatry Chair User Manual
4 | P a g e

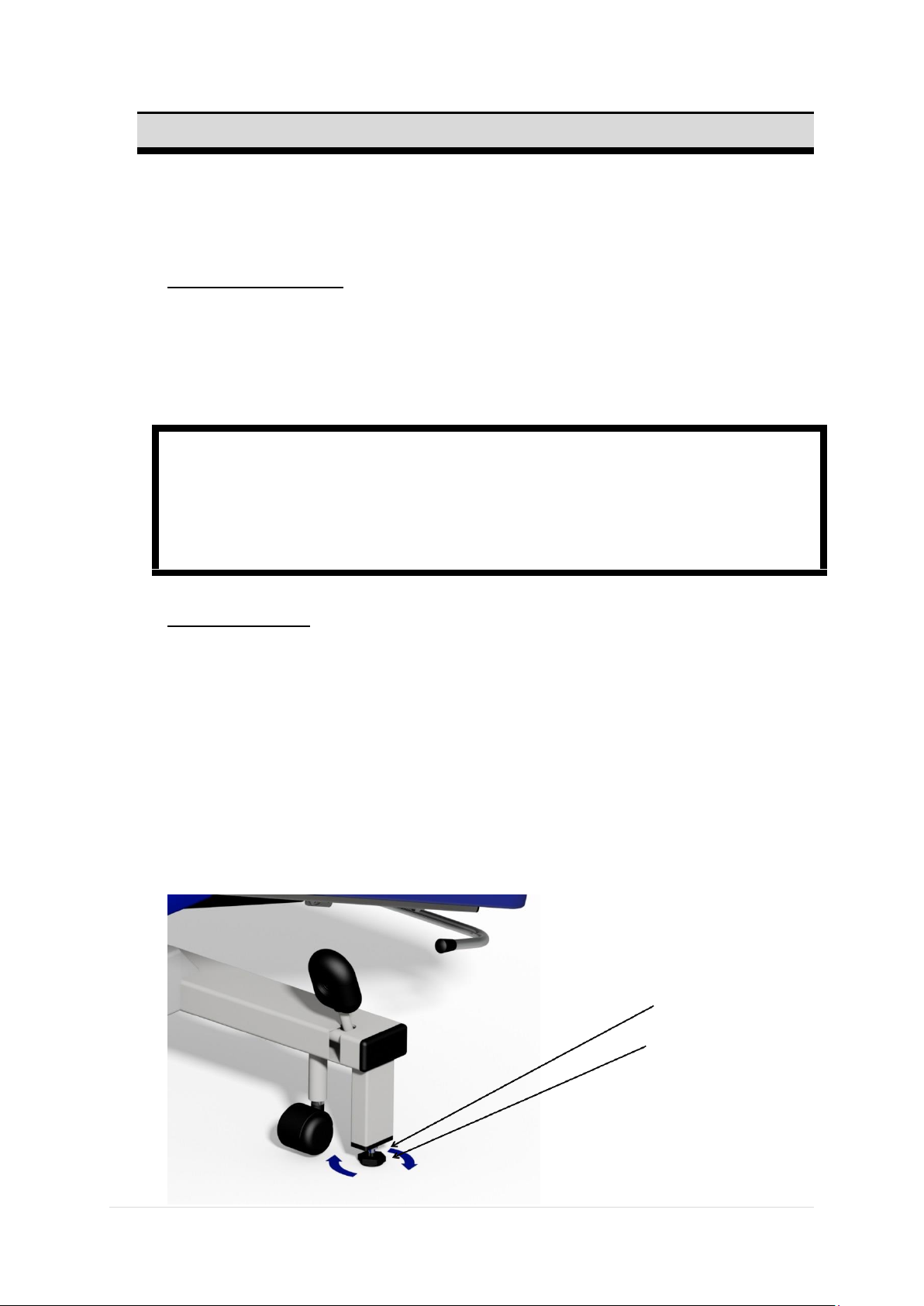

2. Installation
Although this chair comes complete and is virtually ready to use it is important to
remove all packaging and read the following before use.
Retractable Castors
The castors can be operated from either side of either end of the chair. Press the
pedal down to engage the castors and lift the pedal to retract the castors.
Please refer to the Operation section on page 7 for further details.
WARNING
Castors must be retracted before the chair is used and whilst patients get on or off
the chair.
Care should be taken to ensure patients do not trip over any part of the chair when
getting off.
Adjustable Foot
Fitted to the head end of the chair is an adjustable foot. This is designed to stabilise
the chair and must be set before use. The foot should be wound in/out until it is
firmly in contact with the floor whilst the castors are retracted. Check that the chair
is firm and stable and then adjust the lock nut back up against the chair leg to lock
the adjustable foot in position. Incorrect adjustment will result in the chair being
unstable and the wheel pedals difficult to operate.
Locking nut
Adjustable foot

Podiatry Chair User Manual
5 | P a g e
Power Supply
Ensure that hand or foot switch leads are clear of the moving parts of the chair
before operation. Connect the chair to a normal domestic type power supply
observing the following notes.
WARNING
Ensure that the mains lead, plug and socket are in good condition before
connecting the equipment.
Ensure that the mains cable has a clear run and is not stretched when connected
and that no one can fall over the cable.
CAUTION
When chair is not in use switch off power supply.
Lifting and Moving
Should the chair need to be moved or lifted (for example to remove it from its
packaging) then a minimum of two people are required. The chair must only be lifted
by the metal base frame near the wheels. If the chair is upside down then it may be
carried by holding it underneath the upholstery. When turning the chair over, please
make sure the frame and upholstery are supported at all times, otherwise damage
may occur to the upholstery and gas springs.
CAUTION
Under no circumstances lift the chair by the upholstery or top sections as damage
will occur to the gas spring mechanisms.

Podiatry Chair User Manual
6 | P a g e
3. Operation
Plinth Medical offers 4 models of Podiatry Chair; 503C (single leg 1 motor), 503CD (divided
leg 2 motor), 503CT (single leg 2 motor) and 503CDT (divided leg 2 motor). Depending on the
model you have some of the following features may not be present.
Electrical Operation General
WARNING
Safely position patient before operating any functions.
Position the switch in a place where it is clear of the moving parts of the chair and
where accidental operation is not possible.
Ensure that all electrical cables are clear of the moving parts of the chair.
Electrical Operation (hand)
A standard fitment to the podiatry chair is a single hand control able to operate all
electrical functions.
Height
Tilt
Backrest
Electrical Operation (foot)
As an option this chair may be supplied with a foot switch to operate the electrical
functions. It will operate in the same way as the hand switch but must be placed on
the floor and operated by foot.

Podiatry Chair User Manual
7 | P a g e

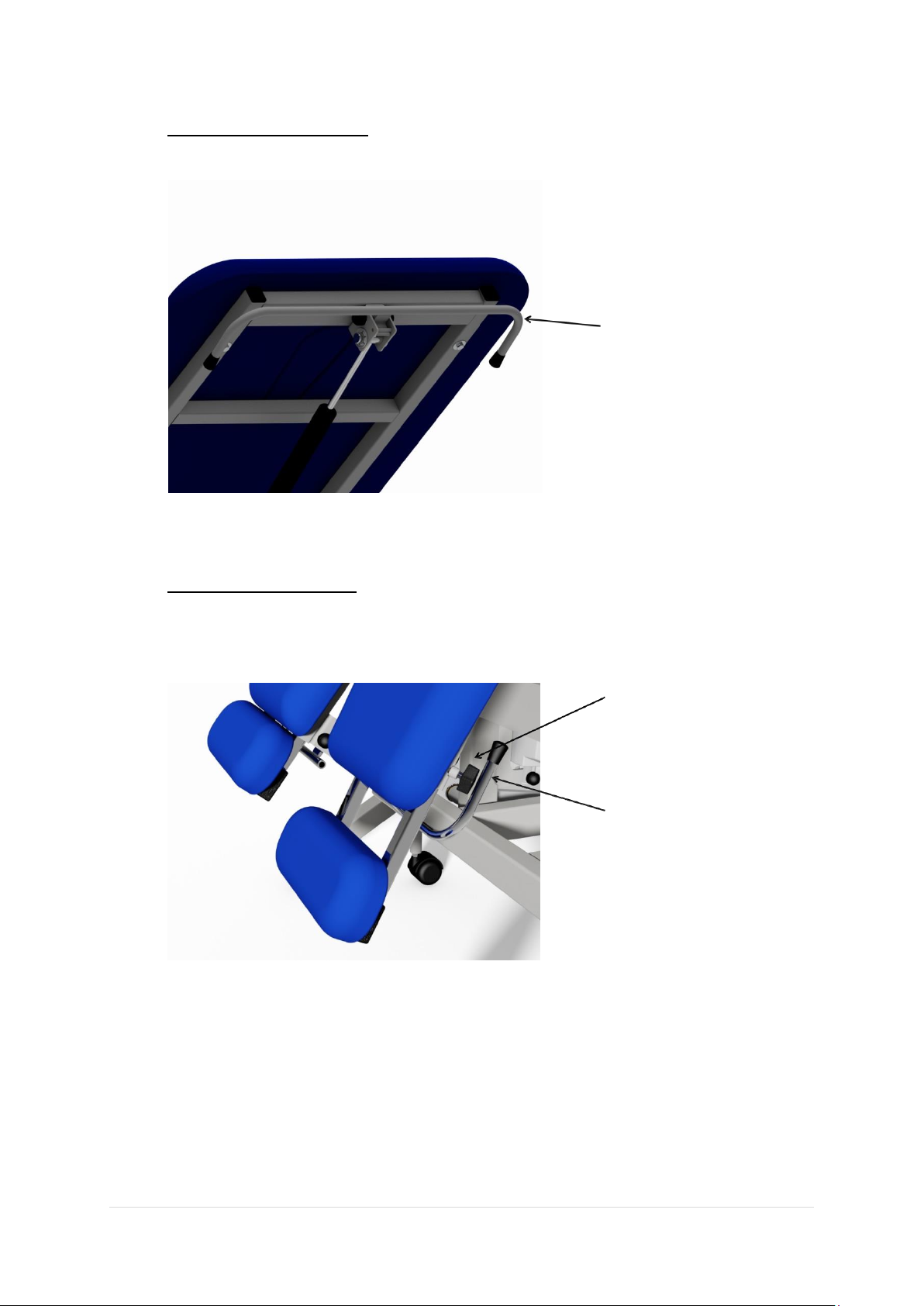

Manual Head Sections
For versions that do not have a motorised head section. The operation is via a gas
spring mechanism triggered with a lever as shown below:
Press the lever to adjust
the section. Support the
section whilst adjusting
and release the lever to
lock in the desired
position.
Manual Leg Sections
For versions that do not have a motorised leg sections. The operation is via a gas
spring mechanism triggered with a lever as shown below:
Heel pads are extended
by loosening the locking
knobs and retightening in
the desired position.
Press the lever to adjust
the section. Support the
section whilst adjusting
and release the lever to
lock in the desired
position.

Podiatry Chair User Manual
8 | P a g e

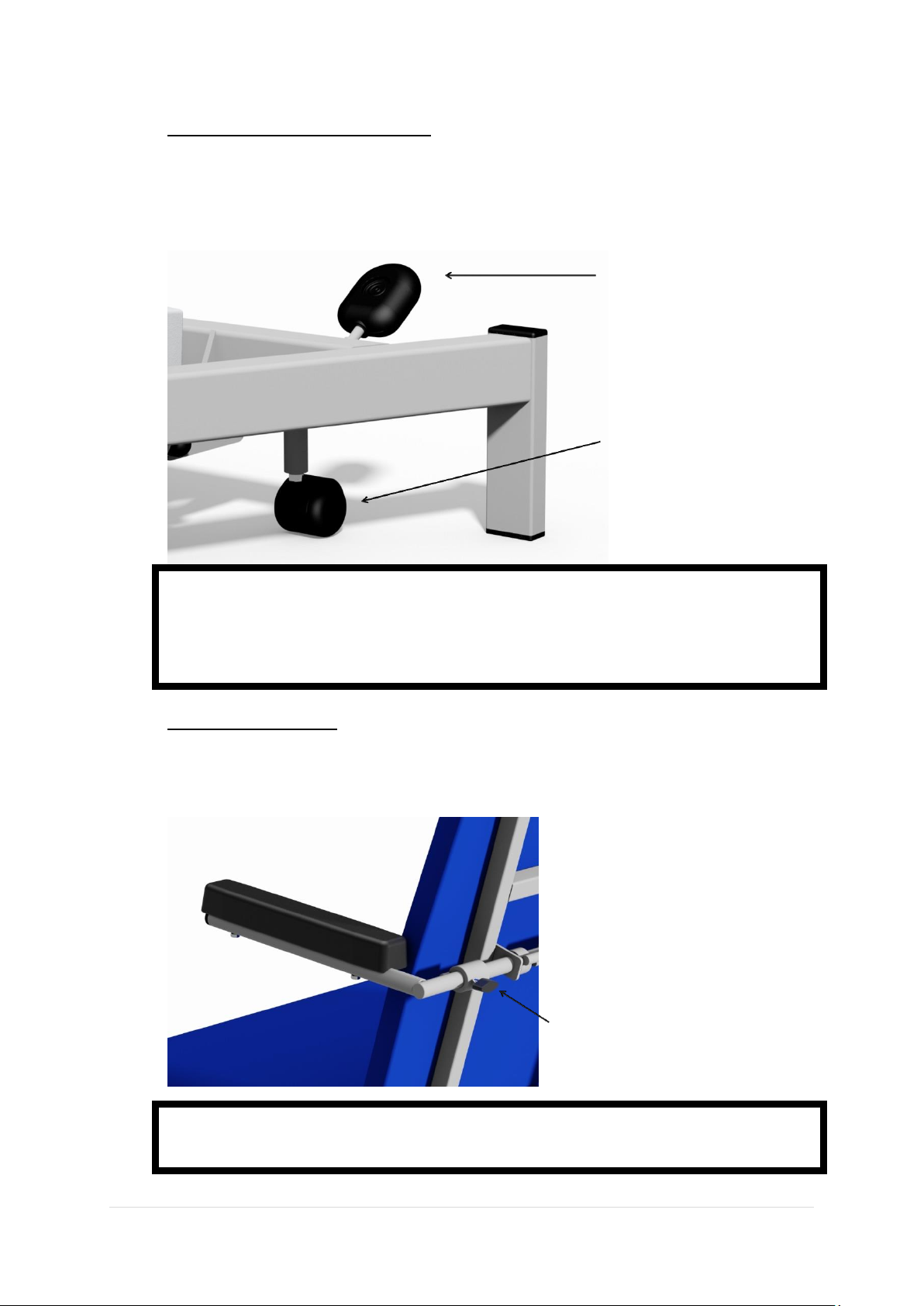

Retractable Castor Operation
The castors fitted to this chair are 50mm retractable swivel castors. They are
operated in pairs at each end of the chair via the black wheel pedals.
NOTE –the castors are not designed for patient transport.
Press the pedal down
fully to operate the
castors and lift the pedal
to retract the castors.
Castor
WARNING
Castors must be retracted before the chair is used and whilst patients get on or off.
Disconnect and coil electrical leads and switch away from the chair mechanism
prior to moving the chair.
Armrest Operation
The chair is supplied as standard with a pair of swing back chiropody type armrests.
These are operated as follows:
The arms are designed to stay
horizontal whist the backrest is
moved. They also swing back to
allow patient access on and off
the chair.
‘T’ screw holds Arm in position. To
remove; loosen screw and slide
arm out.
WARNING
The armrests must be properly locked in position whilst in use.

Podiatry Chair User Manual
9 | P a g e
4. Accessories Operation
A range of accessories are available as options to expand the use of the chair. The
standard recommended accessories are detailed below. Many of these can be fitted
retrospectively if required.
Paper Roll Holder
Paper roll is replaced by removal
of one or the other of the plastic
knobs, sliding the bar partially
through the leg of the holder and
then fitting the tube over the
bar. Re fit in the reverse order.
Battery Backup
Battery backup is a useful option in case of power shortages. It allows at least one
full cycle under battery power to enable the patient to get off the chair. If specified
with the chair then this feature will remain automatically charged and ready for use
in the event of a power failure.
CAUTION
Do not use the battery to operate the chair other than for one cycle. This feature is
designed to get a patient off the chair in an emergency and frequent use will destroy
the battery.
Battery operation is available as an option if required.

Podiatry Chair User Manual
10 | P a g e

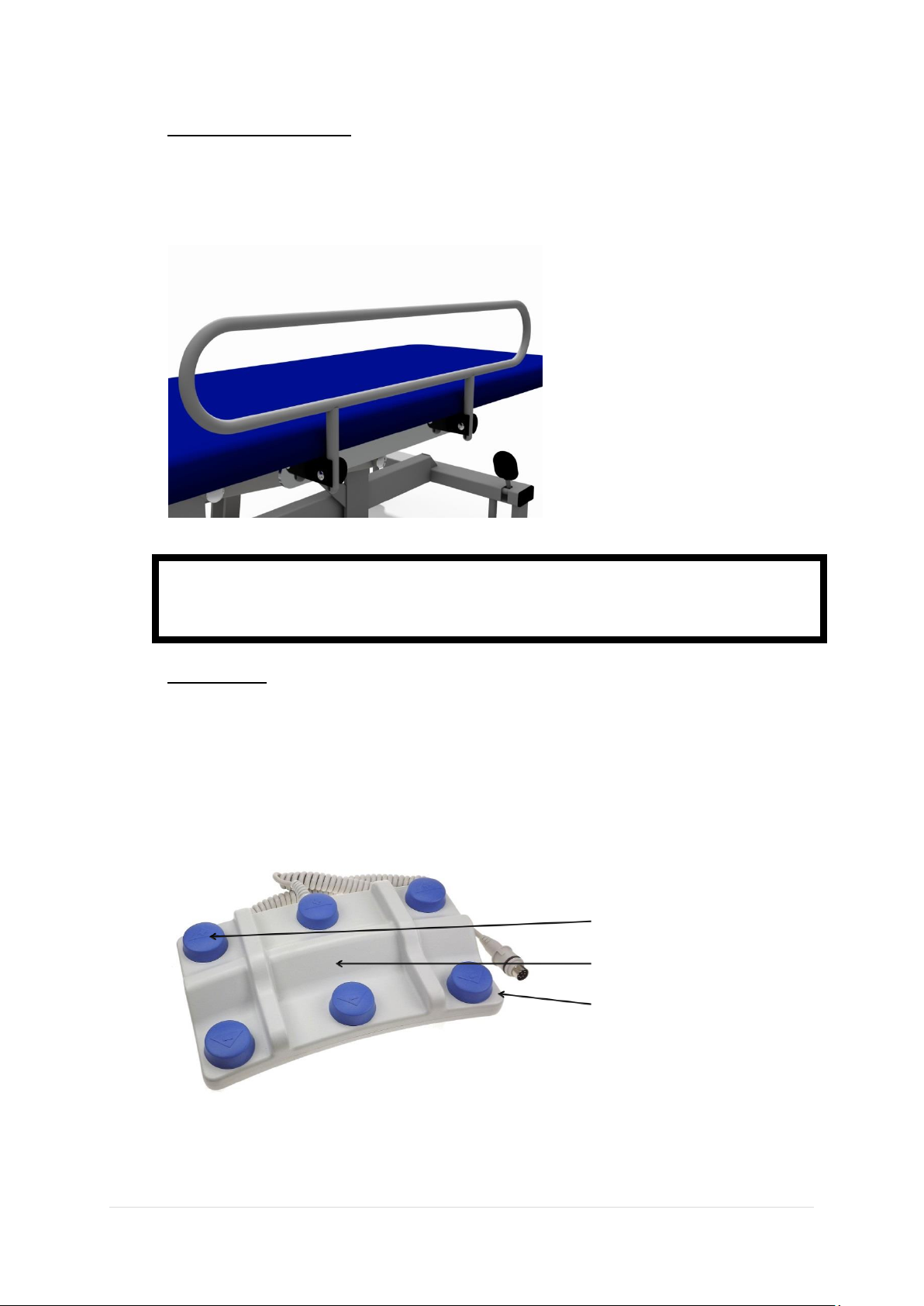

Fold Down Cot Sides
Fold down cot sides are available as an option and may only be used with the
podiatry armrests removed. They are operated as follows:
To raise the cot side from the
down position; lift and rotate the
cot side towards you through a
full 180°. When upright push the
cot side down into the plastic
block until it is fully located.
To lower the cot side from the
upright position; lift up in the
plastic block and then rotate a
full 180° into the down position.
WARNING
Ensure that the cot side is fully engaged in the plastic block whilst in use.
Footswitch
An optional fitment footswitch may be specified for the chair and will look similar to
the one pictured below. Note that the switch will vary depending on the model of
chair and the number of motors fitted. The example below is for the 503CDT with
motorised backrest (3 motor chair).
Height (up/down)
Tilt (up/down)
Head rest (up/down)
For chairs fitted with four motors the sequence shown above will remain with the
fourth row of buttons operating the Foot rest.

Podiatry Chair User Manual
11 | P a g e
5. Cleaning and Decontamination
WARNING
If contamination is suspected then decontaminate the chair before use.
Torn or damaged upholstery should be replaced immediately.
CAUTION
Do not use Alkalis or other organic solvents for routine cleaning.
Always cover the vinyl with paper towelling or chair covers if it can come into
contact with bare skin.
Cleaning
Always wear suitable protective clothing before carrying out this procedure.
Disconnect the mains supply to the chair and move it to a suitable cleaning area and
lock the castors.
Step 1. Using warm water and soap on a damp cloth, carefully wipe the chair over
from top to bottom. Take great care around electrical components.
Step 2. Wipe the chair carefully from top to bottom using a clean damp cloth and
soap free water.
Step 3. Carefully dry the chair from top to bottom with clean lint free paper towels.
Decontamination
To decontaminate the chair repeat the above steps but using a dilute solution of
Hypochlorite and warm water (10,000ppm) instead of warm water and soap. At the
end of the procedure discard all cleaning materials in a safe manner and wash hands
thoroughly.

Podiatry Chair User Manual
12 | P a g e
6. Troubleshooting
In the unlikely event of the chair failing to operate and having carried out the normal
practical fault finding steps below then please contact our Customer Service Team
on [phone] or email [email protected]. Please have
the serial number to hand before making contact so we can help you more
efficiently.
Fault
Possible Cause
Remedy
Chair is unstable
Uneven floor
Adjustable foot
Move chair to flat floor
Check presence, condition
and adjustment of foot
All motors will not work
(503C or 503CD the
only motor will not
work)
Power disconnected
Fuse Blown
Hand/ Footswitch
disconnected
Connect power supply
Replace fuse in plug
Check the switch is fully
connected to the motor
One motor will not
work but others
working (503CT
503CDT)
Lead from height
motor/control box not
connected to slave motor
Fault with switch
Fault with control box
Fault with motor
Check and connect all leads
Replace switch
Replace control box
Replace motor
Motor sinks
Switch permanently
operated
Motor fault
Unplug and re-connect
switch
Replace motor
Backrest or leg rest will
not work (manual
versions)
Gas spring incorrectly
adjusted (not being
triggered)
Gas spring faulty
Rotate gas spring until the
pin is just in contact with the
lever (2-3mm play required)
Replace gas spring
Backrest or leg rest
sinks under load
(manual versions)
Gas spring incorrectly
adjusted (permanently
triggered)
Rotate gas spring until the
pin is just in contact with the
lever (2-3mm play required)
Armrests slip or are
loose
Locking thumbwheels not
correctly tightened
Thumbwheels damaged from
over tightening
Correctly tighten locking
thumbwheels
Replace thumbwheels

Podiatry Chair User Manual
13 | P a g e
7. Maintenance
Plinth Medical Ltd products are designed to be maintenance free. However keeping
your Plinth products clean and regularly checked will assist in prolonging their
working life. The following is a guide of simple checks that the user can carry out on
a six monthly basis. We would also recommend an annual service visit by a Plinth
Medical trained engineer.
WARNING
Disconnect chair from electrical supply before commencing any of the following
checks.
Examine the chair for any signs of damage. Pay particular attention to all nuts, bolts
and fasteners to check they are present and tight but not over tight.
Upholstery bolts should all be checked (each section has between 2 and 6 No. M6
bolts), they should all be present and tight.
Check gas struts (if fitted) and ensure that they operate through the full range of
movement and lock fully.
Check hinge pins are lubricated and not rusty.
Check main chair nylon pivot bearings are lubricated sufficiently.
Examine mains and switch cables for any damage, cuts, kinks, abrasions etc. These
must be replaced if necessary.
Check mains lead, switch cables and slave motor leads are all correctly and securely
attached.
Check correct plug fuse is fitted (5A).
WARNING
Any electrical checks or work other than the visual inspection above must be
performed by a qualified electrician.
Do not connect BLUE or BROWN wires to the earth terminal of a plug.

Podiatry Chair User Manual
14 | P a g e
8. Guarantee and Service (UK only)
Plinth Medical Ltd offer a 5 year parts guarantee on all Premium Range products
delivered from January 2013 and a lifetime frame guarantee. The only exclusion to
this guarantee is for negligent damage or damage to upholstery coverings. This
guarantee does not require registration of the product as we can trace it from its
serial number, however in the event of the serial number being removed, missing or
unreadable then this may void the guarantee. These terms do not affect your
statutory rights.
In addition to the above Plinth Medical Ltd can offer both extended warranties and
service contracts. For further information about either of these please contact:
Customer Service
Plinth Medical
Barric Lane
Occold
Eye
Suffolk
IP23 7PX
Tel: [phone]
Mail: [email protected]
In the event of returning a product or part to us then please follow the instructions
for cleaning under section 5 before enclosing it in suitable packaging and returning it
to the above address. In addition please ensure there is a statement confirming that
it has been decontaminated and what the fault is along with relevant contact details.
Worldwide
Please contact the distributor you purchased the chair from for service and support
in your country. If you are unable to do so then please contact us in the UK and we
will refer you to our local representative.

Podiatry Chair User Manual
15 | P a g e
9. Technical Specifications
IEC 601-1 Electrical Safety Classification
All models are double insulated Type B equipment and marked as such.
Double Insulated Type B Equipment
503C
503CD
503CT
503CDT
Head Length (cm)
81
81
81
81
Seat Length (cm)
50
50
50
50
Foot Length (cm)
44
44
44
44
Width (cm)
63
63
63
63
Overall Length (cm)
177
177
177
177
Height Range (cm)
53-100
53-100
53-100
53-100
Max Working Load
250kg
250kg
250kg
250kg
Control
Hand switch
Hand switch
Hand switch
Hand switch
Electrical Data 220/240v
Motor(s)
Linak LA31 x 1
Linak LA31 x 1
Linak LA31 x 2
Linak LA31 x 2
Control Box
Linak CB09
Linak CB09
Linak CB09
Linak CB09
Current
1.5A
1.5A
1.5A
1.5A
Power
360W
360W
360W
360W
Mains Plug Fuse
5.0A x 1
5.0A x 1
5.0A x 1
5.0A x 1
Internal Fuse
1.5A x 1
1.5A x 1
1.5A x 1
1.5A x 1
System Voltage
24v
24v
24v
24v
IP Rating
IPX4
IPX4
IPX4
IPX4
Electrical Data 110/120v
Motor(s)
Linak LA31 x 1
Linak LA31 x 1
Linak LA31 x 2
Linak LA31 x 2
Control Box
Linak CB09
Linak CB09
Linak CB09
Linak CB09
Current
2.7A
2.7A
2.7A
2.7A
Power
360W
360W
360W
360W
Mains Plug Fuse
5.0A x 1
5.0A x 1
5.0A x 1
5.0A x 1
Internal Fuse
3.0A x 1
3.0A x 1
3.0A x 1
3.0A x 1
System Voltage
24v
24v
24v
24v
IP Rating
IPX4
IPX4
IPX4
IPX4

Podiatry Chair User Manual
16 | P a g e
10.Revisions to Manual
Pages
Issue No
Name
Date
All
Manual - 01
Niall Dyer
13.06.2017
Plinth Medical
Barric Lane
Occold
Eye
Suffolk
IP23 7PX
ENGLAND
Plinth Medical Ltd In association with Plinth 2000 are an ISO Audited company to
ISO9001:2008
Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC
