Plus U7-132 User manual

Digital Projectors
U7 Series
Less than 7 lbs.
6Models to choose from.
PLUS applies its miniaturization ingenuity
to the conference room projector!
Works anywhere from small seminar rooms to large conference rooms, and is ceiling-mountable.
Models with short-focus zoom lens enable you to project images onto a 100-inch screen from
a distance of 10 feet.
CF-type wireless LAN card makes possible wireless presentations. (U7-137 & U7-137SF)
Built-in CF card slot, USB port, and Image Viewer function enable presentations without a PC
(U7-137 & U7-137SF)
New Advanced Color Wheel (ACW) from PLUS enhances color reproduction.
High contrast ratio of 2,000:1 delivers an experience of brightness that surpasses the specifications.
Lumens Bright!
3,500
U7-132h XGA 3500 lumens
U7-132hSF XGA 3500 lumens
STANDARD MODELS BRIGHT MODELS FEATURE RICH MODELS
U7-132 XGA 3000 lumens
U7-132SF XGA 3000 lumens
U7-137 XGA 3500 lumens
U7-137SF XGA 3500 lumens
Series

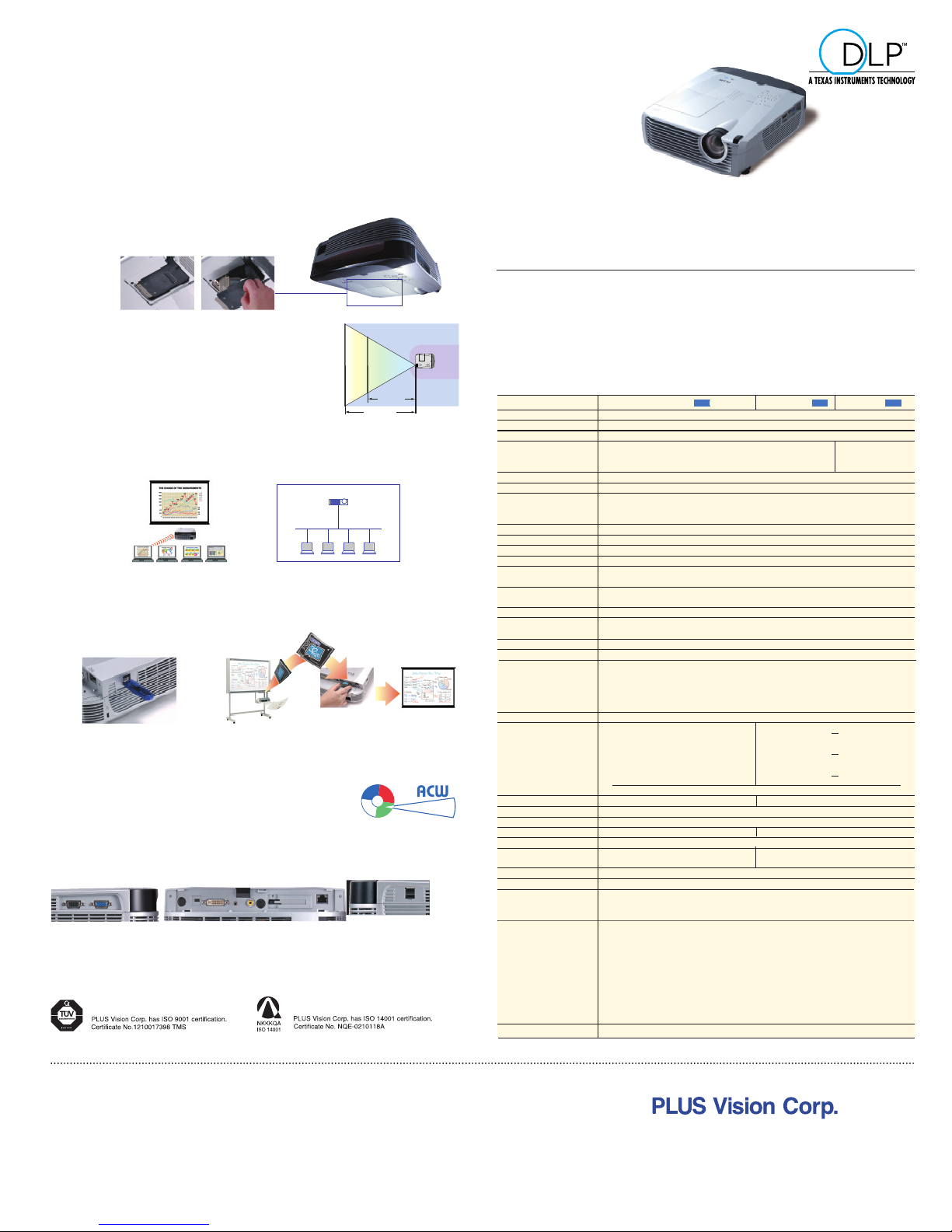

Digital Projector

Specifications
World’s Brightest (3,500 lm) Projector
in a Light and Compact sub 7 lb Body
The Total Multifunction Projector For Wireless
and PC-Less Presentations!
Easy lamp replacement even when ceiling mounted
USB port
Designed to enable the projector to be mounted to the ceiling
Weighing less than 7 lbs, the projector is easy to move from place to place
An easily replaceable lamp and a terminal cover allow
the projector to be mounted to the ceiling and its light,
compact design gives it wonderful portability.
SF Models equipped with Short-focus zoom lens
The short-focus zoom lens allows you to project images
onto a 100-inch screen from a distance of only 10 feet. (The abbreviation “Reg.” refers to projectors without a Short-focus zoom lens;
the abbreviation “SF” refers to projectors with a Short-focus zoom lens.)
Enables wireless presentations
With no need for troublesome cable connections (U7-137 & U7-137SF)
A CF-type wireless LAN card comes with the projector as a standard feature, enabling
wireless capability. The projector also has wired network capability which makes it possible
to handle the projector via a company's internal network.
Enables PC-less presentations with internal Image Viewer (U7-137 & U7-137SF)
The CF card slot, built-in USB port and Image Viewer enable PC-less presentation
capability. Internal Image Viewer makes possible projection of image files stored in USB
memory and CF card/CF card adapter compatible media, etc.
Advanced Color Wheel (ACW) allows for further enhancement of color reproduction
PLUS's unique ACW preserves brightness, while allowing
for superlatively enhanced color reproduction and astoundingly
clear picture quality attainable only with DLPTM technology.
Equipped with a wide array of input/output terminals
High-quality image sources beautifully reproduced
Equipped with a built-in line doubler and advanced input/output terminals, including analog
RGB input, analog RGB output, and DVI terminals.
Compatible with progressive DVD input (480p, 576p) and HDTV broadcast (1080i, 720p)
With the component video cable you can input progressive DVD and HDTV (1080i, 720p)
signals. A 16:9 aspect ratio is also supported.
Superior Security Options
Security Password: Projectors can be set to require the input of a password at startup.
Security slot accommodates use of third-party anti-theft cables. The cable attaches to a desk
or other fixed object, and the lock fits snugly into the security slot.
Enables direct connection with PLUS copyboards with internal CF card slot (PLUS M series)
so that data can be shared even without a PC.
LAN
Wired network feature
Equipped with
10BaseT/100BaseTX
Ethernet port
U7-137/SF U7-132h/SF XGAXGA XGA U7-132/SF
PLUS has created a projector that offers astounding compactness, lightness, and brightness
by combining technologies it has gained from its development of mobile projectors over the
years with DLPTM technology which is ideal for compact projectors using a single-chip Digital
Micromirror Device (DMD) system. A high contrast of 2,000:1 offers a superlative brightness
that seems in actual use to supersede specifications. In addition, the DLPTM technology
minimizes picture quality decay that often occurs with LCD projectors when used over a long
period of time.
PLUS's unique technologies exploit the strengths
of DLPTM technology to the fullest
*1: In Dynamic Mode
8.2~9.5 ft
10.2~11.2 ft
80"
100"
The DLPTM logo is a trademark of Texas Instruments.
DLPTM
DMD XGA x 1
1024 pixels x 768 pixels
2000:1 (Full on/off)
4:3, supports 16:9
F2.4-2.6 f=26.5-31.8 mm
F2.6-2.8 f= 22.1-25.6 mm
1:1.2 Manual Zoom, Manual Focus
300-watt High Performance Compact Lamp
2,000 hours (Normal mode), 3,000 hours (Eco-mode)
16.7 million colors
Front/Rear, Table/Ceiling
3.9-37.7 ft
3.9-31.2 ft
27”-300” diagonal
34"-300" diagonal
SXGA (Compression), XGA (True), SVGA/VGA (Expansion/True)
NTSC3.58, NTSC4.43, PAL, PAL_N, PAL_M, PAL60, SECAM,
YCbCr (NTSC, PAL), YPbPr (480p, 576p, 1080i, 720p)
15-80 kHz
50-85 Hz
Mono 0.5-watt
RGB (Analog/Digital)/YCbCr/YPbPr: DVI-I x 1
RGB/YCbCr/YPbPr: Mini D-Sub 15 pin x 1
Composite Video: RCA x 1, S-Video: Mini DIN 4 pin x 1
Audio (RGB/Video): ø3.5 mm Stereo Mini Jack x 1
RGB/YCbCr/YPbPr: Mini D-Sub 15 pin x 1
Silver
3.3” / 83 mm (H) x 10.2” / 258 mm (W) x 12.6 / 320 mm (L)
100-240 V AC at 50/60 Hz
32-95 °F/5-35 °C
English/ German/ French/ Italian/ Spanish/Swedish/ Korean/ Chinese/ Japanese
Full-Auto Adjustment, Digital Keystone Correction (Vertical: Max. 20 degrees)
Digital Zoom (2x), Freeze, Mute, Quick Color Adjustment
Presentation Timer, Security Password
RS232C/Telnet/Web Browser RS232C
9610 SW SUNSHINE CT.
SUITE 800
BEAVERTON, OR 97005
866-427-8855 • 503-748-8700
www.plus-america.com
SF Models equipped with Short-focus zoom lens
The short-focus zoom lens allows you to project images
onto a 100-inch screen from a distance of only 10 feet.
3500 lm*1 (Eco-mode:
approximately 20% less brightness)
3000lm*1(Eco-mode:
approximately 20%
less brightness)
Image Veiwer/Mouse:
USB Type A x 2,
Wireless/ImageViewer:
CompactFlashTM Card Type I slotx1,
Network (10BaseT/100BaseTX):
RJ45 x 1
Remote Mouse: USB Mini-B x 1, RS232C: Mini DIN 9 pin x 1
Mini Jack to RCA Adapter
(ø3.5 mm Stereo Mini Jack - RCA/0.5 ft) x 1
Soft Case x 1
Wireless LAN Card (802.11b Wi-Fi
CompactFlashTM Card) x 1 (only U7-137/SF)
User's Manual (CD-ROM) x 1
User's Manual (Simplified Edition) x 1
Security Label x 1
Lens Cap x 1
IR Remote Control (with Laser Pointer) x 1
AAA Batteries (for Remote Control) x 2
Power Cable (6 ft) x 1
VGA Cable (Mini D-sub 15 pin/6.5 ft) x 1
S-Video Cable (Mini DIN 4 pin/6.5 ft) x 1
Video Cable (RCA/6.5 ft) x 1
Audio Cable (ø3.5 mm Mini Plug/6.5 ft) x 1
DVI-I - Mini D-Sub 15 pin Adapter (0.6 ft) x 1
USB Cable (Mini-B - Type A/6.5 ft) x 1
User-Replaceable Lamp Unit, Ceiling Mount Kit
6.8 lbs 6.6 lbs
430watts(Normal mode), 380watts (Eco-mode),
under20 watts (Standby) 430watts(Normal mode), 380watts (Eco-mode), under15 watts (Standby)
Projection System
Panel
Resolution
Brightness
Contrast Ratio
Aspect Ratio
Projection Lens (Reg.)
Projection Lens (SF)
Light Resource
Lamp Life
Color Palette
Projecting Position
Projection Distance (Reg.)
Projection Distance (SF)
Image Size (Reg.)
Image Size (SF)
RGB Signal (Input)
Video Signal
Horizontal Synch Range
Vertical Synch Range
Audio
Terminals (Input)
Terminals (Output)
Other Terminals
External Projector Control
Color
Dimensions Excluding lens and stand
Weight
Power Supply
Power Consumption
Environment
On-Screen Display Languages
Functions
Accessories
Optional Accessories
