PMT Tamson Cool Cube Bath Series User manual

www.tamson.com
[email protected]
Tamson Instruments bv
Page 1/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
USER-MANUAL
Tamson Cool Cube
Bath (TCC-B)

www.tamson.com
[email protected]
Tamson Instruments bv
Page 2/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
1SAFETY AND WARNINGS..............................................................................................................................3
2WARRANTY..................................................................................................................................................... 3
3DISCLAIMER ...................................................................................................................................................3
4PRECAUTIONS AND HAZARDS ....................................................................................................................4
5INSTALLATION................................................................................................................................................4
5.1 IMPORTANT................................................................................................................................................. 4
5.2 UNPACKING ................................................................................................................................................ 4
5.3 MOUNT SPACERS ........................................................................................................................................4
6AIR CIRCULATION.......................................................................................................................................... 5
6.1 REGULAR MAINTENANCE .............................................................................................................................5
7OPERATION....................................................................................................................................................6
7.1 SWITCHING ON............................................................................................................................................ 6
7.2 CAUTION WITH POWERING ON/OFF ............................................................................................................... 6
7.3 WHAT IS WHAT?.......................................................................................................................................... 6
7.4 START........................................................................................................................................................ 7
7.5 SELECTING PARAMETERS............................................................................................................................ 8
7.6 QUICK START..............................................................................................................................................9
7.1 FLUID LEVEL.............................................................................................................................................10
7.1 MAXIMUM FLUID LEVEL..............................................................................................................................11
8CONNECTING...............................................................................................................................................12
8.1 CLEANING.................................................................................................................................................12
9INTRODUCTION TO THE TCC-B SERIES...................................................................................................13
9.1 GENERAL............................................................................................................................................... 13
9.2 PUMP .......................................................................................................................................................13
10 SPARE PARTS LIST AND PRODUCT CODE...........................................................................................15
11 WIRING ......................................................................................................................................................15
12 DITECHNICAL DETAILS............................................................................................................................16
13 TROUBLE SHOOTING ..............................................................................................................................17
14 CE DECLARATION OF CONFORMITY.....................................................................................................18

www.tamson.com
[email protected]
Tamson Instruments bv
Page 3/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
1 SAFETY AND WARNINGS
Make sure before installing or operating the equipment to read and understand all instructions and safety
precautions listed in this manual. If there are any questions concerning the operation of the equipment or about
the information given in this manual, please contact your local dealer or our sales department first.
Performance of installation, operation, or maintenance other than those described in this manual may result in a
hazardous situation and may void the manufacturer's warranty.
Never operate equipment that is not correctly installed. Unqualified personnel must not operate the equipment.
Avoid damage to the equipment, or its accessories, caused by incorrect operation.
Important:
-When performing service, maintenance or moving the apparatus, always disconnect the apparatus at the
main's socket,
-Proper skilled and trained personnel are only allowed to operate this equipment,
-Take notice of warning labels and never remove them,
-Refer service and repairs to qualified technician,
-If a problem persists, call your supplier or Tamson Instruments b.v.
2 WARRANTY
Tamson Instruments b.v. warrants that all their manufactured equipment is free from defects in material and
workmanship, preventing the device from normal operation. Tamson Instruments b.v. does not warranty that the
equipment is fit for any other use than stated in this manual. The manufacturer can only be held responsible for
the security, reliability and performance of the equipment, when operated in accordance with the operating
instructions, extensions, adjustments, changes and/or if repair is performed by Tamson Instruments b.v. or
authorized persons only. This warranty is limited to one year from the date of invoicing. All equipment and
materials are subject to standard production tolerances and variations.
3 DISCLAIMER
For relevant measurements always an independent reference measurement is needed. Tamson can’t be held
responsible for misinterpretation or consequences of an erroneous reading.

www.tamson.com
[email protected]
Tamson Instruments bv
Page 4/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
4 PRECAUTIONS AND HAZARDS
Before attempting to operate the TCC –B, read all parts of
this manual carefully to insure smooth operation and avoid
damage to the equipment or its accessories.
If a malfunction occurs, consult section "Trouble shooting”,
page 17. If the problem persists email us via the website
www.tamson.com and the "Contact Us" form.
Never operate the equipment if not correctly installed. The
equipment must be operated only by qualified personnel.
Avoid damage to the equipment or its accessories through
incorrect operation.
Environment
Panel sealing
Conform to EN60529: IP65
Environment Temperature
0 tot 35°C. Supply enough ventilation
Humidity
5 tot 95 %, non condensating
Atmosphere
Not suited for altitudes heights above
2000m or
explosive/corrosive environment
Pollution cat. 2
Conducting pollution must be prevented
5 INSTALLATION
5.1 Important
Tamson Instruments bv is not responsible for any
consequential damage or harm caused by using this TCC - B.
Repairs on the electrical system of the TCC –B may only be
carried out by well trained and authorized persons.
5.2 Unpacking
Before leaving the factory Tamson products are adequately
packed to prevent damage during normal transportation.
Check the packing for external damage and make a note on
the shipping documents if any damage is found. Always retain
the cartons and packing material until the product has been
tested and found in good condition. (Transport companies
generally will not honor a claim for damage if the respective
packing material is not available for examination).
5.3 Mount spacers
Mount the two spacers at the backside of the TCC-IC
apparatus.
READ
CAREFULLY
REMOVE ALL
PACKAGE MATERIAL
MOUNT SPACERS

www.tamson.com
[email protected]
Tamson Instruments bv
Page 5/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
6 Air circulation
Put the unit in its proper place. Leave enough room around
the cryostat for sufficient air circulation. Place the unit in a
clean working environment and keep away from dust. When
air can not circulate well, the cryostat will overheat itself
resulting in irreversible and severe mechanical damage. Dust
will block the condenser and might also cause overheating of
the system. Overheating will cause severe damage to the
compressor.
6.1 Regular maintenance
Please check the apparatus to see if airflow is not blocked
around apparatus and both apparatus and condenser are free
from dust.
KEEP AIR FLOW FREE
>10cm
>10cm
ROOM FOR AIR CIRCULATION

www.tamson.com
[email protected]
Tamson Instruments bv
Page 6/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
7 OPERATION
7.1 Switching on
If the bath has been properly filled with fluid,it can be switched
with the mains switch located on the front panel. Choose a
working temperature (set point) with and keys. For an
optimal performance the bath is best tuned at the set point
temperature.
7.2 Caution with powering on/off
Be careful and do not toggle with the on/off switch. To start
the cooling compressor high currents are needed which will
heat the compressor motor internally. Switching off and on the
compressor several times within a short period will lead to
mechanical damage.
When switching off the apparatus, wait for 10 minutes
before switching the system back on again.
7.3 What is what?
A On / off switch
B Pump Speed
Indicators:
1 Pressure valve open
2 On - indicator
3 Overtemperature bath fluid
4 Heater pump outlet
5 Temperature Alarm
6 Heater Top Lid
7 Bath Fluid Low
8 Heater Temperature Control
9 Overpressure Stage II
10 Compressor 2 running
11 Overpressure Compressor II
12 Compressor 1 running
13 Overpressure Compressor I
Items
1 LED Display
2 Heater
3 Level indicator
4 Error overtemperature
5 Page key
6 List
7 Down key
8 Up key
A
B
4
2
6
8
10
12
1
3
5
7
9
11
13
1
2
3
4
5
6
7
8
1x
WAIT 10 MIN
BEFORE
TURNING ON

www.tamson.com
[email protected]
Tamson Instruments bv
Page 7/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
7.4 Start
The bath must be filled with a liquid suitable for the minimum operating temperature.
It is very important to select a liquid with a viscosity of
less than 20 cSt at the operating temperature and a flash
point which is well above the operating temperature.
The best bath liquid to be used is methanol, enabling
circulation at very low temperatures.
Methanol is extremely flammable and can cause fire hazard.
Please take all necessary precautions to reduce fire hazard.
When using methanol all vapors must be removed by using
appropriate air ventilation.
Methanol is toxic and can cause health risks. Use appropriate
ventilation and other precautions to prevent inhaling toxic
vapors. If ventilation is insufficient the risk of explosion
hazards can occur!
The supplier of the bath liquid (methanol) will be able to hand
over all chemical details and safety precautions related to the
use of methanol. These precautions must be followed when
operating the bath.
VISCOSITY
< 20 cSt
FLASHPOINT
> OPERATING
TEMPERATURE
METHANOL

www.tamson.com
[email protected]
Tamson Instruments bv
Page 8/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
7.5 Selecting parameters
The front panel layout shows the following 4 operating keys:
Press shortly and following is displayed
SP.1 - Temperature set point in C,
tU.n - Tuning the bath (“Atune”),
Pb - Changing the tuning (PID) parameters "P"value
ti - Changing the tuning (PID) parameters "I"value
td - Changing the tuning (PID) parameters "D"value
OFSt - Change temperature readout offset (± 5°C)
Each time is pressed another option is displayed.
Up and Down keys allow changing the listed value. All
changed values, like set point and PID parameters, will be
kept in memory when pressing the page key to leave the
menu. After switching off the power supply, changed values
are kept in memory.
SP.1 - Set point adjust. Press page key to
confirm setting when altered.
tU.n - Auto tuning PID parameters, set on or off.
Off is default value here.
On, when selecting parameter 2nd time,
On.A is played. This indicates adaptive tune.
Bath is adapting PID setting in background
operation. When in On.A mode PID values
can not be set manually anymore.
pb- Changing the tuning (PID) parameters.
'Proportional band value. Default value is 2,
range 1 .. 100. (Proportional band equals
1/proportional value). Press page key to
confirm setting when altered.
ti- Changing the tuning (PID) parameters
'Integrator' value. Default value is 200. Range
1 .. 1200. Default value is 200. Press page
key to confirm setting when altered.
td- Changing the tuning (PID) parameters
'Differentiator' value. Default value is 10.
Range 1 .. 600. Default value is 40. Press
page key to confirm setting when altered.
OFST- Set offset. The offset value is added to the
displayed bath temperature. I.e. when the
PAGE
LIST
DOWN
UP
Sequence

www.tamson.com
[email protected]
Tamson Instruments bv
Page 9/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
displayed bath temperature is 20.0°C, an
offset of 0.2 displays a value of 20.2°C. An
offset of -0.2°C will display 19.8°C. Range is
-5°C .. +5°C. Press page key to confirm
setting when altered.
note: When tune is set to on, PID values can not
be set. Change tune to off en alter PID
values.
Press page key to confirm setting when
altered.
7.6 Quick start
To quickly start operating the bath:
•Fill the bath with sufficient fluid to submerse the
cooling coil. However do not overfill the bath fully as
the fluid will exit through the overflow outlet,
•Place the power plug,
•Switch the bath on using the mains switch,
•Choose a working temperature (set point):
Press once. Display will indicate "SP.1". Alter set point
temperature by using up and down key to select the
desired bath temperature.
Press to display bath temperature again (or wait 10 seconds).

www.tamson.com
[email protected]
Tamson Instruments bv
Page 10/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
7.1 Fluid level
Do not operate the bath with low fluid level.
When the fluid level is too low, bath fluid will vaporize leading
to toxic and flamable fumes.
Flamable fumes can lead to fire
Flammable fumes can be ignited by the not submersed part
of the heating element.
The level indicator will start to blink (blue light) when the
fluid level is too low.
When the bath has been installed it must be filled with an
appropriate liquid. Depending on the operating temperature
the liquid level in the bath should be observed.
The liquid level should be maintained between 1 and 3 cm
below the lid during normal operation.
The heating element will be damaged when not fully
submerged in the bath fluid. A lower level than 5 cm below the
lid may damage the heaters. A high bath level can cause
overflow and will might also damage the bath insulation.
Low fluid level:
- Can cause fire when heater gets partially submersed
- Will damage the heater

www.tamson.com
[email protected]
Tamson Instruments bv
Page 11/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41

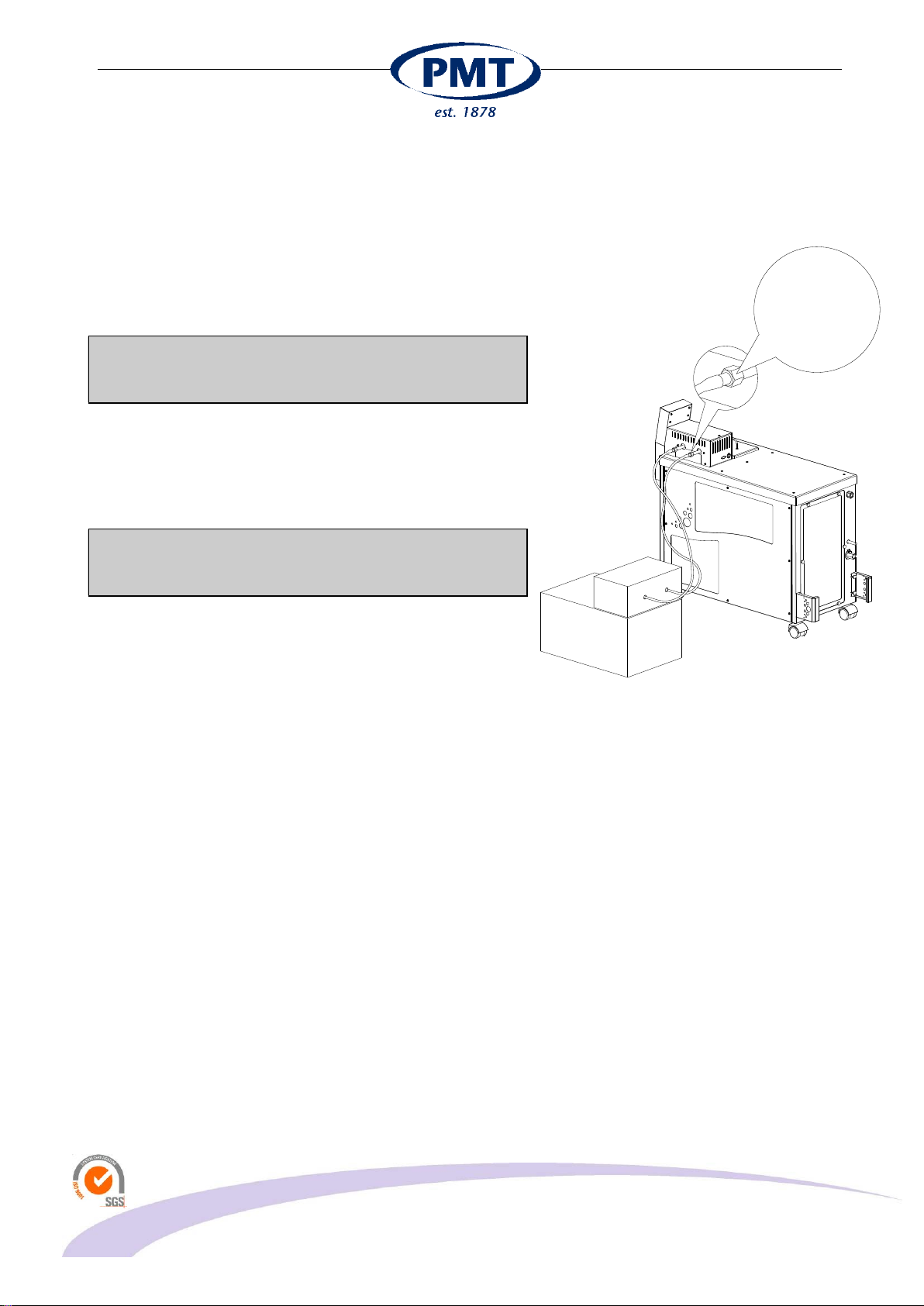

7.1 Maximum fluid level
If the fluid level is too high, it will leave the bath via the
overflow outlet (10 mm outside diameter pipe). Prevent fluid
from the overflow outlet entering the backside of the
apparatus. For this reason the overflow outlet must be
connected to a waste container.
When the bath is working at low temperatures, tubing and
waste container must be chemical resistant and able to
withstand high temperatures (<-80°C / -112°F).

www.tamson.com
[email protected]
Tamson Instruments bv
Page 12/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
8 CONNECTING
Before plugging TCC-B bath into mains socket, make sure the
voltage of the bath corresponds to the local voltage and
frequency.
Use a mains supply that is well earthed, clean of interference
and suitable for the acquired electrical load of the bath.
8.1 Cleaning
Regularly check the apparatus and condenser unit for dust.
Follow steps 1 to 3 to remove the dust.
Unplug from mains supply
Remove dust with a vacuum cleaner
Do not use compressed air to clean the system!
- This is not allowed for safety reasons.
- Dust can be blown in moving parts and cause friction.
- Dust can be toxic
Use a properly
grounded mains
supply
6 x unscrew
Check mains
voltage and
frequency
1.
2.
3.
Unplug mains!

www.tamson.com
[email protected]
Tamson Instruments bv
Page 13/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
9 INTRODUCTION TO THE TCC-B SERIES
The TAMSON model TCC-B circulators are designed to
perform accurate temperature control required for general
laboratory. The Tamson circulator is optimized for
temperature control of applications requiring a high degree of
stability over a broad temperature range.
9.1 GENERAL
The TCC-B apparatus consists of a combination of a cooling
system and a microprocessor controlled heating element.
This design ensures a high degree of accuracy and
reproducibility of temperature controls.
The TAMSON baths are constructed throughout from
corrosion-resistant –stainless steel and Teflon –materials.
The bath is effectively insulated against heat loss by a layer
of Armaflex® rubber between the inner tank and outer casing.
9.2 Pump
A circulation pump is built-in to guarantee an uniform
temperature distribution within the bath and providing the
possibility to circulate through a closed external system.
A circulation pump is provided with a circulation pump with a
capacity of 10 liters / min and a max pressure of 10 m head of
water [10mtr H2O].
The pump speed can be set to a minimum and maximum. To
enable stirring of the bath fluid the pump/stirrer can never be
set to off ("zero speed").
BATH
PUMP MOTOR
HOUSING
CONTROL PANEL
MAINS SWITCH
AIR FLOW
ALWAYS KEEP FREE !
CIRCULATION
INLET AND
OUTLET
Pump speed

www.tamson.com
[email protected]
Tamson Instruments bv
Page 14/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
The standard pump offers a motor protection (small thermal
fuse) which is placed on the back panel of the motor
compartment. This protects the motor from excessive loads.
When pumping viscous liquids the thermal fuse can be
activated. The motor fuse can be reset by pressing the
knob.
The inlet and outlet of the pump are fitted with 10 mm hose
connections and 3/8” threaded fittings for metal tubing. The
outlet (most near to the backside of the apparatus) is provided
with a small disc, stopping the circulation action.
Before the fluid can begin circulating through external
systems this disc must be removed by unscrewing the
fitting and hose connection removing the disc.
REMOVE DISK
WHEN
CIRCULATING

www.tamson.com
[email protected]
Tamson Instruments bv
Page 15/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
10 Spare parts list and product code
Product code
Ordering code
Description
00T0310
Tamson Cool Cube –Bath 230V / 50Hz
00T0311
Tamson Cool Cube –Bath 230V / 60Hz
00T0302
Tamson Cool Cube –Bath 115V / 60Hz
Sparepart - list
Ordering code
Description
06T0462
PCB, Mains Circuit Board
06T0464
Display Board
24T0029
Power Supply 24V/1,1A Wide Range Input
28T8006
Fan Motor
28T1209
Adjustment Key - Pressostat P20EA Johnson Control
11 Wiring
P1
P2
P3
C1
C2
Switched Mode Power Supply
P1 = Compressor stage 1
P2 = Compressor stage 2
P3 = Pressostat Pover 2nd
stage
C1 = Compressor stage 1
C2 = Compressor stage 2
Mains in
Fuse 2A - T
DC - Motor
shield
Overtemperature
thermostat
Red (Plus) : +24V White (speed) : 0 –5V Brown (direction) : 5V Black : GND Schield : GND
24Vx3,2A
24T0029
24Vx1,1A
Switched Mode Power Supply

www.tamson.com
[email protected]
Tamson Instruments bv
Page 16/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
12 DiTechnical details
Dimensions Casing
Height + display
780
[mm]
Width
380
[mm]
Depth (casing)
830
[mm]
Do not operate backside
directly to the wall
Weight
73
[kg]
Power consumption
Initial start (first 15 min. max)
2600W
During first
starting
minutes
Cooling down
Working load
1500W max
During normal operation and
no heating
Heater
1400W max
Full operation
2900W max
Heating up mode
Working conditions
Temperature
15..26
[°C]
Humidity
10..90
[%]
relative humidity
Bath
Opening
175x130
[mm]
Depth
260
[mm]
Contents
11
[ltrs]
Heat removal capacity
@ -84°C / -119 F
250
[Watt]
@ -82°C / -116 F
300
[Watt]
@ -73°C / -99 F
350
[Watt]
@ -64°C / -83 F
400
[Watt]
@ -58°C / -72 F
450
[Watt]
Cooling down curve
TCC-B Cooldown Speed
+20
0
Temperature [°C]
-80
-88
0:00
0:30
1:00
1:10
1:30
Time [hrs:min]

www.tamson.com
[email protected]
Tamson Instruments bv
Page 17/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
13 Trouble shooting
:
Electronics seem to be "dead"
:
Check fuse
☺:
Replace fuse. Fuse can be accessed
by removing right side panel.
:
Compressor (C1 or C2) do not run
:
Check apparatus for dust.
☺:
Remove all dust using a vacuum
cleaner. Do not use pressurised air.
:
Fan makes noise
:
Check fans inside for blocking
☺:
Remove dust or litter sucked in.
:
System does not cool down
:
Ice forming (crystals) in the bath.
☺:
Use new methanol
Do not use ethanol
FUSE

www.tamson.com
[email protected]
Tamson Instruments bv
Page 18/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
14 CE DECLARATION OF CONFORMITY
Following equipment is in compliance with EMC Directive 2014/30/EU:
Product: Thermostatic bath and circulator
Model: TCC - IC
TCC - B
Serial code: Effective from serial number 19Txxx
Manufacturer: Tamson Instruments bv
van 't Hoffstraat 12
2665 JL Bleiswijk
The Netherlands
The products are in conformity with the following specifications:
Item
Reference
Description
Test result
a
RoHS Directive
2011/65EU
p
b
EN61010-2-010
Safety requirements for electrical
equipment for measurement, control,
and laboratory use. Particular requi-
rements for laboratory equipment for
the heating of material
c
Machine Directive
2006/42/EC
Machinery Directive, of the European
Parliament and of the Council of 17
May 2006/42/EC 2nd Edition June
2010
p
d
EN 60204
Machinery Directive and Safety
requirements
p, pi
e
EN60950-1
Low Voltage Directive
p
f
EN61000-3-2:2014
Harmonics
p
g
EN61000-3-3
Flicker
p
h
EN61000-4-2 +A1+A2
ESD
p
j
EN61000-4-3 +A1+A2
Radiated immunity
p (anechoic room)
k
EN61000-4-4
Electrical Fast Transients
Minimum requirements pass
l
EN61000-4-5+A1
Surges
Minimum requirements pass
m
EN61000-4-6+A1
Conducted immunity
p
n
EN61000-4-11 +A1
Voltage dips and Voltage variations
p
o
EN55016-2-1
Conducted emission
p
p
EN55016-2-3
Radiated emission
p (anechoic room)
q
Pr EN 378
Refrigerating systems and heat
pumps - Safety and environmental
requirements
r
EN 13445-5
PED Inspection and Testing
Maximum working pressure
level of 30 Bar is confirmed.
On each apparatus following
pressure and leak tests have
been carried out with positive
result
- Low pressure side 20 Bar
- High pressure side 30 Bar
p = Pass
pi = Individually tested

www.tamson.com
[email protected]
Tamson Instruments bv
Page 19/19
ISO 9001 : 2015
NL/PRO 238239125
van 't Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
tcc-b-man Rev 1.01.docx Rev 1.01 UK
2019
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
not applicable were:
Conducted discontinuous emissions (Clicks)
Radiated emission (OATS)
Magnetic field immunity
The equipment conforms with all the specifications and norms in this regard.
The equipment conforms without any further notice.
Entity responsible for marking this declaration :
Manufacturer, Tamson Instruments bv, van 't Hoffstraat 12, Bleiswijk The Netherlands,
Name : R.C. van Hall
Function : Director
Date : January, 2019
Version : 1.04
