Introduction to the KingFisher Flex
This Brief User Manual is for the KingFisher Flex instrument. It aims to give you a short introduction
on installing the instrument and Thermo Scientific™BindIt™Software as well as starting a
purification protocol from the internal software.
The complete user manuals for the KingFisher Flex instrument and BindIt Software are provided on
CD, or USB, or are available to download from www.thermofisher.com. Read the user manuals in its
entirety before operating the instrument.
Intended use
The KingFisher Flex magnetic particle processor (Figure 1) is intended for laboratory use by trained
personnel. The instrument is intended for automated transfer and processing of magnetic particles
in a microplate scale. Use for self-testing is excluded. It is recommended that Good Laboratory
Practices (GLP) is followed to guarantee reliable analyses.
Principle of operation
The KingFisher Flex magnetic particle processor (Figure 1) is designed for automated transfer and
processing of magnetic particles in microplate format.
The patented technology of the KingFisher Flex system is based on the use of magnetic rods
covered with a disposable, specially designed tip comb and plates. The instrument functions without
any dispensing or aspiration parts or devices.
Before the run samples and reagents, including magnetic particles, are dispensed manually into the
plates according to the corresponding instructions. The protocol that is selected by the user via the
keyboard and display has already been preloaded into the onboard software. BindIt Software can be
used to create and run protocols.

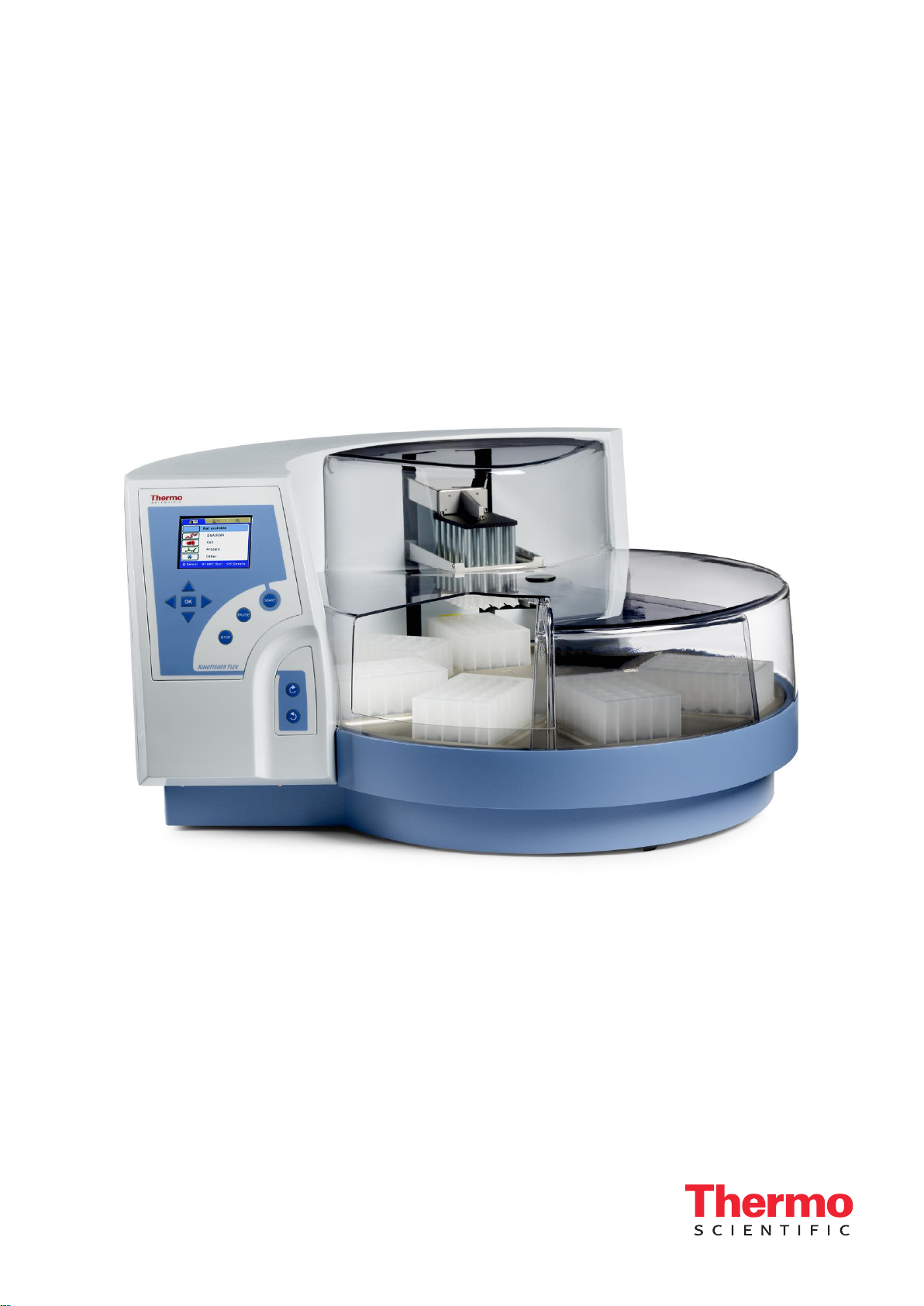

Figure 1. KingFisher Flex magnetic particle processor
Consumables
For details and ordering information on plastic consumables, such as plates, tip combs, etc. used with
the KingFisher Flex instrument, refer to “List of accessories and consumables” in the KingFisher Flex
User Manual (Cat. No. N07669).
Reagents
There is a wide selection of optimized Thermo Scientific™KingFisher™Pure Kits available for
purification of DNA or RNA. A large variety of starting materials can be used, such as blood, cells,
tissues or cell-free body fluids. The DNA or RNA purified with the KingFisher Pure Kits is of high
quality and free of proteins, nucleases, and other contaminants or inhibitors. For more details, visit
our website at http://www.thermoscientific.com/kingfisher.
Transparent lid
Sliding door (open)

5
Thermo Scientific Pierce Protein Research Products are available for protein applications. For more
details on kits available, visit http://www.thermoscientific.com/pierce.
The KingFisher Flex is an open system, which gives an opportunity to also use other magnetic
particle kits. The optimal magnetic particle size for the Thermo Scientific™KingFisher™Duo is ca.
1–10 μm.
Installation
This chapter briefly describes the installation of the KingFisher Flex instrument.
Warning! This product contains very strong permanent magnets. People wearing a pacemaker or metallic
prostheses should not use this product. A pacemaker or prostheses may be affected or damaged if it comes in
close contact with a strong magnetic field.
Caution! The KingFisher Flex should not be kept in close proximity to magnetic tapes, computer discs or other
magnetic storage systems, such as credit cards, as these can be damaged by the strong magnetic field of the
KingFisher Flex heads. Do not hold the KingFisher Flex heads close to a PC display, since this may cause
damage to the display. Do not use metal tools when handling KingFisher Flex heads.
Caution! The heating block is specifically designed for the plates listed below to ensure even heating during
the sample process. Using other plates than those recommended may damage the instrument and diminish the
application performance.
Caution! Do not place the KingFisher Flex heads on top of the instrument or any metal surfaces. Keep the
KingFisher Flex heads always in their respective plastic boxes when not in use. It is very important to keep the
KingFisher Flex heads away from each other and other magnets at all times. Interference of the magnets on
one another may cause serious damage to the magnets.
Unpacking the instrument
Move the packed instrument to its site of operation. To prevent condensation, the instrument should
be left in its protective, antistatic plastic wrapping until the ambient temperature has been reached.
Unpack the KingFisher Flex instrument and accessories carefully with the arrows on the transport
package pointing upwards. Remove the instrument from the package and place it on a level surface.
Refer to the enclosed unpacking instructions.
The following notes and instructions are sent with the instrument and are immediately available when
you open the package:
Unpacking instructions
Thermo Scientific™KingFisher™Flex Feedback Form
Warranty Certificate card
Packing instructions/Packing list
Thermo Scientific™KingFisher™Flex User Manual CD/USB
Transportation discrepancy report
BindIt Software package
Caution! Do not touch or loosen any screws or parts other than those specifically designated in the
instructions. Doing so might cause misalignment and will void the instrument warranty.
Warning! The KingFisher Flex weighs approximately 28 kg [62 lbs.] without the transport package and should
be lifted with care. It is recommended that two persons lift the instrument together, taking proper precautions to
avoid injury.
To lift the instrument, put your fingers under the bottom on either sides and lift it with your back
straight.

6
Releasing the transport locks

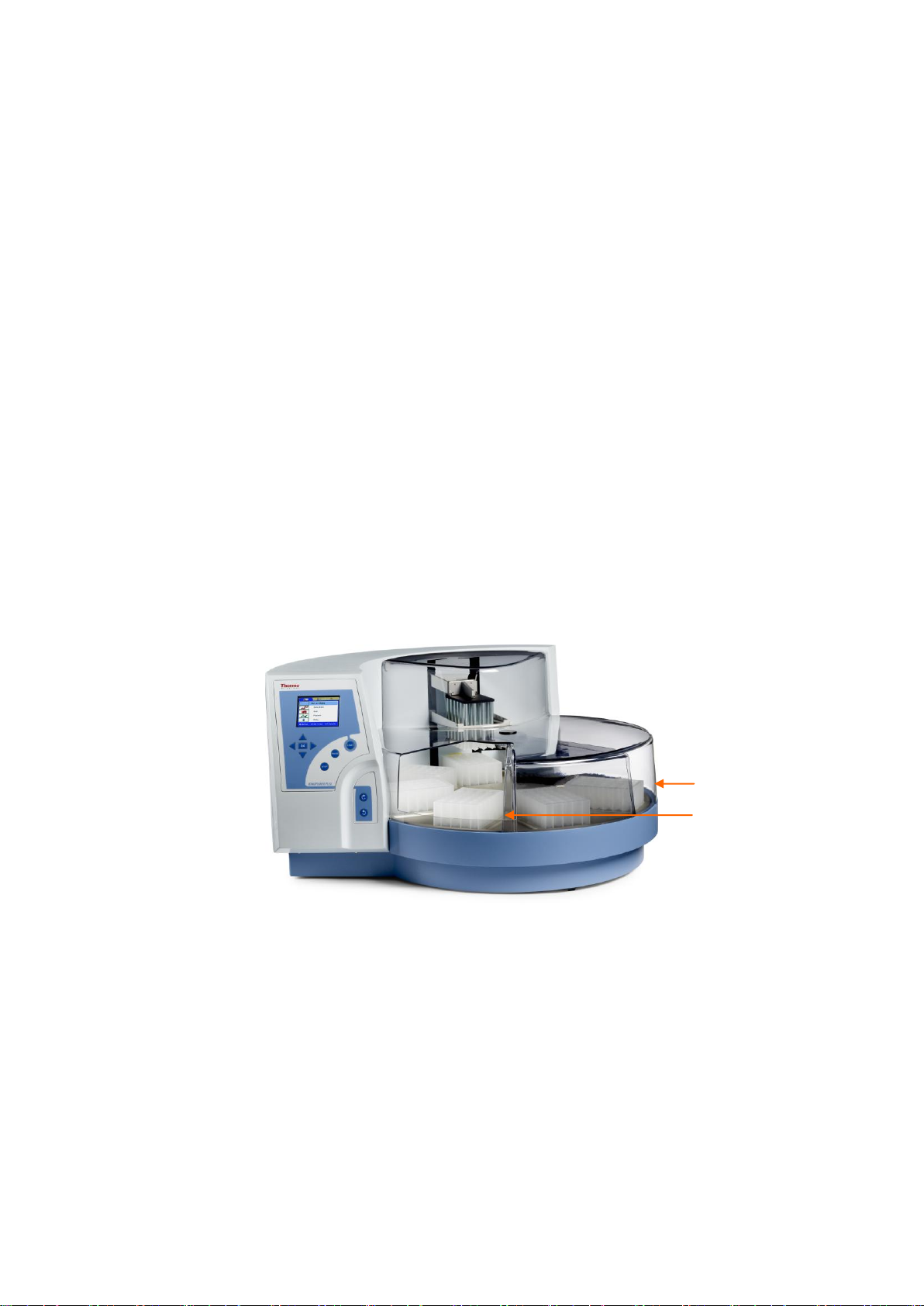

The instrument comes with two transport locks (Figure 2): the tip comb holder transport lock and the
heating block transport lock. Remove both the transport locks. Make sure both the transport locks are
released before you put the instrument into operation.
To release both the transport locks:
Figure 2.KingFisher Flex transport locks fitted
1. To remove the transport lock of the tip comb holder, take hold of the transport lock screw and
firmly turn it counterclockwise according to Figure 3.
Figure 3.Removing the transport lock of the tip comb holder
2. Remove the transport lock by pulling it out of the hole and store it for future relocation (Figure 4).
When relocating the instrument, refer to “How to refit the transport lock of the tip comb holder” in
the user manual.
Heating block
transport lock
Tip comb holder
transport lock

7
Figure 4.Tip comb holder transport lock removed

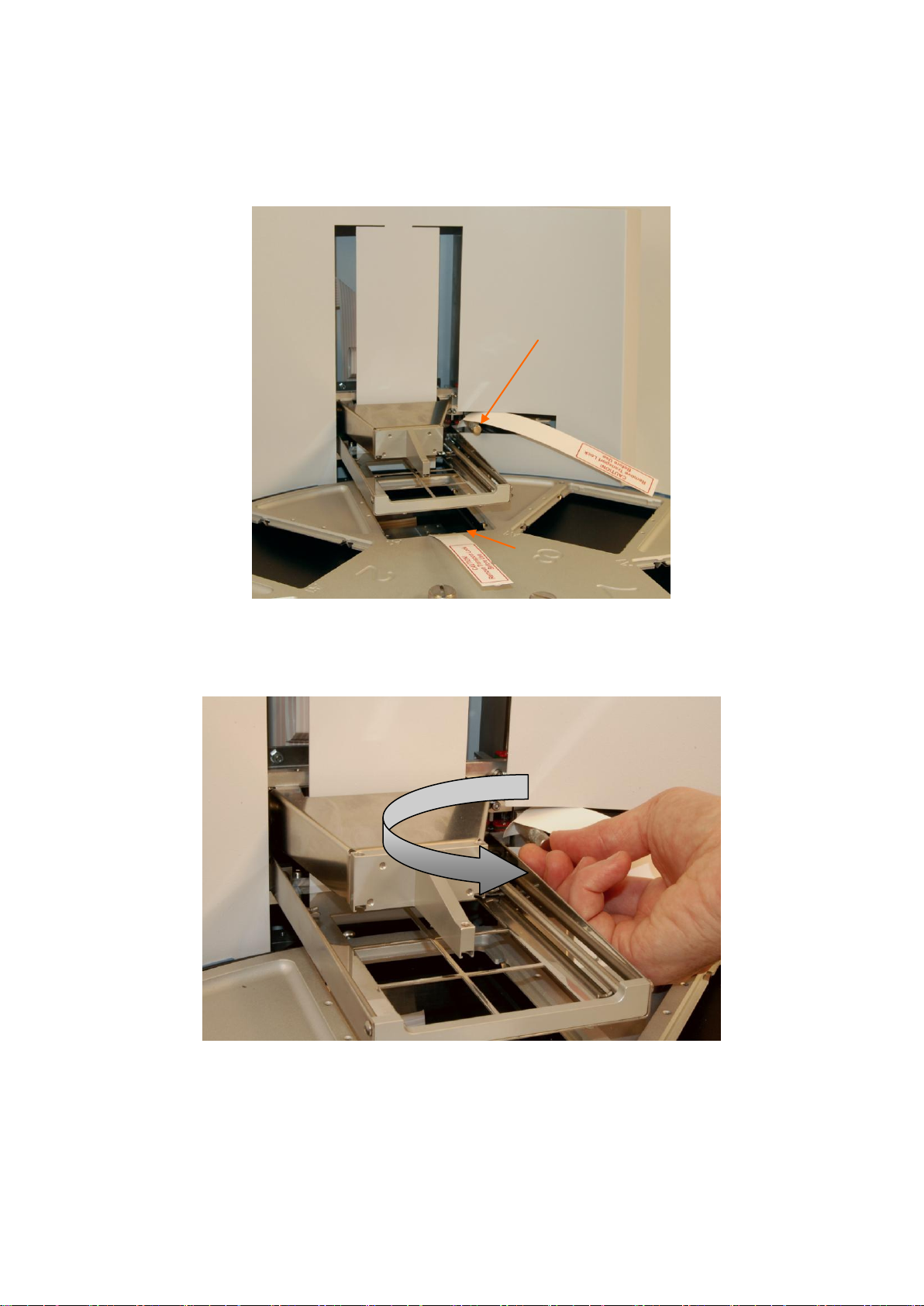

3. The transport lock of the heating block is removed according to Figure 5. Unscrew the transport
lock screw counterclockwise (Figure 5). Lift the screw with the label attached (Figure 6).
Figure 5.Removing the transport lock of the heating block (A)
4. Remove the transport lock screw from the label (Figure 6).
Figure 6.Removing the transport lock of the heating block (B)

8
5. Then fasten the screw clockwise to its storage site on the heating block base. The two screws on
the heating block base guide the heating block into the correct position.
Note! Keep the transport locks (Figure 4 and Figure 6) for future transportation of the instrument.
Both the transport locks have been successfully removed.
Connecting the power supply cable
To connect the power supply cable:
Warning! Ensure that the mains switch (Figure 7) on the bottom left of the back/side panel is in the OFF
position. Never operate your instrument from a power outlet that has no ground connection.
1. Connect the mains supply cable to the mains power connector (Figure 7) at the bottom left of the
back/side panel. If you need to use any other type of mains supply cable than supplied, use only
cables certified by the local authorities. Before you plug in the power cable, ensure that the
voltage on the type label at the bottom left of the back/side panel (Figure 7) corresponds to the
local voltage.
2. Connect the instrument to a correctly installed line power outlet that has a protective conductor
that is grounded.

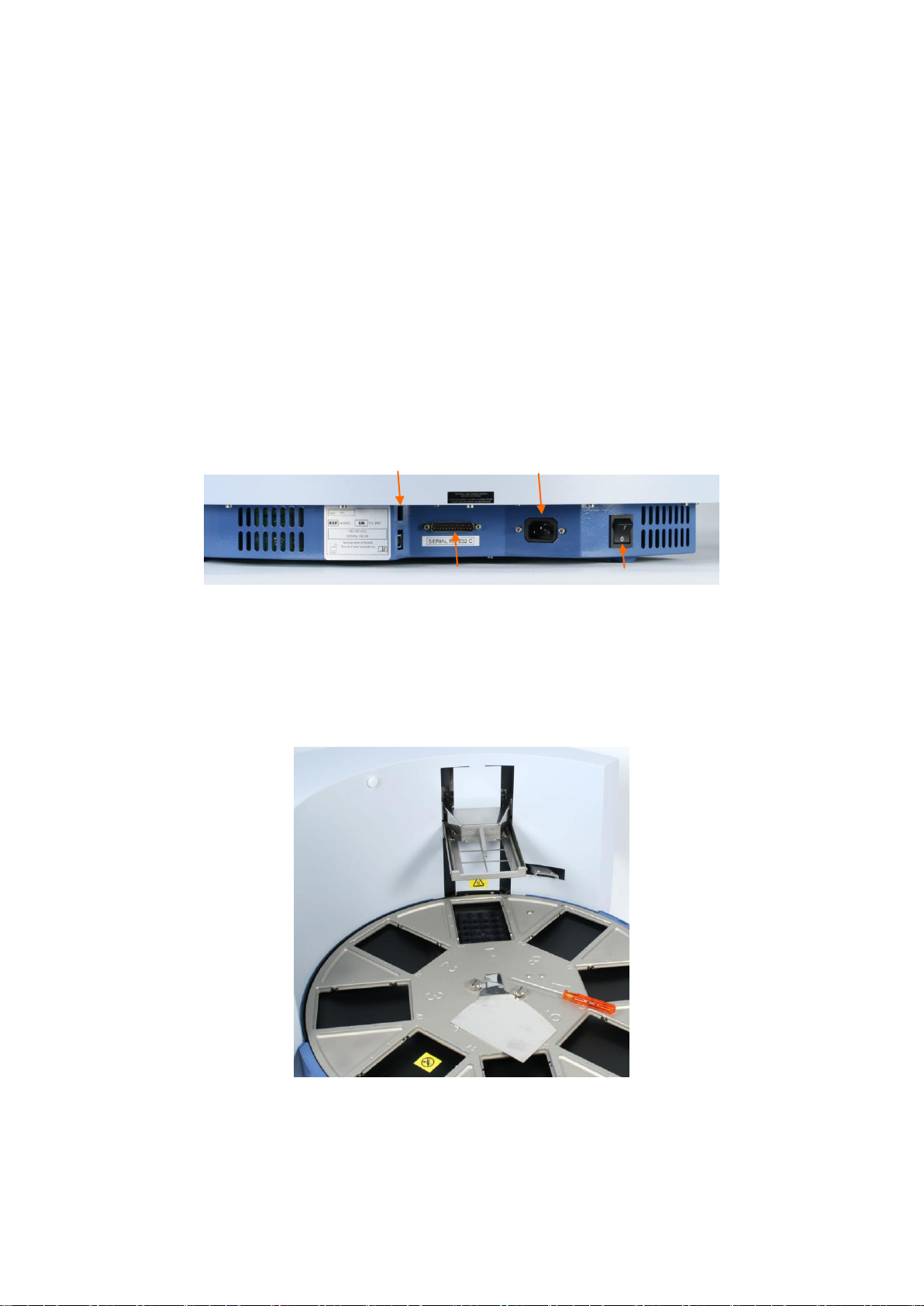

Figure 7.Mains power supply connector
Fitting the shield plate
1. Ensure that the power is switched OFF.
2. The shield plate has to be installed prior to use of the instrument. Use a hexagonal screwdriver
(Allen key) to fasten the two screws (Figure 8).
Figure 8.Shield plate prior to fitting
3. First insert the shield plate into its slot (Figure 9).
USB port
Mains power supply connector
ON/OFF switch
Serial port RS-232C

9
Figure 9.Inserting the shield plate

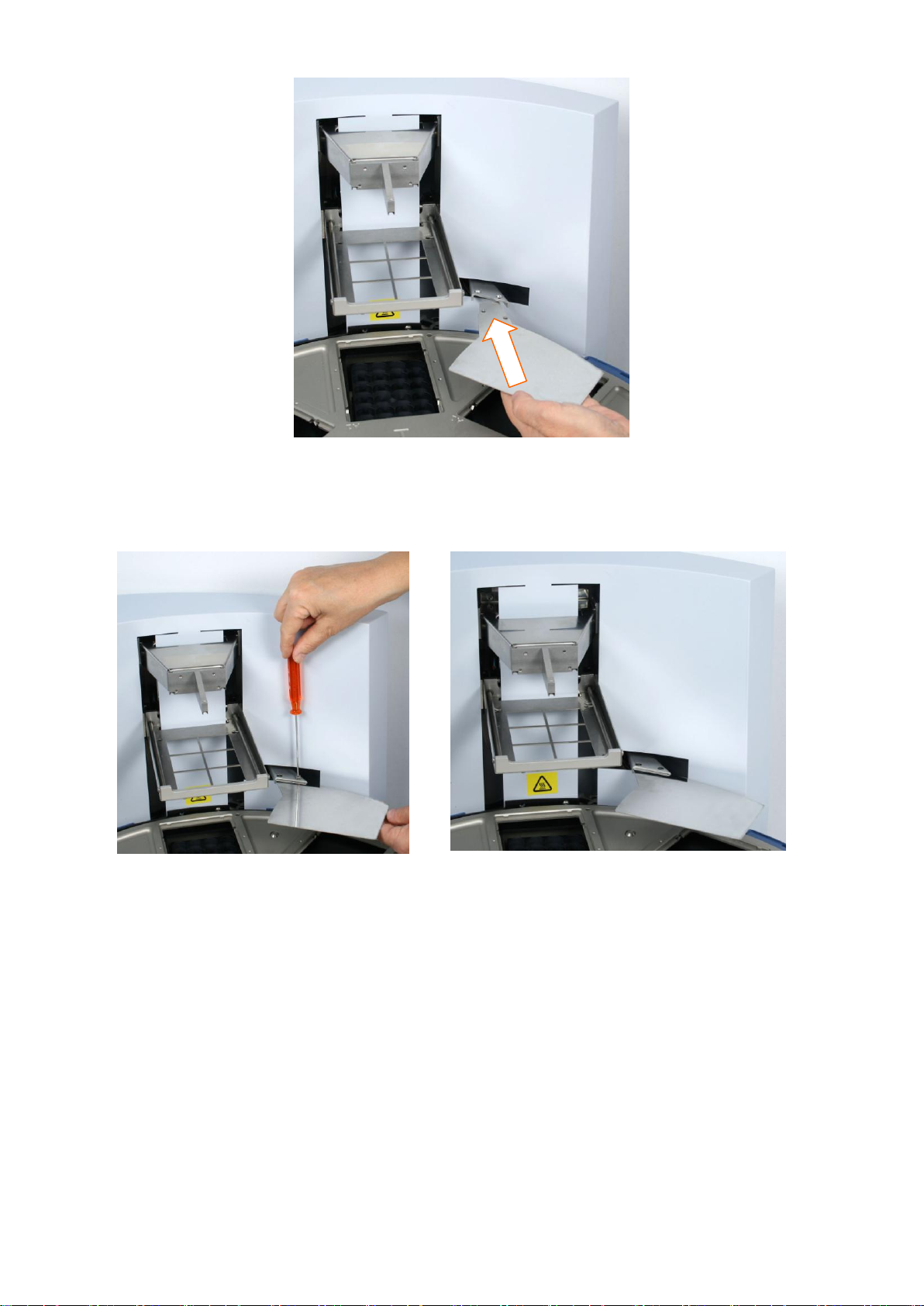

4. When fastening the two plate retaining screws (Figure 10 A), be careful not to drop them inside
the instrument. Figure 10 B shows the shield plate installed.
A
B
Figure 10.Fastening / loosening the shield plate (A) and when in place (B)
Fitting the heating block
Fastening/changing the heating block is controlled by the software.
1. Choose the Change_heatblock protocol under the Maintenance menu by using the up and down
cursor keys.
2. Then press START.
The heating block will thus rise.
3. Insert the heating block by first setting it and then pressing it hard into place (Figure 11 A and B).
The heating block will snap into place at both ends if you have done it correctly.

10
A
B
Figure 11.Inserting (A) and pressing the heating block into place (B)
Inserting the KingFisher Flex head
1. Choose the Change_magnet protocol under the Maintenance menu (Maintenance >
Maintenance protocol > Change_magnet) by using the up and down cursor keys.
2. Then press START.
3. Insert the KingFisher Flex head so that the three pins (shown with orange arrows) slot into place
(Figure 12 and Figure 13).
When you insert the KingFisher Flex head, be careful not to damage the magnet rods against the
tip comb holder frame.
4. Confirm the end of the protocol by pressing START.
Figure 12.Inserting the KingFisher Flex head

11
Figure 13.KingFisher Flex head for KingFisher 24 deep well plate fitted
Operational check
First switch the instrument ON. The instrument performs initialization tests and adjustments. The
display quickly shows the internal software version.
This happens when the initialization tests and adjustments have been completed.
It is recommended that you carry out a check run using a demo protocol to verify proper instrument
operation. Run the check protocol (Check_96dw_tip, Check_KF96_tip, Check_pcr_tip, or
Check_24dw_tip) under the Maintenance menu according to the KingFisher Flex head and plastic
consumables you are using. Refer to Chapter 9: “Ordering Information” in the instrument user
manual. If the check is all right, proceed with your own runs.
Installing BindIt Software
Start the installation by following these instructions. For detailed instructions on installing and using
BindIt Software, refer to the Thermo Scientific™BindIt™Software for KingFisher Instruments User
Manual (Cat. No. N07974).
Pay attention to the following notes before you start installing the software.
Note! BindIt Software cannot be installed on a network drive.
Note! You must be logged on to your computer with administrator privileges to install BindIt Software.
1. Insert the installation CD into the CD-ROM drive, or the installation USB stick into the USB port, or
open the downloaded installer file from www.thermofisher.com.
The BindIt Installer dialog opens automatically.
If the dialog does not open, start the installation by double-clicking the Setup.exe file.
2. Close all other programs on your computer and click Install to begin the installation process. Click
Close to cancel the installation and exit the installer.
Note! If you have an existing instance of Microsoft SQL Server 2008 R2 Express Edition on your computer,
you can choose to use the existing instance or create a new one. If you are uncertain of the compatibility,
create a new instance by clicking Yes. If you do not wish to create a new instance, click No.
Note! The installation of a new database engine does not affect any other installed database engines.
3. Click Install to start the Setup Wizard. The wizard guides you through the installation procedure.
Click Next to continue.
4. Read the end user license agreement and tick the box to accept the terms.
Click Next to continue. Click Print to print a copy of the license agreement.
5. Select the destination folder for the BindIt Software installation files.

12
The Setup Wizard suggests a location for the files. It is recommended to use the default file
location. Click Change to select another folder or drive.
Click Next to continue.
The Setup Wizard is now ready to install BindIt Software on your computer.
6. Click Install to start the installation. The installation files are copied to the selected folder.
You are presented with an installation progress dialog.
7. BindIt Software has now been installed.
Click Finish to finalize the installation and to configure the database.
8. BindIt Installer continues by installing the database engine.
If existing SQL server instances are detected on the computer, click Yes to install a new instance
or No to use an existing instance.
Note! Creating several concurrent SQL server instances may slow down your computer. We recommend using
an existing THERMO instance, if present.
If no previous SQL server instances are detected, Microsoft SQL Server 2008 R2 Express Edition
will be installed on to your computer.
Installing a new instance of the SQL server will take some time.
9. Check the server and database names in the Database Configuration dialog.
10. Click Configure.
The installation proceeds with the database configuration. Wait until it has finished. This may take
several minutes.
11. After the installation is complete, you will receive a confirmation message. Click OK to complete
the installation process.
Routine Operation
Keypad
The relevant keys and control buttons are described in detail below (Figure 14).
Figure 14.Keypad of the KingFisher Flex
TURNTABLE ROTATION
CLOCKWISE and
COUNTERCLOCKWISE
buttons
Arrow keys and OK button
START, PAUSE and STOP
function buttons

13
The arrow keys are used to select the next protocol and to navigate in the
display.
To accept the selection.
To initiate the run.
To confirm a performed step in the protocol, for example, plate loading or
removal.
To pause/terminate the processing step. In short:
STOP (paused)/ START (the instrument continues after a Pause step)
STOP (paused)/ STOP (the processing is terminated).
To pause the run. It will pause at the end of the ongoing processing step.
To rotate the turntable clockwise (TURNTABLE ROTATION CLOCKWISE
button).
To rotate the turntable counterclockwise (TURNTABLE ROTATION
COUNTERCLOCKWISE button).
Navigating
This section visualizes navigation in the KingFisher Flex user interface.
The main view changes according to the selections you make either with the
Up or Down arrow keys or the OK button. The available buttons and their
function are shown on the info text bar.
The color of the items, for example, the icon and main view row, in the main view changes when they
are selected (active/inactive).
To move from one menu to another, make sure you are in the main view of
one of the menus and use the Left and Right arrow keys.
The main views of each menu tab are shown below.
Factory protocols
User protocols
Maintenance
How to start
1. Select a protocol by using the cursor keys and press START or use BindIt Software to run the
desired protocol via the PC.
2. Open the sliding door if the see-through lid is in place.
3. Load the plates in the order that the protocol requests. Place the A1 well of the plate so that it is in
the upper right corner. The first A1 row is consequently always in the inner circle. Once you have
loaded the requested plates into the plate stations, press START. The tip comb always has to be
placed manually onto a Thermo Scientific™KingFisher™plate (Figure 15). The instrument also
functions with either one plate or up to eight plates depending on the amount of steps.

14
Only one tip comb should be placed onto a KingFisher plate (= tip-plate) per run. Confirm
the plate loading by pressing START.
Figure 15.Combining the tip comb and KingFisher plate
The loading position, that is, plate station 4 (when the turntable is in its basic position), is labeled.
The eight plate stations and the A1 positions of the eight plate stations are clearly marked on the
turntable. When the instrument is in its basic position, plate station 1 is under the KingFisher Flex
head. The plate station position depends on the protocol used. After the protocol has been run,
note that the turntable may stop in a different position than the basic position.
4. The tip comb is automatically locked onto the tip comb holder from the tip-plate.
5. When the turntable moves, the shield plate moves over the plate situated underneath forming a
protective cover.
6. Close the sliding door. The see-through lid (if in place) protects the instrument against
environmental contamination.
Note! The sliding door can be left open or the see-through lid can be absent if desired. This action does not
break the run.
7. After the run, remove the plate(s) according to the protocol request. Confirm each plate removal
by pressing START.
8. Press STOP after completing the run.
Warning! Remove any plates or tip combs still in the instrument. Dispose of all microplates and tip combs as
biohazardous waste.
Technical Specifications
Thermo Fisher Scientific reserves the right to change any specifications without prior notice as part of
our continuous product development program.
A1 corner
Loading position

15
General specifications
Table 1. General specifications
General specifications
Operating conditions
(indoor use)
+5C to +40C; maximum relative humidity 80% for
temperatures up to 31C decreasing linearly to 50% relative
humidity at 40C
Indoor use only!
Mains power supply
100–240 Vac, 50/60 Hz, nominal
Automatic voltage detection
Power consumption
175 VA max.; 55 VA standby
Safety specifications
In conformity with the requirements
Table 2. Safety specifications
The safety specifications are also met under the following environmental
conditions in addition to or in excess of those stated in the operating
conditions:
Altitude
Up to 2000 m
Temperature
+5C to +40C
Humidity
Maximum relative humidity 80% for temperatures up to 31C
decreasing linearly to 50% relative humidity at 40C
Mains supply fluctuations
±10% from nominal
Installation category
(overvoltage category)
II according to IEC 60664-1 (see Note 1)
Pollution degree
2 according to IEC 60664-1 (see Note 2)
Note! 1) The installation category (overvoltage category) defines the level of transient overvoltage which the
instrument is designed to withstand safely. It depends on the nature of the electricity supply and its overvoltage
protection means. For example, in CAT II which is the category used for instruments in installations supplied
from a supply comparable to public mains, such as hospital and research laboratories and most industrial
laboratories, the expected transient overvoltage is 2500 V for a 230 V supply and 1500 V for a 120 V supply.
Note! 2) The pollution degree describes the amount of conductive pollution present in the operating
environment. Pollution degree 2 assumes that normally only nonconductive pollution, such as dust, occurs with
the exception of occasional conductivity caused by condensation.
