PO Fung Electronic UV-5R Pro User manual

Analog
UHF/VHF Two Way Radio
Operating Manual
Draft version

PREFACE
Thank you for purchasing UV-5R Pro Two Way Radio, which is a dual band/dual display radio/dual
watch. This easy-to-use radio will deliver you secure, instant and reliable communications at peak
efficiency. Please read this manual carefully before use. The information presented herein will help
you to derive maximum performance from your radio.
This manual is applicable to the following product: UV-5R Pro, UV-5RX, UV-5RS, UV-5RA,UV-5R
Plus,G5R and TR-818 Two Way Radios.
ATTENTION!
» To help you ward off bodily injury or property loss that may arise from improper operation, please
read all the information carefully before using our products. This contains instructions for safe usage
and RF energy awareness and control for compliance with applicable standards and regulation.
» When programming the radio, start by reading the factory software data, and then rewrite this data
with your frequency etc., to a new saved code plug, otherwise errors may occur.
» You can use the programming cable with a PC to program the frequency, channel type, power etc.
your programming must comply with your FCC (or other country) license certification.
FCC Licensing Information
This Baofeng radio operates on Commercial/Land Mobile frequencies which require a license from
the Federal Communications Commission (FCC) for business, personal, education and recreational use.
To obtain forms, call the FCC forms hotline at: 1-800-418-3676 or go to http://www.fcc.gov For
questions concerning commercial licensing, contact the FCC at 1-888- CALL-FCC (1-888-225-5322).

Table of Contents
1. GETTING STARTED
1.1 Regulations and Safety Warnings
1.2 Main features
1.3 Content of the packaging
2. BATTERY INFORMATION
2.1 Charging the Battery Pack
2.2 Charger Supplied
2.3 Use Caution with the Li-ion Battery
2.4 How to Charge
2.5 LED Indicator
2.6 How to Store the Battery
3. INSTALLATION OF ACCESSORIES
3.1 Installing / Removing the Antenna

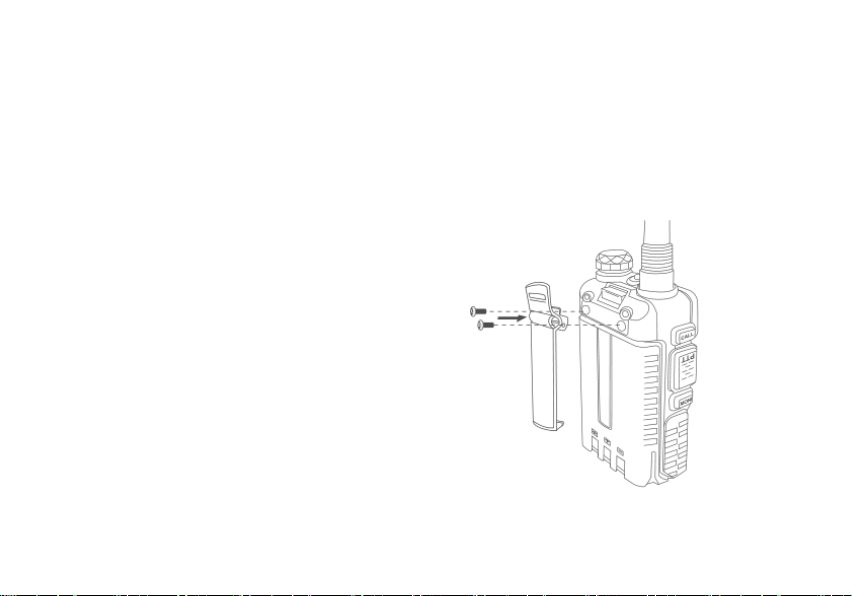

3.2 Installing the belt clip
3.3 Installing the battery pack
3.4 Additional Speaker/Microphone (Optional)
4. RADIO OVERVIEW
4.1 Buttons and controls of the radio

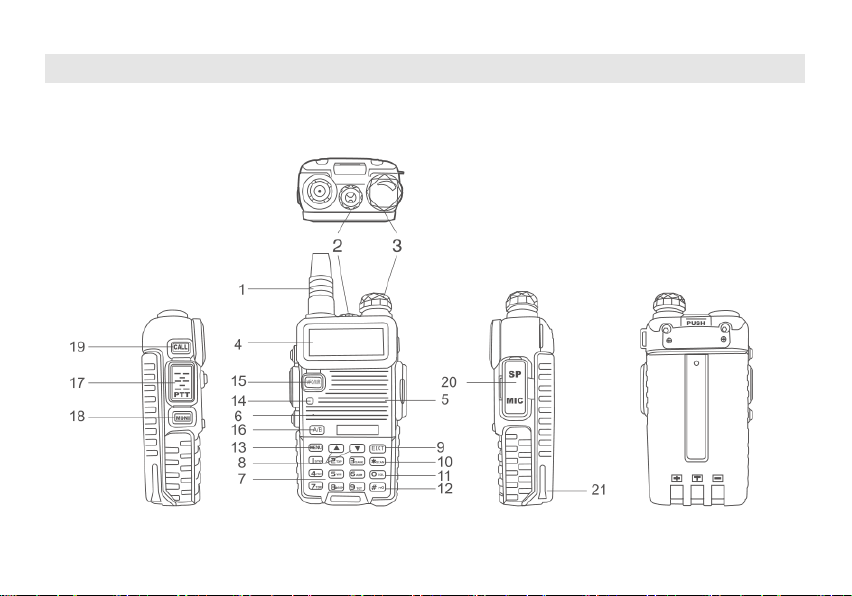

4.2 Main controls and parts of the radio
4.3 Status Indications
4.4 Main keypad controls
5. BASIC OPERATIONS
5.1 Power on the radio
5.2 Adjusting the volume
5.3 Making a call
5.4 Channel selection

5.5 Frequency (VFO) mode
5.6 Channel (MR) mode
6. ADVANCED FEATURES
6.1 Frequency scanning
6.2 Channel scanning
6.3 Search CTCSS/DCS Code
6.4 Cursor▼▲Conversion (A/B)
6.5 High/low power fast selection
6.6 Keypad lock
6.7 FM Radio (FM)
6.8 Flashlight
6.9 1000Hz, 1450Hz, 1750Hz Tone-burst
6.10 Manual Programming (Channels Memory)
6.11 Repeaters Programming
7. WORKING THE MENU SYSTEM
7.1 Basic use
7.2 Using short-cuts
7.3 Functions and operations
8. ON-LINE SERVICE AND SUPPORT
Appendix A. - Trouble shooting guide
Appendix B. - Technical Specifications
Appendix C. - Shortcut Menu operations

1. GETTING STARTED
1.1 Regulations and Safety Warnings
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
Important: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this device. Your radio is set up to transmit a regulated signal on an assigned frequency. It is
against the law to alter or adjust the settings inside the radio to exceed those limitations. Any adjustments to your radio
must be made by qualified technicians.
To be safe and sure:
• Never open your radio’s case.
• Never change or replace anything in your radio except the battery.
Your radio might cause TV or radio interference even when it is operating properly. To determine whether your radio is
causing the interference, turn it off. If the interference goes away, your radio is causing it. Try to eliminate the interference by
moving your radio away from the receiver. If you cannot eliminate the interference, the FCC requires that you stop using the
radio.
Hazardous Environments: Do not operate the radio in hazardous environments. Explosion or fire may result.
Do not operate the radio near unshielded electrical blasting caps.
Under certain conditions, radios can interfere with blasting operations and may cause an explosion. Turn your radio OFF to
prevent accidental transmission when in a blasting area or in areas posted: "Turn off two-way radio." Construction crews
often use remote control RF devices to set off explosives.
Care and Safety: To clean the radio, use a soft cloth dampened with water. Do not use cleaners or solvents because they can
harm the body of the unit and leak inside, causing permanent damage. Use a dry, lint-free cloth to clean the battery
contacts.

RF Exposure Information
WARNING! Read this information before using the radio. In August 1996 the Federal Communications Commission (FCC) of
the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to
radio frequency electromagnetic energy emitted by FCC regulated transmitters.
Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The
design of the radio complies with the FCC guidelines and these international standards.
Never allow children to operate the radio without adult supervision and the knowledge of the following guidelines.
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause
harmful interference.
For a transmitter that can only be operated with an FCC license,warningss concerning compliance with applicable licensing
requirements and information concerning license applianction procedures.
Our radio generators RF electromagnetic energy during transmit mode.
This radio is designed for and classified as“Occupational Use Only”,meaning it must be used only during the course of
employment by individuals aware of the hazards,and the ways To Minimize Such hazards.
This radio is NOT intended for use by the“General Population” in an uncontrolled environment. This radio has been tested
and complies with the FCC RF exposure limits for“Occupational Use Only”. Inaddition, our radio complies with the following
Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for
exposure to humans:
---IEEE Std. 1528:2013 and KDB447498, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency
Electromagnetic Fields.
---American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to
Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
---American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially

Hazardous Electromagnetic Fields-RF and Microwave.
The information listed above provides the user with the information needed to make him or her aware of RF exposure,
and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, Our radio generates RF energy that can possibly cause interference with other devices or systems. To
avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas
that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed as consequence of their employment
provided those persons are fully aware of the potential for exposure and can exercise control over their exposure.
Attention:
This radio complieswith IEEE and ICNIRP exposure limits for occupational/controlled RF exposure emvironment at operating
duty factors of up to 50% and is authorized by the FCC for occupational use only. An appropriate warning lable is affixed to all
units. In order to comply with RF exposure requirements, a minimum distance of 2.5cm must be maintained when
held-to-face, and body-worn operations are restricted to the approved original acessories (belt clip)a inimum distance f 0
m. Do not use this device when antenna shows obvious damages.
This product is compliance to FCC RF Exposure requirements and refers to FCC website
https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AJGM-UV5RPRO to gain further information
include SAR Values.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
WARNING! It is up to the user to properly operate this radio transmitter to insure safe operation. Please adhere to the
following:
Use only the supplied or an approved antenna(max gain 1.5dBi). Unauthorized antennas, modifications, or attachments

could impair call quality, damage the radio, or result in violation of FCC regulations.
Do not use the radio with a damaged antenna.
If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a
replacement antenna.
Hand-held Operation (Held-to-Face)
This device was evaluated for typical hand-held (held-to- face) operations with a 2 inch spacing from the front of the radio.
For hand-held operation, the radio should be held 2 inch from the user's face in order to comply with FCC RF exposure
requirements.
For more information about RF exposure, please visit the FCC web site at www.fcc.gov.
Body-worn Operation
This device was evaluated for body-worn operations with the supplied belt-clip accessory. (All necessary accessories are
included in the package; any additional or optional accessories are not required for compliance with the guidelines.) Third
party accessories (unless approved by the manufacturer) should be avoided as these might not comply with FCC RF exposure
guidelines.
For more information about RF exposure, please visit the FCC web site at www.fcc.gov.

■Precautions for Portable Terminals
Operating Prohibitions
To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions:
1. Do not operate the product in a location containing fuels, chemicals, explosive atmospheres and other flammable or
explosive materials. In such location, only an approved Ex-protection model is allowed for use, but any attempt to
assemble or disassemble it is strictly prohibited.
2. Do not operate the product near or in any blasting area.
3. Do not operate the product near any medical or electronic equipment that is vulnerable to RF signals.
4. Do not hold the product while driving.
5. Do not operate the product in any area where use of wireless communication equipment is completely prohibited.
Important Tips
To help you make better use of the product, be sure to observe the following instructions:
1. Do not use any unauthorized or damaged accessory.
2. Keep the product at least 2.5 centimeters away from your body during transmission.
3. Do not keep the product receiving at high volume for a long time.
4. For vehicles with an air bag, do not place the product in the area over the air bag or in the air bag deployment area.
5. Keep the product and its accessories out of reach of children and pets.
6. Please operate the product within the specified temperature range.
7. Continuous transmission for a long time may lead to heat accumulation within the product. In this case, please keep it at
a proper location for cooling.
8. Handle the product with care.
9. Do not disassemble, modify or repair the product and its accessories without authorization.
■Precautions for Batteries
Charging Prohibitions

To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions:
1. Do not charge or replace your battery in a location containing fuels, chemicals, explosive atmospheres and other
flammable or explosive materials.
2. Do not charge your battery that is wet. Please dry it with a soft and clean cloth prior to charge.
3. Do not charge your battery suffering deformation, leakage and overheat.
4. Do not charge your battery with an unauthorized charger.
5. Do not charge your battery in a location where strong radiation is present.
6. Overcharge shall always be prohibited for it may shorten the life of your battery.
Maintenance Instructions
To help your battery work normally or prolong its life, be sure to observe the following instructions:
1. Accumulated dust on charging connector may affect normal charging. Please use a clean and dry cloth to wipe it on a
regular basis.
2. It is recommended to charge the battery under 5℃~40℃. Violation of the said limit may cause battery life reduction or
even battery leakage.
3. To charge a battery attached to the product, turn it off to ensure a full charge.
4. Do not remove the battery or unplug the power cord during charging to ensure a smooth charging process.
5. Do not dispose of the battery in fire.
6. Do not expose the battery to direct sunlight for a long time nor place it close to other heating sources.
7. Do not squeeze and penetrate the battery, nor remove its housing.
Transportation Instructions
1. Damaged batteries must not be transported.
2. To avoid short circuit, separate the battery from metal pars or from each other if two or more batteries are transported in
one packaging.
3. The radio must be switched off and secured against switch-on, if the battery is attached.
The content of the shipment must be declared in the shipping documents and by a Battery Shipping Label on the packaging.

Contact your hauler for the local regulations and further information.
1.2 Main features
• Frequency band: 150-174 & 400-480MHz • VHF and UHF bands and channel name displayed
• Up to 128 memory channels • Squelch adjustable in 9 levels
• 50 CTCSS tones and 210 DCS codes • 1750Hz tone for repeaters
• SOS Emergency function • LCD display with backlight adjustable in 3 colors
• FM radio receiver (88-108MHz) • VOX, Scan, Dual Watch functions
• Channel or frequency mode selection • Power Save
• TOT (Time out timer) • DTMF function
• Reverse function • Alarm function
• CTCSS and DCS codes research • Setting and storing of channel names
• Busy Channel Lockout function (BCL) • Li-Ion 1800mAh battery pack
• Frequency step: 2.5/5/6.25/10/12.5/25KHz • Frequency offset (adjustable): 0-69.990MHz
• Repeater shift • 2pin Kenwood accessory jack
• VOICE: vocal indication of the function selected • Keypad lock
•Comply with FCC two way radio related standards, FCC ID: 2AJGM-UV5RPRO

1.3 Content of the packaging
• 1 UV-5R Pro transceiver • 1 Li-Ion battery pack 1800mAh 7.4V
• 1 Fast desktop charger • 1 Wall adaptor
•1 Antenna • 1 Belt clip
If any item is missing, please verify with your dealer.
2. BATTERY INFORMATION
2.1 Charging the Battery Pack
The Li-ion battery pack is not charged at the factory; please charge it before use. Charging the battery pack for the first time
after purchase or extended storage (more than 2 months) may not bring the battery pack to its normal maximum operating
capacity. Best operation will require fully charging/ discharging the battery two or three times before the operating capacity
will reach its best performance. The battery pack life may be depleted when it’s operating time decreases even though it
has been fully and correctly charged. If this is the case, replace the battery pack.
2.2 Charger Supplied
Please use the specified charger provided by Baofeng. Other models may cause explosion and personal injury. After installing
the battery pack, and if the radio displays low battery with a voice prompt, please charge the battery.
2.3 Use Caution with the Li-ion Battery
a. Do not short the battery terminals or throw the battery into a fire. Never attempt to remove the casing from the battery
pack, as Baofeng cannot be held responsible for any accident caused by modifying the battery.
b. The ambient temperature should be between 5℃-40℃(40˚F - 105˚F) while charging the battery. Charging outside this

range may not fully charge the battery.
c. Please turn off the radio before inserting it into the charger. It may otherwise interfere with correct charging.
d. To avoid interfering with the charging cycle, please do not cut off the power or remove the battery during charging until
the green light is on.
e. Do not recharge the battery pack if it is fully charged. This may shorten the life of the battery pack or damage the battery
pack.
f. Do not charge the battery or the radio if it is damp. Dry it before charging to avoid damage.
WARNING！
When keys, ornamental chain or other electric metals contact the battery terminal, the battery may become damage or
injure a human. If the battery terminals are short circuited it will generate a lot of heat. Take care when carrying and using
the battery. Remember to put the battery or radio into an insulated container. Do not put it into a metal container.
2.4 How to Charge
a. Plug the AC adaptor into the AC outlet, and then plug the cable of the AC adaptor into the DC jack located on the back of
the charger. The indicator light blinks orange and is then ready to charge a battery.
b. Plug the battery or the radio into the charger. Make sure the battery terminals are good in contact with charging terminals.
The indicator light turns to red--- charging begins.
c. It takes approximately 2-5 hours to fully charge the battery. When the lamp lights green, the charging is completed.
Remove the battery or the radio unit with its battery from socket.
When charging a radio (with battery) the indicating lamp will not turn into green to show the fully charged status if the
radio is powered on. Only when the radio is switched off will the lamp indicate normal operation. The radio consumes
energy when it is power-on, and the charger cannot detect the correct battery voltage when the battery has been fully
charged. So the charger will charge the battery in constant voltage mode and fail to indicate correctly when the battery
has been fully charged.

2.5 LED Indicator
STATUS
LED
No Battery
Green and red alternately flashing
Charge Normally
Red
Fully Charged
Green
Trouble
Red blinks fast for a long time
NOTE：Trouble means battery too warm, battery short-circuited or charger short-circuited.
2.6 How to Store the Battery
a. If the battery needs to be stored, keep it in status of 80% discharged.
b. It should be kept in low temperature and dry environment.
c. Keep it away from hot places and direct sunlight.
» Do not short circuit the battery terminals.
» Never attempt to remove the casing from the battery pack.
» Never store the battery in unsafe surroundings, as a short may cause an explosion.
» Do not put the battery in a hot environment or throw it into a fire, as it may cause an explosion.

3. INSTALLATION OF ACCESSORIES
Before the radio is ready for use we need to attach the antenna and battery pack, as well as charge the battery.
3.1 Installing/ Removing the Antenna
a. Installing the Antenna: Screw the antenna into the connector on the top of the transceiver by holding the antenna at its
base and turning it clockwise until secure.
b. Removing the Antenna: Turn the antenna counter-clockwise to remove it.
3.2 Installing the belt clip
a. At the back of the radio there are two parallel screws mounted above the battery, remove these and thread them through
the holes on the belt clip as you screw them back into the radio body.

b. Removing the Belt Clip: Unscrew counter-clockwise to remove the belt clip.
3.3 Installing the battery pack
Before attaching or removing the battery make sure your radio is turned off by turning the power/volume knob all the way
counter-clockwise.
a. Make sure the battery is aligned in parallel with the radio body with the lower edge of the battery about 1-2cm below
the edge of the radio.
b. Once aligned with the guide-rails, slide the battery upward until you hear a click as the battery locks in place.

Remove the battery pack
To remove the battery, press the battery release above the battery pack, as you slide the battery downward.
3.4 Installing the Additional Speaker/Microphone (Optional)
Pry open the rubber MIC-Headset jack cover and then insert the Speaker / Microphone plug into the double jack.

4. RADIO OVERVIEW
4.1 Buttons and controls of the radio

1. Antenna
2. Flashlight
3. Power / Switch / Volume control: Rotate to switch on/off the radio and adjust the volume
4. LCD display
5. Speaker
6. Microphone
7. Alphanumerical keypad
8. ▲/▼keys: to select the functions/menu
9. EXIT: Push it to exit the menu and functions
10.*SCAN: Reverse frequency/SCAN. Press to activate the Reverse frequency; keep it pressed to activate the SCAN function
11. 0 / SQL: quick selection of the squelch setting
12. # : Keypad lock. Long pressure: the keypad will be locked.
13. MENU: enter the MENU functions and confirms the selection.
14. Led: transmission (red) ; reception (green).
15. VFO/MR: to change the frequency or the channel mode
16.A/B. This control is useful to select the desired frequency, VHF or UHF.
17. PTT
18.MON. Long press: to activate the Monitor function. Short press: turns the flashlight on. Press it again to issue an
emergency light.
19.CALL: press it activate the FM radio. If you keep it pressed for 5 seconds you will hear an alarm note and the radio will
switch to alarm mode.
20. MIC/SP: External speaker/mike jacks.
21.1800mAh Li-Ion battery pack

4.2 Main controls and parts of the radio
LCD Display
1. These symbols show that you set a DCS or CTCSS code in tx or rx. In tx mode it appears while you are transmitting, while in
rx mode it is shown also in stand-by condition.
2. Received signal strength.
4. This letter is displayed when the Dual Watch function is active.
5. VOX function enabled.
6. Appears when a positive shift is activated.
7. Appears when a negative shift is enabled.
8. Reverse frequency
9. Narrow bandwidth: N = narrow. When the wide (W) bandwidth is activated, no icon is displayed.
10. This icon indicates the keypad lock. To unlock it press [# ].
11. Battery level indicator. When the battery is almost used up, the icon starts blinking and the transmission is blocked.
Charge the radio.
12. Indicates the channel number that you stored
13. When the radio is in reception mode, this icon is displayed
14. Depending on the setting, it will show the frequency in use, the channel name, the menu setting, etc
