Pocket Wizard Mini TT1 User manual

a
Quick Guide
for Nikon
340.00 – 354.00 MHz, US FCC/IC
433.42 – 434.42 MHz, CE
MAKE IT POSSIBLE™
This PocketWizard radio runs on powerful software called ControlTL®.
It is pre-set with default settings allowing you to use it right away or it
can be congured to your specic needs using the PocketWizard Utility
which can be downloaded at:
www.PocketWizard.com/support/downloads.
• UPDATE FIRMWARE: Using the Utility, update all your PocketWizard
ControlTL radios to the latest rmware for best functionality.
• Please read Quick Guide thoroughly before operating.
• Visit wiki.PocketWizard.com for complete operating information.

• All equipment should be turned OFF when connecting.
• Power on from the top down: ash, then radio, then camera.
• If operation is erratic, check batteries rst. We recommend using high capacity
rechargeable batteries in your Speedlight(s).
• Use the latest rmware for your camera and review all manuals.
• A FlexTT5 may be used as a transmitter instead of the MiniTT1.
READ ME FIRST:

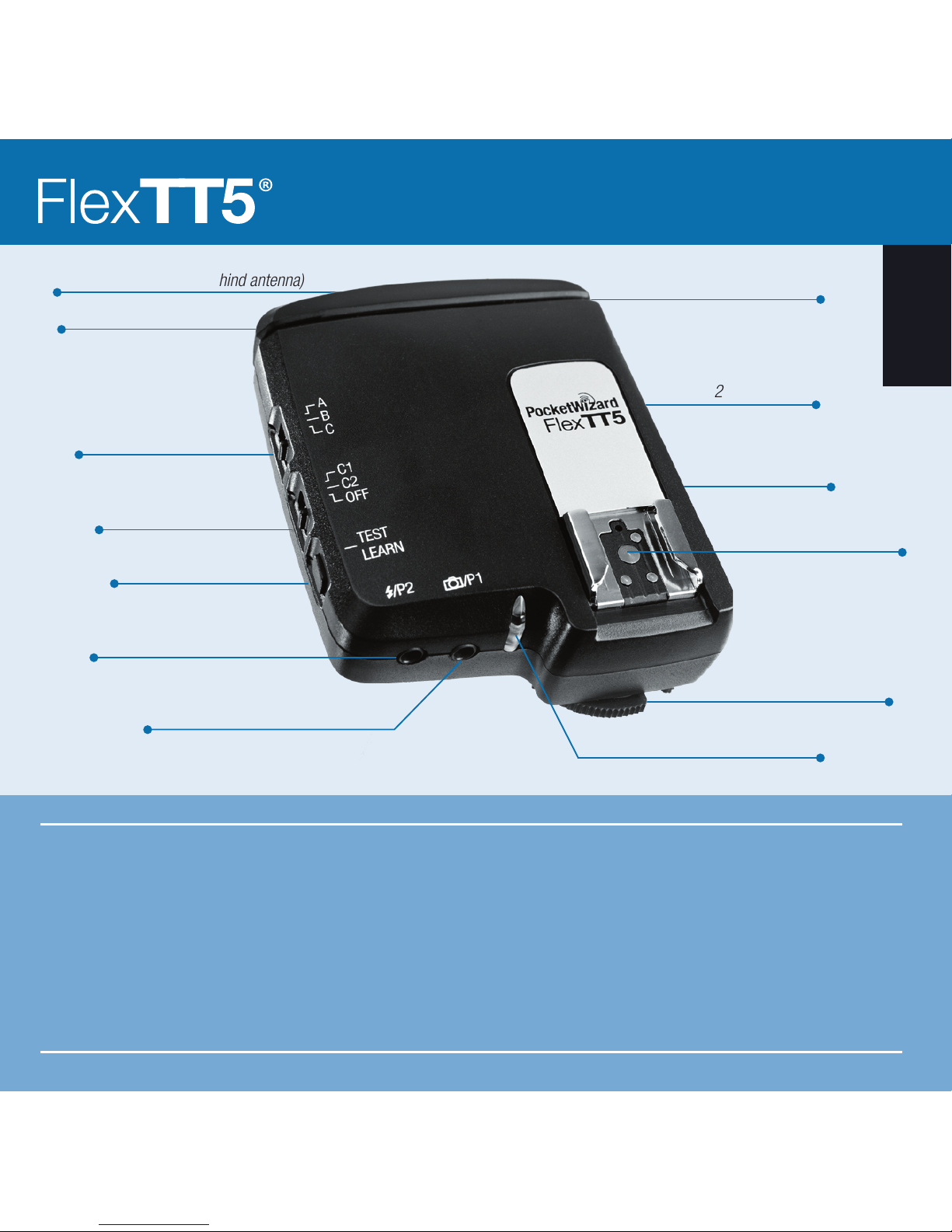

Locking Ring
Conguration/Channel 1
Conguration/Channel 2
Power Off
Internal Antenna
TEST/LEARN Button
Battery Compartment
(on bottom)
Mini-USB Connector (on side)
Nikon-style Hot Shoe
Status LED
Transmitter

Locking Ring
Batteries
2 AA [IEC:LR6]
Adjustable Antenna
Mini-USB Connector (behind antenna)
1/4-20 Mount
(on bottom)
Remote Flash Triggering Port (P2)
Remote Camera Triggering Port (P1)
Nikon-style Hot Shoe
Status LED
TEST/LEARN Button
Conguration/Channel 1
Conguration/Channel 2
Power Off
Zone Switch
English
Transceiver
Lanyard Loop
(Lanyard not included)
• You need a FlexTT5 for each remote Speedlight.
• Set all radios to the same channel.
• Take rst shot at 1/125 so system can properly calibrate timing.
• Turning VR mode ON or OFF requires a calibration shot.
• For most basic functions, operation is identical to Nikon’s CLS / i-TTL system.
3

Getting Started
Camera Settings Flash Settings

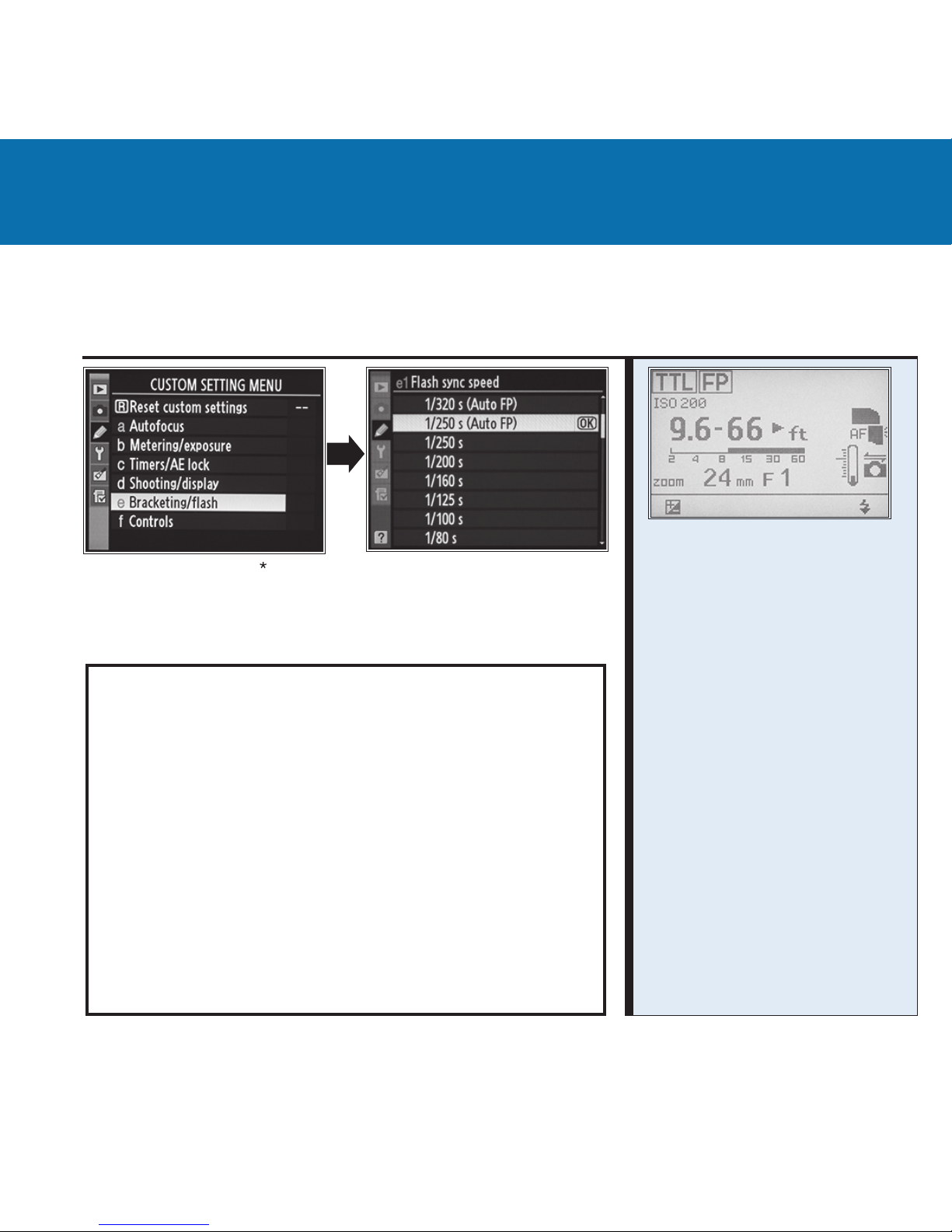

Set Custom Setting “e1 Flash sync speed” to “1/250 s (Auto
FP)” to enable smooth transitions from standard ash to FP
ash mode. Do not use 1/320 s (Auto FP).
VR Lenses: Switching the VR mode of lenses ON or
OFF while the MiniTT1 and FlexTT5 are being used may
require a “test shot” at 1/125 to recalibrate the system.
Nikon modes not currently supported:
• Mirror Up Mode
• Exposure Delay Mode
• Repeater / RPT Mode
• Flash control using the camera’s menus
For more operational information, please go to:
wiki.PocketWizard.com
• Remote ashes must be
set to standard TTL and not
REMOTE or MASTER.
• The display on remote
ashes attached to FlexTT5
radios will not change with
camera setting changes.
• SB900: “Illumination
Pattern” must be set at
“Standard”.
See Nikon Manual.
• On-camera ash must
be set to MASTER to
trigger or control remote
ashes.
Nikon Camera and Flash Settings

a
Basic Wireless CLS / i-TTL
No ash on camera
1. Slide MiniTT1®Transmitter or FlexTT5®Transceiver onto camera.
2. Slide Speedlight onto remote FlexTT5 Transceiver. Set the Speedlight for standard i-TTL
mode (not REMOTE or MASTER). Repeat for each remote Speedlight. All remote i-TTL
Speedlights will be treated as one zone of light.
Note: You need a receiving FlexTT5 for each remote Speedlight.
3. Make sure all your PocketWizard®radios are on the same channel and take pictures
normally.
This mode is like using Nikon’s Commander Mode/Function with the following settings:
• Remote Groups A, B, and C set to TTL
• Flash Output Level Compensation for all groups set to 0.0 Ev
• MASTER or built-in ash set to - - (ash cancelled)
CLS / i-TTL
English
5

Advanced Wireless CLS / i-TTL
Flash on camera
1. Slide MiniTT1®Transmitter or FlexTT5®Transceiver onto camera.
2. Slide Nikon SB-800 or SB-900 Speedlight onto camera mounted MiniTT1 or FlexTT5
radio. Set Speedlight for MASTER = ON. Use controls on MASTER Speedlight to set
remote groups/zones. Nikon SU-800 Wireless Speedlight Commander may also be used.
Camera menus can not be used.
3. Slide Speedlight onto remote FlexTT5 Transceiver. Set Speedlight for standard i-TTL mode
(not REMOTE or MASTER). Repeat for each remote Speedlight.
Note: You need a receiving FlexTT5 for each remote Speedlight.
4. Set Zone Switch (A, B, C) on remote FlexTT5 to zone selection made on-camera
MASTER ash. All remote i-TTL Speedlights on the same group/zone will be treated as
one zone of light.
5. Adjust ash output level compensation using the controls on MASTER Speedlight.
6. Make sure all your PocketWizard® radios are on the same channel and take pictures normally.
IMPORTANT: You must be in normal i-TTL mode for remotes to operate properly. Never set
Nikon Speedlights positioned on remote FlexTT5 radios to REMOTE = ON. This will cause
improper operation. Always use Zone Switch (A, B, C) on remote FlexTT5 to set group / zone.
PocketWizard channel is used instead of Nikon channel.
ISO, aperture, ash exposure compensation (FEC), and other settings will work with exposure
normally via the PocketWizard ControlTL® system.
Note: Changes to camera ISO, lens zoom, etc, will not appear on remote ash LCD.
CLS / i-TTL

a
Remote ash with or without CLS / i-TTL ash on camera
1. Slide MiniTT1®Transmitter or FlexTT5® Transceiver onto camera.
2. If desired, slide Nikon SB800 or SB900 Speedlight onto camera-mounted MiniTT1 or
FlexTT5 radio and set it to MASTER mode.
3. Attach ControlTL or standard PocketWizard® radio to studio ash.
4. Make sure all your PocketWizard radios are on the same channel and take pictures normally.
Note: Manual remote ashes are not calculated as part of the i-TTL exposure. For proper
exposure, adjust your camera’s exposure settings, or adjust the power level directly on your
remote ash.
Use PocketWizard Utility to engage HyperSync™ and explore faster than X-sync shutter
speeds. Visit PocketWizard.com/support/downloads for more information.
Learn about the AC3 ZoneController, PowerTracking, and controlling your Speedlights and
select studio ashes by reading the extended documentation found at:
wiki.PocketWizard.com
Manual Flash
PocketWizard Accessories
English
Studio Flash, etc.
• AC3 ZoneController for Nikon • Motor Drive cables for Remote Camera Triggering
• AC9 AlienBees Adapter for Nikon • Sync cables for studio ash triggering using the
• PowerST4 for Elinchrom RX P2 Remote Flash Triggering Port
• PowerMC2 for Einstein™ E640 For more accessories, visit PocketWizard.com.
7

Status LED
Normal “waiting for trigger” operation = short blink every 2 seconds
Normal short blink color indicates battery level:
Green Good battery
Amber Warning – battery low
Red Very low battery – change immediately
Steady red LED in sync with TEST indicates normal transmission.
(Hold for 10 seconds to teach – see Learn Mode)
Short red blink in sync with trigger indicates normal reception.
Rapid red blinking when not triggering or half-pressing camera indicates error condition.
Power off the unit, reset all connections, and power back on.
Other Functions
RESET
RESET A / CHANNEL RESET:
To reset to channels programmed in the PocketWizard Utility, hold TEST on power up.
LED blinks green twice to indicate reset. Release TEST. Advanced features set via
PocketWizard Utility will be retained.
RESET B / FACTORY DEFAULTS:
To reset all advanced features and channels to FACTORY DEFAULTS, hold TEST on power up
for longer than 10 seconds. When LED blinks green 4 times, release.
• All settings may be congured using the PocketWizard Utility available from
PocketWizard.com. See the online extended documentation at wiki.PocketWizard.com
or the help text in the Utility for detailed descriptions of these settings.

a
Advanced Functions
The following advanced features are available using the
MiniTT1® and FlexTT5®:
Learn Mode
Channels can be changed via PocketWizard Utility (recommended)
or taught from any PocketWizard transmitter using Learn Mode.
Learn Mode is not required for normal operation of the radios.
Radios are pre-set to channels 1 & 2.
Learn Mode allows you to change channels in a ControlTL®radio when you are away from
your computer by using any PocketWizard® transmitter to teach a new channel. This allows
you to change to a different channel or frequency when shooting at an event and you don’t
have access to the PocketWizard Utility. This feature can be used if you want to share
Speedlights with another photographer, or if you nd that someone is on your channel and
you want to switch to a different channel.
Learn more about this feature at wiki.PocketWizard.com & download Learn Mode
eld guide.
Auto-Relay Mode
Easily trigger a remote camera in sync with distant remote ashes with Auto-Relay Mode. Put
a camera where you can’t be and have remote TTL or non-TTL lighting at the same time.
To see videos, images and more technical information on Auto-Relay Mode and other
advanced features, visit wiki.PocketWizard.com.
English
9

Compatibility
Nikon cameras and Speedlights compatible with PocketWizard
ControlTL® radios:
The MiniTT1 / FlexTT5 is compatible with most modern Nikon CLS / i-TTL cameras and
Speedlights. Visit wiki.PocketWizard.com for compatibility information. Some Nikon ash
system features may not be available or may be implemented via rmware updates.
CLS / i-TTL is for DSLRs only and is not for D-TTL or lm TTL. As new Nikon cameras and
ashes are released, compatibility will be implemented via rmware updates.
Nikon cameras not compatible with PocketWizard ControlTL:
D1, D1x, D1h, D2h, D2hs, D2xs, D100, D70, D70s, all Coolpix and lm-based cameras
Note: MiniTT1 and FlexTT5 can be used in Basic Trigger Mode as a standard trigger with any
camera.
Nikon Speedlights not compatible with PocketWizard ControlTL:
SB-80DX, SB-50DX, SB-28DX, SB-28, SB-26, etc.
Note: These ashes can be used if they are set to Manual on the Speedlight.
PocketWizard Wiki – http://wiki.PocketWizard.com
The PocketWizard Wiki on-line instruction manual includes images, how-to videos and clear
explanations of all PocketWizard products. As new MiniTT1 and FlexTT5 features and
accessories become available, you will nd updated operational information here.

a
Specications
Specications
Trigger Delay: 0 seconds – “faster than a wire” when using compatible Nikon cameras.
Note: Approximately 900 microseconds delay if using Basic Trigger Mode.
Batteries:
FlexTT5® - 2 x AA (IEC:LR6) (60 hours)
MiniTT1® - CR2450 or CR2354:
• Approximately 30 hours of camera awake time, varies with camera and
Speedlight models.
• Low temperature operation and used batteries will have reduced battery life.
Always use fresh batteries when working in the cold.
• Basic Trigger Mode consumes the battery more quickly and is not
recommended when using the MiniTT1 on a Nikon camera.
Maximum FPS: Up to 12 (varies with camera; i-TTL usage reduces FPS)
Operating Temperature: Above -15º C (5º F) and below 50º C (120º F) for FlexTT5
Above -12º C (10º F) and below 50º C (120º F) for MiniTT1
• Low temperature affects coin cell performance. Always use
fresh batteries in cold temperatures.
Storage Temperature (without battery): Above -30º C (-22º F) and below 85º C (185º F)
English
11

Warranty
This PocketWizard® product is covered under a two-year limited manufacturer’s warranty.
For warranty details, and to register your product, please go to PocketWizard.com/support
or contact your local PocketWizard Distributor. Distributor contact information can also be
found at PocketWizard.com. To receive a copy of the two-year limited manufacturer’s
warranty on this PocketWizard product, e-mail us at [email protected] or write to
us at LPA Design, 21 Gregory Drive, Suite 140, South Burlington, VT 05403, United States of
America, Attn: Warranty.
Frequency
MAKE IT POSSIBLE™
PocketWizard.com
LPF612 v3.1
IMPORTANT: US FCC/Canada frequency radios are NOT compatible with CE frequency radios
and vice versa. For more information on frequency, please go to:
PocketWizard.com/wheretobuy/frequency
Information in this Quick Guide is subject to change. For current operating documentation, features,
specications and compatibility, visit wiki.PocketWizard.com.
© 2011 LPA Design. All rights reserved. Product features and specications are subject to change without notice. PocketWizard, ControlTL, MiniTT1, FlexTT5,
PowerST4, AC3, AC9, HyperSync, Plus II and MultiMAX are either trademarks or registered trademarks of LPA Design. All other trademarks contained herein are
the property of their respective owners.
Patents: www.pwpatents.com
