ARRI TRINITY 2 User manual

TRINITY 2 System
U S E R M AN U A L
01.09.2022

Disclaimer 2
1 Disclaimer
Before using the products, be sure to read and understood all respective instructions.
The products are available for commercial customers only.
For product specification changes since this manual was published, refer to the latest publications of
ARRI data sheets or data books, etc., for the most up-to-date specifications. Not all products and/or
types are available in every country. Please check with an ARRI sales representative for availability and
additional information.
ARRI assumes no responsibility for any errors that may appear in this document. The information is
subject to change without notice.
While ARRI endeavors to enhance the quality, reliability and safety of their products, customers agree
and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risk of damage to property or injury (including death) to persons arising from defects in the products,
customers must incorporate sufficient safety measures in their work with the system and have to heed
the stated canonic use.
ARRI or its subsidiaries expressly exclude any liability, warranty, demand or other obligation for any
claim, representation, or cause, or action, or whatsoever, express or implied, whether in contract or tort,
including negligence, or incorporated in terms and conditions, whether by statue, law or otherwise. In
no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct,
indirect, incidental, or consequential damages, including, but not limited to lost profits, lost savings, lost
revenues or economic loss of any kind or for any claim by third party, downtime, good will, damage to or
replacement of equipment or property, any cost or recovering of any material or goods associated with
the assembly or use of our products, or any other damages or injury of the persons and so on or under
any other legal theory.
Neither ARRI nor its subsidiaries assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from the use of ARRI products or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted
under any patents, copyrights or other intellectual property right of ARRI or others.
ARRI or its subsidiaries do not assume any responsibility for incurred losses due to improper handling
or configuration of the camera or other system components, due to sensor contamination, occurrence
of dead or defective pixels, defective signal connections or incompatibilities with third party recording
devices.
In the case one or all of the foregoing clauses are not allowed by applicable law, the fullest extent
permissible clauses by applicable law are validated.

Imprint 3
2 Imprint
© 2022 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. All rights reserved.
The system contains proprietary information of Arnold & Richter Cine Technik GmbH & Co. Betriebs
KG; it is provided under a license agreement containing restrictions on use and disclosure and
protected by copyright law. Reverse engineering of the software is prohibited.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written
permission of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
Due to continued product development the information in this document may change without notice.
The information and intellectual property contained herein is confidential between ARRI and the client
and remains the exclusive property of ARRI. If you find any problems in the documentation, please
report them to us in writing. ARRI does not warrant that this document is flawless.
ARRI and the Digital Encoder Pedals DEP-1 are trademarks or registered trademarks of Arnold &
Richter Cine Technik GmbH & Co. Betriebs KG. All other brands or products mentioned are trademarks
or registered trademarks of their respective holders and should be treated as such.
For Further Assistance
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG
Herbert-Beyer-Strasse 10
D-80807 Munich
Germany
E-mail: [email protected]
www.arri.com/en/technical-service

Content 4
3 Content
1 Disclaimer.......................................................................................................................... 2
2 Imprint................................................................................................................................ 3
3 Content...............................................................................................................................4
4 About this Document....................................................................................................... 7
5 About the product............................................................................................................ 8
5.1 Identification...................................................................................................................... 8
5.2 Environmental Conditions.................................................................................................8
5.3 Technical Data.................................................................................................................. 9

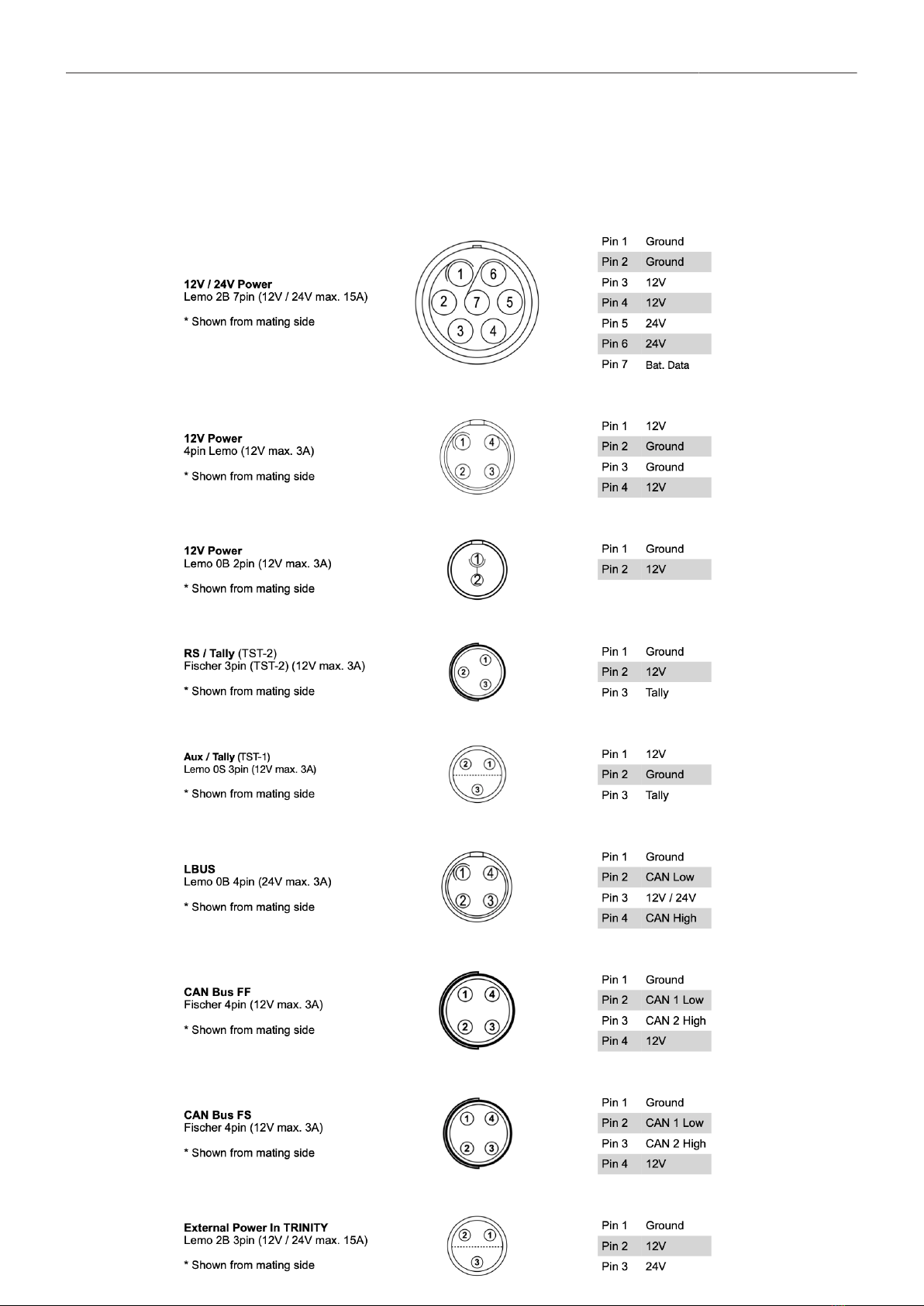

5.4 Pin Out............................................................................................................................ 18
5.5 Scope of Delivery and Warranty.................................................................................... 19
5.6 Certifications and Safety Standards............................................................................... 19
6 Safety Instructions..........................................................................................................21
6.1 Safety Conventions and Product Labels........................................................................ 21
6.2 General Safety Instructions............................................................................................ 22
7 Overview.......................................................................................................................... 25
7.1 TRINITY 2 Head Overview.............................................................................................26
7.2 Center Post Overview.....................................................................................................32
7.3 Gimbal Overview............................................................................................................ 33
7.4 Master Grip Overview.....................................................................................................35
7.5 Remote Control Panel Overview.................................................................................... 37
7.6 Top Stage and Bottom Stage Overview.........................................................................40
7.7 Battery Hanger Module Overview.................................................................................. 43
7.8 Battery Mounting System Overview............................................................................... 45
8 Installation and Operation............................................................................................. 47
8.1 TRINITY Head Installation and Operation......................................................................47
8.1.1 Installing TRINITY 2 Head........................................................................................... 47
8.1.2 Installing SAM Dovetail Plates to TRINITY 2 Head..................................................... 48
8.1.3 Installing the Camera to TRINITY 2 Head................................................................... 51
8.1.4 Height Adjustment........................................................................................................ 53
8.1.5 Turning on the system..................................................................................................54
8.2 Center Post Installation and Operation.......................................................................... 56
8.2.1 Center Post 1.8in Installation....................................................................................... 56
8.2.2 Center Post Clamp Force Adjustment..........................................................................56
8.3 Gimbal Installation and Operation.................................................................................. 57
8.3.1 Installing the 1.8in Gimbal to the Center Post............................................................. 57
8.3.2 Adding Components..................................................................................................... 58

Content 5
8.3.3 Gimbal Clamp Force Adjustment................................................................................. 62
8.4 Master Grip Trinity Installation and Operation................................................................63
8.4.1 Mounting the Master Grip TRINITY on the Gimbal......................................................63
8.4.2 Mounting a Monitor Mount on the Master Grip TRINITY............................................. 64
8.4.3 Mounting Transvideo Starlite Monitor...........................................................................65
8.4.4 Mounting Small HD 503 Monitor.................................................................................. 66
8.4.5 Positioning of the Master Grip TRINITY.......................................................................67
8.5 RCP-3 Installation and Operation...................................................................................68
8.5.1 RCP-3 Installation.........................................................................................................68
8.5.2 Power ON / OFF...........................................................................................................68
8.5.3 Jog-Wheels................................................................................................................... 69
8.5.4 Radio Module................................................................................................................69
8.6 TST and BST Installation and Operation....................................................................... 70
8.6.1 Installing TST/BST to Center Post............................................................................... 70
8.6.2 Installing SAM dovetail plates...................................................................................... 71
8.6.3 Adjusting Clamping Force............................................................................................ 73
8.7 Battery Hanger Module Operation and Installation........................................................ 74
8.7.1 Batter Hanger Module BHM-2......................................................................................74
8.7.2 Mounting ø19mm Rods................................................................................................ 74
8.7.3 Battery Mounting System............................................................................................. 75
8.7.4 Battery Hanger Module.................................................................................................75
8.7.5 Connecting the Battery Mounts to the Battery Hanger Module....................................76
8.7.6 Connecting the Battery Hanger Module to the Top / Bottom Stage............................. 77
8.7.7 Power ON / OFF...........................................................................................................77
8.7.8 Jog-Wheel Functions.................................................................................................... 78
8.7.9 TRINITY / ARTEMIS Mode...........................................................................................78
8.7.10 Battery Status............................................................................................................... 79
8.7.11 General Working Method / BHM-2............................................................................... 81
8.7.12 Discharge Modes..........................................................................................................82
8.7.13 System BHM-2
...................................................................................................................................... 84
8.8 Battery Mounting System Operation and Installation..................................................... 87
8.8.1 Installation and Replacement of Battery Mounts..........................................................87
8.8.2 Mounting the BMS on rods.......................................................................................... 87
9 Cleaning and Repair.......................................................................................................88
9.1 Cleaning Instructions...................................................................................................... 88
9.2 Repair..............................................................................................................................88

Content 6
10 Transportation and Storage...........................................................................................89
11 Disposal........................................................................................................................... 90
12 ARRI Service Contacts...................................................................................................91
13 Appendix.......................................................................................................................... 93

About this Document 7
4 About this Document
This user manual is aimed at everyone involved in using the system and provides directions on how to
operate it safely and as intended. To ensure safe and correct use, all users must read the user manual
before using the accessories for the first time.
This user manual is an essential part of this product and must be easily accessible and in proximity to
the equipment so that users can use it as a reference anytime.
Keep this user manual and all other operating and assembly instructions belonging to the system in a
safe place for future reference and possible subsequent owners.
Document Revision History
Document ID: tbd
Version Release Date Description
1.0 01.07.2022

About the product 8
5 About the product
ATTENTION
All versions of the product are intended exclusively for professional use and may only be used by
skilled personnel.
Every user should read and understand the operating instructions and the user manual. Use the
product only for the purpose described in this document. Always follow the instructions and system
requirements for all equipment involved.
What is it?
TRINITY 2 is a 5 axis hybrid camera stabilizer system, which enables very special camera movements
including 360° rotation on the camera's lens axis.
What does it do?
Any influences from the movement of the user, which can negatively affect the image, are completely
eliminated by the TRINTY 2 system.
In addition, the user can directly influence the position of the camera in space and in relation to the
object.
How does it work?
A combination of mechanical and electronic stabilization ensures perfect image quality and the joystick
control opens up countless creative possibilities. Automated motion sequences of the TRINTY 2 ensure
precise reproduction of tracking shots.
5.1 Identification
5.2 Environmental Conditions
The product should only be used and stored under certain environmental conditions. Check the
following conditions before commissioning and operation:
Electrical Requirements Input voltage: 10.6 - 33.6 V DC
Operating Temperature -20° C to +45° C / -4° F to +113° F
Storage Temperature -30° C to +70° C / -22° F to +158° F
Humidity 95% relative humidity max, non condensing

About the product 9
5.3 Technical Data

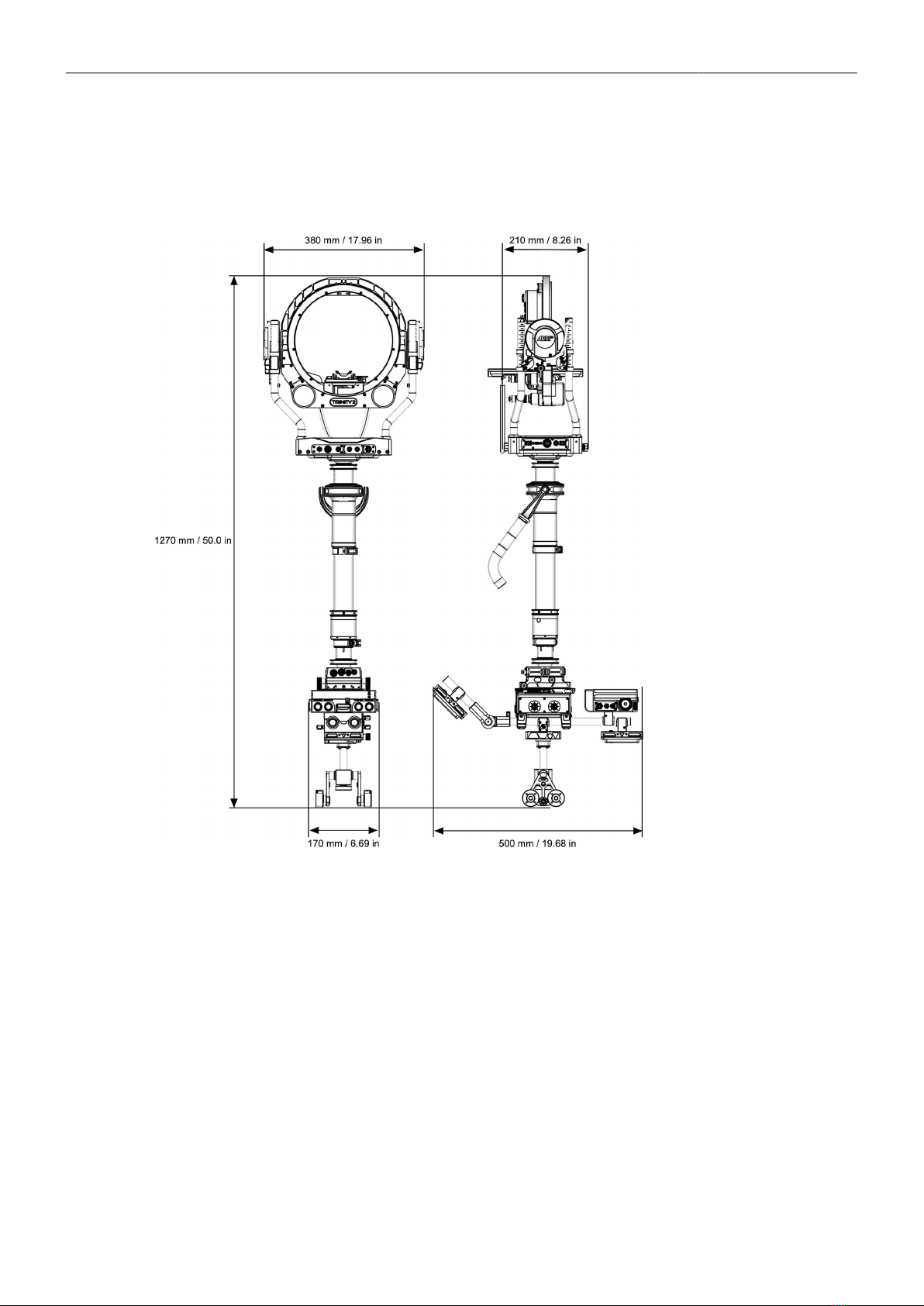

TRINITY 2
Power supply 10,6 V – 33,6 V DC 12/24V max. 15A
Weight 14.5 kg 31.9 lb
Temperature range -20° C to +45° C -4° F to +113° F
95% humidity max. non condensing
Storage temperature -30° C to 70° C -22° F to 158° F

About the product 10

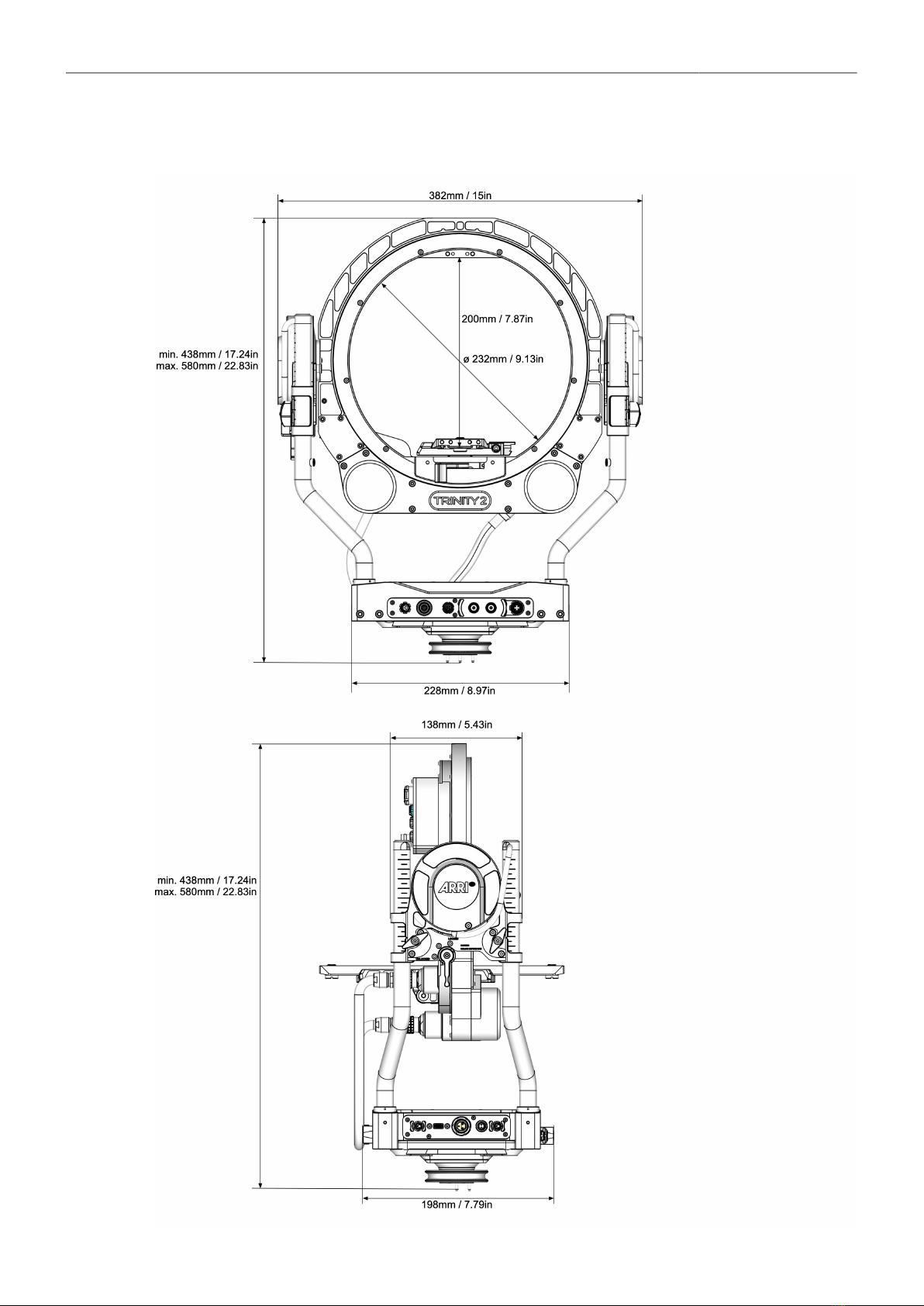

TRINITY Head 2 (TRH-2)

About the product 11
TRH-2 Interfaces
12V / 24V Lemo 2B 7pin 12/24V max. 15A
12V Lemo 0B 2pin 12V max. 3A
12V Fischer 3pin 12V max. 3A
CAN Bus Fischer 4pin 12V max. 3A
FS CAN Bus Fischer 4pin 12V max. 3A
HD In / Monitor Out / Loop BNC
Analog Joystick In Lemo 1B 7pin 12V max. 3A
Ext Pwr In Lemo 2B 4pin 12/24V max. 15A
USB Port USB-Typ-C 5,2V
TRH-2 Outer Ring
12/24V (Ring Power Supply) Lemo 22pin 12/24V max. 15A
TRH-Inner Ring
Video in BNC
12V (2x) Lemo 2pin 12V max. 3A
FF CAN Fischer 4pin 12V max. 3A
12V/Tally Fischer 3pin 12V max. 3A
LBUS Lemo 4pin 24V max. 3A
12/24V Lemo 7pin 12/24V max. 15A
12/24V (Ring Power Supply) Lemo 22pin 12/24V max. 15A

About the product 12
Center Post
Center Post lengths:
The Standard and Volt Post can be extended
from 45.5cm / 17.92in to 71cm / 27.95in.
artemis outer post diameter 48mm / 1.88in
Volt outer post diameter 44.45mm / 1.75in
Inner post diameter 38.1mm / 1.5in
The Shorty Post can be extended
from 37cm / 14.56in to 46.5cm / 18.30in.
artemis outer post diameter 48mm / 1.88in
Inner post diameter 38.1mm / 1.5in
The Super Post can be extended
from 124cm / 48.82in to 200cm / 78.74in.
artemis outer post diameter 48mm / 1.88in
Inner post diameter 38.1mm / 1.5in
Gimbal

About the product 13
Master Grip TRINITY 1 and 2 (MGT-1 and MGT-2)
MGT-1 & MGT-2 Interfaces
Weight MGT-1 0.4 kg 8.88 lb
Weight MGT-2 0.5 kg 1.10 lb
LBUS Lemo 0B 4pin 12V max. 3A

About the product 14
Remote Control Panel 3 (RCP-3)
RCP-3 Interfaces
Weight 1.0 kg 2.2 lb
12V Lemo 0B 2pin 12V max. 3A
12V Fischer 3pin 12V max. 3A
CAN Bus Fischer 4pin 12V max. 3A
FS CAN Bus Fischer 4pin 12V max. 3A
LBUS Lemo 0B 4pin 12V max. 3A
USB USB-Typ-C 5,2 V

About the product 15
Top and Bottom Stage 2 (TST-2 and BST-2)
TST-2 and BST-2 Interfaces
12V Lemo 0B 2pin 12V max. 3A
12V/24V Lemo 2B 7pin 12/24V max. 15A
HD-1 / HD-2 BNC
12V Fischer 3pin 12V max. 3A
12V Lemo 1B 4pin 12V max. 3A
LBUS Lemo 0B 4pin 24V max. 3A
CAN Bus Fischer 4pin 12V max. 3A

About the product 16

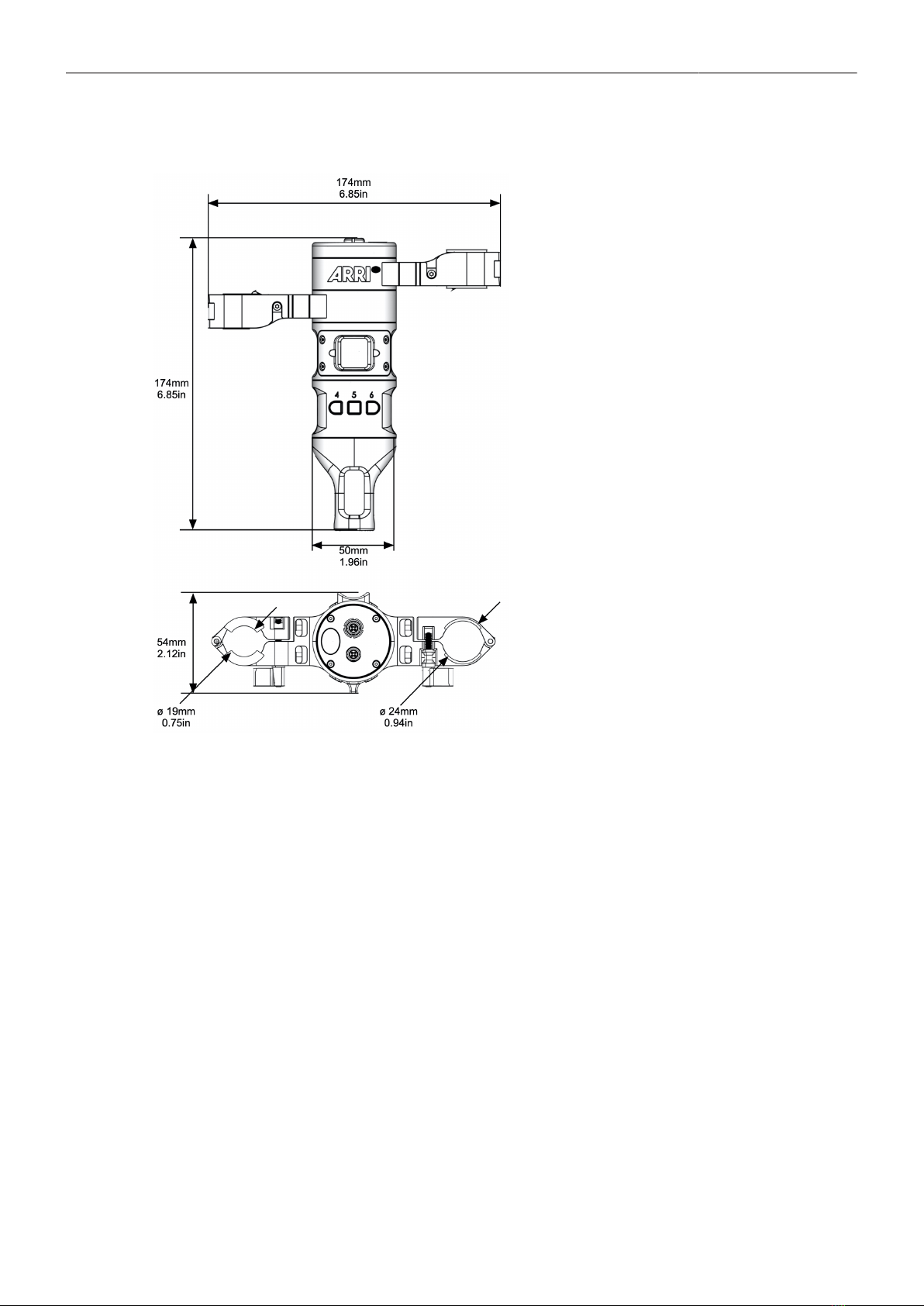

Battery Hanger Module 2 (BHM-2)
BHM-2 Interfaces
Battery in 1 - 3 Lemo 2B 4pin 12/24V max. 20A
Main Power Out Lemo 2B 7pin 12/24V max. 15A
USB Port USB-Typ-A 5,2 V

About the product 17
Battery Mounting System Module 1 and 2 (BMS-1 and BMS-2)
Model Voltage Weight Dimension
K2.0040284
B-Mount for BMS-2 20.5 – 33.6V 99 g / 0.21 lb 92 x 98 x 14mm
3.62 x 3.85 x 0.55in
K2.0040285
Gold Mount for BMS-1 / BMS-2 14.4 – 16.8V 135 g / 0.29 lb 92 x 98 x 23mm
3.62 x 3.85 x 0.90in
K2.0040286
V-Mount for BMS-1 / BMS-2 14.4 – 16.8V 143 g / 0.31 lb 92 x 98 x 33mm
3.62 x 3.85 x 1.29in

About the product 18
5.4 Pin Out
ARTEMIS 2 / TRINITY 2

About the product 19
5.5 Scope of Delivery and Warranty
ATTENTION
The packaging consists of recyclable materials. For the sake of the environment, dispose of the
packaging material at a suitable disposal site.
Always store, ship and dispose according to local regulations. ARRI is not liable for consequences
from inadequate storage, shipment or disposal.
On delivery, please check if package and content are intact. Never accept a damaged delivery.
Warranty
For scope of warranty, please ask your local ARRI Service Partner. ARRI is not liable for consequences
from inadequate shipment, improper use or third-party products.
5.6 Certifications and Safety Standards
Approval Information
The TRINITY 2 is approved for use in countries where the CE or FCC declaration is accepted. That
contains the European Union, Canada, Japan and the USA.
The import and use in other countries may be subject to legal, official or regulatory requirements
and regulations. It is the importer's or the user's responsibility, prior to importation or use, to inform
themselves of the applicable legal, regulatory and administrative requirements and regulations and
to ensure compliance with these requirements and regulations. This includes the applying for and
obtaining of all necessary approvals or registrations.
As far as reasonable and legally possible, ARRI will support requests in relation to such applications by
providing technical documents or declarations. As an importer or user, you confirm that you are familiar
and comply with the legal, regulatory, and administrative requirements and regulations that apply in
the countries to which you ship or use the products. You further confirm that you will arrange for any
necessary registrations, enrollments, or authorizations that are required in such countries.
You release ARRI from all obligations resulting from any legislative, regulatory, or administrative
requirements regarding import or use of the products, except in countries where ARRI has obtained
a registration or certification. You agree to indemnify, defend, and hold ARRI harmless from any and
all claims, damages, losses, liabilities, costs, and expenses (including reasonable fees of attorneys
and other professionals) that may arise out of a demand on ARRI in connection with your obligations
mentioned above.
EU Declaration of Conformity
Brand Name:
Product Description:
ARRI
Camera Stabilizer System TRINITY 2
The designated products conform to the specifications of the following European directives:
Directive 2014/30/EU EU of the European Parliament and of the Council of 26 February 2014 on
the harmonisation of the laws of the Member States relating to electromagnetic compatibility
The compliance with the requirements of the European Directives was proved by the application of the
following standards:
EN 55032:2015
EN 55035:2017
EN IEC 61000-4-2:2009
EN IEC 61000-4-3:2020

About the product 20
EN IEC 62368-1:2020 + A11:2020
EN IEC 63000:2018
The object of the declaration described above complies with the provisions of Directive 2011/65/EU
of the European Parliament and the Council of June 8, 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment and the Commission Delegated Directive
(EU) 2015/863 of March 31, 2015.
The manufacturer bears sole responsibility for issuing this declaration of conformity.
UK Declaration of Conformity
Brand Name:
Product Description:
ARRI
Camera Stabilizer SystemTRINITY 2
The designated products conform to the specifications of the following United Kingdom regulations:
The Electromagnetic Compatibility Regulations 2016 (SI 2016 No. 1091 as amended by SI 2019
No. 696)
The Electrical Equipment (Safety) Regulations 2016 (SI 2017 No. 1206 as amended by SI 2019 No.
696)
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
Regulations 2012 (SI 2012 No. 3032 as amended by SI 2020 No. 1647 SI 2021 No. 422 and SI
2019 No. 492)
The compliance with the requirements of the United Kingdom regulations was proved by the
application of the following standards:
EN55032:2015
EN55035:2017
EN61000-4-2:2009
EN61000-4-3:02006 A1 2008 A2:2010
EN61000-4-8:2010
EN50581:212
The manufacturer bears sole responsibility for issuing this declaration of conformity.
FCC Compliance Statement
Class A Statement: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Changes or modifications to the product not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Industry Canada Compliance Statement
Complies with the Canadian ICES-003 Class A specifications.
