Point Mobile RF750 User manual

UHF RFID SLED for PM75
User Manual
Google, Android, Google Play and other marks are
trademarks of Google LLC.
Copyright © 2006 – 2021
Point Mobile Co., Ltd. All rights reserved
RF750

UHF RFID SLED RF750 User Manual
1
© 2021 Point Mobile Co., Ltd. All rights reserved
Instruction
RF750 is a UHF RFID sled for PM75. This manual provides information about basic features and using the
RF750. Please read this manual carefully before using your UHF RFID reader to ensure safe and proper
use.
Revision History
Revision
Date
Description
V01
25 Oct 2021
Initial release
Related Document
Following documents are related to RF750. Download the documents on Service Portal > Download >
RFID Control Apps & Document.
RFID Control User Guide –describes how to use the RFID Control and RFID Demo applications.
RFID Control Configuration Tool User Guide –describes how to use the RFID Control
Configuration Tool.
RF750 SKUs
The contents of this manual can cover the following SKUs.
SKU
Part Number
RFID Engine
Location
SKU1
RF750-00RY-2
Impinj® Indy® R2000
EU
SKU2
RF750-00RY-5
US, KR

UHF RFID SLED RF750 User Manual
2
© 2021 Point Mobile Co., Ltd. All rights reserved
Table of Contents
INSTRUCTION ..........................................................................................................1
Revision History.......................................................................................................................1
Related Document...................................................................................................................1
RF750 SKUs............................................................................................................................1
TABLE OF CONTENTS.............................................................................................2
GETTING STARTED .................................................................................................4
Device Parts ............................................................................................................................4
Product Standard Accessories.................................................................................................5
Charge the Device...................................................................................................................6
Charge with AC/DC adaptor.................................................................................................6
Charging with Cradle............................................................................................................7
Turn on/off the Device..............................................................................................................9
Replace the Battery ...............................................................................................................10
LED Indicator.........................................................................................................................11
Install PM75...........................................................................................................................12
CONNECTING PM75...............................................................................................13
Install the RFID Control App..................................................................................................13
Connect mode .......................................................................................................................14
Change connect mode........................................................................................................14
Wired Communication............................................................................................................15
Disconnect..........................................................................................................................16
Auto reconnect ...................................................................................................................16
Bluetooth Communication......................................................................................................17
Connect methods ...............................................................................................................17
Disconnect..........................................................................................................................22
Reconnect ..........................................................................................................................22

UHF RFID SLED RF750 User Manual
Table of Contents
3
© 2021 Point Mobile Co., Ltd. All rights reserved
CONFIGURATION SETTINGS................................................................................23
Configuration Detail ...............................................................................................................23
Apply Configuration................................................................................................................25
Apply via RFID Control.......................................................................................................25
Apply via JSON file.............................................................................................................26
WEDGE SETTINGS.................................................................................................28
Wedge Detail.........................................................................................................................28
Apply Wedge .........................................................................................................................29
Apply via RFID Control.......................................................................................................29
Apply via JSON file.............................................................................................................29
FIRMWARE UPDATE..............................................................................................30
Auto Update...........................................................................................................................30
Manual Update ......................................................................................................................31
READ RFID TAG.....................................................................................................32
RFID Demo............................................................................................................................32
Read the RFID Tag................................................................................................................33
SCAN A BARCODE ................................................................................................35
ACCESSORY ..........................................................................................................36
SAFETY INFORMATION.........................................................................................38
Battery Safety Information .....................................................................................................38

UHF RFID SLED RF750 User Manual
4
© 2021 Point Mobile Co., Ltd. All rights reserved
Getting Started
Device Parts
No
Name
Description
1
PM75 Connector
Connector for communication with PM75
2
Hand strap hole
Attach hand strap
3
USB Type C connector
USB 2.0 Type C. Plug USB cable to charge the RF750
4
Power button
Press and hold to turn on/off the RF750
5
LED indicator
Indicate the status of power, battery charging, connect
mode, trigger mode. Find more details in LED Indicator
6
Battery release button
Press to open battery cover and replace the battery
7
NFC Tag
Connect PM75 using Tap-to-Pair
8
PM75 retention fixture
Install PM75 onto this part
9
Connect mode change button
Press and hold to change the connect mode
10
Trigger mode change button
Press and hold to change trigger mode, barcode scanning
or RFID tag reading
11
Trigger button
Read RFID tags or barcode by pressing
12
UHF RFID antenna
Read RFID tags
Figure 1 RF750 Views
5
4
2
1
3
6
8
12
9
10
11
7

UHF RFID SLED RF750 User Manual
Getting Started
5
© 2021 Point Mobile Co., Ltd. All rights reserved
Product Standard Accessories
The following items are in the product box.
Accessory
Name
Battery pack
5V / 2A power adapter
AC plug
USB type C cable
Hand Strap

UHF RFID SLED RF750 User Manual
Getting Started
6
© 2021 Point Mobile Co., Ltd. All rights reserved
Charge the Device
Caution: Always use an original charger and cable from Point Mobile. Other chargers and
cables may damage RF750. Also, make sure the connector, charger, cable is not wet.
Follow the Battery Safety Information for safety of using the battery.
Charge with AC/DC adaptor
1. Assemble the AC plug and power adapter.
2. Plug USB type C cable to the power adapter.
3. Connect the cable to USB connector of RF750.
4. Provide power by plugging the power adapter to the power outlet.
Note: If the adapter is connected to RF750 with PM75 mounted, only RF750 will be charged.
If the adapter is connected to PM75, PM75 and RF750 will be charged simultaneously.

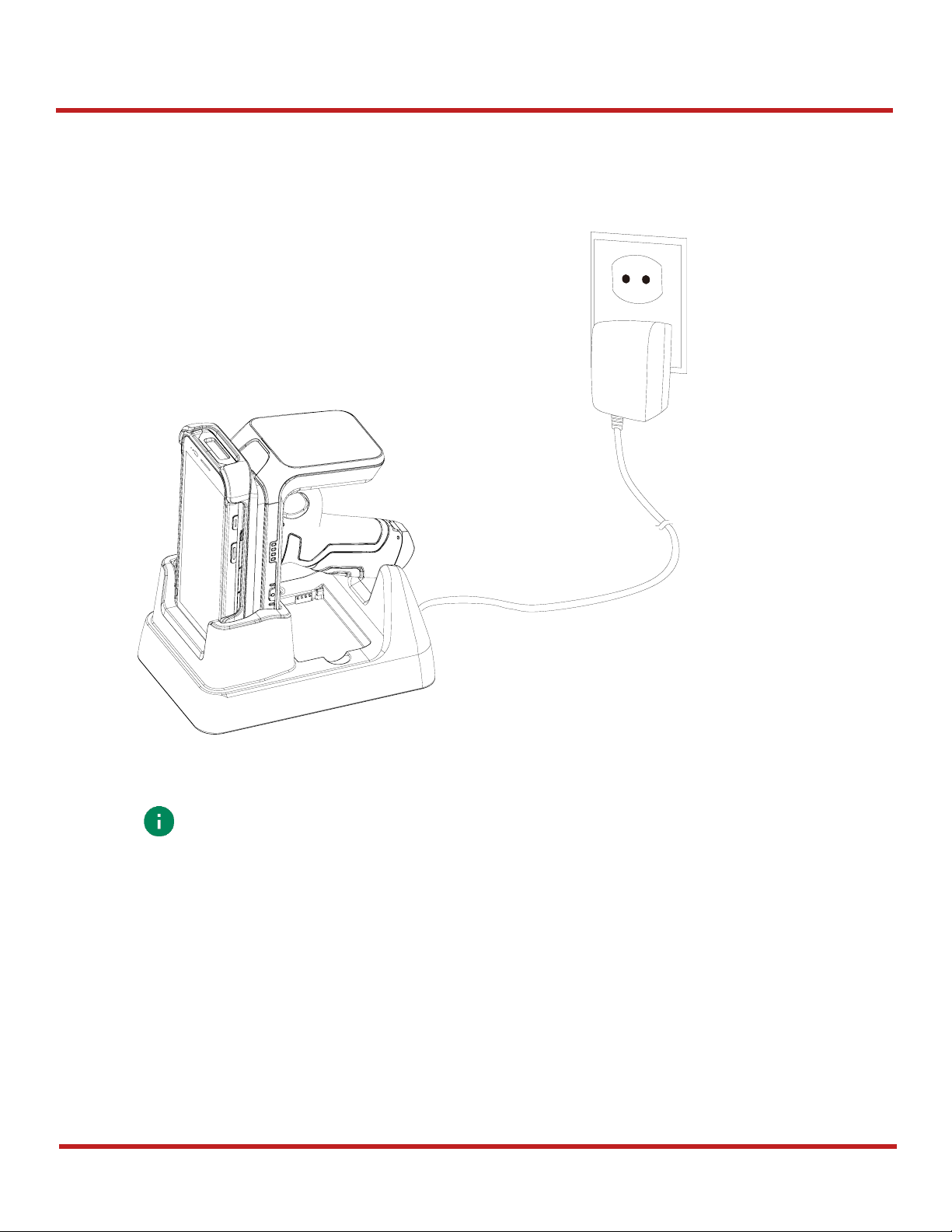

Figure 2 Charge RF750 (Adapter)

UHF RFID SLED RF750 User Manual
Getting Started
7
© 2021 Point Mobile Co., Ltd. All rights reserved
Charging with Cradle
SSC (Single Slot Cradle)
Charge the RF750 with PM75 mounted through the cradle (Optional accessory: PM75-SSC0,
PM75-SSC0-5). Place the device onto the cradle as shown in Figure 3.
Note:If you use the cradle to charge, PM75 and RF750 will be charged at the same time.
Figure 3 Charging with RF750 and PM75 (SSC)

UHF RFID SLED RF750 User Manual
Getting Started
8
© 2021 Point Mobile Co., Ltd. All rights reserved
4SBC (4 Slot Battery Cradle)
4SBC is a charging cradle for the battery of Point Mobile RFID sled models.
All RFID reader's replaceable batteries can be charged with 4SBC. And the cradle can charge up to 4
batteries at the same time.
Insert the battery into the slot with correct orientation. The LED indicator next to the slot will light up to
confirm the charging. (Red –Charging / Green –Fully charged)
Find more detail in RF851 4SBC Quick Start Guide.
Figure 4 Charge battery with 4SBC

UHF RFID SLED RF750 User Manual
Getting Started
9
© 2021 Point Mobile Co., Ltd. All rights reserved
Turn on/off the Device
To turn on or off the RF750, press and hold the power button next to the LED indicator for 2 seconds
(Until the RF750’s LED indicator lights on/off).

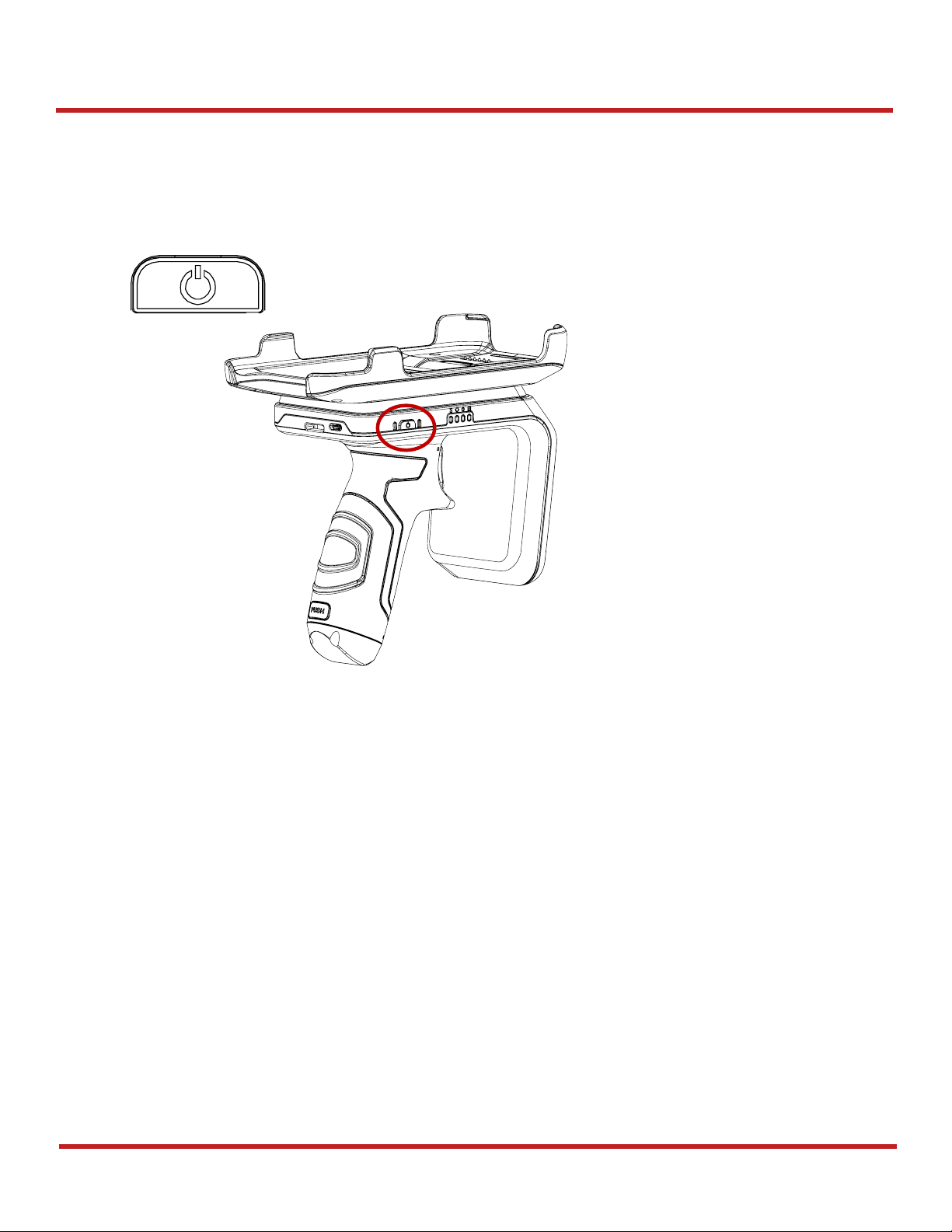

Figure 5 RF750 Power button

UHF RFID SLED RF750 User Manual
Getting Started
10
© 2021 Point Mobile Co., Ltd. All rights reserved
Replace the Battery
When the battery level is low, replace the battery with a charged one.
1. Press Battery release button on the back of the handle to open the battery cover.
2. Remove the battery by pulling the strap on the battery and replace the battery.
3. Close the battery cover firmly until it clicks.
Figure 6 Battery release button
Figure 7 Replace battery

UHF RFID SLED RF750 User Manual
Getting Started
11
© 2021 Point Mobile Co., Ltd. All rights reserved
LED Indicator
No
Indicator
Status
Indication
1
Trigger-Mode LED
Turned off
UHF RFID mode
Solid red
Barcode scan mode
2
Connect-Mode LED
Turned off
Wired communication mode
Solid red
Bluetooth communication mode
3
State LED
Solid red
Power on
Solid green
Bluetooth or Wired connected
4
Charging LED
Solid red
Charging RF750
Solid green
RF750 is fully charged
Alternately blinking
green & red
Battery fault
Blinking red
Low battery
/ Charging temperature is too high or low
Note: When RF750 enters sleep mode, all LED indicators will turn off.

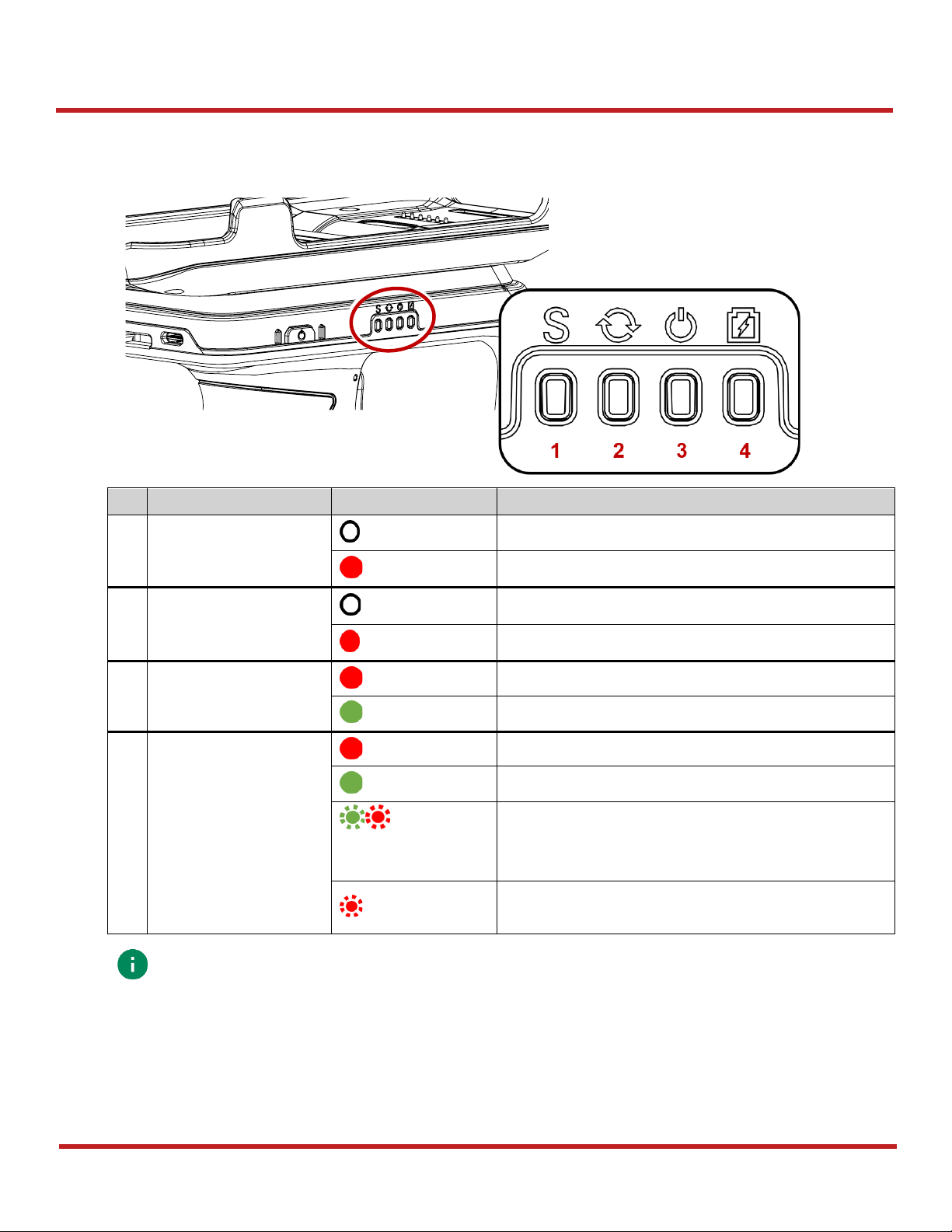

Figure 8 RF750 LED Indicator

UHF RFID SLED RF750 User Manual
Getting Started
12
© 2021 Point Mobile Co., Ltd. All rights reserved
Install PM75
Install PM75 onto the RF750. Regardless of the battery (standard or extended), the device can be
installed.
1. Insert the PM75 into the retention fixture of RF750 from the top side first.
2. Push the bottom of PM75 down.
3. To remove, hold the RF750 and pull up the bottom side of PM75.

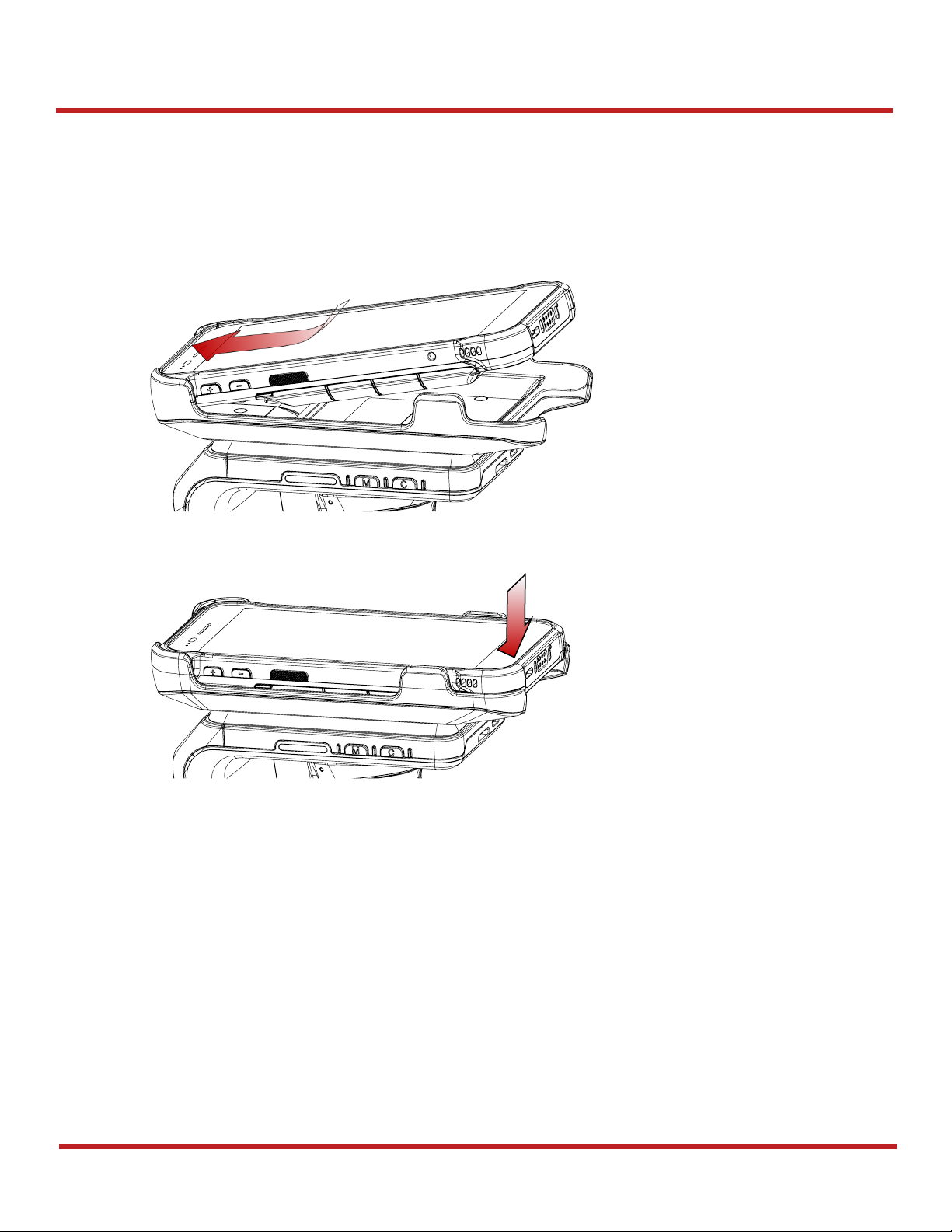

Figure 9 Installing PM75_1
Figure 10 Installing PM75_2

UHF RFID SLED RF750 User Manual
13
© 2021 Point Mobile Co., Ltd. All rights reserved
Connecting PM75
Install the RFID Control App
Connect your PM75 and RF750, set up the configuration, and update the firmware of the RF750 using
RFID Control application. The app can be downloaded from Point Mobile Service Portal website.
This guide only describes a few basic features of RFID Control, so please find more detail information
in RFID Control User Guide.
To install RFID Control,
1. Access to Service Portal and log in.
2. Go to the Download board and find a post titled as RFID Control Apps & Document.
3. Download the RFID Control application.
4. Connect PM75 with PC and copy the apk file to internal storage of PM75.
5. Go to FileExplorer from PM75 App drawer, and install the app.
6. To run the app, tap RFID Control from App drawer or EmKit

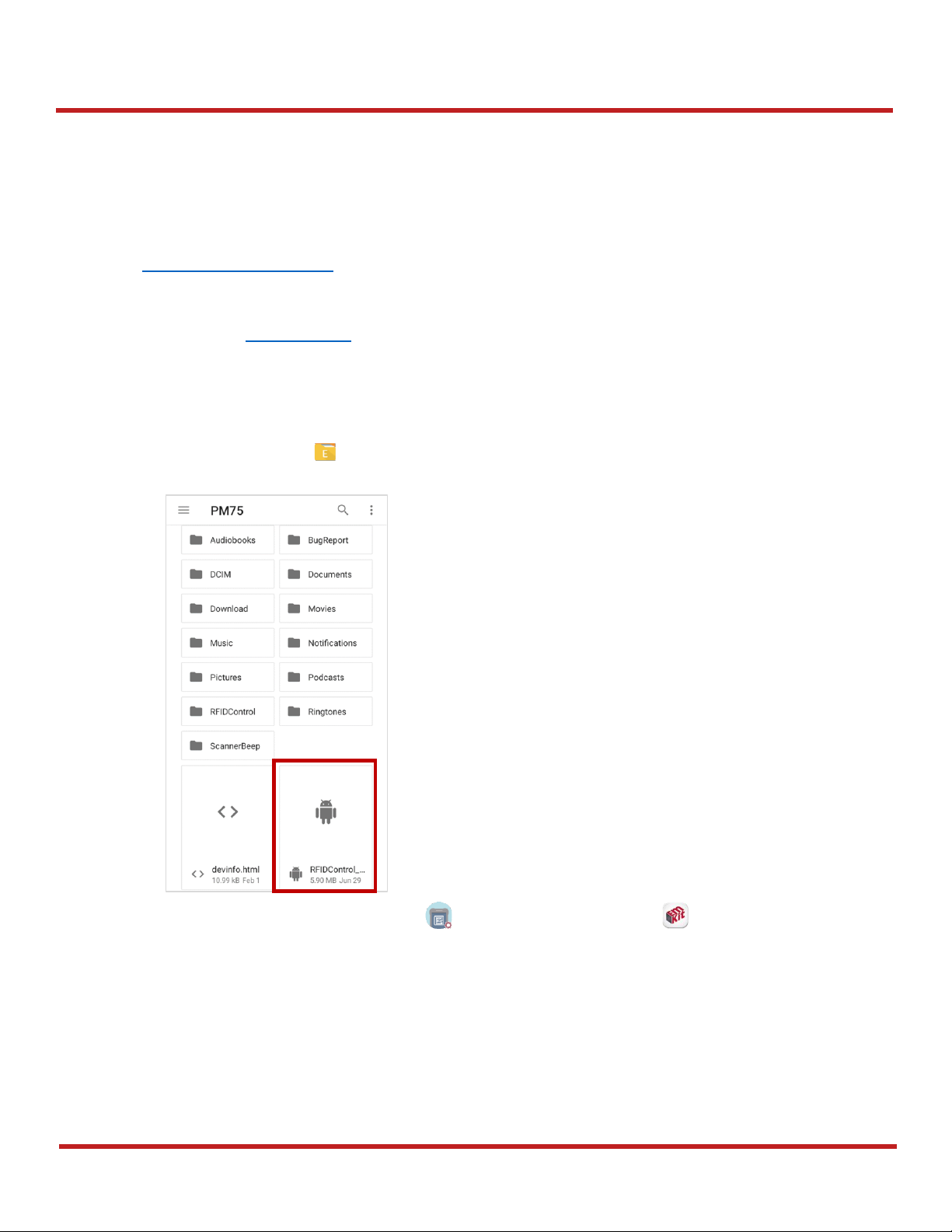

Figure 11 FileExplorer

UHF RFID SLED RF750 User Manual
Connecting PM75
14
© 2021 Point Mobile Co., Ltd. All rights reserved
Connect mode
RF750 supports two following connect modes.
Mode
Description
Wired communication (Default)
Communicate through the pogo pin connectors on the PM75
and RF750.
Need to install PM75 on RF750.
Bluetooth communication
Communicate through Bluetooth.
Change connect mode
To change connect mode from one to another,
Press connect mode change button of RF750 until Connect-Mode LED changes.
Change Open option in RFID Control.
Connect-Mode LED
Turned off
Wired communication mode
Solid red
Bluetooth communication mode
Note: Disconnect current connection before changing connect mode.
Connect mode change button does not work when RF750 is already connected to any PM75.
Figure 13 Connect-Mode LED
Figure 12 Connect mode change button
Figure 14 RFID Control - Open options

UHF RFID SLED RF750 User Manual
Connecting PM75
15
© 2021 Point Mobile Co., Ltd. All rights reserved
Wired Communication
Wired communication is a default connect mode for RF750 and PM75.
Because the devices communicate through pogo pin connectors, you must install PM75 on RF750
first for wired communication.
1. Install PM75 on RF750 referring to Install PM75.
2. Make sure the Connect-Mode LED is turned off. (= Wired mode)
3. Launch RFID Control and check if the Open option set as Wired.
4. Turn on Connect to RFID Reader toggle switch.
5. When the devices are connected properly,
- State LED of RF750 lights green
- An icon indicating the RF750’s battery level is shown on the status bar
Figure 15 RFID Control - Wired mode
Figure 17 State LED (Wired or Bluetooth Connected)
Figure 16 Wired connected screen

UHF RFID SLED RF750 User Manual
Connecting PM75
16
© 2021 Point Mobile Co., Ltd. All rights reserved
Disconnect
In one of the following cases, the wired communication will be disconnected.
Detach PM75 from RF750
Turn off the Connect to RFID Reader toggle switch (In RFID Control)
Change Open option to Bluetooth (In RFID Control)
PM75 enters suspend mode
Turn off the RF750 or PM75
Auto reconnect
Auto-reconnect is performed when RF750 and PM75, connected through wired communication once,
are re-installed, or PM75 wakes up from suspend mode while installed on RF750.
For auto-reconnect, all of the following states must be satisfied.
RF750 and PM75 are turned on
RF750 and PM75 connected through wired communication at least one time
Open option of RFID Control and connect mode of RF750 is set as Wired
Previous connection is disconnected by removing PM75 from RF750
(If you disconnected it by toggle switch in RFID Control, Auto-reconnect does not perform.)

UHF RFID SLED RF750 User Manual
Connecting PM75
17
© 2021 Point Mobile Co., Ltd. All rights reserved
Bluetooth Communication
To connect RF750 and PM75 with Bluetooth, change the connect mode on the RF750 and RFID
Control, first (Refer to Connect mode - Change connect mode).
When the Open option changes to Bluetooth while Bluetooth is turned off on PM75, the app tries to
turn on the Bluetooth automatically. Tap ALLOW. If you denied, the app will be closed.
Connect methods
There are two ways to establish the Bluetooth communication, Tap-to-Pair and Searching RFID
reader. Choose more comfortable way.
Note: NFC Tap-to-Pair or Search RFID reader
NFC Tap-to-Pair: Easy automatic pairing and connection process with a single tap
Search RFID reader: Normal pairing and connection process with manual steps
Figure 18 Bluetooth turn on dialog

UHF RFID SLED RF750 User Manual
Connecting PM75
18
© 2021 Point Mobile Co., Ltd. All rights reserved
Tap-to-Pair
Tap-to-Pair method uses NFC feature, and connect RF750 and PM75 just by getting them close. An
NFC tag is on RF750 UHF RFID antenna to support Tap-to-Pair.
1. Change connect mode to Bluetooth on RF750
and Open option of RFID Control to Bluetooth.
2. Tap NFC Tap-to-Pair on RFID Control.
Note: NFC is enabled by default. But if NFC is turned off, app will ask to turn on NFC. Tap
OK and tap NFC toggle switch to enable NFC.
Or before access the Tap-to-Pair screen, enable NFC by one of below ways.
Settings > Connected devices > Connection preferences > NFC > enable switch
Open Quick setting panel > enable NFC
Figure 21 NFC_Settings
Figure 20 NFC_Quick setting panel
Figure 19 NFC turn on dialog

UHF RFID SLED RF750 User Manual
Connecting PM75
19
© 2021 Point Mobile Co., Ltd. All rights reserved
3. Referring to NFC antenna area of PM75, bring the PM75 close to the NFC logo of RF750 as the
picture on the screen. And then, allow the connection in the dialogs.
4. Check the device and reader are connected properly
Enabled Connect to RFID Reader toggle switch and connected RF750’s name is
displayed
An icon indicating the RF750’s battery level is shown on the status bar
RF750’s state LED lights green
Figure 24 Bluetooth connected screen
Figure 25 State LED (Wired or Bluetooth Connected)
Figure 23 PM75 NFC tagging area
NFC Tagging Area
Figure 22 RF750 NFC tag location
