POL-AUDIO DJ 1600 User manual

WWW.POLAUDIO.PL
TOOLS FOR PROFESSIONALS
DJ 1600
MANUAL

MANUAL –DJ 1600
2
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
Manufacturer: POL-AUDIO Leszek Polanowski
Manufacturer address: Skłodowskiej 33, 05-420 Józefów, Polska
Model: DJ 1600
Document version: 1.0
Issue date: 2017.05.10
Legend
WARNING
INFO
DANGER
TIPS
Keep this document and act according to keep the warranty and operate the system in a proper way.
Please check the package in presence of a forwarder and make sure it is not damaged during the transport.
Notify the forwarder company and sender about any problems with the package.
SERVICE
To contact manufacturer servicepleaseuse phone or ema il:
[phone]
[e-mail]
We appreciate your purchase of POL-AUDIO product. Welcome to the users family! If you will have any ideas that you would
like to share –please let us know! We are always interested in how the system perform and what is your experience.
+ 48 22 789 30 02
[e-mail]
All POL-AUDIO loudspeaker systems are being manufactured in Poland.

MANUAL –DJ 1600
If you have a question call us [phone]
3
GENERAL SAFETY AND USAGE
PRODUCT DAMAGE
In case of a product damage, contact authorized service immediately. Do not use damaged product and do not
try to repair it. You should not modify the product. Violating those conditions can exclude product from
warranty.
Operating conditions
Do not operate the system next to source of water or other fluids. Product should be placed on stable and dry
ground. Please avoid operating the system next to a heat source. Protect the system from strong wind to avoid
possible collapse.
System can’t be placed near fire source. During storm, system should be unplugged. Atmospher ic discharge can
lead to product damage. Cables should be placed in a way that protects it from being cut or damaged in any
other way.
WARRANTY
POL-AUDIO products are secured with 36 months of warranty from the date of sale. It protects defects found in
the materials or workmanship. The owner should inform about these defects the dealer or the distributor,
providing receipt or invoice of date of purchase and defect detailed description. This warranty does not extend
to damage resulting from improper installation, misuse, neglect or abuse. POL-AUDIO will verify damage on
returned units, and when the unit has been properly used and warranty is still valid, then the unit will bereplaced
or repaired. POL-AUDIO is not responsible for any “direct damage” or “indirect damage” caused by product
defectiveness.
WARRANTY CANCELLATION
Operating system with a preset different than the one provided by the manufacturer can lead to system damage
and warranty cancellation. Presets provided with the system can only be modified within necessary scopeon the
input channels. Manufacturer is not responsible for damages caused by misuse of preset.
Technical data of the product can be changed by a manufacturer without previous notification.
All rights to this document and product described are restricted by POL-AUDIO Leszek Polanowski.
PRODUCT DESCRIPTION

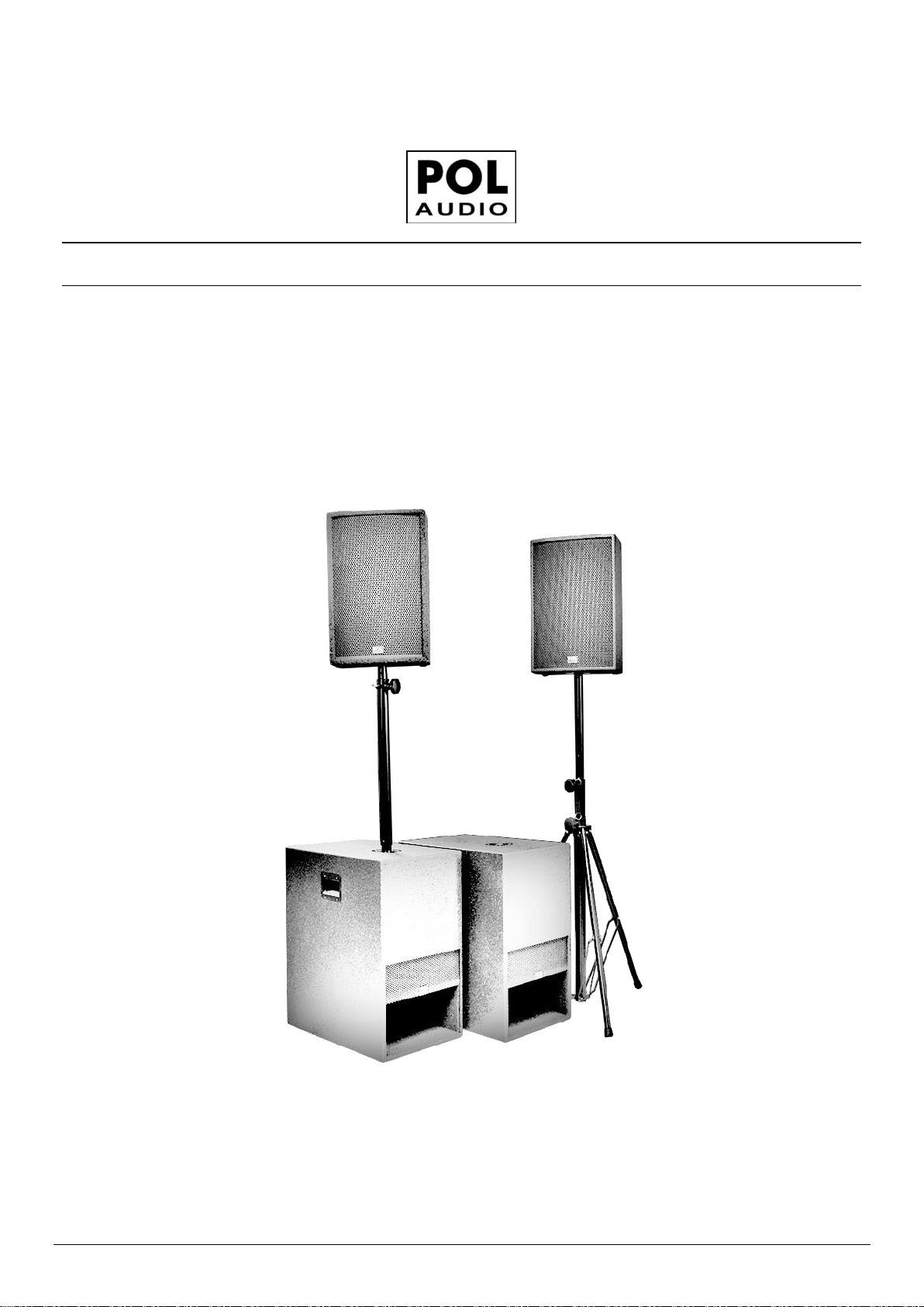

DJ 1600 is a set that provides high quality sound, high mobility and versatility in a very compact form. The system consists of two
12” satellites and two 12” subwoofers. It can provide sound reinforcement for events of 150 to 250 people depending on the type
of event. DJ 1600 was designed for mobile performers that perform in a different venue each day. While in transport it have to
take as little spaceas possible and perform well with minimum setup effort, this is exactly what we had in mind designing DJ 1600.
In satellites you will find passive crossovers designed and manufactured with utmost attention to details, to provide pleasant
listener experience even before DSP processing. Subwoofer enclosure was designed as a hybrid horn that provides high SPL in a
very compact size. Additionally the satellites are using asymmetrical horns to provide optimal coverage. During the transport
satellites can be shuffled into bass reflex ports so that in transport only subwoofers occupy a space in the cargo.

MANUAL –DJ 1600
4
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
OPERATION
Before you connect the product to other elements of the system, make sure all of the parameters match a nd
guaranty a safe operation.
After exposure to very low temperatures system should be left until the temperature is similar to the operating
conditions during the event. If the system is exposed to the temperature shock it can be damaged.
Before turning the system on –make sure that the signal is within operating levels of equipment.
HOW TO MINIMIZE RISK OF SYSTEM DAMAGE
Make sure the signal is not distorted and is within operating levels of the system. Avoid placing a microphone in
front of the system to minimizethe risk of a feedback. Before you turn on the system make sure the amplifier and
loudspeaker system are properly matched with all of the technical data.

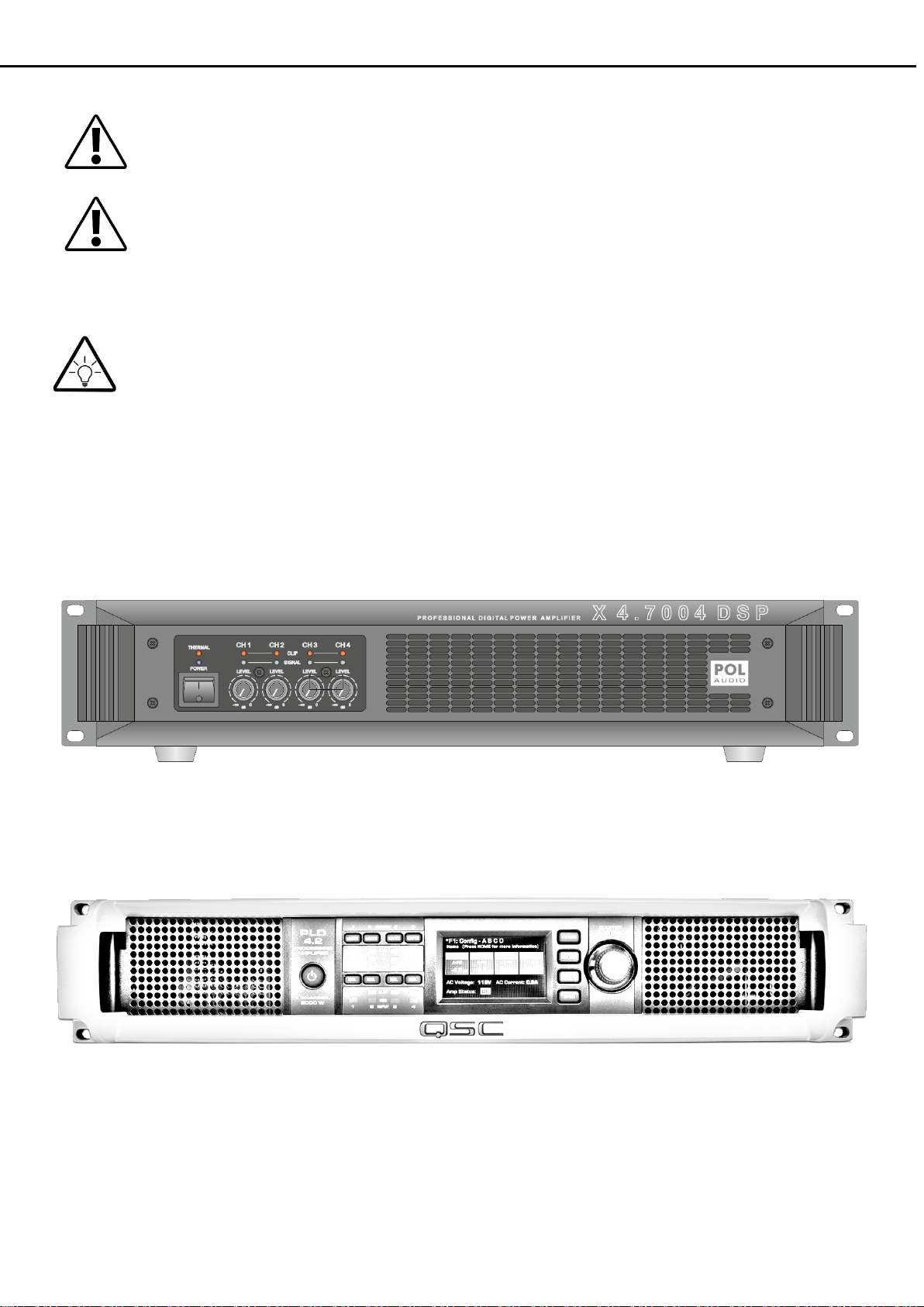

RECOMMENDED AMPLIFIERS
POL-AUDIO X4.7004
4 x 700 W
QSC PLD 4.2
4 x 700 W

MANUAL –DJ 1600
If you have a question call us [phone]
5
TECHNICAL DATA
Model
SAT 112 ND
Type
12” Satellite
Frequency range
80 Hz –20 kHz
AES Power
300 W
SPL
100 dB (1 W / 1 m)
Components
12”(3”)
Application
DJs, Music Bands, Mobile Performers
Connectors
Speakon NL4
Dimensions
Height
Width
Depth
565 mm
350 mm
180 mm
Weight
11 kg
Enclosure
High grade plywood
Finish
Standard: carpet, Optional: Structural paint and Poliurea
Model
TPH 112 ND
Type
12” Subwoofer
Frequency range
45 Hz –200 Hz
AES Power
500 W
SPL
101 dB (1 W / 1 m)
Components
12” (3”)
Application
DJs, Music Bands, Mobile Performers
Connectors
Speakon NL4
Dimensions
Height
Width
Depth
715 mm
385 mm
605 mm
Weight
29 kg
Enclosure
High grade plywood
Finish
Standard: carpet, Optional: Structural paint and Poliurea
Technical data of the product can be changed by a manufacturer without previous notification.
All rights to this document and product described arerestricted by POL-AUDIO Leszek Polanowski.

MANUAL –DJ 1600
6
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
CE DECLARATION OF CONFORMITY
NAME AND ADRES OF MANUFACTURER:
POL-AUDIO Leszek Polanowski
ul. M.C. Skłodowskiej 33
05-420 Józefów
Poland
Systems list:
Passive loudspeaker systems: POL-AUDIO SAT 112-300 ND, POL-AUDIO TPH 112-500 ND
DIRECTIVES AND NORMS:
EMC 89/336/EEC 03.05.1989 with annotations 91/31/EEC and 93/68 EEC
73/23/EC 19.02.1973 with annotations 93/68/EEC
PN-EN50081-1: 1996
PN-EN50082-1: 1999
Declarations was issued by POL-AUDIO Leszek Polanowski company.
Issuedate: …………………… Signature: …………………………………..
