POL-AUDIO SAT 212 CX User manual
SAT 212 CX ND
MANUAL
Manual POL-AUDIO SAT 212 CX (ND)
2
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
Manufacturer: POL-AUDIO Leszek Polanowski
Manufacturer Address: Skłodowskiej 33, 05-420 Józefów, Polska
Model: SAT 212 CX ND
Document version: 1.0-SAT212
Issue Date: 2017.08
Legend
WARNING
INFO
DANGER
TIPS
Keep this document and act according to keep the warranty and operate the system in a proper
way.
Please check the package in presence of a forwarder and make sure it is not damaged during the
transport. Notify the forwarder company and sender about any problems with the package.
SERVICE
To contact manufacturer service please use phone or email:
+48 22 789 30 02
We appreciate your purchase of POL-AUDIO product. Welcome to the users family! If you will have any ideas that
you would like to share –please let us know! We are always interested in how the system perform and what is your
experience.
+ 48 22 789 30 02
polaudio@polaudio.pl
All POL-AUDIO loudspeaker systems are being manufactured in Poland.
Manual POL-AUDIO SAT 212 CX (ND)
Have a question? Call us +48 22 789 30 02
3
GENERAL USAGE AND SAFETY
PRODUCT DAMAGE
In case of a product damage, contact authorized service immediately. Do not use damaged product
and do not try to repair it. You should not modify the product. Violating those conditions can exclude
product from warranty.
OPERATING CONDITIONS
Do not operate the system next to source of water or other fluids. Product should be placed on stable
and dry ground. Please avoid operating the system next to a heat source. Protect the system from
strong wind to avoid possible collapse.
System can’t be placed near fire source. During storm, system should be unplugged. Atmospheric
discharge can lead to product damage. Cables should be placed in a way that protects it from being
cut or damaged in any other way.
WARRANTY
POL-AUDIO products are secured with 36 months of warranty from the date of sale. It protects
defects found in the materials or workmanship. The owner should inform about these defects the
dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed
description. This warranty does not extend to damage resulting from improper installation, misuse,
neglect or abuse. POL-AUDIO will verify damage on returned units, and when the unit has been
properly used and warranty is still valid, then the unit will be replaced or repaired. POL-AUDIO is not
responsible for any “direct damage” or “indirect damage” caused by product defectiveness.
WARRANTY CANCELLATION
Operating system with a preset different than the one provided by the manufacturer can lead to system
damage and warranty cancellation. Presets provided with the system can only be modified within
necessary scope on the input channels. Manufacturer is not responsible for damages caused by misuse
of preset.
Technical data of the product can be changed by a manufacturer without previous notification.
All rights to this document and product described are restricted by POL-AUDIO Leszek Polanowski.
Manual POL-AUDIO SAT 212 CX (ND)
4
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
PRODUCT DESCRIPTION
SAT 212 CX is a response to the rental sound industry demand for very high output and high control over output
performance. Double 12” midrange transducers in short horn combined with 2” coaxial high frequency unit in large
horn provides high SPL level for mid and high frequency range. It is a perfect tool for sound reinforcement at small to
medium events both indoor and outdoor. It cooperates very well with TV 118 and TP 118 POL-AUDIO subwoofers.
System is equipped with three-point flying system for rental and installation applications. SAT 212 CX operates in
passive mode powered by a single channel. Designed crossover creates flat amplitude and phase response. Large high
quality horn provide broad and stable coverage.
High quality transducers with neodymium magnet allows to reduce overall weight of the construction with no
compromise on sound quality. This way the loudspeakers are very easy to move and transport, for improved user’s
comfort.
Premium grade plywood enclosure, provides durable housing for loudspeaker system allowing extensive use on the
tour at any conditions. Additionally, quality plywood provides higher resonance dumping for enclosure, making the
sound even more selective.
Operation
Before you connect the product to other elements of the system, make sure all of the parameters
match and guaranty a safe operation.
After exposure to very low temperatures system should be left until the temperature is similar to the
operating conditions during the event. If the system is exposed to the temperature shock it can be
damaged.
Before you turn the system on, make sure the signal is within operating range.
How to minimize risk of system damage
Make sure the signal is not distorted and is within operating levels of the system. Avoid placing a
microphone in front of the system to minimize the risk of a feedback. Before you turn on the system make
sure the amplifier and loudspeaker system are properly matched with all of the technical data.
General safety rules
Always use elements provided by the manufacturer and no other objects.
Always verify if the hoist and construction is prepared for the load you are about to fly.
Protect speaker stand from people access.
Do not stand under the system. If the system collapses it can cause permanent health damage or
even death.
SUSPENSION SYSTEM
During system installation, always make sure the roping eye is placed in a correct way and the lock is engaged.
Manual POL-AUDIO SAT 212 CX (ND)
Have a question? Call us +48 22 789 30 02
5
For flying the system use only elements provided by the manufacturer. When
flying the system, always use all 3 suspension points (two on the sides, one
on the back).

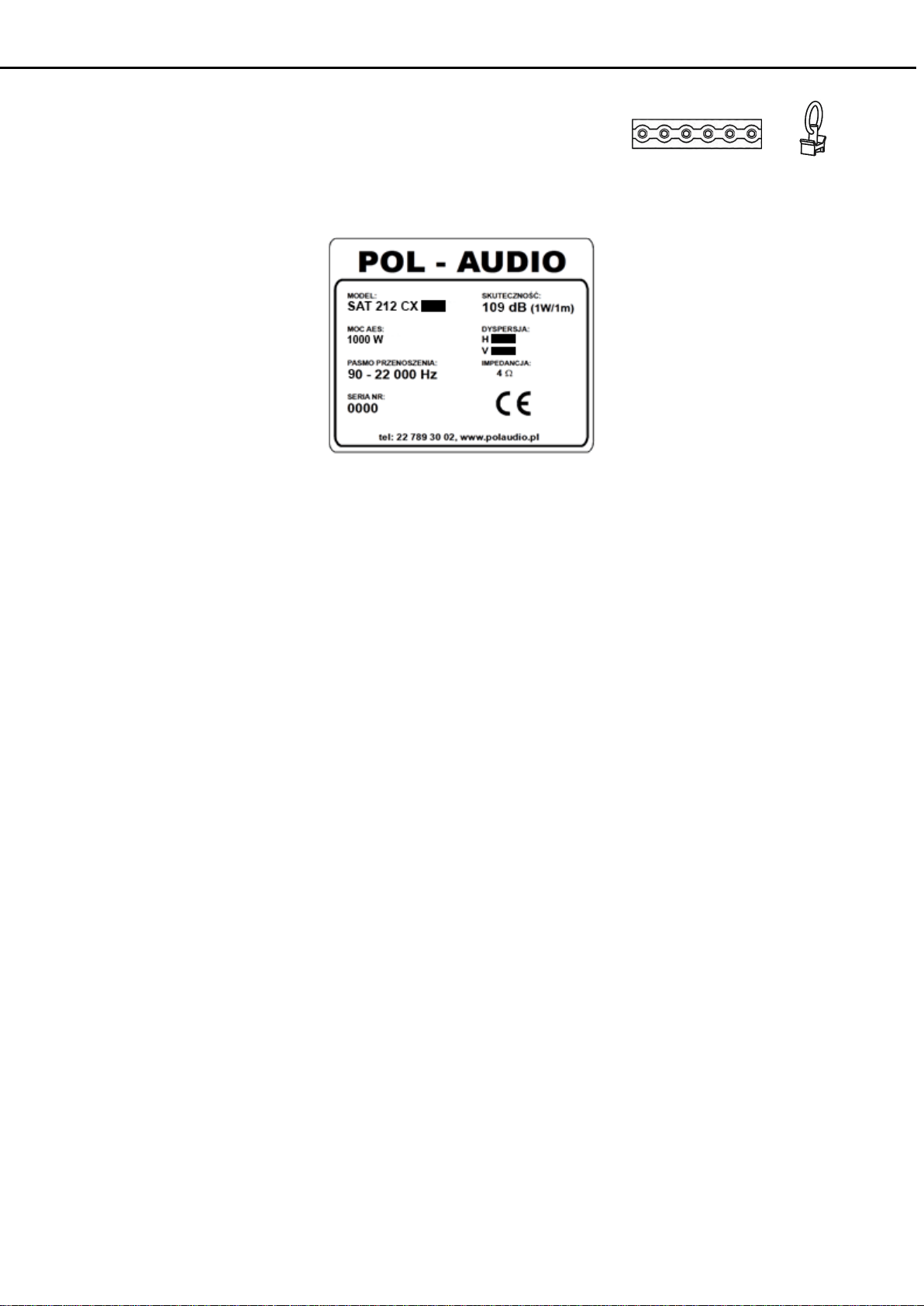

SYSTEM REAR PLATE
System POL-AUDIO SAT 212 CX ND is equipped with back plates with basic parameters:
PRODUCT DATA
Model
SAT 212 CX ND
Type
Satellite, high output point source.
Application
Outdoor and indoor events. Conferences and concerts.
Frequency Range
90Hz-22kHz
Components
2 x 12" (3”) ND + 1 x 2” CX ND
AES Power
1000 W
SPL
109 dB
Dimensions
Height
Width
Depth
1050 mm
540 mm
560 mm
Weight
44 kg
Connectors
2 x Neutrik NL4MP
OPTIONAL ACCESSORIES
Speaker Stand
Speaker stand for placing SAT 212 using socket pole
Flying kit
Optional kit for suspending the system
Manual POL-AUDIO SAT 212 CX (ND)
Have a question? Call us +48 22 789 30 02
7
SPEAKERS WIRING
System impedance HF 12 Ohm / LF 4 Ohm:
, +-1 and +-2 are pin connectors placed in the enclosure so make sure to use proper wired cables to power up the
system.
TRANSPORT
For system transport dedicated cover should be used. System should be always placed in stable position. System fall
from height may cause damage.
CONSERVATION
System should undertake review:
First, 6 months after the buy
Every 2 years after that.
To clean up the system, cloth with water should be used. Do not use any other chemical substances to clean the
system. It may damage the enclosure or speakers.
HEARING PROTECTION
We suggest using hearing protection when long exposure to high sound pressure is necessary. If not, temporarily or
permanently hearing damage can occur.
Remember: Hearing is one of our primary working tools. Take care of it.
SPARE PARTS
Manufacturer uses only original spare parts for performing repairs. If system will be repaired in
external service facility with different spare parts, the warranty is no longer valid.
Manual POL-AUDIO SAT 212 CX (ND)
8
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
CE Declaration of conformity
NAME AND ADRES OF MANUFACTURER:
POL-AUDIO Leszek Polanowski
ul. M.C. Skłodowskiej 33
05-420 Józefów
Poland
SYSTEMS LIST:
Passive loudspeaker systems: POL-AUDIO SAT 212 CX ND, SAT 212 CX
DIRECTIVES AND NORMS:
EMC 89/336/EEC 03.05.1989 with annotations 91/31/EEC and 93/68 EEC
73/23/EC 19.02.1973 with annotations 93/68/EEC
PN-EN50081-1: 1996
PN-EN50082-1: 1999
Declarations was issued by POL-AUDIO Leszek Polanowski company.
Issue date: …………………… Sign: …………………………………..
