Polar Electro CS102-A User manual

Model:
CS102-A/CS103-A
Back Bar Cooler
Instruction manual
CS102-A_CS103-A_A5_v2_20230726.indb 1CS102-A_CS103-A_A5_v2_20230726.indb 1 2023/7/26 15:542023/7/26 15:54

2
EN Telephone Helpline: 1300225960
Safety Instructions
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your POLAR product.
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components or service panels on this product.
- In Queensland the service agent/qualified technician
MUST hold a Gas Work Authorisation or License for
hydrocarbon refrigerants if the appliance gas system is
being opened or charged.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- IEE Wiring Regulations
- Building Regulations
• DO NOT immerse in water, or use steam/jet washers for cleaning.
• DO NOT cover the appliance when it is operating.
• DO NOT store food in the appliance.
• Always carry, store and handle the appliance in a vertical position.
• Never tilt the appliance more than 45° from the vertical.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging
in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR
agent or a recommended qualified technician in order to avoid
a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
CS102-A_CS103-A_A5_v2_20230726.indb 2CS102-A_CS103-A_A5_v2_20230726.indb 2 2023/7/26 15:542023/7/26 15:54

3
AUEN
Telephone Helpline: 1300225960
• Children should be supervised to ensure that they do not play
with the appliance.
• Polar recommend that this appliance should be periodically
tested (at least annually) by a Competent Person. Testing
should include, but not be limited to: Visual Inspection,
Polarity Test, Earth Continuity, Insulation Continuity and
Functional Testing.
Caution: Risk of Fire
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Warning: Keep all ventilation openings clear of
obstruction. Unit should not be boxed in without
adequate ventilation.
• To comply with AS/NZS 60079.10.1:2009: Ensure there
are not sources of ignition in any area where refrigerant
could gather in the event of a leak.
• Electrical equipment should not be placed under the vent
or where refrigerant could gather in the event of a leak.
• Warning: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food
storage compartments of the appliance.
Product Description
CS102-A - Back bar display Cooler 2 doors CS103-A - Back bar display Cooler 4 doors
Pack Contents
The following is included:
• POLAR Back Bar Cooler
• Keys
• Instruction manual
• CS102-A: 4 adjustable shelves
• CS103-A: 8 adjustable shelves
POLAR prides itself on quality and service, ensuring that at the time of unpacking the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your POLAR dealer immediately.
CS102-A_CS103-A_A5_v2_20230726.indb 3CS102-A_CS103-A_A5_v2_20230726.indb 3 2023/7/26 15:542023/7/26 15:54

4
EN Telephone Helpline: 1300225960
Installation
Note: Not for use in vans or trailers, food
trucks or similar vehicles.
Note: If the unit has not been stored or
moved in an upright position, let it stand
upright for approximately 12 hours before
operation. If in doubt allow to stand.
1. Remove the appliance from the packaging and
protective film from all surfaces.
2. Avoid positioning the appliance in direct
sunlight or damp areas.
3. To optimize performance and longevity, ensure
a minimum clearance of 2.5cm is maintained
between the unit and walls and other objects,
with a minimum 20cm clearance on the top.
NEVER LOCATE NEXT TO A HEAT SOURCE.
4. Insert the slide-out shelf/shelves at the desired
levels and place the smaller shelf/shelves on
the floor of the appliance.
5. If necessary, adjust the screw feet of the
appliance to make it level.
Note: Before using the appliance for the
first time, clean the shelves and interior
with soapy water then dry well.
Operation

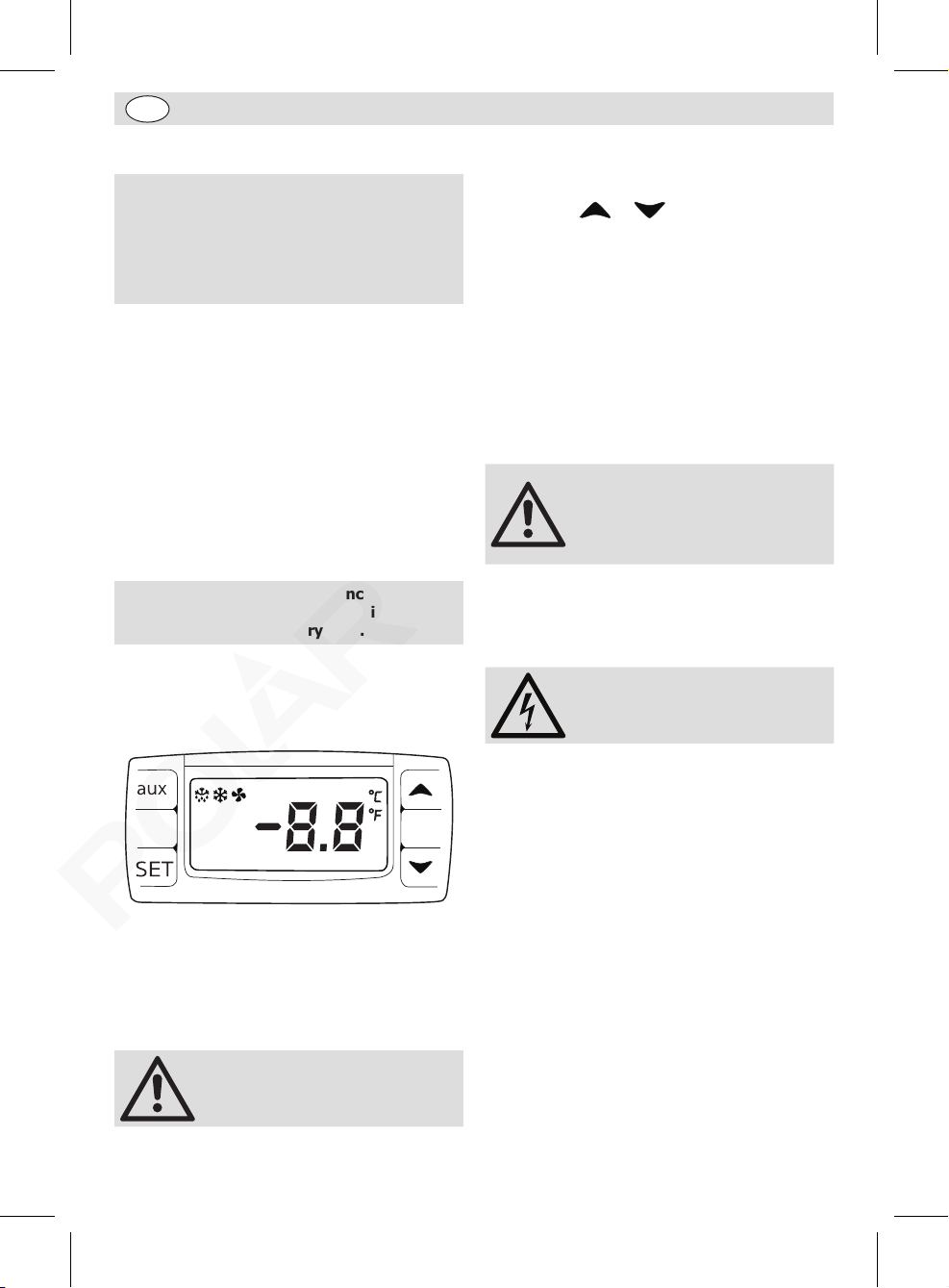

Control Panel
Turn On
1. Close the door of the appliance.
2. Connect the appliance to a mains power
supply.
3. Turn the light switches On [I] or Off [O] as
desired.
Note: The Cooling Light is
illuminated when the appliance
is chilling the interior cabinet.
Set the Operating Temperature
1. Press the SET button for 3 seconds. The
display will flash.
2. Press the or buttons to display the
required temperature.
3. Press the SET button to store the temperature.
Manual Defrost
• POLAR Back Bar Chillers feature an automatic
defrost. However, should the appliance require
an additional defrost period press and hold the
“aux” button for 6 seconds.
• Automatic defrost cycles are every 6 hours and
last 20 minutes (factory defaults).
• To stop the Defrost press and hold the“aux”
button for 6 seconds.
Note: If a manual defrost is
started this resets the automatic
defrost timer. During defrost
periods the Defrost light is
illuminated.
Cleaning, Care &
Maintenance
Switch off and disconnect
from the power supply before
cleaning
• Clean the interior of the appliance as often as
possible.
• Do not use abrasive cleaning agents. These
can leave harmful residues.
• Always wipe dry after cleaning.
Cleaning the Condenser
• Periodically cleaning the condenser can extend
the life of the appliance.
• Note: Use a soft brush or vacuum cleaner to
clean the fins of the condenser, taking care not
to damage the fins.
CS102-A_CS103-A_A5_v2_20230726.indb 4CS102-A_CS103-A_A5_v2_20230726.indb 4 2023/7/26 15:542023/7/26 15:54

5
AUEN
Telephone Helpline: 1300225960
Condensation and ice will form with frequent and prolonged opening of the doors.
Operating outside of the recommend temperature range and placing next to a heat source
will also increase the amount of ice and internal/external condensation. If external
condensation occurs wipe the surface down with a cloth.
Excessive ice will result in longer running times that will increase energy consumption and
increase the deterioration of components.
Troubleshooting
A qualified technician must carry out repairs if required.
Fault Probable Cause Solution
The appliance is not
working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug or lead is damaged Replace plug or lead
Mains power supply fault Check mains power supply
The appliance turns on,
but the temperature is
too high/low
Condenser blocked with dust Clean Condenser
Doors/ drawers are not shut
properly
Check doors / drawers are shut and seals
are not damaged
Appliance is located near a
heat source or air flow to the
condenser is being interrupted
Move the appliance to a more suitable
location
Ambient temperature is too high Increase ventilation or move appliance to a
cooler position
Insufficient airflow to the fans Remove any blockages to the fans
Appliance is overloaded Reduce the amount stored in the appliance
Factory default parameters
adjusted
Consult a qualified Technician
The appliance is
unusually loud
The appliance is touching a
neighbouring object
Check installation position and change if
necessary
The appliance has not been
installed in a level or stable position
Check installation position and change if
necessary
Technical Specifications
Note: Due to our continuing program of research and development, the specifications herein may be
subject to change without notice.
Model Voltage Power Current Temperature
Range
Net
usable
Capacity
Refrigerant Dimensions
H x W x D mm
Weight
(kg)
CS102-A 220-240V~
50Hz
320W 1.6A 2 - 8°C 227L R600a 870 X 1462 X 513 100
CS103-A 320W 1.6A 2 - 8°C 485L R600a 870 X 2542 X 513 150
Note: For optimal product performance and efficiency, please ensure to mind the net usable capacity (load
limit) when filling.
CS102-A_CS103-A_A5_v2_20230726.indb 5CS102-A_CS103-A_A5_v2_20230726.indb 5 2023/7/26 15:542023/7/26 15:54

6
EN Telephone Helpline: 1300225960
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
The appliances must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact the product
supplier, or the local authority responsible for waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
POLAR products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to
change specifications without notice.
CS102-A_CS103-A_A5_v2_20230726.indb 6CS102-A_CS103-A_A5_v2_20230726.indb 6 2023/7/26 15:542023/7/26 15:54

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp
• Tipo di apparecchiatura • Tipo de equipo
Model • Modèle • Modell •
Modello • Modelo
U-Series Back Bar Counter:
* Two Door display
* Four Door display
One door plus two drawers
Six drawers
Three doors plus two drawers
Two doors plus four drawers
Four Drawer doors & Wine bottle cooler
*CS102-E (&-A)
*CS103-E (&-A)
GL186-E
GL187-E
GL188-E
GL456-E
GL457-E
Application of Territory Legislation
& Council Directives(s)
Toepassing van Europese
Richtlijn(en) • Application de la/des
directive(s) du Conseil • Anwendbare
EU-Richtlinie(n) • Applicazione delle
Direttive • Aplicación de la(s)
directiva(s) del consejo
Machinery Directive 2006/42/EC
EN 60335-1:2012 +A11:2014 +A13:2017 +A1:2019
+A14:2019 +A2:2019
EN 60335-2-89:2010 +A1:2016 +A2:2017
EN 62233:2008
Electro-Magnetic Compatibility (EMC) Directive
2014/30/EU - recast of 2004/108/EC
EN IEC 55014-1: 2021
EN IEC 55014-2: 2021
EN IEC 61000-3-2:2019 +A1:2021
EN 6100-3-3:2013 +A1:2019 +A2:2021
Eco-design energy-related products Directive
2009/125/EC; Regulation (EU)
*2019/2024 - Ecodesign direct sales refrigerators
ISO 23953-1:2015
ISO 23953-2:2015
2015/1095 -Ecodesign professional refrigerated
storage cabinets
EN 16825-2016
Restriction of Hazardous Substances Directive
(RoHS) 2015/863 amending Annex II to Directive
2011/65/EU
Electrical Safety
IEC 60335-1:2010 +A1:2013
+A2:2016
IEC 60335-2-89:2010 +A1:2012
+A2:2015
Electromagnetic Compatibility
EN IEC 55014-1: 2021
EN IEC 55014-2: 2021
EN IEC 61000-3-2:2019 +A1:2021
EN 6100-3-3:2013 +A1:2019
+A2:2021
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers
• Nome del produttore • Nombre del fabricante
Polar
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and
Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande Richtlijn(en) en
Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y estándar(es) arriba
mencionadas.
Date • Data • Date • Datum • Data •
Fecha
10th July 2023
Signature • Handtekening •
Signature • Unterschrift Firma •
Firma
Full Name • Volledige naam • Nom
et prénom • Vollständiger Name •
Nome completo • Nombre completo
Ashley Hooper
Eoghan Donnellan
Brendan Denmeade
Position • Functie • Fonction •
Position • Qualifica • Posición
Technical & Quality
Manager
Commercial Manager/
Importer
Commercial Manager/
Responsible Supplier
Producer Address • Adres fabrikant •
Adresse du producteur • Anschrift
des Herstellers • Indirizzo del
produttore • Dirección del fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
Unit 9003,
Blarney Business Park,
Blarney,
Co. Cork
Ireland
15 Badgally Road,
Campbelltown
NSW 2560
DocuSign Envelope ID: 667CECBC-8A06-4707-A983-F418EC2BF803
CS102-A_CS103-A_A5_v2_20230726.indb 7CS102-A_CS103-A_A5_v2_20230726.indb 7 2023/7/26 15:542023/7/26 15:54

CS102-A_CS103-A_A5_v2_2023/07/26
http://www.polar-refrigerator.com/
CS102-A_CS103-A_A5_v2_20230726.indb 8CS102-A_CS103-A_A5_v2_20230726.indb 8 2023/7/26 15:542023/7/26 15:54
