POLIMEX iCON 50 User manual

WEB
User manual
iCON 50
Controller for Access controll
Specications of iCON50
џStandalone mode with master card;
џCommunication mode via USB / LAN (additional
module)
џControl of 1 singlesided door;
џAbility to manage payed services via software
Andromeda Pro
џVolatile memory for users and events;
џOpen protocol for integration with other systems
WEB SDK
џAutomatic selectable mode - standalone or
network (via software)
џBuilt in Duress Mode ( forced opening the door with
silent alarm)
User capacity 1500
Transaction capacity 4000
Readers 1pcs with 26 or 34 bit WIEGAND
interface (automtic selectable) and
4-8 numbers for PIN
Reader mode RFID, RFID and PIN, RFID or PIN,
Work code
Inputs 1 galvanically isolated
Outputs 1 pcs(1 relay- 30V/3A),
2 pcs LED and 1 pcs for reader’s beep
Communication LAN, USB (with additional module)
Power Supply 12 VDC
Current 60
Yes
-10°C - +50°C
10%- 90% RH (non condensing)
80*33*22
LED indicator
Operating
temperature
Operating
humidity(RH)
Dimensions
Polimex Holding LTD., Sofia,128A Dimitur Petkov Blvd. fix. +3592/ 9208666
Wiring diagram
Controller’s LED indication
Table with eligible lengths when powering with 13.7VDC
Recommended types of cables and permissible length
№
1
2
3
4
5
6
7
8
9
10
11
Equipment:
Readers - data and power
Magnetic sensor
Exit button
LED and Beep
Electromagnet (550мА) Polimex
Electric strike Polimex
Electric drop bolt Polimex
RS-485
LAN
USB
Emergency button
Wire Specication-
мм2
Maximum lenght -
meters
0.22
up to 30
up to 70
up to 100
up to 100
0.22
0.22
0.22
0.5
0.5
0.5
FTP min. 5 cat.
FTP min. 5 cat.
Standard cable
0.5
up to 100
up to 100
up to 40
up to 1200
up to 100
2-3
Its aways by
the door
Recommended wire for connection
between the controller and the door
(readers, buttons,...) is 2x0.5+8x0.22.
(2x0,5 is used for the locking device and the
other 8 wires are for powering the readers,
data from the readers (D0, D1), controlling
led and beep of the readers, exit button,
magnetic sensor and others. If the wires are
not enough you can connect everything
with common GND ( for example the black
0,5 mm wire).
Fail safe
Fail secure
Power supply
LED1 LED2
LED3
LED4
Reader
+12V
GNG
D0
D1
LED
BEEP
LED5
GND
+12V
IN
COM
ON
NC
GND
LED
D1
D0
BUZZ
+12V
Exit
button
Emergency button
Led №
Led 1
Led 2
Led 3
Led 4
Led 5
Indicates status of :
When Output is activated
Exit button In
Communication receive Rx
Communication transfer Tx
Power U
Status of indicators:
Fast blink
Fast blink
On.g
On.g
On.g
Off.c
Off.c
X
X
X
Polimex Holding LTD., Sofia,128A Dimitur Petkov Blvd. fix. +3592/ 9208666
Connections
Working with Master card
Working with Master card
Adding card/s:
Check once your mastercard to the reader. The led will start blinking. When it stops blinking and led is on you must check the
card/s which you want to add/register. When you are nished wait a couple of seconds and the led will return to normal state.
Then you are ready to use your system.
Deleting card/s:
Check twice your mastercard to the reader.The led will blink slowly. When it stops blinking and led is on you must check the card/s
which you want to delete. When you are nished wait a couple of seconds and the led will return to normal state. Then you are
ready to use your system.
Deleting all cards:
Check your mastercard 4 times to the reader. Wait a couple of seconds and the led will return to normal state. Then all card are
deleted.
PC iCON 1xx
LAN/USB
iCON 1xx
RS485
iCON 1xx
RS485
LAN/ USB A+
B-
RS485
ID 1 ID 2 ID n
ID 1 ID 1
ID 1
LAN
(ID must be
unique bus)
(ID does not matter;
IP must be unique
network)
Switch
iCON 50
LAN
9
9
8
RF reader
1 4
Door contact
2
Exit Button
3
5Lock
6 7
9/10 8
LAN/iCON 1xx
LAN
9
iCON 50
LAN
iCON 1xx
LAN
iCON 50
LAN
iCON 1xx
LAN
Last revision of the document 01.2017 year.
Software
http://goo.gl/r88288
INSTRUCTIONS
USE OF
ANDROMEDA TOOL
https://goo.gl/cSuFFa
INSTRUCTIONS
USE OF
ANDROMEDA PRO
Web SDK
https://goo.gl/zbshx1
DISCUSSIONS AND
INFORMATION
http://www.securitybulgaria.com/les/Andromeda/PolimexSupport.exe
REMOTE SUPPORT
http://www.securitybulgaria.com/les/Andromeda/NewAndromedaToolLast.zip
DOWNLOAD ANDROMEDA TOOL
Polimex Holding LTD., Sofia,128A Dimitur Petkov Blvd. fix. +3592/ 9208666
FAQ
Question: I dont know the controllers ID. Where can I see it?
Answer: The ID is written on controllers lable. If the lable is not
available or the ID is changed it can be searched with
PolimexAutoDetect tool. If you are using a LAN module you ca
access LAN’s web interface (default 192.168.1.202) go to SDK
Device Manager and select START. You will get a list of all
controllers connected to this line.
Question: How to exit Fire mode and bring controller to normal
state?
Answer: When fire alarm system ends to supply NC contact to
the controller mark a registered card on one of the readers.
Question: How to recognise check in and check out reader?
Answer: By default reader 1 is for check in and reader 2 for check
out.
Question: When to use rectifier diode?
Answer: Aways. Connect it to ever y locking device
independently of the type.
Question: How to install the controller in the box?
Answer: Use the two spacers included in the set.
Question: How to mount the LAN module?
Answer: Mount it on the slot for external module with the RG45
located by the controllers power input directed towards the
outside of the board .
Question: How to mount the USB module?
Answer: Mount it on the slot for external module located by
the battery directed towards the inside of the board.
Question: How to control the readers indication?
Answer: Led and beep indicators can be controlled by
supplying readers inputs with GND from the controller.
Question: What is the maximum lenght between reader and
controller?
Answer: The wiegand standard says that it is 100 meters, but
it depends of the wire material. The best for long distance is to
use twisted pair (FTP). See page 3.
Question: How to switch outputs from NO to NC?
Answer: Use the jumpers positioned between the relay and
the terminal. If the jumper is positioned to the right the
contact is NC and if the jumper is positioned to the right the
contact is NO (The controller must be oriented with the relays
to the underside)
Polimex Holding LTD., Sofia,128A Dimitur Petkov Blvd. fix. +3592/ 9208666

Popular IP Access Controllers manuals by other brands

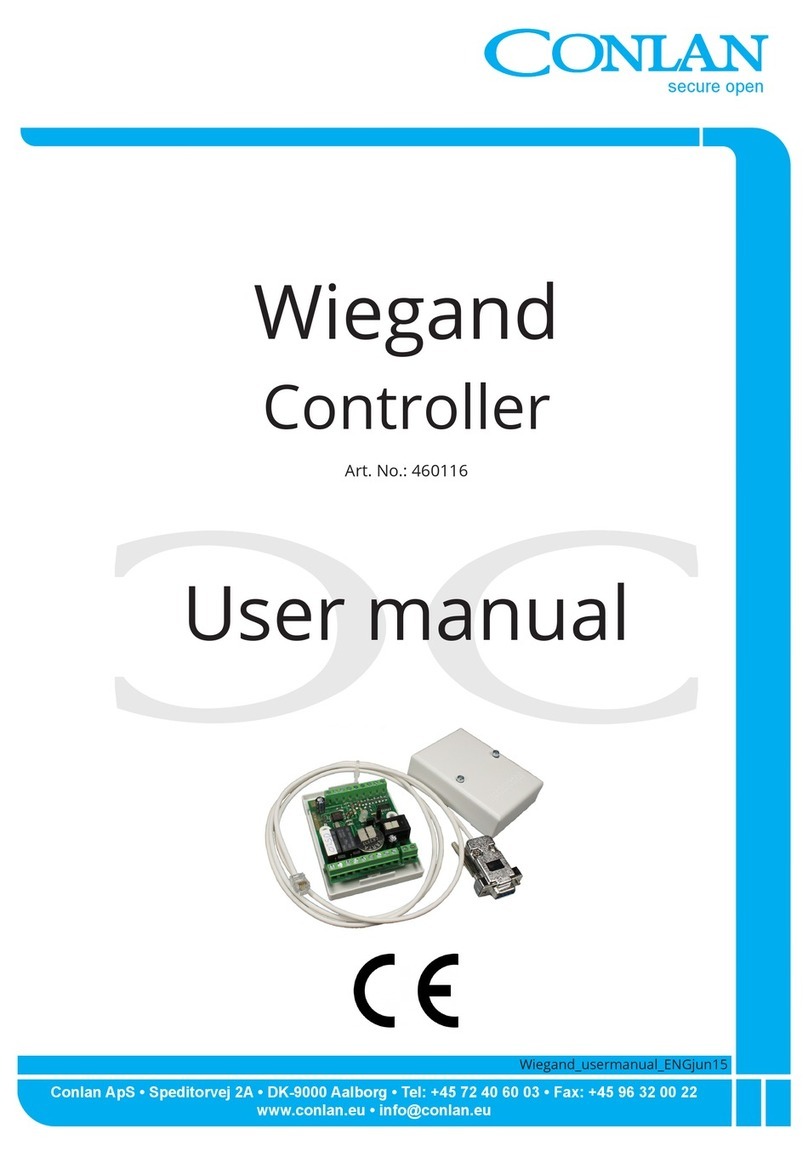

Conlan 460116 user manual

Conlan

Conlan 460116 user manual

IDTECK Star LX505 user manual

IDTECK

IDTECK Star LX505 user manual

golmar CODEPROX-N Installer manual

golmar

golmar CODEPROX-N Installer manual

Comelit CIAO CA5100B Technical manual

Comelit

Comelit CIAO CA5100B Technical manual

Gibraltar Package Concierge Package Room manual

Gibraltar

Gibraltar Package Concierge Package Room manual

CDVI SOLARPW installation manual

CDVI

CDVI SOLARPW installation manual

Fermax AC-MAX installation manual

Fermax

Fermax AC-MAX installation manual

CAMDEN CV-110SPK installation instructions

CAMDEN

CAMDEN CV-110SPK installation instructions

CDVI KCPROXWLC installation manual

CDVI

CDVI KCPROXWLC installation manual

Paxton TOUCHLOCK K Series instruction manual

Paxton

Paxton TOUCHLOCK K Series instruction manual

PRASTEL EASYKW manual

PRASTEL

PRASTEL EASYKW manual

Rosslare AYC-W6500 Installation and operation manual

Rosslare

Rosslare AYC-W6500 Installation and operation manual

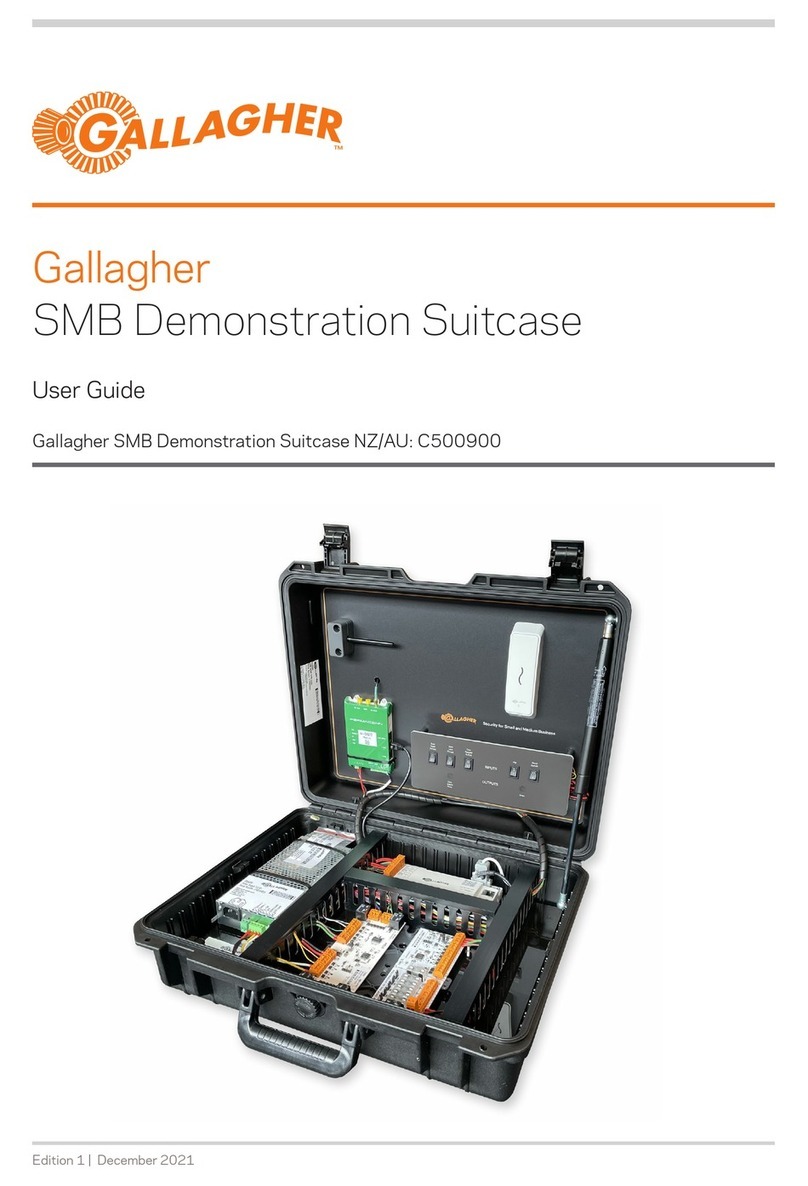

Gallagher SMB Demonstration Suitcase user guide
