POLON4000
INTERACTIVEFIREDETECTIONANDALARMSYSTEM

DOT‐4046
MULTI‐SENSOR
SMOKEANDHEATDETECTOR


InstallationandMaintenanceManual
IK‐E301‐001GB

IIIBEdition

2IK‐E301‐001GB
TheDOT‐4046multi‐sensorsmokeandheatdetectorcoveredbythepresentmanualcomplieswith
therequirementsofthefollowingEuropeanUnionDirectives:

CPD 89/106/EWGonconstructionmaterials;
EMC 2004/108/WE onelectromagneticcompatibility.

TheDOT‐4046multi‐sensorsmokeandheatdetectorhasbeenapprovedwiththeEC‐Certificateof
ConformityNo.1438/CPD/0015issuedbytheScientificandResearchCentreforFireProtection
(CNBOP)Józefów,Poland,anEUnotifiedauthorityNo.1438,confirmingitscompliancewiththe
requirementsofPN‐EN54‐5:2003andPN‐EN54‐7:2004standards.

Thecertificatemaybedownloadedfromwww.polon‐alfa.plwebsite.



1438
Polon‐AlfaSpółkazograniczonąodpowiedzialnościąSp.k.
155,GlinkiStreet,PL85‐861Bydgoszcz,POLAND
05
1438/CPD/0015
EN54‐7
DOT‐4046Multi‐sensorSmokeandHeatDetector(utilisingscattered
lighteffectandheatsensor,addressable,detachable)
Application–firesafety
Technicaldata‐IK‐E301‐001GBmanual


Readthemanualcarefullybeforethedetectorassemblingandcommissioning.
Anynonconformitywiththeinstructionscontainedinthemanualmaybeharmfulormaycause
violationofthelawinforce
POLON‐ALFAbearsnoresponsibilityforanydamageresultingfromusageinconsistentwiththe
manual.

Awasteproduct,unsuitableforfurtheruse,shallbepassedto
awasteelectricandelectronicequipmentcollectionpoint.



NOTE:Themanufacturerreservestherighttochangespecificationsofproductsatanytime
withoutpriornotice.

IK‐E301‐001GB3
1PURPOSE
TheDOT‐4046multi‐sensoraddressablesmokeandheatdetectorisdesignedfordetectionofafire
initialphasewhenasmokeoccursand/ortemperaturerisemaybeobserved.Thedetectoris
characterisedbyahighresistancelevelagainstwindmovementandpressurechange.
TheDOT‐4046multi‐sensoraddressabledetectorsareintendedto operateinthePOLON4000fire
detectingandalarmsystemcontrolpaneladdressablelines.Theyareequippedwithinternalshort
circuitisolators.
2TECHNICALSPECIFICATIONS
Operatingvoltage16.5V÷24.6V
Maximumcurrentdraw≤150µA
Maximuminstallationheight*)7.5m
Maximumsupervisedarea*)40m2
Operatingtemperature:
‐for‘1’and‘2’modesfrom‐25°Cto+50°C
‐for‘3’and‘4’modesfrom‐25°Cto+65°C
Allowablerelativehumidityupto95%at40°C
Dimensions(withoutbase)Ø115mmx43mm
Numberofbasicoperationmodes4
Mass(withoutbase)0.2kg
Standardcolourwhite
Addresscodingmethodprogrammableatthecontrolpanel
TestfiredetectionsuitabilityTF1,TF2,TF3,TF4,TF5,TF6,TF8.
*)seedesignguidelines
3SAFETYCONDITIONS
3.1Repairsandmaintenance
Anymaintenanceworksorperiodicinspectionsshallbeexecutedbyskilledpersonnelemployedby
companiesauthorisedandtrainedbyPOLON‐ALFA.
Anyrepairsmustbecarriedoutbythemanufacturer.POLON‐ALFAbearsnoresponsibilityforthe
operationofanyapparatusbeingrepairedbyunauthorisedpersonnel.

3.2Worksatheight
Anydetectorinstallationworkscarriedoutatheightmustbeexecutedwithparticularcareutilising
toolsandmachineryingoodworkingcondition.
Specialattentionshallbegiventostabilityofladders,elevators,lifts,etc.

4IK‐E301‐001GB
Anyelectrictoolsshallbeusedstrictlyobeyingthesafetyrulesstatedininstructionmanualsby
manufacturers.

3.3Anti‐dustingeyeprotection
Itisobligatorytouseprotectiveanti‐dustingglassesandmasksduringdetectorinstallationworks
thatproducehighamountofdust,suchasholedrillinginceilings.

4DESIGNDESCRIPTIONS
TheDOT‐4046detectorisequippedwithtwosensorsthatdetecttwofirefactors:heatandsmoke.
Heatisdetectedbyatemperature‐sensitiveresistor(thermistor)whereassmokeisdetectedbya
specialopticalmoduleconsistingofalighttransmittingdiodeandareceivingone.Theyaremounted
insuchawaythatthelightemittedbythetransmittingdiodedoesnotreachtheotherdiode
directly;alabyrinthprotectsthediodesfromexternallightinterference.Ametalprotectivenet
preventsthedetectorfromirruptionofsmallinsectsorpiecesofdirt.Thewholestructureisplaced
inawhiteplastichousing.

5PRINCIPLEOFOPERATION
TheDOT‐4046detectoroperationbasisisTyndalleffect–lightrayscatteringonsmokeparticles.
Whensmokeparticlespenetratethemeasuringchamber,theyreflectthelightemittedbythe
transmittingdiode.Thereflectedlightreachestheopticaldiodeproducingphotocurrent.Theheat
enteringthedetectorevokesthethermistorresistancechange.Informationaboutfirefactors
deliveredbybothsensorsarethoroughlyanalysedbythemicroprocessorthatevaluatesafirehazard
level.
CommunicationbetweenthePOLON4000systemfirealarmcontrolpanelandtheDOT‐4046
detectorsisprovidedthroughatwo‐wireaddressabledetectionline.Aunique,fullydigital
communicationsprotocolenablespassinganyinformationfromthecontrolpaneltothedetector
andinversely,e.g.evaluationofsurroundingconditions(smokiness,temperature),tendencyofits
changeaswellascurrenttemperatureanaloguevalueandsmokinessdensity.
Thedetectoroperationcontrollingmicroprocessormonitorscorrectnessofitsbasiccircuits
operationand,incaseanirregularityisfound,deliversrelevantinformationtothecontrolpanel.
TheDOT‐4046detectorisananaloguedetectorwithdigitalself‐regulationmechanism,i.e.it
maintainsconstantsensitivityduringthemeasurementchambercontaminationprogress.Incasea
settledtechnicalalarmthresholdisexceeded,thedetectorsendsinformationtothepanelofthe
measurementchamberpartialcontaminationinordertoinformserviceteamsofanecessityto
undertakeappropriateactions.
Thedetectorisequippedwithaninternalshortcircuitisolatorthatcutsoffanefficientdetectionline
fromtheneighbouringshortedsectionwhatenablesfurtherundisturbeddetectoroperation.
Analarmmodeisindicatedwithapulseredlightemittedbyanilluminatingdiodeinstalledinthe
detectorcasing.Theindicatorenablesfastlocationoftheactivateddetectorandishelpfulinperiodic
detectorinspections.Incasethedetectorishardlyvisibleorisinstalledinadifficult‐to‐reachspace,
anadditionalopticalalarmindicator(WZ‐31)maybeconnectedinanaccessibleandvisibleplace.
Afaultmode,atechnicalalarmandanactuationofashort‐circuitisolatoraresignalledwithyellow
flashesofthediode.


IK‐E301‐001GB5
6DETECTOROPERATIONMODES
Detectorisfurnishedwithfourbasicoperationmodes(apartfromalarmvariantsinthecontrol
panel)thatenablethebestadjustmentofitscharacteristicstogivenoperationenvironment:
‐‘1’mode ‐ multi‐criteria,equivalenttointeroperationoftwosmokedetectors(DOP)
andtwoheatdetectors(TUP)inA1Rclass;
‐‘2’mode ‐multi‐criteria,equivalenttointeroperationofasmokedetector(DOP)anda
heatdetector(TUP)inBRclass;
‐‘3’mode ‐ independent,equivalenttoindependentoperationoftwodetectors,
providingthesamesuitabilityasDORdetectorandTUPdetectorinA1Rclass.
Thissetupsensurehighfalsealarmresistanceatlowersensitivityasin‘1’
mode.InthismodeaDOR‐4046detectorsubstitutestwodetectorsand
eliminatesanecessitytoinstallDOR‐4046andTUP‐4046detectorsinA1R
classsidebyside;
‐‘4’mode ‐ independent,equivalenttoindependentoperationoftwodetectors,
providingthesamesuitabilityasDORdetectorandTUPdetectorinBRclass.
Thissetupensureshighfalsealarmresistanceatlowersensitivityasin‘2’
mode.InthismodeaDOR‐4046detectorsubstitutestwodetectorsand
eliminatesanecessitytoinstallDOR‐4046andTUP‐4046detectorsinBRclass
sidebyside.
Additionally,thedetectorprovidesapossibilitytoprogramthreemodesintendedforparticular
detectoroperationdiagnostics:
‐‘5’mode ‐inwhichonlyasmokedetector(DOR)operates;
‐‘6’mode ‐inwhichonlyaheatdetector(TUP)inclassA1Roperates;
‐‘7’mode ‐inwhichonlyaheatdetector(TUP)inclassBRoperates.
7OPERATIONANDSERVICINGCONDITIONS
Duringthedetectorsoperationitisobligatorytoavoidcreationofdeworrimeonthedetector
surfaceaswellastoprotectagainstexcessivecontaminationwithdust.
Fortheperiodofrepairworks,thedetectorshouldbetakenoutorprotectedwith
appropriateforthispurposecover.Suchacovercanbeobtainedfromaninstalleror
purchasedfromthemanufacturer.Incasethedetectoristakenout,itsbaseshouldbe
protectedagainstbeingpaintedutilisingapaintingtape.Detectorswhicharedamaged
duringpaintingandrenovationworksduetoafaultofthepersonsexecutingsuchworks
(e.g.painteddetectorcasing,stuck‐with‐paintnet,etc.)arenotsubjecttowarrantyrepairs.
TheDOT‐4046addressablemulti‐sensordetectorshouldbesubjectedtoperiodicalinspection
accordingtoPKN‐CEN/TS54‐14:2006standard,whichisexecutedinordertoconfirmthedetector
properoperationanditsappropriateinteroperationwiththecontrolpanel.Theinspectionshouldbe
carriedoutatleastoncein6months.
Thesmokesensoroperationshouldbetestedusingasmokesimulator(emittingnoheat)and
afterwardstheheatsensorshouldbetestedusingaheatimitator(generatingnosmoke).
TheDOT‐4046detectorlong‐lastingoperationmayresultindustaccumulationinsideitssmoke
sensor.Afterexceedingtheself‐regulationrangeduetothesmokesensorcontaminationprogress,

6IK‐E301‐001GB
thedetectortriggersatechnicalalarmmodesendingexcessivecontaminationinformationtothe
controlpanel.Thepanelsignalsanecessitytocleanthedetectoropticalmodule:thelabyrinthand
lensesofbothdiodes–thetransmittingoneandphotodiode.Servicingactivitiesshouldbetakenup
assoonaspossibletoavoidfalsealarmevoking.


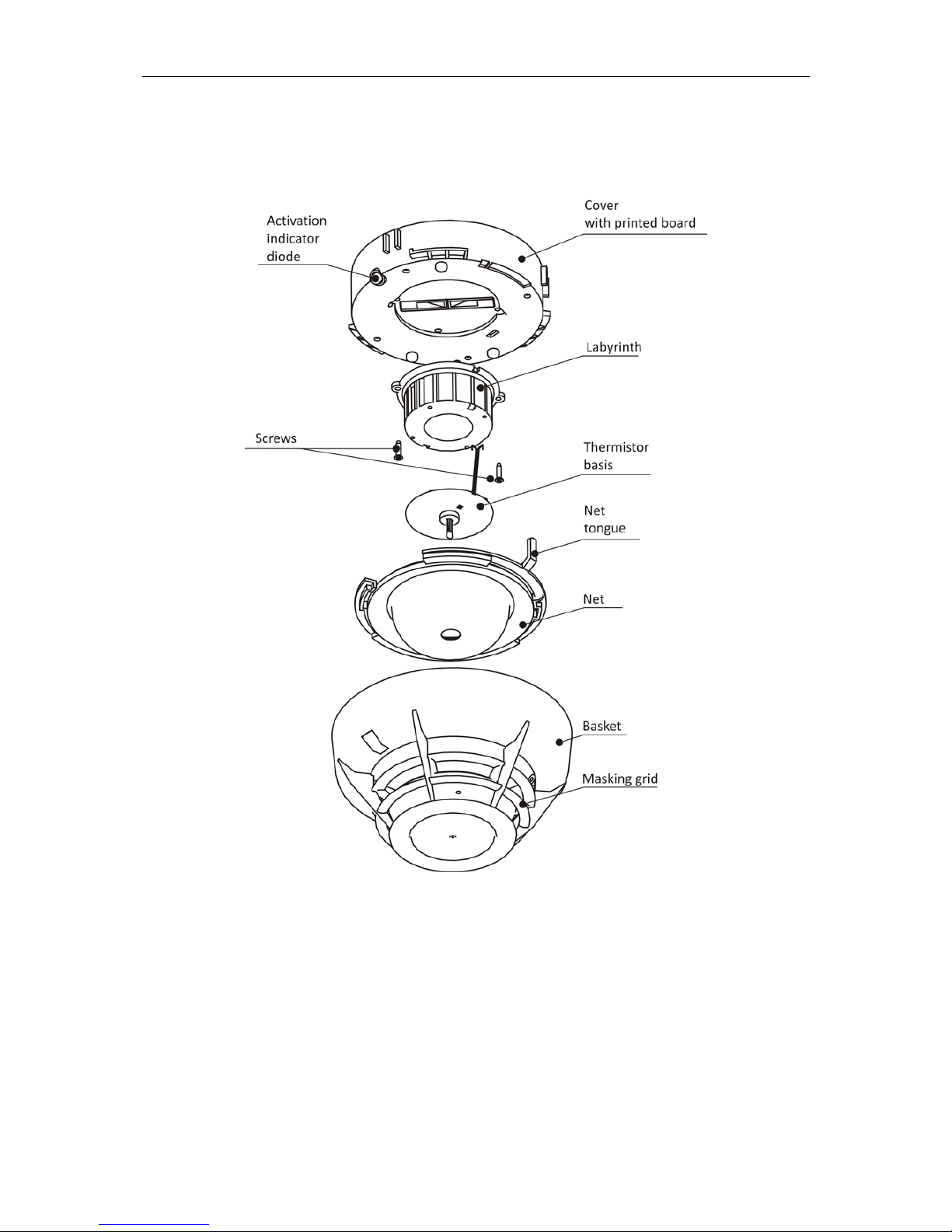

Fig.1Detectorelementsafterdismantling
ThedetectorassemblinganddismantlingisshownonFig.1.Inordertodismantlethedetectoritis
necessaryto:
a) pressingthenetlongtongue,turnthecoverrightinthebasketuntilitistakenout;
b) removeandbendasidethethermistorbasisfromthelabyrinth;
c) unfastentwoscrewsthatfixthelabyrinthandtakethelabyrinthout;
d) performthenecessarycleaning.
Adelicatebrushaswellasvacuumcleanerarerecommendedforcleaningworks.Compressedaircan
bepossiblyused.Itispermittedtowashthelabyrinthwithwarmwaterwithadditionofwashing‐up
liquid.Nodamppatchesshouldremainonthelabyrinthinternalsurfacesafterwashinganddrying.

IK‐E301‐001GB7
Aftercleaningthedetectorshouldbeassembled.Inordertodoit,itisnecessaryto:
a) fastenthelabyrinthwithtwoscrews;
b) locatethermistorbasisplacingthethermistorleadsintothelabyrinthnotches;
c) laydownthebasketinthepositionasshownonthefigure;
d) insertthemaskinggridintothebasketpayingattentiontoitspositioning–alignmentwith
thejuts;
e) insertthenetintothebasketpayingattentiontopositioning–alignmentwiththejuts;
f) insertthecoverintothebasketsothattheactivationindicatordiodeisplacedalittletothe
rightinrelationtotheglass;
g) turnthecovertotheleft.

Note:Incasethecleaningdoesnotproducetherequiredresult,itisnecessarytosendthedetector
tothemanufacturerforrepair.
7DETECTORINSTALLATION
TheDOT‐4046detectorsareinstalled(height,arrangement)accordingtotheguidelinessettledby
theScientificandResearchCentreforFireProtection.Theyaremountedinpremiseswhereasmoke
andatemperaturerisemayoccurwhenafirestartstodevelop.
Thedetectorsareintendedtooperateinloops,inloopswithstraightbranchesorinradialdetection
linesofthePOLON4000systemcontrolpanels(seethePOLON4000systemcontrolpanels
InstallationandMaintenanceManuals).
Thedetectorsareinstalledinthe40modelrangebases.Thedetectionlineconnectionispresented
intheG‐40baseInstallationandMaintenanceManual.Anadditionalopticalalarmsignalofa
detectororagroupofdetectorscanbeobtainedbyconnectingtheWZ‐31alarmindicator.
Alarmsystemcablesareroutedinaccordancewiththeregulationsobligatoryforlowvoltage(below
42V)systems.
Note:Thedetectorsshouldnotbeinstalledincorrosiveatmospherethatcontainscausticgasesand
vapoursaswellasdust.Steamcondensationondetectorsisimpermissible.
8STORAGEANDTRANSPORTATION
8.1Storage
TheDOT‐4046detectorsshouldbekeptinclosedpremisesfreeofcausticgasesandvapoursatthe
temperaturebetween+0°Cand+40°C,andrelativehumiditynotexceeding80%at+35°C.
Inthetimeofstoring,thedetectorsshouldnotbeexposedtoeitherdirectsunlightorheatfrom
heatingequipment.
Thedetectorsstorageperiodintransportationpackingshouldnotexceed12months.

8.2Transportation
TheDOT‐4046detectorsshouldbecarriedinclosedtransportmeansspaces,inpackingthatmeets
therequirementsoftransportationregulationsinforce.Thetemperatureduringtransportation
shouldnotbelowerthan‐40°Candhigherthan+70°C,andrelativehumidityshouldnotbehigher
than95%at+45°Cor80%at+70°C.


8IK‐E301‐001GB



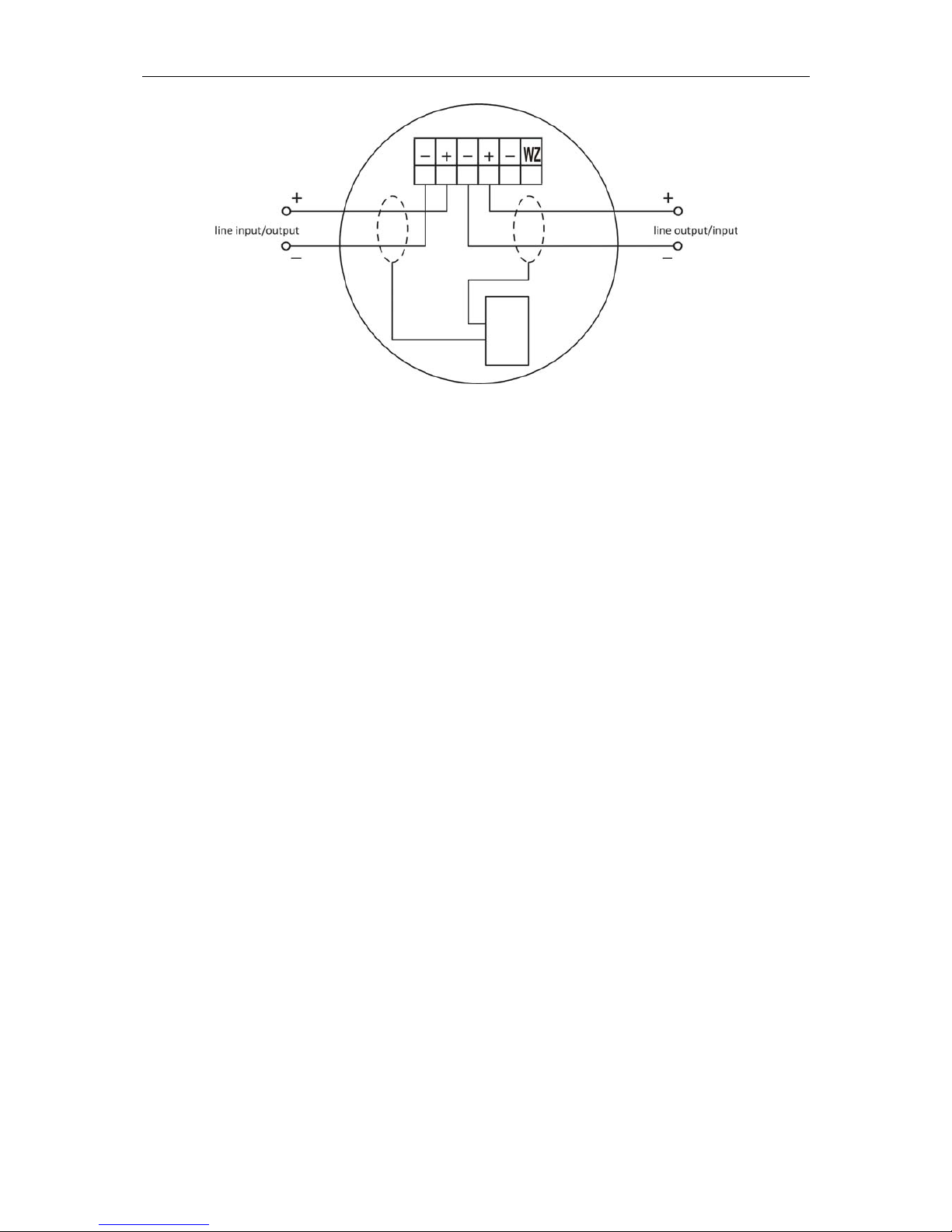

Fig.2ClampsofbaseinteroperatingwithDOT‐4046plug

































IK‐E301‐001GB/05.2011/01.2012
