VESDA LaserPLUS User manual

Vision Fire & Security
LaserPLUS Product
Guide
October 13, 2005
Part:19145

VESDA®LaserPLUS Product Guide
i
Copyright Information
This document is protected by copyright under the laws of Australia and other jurisdictions throughout the world. It must not by any means,
either in whole or part, be reproduced, communicated to the public, adapted, distributed, sold, modified, published except as permitted by
any laws or statute or with prior written consent of VFS International Pty Ltd. Copyright2004 VFS International Pty Ltd ACN 100 259 381
Disclaimer
The manufacturer reserves the right to change designs or specifications without obligation and without further notice. VESDA,
LaserTEKNIC, LaserPLUS, LaserSCANNER, LaserCOMPACT, LaserFOCUS, VESDAnet, VESDAlink, ASPIRE, ASPIRE2, AutoLearn,
VSM, VConfig, InfoWORKS, PROACTIV, PRECISION, VSC, ADPRO, FastTrace, FastVu, FastScan, Axiom, PRO, Amux, Video Central,
Millbank and VxLAN are brands and trade marks used under license by the distributor.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by
one or more of the following measures; re-orientate or relocate the receiving antenna, increase the separation between the equipment and
receiver, connect the equipment to a power outlet which is on a different power circuit to the receiver or consult the dealer or an
experienced radio/television technician for help.
General Warning
This product must only be installed, configured and used strictly in accordance with the General Terms and Conditions and the technical
documentation available from VFS International Pty Ltd (VFS). You acknowledge that you have read and agree to those terms and
conditions. All proper health and safety precautions must be taken during the installation, commissioning and maintenance of the product.
The product should not be connected to a power source until all the components have been installed. Proper safety precautions must be
taken during tests and maintenance of the products when these are still connected to the power source. Failure to do so or tampering with
the electronics inside the products can result in an electric shock causing injury or death and may cause equipment damage. VFS is not
responsible and cannot be held accountable for any liability that may arise due to improper use of the equipment and/or failure to take
proper precautions. Only persons trained through an accredited VFS training course can install, test and maintain the product.
Limitation of Liability
This product must only be installed, configured and used strictly in accordance with the General Terms and Conditions, this manual and the
technical documentation available from VFS International Pty Ltd. You acknowledge that you have read and agree to those terms and
conditions.
You acknowledge that you have been provided with a reasonable opportunity to appraise the product and have made your own
independent assessment of the fitness or suitability for your purpose. You acknowledge that you have not relied on any oral or written
information, representation or advice given by or on behalf of VFS or its representatives.
VFS has no liability to you or any person for incidental or consequential loss, expense or damages including, without limitation, loss of
business, loss of profits or loss of data. You indemnify VFS for any claim, amount or liability brought against VFS in connection with the
product.
You expressly agree that you assume the entire risk as to the results and performance of the product resulting from the configuration of the
product. VFS does not warrant, guarantee or make any representations, either expressly or implied, regarding the current or future use, or
the results of the use, of the product, with respect to its correctness, accuracy, reliability, completeness, interworking, functionality,
currentness or otherwise resulting from the configuration of the product.
To the full extent permitted by law, VFS expressly excludes all conditions, warranties and liability, whether imposed or implied by statute or
by rule of law or otherwise, which are not expressly set out in the General Terms and Conditions.
To the extent permitted by law, your sole recourse for any defect of, damage to, or performance standard of the product will be under the
express warranties the General Terms and Conditions (if applicable) and VFS will in no event be liable to pay any amount or damages
resulting from or in connection with the product.
To the extent by law that any limitation or exclusion can not apply, the total liability of VFS in relation to the product is limited to:
(i) in the case of services, the cost of having the services supplied again; or
(ii) in the case of goods, the lowest cost of replacing the goods, acquiring equivalent goods or having the goods repaired.
To the extent permitted by law, VFS has no liability with respect to damage to or arising out of, or the condition or performance of, the
product resulting from (i) negligence or improper use, storage, installation, configuration commission, service maintenance or handling of
the product (where 'improper' includes treatment other than in accordance with the product manual, these terms and conditions or the
information provided at a training session); (ii) accident, unforeseeable circumstances or disaster; (iii) modifications to the product other
than in accordance with VFS's instructions; (iv) attachment of or interoperation with features, software or products not approved by VFS in
writing; or (v) where the product has been serviced by persons not authorized by VFS in writing to service the product.
Product Warranty Conditions
VFS International Pty Ltd (VFS) warrants that new products (excluding consumable items) will conform to its published specifications and
remain in good working order during the warranty period of 24 (twenty four) months from the date an invoice is issued by VFS to its
distributor.
VFS also warrants that products serviced or repaired by its service department will remain in good working order for a warranty period of
12 (twelve) months from the date of service. This service or repair warranty is only available on products less than 7 (seven) years old and
only covers those component parts of the products serviced, repaired or replaced.
Should product under warranty not be in good working order, VFS will, at its option, either repair or replace the product or its component
parts at no additional charge.
Spare parts and replacement product, covered under this warranty, will be furnished on an exchange basis and will, at the option of VFS
either be new, equivalent to new or reconditioned. Returned parts and products to VFS become the property of VFS.
This warranty does not cover the repair or damage to the product resulting from or arising out of (i) negligence or improper use storage,
installation, configuration, commission, service, maintenance or handling of the product (where 'improper' includes treatment other than in
accordance with any manual or instructions for use of the product); (ii) accident, unforeseeable circumstances or disaster; (iii)
modifications to the product other than in accordance with VFS's instructions; (iv) attachment of features or interoperation with features,
software or products not approved by VFS in writing; or (v) where the product has been serviced by persons not authorized by VFS in
writing to service the product.

LaserPLUS Product Guide VESDA®
ii
Document Conventions
The following typographic conventions are used in this document.
The following icons are used in this document
Contact Us
www.vesda.com www.adpro.com.au www.millbank.co.uk
Standards
We strongly recommend that this document is read in conjunction with the appropriate local codes and standards for smoke detection and
electrical connections. This document contains generic product information and some sections may not comply with all local codes and
standards. In these cases, the local codes and standards must take precedence. The information below was correct at time of printing but
may now be out of date, check with your local codes, standards and listings for the current restrictions.
FDA
This VESDA product incorporates a laser device and is classified as a Class 1 laser product that complies with FDA regulations 21 CFR
1040.10. The laser is housed in a sealed detector chamber and contains no serviceable parts. The laser emits invisible light and can be
hazardous if viewed with the naked eye. Under no circumstances should the detector chamber be opened.
FM
3611 Hazardous Approval Warning: Exposure to some chemicals may degrade the sealing of relays used on the detector. Relays used on
the detector are marked “TX2-5V”, “G6S-2-5V” or “EC2-5NU”.
VESDA detectors must not be connected or disconnected to a PC while the equipment is powered in an FM Division 2 hazardous
(classified) location (defined by FM 3611).
Convention Description
Bold Used to denote: emphasis
Used for names of menus, menu options, toolbar buttons
Italics Used to denote: references to other parts of this document or
other documents. Used for the result of an action
Convention Description
Caution: This icon is used to indicate that there is a danger to
equipment. The danger could be loss of data, physical damage,
or permanent corruption of configuration details.
Warning: This icon is used to indicate that there is a danger of
electric shock. This may lead to death or permanent injury.
Warning: This icon is used to indicate that there is a danger of
inhaling dangerous substances. This may lead to death or
permanent injury.
Australia and Asia The Americas Europe & Middle East
Vision Systems
Private Bag 215
495 Blackburn Road
Mount Waverley VIC 3149
Australia
Toll free: 1800 700 203
Tel: [phone]
Fax: [phone]
Vision Systems
700 Longwater Drive
Norwell,
Massachusetts, 02061
USA
Toll free: 800 229 4434
Tel: [phone]
Fax: [phone]
Vision Systems
Vision House, Focus 31,
Mark Road
Hemel Hempstead
Hertfordshire HP2 7BW
United Kingdom
Tel: [phone]
Fax: [phone]

VESDA®LaserPLUS Product Guide
iii
Codes and Standards Information for Air Sampling Smoke Detection
ONORM F3014
ONORM F3014, transport times for all tubes (including capillaries) must not exceed 60 seconds from any hole. This means that the pre-
designed pipe networks that include capillaries cannot be used.
AS1603.8
The performance of this product is dependent upon the configuration of the pipe network. Any extensions or modifications to the pipe
network may cause the product to stop working correctly. You must check that ASPIRE2 approves alterations before making any changes.
ASPIRE2 is available from your VESDA ASD distributor.
AS1603.13
AS1603.13: VESDA detectors are not compliant with the pressure testing in this standard.
FM Approved Applications
The product must be powered from VPS-100US-120, VPS-100US-220 or VPS-220 only.
European Installations
The product must use a power supply conforming to EN54: Part 4.
Document: 10278_03
The product complies with the following standards.
AS1603.8-1996
GEI 1-048:Jan 1997
FM3230-3250 FM3820
21 CFR 1010.221 CFR 1010.3
AS2211 EN60950 AS/NZS3548 FCC Class B
EN 50081-1 EN 50130-4
UL 268 UL268A
UL and FM Compliancy
All installers must ensure that environments that require UL approved product must have the requirements of a remote display or FACP
connected to the detectors. Failure to do so will void product compliance for UL and FM certification that is stated on the detector approval
and rating label.
Approval Certification:
Vision Fire & Security have had this product tested and approved by UL and FM. This product is fully listed and compliant as long as the
exception in UL268 is adhered to. Please see section 17.5 of UL268, 2003 Edition.
“17.5 A lamp or equivalent means shall be provided on a spot-type detector head or base to identify it as the unit from which the alarm was
initiated”.
Exception: The alarm-indicating-means is not required on a detector whose use is restricted to a specific control unit that identifies
the individual detector in alarm.
As long as these models are connected to a remote display or to a Fire Alarm Control Panel (FACP) that identifies if the detector is in alarm
then it is a compliant product.

LaserPLUS Product Guide VESDA®
iv

VESDA®LaserPLUS Product Guide
v
Contents
Scope ................................................................................................................................................1
Introduction to the LaserPLUS ......................................................................................................1
LaserPLUS Features ...............................................................................................................1
Operation of the LaserPLUS ..........................................................................................................1
LaserPLUS Configurations ......................................................................................................3

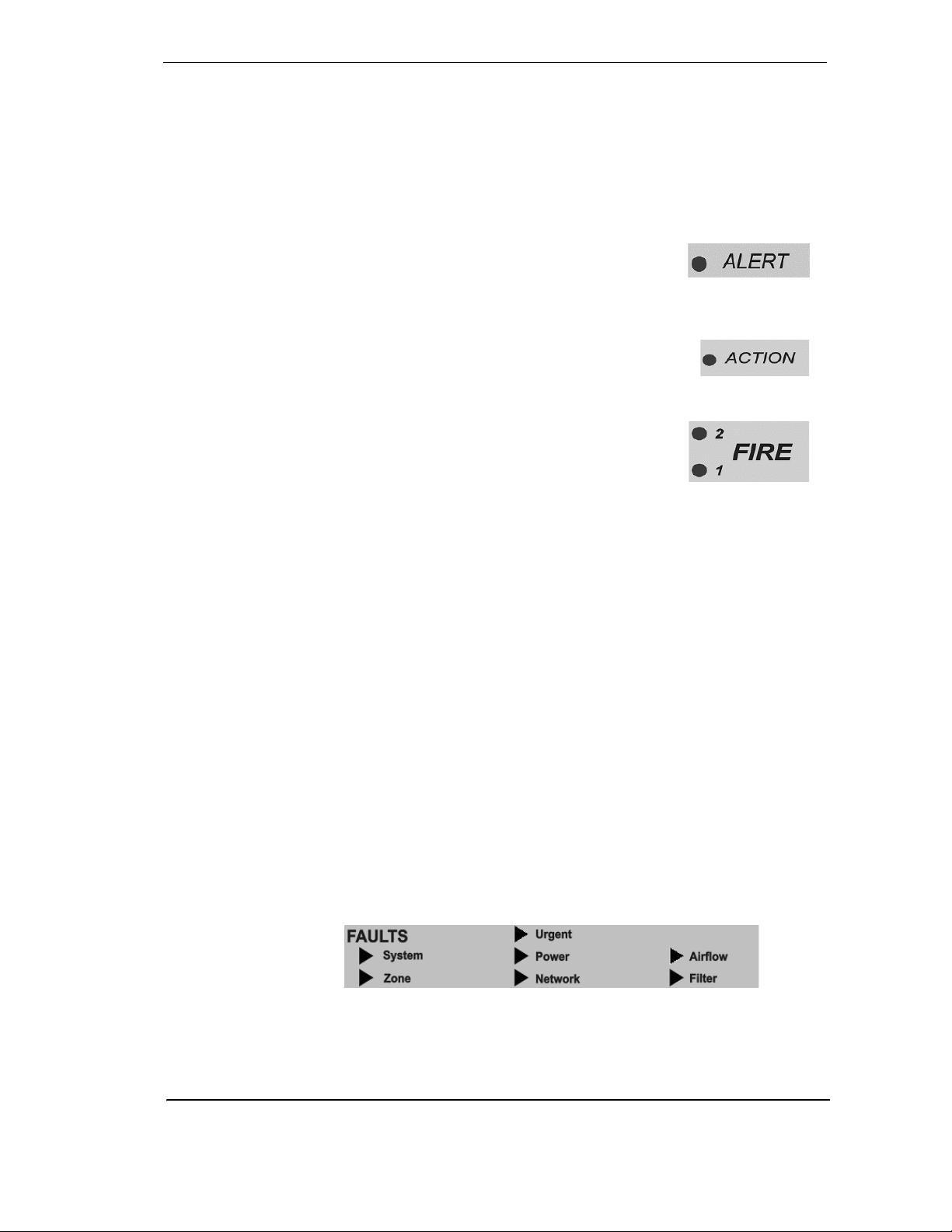

Display module ...................................................................................................................4
VESDA LCD Programmer ...................................................................................................6

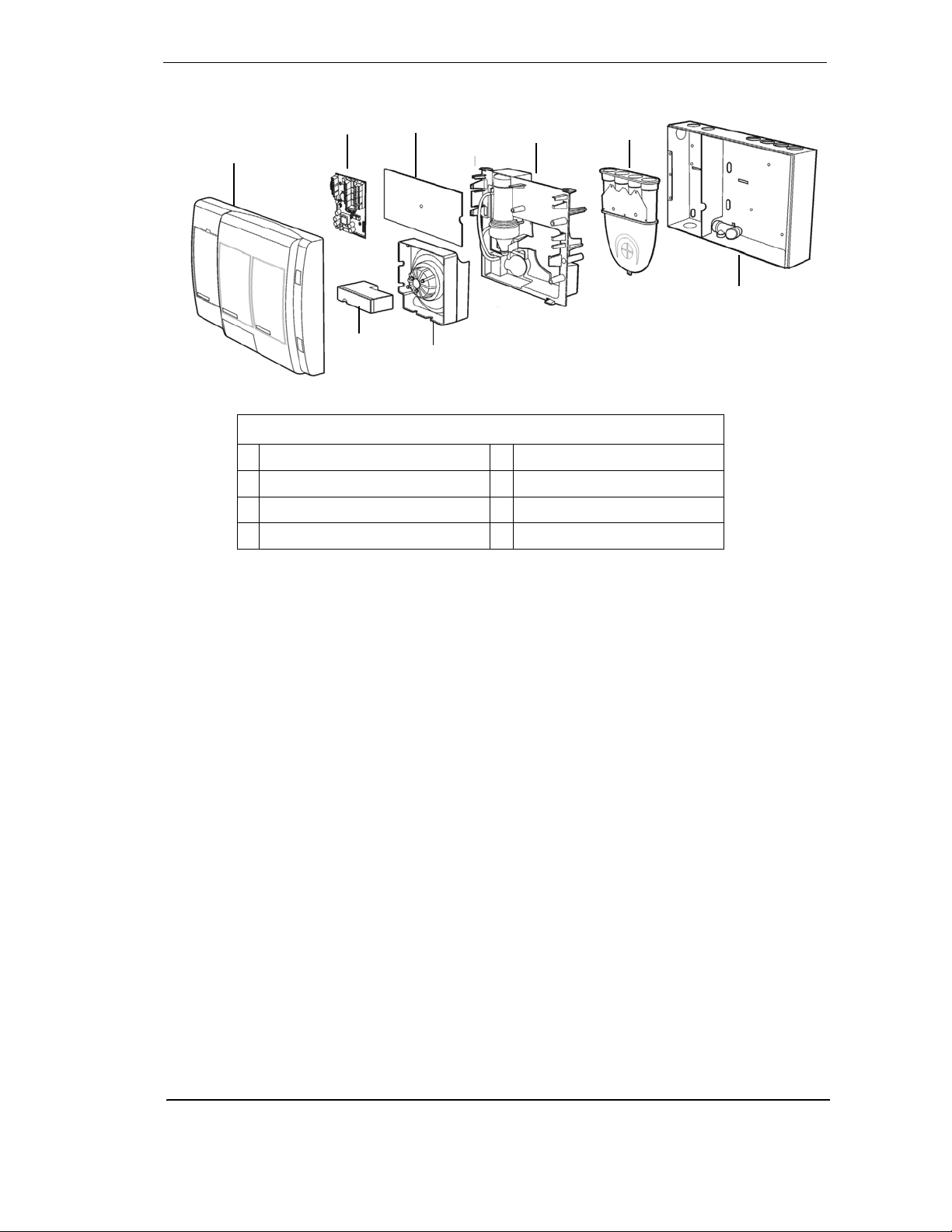

LaserPLUS Components ........................................................................................................7
LaserPLUS Product Information ....................................................................................................8
Product Specifications .............................................................................................................8

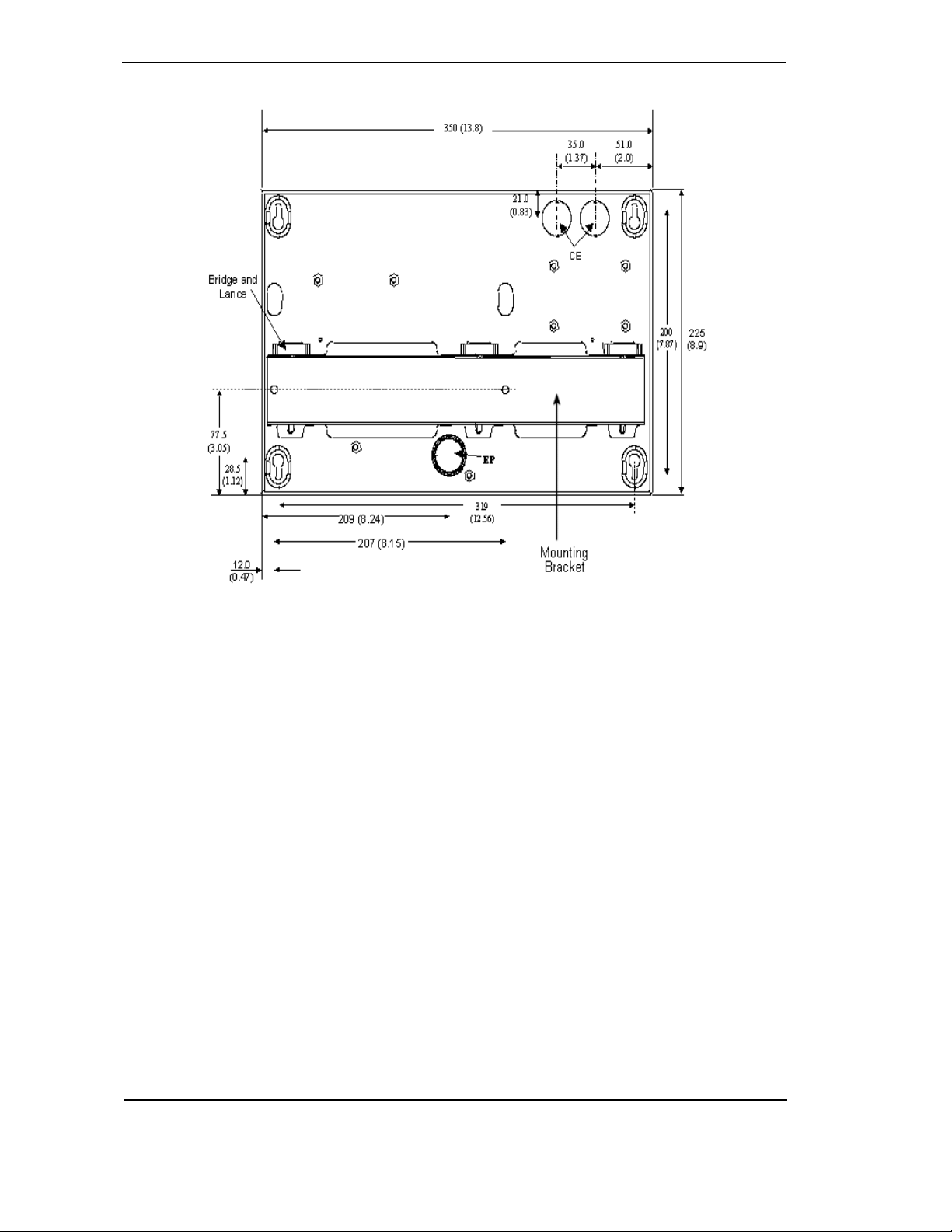

LaserPLUS Dimensions ........................................................................................................10
LaserPLUS Ratings and Approvals .......................................................................................11
Default Settings .....................................................................................................................12
Relays ...................................................................................................................................13
LaserPLUS relay Assignments and Conditions to Change States ....................................14
Relays default settings ......................................................................................................14
General Purpose Input (GPI) Functions ............................................................................15
Mounting the LaserPLUS ..............................................................................................................16
Securing the mounting bracket .............................................................................................16
Mounting the LaserPLUS in Normal Orientation ...............................................................17
Mounting the LaserPLUS in the Inverted Orientation .......................................................17
Mounting the LaserPLUS without a mounting bracket ......................................................17
Recess mounting kit ..........................................................................................................18
These kits are used to house a detector inside a wall cavity. ...........................................18
Connecting the LaserPLUS to the Pipe Network .......................................................................19
Inlet Pipes .............................................................................................................................19
Managing the Exhaust Air .....................................................................................................20
LaserPLUS Wiring Connections ..................................................................................................20
The Termination Card ...........................................................................................................20
VESDAnet Terminals ........................................................................................................20
Connections for GPI ..........................................................................................................21
Typical Wiring To Fire Panel (FACP) ................................................................................22
Wiring To an Address Loop Module. .................................................................................22
Power Source ................................................................................................................................23
Back Up Battery .............................................................................................................................23
Powering Up ..................................................................................................................................25
Installation Checklist .............................................................................................................26
Preliminary Systems Check .........................................................................................................27
Maintaining the LaserPLUS detector ...........................................................................................27
Replacing the chassis/Air Inlet Pipe Manifold .......................................................................28
Internal Wiring for LaserPLUS ..............................................................................................30

VESDA®LaserPLUS Product Guide
vi
Spare Parts ........................................................................................................................... 32

VESDA®LaserPLUS Product Guide
1
1.1 Scope
The LaserPLUS Product Guide is written to provide you with comprehensive knowledge of the
detector.
This guide introduces you to the LaserPLUS features, technical specifications and gives an
understanding of its components and their function. You will also find instructions on installing,
cabling and powering up the detector.
This guide is for anyone involved with the design, maintenance and purchasing of a VESDA
system. It is assumed that anyone using this manual has knowledge and the appropriate
certification from the local fire and electrical authorities.
1.2 Introduction to the LaserPLUS
The LaserPLUS is an aspirating smoke detector providing very early warning of fire conditions by
drawing air samples through an air sampling pipe network. The detector chamber can detect
presence of smoke at very low concentrations. The embedded and PC software complimenting
the LaserPLUS provides a wide range of user defined parameters and reporting capabilities. The
detector easily interfaces with fire warning and fire suppression release systems, and can be
easily integrated into a building management system.
LaserPLUS Features
The LaserPLUS features make it a versatile smoke detection product:
• Each detector can cover an area up to 2,000 m2(20,000 sq. ft.)
• Wide sensitivity range
• Four programmable alarm thresholds
• AutoLearn feature
• Four pipe Inlets
• Individual pipe flow monitoring
• Replaceable air filter cartridge
• Option for inverted mounting
• Recessed mounting option
• Modular to meet site specific requirements
• Modular Display Module and LCD Programmer
• Seven programmable relays
• High efficiency aspirator
• Programmable general purpose Input
• PC capable programming and monitoring
• Multilingual displays
• Event log for up to 18,000 events
1.3 Operation of the LaserPLUS
An air sampling pipe network collects air samples from a protected area. The VESDA integrated
aspirator draws air into the sampling pipes through a pipe inlet manifold (up to four pipes can be
connected to a LaserPLUS detector). For further information on air sampling pipe networks
please see the Pipe Network Design and Installation Manuals.
Some of this air flows to the dual stage filter. The first stage air filter removes dust and dirt from
the sampled air and flows to the laser detector chamber to detect the presence of smoke.

LaserPLUS Product Guide VESDA®
2
Any smoke detected in the laser detection chamber is signaled to the main processor card. If the
presence of detected smoke is higher than the set thresholds it is reported as an alert, action, fire
1 or fire 2 alarm depending upon the alarm thresholds. The second stage filter further filters the
air to produce ultra clean air. The ultra clean air is used to clean the optical surfaces in the laser
detection chamber.
Figure 1 - Operation and internal air flow of a LaserPLUS
A
B
C
D
E
F
Legend
A Air inlets from pipe networks
B Air is drawn into the aspirator
C Some air is filtered and:
D flows into the chamber for testing
E is filtered a second time, then used to flush the chamber with
ultra clean air
F All air is then vented

VESDA®LaserPLUS Product Guide
3
LaserPLUS Configurations
The modular options available with a LaserPLUS are:
• Fire and OK LEDs (FOK)
•LCDProgrammer
• LaserPLUS Display Module
Figure 2 - VLP-012 VESDA LaserPLUS installed with LCD Programmer and
Display Module

LaserPLUS Product Guide VESDA®
4
Display module
The LaserPLUS Display Module is mounted either on the detector front cover or at a remote
location in a remote mounting box or a 19” subrack. It provides a visual representation of the
smoke levels and the four alarm stages for the assigned detector. An array of fault LEDs
illuminate in different configurations to report Urgent, Minor, Zone and System faults. Up to 20
Display Modules can be assigned to one detector, however the Display Module can be
configured to report the status of only one detector at a time.
Figure 3 - Display Module for LaserPLUS
Legend
A Alarm Threshold Indicators
B Bar graph of detected smoke
C Numerical Display
D Alarm LEDs
E Fault LEDs
F Push Button Keys
A
B C
D
E
F

VESDA®LaserPLUS Product Guide
5
OK LED
The OK LED stays illuminated during normal operation indicating the unit is
functioning normally. When this LED is off a warning beep sounds, indicating a
Fault condition is active.
Isolate LED
This LED is illuminated when the detector is Isolated and relays are de-
activated disabling alarm outputs of the detector. The display can be
programmed to beep every 60 seconds.
Alarm Levels
ALERT: When illuminated this LED indicates that the
smoke level is above the alert threshold. This means
the detector has identified very early stages of a fire
condition and/or that the smoke level in the area is
above normal.
ACTION: When illuminated this LED indicates that the
detected smoke level has passed the threshold value
fixed for Action, but is not intended to initiate a general
fire alarm response procedure.
FIRE 1: When illuminated this LED indicates that the
detected smoke level is above the threshold value set
to initiate a general fire alarm response procedure.
This indicates a fire may be imminent or is in
progress. When interfaced with a Fire Alarm Control
Panel (FACP) it can generate an automatic fire alarm.
FIRE 2: When illuminated this LED indicates a fire is in progress. The detector
can be interfaced with an FACP to activate automatic suppression systems
and evacuation procedures.
Bar graph The Bar graph is a 20 step indicator where each indicator represents an
increase in the detected level of smoke, relative to the preset fire alarm level.
Threshold
Indicators
The illuminated LEDs represent visual settings for ALERT, ACTION, and FIRE
1 alarm levels. The FIRE 1 indicator is always at the top.
Fault LEDs
The Fault LEDs illuminate to indicate:
URGENT: A serious fault requiring immediate attention
SYSTEM: A fault affecting the network to which the Display Module is
connected
ZONE: A fault in the VESDA Zone monitored by the Display Module
POWER: A fault in the power supply if the GPI function is used
NETWORK: A communications fault on VESDAnet
AIRFLOW: Higher or lower than acceptable levels of air flow through the inlet
pipe(s)
FILTER: The air filter requires changing
Figure 4 - IllumInated lights showing faults

LaserPLUS Product Guide VESDA®
6
VESDA LCD Programmer
The VESDA LCD Programmer is used for configuring, commissioning and maintenance of the
devices on VESDAnet. It can replace either the center or the right plate of the front cover of the
detector, or can be mounted at a remote location. A hand-held model is also available. The hand-
held model is connected to the VESDAnet socket on the termination card of the detector. For a
detailed description and use of the LCD Programmer please refer to the VESDA LCD
Programmer Manual.
Figure 5 - LCD Programmer module
Push Button
Keys
These buttons enable various systems functions. These do not allow
configuring the system. The buttons can be disabled by the systems
administrator.
Mode/Test (Dual Function): Selects modes on the numerical display -
sensitivity, smoke level, or zone number. When depressed for more than two
seconds it performs a light test function.
Silence: This button silences any alarm or fault warnings. The LEDs stop
flashing to acknowledge a fault or alarm condition.
Reset: Resets any latched alarms and faults on the detector. Any active
alarms or faults are reported again after the time delays have elapsed.
Isolate: Isolates the detector from any external devices or systems (an isolate
alarm will normally be raised at the Fire Alarm Control Panel).
Note: It is normal practise to signal the Isolate condition to the Fire Control
Panel using the Isolate relay.
Numerical
Display
Sensitivity: Shows the level of smoke that must be measured to illuminate the
entire bar graph and always corresponds with the Fire 1 alarm level.
Smoke Level: Indicates the current level of smoke in the relevant VESDA
Zone and is represented as % obs/m or % obs/ft.
Zone Number: This is the VESDA Zone number assigned to the Display
Module.
Note: The Mode button is used to select the parameter to display in the
numeric display. These values represent the current readings for the corre-
sponding parameters mentioned alongside the lit LED.
Legend
A Display
B Keys

VESDA®LaserPLUS Product Guide
7
LaserPLUS Components
Figure 6 - An exploded view of the detector
A
BCDE
F
G
H
Legend
A Front cover E Pipe inlet manifold
B Termination card F Air filter
C Blank card protecting processor card G Aspirator
D Chassis with laser detector chamber H Mounting box/enclosure

LaserPLUS Product Guide VESDA®
8
1.4 LaserPLUS Product Information
Product Specifications
Supply Voltage 18 to 30 VDC
Power Consumption @24 VDC
• LaserPLUS with Blank
Plates 3,000rpm
Normal: 5.8 W
Alarm On: 6.24 W
• LaserPLUS with Blank
Plates @ 4,200rpm
Normal: 6.72 W
Alarm On: 7.2 W
• Programmer Module Normal: 1.08 W (Backlight Off)
Alarm On: 1.44 W (Backlight On)
• Display Module Normal: 1.6 W
Alarm On: 1.6 W
Dimensions (WHD) 350 mm x 225 mm x 125 mm (13.8 in x 8.9 in x 4.9 in)
Weight 4.0 kg (9 lbs) including Display and Programmer Modules
Operating Temperature
(To operate the LaserPLUS
detector outside these
parameters please contact
your nearest VESDA
Technical Office)
Detector Ambient:
UL tested: 0° to 39°C (32° F to 103°F)
Sampled Air: -20° to 60°C (-4° to 140°F)
Humidity: 10-95% RH, non-condensing
Storage Temperatures
(Non-operational)
Up to 2 years (battery life)
Dry (<95% humidity)
0° to 85°C
Must not exposed to sunlight or other radiation sources
Sampling Pipe Network Maximum length per pipe 100 m (328 ft)
Aggregate pipe length: 200 m (650 ft)
Pipe Modelling Design Tool: ASPIRE2™
Pipe Size Internal Diameter: 15-21 mm (0.874 inch)
External Diameter: 25 mm (1.05 inch)
(25 mm to 1.050 inch adaptor supplied for USA market)
Relays 7 relays. Contacts rated 2A @ 30 VDC.
Programmable to latch or non-latch states
Programmable 0 - 60 seconds time delay for each relay
Relays Default Configuration 7 relays:
Alert, Action, Fire 1, Fire 2, Minor Fault, Urgent Fault and Isolate.
(7 x NO/NC contacts)

VESDA®LaserPLUS Product Guide
9
Table 1 - LaserPLUS Detectors Specifications
Note: For operating the LaserPLUS Detector outside the parameters mentioned above
please contact VESDA Technical Support
Note: UL Mode: Factory Default = ON (Fire 2 set to 12% obs/m 4% obs/ft. to comply with
UL268)
Note: Factory Default = OFF (Fire 2 Threshold can be set up to 20% obs/m 6.25%/ft).
IP Rating IP30
Cable Access 8 x 25 mm (1in) knockouts in various positions
Cable Termination Screw terminal blocks (0.2-2.5 sq mm, 30-12 AWG)
Alarm Range 0.005 to 20.00% obs/m
(0.0015 to 6.25% obs/ft.)
Threshold Setting Range Alert: 0.005 - 1.990% obs/m
(0.0015 - 0.6218% obs/ft.)
Action: 0.010 - 1.995% obs/m
(0.0031 - 0.6234% obs/ft.)
Fire 1: 0.015 - 2% obs/m
(0.0046 - 0.625% obs/ft.)
Fire 2: 0.020 - 20% obs/m
(0.0062 - 6.25% obs/ft.)**
** Limited to 12% obs/m 4% obs/ft. in UL mode
All shipments are factory configured for UL Mode. If the UL Mode is
switched OFF the UL listing will be voided.
Key Software Features
• Event log: Up to 18,000 events stored on FIFO basis
• AutoLearn: Minimum 15 minutes
Maximum 15 days, 23 hrs, 59 minutes
Recommended minimum period 14 days
During AutoLearn, thresholds are NOT changed from pre-set values
• Referencing: Compensation for external ambient conditions
• Four Alarm Levels: Alert, Action, Fire 1 and Fire 2
• Two Fault Warning Levels: Minor Fault and Urgent fault
• Maintenance Aids: Filter and flow monitoring
Event reporting via VESDAnet or event log

LaserPLUS Product Guide VESDA®
10
LaserPLUS Dimensions
Figure 7 - LaserPLUS dimensions - rear view

VESDA®LaserPLUS Product Guide
11
Figure 8 - LaserPLUS dimensions
LaserPLUS Ratings and Approvals
Figure 9 - Example of an approvals label

LaserPLUS Product Guide VESDA®
12
Default Settings
Parameter Default Value
Range Access
Level
Minimum Maximum
Event Log - Events
• Smoke Level Enabled N/A N/A Adm
• Alarms Enabled N/A N/A Adm
• Faults Enabled N/A N/A Adm
• User Action Enabled N/A N/A Adm
Fire 2 Threshold 2% obs/m 0.625%
obs/ft.
0.02% obs/m
0.0062% obs/ft.
20.% obs/m
6.25% obs/ft.
Adm
Fire 1 Threshold 0.2% obs/m
0.0625% obs/ft.
0.015% obs/m
0.0046% obs/ft.
2% obs/m
0.6250% obs/ft.
Adm
Action Threshold 0.14% obs/m
0.044% obs/ft.
0.010% obs/m
0.0031 obs/ft.
1.995% obs/m
(0.6234% obs/ft.
Adm
Alert Threshold 0.08% obs/m
0.025% obs/ft.
0.005% obs/m
0.0015% obs/ft.
1.990% obs/m
0.6218% obs/ft.
Adm
Alarm Delays…Fire 2 10 seconds 0 seconds 60 seconds Adm
Alarm Delays…Fire 1 10 seconds 0 seconds 60 seconds Adm
Alarm Delays…Action 10 seconds 0 seconds 60 seconds Adm
Alarm Delays…Alert 10 seconds 0 seconds 60 seconds Adm
Delay Times Simultaneous Simultaneous Cumulative Adm
Instant Fire Disabled Enabled Disabled Adm
Change-over Times:
•Day
• Night
07:00:00
19:00:00
Two seconds 11:59:58 Adm
Weekend Saturday & Sunday Adjust to suit
environment
Adjust to suit
environment
Adm
Holidays:
• First Day
•LastDay
1-Jan-90
1-Jan-90
Adjust to suit
environment
Adjust to suit
environment
Adm
Smoke Change:
•ChangeBy
• Min. Interval
0.02% obs/m
0.0062% obs/ft.
2 seconds
0.005% obs/m
0.0015% obs/ft.
2 seconds
0.2% obs/m
0.0625% obs/ft.
10 seconds
Adm
Dst
AutoLearn 14 days
0 Hours
0 Minutes
0 Days
0 Hours
15 minutes
15 days
23 Hours
59 Minutes
Adm
Adm
Adm
