Fountain Fogger Kit
ITEM #DFF
PACKAGE CONTENTS
WARNINGS AND CAUTIONS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WARNING
•WARNING: Risk of electic shock. When used outdoors, install only to a covered Class A GFCI
protected receptacle that is weatherproof with the power unit connected to the receptacle. If one is not
provided, contact a qualified electrician for proper installation. Ensure that the power unit and cord do
not interfere with completely closing the receptacle cover.
•WARNING: Risk of fire. Installation involves special wiring methods to run wiring through a building
structure. Consult a qualified electrician.
•WARNING: Risk of electric shock. Mount the unit at a height greater than 1 foot from the ground
surfaces.
•Read and follow all safety instructions that are on the product or provided with the product.
•Do not use an extension cord..
•Do not exceed the voltage shown on the transformer.
•Do not submerge the transformer.
•To reduce the risk of fire or injury, keep lamp away from materials that may burn.
•Always disconnect the fogger from the power source before beginning any maintenance or work.
•Inspect cord for damage before installation and/or maintenance. Replace the entire fogger/transformer
assembly if damage is found.

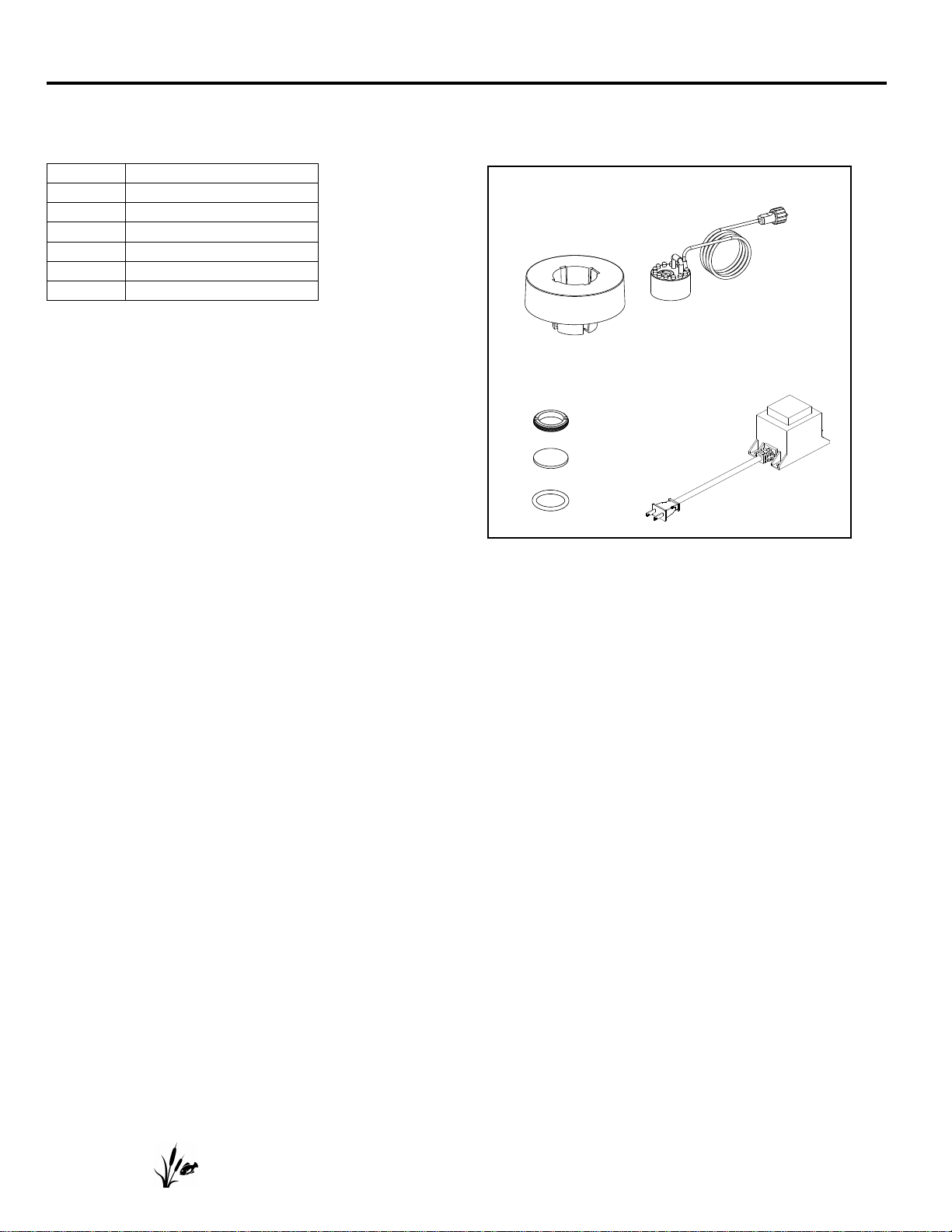

Part Description Quantity
A Fogger 1
B Transformer 1
C Float 1
D Replacement ceramic disc 1
E Tool 1
REMINDER
CALL 1-888-755-6750
BEFORE RETURNING TO STORE.
Questions, problems, missing parts?
Before returning
to your retailer, call our customer service department at
1-888-755-6750, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail]. Or visit our
website www.thepondboss.net.
C
A
B
E
D

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
CAUTION
•Use a proper power source as indicated on the transformer label.
•Keep the cord away from high temperatures or other heat sources.
•Do not lift the transformer by its power cord.
•This light assembly is not intended for use in swimming pools or hot tubs.
•Installation work and electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction.
•Installation should be done in accordance with the National Electric Code, ANSI/NFPA 70.
SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for
power units.
PREPARATION
Before beginning assembly or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
•Estimated Assembly Time: 5 minutes
•No tools required for assembly.
ASSEMBLY INSTRUCTIONS
1. Insert the fogger cord through the hole in the float. Fig. 1
Fig. 1
2. Place the fogger inside the float with the LED’s facing up.
Fig. 2
NOTE: The fogger must be placed in the float for optimum
operation. Placing the fogger at any other water
depth will result in poor operation.
Fig. 2

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
3. Connect the fogger to the transformer by pushing the plug
into the transformer socket until it is firmly seated. Hand
tighten the nut from the plug to the socket. Fig. 3
Fig. 3
4. Place the fogger into the fountain and plug the transformer
into a properly grounded electrical outlet. Fig. 4
Fig. 4
REPLACING THE CERAMIC DISC
1. Disconnect the transformer from the outlet. Fig. 5
Fig. 5
2. Unscrew the retaining ring using the supplied tool. Fig. 6
Fig. 6
Transformer
Plug from
fogger
GFCI

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
3. Remove the old ceramic disc and replace with a new one.
Fig. 7
Fig. 7
4. Install the retaining ring with the supplied tool. Fig. 8
Fig. 8
5. Place the fogger into the fountain and plug the transformer
into a properly grounded electrical outlet. Fig. 9
Fig. 9
TROUBLESHOOTING
•If fogger fails to work, check that the fogger is getting power by testing another appliance in the same
power outlet.
•The fogger must be placed in the float for optimum operation. Placing the fogger at any other water
depth will result in poor operation.
•The sensor on the fogger must be submerged for the fogger to activate. See Figure 2.
CARE AND M
AINTENANCE
•Periodically, your fogger may require cleaning for optimal performance.
•Cleaning should only be done with warm soapy water. Be sure to use biodegradable soap.
•The frequency of cleaning depends upon the conditions of the environment where the fogger is used.
•The ceramic disc may require replacing if fogger is not performing optimally. Consult the “Replacing
the Ceramic Disc” section of the instruction sheet.
GFCI
Retaining ring
Ceramic disk
O-
ring

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-755-6750, 8 a.m.-6 p.m., EST, Monday-
Friday, or email us at [e-mail].
Printed in China
Part Description
A Fogger
B Transformer
C Float
D Ceramic disc
F Retaining ring
G O-ring
B
F
D
G
A
C

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
LIMITED WARRANTY
All pumps and electrical products are warranted to the user against defective material and workmanship, under
normal working conditions. This warranty period begins on the date of purchase by the original purchaser.
Unless otherwise specified all pond boss® electrical products are warranted to the user against defective
material and workmanship, under normal working conditions for 1 year from the date of purchase.
•Pond and Waterfall pumps are warranted for 3 years.
•All pond boss® liners are warranted to the user against defective workmanship, under normal working
conditions for 20 years from the date of purchase.
•All other pond boss® products are warranted to the user against defective material and workmanship,
under normal working conditions for 90 days.
Application
Warranty covers only properly installed and maintained units. Any damage to the cord or modification to the unit
will invalidate the warranty. Pump warranty is limited to applications pumping fresh water in a pond or fountain
only. Other liquid applications or extreme temperature uses must be approved in writing by the manufacturer.
Receipt and product date code are required for warranty claims.
Warranty Claim
Warranty claims must be made by calling customer service (at 1-888-755-6750). If the item is determined
to be defective, you will be given authorization to return the defective part(s), freight pre-paid, along with proof of
purchase.
Disposition
The manufacturer will make a good faith effort for prompt disposition regarding all warranty claims. Returned
product will be inspected to determine cause of failure before warranty is applied. Warranty does not cover any
costs associated with the shipping, handling, installation or removal of products or parts subject to this warranty.
For products damaged in transit, a claim should be filed with the carrier.
Disclaimer
Any oral statements made about the product by the seller, the manufacturer, the representatives, or any other
parties do not constitute warranties, should not be relied upon by the user, and are not part of the contract for
sale. The seller’s and manufacturer’s only obligation, and buyer’s only remedy shall be for the manufacturer to
either replace and/or repair at the manufacturer’s sole discretion, the product as described above. Neither seller
nor the manufacturer shall be liable for injury, loss or damages for lost profits, lost sales, injury to person or
property, or any other incidental or consequential loss arising from any cause whatsoever, no matter whether
based upon warranty, contract, negligence or other misuse, and the buyer and user agree that no other remedy
shall be available to them. Before using, the buyer and user shall determine the suitability of the product for the
intended use, and assume all risk and liability whatsoever in connection therewith. The warranty and remedy
described in this limited warranty is an exclusive warranty and remedy in lieu of any other warranty or remedy
expressed or implied. All other warranties and remedies are hereby expressly excluded, including but not
limited to any implied warranty of merchantability of fitness for any particular purpose. This warranty gives the
buyer and user specific legal rights, and buyer and user may also have other rights which vary from state to
state. Some states do not allow exclusions or limitations of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
REMINDER
CALL 1-888-755-6750
