Ponpe 8908 User manual

Model:8908
INSTRUCTION MANUAL
MINI TYPE
THERMO-ANEMOMETER

INTRODUCTION
FEATURES/FUNCTIONS
1
Congratulations on your purchase of the
unique 3 in one Anemo-Thermometer,
the meter features dual display of Air
Velocity and Temperature , simple and
easy to operate, 7 units of scale to be
switchable .
A pocket-knife design makes it con-
venient and portable , easy to use and
to get a precision reading.
Though you might have seen RH%, td
(Dew Point)..these are not available
for the meter model number 8908 but for
advanced model "Pocket size Anemo-
Hygro-Baro-Thermometer, model : 8909&
8910, please contact the store you pur-
chased for above advanced models.
Temp./Windchill : Averaging & LCD
display is updated every second.
Windspeed : Moving 2-sec average
with Maximum 2-second average.
LCD is updated every second.
Temperature sensor : Sealed
precision thermister.
Water resistant and shock proof
housing.
One button Data Hold operation.
Records Maximum reading.
o o
Unit C/ F switchable.
Replaceable lithium battery.
Safety wrist strap makes it carry
around and avoids falling over.
Material supplied : Meter, Battery
CR2032, lanyard and instruction
manual.

Select units
OPERATION
For air velocity and
temperature by momentarily pressing the
UNITS/MODE key from a powered down
condition.
o
The LCD will show temperature units ( C
o
or F) and Air Velocity units. The meter
o
defaults at KNT F unit (See Fig.1)
2
1. Vane impeller
2. Precision thermister temp. sensor
3. LCD display
4. POWER and HOLD key
5. UNITS and MODE key
6. Battery compartment(on rear side)
7. Swivel handle and storage case
8. Lanyard holder
THE RM O- AN EM OMETE R
Air Velo ci ty.Tem p.Wi nd chill
ON/ OF F
HOL D
UNI TS
MOD E
TH ERM O-AN EMOMET ER
AZ Instr um ent 8908
DESCRIPTION
Accessory included:
Lanyard. Battery (CR2032). Manual

KNT
F
C
BF
F
By pressing the ON/OFF/HOLD key
momentarily. The Dual Display will
illuminate. The top ( larger ) display
indicates air speed and the lower display
indicates temperature.(See Fig. 7)
Press the UNITS/HOLD key repeatedly
until the desired units are displaying.
o
o
The unit cycles through KNT F ,KNT C
o
o o
oo
,BF F, BF C, FPM F, MPH F, MS C,
o
KMH C (See Fig.2 & 3 ) , press the
ON/OFF/HOLD key momentarily,display
will show "1" at the right corner in one
second (See Fig.4 ), and back to the
normal display (See Fig.5 ) with the
desired units.

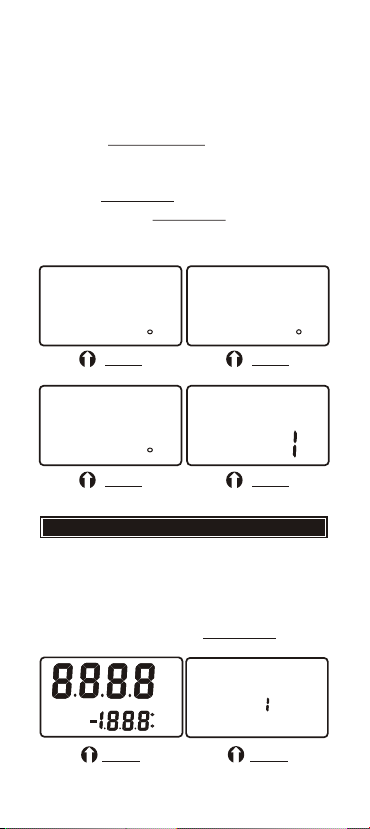

Fig.2
Fig.3 Fig.4
Fig.5 Fig.6
3
Fig.1
KNT
POWER ON
FPM
MPH
MS
KMH
RH%
AVG
MAX
KNT
BF
WCI
F
C
5 10
td

KNT
F
AVG
MS
C
AVG 5
MS
C
AVG
10
MS
C
(To freeze the most recent display), by
pressing and holding the ON/OFF/HOLD
key while taking measurements.To return
to normal operation release the key and
restart the meter.
DATA HOLD
After a measurement session, press and
hold the UNITS/MODE key until the MAX
icon appears on the lower left-hand side
of the LCD. (See Fig. 8 ). Both the Air
Velocity and Temperature indication will
represent the highest readings measured
since the meter was last powered.
Fig.7
Fig.8 Fig.9
Fig.10 Fig.11
MS
C
MAX
AVERAGE MODE
4
MAX. OPERATION

Normally the meter averages wind speed
readings every 2 seconds (but LCD display
is updated every second). To select 5, 10
or 13 second averaging, first press the
UNITS/MODE key until the
AVG icon appears.(See Fig.9 ).The 13
second average mode is now selected.
Press key once more for
5 second average mode, display shows
as Fig.10.
Press one more time for 10 second
average mode , display now shows as
Fig 11. To return to normal operation
press the UNITS/MODE key repeatedly
until all lower left-hand icons disappear.
While meter is in 13 or 10 or 5 second
average mode but it is powered on less
than above time period, the displayed
value is counted since the meter is on.
Example:
When the meter is in 13 second average
mode but the meter is powered on for only
8 seconds, then, LCD will display 8 second
average value.
repeatedly
UNITS/MODE
Press the UNITS/MODE key

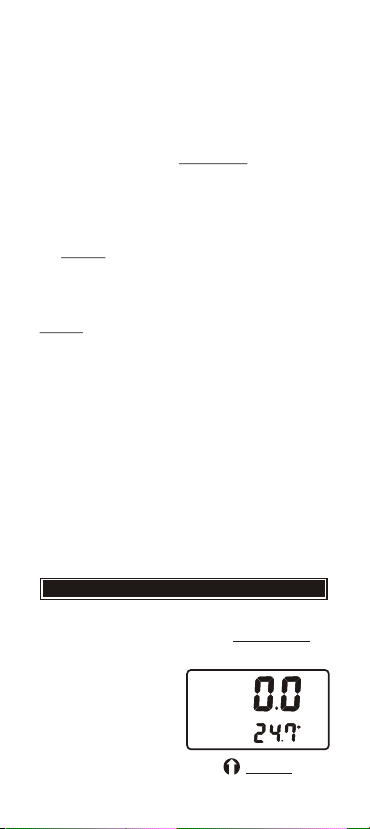

until the WCI icon appear. (See Fig.12)
The temperature display will now factor
in the wind chill.
To return to normal
operation, press the
UNITS/MODE key
again and the WCI
icon will disappear.
repeatedly
WIND CHILL INDICATOR
WCI
MS
CC
Fig.12
5

BATTERY REPLACEMENT
If the meter will not power up as usual or
the display contrast becomes weak and
difficult to read, replace the lithium
battery. To do so, turn the battery
compartment cover in a CLOCKWISE
direction to remove it. (See Fig.13)
The battery will be visible in the battery
compartment, observe the position of
the battery and replace the new one in
the same position. Affix the battery
compartment cover by turning it in a
COUNTER-CLOCKWISE direction.
Dispose of the lithium battery in accor-
dance with local, state, or national waste
disposal codes.
BAT
2032
OPEN
VANE REPLACEMENT
The anemometer is very accurate at low
and mid-range air speeds. Constant use
at very high speeds, such as measure-
ments out a fast-moving car window, may
damage the impeller's bearing and reduce
over-all accuracy.
To replace the impeller, use a small
screwdriver to loosen the set-screw found
on the back of the windmeter.
Fig.13
6
The meter will automatically shuts down
to preserve battery life after 15 minutes
of inactivity.
AUTO POWER OFF

The remove the impeller by twisting the
impeller assembly clockwise (if you are
facing the back of the windmeter) to the
"O" position marked on the rear of the
rear of the meter. (See Fig.14)
Install a new impeller by following above
instructions in reverse.
7
3.
OL
OL
Fig.14
THERMO-ANEMOMETER
AZ Instrument 8908
8.8.8.8
AZ THERMO-ANEMOMETER
o
90
1.8.8.8
Air .Velocity.Temp..Windchill
ON/OFF
HOLD
UNITS
MODE
meter per second
Feet per minute
Knot
Kilometer per hour
Mile per hour
Beaufort
1.1~20.0
60~3937
0.4~38.8
0.8~72.0
0.5~44.7
1~8
0.1
2
0.1
0.1
0.1
1
Range
Unit
m/s
Ft/Min
KNT
KMH
MPH
BF
RS
"RS" stands for Resolution.
o
Detended at 90 for tripod
mountable.
RANGE / RESOLUTION

8
8.8.8.8
--- --- ---
---
------ ---
THERMO-ANEMOMETER
AZ Instrument 8908
o
Detended at 180 for fully opened.
Power off
Operating Temperature
Power Supply
Min/Max.Windspeed
Min/Max.Windspeed
Average readings
Dimension
Dimension
Impeller Dia.
Unit in Imperial
Unit in Metric
UNITS CONVERSION TABLE
mph
km/hr
knots
ft/min
m/s
Display
Measurement Ranges
Sample rate
Power off
Unit
1 km/hr
0.6222
1
0.54
54.69
0.2778
1 mph
1
1.6071
0.8679
87.89
0.4464
1 ft/min
0.00508
0.01138
0.01829
0.00987
1
1 m/s
196.87
1.944
3.6
2.24
1
1 knot
1.1523
1.8519
1
101.27
0.5144
SPECIFICATION
Automatic shut off
after 15 minutes
CR2032 battery x 1
0.5~44.7 MPH
60~3937 FTM
5/10/13 second
o
(90 folded)
140 x 45 x 25mm
o
(180 fully opened)
235 x 45 x 25mm
33 x 16 mm (T)
KNT, BF
o
C ,m/s ,KMH
OF ,FTM ,MPH
o
o
-15 C~50 C

9
Note :The meter can measure precision
readings with no air flow to get the same
temperature as the surrounding air .
The meter turns off automatically after
about 15 minutes of no button presses.
The meter is warranted to be free from
defects in material and workmanship for
a period of one year from the date of
purchase. This warranty covers normal
operation and does not cover batteries,
misuse, abuse, alteration, tampering,
neglect, improper maintenance, or damage
resulting from leaking batteries. Proof of
purchase is required for warranty repairs.
WARRANTY
Authorization must be obtained from the
supplier before returning items for any
reason. When requiring a RA (Return
Authorization), please include data
regarding the defective reason, the
meters are to be returned along with
good packing to prevent any damage in
shipment and insured against possible
damage or loss .
RETURN AUTHORIZATION
CE CERTIFICATION
The meter conforms to the following
standards:
* EN 50081-1/1992 : EN 55022
* EN 50082-1/1997 : EN 55024
(EN 61000-4-2/-3/-8,ENV 50204)

, the meter complies with the essential
protection requirements of Council
Directive 89/336/EEC on the approxi-
mation of the laws of the Member
States relating to electromagnetic
compatibility.
OTHER RELATED PRODUCTS
Other related wind speed meters:
Handheld Type
a.8901: Anemometer w/remote fan
b.8902/11/12: Anemometer w/remote fan
&RH
c.8903/04/06: Anemometer w/integral fan
Mini Type
a.8918: Anemometer w/RH
b.8909: Anemometer w/RH,barometric
c.8910: Anemometer w/RH,barometric,
altitude.
10
