INTRODUCTION
MI TOWER STAIRS is a versatile and high quality mobile access tower providing a work platform for one
person. It is designed in accordance with the latest testing and quality standards. MI TOWER STAIRS
complies with
BS EN 1004-1:2020 and WAHR with vertical ladder access and designed for Class 3 loadings. Platform
heights between 2m & 4m internal / external. Tower designation is EN1004-3-2/4-D-H2
Our priority is to help ensure the safe operation of our products, so please pay particular attention to the
safety tips on pages 8 and 9.
We want you to enjoy the safe and responsible use of MI TOWER STAIRS with the minimum of fuss and
this guide is designed to get you up and running as quickly and as safely as possible.
We recommend that you read this guide prior to assembling and using your MI TOWER STAIRS.
This instruction manual shall be available on the location of use of your MI TOWER STAIRS . Your MI
TOWER STAIRS shall only be used in accordance with this assembly guide without modification and
national regulations.
User training courses cannot be a substitute for this assembly guide and should only compliment it. This
product should only be used in accordance to this assembly guide.
Only original Pop Up Products MI TOWER STAIRS components, in undamaged condition as specified in
this assembly guide, shall be used to assemble this access tower.
MI TOWER STAIRS, which has been designed in accordance with EN 1004-1 are not anchor points for fall
arrest equipment and working is only permitted on a platform with complete side protection, including
guardrails and toeboards.
Scan this QR code to view the video of MI TOWER in operation

KNOW YOUR Mi T OWER STAIRS
Page 3
1
2
3
4
4 RUNG FRAME
TOE BOARD SET
2 RUNG FRAME
EASY-LOCK STABILISER
PARTS LISTING
5
6
7
8


GUARDRAIL BRACE PANEL


KNOW YOUR MI TOWER STAIIRS COMPONENTS
1 GUARDRAIL BRACE PANEL
jaw which is released by simply moving the jaw’s trigger. The claw must only be
attached to the frame with the opening facing outward. Attachment with the
jaw’s opening facing inward will not fully protect the user if lent upon and may
cause serious injury or death. Always ensure that each claw is positively locked in
position before using your tower.
2 FRAME CLIPS
The frame clip’s pin locates into a retaining hole in the frames to lock tower
sections together when placed one on top of the other. The pin is locked in place
by a red tab to ensure that it remains in place. From the disengaged position,
pivot the pin / tab to bring the pin horizontal. Insert the pin fully through the
3 STABILISER COUPLER CLAMP
tube and set the buckle on to the hook, then close the clamp arm to lock the
The coupler clamps are used to secure the stabilisers to the tower’s vertical
4 WIND-LOCK CATCH
Disengaged Engaged
Component
Hanger
Retract
Extend
The wind lock catches comprise of a set of auto-engaging hooks at one end
of the platform and a single gravity type catch at the other. The purpose of
these devices is to prevent up-lift of the platforms in windy conditions. To
engage the auto wind lock (AWL) simply tilt the platform at the angle shown
before placing the hooks onto the rung of the end frame. Lower the
opposite end of the platform onto the opposite end frame rung and the
gravity type lock will automatically engage. Simply lift and hold the gravity
lock before tilting the platform to dis-engage the opposite AWL hooks when
removing the platform on tower disassembly.
5 PLATFORM WITH BUILT IN COMPONENT HANGERS
Friction
Clip
To enable one man to erect MI TOWER products, each hatch is fitted with
four component hangers which are stowed (two either side) within the
platform’s frame. The hangers can be extended when needed and retracted
when not.
To extend a hanger simply pull up the friction clip and pull the component
hanger until it stops. To retract the hanger, simply reverse the procedure.
Page4

KNOW YOUR MI TOWER STAIRS COMPONENTS
Page 5
INSPECTION, CARE & MAINTENANCE
Keep all components clean and free from contaminants. If any part becomes contaminated with paint, acid, oils or similar
products the tower must not be used until the effected components have been cleaned and re-inspected.
All components should be stored in a dry location where they will be protected from adverse weather conditions. When
storing or transporting, keep frames upright and platforms flat. do not stack excessively to avoid stress damage.
Please contact Pop Up Products for further details on maintenance and repair of your MI TOWER STAIRS components.
The walk-through gate frame includes a gate/ladder which is
used to access the upper levels of the Mi TOWER STAIRS and
once unlocked and opened, allows access into and through the
base of the MI TOWER STAIRS. To open the gate/ladder remove
the clip and lift the gate/ladder upwards. It can now be swung
inwards or outwards to allow access.
The vertical tubes also feature positioning rings that will be
used when building the Mi TOWER STAIRS and allow the
guardrail brace panel hooks to be correctly positioned.
A set of conjoined frames can be created by disengaging the
frame clips on one four rung frame and fitting it to a second
four rung frame. Engage and apply the Easy-Clip frame clips to
lock the two frames together.

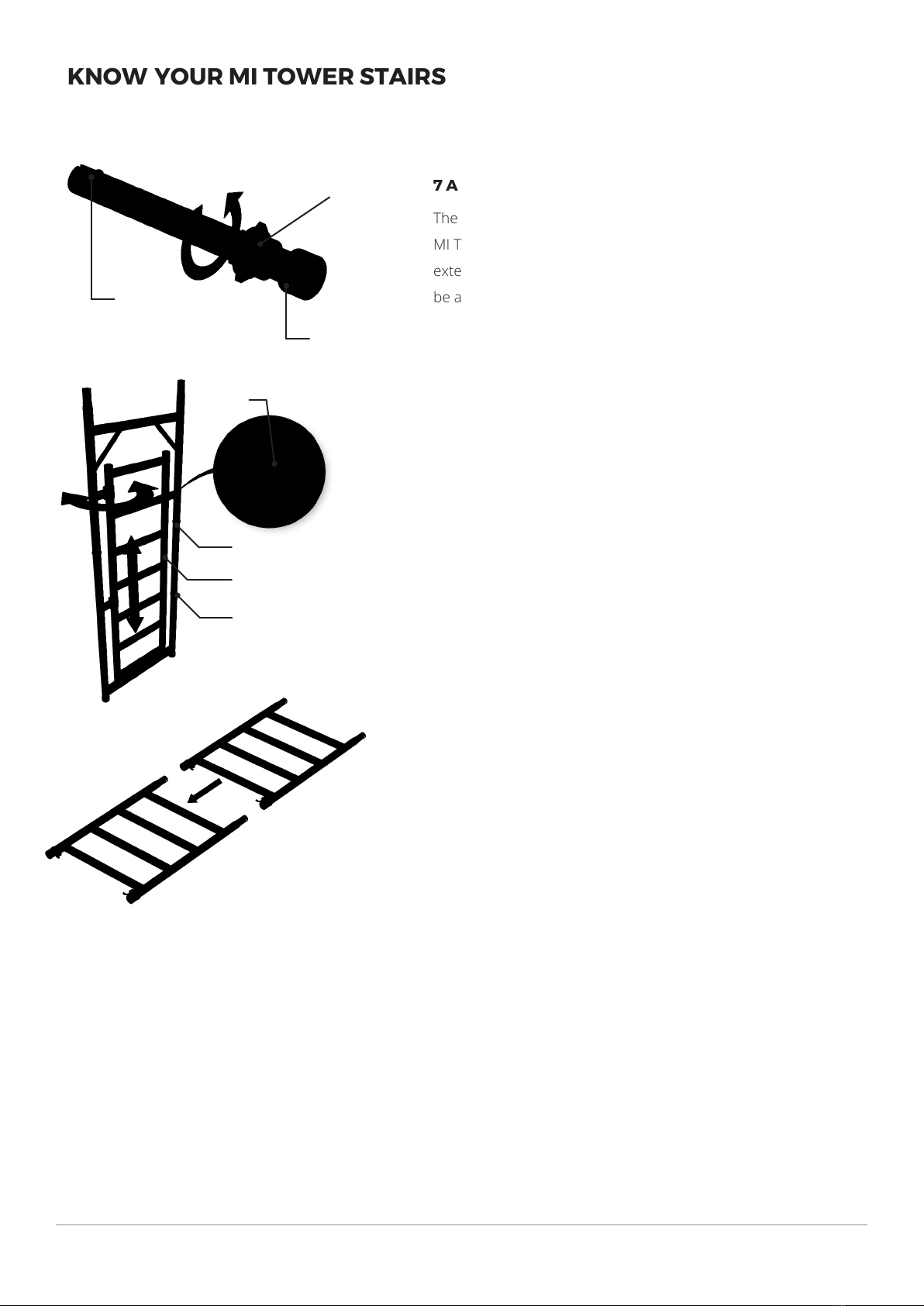

7 ADJUSTABLE LEG
8 WALK-THROUGH GATE FRAME
9 CONJOINED FRAMES
The adjustable leg allows for accurate positioning of your
MI TOWER STAIRS in relation to your workplace. The leg can be
extended or retracted to allow for leveling and the brake must
be applied to prevent movement.
Upper
Positioning Ring
Lower
Positioning Ring
Gate / Ladder
Section
Gate
Locking Pin
Retract
Extend
Engagement Spring
Adjustment
Collar
Rubber Foot

KNOW YOUR KIT LIST AND SPECIFICATIONS
Page 6
4 RUNG FRAME
EASY-LOCK STABILISER
HATCH PLATFORM
GUARDRAIL BRACE PANEL
220MM ADJUSTABLE LEG C/W RUBBER FOOT
WALK-THROUGH GATE FRAME
2 RUNG FRAME
TOE BOARD SET
MI STAIRS WEIGHT (KG)
PLATFORM SAFE WORKING LOAD (KG)
COMPONENT DESCRIPTION
3.55
3.65
9.35
3.25
0.91
9.29
2.01
5.15
Weight (Unit)
kg
3
4
1
4
4
1
1
1
67.69
150kg
2.2m
qty
2
4
1
4
4
2
1
1
73.43
150kg
2.7m
qty
7
4
2
7
4
1
1
1
100.99
150kg
4.2m
qty
COMPONENT MATRIX AND WEIGHTS
6
4
2
7
4
2
1
1
106.73
150kg
4.7m
qty
See page 11 (Tying in) for Mi TOWER STAIRS heights outside the scope of this instruction guide or
instances where the standard stabilisers cannot be deployed as instructed.
MAXIMUM LEG LOAD 108kg111 kg 125kg128kg
ARTICLE
CODE
MTEF4R
MTTOR
MTPT
MTHU
324523
301205
301211
MTTS

KNOW YOUR STORAGE AND TRANSPOR T PACK
Page 7
TRANSPORT AND S TORAGE
For ease of storage and of transportation, Mi
TOWER STAIRS has been designed so that all
components can be safely stored within the Mi
TOWER STAIRS trolley assembly. See illustration.
Product shown is Mi TOWER STAIRS 2.7m
TROLLE Y COMPONENT S
1
2
3
4
5
GUARDRAIL BRACE PANEL X2
4 RUNG FRAME X2
TOE BOARD SET

ADJUSTABLE LEG AND CASTOR X4

REGISTRATIONS
Page 8

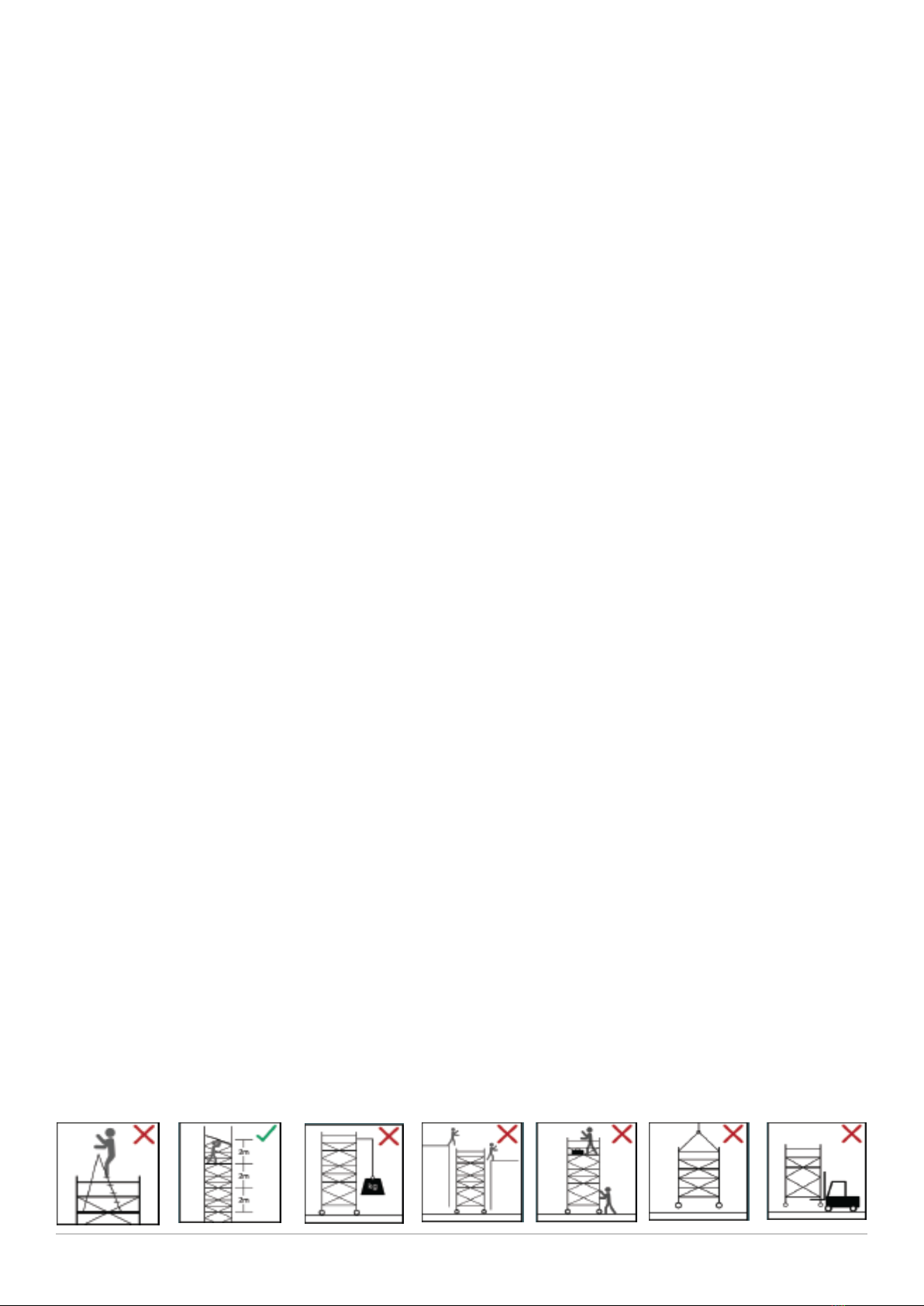

SAFETY DOS AND DON’TS - ALWAYS
Page 8
ALWAYS Read and understand this guide before you begin assembly.
Ensure that all safety requirements are met and that MI TOWER STAIRS is the correct access
solution for the task you wish to perform.
Ensure that MI TOWER STAIRS is assembled and dismantled by a qualified, competent person.
Cordon off the work area creating a zone with a radius that is 1m greater than the total height of
MI TOWER+.
Wear the correct Personal Protective Equipment for the task being performed. Gloves, steel
toecap boots, a hard hat and suitable clothing must be worn by all persons.
Tie back long hair and remove items of loose jewellery.
Perform a full risk assessment prior to assembling or using MI TOWER STAIRS and abide by your
findings.
Prevent access to unauthorised persons if you have no ohter option but to leave MI TOWER
STAIRS unattended and if this is not possible then MI TOWER STAIRS must be dismantled.
Make tools and materials required for the assembly of your MI TOWER STAIRS are made
available on site.
Ensure you properly assess the risk/method if tools or materials are hoisted to the platform via a
rope.
Access platforms from within MI TOWER STAIRS and via the 4 rung frames positioned at the
platform’s trap door end. Keep your feet in the middle of the rungs and grip the upper rungs
with your hands.
Erect MI TOWER STAIRS on smooth level ground that is capable of supporting its own weight, the
user and any tools or materials without subsidence and free of obstructions.
Use your MI TOWER STAIRS in accordance with the instructions contained within this assembly
guide.
Use your MI TOWER STAIRS in accordance with National Regulations.
Remove persons and loose materials from your MI TOWER STAIRS before attempting to move it.
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS

SAFETY DOS AND DON’TS - NEVER
Page 9
NEVER Use MI TOWER STAIRS if you don’t understand something in this guide; please contact the supplier
for advice.
Assemble, use, move or dismantle MI TOWER STAIRS if you are tired or unwell or if you are under
the influence of alcohol or drugs.
Use MI TOWER STAIRS in adverse weather conditions which may endanger the user.
Use in wind conditions of Beaufort Force 5 and above. Please be aware of the tunnel
effect caused by buildings close to each other. Dismantle the MI TOWER STAIRS if wind reaches
Beaufort 8
Assemble or use MI TOWER STAIRS near overhead hazards such as power lines that are within
reach of MI TOWER STAIRS or the user.
Ascend or descend your MI TOWER STAIRS if both hands are not free.
Add banners, notice boards, etc. to MI TOWER STAIRS or suspend weights from the tower.
Use MI TOWER STAIRS if contaminated by paint, chemicals, etc.
Overload the platforms (see component matrix page 5).
Suspend MI TOWER STAIRS from another structure.
Lean from MI TOWER STAIRS and never apply undue side force (max 200N).
Stand on the guardrails, toe boards, boxes (or similar) to gain extra height. If the working height is
insufficient either construct MI TOWER STAIRS to the required height or use an alternative method.
Use damaged components in your MI TOWER STAIRS assembly.
Use more than one working platform on your MI TOWER STAIRS.
Allow more than one person on a working platform.
Use MI TOWER STAIRS as a means to enter or exit other structures, or as a means of edge
protection.
Exceed a distance between platforms of 2.25m except for the first platform which can be 3.40m.
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER

Page 10
BEFORE YOU START
PREPARATION
The floor area must be clear of any obstructions including materials and debris. Check that you have all the
components necessary to construct the tower height you require. Check also each component for condition and
correct function. If any part is missing or damaged/not working correctly it must be replaced before assembling
3T (THROUGH THE TRAPDOOR) SYSTEM
The 3T method of construction has been developed to reduce the risk of an erector falling from a tower during
construction. The erector must sit on the platform with legs through the hatch and feet on the frame rungs when
attaching guardrail brace panels above the platform. This ensures the erector is always protected by a set of
guardrail brace panels.
ASSEMBLY GUIDE
These instructions must always be made available to the user. If replacement copies are required, please contact
your supplier. This assembly guide is to be made available on the location of use of this MI TOWER+.
DAMAGED COMPONENTS
Regularly inspect all components for damage. Damaged components must be quarantined so that they cannot
be used. Where safe to do so, the component can be repaired but only by a qualified repairer. If in doubt contact
your supplier for advice.
MOVING YOUR Mi TOWER STAIRS
If Mi TOWER STAIRS is to be moved to a new location or a new level, it must be fully dismantled and rebuilt at the
new location.
DISMANTLING YOUR MI TOWER+
MI TOWER STAIRS is easily dismantled by simply reversing the erection procedure. Make sure that the
component hangers are evenly loaded to ensure your MI TOWER STAIRS remains balanced. You must, however,
be protected by guardrail brace panels when standing on any platform and ensure that you use the 3T method
when removing guardrail brace panels.
AFTER ASSEMBLY
After assembly the following information needs to be displayed on the access tower and should be clearly visible
from the ground. (e.g. on a tag).
The name & contact details of the responsible person
If the tower is ready for application or not.
The load class and Uniformly Distributed Load.
If the access tower is intended for indoor use only.
The date of assembly.

Page 11
GETTING STARTED
GETTING STARTED
MI TOWER STAIRS requires two persons to assemble and dismantle it.
STABILISERS POSITIONING
Stabilisers are supplied and must be used for all MI TOWER STAIRS heights.
where the heights of the wall is a minimum of two thirds the height of the top working platform.
Ensure that all four stabilisers’ feet are in contact with the ground and that the ground can support the weight
of the tower and stabilisers.
TYING IN
Mi TOWER STAIRS heights outside the scope of this instruction guide or instances where the standard stabilis-
ers cannot be deployed as instructed, such as in narrow stairwells or outdoors, can be built using special
components and tying in the Mi TOWER STAIRS structure to add stability. In these instances contact the
manufacturer for further information and guidance.
When used, select and install anchors in concrete and masonry must be selected and installed in
accordance with BS 8539.This prefabricated tower scaffold has been designed to be properly secured to
a suitable adjacent supporting structure capable of withstanding the forces that will be imposed upon it
by the attachment of the tower. Devices for securing the tower must be simultaneously rigid in both
tension and compression and capable of withstanding and transmitting the loads imposed by the tower too
the supporting structure.
BALLAST
Where shown in the component list, ballast must be used to stabilise against overturning. Only use solid
materials as ballast (i.e. no loose materials) and position to avoid overloading individual components. Ballast
should be supported by the base of your Mi TOWER STAIRS and securely fastened to prevent removal.

Mi TOWER STAIRS 2.2M & 4.2M - ASSEMBLY
Page 13
STEP 1
Take four adjustable legs with rubber feet and insert two into the walk-
through gate frame. Then insert the remaining two adjustable legs with
rubber feet into the two rung frame. Adjust all leg height adjustment collars
to bring all four legs to the lowest position.
STEP 3
Construct the uppermost frame assembly. Release the Easy-Clip frame clips
on the two rung and two four rung frames. Take one four rung frame and t
it on top of the two rung frame. Take the second four rung frame and t it on
top of the rst four rung frame.
Apply all of the Easy-Clip frame clips and ensure they are correctly
locked.
STEP 4
Place the walk-through frame assembly at the lowermost position of the
staircase and attach the guardrail brace panel on the gate locking pin side of
the frame ensuring its upper jaw is placed above the upper positioning ring.
Ensure the two hooks are facing outwards and correctly locked on to
the frame tube.
STEP 2
Construct the lowermost frame assembly. Release the Easy-Clip frame clips
on one four rung frame. Take the lowermost walk-through gate frame and t
the four rung frame on top.
Apply the Easy-Clip frame clips and ensure they are correctly locked.
STEP 5
With your assistant holding the lowermost frame assembly and guardrail
brace panel, place the uppermost frame assembly at the uppermost position
of the staircase.
Attach the guardrail brace panel to the vertical tube of the uppermost frame
assembly. Ensure the upper brace hook is positioned above the third rung of
the uppermost frame assembly.
Make sure the hooks are correctly locked on the frame tube of the
uppermost frame assembly.

Mi TOWER STAIRS 2.2M & 4.2M - ASSEMBLY
Page 14
STEP 6
Attach another guardrail brace panel on the opposite side to the gate locking
pin. Ensure the upper brace hook is positioned below the eighth rung of the
lowermost frame assembly and sixth rung of the uppermost frame assembly.
Using the lower guardrail brace panel and a spirit level as a guide, adjust the
lowermost legs to bring the Mi TOWER STAIRS square and level.
Ensure all hooks are facing outwards and correctly locked on to the
frame tubes.
STEP 8
Fit an Easy-Lock stabiliser to each corner of the Mi TOWER STAIRS. The
position of the upper and lower couplers will depend on the pitch of the
staircase and position of any landings or oors. Ensure the stabiliser footprint
is a square as possible within the con nes of the staircase sides. Adjust each
stabilisers length so that each foot is in contact with the oor or step.
Make sure all Easy-Lock clamps are correctly secured.
STEP 9
Open the walk-through gate and once in the Mi TOWER STAIRS close and
secure it using the gate locking pin. Open the hatch door and using the rungs
of the gate, climb until you are half way through the platform’s trap door. Now
manoeuvre yourself so that you are sitting on the platform, with your legs
through the trap door and your feet resting on the rungs of the gate below
the platform. From this position, you should take a guardrail brace panel,
one at a time and attach so that the upper jaws are positioned above the
tenth rung of the uppermost frame assembly. Ensure all hooks are facing
outwards and correctly locked on to the frame tubes.
STEP 7
Stand inside the Mi TOWER STAIRS and t the platform on the sixth rung of
the uppermost frame assembly, ensuring the trap door is positioned at the
lowermost end of the Mi TOWER STAIRS.
Make sure that the Wind-Lock catch engages correctly.
STEP 10
If building a 4.2m platform height Mi TOWER STAIRS, follow step 10
onwards of the 4.7m platform height build. If building a 2.2m platform
height Mi TOWER STAIRS proceed to step 10 of this build.
With both panels in position, you may access the platform. Unfold the toe board
set and position the toe board sections so that they sit over the outer edges of
the platform. The Mi TOWER STAIRS is now complete and ready to use.

Mi TOWER STAIRS 2.7M & 4.7M - ASSEMBLY
Page 15
STEP 1
Fully insert the adjustable legs with rubber feet into two walk-through gate
frames, turning the leg’s height adjustment collar to bring alll four legs to the
lowest position.
STEP 3
Construct the uppermost frame assembly. Release the easy-clip frame clips
on one four rung frame. Take the uppermost walk-through gate frame and t
the four rung frame on top.
Apply the Easy-Clip frame clips and ensure they are correctly locked.
STEP 4
Place the lowermost frame assembly at the lowermost position of the
staircase and attach the guardrail brace panel on the gate locking pin side of
the frame ensuring its upper hook is placed above the upper positioning ring.
Ensure the two hooks are facing outwards and correctly locked on to
the frame tube.
STEP 2
Construct the lowermost frame assembly. Release the easy-clip frame clips
on the two rung and one four rung frame. Take the lowermost walk-through
gate frame and t the two rung frame on top followed by the four rung
frame.
Apply the Easy-Clip frame clips and ensure they are correctly locked.
STEP 5
With your assistant holding the lowermost frame assembly and guardrail
brace panel, place the uppermost frame assembly at the uppermost position
of the staircase.
Attach the guardrail brace panel to the vertical tube of the uppermost frame
assembly ensuring the upper brace hook is above the lower positioning ring.
Make sure the hooks are correctly locked on the frame tube of the
uppermost frame assembly.

Mi TOWER STAIRS 2.7M & 4.7M - ASSEMBLY
Page 16
STEP 6
Attach another guardrail brace panel on the opposite side to the gate locking
pin. Ensure the upper brace hook is positioned below the tenth rung of the
lowermost frame assembly and the eighth rung of the uppermost frame
assembly.
It is easier to attach the guardrail brace panel by sliding it towards and then
through the lowermost frame assembly before attaching the opposite hooks.
Using the lower guardrail brace panel and a spirit level as a guide, adjust the
lowermost legs to bring the Mi TOWER STAIRS square and level.
Ensure all hooks are facing outwards and correctly locked on to the
frame tubes.
STEP 8
Fit an easy-lock stabiliser to each corner of the Mi TOWER STAIRS. The
position of the upper and lower couplers will depend on the pitch of the
staircase and position of any landings or oors. Ensure the stabiliser footprint
is as square as possible within the connes of the staircase sides. Adjust each
stabilisers length so that each foot is in contact with the oor or step.
Make sure all Easy-Lock clamps are correctly secured.
STEP 9
Open the lowermost walk-through gate and once in the Mi TOWER STAIRS
close and secure it using the gate locking pin. Open the hatch door and using
the rungs of the gate, climb until you are half way through the platform’s
trap door. Now manoeuvre yourself so that you are sitting on the platform,
with your legs through the trap door and your feet resting on the rungs of
the gate below the platform. From this position, you should take a guardrail
brace panel, one at a time and attach so that the upper jaws are positioned
above the twelfth rung of the uppermost frame assembly. Ensure all hooks
are facing outwards and correctly locked on to the frame tubes.
STEP 7
Stand inside the Mi TOWER STAIRS and t the rst platform on the eighth
rung of the uppermost frame assembly, ensuring the trap door is positioned
at the lowermost end of the Mi TOWER STAIRS.
Make sure that the Wind-Lock catch engages correctly.
At this step if building a 2.7m platform height Mi TOWER STAIRS, jump
to step 13. Otherwise carry on from step 10.

Mi TOWER STAIRS 2.7M & 4.7M - ASSEMBLY
Page 17
STEP 10
Access the rst platform and t one set of conjoined frames to each end
of the Mi TOWER STAIRS and apply the easy-lock frame clips. Next, attach a
guardrail brace panel to the Mi TOWER STAIRS, with its lower jaw positioned
above the fourteenth frame rung on the uppermost frame assembly.
Ensure all claws are facing outward and correctly locked on to the
frame tube.
STEP 12
Position yourself so that you are half way through the second platform’s trap
door. Now manoeuvre yourself so that you are sitting on the platform, with
your legs through the trap door and your feet resting on the frame rungs.
From this position, you should take each of the brace panels, one at a time
and attach so that the upper jaws are positioned above the twentieth rung
on the uppermost frame assembly.
Ensure all claws are facing outward and correctly locked on to the
frame tube.
STEP 13
With both panels in position, you may access the platform. Unfold the toe board
set and position the toe board sections so that they sit over the outer edges of
the platform. The Mi TOWER STAIRS is now complete and ready to use.
STEP 11
Carefully t the second platform on the sixteenth rung on the uppermost
frame assembly.
Make sure that the Wind-Lock catch is engaged.

10 POINT PRE-USE SAFETY CHECKLIST
Page 18
1
2
3
4
5
6
7
8
9
10
10 POINT PRE-USE CHECKLIST FOR USERS
BEFORE USE
COMPONENTS
CASTORS
ENVIRONMENT
STABILISER COUPLER CLAMPS
GUARDRAILS
BRACE CLAWS
WINDLOCK CATCHES
FRAME CLIPS
TOE BOARDS
Ensure tower is correct, complete and level.
Check all components are free from damage.
Ensure they are locked.
No environmental changes have influenced the safe use of your tower.
Check they are secure, & correctly attached.
Make sure all platforms are fully enclosed by guardrails. Check they are
locked correctly.
Make sure they are engaged.
Make sure they are engaged.
Check they are correctly positioned on all platforms.

popupproducts.co.uk
[phone]
info@popuppr oducts.co.uk
