POP UP PUSH 6 ECO Manual

PUSH 6
ECO
OPERATOR’S SAFETY AND
MAINTENANCE HANDBOOK
FOR PUSH 6 ECO
[phone] [email protected]o.uk popupproducts.co.uk

CONTENTS
Page 2 of 23
SECTION ONE | DESCRIPTION
INTRODUCTION
DESCRIPTION
INTENDED USE
TRAINING
MODIFICATIONS
TERMINOLOGY
POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)
OPERATOR’S SAFETY AND
MAINTENANCE HANDBOOK
FOR PUSH 6 ECO
PAGE
3
3
3
4
4
5
SECTION TWO | SPECIFICATION
TECHNICAL DATA
OPERATING SITE
NOISE AND VIBRATION
LIMITATIONS
PAGE
6
7
7
7
SECTION THREE | SAFETY RULES
Safety Rules
PAGE
8
SECTION FOUR |
OPERATING INSTRUCTIONS
DAILY CHECKS
MANOEUVRING THE PLATFORM
ENGAGING THE BRAKES
POWERING UP
ENTERING AND LEAVING THE PLATFORM

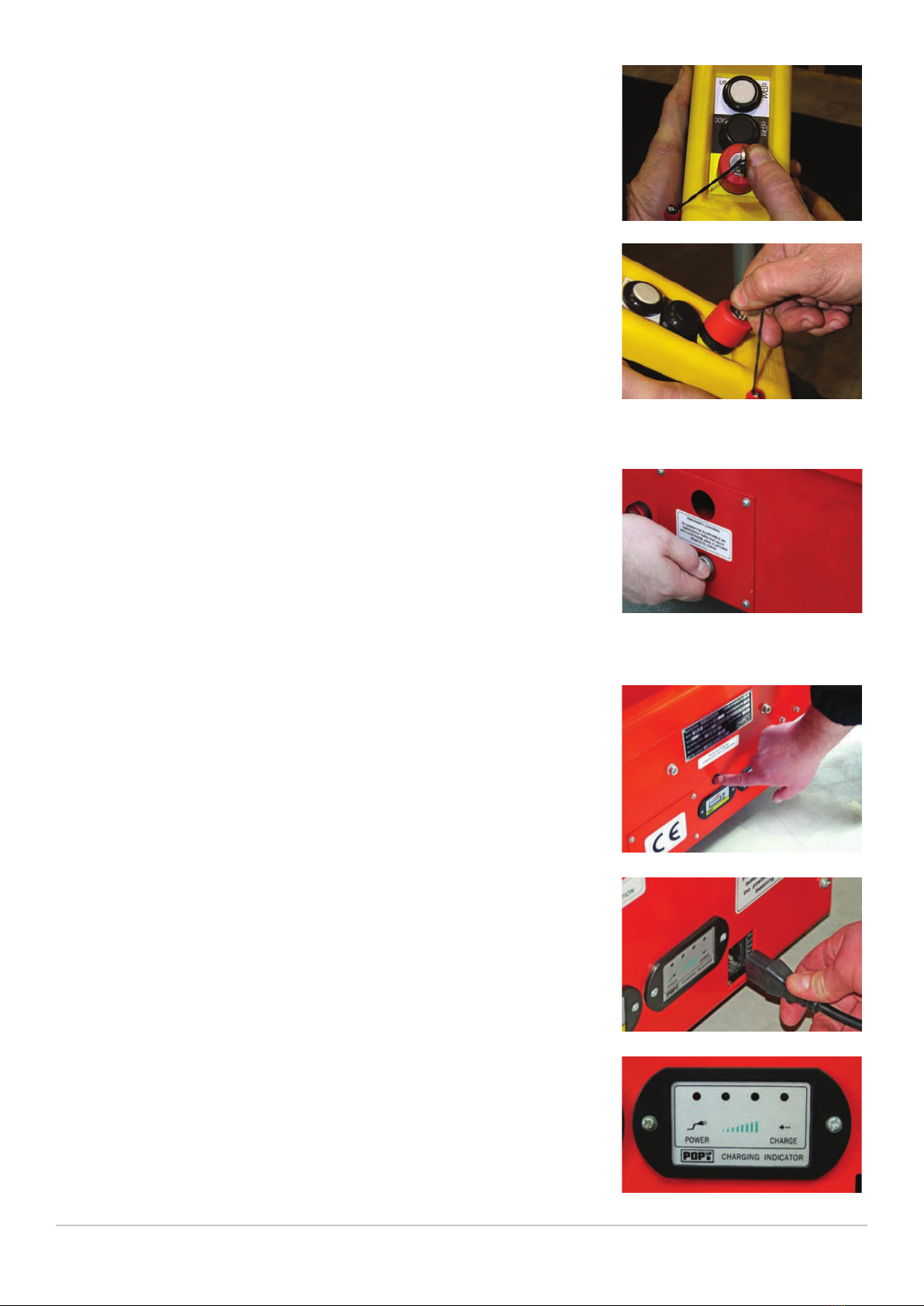

CONTROL PENDANT
EMERGENCY STOP
EMERGENCY LOWERING
BATTERY CHARGING
PAGE
9
9
10
10
11
11
12
12
12
SECTION FIVE | MAINTENANCE
SAFETY DURING MAINTENANCE
PERIODICAL MAINTENANCE CHECKS
STORAGE

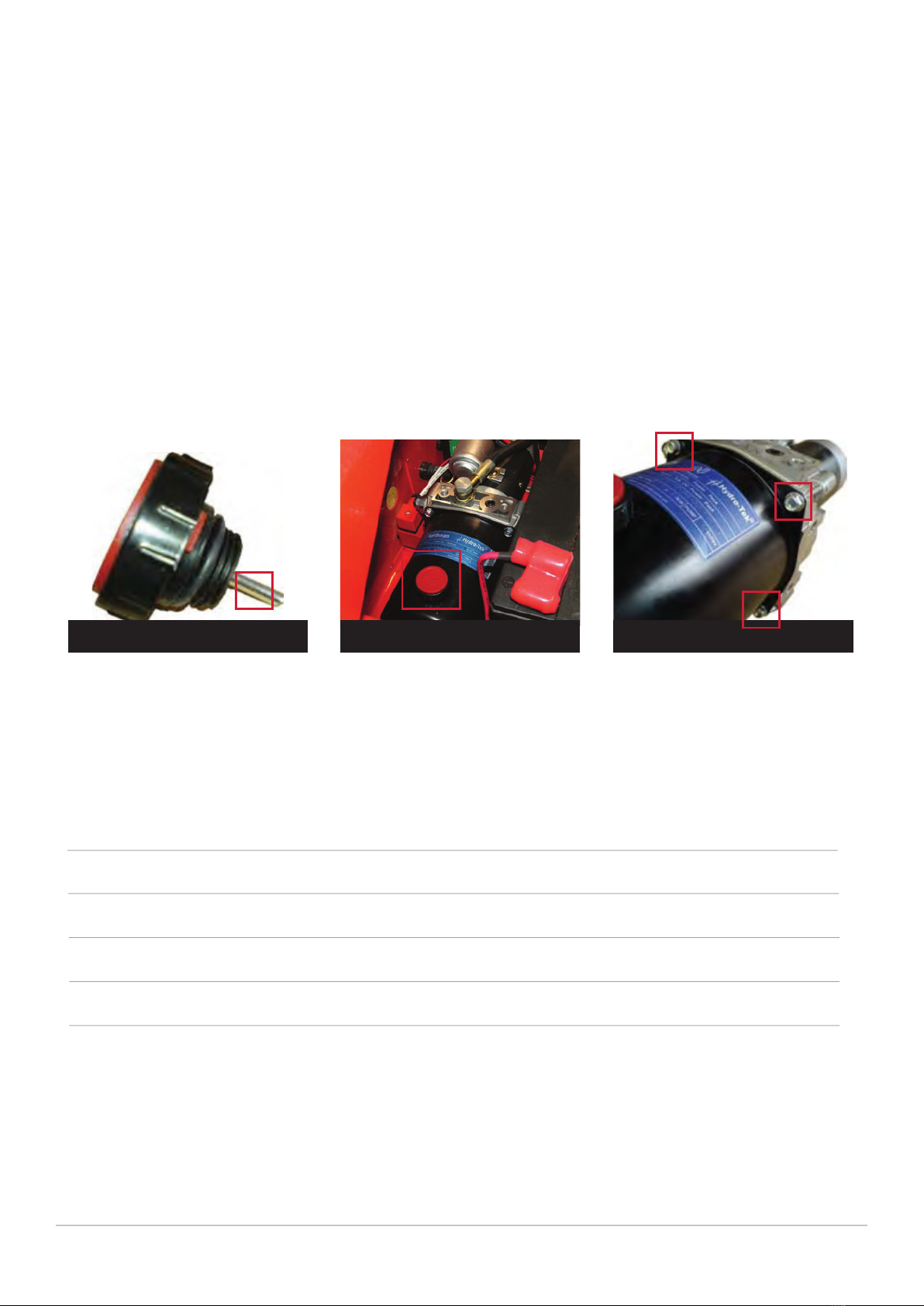

LUBRICATION
HYDRAULIC OIL

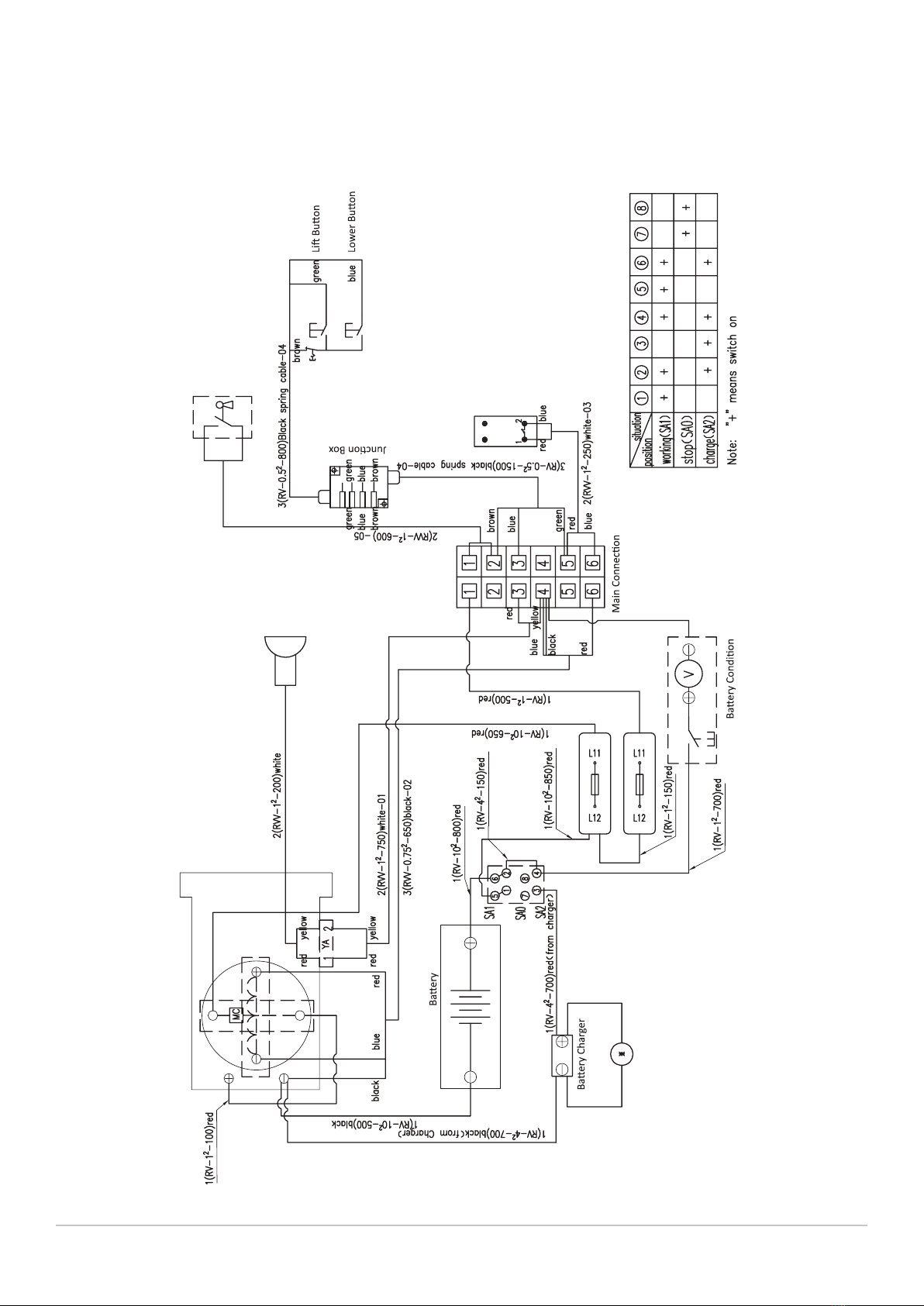

ELECTICAL SCHEMATIC
HYDRAULIC SCHEMATIC
TROUBLESHOOTING
PAGE
13
13/14
14
14
15
16
17
18
SECTION SIX |
TRANSPORT INSTRUCTIONS

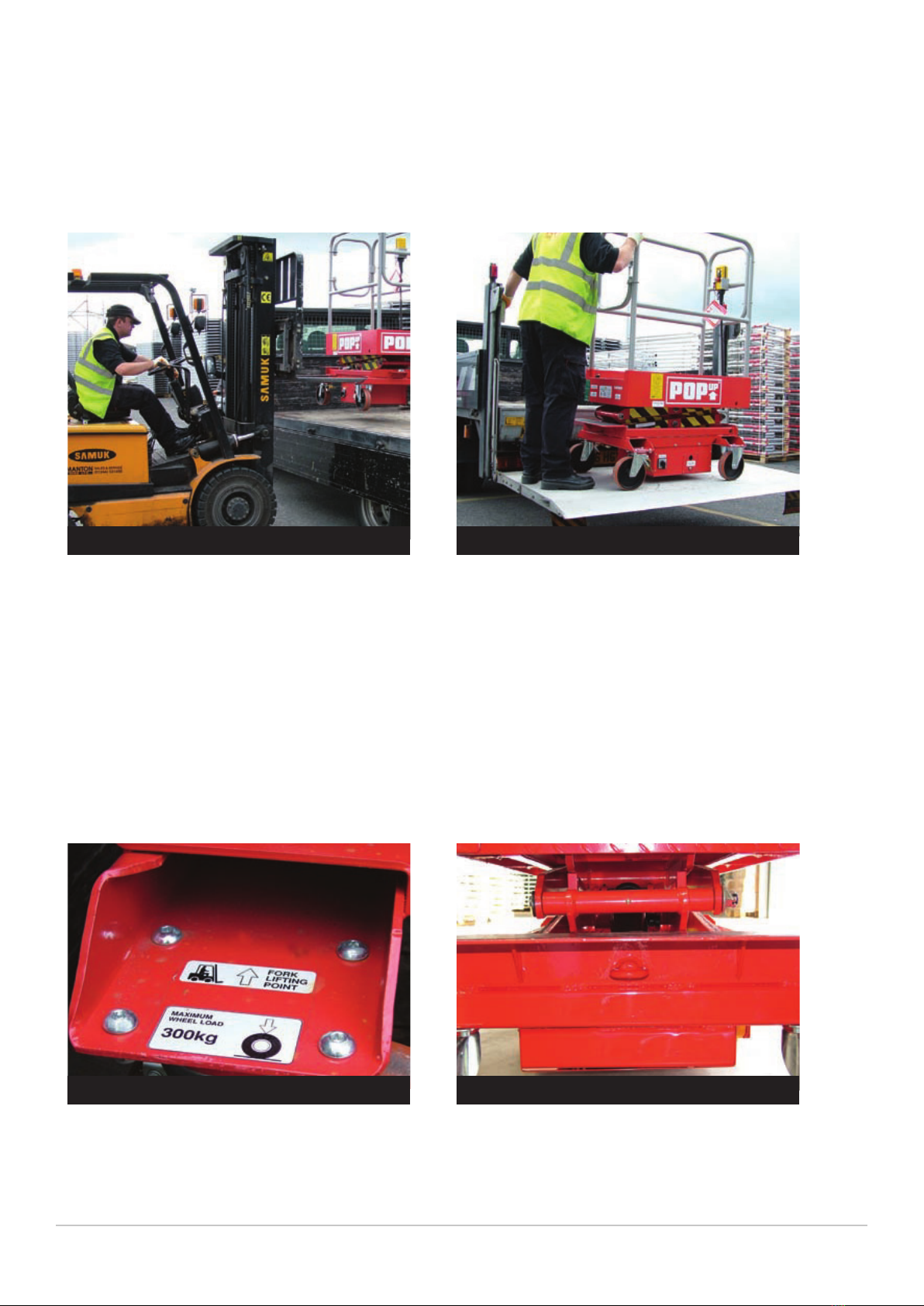

LOADING AND UNLOADING
LIFTING
PREPARATION FOR TRANSPORT
PAGE
19
20
20
SECTION SEVEN |
MAINTENANCE & REPAIR RECORD
MAINTENTANCE AND REPAIR RECORD
NOTES
DAILY CHECKS - OPERATOR CHECKLIST
PAGE
21
22
23

INTRODUCTION
Page 3 of 23
This handbook provides information on the safe operation of this work platform. Operators should read
and understand all of the information contained within this manual prior to operating the work platform.
An abridged set of instructions in the form of a training card and a training sticker can also be found attached to
the POP-UP PUSH 6 ECO at the control pendant and toe board respectively.
The handbook contains several warnings, these indicate situations which if not avoided could result in serious
injury or death to persons, or damage to the mchine or property.
Additional copies of this handbook are available from the manufacturer at the address below. Information
contained in this handbook is based on the latest product information at time of publication.
POP-UP Products Ltd operate a policy of continuous improvement and therefore reserve the right to make
product changes at any time without obligation.
DESCRIPTION
The POP-UP PUSH 6 ECO is a scissor lift type work platform, which is manoeuvred manually into work
positions and elevated and lowered using an electro- hydraulic control system.
The standard machine includes the following standard features:
240KG SAFE WORKING LOAD
3.63 METRE WORKING HEIGHT
1.65 METRE STOWED HEIGHT
EASILY MANOEUVRABLE
WEIGHS JUST 225KG
PASS THROUGH STANDARD
DOORS
SIMPLE OPERATION
STEEL GUARD RAILS
NON-SLIP PLATFORM
STEERABLE WHEELS
BRAKES ON TWO WHEELS
BATTERY POWERED WITH BUILT-IN
BATTERY CHARGER
EMERGENCY LOWERING FACILITY
EASILY TRANSPORTABLE
LOW MAINTENANCE
COMPLIES WITH EN280:2001
INTENDED USE
The machine has been designed to comply with the safety requirements of the Machinery Directive 98/37/EC
taking guidance from the European Standard EN280:2001 Mobile Elevating Work Platforms.
The machine is intended to be used to lift persons, plus essential tools and materials, to enable work to be
undertaken at height. Typical applications will include maintenance, cleaning, painting, etc. at varying heights
above ground level.
WARNING: THE MACHINE MUST NOT BE USED IN APPLICATIONS OR FOR USES OUTSIDE OF THE SCOPE
OF THIS HANDBOOK. SHOULD A CERTAIN APPLICATION NOT BE COVERED, THEN THE MANUFACTURER
SHOULD BE CONTACTED
SECTION ONE | DESCRIPTION
POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)

TRAINING
Since POP-UP PUSH 6 ECO is classed as ‘work equipment’ it also falls within the scope of the Provision and
Use of Work Equipment Regulations 1998 (PUWER). Regulation 9 of PUWER requires that persons using this
equipment have received adequate training.
A full Operator’s Safety & Maintenance handbook is provided with the equipment which forms the basis of
training on and familiarisation of the equipment. Safety decals are also tted to the machine to warn the
operator and other personnel of potential hazards whilst the machine is in use.
WARNING: OPERATION OF THIS MACHINE BY UNTRAINED OPERATORS MAY RESULT IN SERIOUS
INJURY OR DEATH
MODIFICATIONS
No modications must be made to this machine unless the manufacturer has given full written approval. If
in doubt contact the manufacturer for advice.
MANUFACTURER’S ADDRESS:
SECTION ONE | DESCRIPTION
Pop-Up
Vigo Centre
Birtley Road
Washington
Tyne & Wear
NE38 9DA
UK
Tel [phone]
Fax [phone]
Page 4 of 23POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)

TERMINOLOGY
SECTION ONE | DESCRIPTION
1CONTROL PENDANT
2EMERGENCY STOP BUTTON & KEY
3TRAINING CARD
4GUARD RAIL
5GATE
6HANDBOOK
7PLATFORM
8100V AND 240V CHARGER LEADS
9SCISSOR PACK
10 MAIN LIFT CYLINDER
11 MAINTENANCE PROPS
12 WINCH POINT
13 FORKLIFT POCKET (1 OF 4)
14 CHASSIS
15 BUBBLE SPIRIT LEVEL
16 BRAKE (1 OF 2)
17 BATTERY
18 HYDRAULIC TANK
19 HYDRAULIC PACK
20 BATTERY CHARGER
21 CHASSIS PLATE
22 BATTERY CHARGER SOCKET
23 BATTERY CHARGING INDICATOR
24 BATTERY CONDITION METER AND BUTTON
25 MAINTENANCE ISOLATOR SWITCH
26 WARNING BUZZER
27 EMERGENCY LOWERING VALVE
1
2
3
4
5
6 7
8
9
10
11
12
13 14
15
16
17 18
19
20
21
22
2324
25 26 27
Page 5 of 23POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)

TECHNICAL DATA
SECTION TWO | SPECIFICATION
SAFE WORKING LOAD (SWL)
EQUIVALENT TO
240kg
1 person + 160kg tools and materials
MAXIMUM PLATFORM HEIGHT
MAXIMUM WORKING HEIGHT
1.63 metres
3.63 metres
PLATFORM LENGTH
PLATFORM WIDTH
PLATFORM GUARD RAIL HEIGHT
TOE BOARD HEIGHT
1.01 metres
0.52 metres
1.10 metres
0.15 metres
MAXIMUM ALLOWABLE MANUAL FORCE
MAXIMUM ALLOWABLE WIND SPEED
MAXIMUM ALLOWABLE CHASSIS INCLINATION
200 Newtons
0 metres/sec
0 degrees
ELECTRICAL SYSTEM
MOTOR
BATTERIES
BATTERY CHARGER
12 volt DC
0.7 kW
1 x 80 Ah
Self-seeking Automatic Range
90-240 volt AC
HYDRAULIC SYSTEM
MAXIMUM PRESSURE
RESERVOIR CAPACITY
250 bar
1 litre
FUNCTION SPEEDS (APPROX.)
RAISE
LOWER
APPROX. NO. OF LIFTS (FULLY CHARGED WITH SWL)
8 seconds
7 seconds
300
OVERALL LENGTH (STOWED)
OVERALL HEIGHT (STOWED)
OVERALL WIDTH (STOWED)
1.2 metres
1.65 metres
0.70 metres
OVERALL MASS (GVW)
MAXIMUM WHEEL LOAD
225kg
350kg
Page 6 of 23POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)

OPERATING SITE
SECTION TWO | SPECIFICATION
Select a site for the machine from which the platform will be able to reach the required work area. A visual
inspection of the operating site should be made before setting up the machine. Particular attention should be
given to the following items:
1. GROUND CONDITIONS
Ensure that the ground on which the POP-UP PUSH 6 ECO is to operate is capable of supporting the weight
of the machine (including the weight of the operator plus tools and materials). Be aware of oors or coverings
(e.g. manhole covers) that may not withstand point loadings exerted by the castor wheels.
2. GROUND FLATNESS
The POP-UP PUSH 6 ECO must only be operated on at (0o chassis inclination) and level surfaces. The
allowable chassis inclination is indicated when the bubble spirit level is within the marked limits. All castor
wheels must be in full contact with the ground.
3. OBSTRUCTIONS
Ensure that adequate clearance is available above and around the platform before elevation.
NOISE AND VIBRATION
Noise levels emitted from this machine do not exceed 70 dB(A). Hand and arm vibration experienced on
this machine does not exceed 2.5 m/s2.
LIMITATIONS
The POP-UP PUSH 6 ECO is intended for use INDOORS ONLY, and must not be used outdoors as wind forces
may make it unstable.
This machine has been tested for Electromagnetic Compatibility (EMC) however, operation near to high
powered radio transmission apparatus (e.g. radar, antennae) or within strong electrical and/or magnetic elds
may aect some features of this product.
WARNING: THIS MACHINE HAS NOT BEEN DESIGNED FOR OPERATION WITHIN POTENTIALLY
EXPLOSIVE ATMOSPHERES
WARNING: THIS MACHINE IS NOT ELECTRICALLY INSULATED AND MUST NEVER BE USED FOR LIVE
LINE WORKING. DEATH OR SERIOUS INJURY CAN RESULT FROM CONTACT WITH, OR INADEQUATE
CLEARANCE FROM, ELECTRICAL CONDUCTORS
Page 7 of 23POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)

SAFETY RULES
SECTION THREE | SAFETY RULES
NEVER Exceed the rated capacity (Safe Working Load or SWL) of the platform (240kgs).
Use the POP-UP PUSH 6 ECO as a ‘crane’ (e.g. by suspending loads from beneath the platform).
Make any attempt to increase the working height or outreach of the platform (e.g. by use of
stepladders in the platform).
Operate the POP-UP PUSH 6 ECO if the bubble spirit level is outside the marked limits.
Manoeuvre the POP-UP PUSH 6 ECO on an inclined surface otherwise it may become uncontrollable.
Manoeuvre the POP-UP PUSH 6 ECO whilst in its elevated position, as this may cause instability.
Manoeuvre the POP-UP PUSH 6 ECO with a person or materials in the platform.
Enter or exit the platform unless the platform is in the lowered and transport position.
Apply external side loads to the platform or scissor structure.
Allow persons at ground level to operate the controls whilst the platform is occupied (unless in an
emergency situation).
Operate the POP-UP PUSH 6 ECO outdoors, it has not been designed to withstand wind loading.
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
ALWAYS Undertake the daily checks recommended in this handbook p.9 prior to operation of the machine.
Ensure that all instructions, Safe Working Load and warning decals are clean and legible.
Ensure the POP-UP PUSH 6 ECO is positioned on adequate ground to support the weight of the
machine.
Ensure that sucient clearance is given if working near to live conductors.
Ensure that the castor brakes have been locked before elevating the work platform.
Ensure that the platform does not come into contact with xed objects (e.g. buildings, etc.) or moving
objects (e.g. vehicles, other plant equipment, etc.).
Replace any removable guard rails (e.g. close and lock access gate) to enable full edge protection to
be maintained.
Ensure that the load is evenly distributed within the platform.
Ensure the safety of persons that may enter the area around the platform (e.g. cordon o areas to
prevent persons entering the danger area).
Ensure hands are kept within the connes of the handrail when operating the machine.
Ensure that the area below the platform is clear of obstruction before lowering.
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
Page 8 of 23POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)
NEVER

DAILY CHECKS
SECTION FOUR | OPERATING INSTRUCTIONS
Prior to operating the POP-UP PUSH 6 ECO, the following items must be checked:
STRUCTURE (E.G. DAMAGE, CRACKS, CORROSION,
ABRASION, WELDS, CONNECTIONS)
PLATFORM (FLOOR, RAILS, HANDRAIL SOCKETS)
CASTORS (SMOOTH MOVEMENT, DAMAGE)
BRAKES
OIL LEAKS
BATTERY CONDITION
RAISE AND LOWER FUNCTIONS
EMERGENCY STOP AND LOWERING FUNCTIONS
SAFETY DECALS AND TRAINING CARD
If the above checks reveal malfunctions or damage on the POP-UP PUSH 6 ECO, then the machine
must not be used until the problem is rectied.
If in doubt, seek further assistance from the manufacturer.
If safety decals are no longer legible or missing, please contact the manufacturer for replacements.
The Daily Checks page in Section 7 of this handbook may be photocopied to provide an aide memoir for
operators when undertaking these important checks.
MANOEUVRING THE PLATFORM
Manoeuvre the platform into position using both hands on the guard rails
at gate end. Take care to avoid trapping hands or feet whilst manoeuvring
the platform.
Never manoeuvre the POP-UP PUSH 6 ECO whilst it is elevated or with a
person, tools or materials in the platform.
WARNING: BEFORE OPERATING YOUR POP-UP PUSH 6 ECO, YOU MUST ENSURE THAT YOU HAVE BEEN
ADEQUATELY TRAINED IN ITS USE AND HAVE FULLY READ AND UNDERSTOOD THIS OPERATOR’S
HANDBOOK, PAYING PARTICULAR ATTENTION TO SECTION 3 - SAFETY RULES
Page 9 of 23POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)

ENGAGING THE BRAKES
SECTION FOUR | OPERATING INSTRUCTIONS
Always ensure that both castor brakes are locked before elevating the work platform to prevent any
inadvertent movement.
The brakes are engaged by pushing down on the lever and pulling up the lever as shown.
Page 10 of 23POP-UP PUSH 6 ECO OPERATOR’S SAFETY AND MAINTENANCE HANDBOOK (v.0.4.0409)
BRAKE OFF BRAKE ON
POWERING UP
The POP-UP PUSH 6 ECO is provided with a key operated switch which is used to isolate the battery and
therefore the electrical system, preventing unauthorised use. To enable the electrical system, rst turn
the Maintenance Isolater switch to position ‘1’ (ON) and insert the key into the emergency stop button.
Turn clockwise to release the button. Ensure that when the machine is not in use, the emergency stop
button is depressed and the key is removed. Turn the Maintenance Isolator switch to position ‘0’ (OFF).
