POP UP IQ LIFT PRO10 Operating instructions

PUSH-AROUND MOBILE ELEVATING WORK PLATFORM
PRO 10
SN: E21-15001+
SUPO-759
REV C
[phone] [email protected]o.uk popupproducts.co.uk
MAINTENANCE & TROUBLESHOOTING
HANDBOOK

NOTES
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
2

NOTES
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
3

FOREWARD
Original instructions are written in English.
The purpose of this Maintenance & Troubleshooting Handbook is to provide qualied service personnel
with information for servicing and maintaining the IQ Lift. All information in this handbook must be read and
understood before any attempt is made to service this machine.
The Operation & Safety Handbook is considered a part of the work platform and contains instructions and
operating procedures essential to properly and safely operate the IQ Lift. Users must read and understand all
information in the Operation & Safety Handbook before operation.
THE OPERATION AND SAFETY HANDBOOK MUST BE
READ AND UNDERSTOOD PRIOR TO OPERATING THE MACHINE.
• The user/operator should not accept operating responsibility until the handbook has been read and
understood as well as having operated the machine under supervision of an experienced and qualied
operator.
• Because the manufacturer has no direct control over machine application and operation, proper safety
practices are the responsibility of the user and all operating personnel.
ANY MODIFICATION OF THIS MACHINE WITHOUT THE EXPRESS
WRITTEN CONSENT OF THE MANUFACTUER IS PROHIBITED.
If there is a question about application, operation, and/or maintenance, contact:
Pop Up Products Limited
Unit E1, Tenth Avenue
Deeside Industrial Park
Deeside
Flintshire
CH5 2UA
Tel. [phone]
E-mail - [email protected]
Web - popupproducts.co.uk
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
4

Serial Number Location
When contacting Pop Up Products for service or parts information, be sure to include the MODEL and SERIAL
NUMBER. The serial number plate is located in the rear right wheel well. Should the nameplate be missing, there
is an additional serial number label located inside the chassis.
FOREWORD
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
5

TABLE OF CONTENTS
NOTES............................................................................................................................................................................................. 2
FOREWARD .................................................................................................................................................................................. 4
TABLE OF CONTENTS............................................................................................................................................................... 6
INDEX OF FIGURES ....................................................................................................................................................................7
SECTION 1 | SAFETY .................................................................................................................................................................. 8
1.1 | SAFETY SYMBOLS...................................................................................................................................................................................................................8
1.2 | GENERAL RULES AND PRECAUTIONS............................................................................................................................................................8
SECTION 2 | MAINTENANCE................................................................................................................................................ 10
2.1 | CHARGING THE BATTERY...........................................................................................................................................................................................10
2.2 | BATTERY MAINTENANCE AGM BATTERIES.............................................................................................................................................12
2.3 | BATTERY MAINTENANCE WET CELL BATTERIES ..............................................................................................................................12
2.4 | LUBRICATION.........................................................................................................................................................................................................................13
2.5 | COMPONENTS REQUIRING ADJUSTMENT.............................................................................................................................................13
2.6 | EXAMINATION, REPAIR, REPLACEMENT OF LIMITED LIFE COMPONENTS .........................................................13
2.7 | SAFETY DEVICES AND SYSTEMS REQUIRING CHECKS .............................................................................................................13
2.8 | STORAGE ...................................................................................................................................................................................................................................13
2.9 | MAJOR ALTERATIONS OR REPAIRS ...............................................................................................................................................................13
SECTION 3 | INSPECTION ......................................................................................................................................................14
3.1 | INSPECTION & MAINTENANCE SCHEDULE .............................................................................................................................................14
3.2 | INSPECTION CHECKLIST: PRE-DELIVERY/ANNUAL/FREQUENT......................................................................................16
3.3 | INSPECTION CHECKLIST: PRE-START...........................................................................................................................................................17
SECTION 4 | TECHNICAL REFERENCES...........................................................................................................................18
4.1 | HYDRAULIC SCHEMATIC.............................................................................................................................................................................................18
4.2 | ELECTRICAL SCHEMATIC......................................................................................................................................................................................... 20
4.3 | WIRING DIAGRAM ...........................................................................................................................................................................................................22
4.4 | EZLIFT DIAGNOSTICS...................................................................................................................................................................................................24
4.5 | TROUBLESHOOTING FLOWCHART: POWER......................................................................................................................................26
4.6 | TROUBLESHOOTING FLOWCHART: ELEVATING ............................................................................................................................28
4.7 | TROUBLESHOOTING FLOWCHART: LOWERING........................................................................................................................... 30
SECTION 5 | PARTS.................................................................................................................................................................. 32
5.1 | SELECTED REPLACEMENT PARTS....................................................................................................................................................................32
SECTION 6 | INSPECTION AND REPAIR LOG ................................................................................................................ 34
6.1 | INSPECTION AND REPAIR LOG .......................................................................................................................................................................... 34
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
6

INDEX OF FIGURES
FIGURE 1: Maintenance Lock Stowed..............................................................................................................................................................................9
FIGURE 2: Maintenance Lock In Use................................................................................................................................................................................9
FIGURE 3: Battery Charge Location ..................................................................................................................................................................................11
FIGURE 4: Battery Location.......................................................................................................................................................................................................12
FIGURE 5: Cylinder Grease Points .......................................................................................................................................................................................13
FIGURE 6: Control Tray Access................................................................................................................................................................................................15
FIGURE 7: Side Access.....................................................................................................................................................................................................................15
FIGURE 8: EZcal Diagnostic Connection ....................................................................................................................................................................24
FIGURE 9: Diagnostic LED Location.................................................................................................................................................................................24
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
7

FAILURE TO FOLLOW THIS WARNING WILL
CAUSE DEATH OR PERSONAL INJURY.
“DANGER” indicates an imminently hazardous
situation, which, if not avoided, will result in death
or serious injury.
FAILURE TO FOLLOW THIS WARNING MAY
CAUSE DEATH OR PERSONAL INJURY.
“WARNING” indicates a potentially hazardous
situation, which, if not avoided, could result in
death or serious injury
FAILURE TO FOLLOW THIS WARNING MAY
CAUSE INJURY OR DAMAGE TO EQUIPMENT.
“CAUTION” indicates a potentially hazardous
situation which, if not avoided, could result in
minor or moderate injury or damage to equipment
CAUTION
DANGER
WARNING
SECTION 1 | SAFETY
1.1 | SAFETY SYMBOLS
Warnings and instructions that have a direct impact on safety are identied with the following signals:
1.2 | GENERAL RULES AND PRECAUTIONS
An operator of any type of work platform is subject to certain hazards that cannot be protected by mechanical
means. It is therefore essential that operators be competent, careful, physically and mentally t, and thoroughly
trained in safe operation of this machine. It is the responsibility of the owner to instruct operators with the
safety requirements made not only in this handbook, but by the various safety bodies in your area, as well as
additional requirements set forth by relevant MEWP standards. If you come across a situation that you think
might be unsafe, stop the platform and request further information from qualied sources before proceeding.
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
8

FAILURE TO FOLLOW THIS WARNING WILL
CAUSE DEATH OR PERSONAL INJURY.
“DANGER” indicates an imminently hazardous
situation, which, if not avoided, will result in death
or serious injury.
FAILURE TO FOLLOW THIS WARNING MAY
CAUSE DEATH OR PERSONAL INJURY.
“WARNING” indicates a potentially hazardous
situation, which, if not avoided, could result in
death or serious injury
FAILURE TO FOLLOW THIS WARNING MAY
CAUSE INJURY OR DAMAGE TO EQUIPMENT.
“CAUTION” indicates a potentially hazardous
situation which, if not avoided, could result in
minor or moderate injury or damage to equipment
CAUTION
DANGER
WARNING
SECTION 1 | SAFETY
NEVER REACH BETWEEN SCISSORS LINKS OR PROP UP PLATFORM.
Maintenance Lock
The maintenance lock must be placed into position whenever the machine is being serviced in a partially raised
position. Serious injury and/or death could result if maintenance lock is not used properly.
FAILURE TO COMPLY WITH THE LISTED SAFETY PRECAUTIONS MAY
RESULT IN MACHINE DAMAGE, PERSONNEL INJURY, OR DEATH.
Other Guidelines
ALWAYS observe and obey all warnings and cautions on machine and in handbook.
ALWAYS shut o all power controls before making any adjustments, lubricating or performing any other
maintenance.
ALWAYS disconnect battery during replacement of electrical components.
ALWAYS remove all rings, watches, and jewelry when performing any maintenance.
ALWAYS keep oil, grease, water, etc. wiped from standing surfaces and handholds.
ALWAYS keep all support equipment and attachments stowed in their proper place.
ALWAYS use only approved nonammable cleaning solvents
NEVER work under an elevated platform until maintenance locks have been engaged.
NEVER wear long hair unrestrained or loose tting clothing and neckties which may become caught on or
entangled in equipment.
After maintenance, inspect the machine as described in the Pre-Delivery Inspection Checklist.
FIGURE 1: Maintenance Lock Stowed FIGURE 2: Maintenance Lock In Use
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
9

SECTION 2 | MAINTENANCE
2.1 | CHARGING THE BATTERY
This unit is equipped with either a deep cycle 12-volt AGM maintenance-free battery or a deep cycle Group 27
battery.
Batteries should be fully charged after each use. Opportunity charging can be done but the batteries should be
fully charged at least every other day if they are used daily. Charge in a ventilated area as gases may be released
through the pressure relief valve if the batteries are excessively over-charged.
NOTE: The surrounding temperature greatly aects the power reserve within a battery.
EXAMPLE: A battery that is 100% charged at 27°C drops to 65% at 0°C. At -18°C, this battery will drop to 40%
eciency.
BATTERIES GENERATE EXPLOSIVE GASES. KEEP SPARKS
AND FLAME AWAY FROM BATTERIES. DO NOT SMOKE WHILE CHARGING.
To charge the battery:
• Park the machine on a level surface.
• Plug charger into AC outlet until charged.
• For best battery life, leave charger plugged in until machine will be used again. The charger will maintain the
battery charge.
DO NOT OPERATE UNIT WHILE CHARGING.
NEVER ADD ACID TO BATTERY!
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
10

SECTION 2 | MAINTENANCE
Battery Charge Light Display
This display indicates that the power is on but there is no
connection to a battery. The charger must see approximately ve
(5) volts on a battery to deliver D/C current.
This display indicates that power is on and that both outputs are
delivering D/C current to the batteries.
This display indicates that power is on and that the output is
nished charging and is in a oat maintenance model.
FIGURE 3: Battery Charge Location
POWER BATTERY 1 STATUS
CHARGING READY
Green LED
(ON)
Red LED
(OFF)
Green LED
(ON)
Green LED
(ON)
Red LED
(ON)
Green LED
(OFF)
Green LED
(ON)
Red LED
(OFF)
Green LED
(ON)
POWER BATTERY 1 STATUS
CHARGING READY
POWER BATTERY 1 STATUS
CHARGING READY
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
11

SECTION 2 | MAINTENANCE
2.2 | BATTERY MAINTENANCE AGM BATTERIES
Battery cycle life will vary signicantly depending on the depth of discharge. The deeper the depth of discharge
the fewer cycles a battery will deliver. Conversely, the shallower the depth of discharge the more cycles a battery
will deliver. To optimize the health of your battery, limit discharge to 80%.
The performance and life of a battery will vary with application, usage, temperature and depth of discharge.
AGM batteries tend to deliver higher than their rated capacity (up to 10-15% higher) for -30 cycles until they are
“broken in” and settle at their rated capacity.
Operating batteries above 27°C will yield runtimes above the rated capacity and operating batteries below
27°C will yield runtimes below the rated capacity. Cold temperatures can signicantly reduce battery capacity.
Although higher temperatures increase the battery capacity they also accelerate corrosion and reduce overall
battery life.
2.3 | BATTERY MAINTENANCE WET CELL BATTERIES
If this unit is equipped with a deep cycle 12-volt Group 27 battery, the care and maintenance of your battery has
much to do with how well this unit functions. Battery wiring and water level should be checked monthly. Do not
overll. When the cells are too full, uid will seep out when charging. The solution is at its proper strength when
the battery is manufactured. Use distilled water and keep uid up to proper level. When required, water should
be added to battery after charging, unless water level is below the plates.
• Slide cabinet open to access battery.
• Remove battery caps and check uid level.
• Fill each cell (if needed) to split ring with distilled water.
• Reinstall caps.
• Wash all dirt, debris, acid, etc., o battery whenever corrosion is detected. Use a solution of 5ml baking soda
per 0.95 liters of warm water.
• Coat terminals with a commercially available coating.
• Close cabinet and latch in place.
FIGURE 4: Battery Location
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
12

SECTION 2 | MAINTENANCE
2.4 | LUBRICATION
Item Specication Frequency of Lubrication
Clyinder Standard Machine Grease Monthly
2.5 | COMPONENTS REQUIRING ADJUSTMENT
Under normal use, no components should require adjustment. Contact the manufacturer if adjustments are
required.
2.6 | EXAMINATION, REPAIR, REPLACEMENT OF LIMITED LIFE COMPONENTS
With proper use, regular battery charging, and regular inspection, there are no limited life components that
require routine replacement.
2.7 | SAFETY DEVICES AND SYSTEMS REQUIRING CHECKS
Check safety functions as part of daily inspection:
Refer to the Pre-Start Inspection Checklist included in this and in the Operations & Safety Handbook.
• Emergency Stop
• Enable Buttons
• Emergency Lowering
• Automatic Brakes
• Tilt Interlock
Check that the machine will not elevate if overloaded as part of routine inspection.
(Refer to the Pre-delivery/Annual Checklist included in this handbook.)
2.8 | STORAGE
After periods of storage, exposure to extremes of ambient conditions-heat, cold, moisture, dust etc. inspect
the machine. Batteries will need to be charged. Refer to the Pre-Delivery/ Frequent Inspection Checklist in this
handbook.
2.9 | MAJOR ALTERATIONS OR REPAIRS
Any alterations must be approved by the manufacturer. Major repairs, which aect the stability, strength, or
performance of the machine must also be approved by the manufacturer, recorded, and include machine
inspection and testing. Never attach pipe racks, material lifting devices, or make any other alteration that is not
part of the intended design of the machine.

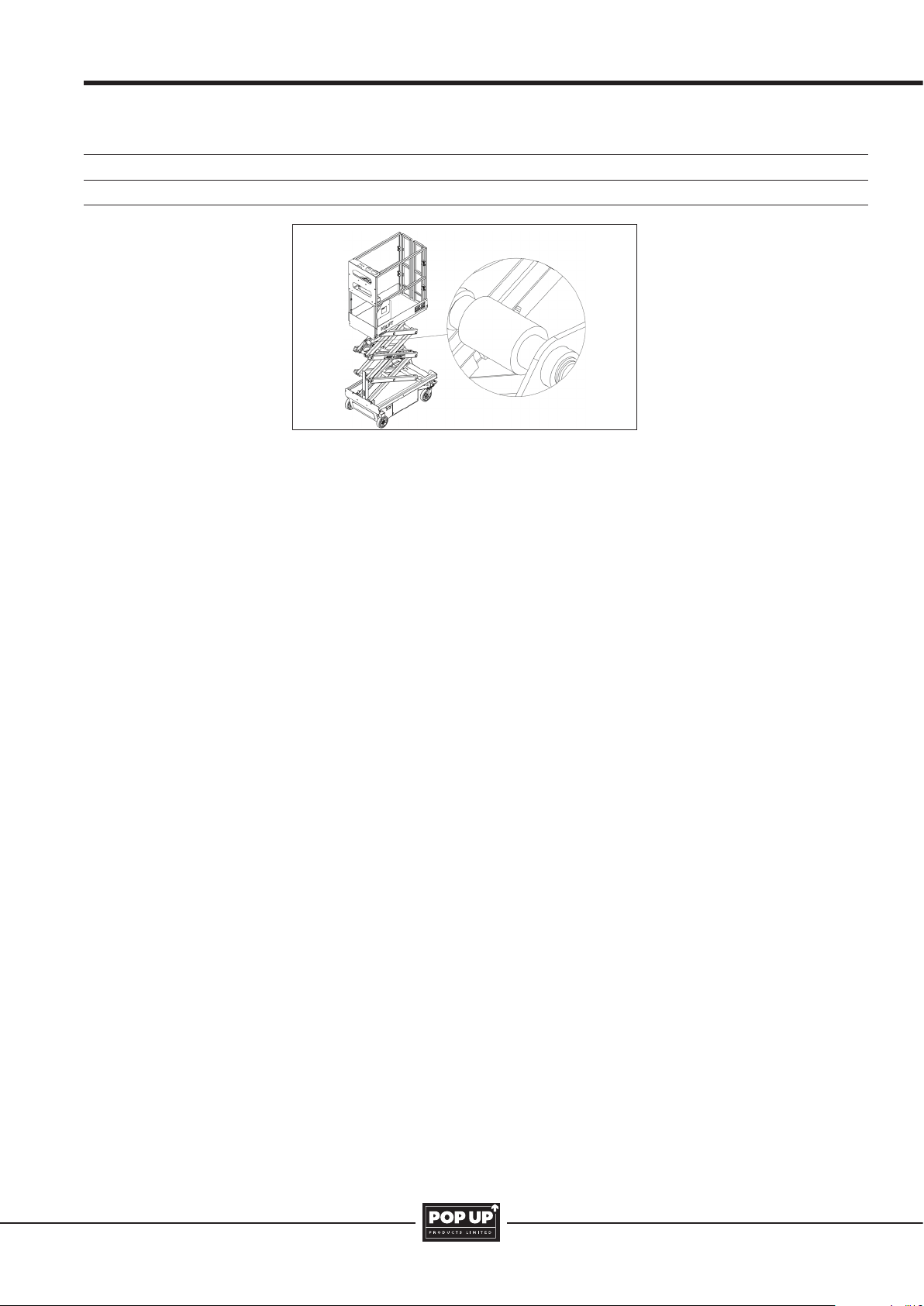

FIGURE 5: Cylinder Grease Points
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
13

SECTION 3 | INSPECTION
3.1 | INSPECTION & MAINTENANCE SCHEDULE
Regular inspection and conscientious maintenance is important to ecient economical operation of this
machine. It will help to assure that equipment will perform satisfactorily with a minimum of service and repair.
Frequency and extent of periodic examinations may depend on national regulations.
Inspection/Maintenance Frequency
Pre-Start Inspection Daily
Battery (Wet Cell Batteries Only) Monthly
Cylinder Lubrication Monthly
Check Hydraulic Fluid Level Monthly
Pre-Delivery Inspection Annually (or as needed)
Contact the manufacturer for additional information After major alterations or repairs which aect stability,
strength or performance.
FAILURE TO PERFORM INSPECTIONS AND PREVENTATIVE MAINTENANCE AT RECOMMENDED
INTERVALS MAY RESULT IN THE UNIT BEING OPERATED WITH A DEFECT THAT MAY RESULT IN INJURY
OR DEATH OF THE OPERATOR.
The following inspection checklists are required and included in this handbook:
• Pre-Start (Required before operation at each work shift)
• Pre-Delivery/Annual (Required at intervals not more than twelve months. This checklist may also be used
when a Frequent (every 3 months ) Inspection is needed, or after periods of storage.
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
14

SECTION 3 | INSPECTION

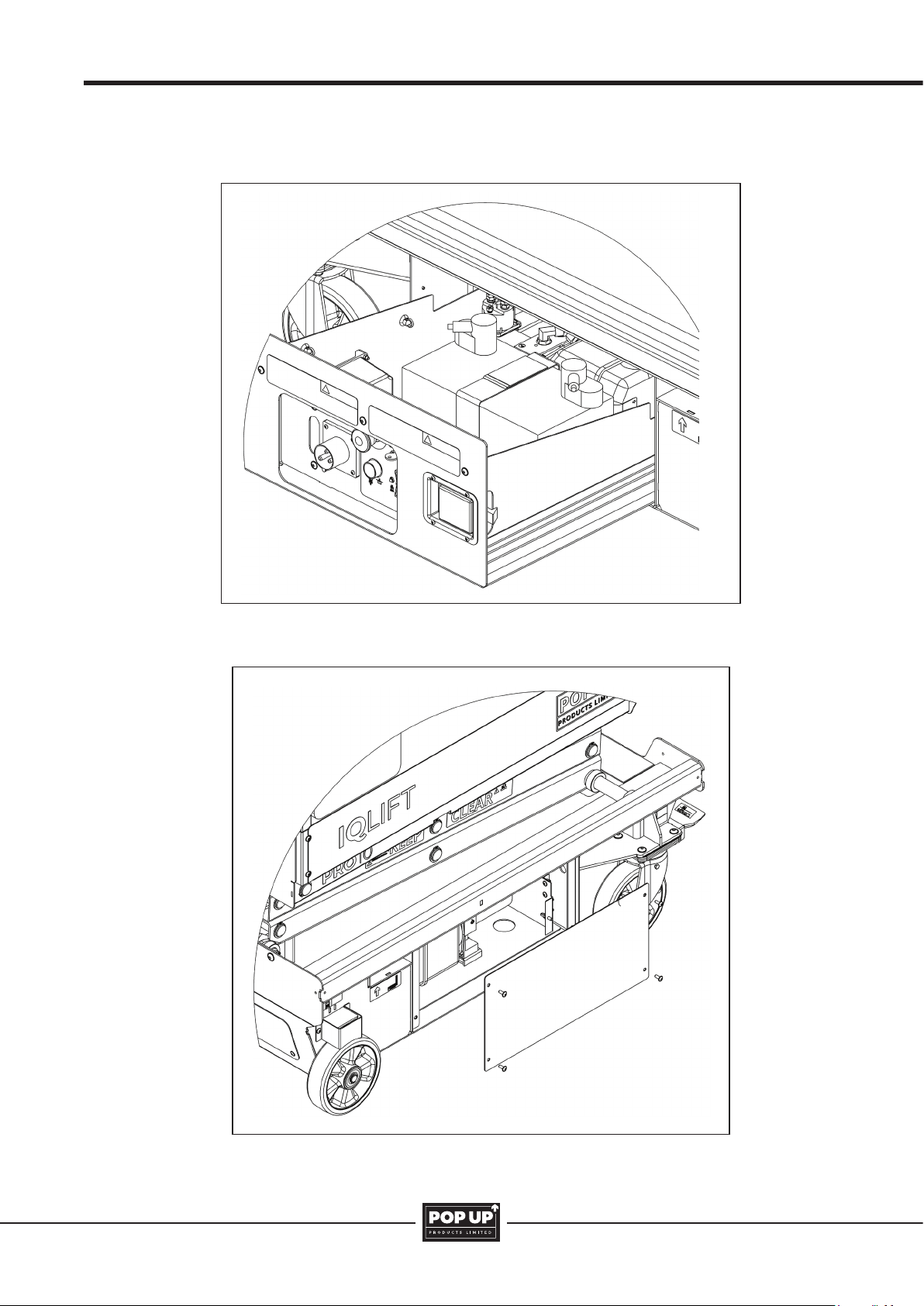

MAINTENANCE ACCESS
The control tray can be opened for routine inspection (checking hydraulic uid level, batteries, etc.) . If
additional access is needed, the side panel may be removed.
FIGURE 6: Control Tray Access
FIGURE 7: Side Access
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
15

SECTION 3 | INSPECTION
3.2 | INSPECTION CHECKLIST: PRE-DELIVERY/ANNUAL/FREQUENT
PLEASE DUPLICATE THIS PAGE AS NEEDED FOR YOUR OWN USE.
Model: Serial Number:
• Check each item listed below.
• Use proper operating, service, and maintenance handbook for specic information and settings
• If an item is found to be unacceptable make the necessary repairs and check the “repaired” box.
• When all items are “acceptable”, the unit is ready for service.
• If an item is found to be unacceptable, make the necessary repairs and check the “repaired” box. When all
items are “acceptable,” the unit is ready for service.
Y — Yes/Acceptable N — No/Unacceptable R — Repaired
Date: Inspected by:
MOBILE ELEVATING WORK PLATFORMS SHALL BE INSPECTED, SERVICED,
AND ADJUSTED TO MANUFACTURER’S REQUIREMENTS BY A QUALIFIED
MECHANIC PRIOR TO EACH SALE, LEASE, OR RENTAL, AND ANNUALLY,
OR AS REQUIRED BY NATIONAL REGULATIONS.
BASE: Y N R PLATFORM: Y N R
Overall visual check: no deterioration
(corrosion, cracking, abrasion, etc.) □ □ □ Overall visual check: no deterioration
(corrosion, cracking, abrasion, etc.) □ □ □
Inspect slide tracks for damage □ □ □ All rails in place/secure □ □ □
Wheels: Bolts/Nuts Tight □ □ □ No bent rails □ □ □
Pump Secure □ □ □ No broken welds □ □ □
Battery Hold Downs Secure □ □ □ Entrance gate closes freely □ □ □
Battery Fully Charged
Check battery Voltage: <12.5V, charge. □ □ □ Anchorage point and the supporting platform oor are secure and not deformed. □ □ □
Hydraulic Oil Level □ □ □ Cables in place/secure □ □ □
Check all hydraulic hoses for leaks □ □ □ FUNCTIONS: Y N R
Check all hydraulic ttings for leaks □ □ □ Elevate/Lower Operational (Upper & Lower Ctl) □ □ □
Front and Rear wheels rotate freely □ □ □ Key Switch Breaks Circuits □ □ □
Automatic Brakes: Operational □ □ □ Emergency Stop Breaks Circuits (Upper & Lower Ctl) □ □ □
Parking Brakes: Operational □ □ □ Emergency Down Operational □ □ □
Inspect Springs & Sensor Behind Cover □ □ □ Motion Alarms Functional □ □ □
All Shields/Guards in place □ □ □
When beginning to elevate, overload light and alarm
activate. Then, if not overloaded, allows elevation to
continue, and light and alarm stop.
SCISSORS Y N R When overloaded more than 120% of the rated
capacity, platform stops elevating. □ □ □
Overall visual check: no deterioration
(corrosion, cracking, abrasion, etc.), □ □ □ OTHER: Y N R
No Broken Welds or Bent Beam Members □ □ □ Switches & contact blocks secure □ □ □
Ret. Rings Secure on Pivots □ □ □ Tight on terminals (no loose wiring) □ □ □
Maintenance Lock: In storage location □ □ □ Battery Charger Secure / Operational □ □ □
All rollers turn freely □ □ □ Decals Legibile & Properly Placed □ □ □
Correct capacity noted □ □ □
Operator / Service Handbook Included □ □ □
COMMENTS:
CAUTION
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
16

Y-Yes/Acceptable N-No/Unacceptable R-Repaired Y N R
VISUAL INSPECTIONS
Check that there are no damaged, dented, or bent structural members □ □ □
There are no loose or missing parts. □ □ □
Check that warning and instructional labels are legible and secure. □ □ □
Check the platform rails and safety gate for damage. □ □ □
Check that platform oor is clean to prevent slip, fall hazards □ □ □
Platform and base controls are not missing, damaged, frayed, or disconnected. □ □ □
Hydraulic hoses are not torn or loose, and there are no leaks. Check that hoses and cables have
no worn areas or chang. □ □ □
Check the tyres for damage. □ □ □
Check that all snap rings are secure in grooves on pivot pins. □ □ □
FUNCTIONAL TESTS Y N R
Gate closes automatically □ □ □
Platform Controls: Check all switches and push buttons for proper operation.
Emergency Stop (Stops all movement) □ □ □
Up/Down Controls (Elevates, Lowers, Enable button must be pressed). □ □ □
Base Controls: Check all switches and push buttons for proper operation.
Emergency Stop (Stops all movement) □ □ □
Key Switch (Selects Platform Control, Ground Control, or O). □ □ □
Alarm (Not damaged, sounds for descent). □ □ □
Up/Down Rocker Switch (Elevates/Lowers, Enable button must be pressed). □ □ □
Lowering Delay (Delay when lowering, re-activate descent switch to continue) □ □ □
Emergency Lowering functions □ □ □
Machine will not elevate when on a slope greater than 1.5⁰ □ □ □
Wheels: Front and rear wheels rotate freely. □ □ □
Automatic brakes engage and hold when platform is elevated. □ □ □
Parking Brakes (Swivel Castors) engage and hold □ □ □
COMMENTS:
Date: Inspected by:
Model: Serial Number:
• Keep inspection records up-to-date.
• Record and report all discrepancies to your supervisor.
• A dirty machine cannot be properly inspected.
THIS CHECKLIST MUST BE USED AT THE BEGINNING OF EACH SHIFT OR
AFTER EVERY SIX TO EIGHT HOURS OF USE. FAILURE TO DO SO COULD
AFFECT THE SAFETY OF THE OPERATOR.
Pre-start Inspection (Push-Around Models)
WARNING
3.3 | INSPECTION CHECKLIST: PRE-START
PLEASE DUPLICATE THIS PAGE AS NEEDED FOR YOUR OWN USE.
SECTION 3 | INSPECTION
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
17

SECTION 4 | TECHNICAL REFERENCES
4.1 | HYDRAULIC SCHEMATIC
M
SET DURING ASSEMBLY
APPROX. 1800 PSI
TEST PORT
HYDRAULIC PUMP
ASSEMBLY
0.627 CC/REV
0.038 IN^3/REV
PRESSURE RELIEF
TEST PORT
SAE ORM #4
HEX SOCKET 3/16
1.0GPM
3.79 LPM
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
B-SIZE
ORIGINALLY DRAWN BY:
Pop Up Products Limited
DATE:
HYD SCH,IQ LIFT
SCALE:1:1
DO NOT SCALE DRAWING
THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY TO THE MANUFACTURER AND IS LOANED IN EXPECTATION THAT IT WILL BE KEPT CONFIDENTIAL AND USED ONLY FOR THE PURPOSE FOR WHICH IT IS LOANED.
SPEC/MATL: Schematic
DRAWING #: HS-177-20-001-51
REV
DESCRIPTION OF CHANGE
DATE REV BY
A INITIAL RELEASE
06/21/2018
DJS
ECO #
2017-0014
SHEET 1 OF 1
WEIGHT: APPROX. 0.00 LB.
A
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
18

SECTION 4 | TECHNICAL REFERENCES
M
SET DURING ASSEMBLY
APPROX. 1800 PSI
TEST PORT
HYDRAULIC PUMP
ASSEMBLY
0.627 CC/REV
0.038 IN^3/REV
PRESSURE RELIEF
TEST PORT
SAE ORM #4
HEX SOCKET 3/16
1.0GPM
3.79 LPM
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
B-SIZE
ORIGINALLY DRAWN BY:
Pop Up Products Limited
DATE:
HYD SCH,IQ LIFT
SCALE:1:1
DO NOT SCALE DRAWING
THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY TO THE MANUFACTURER AND IS LOANED IN EXPECTATION THAT IT WILL BE KEPT CONFIDENTIAL AND USED ONLY FOR THE PURPOSE FOR WHICH IT IS LOANED.
SPEC/MATL: Schematic
DRAWING #: HS-177-20-001-51
REV
DESCRIPTION OF CHANGE
DATE REV BY
A INITIAL RELEASE
06/21/2018
DJS
ECO #
2017-0014
SHEET 1 OF 1
WEIGHT: APPROX. 0.00 LB.
A
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
19

SECTION 4 | TECHNICAL REFERENCES
4.2 | ELECTRICAL SCHEMATIC
P3-4P3-3P3-1
P3-2
P2-1 P2-2 P2-3 P2-4 P2-5 P2-6 P2-7 P2-8 P2-9
EZ LIFT 120
P1-12P1-11P1-10 P1-9P1-8P1-7P1-6P1-5P1-4P1-3P1-2P1-1
M B-
B+
+
-
M
+
-
UP COIL
DOWN COIL
LOW BATT
(UPR CTL)
POWER ON
(LWR CTL)
OL
(UPR CTL)
1
4
2
3
-
+
FUSE 20A
FUSE 250A
LWR E-STOP
LWR ENABLE
OFF
OFF
LWR UP/DN
OFF
OFF
UPR UP/DN
A-8
A-2
A-1
G-5
A-5
B-7
B-3
A-6 A-7
G-3 F-3
G-4
F-4
A-3 A-4
B-9
B-1
G-2
F-2
E-3
E-2
E-4
E-1
A-10
A-9
B-4
G-6
F-6
B-2 B-5 B-6 B-8
D-4
C-4
D-3
C-3
D-2
C-2
C-1
D-1
TAB 1
G-1
F-1
TAB 2
F-5
H-1
J-1
H-2
J-2
F-7
G-7
OL
(LWR CTL)
KEY SW
UPR E-STOP
F-8
G-8
UPR ENABLE
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
B-SIZE
ORIGINALLY DRAWN BY:
Pop Up Products Limited
DATE:
ELEC SCH,IQ LIFT
SCALE:1:1
DO NOT SCALE DRAWING
THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY TO THE MANUFACTURER AND IS LOANED IN EXPECTATION THAT IT WILL BE KEPT CONFIDENTIAL AND USED ONLY FOR THE PURPOSE FOR WHICH IT IS LOANED.
SPEC/MATL: Schematic
DRAWING #: WS-177-20-001-51
REV
DESCRIPTION OF CHANGE
DATE REV BY
A Initial Release
06/08/2018
GLH
ECO #
2017-0014
SHEET 1 OF 1
WEIGHT: APPROX. 0.00 LB.
A
MAINTENANCE & TROUBLESHOOTING
IQ LIFT
SUPO-759
REV C
20
