Porter-Cable C2004 User manual

Française : Page 19
Español: Página 39
C2004
Air Compressor
Compresor de aire
Compresseur d’air
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.deltaportercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS
DE SERVICIO Y PÓLIZA DE GARANTÍA.
LÉASE ESTE INSTRUCTIVO
ANTES DE USAR EL PRODUCTO.
Maintenance-free pump
La pompe sans entretien
La bomba sin mantenimiento

2 - ENG
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an
imminently hazardous situation which,
if not avoided, will result in death or
serious injury.
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Indicates a practice
not related to personal injury which,
if not avoided, may result in property
damage.
IMPORTANT SAFETY INSTRUCTIONS
This product contains chemicals known to the State of California
to cause cancer, and birth defects or other reproductive harm. Wash hands after
handling.
Some dust contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm such as asbestos and
lead in lead based paint.
To reduce the risk of injury, read the instruction manual.
SAVE THESE INSTRUCTIONS
HAZARD
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Itisnormalforelectricalcon-
tacts within the motor and
pressure switch to spark.
• Alwaysoperatethecompressorina
well ventilated area free of combustible
materials, gasoline, or solvent vapors.
• Ifelectricalsparksfromcom-
pressor come into contact with
flammable vapors, they may
ignite, causing fire or explosion.
• Ifsprayingflammablematerials,
locate compressor at least 20' (6.1 m)
away from spray area. An additional
length of air hose may be required.
• Storeflammablematerialsinasecure
location away from compressor.
• Restrictinganyofthecom-
pressor ventilation openings
will cause serious overheat-
ing and could cause fire.
• Neverplaceobjectsagainst
or on top of compressor.
• Operatecompressorinanopenareaat
least 12" (30.5 cm) away from any wall
or obstruction that would restrict the flow
of fresh air to the ventilation openings.
• Operatecompressorinaclean,dry
well ventilated area. Do not operate unit
in any confined area. Store indoors.

3 - ENG
• Unattendedoperationofthis
product could result in per-
sonal injury or property dam-
age. To reduce the risk of fire,
do not allow the compressor
to operate unattended.
• Alwaysremaininattendancewith
the product when it is operating.
• Alwaysturnoffandunplug
unit when not in use.
HAZARD
RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairdirectly
from your compressor is not
safe for breathing. The air
stream may contain carbon
monoxide, toxic vapors,
or solid particles from the
air tank. Breathing these
contaminants can cause
serious injury or death.
• Neveruseairobtaineddirectly
from the compressor to supply
air for human consumption. The
compressor is not equipped with
suitable filters and in-line safety
equipment for human consumption.
• Exposuretochemicalsindust
created by power sanding,
sawing, grinding, drilling,
and other construction
activities may be harmful.
• Sprayedmaterialssuchas
paint, paint solvents, paint
remover, insecticides, weed
killers, may contain harmful
vapors and poisons.
• Workinanareawithgoodcross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Always use certified
safety equipment: NIOSH/OSHA
respiratory protection or properly fit-
ting face mask designed for use
with your specific application.
HAZARD
RISK OF BURSTING
Air Tank: On February 26, 2002, the U.S. Consumer Product Safety Commission
published Release # 02-108 concerning air compressor tank safety:
Air compressor receiver tanks do not have an infinite life. Tank life is dependent
upon several factors, some of which include operating conditions, ambient condi-
tions, proper installations, field modifications, and the level of maintenance. The
exact effect of these factors on air receiver life is difficult to predict.
If proper maintenance procedures are not followed, internal corrosion to the
inner wall of the air receiver tank can cause the air tank to unexpectedly rupture
allowing pressurized air to suddenly and forcefully escape, posing risk of injury
to consumers.
Your compressor air tank must be removed from service by the end of the year
shown on your tank warning label.
The following conditions could lead to a weakening of the air tank, and result in a
violent air tank explosion:

4 - ENG
WHAT CAN HAPPEN HOW TO PREVENT IT
• Failuretoproperlydrain
condensed water from
air tank, causing rust and
thinning of the steel air tank.
• Drainairtankdailyoraftereachuse.
If air tank develops a leak, replace
it immediately with a new air tank
or replace the entire compressor.
• Modificationsorattempted
repairs to the air tank. • Neverdrillinto,weld,ormakeany modifications to the air tank or its
attachments. Never attempt to
repair a damaged or leaking air
tank. Replace with a new air tank.
• Unauthorizedmodifications
to the safety valve or any
other components which
control air tank pressure.
• Theairtankisdesignedtowithstand
specific operating pressures.
Never make adjustments or parts
substitutions to alter the factory
set operating pressures.
Attachments & accessories:
• Exceedingthepressurerating
of air tools, spray guns, air
operated accessories, tires, and
other inflatables can cause them
to explode or fly apart, and
could result in serious injury.
• Followtheequipmentmanufacturers
recommendation and never exceed
the maximum allowable pressure
rating of attachments. Never use
compressor to inflate small low
pressure objects such as children’s
toys, footballs, basketballs, etc.
Tires:
• Overinflationoftirescould
result in serious injury
and property damage.
• Useatirepressuregaugetocheck
the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and similar
equipment used to inflate tires can fill
small tires very rapidly. Adjust pressure
regulator on air supply to no more than
the rating of the tire pressure. Add air
in small increments and frequently use
the tire gauge to prevent over inflation.
HAZARD
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Yourcompressorispowered
by electricity. Like any other
electrically powered device,
if it is not used properly it
may cause electric shock.
• Neveroperatethecompressoroutdoors
when it is raining or in wet conditions.
• Neveroperatecompressorwith
protective covers removed or damaged.
• Repairsattemptedby
unqualified personnel can
result in serious injury or
death by electrocution.
• Anyelectricalwiringorrepairs
required on this product should be
performed by authorized service
center personnel in accordance with
national and local electrical codes.

5 - ENG
• Electrical Grounding:
Failure to provide adequate
grounding to this product
could result in serious injury
or death from electrocution.
Refer to Grounding
Instructions paragraph in
the Installation section.
• Makecertainthattheelectrical
circuit to which the compressor
is connected provides proper
electrical grounding, correct voltage
and adequate fuse protection.
HAZARD
RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairstreamcan
cause soft tissue damage to
exposed skin and can propel
dirt, chips, loose particles,
and small objects at high
speed, resulting in property
damage or personal injury.
• Alwayswearcertifiedsafetyequipment:
ANSI Z87.1 eye protection (CAN/
CSA Z94.3) with side shields
when using the compressor.
• Neverpointanynozzleorsprayer
toward any part of the body or
at other people or animals.
• Alwaysturnthecompressoroffand
bleed pressure from the air hose and
air tank before attempting maintenance,
attaching tools or accessories.
HAZARD
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Touchingexposedmetal
such as the compressor
head, engine head, engine
exhaust or outlet tubes, can
result in serious burns.
• Nevertouchanyexposedmetalparts
on compressor during or immediately
after operation. Compressor will remain
hot for several minutes after operation.
• Donotreacharoundprotective
shrouds or attempt maintenance
until unit has been allowed to cool.
HAZARD
RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Movingpartssuchasthe
pulley, flywheel, and belt
can cause serious injury
if they come into contact
with you or your clothing.
• Neveroperatethecompres-
sor with guards or covers which
are damaged or removed.
• Keepyourhair,clothing,andgloves
away from moving parts. Loose
clothes, jewelry, or long hair can
be caught in moving parts.
• Airventsmaycovermovingparts
and should be avoided as well.

6 - ENG
• Attemptingtooperate
compressor with damaged or
missing parts or attempting
to repair compressor with
protective shrouds removed
can expose you to moving parts
and can result in serious injury.
• Anyrepairsrequiredonthisproduct
should be performed by authorized
service center personnel.
HAZARD
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafeoperationofyour
compressor could lead
to serious injury or death
to you or others.
• Reviewandunderstandallinstruc-
tions and warnings in this manual.
• Becomefamiliarwiththeoperation
and controls of the air compressor.
• Keepoperatingareaclearofall
persons, pets, and obstacles.
• Keepchildrenawayfromthe
air compressor at all times.
• Donotoperatetheproductwhen
fatigued or under the influence of alco-
hol or drugs. Stay alert at all times.
• Neverdefeatthesafetyfea
tures of this product.
• Equipareaofoperationwith
a fire extinguisher.
• Donotoperatemachinewithmiss-
ing, broken, or unauthorized parts.
• Neverstandonthecompressor.
HAZARD
RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Aportablecompressorcan
fall from a table, workbench,
or roof causing damage to
the compressor and could
result in serious injury or
death to the operator.
• Alwaysoperatecompressorinastable
secure position to prevent accidental
movement of the unit. Never oper-
ate compressor on a roof or other
elevated position. Use additional
air hose to reach high locations.

7 - ENG
HAZARD
RISK FROM NOISE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Undersomeconditions
and duration of use, noise
from this product may con-
tribute to hearing loss.
• Alwayswearproperhearing
protection during use.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
SPECIFICATIONS
Model No. C2004
Bore 1.875" (47.6 mm)
Stroke 1.250" (31.8 mm)
Voltage/Hz-Single Phase 120/60
Minimum Branch Circuit Requirement 15 amps
Branch Circuit Fuse Type Time Delay
Air Tank Capacity 4 Gallons (15.1 liters)
Approximate Cut-in Pressure 135 psig
Approximate Cut-out Pressure 165 psig
SCFM @ 90 psig 2.6 *
Regulated Pressure Rating (Approximate) 3–150 psi
Quick Connect Type 1/4" (6.4 mm) Industrial
Noise Level 75.5 dBA +
* Tested per ISO 1217
+Tested per ISO 3744:1995
Refer to Glossary for abbreviations.
DECLARED NOISE EMISSION VALUES PER ISO 3744
Noise Emission Values
Sound Pressure Level: LpA = 75.5 dBA re 20μPA
Uncertainty in the Sound
PressureLevel:  KpA=3.0dBAre20μPA
Sound Power Level: LwA = 88.0 dBA re 1 pw
Uncertainty in the Sound
PowerLevel:  KwA=3.0dBAre1pw
The sum of the emission value and the uncertainty is the limit below which there is
a 95% confidence the value of a single tool will lie below when the tool is new.

8 - ENG
GLOSSARY
Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of measure of pressure.
Code Certification: Products that bear one or more of the following marks: UL®,
CUL, CULUS, ETL®, CETL, CETLUS, have been evaluated by OSHA certified inde-
pendent safety laboratories and meet the applicable Standards for Safety.
Cut-In Pressure: Whilethemotorisoff,airtankpressuredropsasyoucontinue
touseyouraccessory.Whenthetankpressuredropstoacertainlowerlevelthe
motor will restart automatically. The low pressure at which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: Whenanaircompressoristurnedonandbeginstorun,air
pressure in the air tank begins to build. It builds to a certain high pressure before
the motor automatically shuts off, protecting your air tank from pressure higher
than its capacity. The high pressure at which the motor shuts off is called "cut-out"
pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
DUTY CYCLE
This air compressor pump is capable of running continuously. However, to
prolong the life of your air compressor, it is recommended that a 50%-75%
average duty cycle be maintained; that is, the air compressor pump should not
run more than 30-45 minutes in any given hour.
ASSEMBLY
UNPACKING
Remove unit from carton and discard all packaging.
INSTALLATION
HOW TO SET UP YOUR UNIT
Location of the Air Compressor
• Locatetheaircompressorinaclean,dryandwellventilatedarea.
• Theaircompressorshouldbelocatedatleast12"(30.5cm)awayfromthe
wall or other obstructions that will interfere with the flow of air.
• Theaircompressorpumpandshroudaredesignedtoallowforpropercool-
ing. The ventilation openings on the compressor are necessary to maintain
proper operating temperature. Do not place rags or other containers on or
near these openings.
GROUNDING INSTRUCTIONS
RISK OF ELECTRICAL SHOCK. In the event of a short circuit,
grounding reduces the risk of shock by providing an escape wire for the
electric current. This air compressor must be properly grounded.
The portable air compressor is equipped with a cord having a grounding wire with
an appropriate grounding plug (see following illustrations).
1. The cord set and plug with this unit contains a grounding pin. This plug
MUST be used with a grounded outlet.

9 - ENG
IMPORTANT: The outlet being used must
Grounded
Outlets
Plug
Grounding Pin
be installed and grounded in accordance
with all local codes and ordinances.
2. Make sure the outlet being used has
the same configuration as the ground-
ed plug. DO NOT USE AN ADAPTER.
See illustration.
3. Inspect the plug and cord before each
use. Do not use if there are signs of damage.
4. If these grounding instructions are not completely understood, or if in doubt as
to whether the compressor is properly grounded, have the installation checked
by a qualified electrician.
RISK OF ELECTRICAL SHOCK. IMPROPER GROUNDING CAN
RESULT IN ELECTRICAL SHOCK.
Do not modify the plug provided. If it does not fit the available outlet, a correct
outlet should be installed by a qualified electrician.
Repairs to the cord set or plug MUST be made by a qualified electrician.
EXTENSION CORDS
If an extension cord must be used, be sure it is:
• a3wireextensioncordthathasa3bladegroundingplug,anda3slotrecep-
tacle that will accept the plug on the product
• ingoodcondition
• nolongerthan50'(15.2m)
• 14gauge(AWG)orlarger.(Wiresizeincreasesasgaugenumberdecreases.
12AWGand10AWGmayalsobeused.DONOTUSE16OR18AWG.)
Risk of Property Damage. The use of an undersized extension cord
will cause voltage to drop resulting in power loss to the motor and overheating.
Instead of using an extension cord, increase the working reach of the air hose by
attaching another length of hose to its end. Attach additional lengths of hose as
needed.
VOLTAGE AND CIRCUIT PROTECTION
Refer to the Specification Chart for the voltage and minimum branch circuit require-
ments.
Risk of Overheating. Certain air compressors can be operated on
a 15 amp circuit if the following conditions are met.
1. Voltage supply to circuit must comply with the National Electrical Code.
2. Circuit is not used to supply any other electrical needs.
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay fuse.
NOTE: If compressor is connected to a circuit protected by fuses, use only
time delay fuses. Time delay fuses should be marked "D" in Canada and "T"
in the US.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it from
a 20 amp circuit. It is not necessary to change the cord set.

10 - ENG
OPERATION

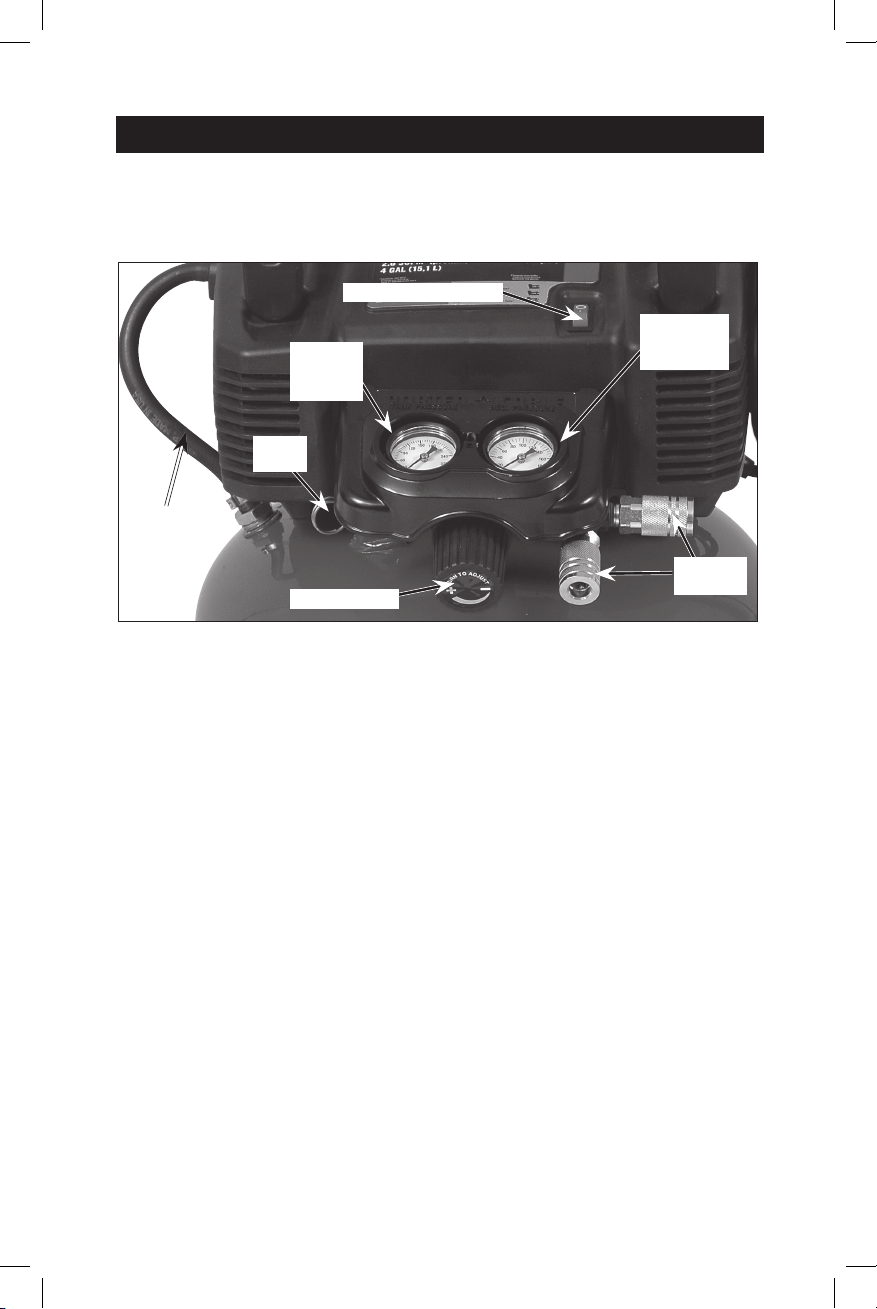

KNOW YOUR AIR COMPRESSOR
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
On(I)/Off(O) Switch
Safety
Valve
Tank
Pressure
Gauge
Outlet
Pressure
Gauge
Regulator
Quick
Connect
Outlet Tube
DESCRIPTION OF OPERATION
Become familiar with these controls before operating the unit.
On(I)/Off(O) Switch: Place this switch in the On (I) position to provide automatic
power to the pressure switch and Off (O) to remove power at the end of each
use.
Pressure Switch (not shown): The pressure switch automatically starts the
motor when the air tank pressure drops below the factory set "cut-in" pressure.
It stops the motor when the air tank pressure reaches the factory set "cut-out"
pressure.
Safety Valve: If the pressure switch does not shut off the air compressor at its
"cut-out" pressure setting, the safety valve will protect against high pressure by
"popping out" at its factory set pressure (slightly higher than the pressure switch
"cut-out" setting).
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air pres-
sure in the tank.
Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure
available at the outlet side of the regulator. This pressure is controlled by the
regulator and is always less than or equal to the tank pressure.
Regulator: Controls the air pressure shown on the outlet pressure gauge. Turn
regulator knob clockwise to increase pressure and counterclockwise to decrease
pressure.
Cooling System (not shown): This compressor contains an advanced design
cooling system. At the heart of this cooling system is an engineered fan. It is
perfectly normal for this fan to blow air through the vent holes in large amounts.
You know that the cooling system is working when air is being expelled.
Air Compressor Pump (not shown): Compressesairintotheairtank.Working
air is not available until the compressor has raised the air tank pressure above that
required at the air outlet.

11 - ENG
Drain Valve: The drain valve is located at the base of the
Drain
Valve
air tank and is used to drain condensation at the end of
each use.
Check Valve:Whentheaircompressorisoperating,the
check valve is "open", allowing compressed air to enter
theairtank.Whentheaircompressorreaches"cutout"
pressure, the check valve "closes", allowing air
Check Valve
pressure to remain inside the air tank.
Motor Overload Protector (not shown): The
motor has a thermal overload protector. If the motor
overheats for any reason, the overload protector
will shut off the motor. The motor must be allowed
to cool down before restarting. To restart:
1. Set the On/Off lever to "Off" and unplug unit.
2. Allow the motor to cool.
3. Plug the power cord into the correct branch circuit receptacle.
4. Set the Auto/Off lever to "On" position.
Quick-Connect Body: The quick connect body accepts industrial quick connect
plugs. The two quick connect bodies allow the use of two tools at the same time.
HOW TO USE YOUR UNIT
How to Stop
1. Set the On/Off switch to "Off".
2. Unplug unit when not in use.
Before Starting
Do not operate this unit until you read this instruction manual
for safety, operation and maintenance instructions.
Before Each Start-Up
1. Set the On/Off switch to "Off".
2.
Plug the power cord into the correct branch circuit receptacle. (Refer to Voltage
and Circuit Protection paragraph in the Installation section of this manual.)
3. Turn the regulator knob counterclockwise to set the outlet pressure to zero.
4. Attach hose and accessories.
Risk of unsafe operation. Firmly grasp air hose in hand when
installing or disconnecting to prevent hose whip.
Risk of unsafe operation. Do not use damaged or worn
accessories.
NOTE: The hose or accessory will require a quick connect plug if the air outlet is
equipped with a quick connect socket.
Risk of Bursting. Too much air pressure causes a hazardous
risk of bursting. Check the manufacturer’s maximum pressure rating for air
tools and accessories. The regulator outlet pressure must never exceed the
maximum pressure rating.
Risk of property damage. Compressed air from the unit may
contain water condensation and oil mist. Do not spray unfiltered air at an item
that could be damaged by moisture. Some air tools and accessories may require
filtered air. Read the instructions for the air tools and accessories.

12 - ENG
How to Start
1. Set the On/Off switch to "On" and allow tank pressure to build. Motor will stop
when tank pressure reaches "cut-out" pressure.
2. Turn regulator knob clockwise to increase pressure and stop when desired
pressure is reached.
Risk of unsafe operation. If any unusual noise or vibration is
noticed, stop the compressor immediately and have it checked by a trained
service technician.
The compressor is ready for use.
MAINTENANCE
CUSTOMER RESPONSIBILITIES
Before
each use Daily or after
each
use
See tank
warning
label
Check Safety Valve X
Drain Tank X
Remove tank from service X(1)
1- For more information, call our Customer Care Center at 1-(888)-848-5175
Risk of unsafe operation. Unit cycles automatically when
power is on. When performing maintenance, you may be exposed to voltage
sources, compressed air, or moving parts. Personal injuries can occur. Before
performing any maintenance or repair, disconnect power source from the
compressor and bleed off all air pressure.
NOTE: See Operation section for the location of controls.
TO CHECK SAFETY VALVE
Risk of Bursting. If the safety valve does not work properly,
over-pressurization may occur, causing air tank rupture or an explosion.
Risk from Flying Objects. Always wear certified safety
equipment: ANSI Z87.1 eye protection (CAN/CSA Z94.3) with side shields.
Before starting compressor, pull the ring on the safety valve to make sure that the
safety valve operates freely. If the valve is stuck or does not operate smoothly, it
must be replaced with the same type of valve.
TO DRAIN TANK
Risk of Unsafe Operation. Air tanks contain high pressure air.
Keep face and other body parts away from outlet of drain. Use ANSI Z87.1
eye protection (CAN/CSA Z94.3) when draining as debris can be kicked up
into face.
Risk from noise. Always wear proper hearing protection during
use. Under some conditions and duration of use, noise from this product may
contribute to hearing loss.
NOTE: All compressed air systems generate condensate that accumulates in
any drain point (e.g., tanks, filter, aftercoolers, dryers). This condensate contains
lubricating oil and/or substances which may be regulated and must be disposed of in
accordance with local, state, and federal laws and regulations.

13 - ENG
Risk of Bursting. Water will condense in the air tank. If not
drained, water will corrode and weaken the air tank causing a risk of air tank
rupture.
Risk of Property Damage. Drain water from air tank may contain oil
and rust which can cause stains.
1. Set the On/Off switch to "Off".
2. Turn the regulator knob counterclockwise to set the outlet pressure to zero.
3. Remove the air tool or accessory.
4. Place a suitable container under the drain valve to catch discharge.
5. Grasp lever on drain valve.
6. Slowly rotate lever to gradually bleed air from air tank.
7. When air tank pressure gauge reads 10 psi, rotate valve to the fully open
position.
8. Close drain valve when finished.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, the reinstalled.
SERVICE AND ADJUSTMENTS
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE TECHNICIAN.
Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to voltage sources, com-
pressed air, or moving parts. Before servicing unit unplug or disconnect
electrical supply to the air compressor, bleed tank of pressure, and allow the
air compressor to cool.

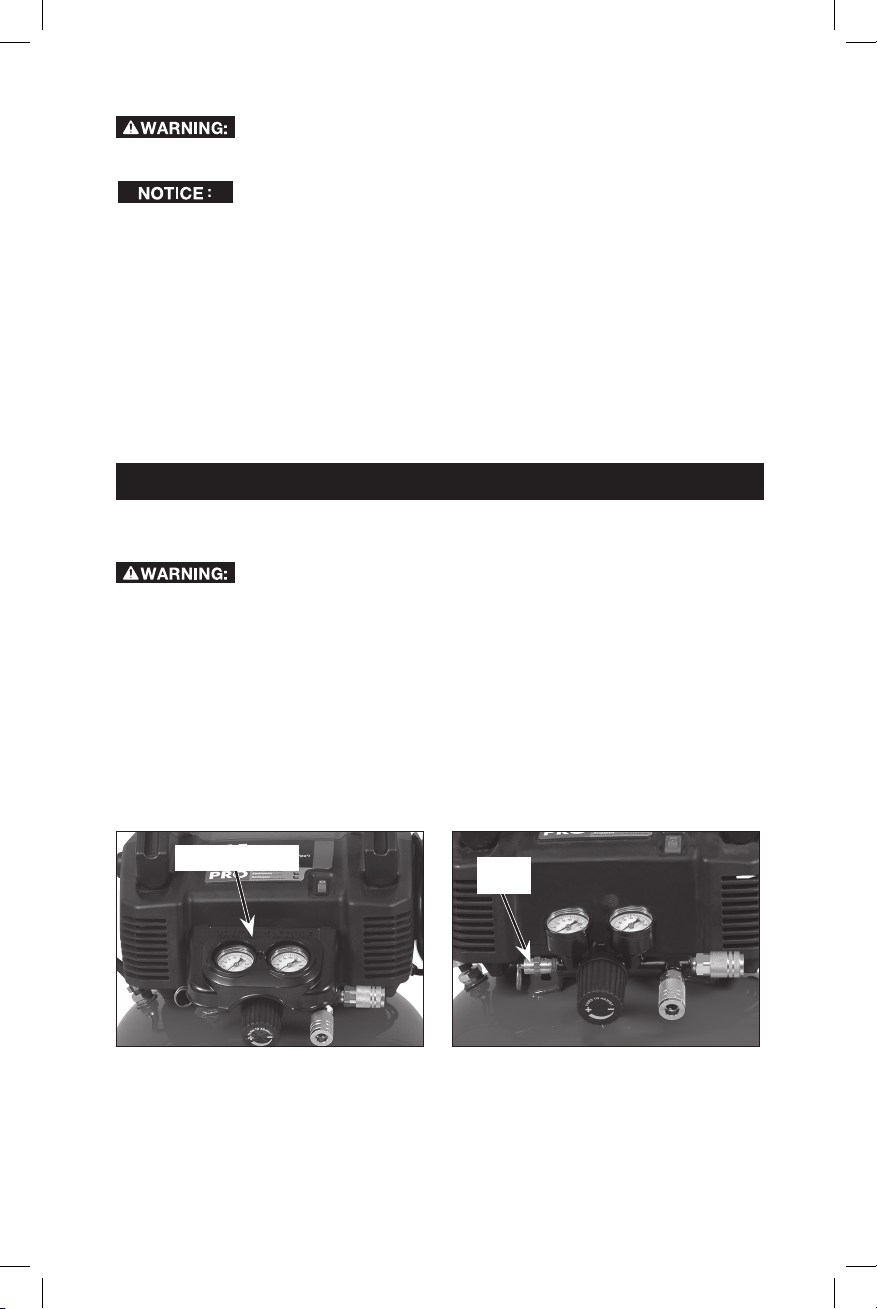

TO REPLACE REGULATOR
1. Release all air pressure from air tank. See To Drain Tank in the Maintenance
section.
2. Unplug unit.
3. Remove the console cover.
4. Using an adjustable wrench remove the safety valve from the regulator mani-
fold.
Safety
Valve
Console Cover
5. Remove the hose by removing the hose clamp. NOTE: The hose clamp is not
reusable. You must purchase a new hose clamp, see Replacement Parts in
the Service section or purchase a standard hose clamp at a local hardware
store.

14 - ENG
6. Remove pump mounting screws securing pump (one on each side).
Hose
Clamp
Pump Mounting Screw
7. Carefully slide pump from brackets
Regulator
Manifold
Pump
shown
moved
out of the
way
and out of the way.
8. Using an adjustable wrench remove
the regulator manifold.
9. Apply pipe sealant to new regulator
manifold and assemble, tighten with
wrench.
10. Reapply pipe sealant to safety
valve.
11. Reassemble all components in
reverse order of removal. Make sure
to orient gauges to read correctly
and use wrenches to tighten all components.
STORAGE
Before you store the air compressor, make sure you do the following:
1. Review the Maintenance section on the preceding pages and perform
scheduled maintenance as necessary.
2. Drain water from air tank. See To Drain Tank under Maintenance.
Water will condense in the air tank. If not drained, water will
corrode and weaken the air tank causing a risk of air tank rupture.
3. Protect the electrical cord and air hose from damage (such as being stepped
onorrunover).Windthemlooselyaroundthecompressorhandle.
4. Store the air compressor in a clean and dry location.
SERVICE
REPLACEMENT PARTS
REPLACEMENT PARTS
Use only identical replacement parts. For a parts list or to order parts, visit our
service website at www.deltaportercableservicenet.com. You can also order parts
from your nearest PORTER-CABLE Factory Service Center or PORTER-CABLE
AuthorizedWarrantyServiceCenter.Or,youcancallourCustomerCareCenter
at 1-(888)-848-5175.
SERVICE AND REPAIRS
All quality tools will eventually require servicing and/or replacement of parts. For
information about PORTER-CABLE, its factory service centers or authorized warranty
service centers, visit our website at www.deltaportercable.com or call our Customer
Care Center at 1-(888)-848-5175. All repairs made by our service centers are fully
guaranteedagainstdefectivematerialandworkmanship.Wecannotguaranteerepairs
made or attempted by others.

15 - ENG
You can also write to us for information at PORTER-CABLE, 4825 Highway 45 North,
Jackson, Tennessee 38305 - Attention: Product Service. Be sure to include all of the
information shown on the nameplate of your tool (model number, type, serial number,
etc.).
ACCESSORIES
Since accessories, other than those offered by PORTER-CABLE, have
not been tested with this product, use of such accessories with this tool could be haz-
ardous. To reduce the risk of injury, only PORTER-CABLE recommended accessories
should be used with this product.
A complete line of accessories is available from your PORTER-CABLE Factory Service
CenteroraPORTERCABLEAuthorizedWarrantyServiceCenter.PleasevisitourWeb
Site www.deltaportercable.com for a catalog or for the name of your nearest supplier.
TROUBLESHOOTING
Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to voltage sources, com-
pressed air, or moving parts. Before servicing unit unplug or disconnect elec-
trical supply to the air compressor, bleed tank of pressure, and allow the air
compressor to cool.
PROBLEM CAUSE CORRECTION
Excessive tank pressure
- safety valve pops off. Pressure switch does not shut off motor when
compressor reaches
"cut-out" pressure.
Move On/Off lever to
the "Off" position, if
the outfit does not shut
off contact a Trained
Service Technician.
Pressure switch "cut-
out" too high. Contact a Trained Service Technician.
Air leaks at fittings. Tube fittings are not
tight enough. Tighten fittings where air can be heard escaping.
Check fittings with
soapy water solution.
Do Not Overtighten.
Air leaks in air tank
or at air tank welds. Defective air tank. Air tank must be replaced. Do not
repair the leak.
Risk
bursting. Do not drill
into, weld or otherwise
modify air tank or it will
weaken. The tank can
rupture or explode.
Air leaks between
head and valve plate. Leaking seal. Contact a Trained Service Technician.

16 - ENG
PROBLEM CAUSE CORRECTION
Air leak from
safety valve. Possible defect in safety valve. Operate safety valve manually by pulling on
ring. If valve still leaks,
it should be replaced.
KnockingNoise. Possible defect in
safety valve. Operate safety valve manually by pulling on
ring. If valve still leaks,
it should be replaced.
Pressure reading on
the regulated pressure
gauge drops when an
accessory is used.
It is normal for "some"
pressure drop to occur. If there is an excessive amount of pressure drop
when the accessory
is used, adjust the
regulator following
the instructions in
the Description of
Operation paragraph in
the Operation Section.
NOTE: Adjust the
regulated pressure
under flow conditions
(while accessory
is being used).
Compressor is not
supplying enough air to
operate accessories.
Prolonged excessive
use of air. Decrease amount of air usage.
Compressor is not
large enough for
air requirement.
Check the accessory
air requirement. If
it is higher than the
SCFM or pressure
supplied by your air
compressor, you need
a larger compressor.
Hole in hose. Check and replace
if required.
Check valve restricted. Contact a Trained
Service Technician
Air leaks. Tighten fittings.
Regulator knob has
continuous air leak. Damaged regulator. Replace.
Regulator will not
shut off air outlet. Damaged regulator. Replace.

17 - ENG
PROBLEM CAUSE CORRECTION
Motor will not run. Fuse blown, circuit
breaker tripped. Check fuse box for blown fuse and
replace as necessary.
Reset circuit breaker.
Do not use a fuse or
circuit breaker with
higher rating than
that specified for your
particular branch circuit.
Check for proper
fuse. You should use
a time delay fuse.
Check for low
voltage problem.
Check the
extension cord.
Disconnect the other
electrical appliances
from circuit or operate
the compressor on its
own branch circuit.
Extension cord is wrong
length or gauge. Check the extension cord.
Loose electrical
connections. Check wiring connection inside terminal box.
Faulty motor. Have checked by
a Trained Service
Technician.
Motor overload
protection switch
has tripped.
Refer to Motor
Overload Protection
under Operation.
If motor overload
protection trips
frequently, contact
a Trained Service
Technician.

18 - ENG
FULL ONE YEAR WARRANTY
PORTER-CABLE industrial tools are warranted for one year from date of purchase.
Wewillrepair,withoutcharge,anydefectsduetofaultymaterialsorworkmanship.
For warranty repair information, call 1-(888)-848-5175. This warranty does not apply
to accessories or damage caused where repairs have been made or attempted by
others. This warranty gives you specific legal rights and you may have other rights
which vary in certain states or provinces.
LATIN AMERICA: This warranty does not apply to products sold in Latin America.
For products sold in Latin America, see country specific warranty information
contained either in the packaging, call the local company or see website for
warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible
or are missing, call 1-(888)-848-5175 for a free replacement.

19 - FR
MESURES DE SÉCURITÉ - DÉFINITIONS
Ce guide contient des renseignements importants que vous deviez bien saisir.
Cette information porte sur VOTRE SÉCURITÉ et sur LA PRÉVENTION DE
PROBLÈMES D'ÉQUIPEMENT. Afin de vous aider à identifier cette information,
nous avons utilisé les symboles ci-dessous. Veuillez lire attentivement ce guide en
portant une attention particulière à ces symboles.
Indique un danger
imminent qui, s'il n'est pas évité,
causera de graves blessures ou la
mort.
Indique la possibilité
d'un danger qui, s'il n'est pas évité,
peut causer des blessures mineures
ou moyennes.
Indique la
possibilité d’un danger qui, s’il n’est
pas évité, pourrait causer de graves
blessures ou la mort.
Indique une pratique
ne posant aucun risque de
dommages corporels mais qui par
contre, si rien n’est fait pour l’éviter,
pourrait poser des risques de
dommages matériels.
CONSIGNES DE SÉCURITÉ IMPORTANTES
Ce produit contient des produits chimiques reconnus
par l’État de la Californie comme étant cancérigènes et pouvant entraîner des
anomalies congénitales ou d’autres problèmes liés aux fonctions reproductrices.
Se laver les mains après toute manipulation.
Certaines poussières contiennent des produits chimiques
reconnus par l’État de la Californie comme cancérigènes et pouvant entraîner des
anomalies congénitales et d’autres problèmes liés aux fonctions reproductrices,
tels que l’amiante et le plomb contenus dans les peintures au plomb.
Afin de réduire le risque de blessures, lire le
mode d’emploi de l’outil.
CONSERVER CES DIRECTIVES
DANGER
RISQUE D’EXPLOSION OU D’INCENDIE
CE QUI PEUT SE PRODUIRE COMMENT L’ÉVITER
• Ilestnormalquedescon-
tacts électriques dans le
moteur et le manocontac-
teur fassent une étincelle.
• Faitestoujoursfonctionnerlecom-
presseur dans une zone bien
aérée sans matière combustible,
essence ou vapeur de solvant.

20 - FR
• Siuneétincelleélectrique
provenant du compresseur
entre en contact avec des
vapeurs inflammables, elle
peut s’enflammer et causer un
incendie ou une explosion.
• Sivousaspergezdesmatériaux
inflammables, placez le com-
presseur à au moins 6,1 m (20 pieds)
de la zone pulvérisée. Il est pos-
sible que vous ayez besoin d’une
longueur de tuyau additionnelle.
• Entreposezlesmatièresinflam-
mables dans un endroit sécu-
ritaire, éloigné du compresseur.
• Lefaitdelimiterlesouver-
tures d’aération de com-
presseur causera une impor-
tante surchauffe et pourrait
causer un incendie.
• Neplacezjamaisdesobjetscon-
tre le compresseur ou sur celui-ci.
• Faitesfonctionnerlecompresseurdans
un endroit aéré à au moins 30,5 cm
(12 po) du mur ou de l’obstruction
qui pourrait limiter le débit d’air frais
dans les ouvertures d’aération.
• Faitesfonctionnerlecompresseurdans
un endroit propre, sec et bien aéré.
Ne pas utiliser l’appareil à dans un
endroit exigu. Magasin à l’intérieur.
• Lefonctionnementdece
produit sans surveillance
pourrait se solder par des
blessures personnelles ou des
dommages à la propriété. Afin
de réduire le risque d’incendie,
ne pas laisser le compresseur
fonctionner sans surveillance.
• Êtretoujoursprésentlorsque
le produit est en marche.
• Toujourséteindreetdébranch-
er l'appareil si non utilisé.
DANGER
RISQUE REPIRATOIRE (ASPHYXIE)
CE QUI PEUT SE PRODUIRE COMMENT L’ÉVITER
• Ilestdangereuxderespirer
l’air comprimé sortant du
compresseur. Le flux d’air
peut contenir du monoxyde
de carbone, des vapeurs tox-
iques ou des particules solides
provenant du réservoir d’air.
La respiration de ces contami-
nants peut causer de sérieuses
blessures, voire la mort.
• Nejamaisutiliserl’airobtenudirecte-
ment du compresseur pour l’alimentation
en air destinée à la consomma-
tion humaine. Le compresseur n’est
pas muni de filtres et d’équipement
de sécurité en ligne qui convien-
nent à la consommation humaine.
