Porter-Cable C6001 User manual

Française : Page 20
Español: Página 41
Air Compressor
Compresor de aire
Compresseur d’air
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.deltaportercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS
DE SERVICIO Y PÓLIZA DE GARANTÍA.
LÉASE ESTE INSTRUCTIVO
ANTES DE USAR EL PRODUCTO.
Maintenance-free pump
La pompe sans entretien
La bomba sin mantenimiento
C6001

2 - ENG
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an
imminently hazardous situation which,
if not avoided, will result in death or
serious injury.
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Indicates a practice
not related to personal injury which,
if not avoided, may result in property
damage.
IMPORTANT SAFETY INSTRUCTIONS
This product contains chemicals known to the State of California
to cause cancer, and birth defects or other reproductive harm. Wash hands after
handling.
Some dust contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm such as asbestos and
lead in lead based paint.
To reduce the risk of injury, read the instruction manual.
SAVE THESE INSTRUCTIONS
HAZARD
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• It is normal for electrical
contacts within the motor and
pressure switch to spark.
• Always operate the compressor in a
well ventilated area free of combustible
materials, gasoline, or solvent vapors.
• If electrical sparks from
compressor come into
contact with flammable
vapors, they may ignite,
causing fire or explosion.
• If spraying flammable materials,
locate compressor at least 20' (6.1 m)
away from spray area. An additional
length of air hose may be required.
• Store flammable materials in a secure
location away from compressor.

3 - ENG
• Restricting any of the
compressor ventilation
openings will cause
serious overheating and
could cause fire.
• Never place objects against
or on top of compressor.
• Operate compressor in an open
area at least 12" (30.5 cm) away
from any wall or obstruction that
would restrict the flow of fresh air
to the ventilation openings.
• Operate compressor in a clean, dry
well ventilated area. Do not operate unit
in any confined area. Store indoors.
• Unattended operation of this
product could result in personal
injury or property damage.
To reduce the risk of fire, do
not allow the compressor
to operate unattended.
• Always remain in attendance with
the product when it is operating.
• Always turn off and unplug
unit when not in use.
HAZARD
RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• The compressed air directly
from your compressor is not
safe for breathing. The air
stream may contain carbon
monoxide, toxic vapors,
or solid particles from the
air tank. Breathing these
contaminants can cause
serious injury or death.
• Never use air obtained directly
from the compressor to supply
air for human consumption. The
compressor is not equipped with
suitable filters and in-line safety
equipment for human consumption.
• Exposure to chemicals in dust
created by power sanding,
sawing, grinding, drilling,
and other construction
activities may be harmful.
• Sprayed materials such as
paint, paint solvents, paint
remover, insecticides, weed
killers, may contain harmful
vapors and poisons.
• Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Always use certified
safety equipment: NIOSH/OSHA
respiratory protection or properly fit-
ting face mask designed for use
with your specific application.

4 - ENG
HAZARD
RISK OF BURSTING
Air Tank: On February 26, 2002, the U.S. Consumer Product Safety Commission
published Release # 02-108 concerning air compressor tank safety:
Air compressor receiver tanks do not have an infinite life. Tank life is dependent
upon several factors, some of which include operating conditions, ambient condi-
tions, proper installations, field modifications, and the level of maintenance. The
exact effect of these factors on air receiver life is difficult to predict.
If proper maintenance procedures are not followed, internal corrosion to the
inner wall of the air receiver tank can cause the air tank to unexpectedly rupture
allowing pressurized air to suddenly and forcefully escape, posing risk of injury
to consumers.
Your compressor air tank must be removed from service by the end of the year
shown on your tank warning label.
The following conditions could lead to a weakening of the air tank, and result in
a violent air tank explosion:
WHAT CAN HAPPEN HOW TO PREVENT IT
• Failure to properly drain
condensed water from
air tank, causing rust and
thinning of the steel air tank.
• Drain air tank daily or after each use.
If air tank develops a leak, replace
it immediately with a new air tank
or replace the entire compressor.
• Modifications or attempted
repairs to the air tank. • Never drill into, weld, or make any modifications to the air tank or its
attachments. Never attempt to
repair a damaged or leaking air
tank. Replace with a new air tank.
• Unauthorized modifications
to the safety valve or any
other components which
control air tank pressure.
• The air tank is designed to withstand
specific operating pressures.
Never make adjustments or parts
substitutions to alter the factory
set operating pressures.
• High vibration or impact forces
can weaken tank structure. • Do not permanently mount the compressor in a motor vehicle, trailer
or other location where tank may be
subjected to vibration or impact.
Attachments & accessories:
• Exceeding the pressure
rating of air tools, spray guns,
air operated accessories,
tires, and other inflatables
can cause them to explode
or fly apart, and could
result in serious injury.
• Follow the equipment manufacturers
recommendation and never exceed
the maximum allowable pressure
rating of attachments. Never use
compressor to inflate small low
pressure objects such as children’s
toys, footballs, basketballs, etc.

5 - ENG
Tires:
• Over inflation of tires could
result in serious injury
and property damage.
• Use a tire pressure gauge to check
the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and similar
equipment used to inflate tires can fill
small tires very rapidly. Adjust pressure
regulator on air supply to no more than
the rating of the tire pressure. Add air
in small increments and frequently use
the tire gauge to prevent over inflation.
HAZARD
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Your compressor is powered
by electricity. Like any other
electrically powered device,
if it is not used properly it
may cause electric shock.
• Never operate the compressor outdoors
when it is raining or in wet conditions.
• Never operate compressor with
protective covers removed or damaged.
• Repairs attempted by
unqualified personnel can
result in serious injury or
death by electrocution.
• Any electrical wiring or repairs
required on this product should be
performed by authorized service
center personnel in accordance with
national and local electrical codes.

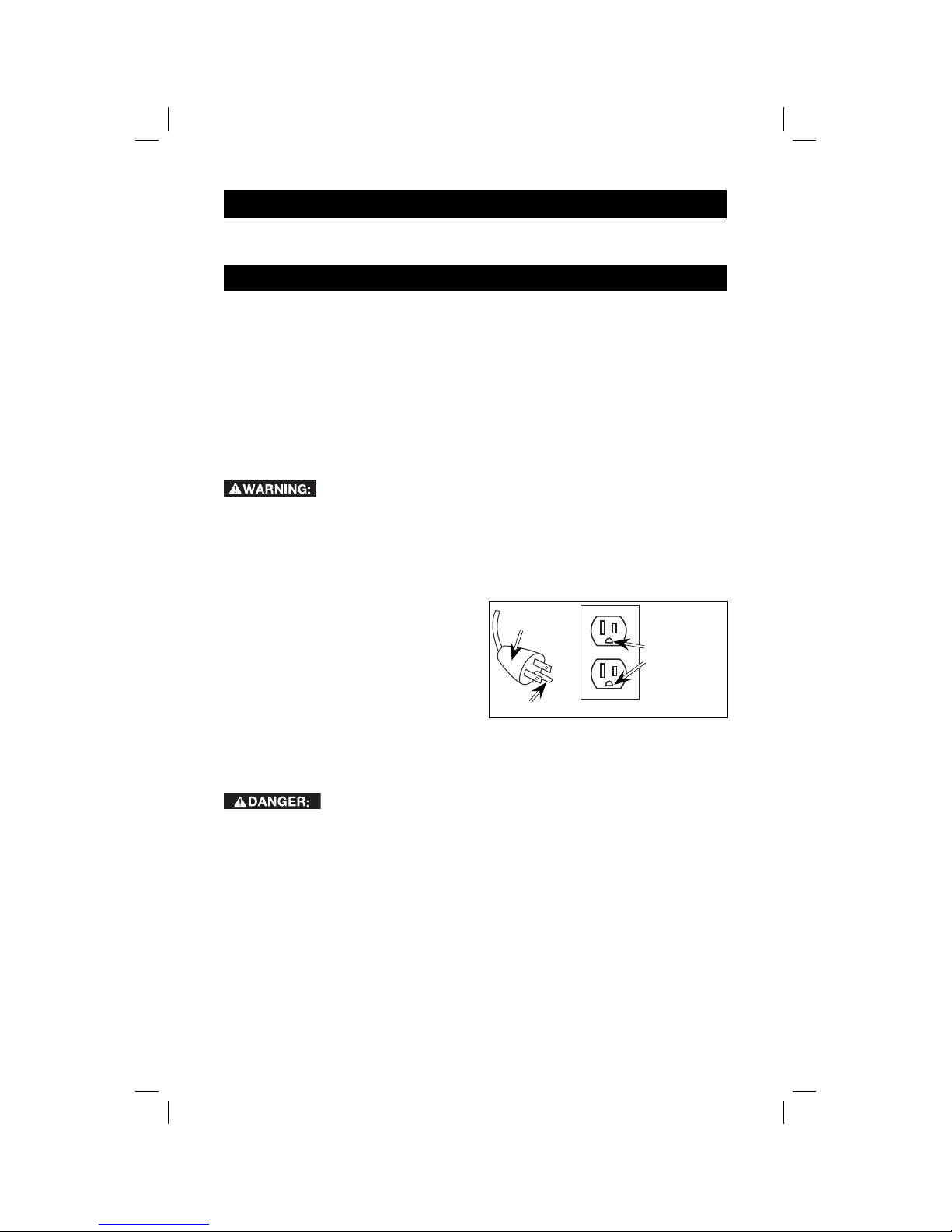

• Electrical Grounding:
Failure to provide adequate
grounding to this product
could result in serious injury
or death from electrocution.
Refer to Grounding
Instructions paragraph in
the Installation section.
• Make certain that the electrical
circuit to which the compressor
is connected provides proper
electrical grounding, correct voltage
and adequate fuse protection.
HAZARD
RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• The compressed air stream can
cause soft tissue damage to
exposed skin and can propel
dirt, chips, loose particles,
and small objects at high
speed, resulting in property
damage or personal injury.
• Always wear certified safety equipment:
ANSI Z87.1 eye protection (CAN/
CSA Z94.3) with side shields
when using the compressor.
• Never point any nozzle or sprayer
toward any part of the body or
at other people or animals.
• Always turn the compressor off and
bleed pressure from the air hose and
air tank before attempting maintenance,
attaching tools or accessories.

6 - ENG
HAZARD
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Touching exposed metal
such as the compressor
head, engine head, engine
exhaust or outlet tubes, can
result in serious burns.
• Never touch any exposed metal parts
on compressor during or immediately
after operation. Compressor will remain
hot for several minutes after operation.
• Do not reach around protective
shrouds or attempt maintenance
until unit has been allowed to cool.
HAZARD
RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Moving parts such as the
pulley, flywheel, and belt
can cause serious injury
if they come into contact
with you or your clothing.
• Never operate the compres-
sor with guards or covers which
are damaged or removed.
• Keep your hair, clothing, and gloves
away from moving parts. Loose
clothes, jewelry, or long hair can
be caught in moving parts.
• Air vents may cover moving parts
and should be avoided as well.
• Attempting to operate
compressor with damaged or
missing parts or attempting
to repair compressor with
protective shrouds removed
can expose you to moving parts
and can result in serious injury.
• Any repairs required on this product
should be performed by authorized
service center personnel.
HAZARD
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafe operation of your
compressor could lead
to serious injury or death
to you or others.
• Review and understand all instruc-
tions and warnings in this manual.
• Become familiar with the operation
and controls of the air compressor.
• Keep operating area clear of all
persons, pets, and obstacles.
• Keep children away from the
air compressor at all times.

7 - ENG
• Do not operate the product when
fatigued or under the influence of alco-
hol or drugs. Stay alert at all times.
• Never defeat the safety fea-
tures of this product.
• Equip area of operation with
a fire extinguisher.
• Do not operate machine with miss-
ing, broken, or unauthorized parts.
• Never stand on the compressor.
HAZARD
RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
• A portable compressor can
fall from a table, workbench,
or roof causing damage to
the compressor and could
result in serious injury or
death to the operator.
• Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additional air hose to
reach high
locations.
HAZARD
RISK FROM NOISE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Under some conditions
and duration of use, noise
from this product may con-
tribute to hearing loss.
• Always wear certified safety equipment:
ANSI S12.6 (S3.19) hearing protection.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE

8 - ENG
SPECIFICATIONS
Model No. C6001
Running Horsepower 1.1 *
Bore 1.875" (47.6 mm)
Stroke 1.250" (31.8 mm)
Voltage/Hz-Single Phase 120/60
Minimum Branch Circuit Requirement 15 amps
Branch Circuit Fuse Type Time Delay
Air Tank Capacity 17 Gallon (64.4 liters)
Approximate Cut-in Pressure 120 psig
Approximate Cut-out Pressure 150 psig
SCFM @ 40 psig 4.3 *
SCFM @ 90 psig 3.3 *
Regulated Pressure Rating (Approximate) 3–150 psi
Quick Connect Type 1/4" (6.4 mm) Industrial
*Tested per ISO 1217
Refer to Glossary for abbreviations.
GLOSSARY
Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of measure of pressure.
Code Certification: Products that bear one or more of the following marks: UL®,
CUL, CULUS, ETL®, CETL, CETLUS, have been evaluated by OSHA certified
independent safety laboratories and meet the applicable Standards for Safety.
Cut-In Pressure: While the motor is off, air tank pressure drops as you continue
to use your accessory. When the tank pressure drops to a certain lower level the
motor will restart automatically. The low pressure at which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: When an air compressor is turned on and begins to run, air
pressure in the air tank begins to build. It builds to a certain high pressure before
the motor automatically shuts off, protecting your air tank from pressure higher
than its capacity. The high pressure at which the motor shuts off is called "cut-out"
pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
DUTY CYCLE
This air compressor pump is capable of running continuously. However, to
prolong the life of your air compressor, it is recommended that a 50%-75%
average duty cycle be maintained; that is, the air compressor pump should not
run more than 30-45 minutes in any given hour.
ACCESSORIES
Accessories for this unit are available at the store the unit was purchased.
The use of any other accessory not recommended for use with
this tool could be hazardous. Use only accessories rated equal to or higher
than the rating of the air compressor.

9 - ENG
ASSEMBLY
UNPACKING
Remove unit from carton and discard all packaging.
INSTALLATION
HOW TO SET UP YOUR UNIT
Location of the Air Compressor
• Locate the air compressor in a clean, dry and well ventilated area.
• The air compressor should be located at least 12" (30.5 cm) away from the
wall or other obstructions that will interfere with the flow of air.
• The air compressor pump and shroud are designed to allow for proper cooling.
The ventilation openings on the compressor are necessary to maintain proper
operating temperature. Do not place rags or other containers on or near these
openings.
GROUNDING INSTRUCTIONS
RISK OF ELECTRICAL SHOCK. In the event of a short circuit,
grounding reduces the risk of shock by providing an escape wire for the
electric current. This air compressor must be properly grounded.
The portable air compressor is equipped with a cord having a grounding wire with
an appropriate grounding plug (see following illustrations).
1. The cord set and plug with this unit contains a grounding pin. This plug
MUST be used with a grounded outlet.
IMPORTANT: The outlet being used must
Grounded
Outlets
Plug
Grounding Pin
be installed and grounded in accordance
with all local codes and ordinances.
2. Make sure the outlet being used
has the same configuration as the
grounded plug. DO NOT USE AN
ADAPTER. See illustration.
3. Inspect the plug and cord before each
use. Do not use if there are signs of damage.
4. If these grounding instructions are not completely understood, or if in doubt as
to whether the compressor is properly grounded, have the installation checked
by a qualified electrician.
RISK OF ELECTRICAL SHOCK. IMPROPER GROUNDING CAN
RESULT IN ELECTRICAL SHOCK.
Do not modify the plug provided. If it does not fit the available outlet, a correct
outlet should be installed by a qualified electrician.
Repairs to the cord set or plug MUST be made by a qualified electrician.
EXTENSION CORDS
If an extension cord must be used, be sure it is:
• a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot
receptacle that will accept the plug on the product
• in good condition
• no longer than 50' (15.2 m)
• 12 gauge (AWG) or larger. (Wire size increases as gauge number decreases.
10 AWG and 8 AWG may also be used. DO NOT USE 14 OR 16 AWG.)

10 - ENG
Risk of Property Damage. The use of an undersized extension cord
will cause voltage to drop resulting in power loss to the motor and overheating.
Instead of using an extension cord, increase the working reach of the air hose by
attaching another length of hose to its end. Attach additional lengths of hose as
needed.
VOLTAGE AND CIRCUIT PROTECTION
Refer to the Specification Chart for the voltage and minimum branch circuit
requirements.
Risk of Opertion. Certain air compressors can be operated on a 15
amp circuit if the following conditions are met.
1. Voltage supply to circuit must comply with the National Electrical Code.
2. Circuit is not used to supply any other electrical needs.
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay fuse.
NOTE: If compressor is connected to a circuit protected by fuses, use only
time delay fuses. Time delay fuses should be marked "D" in Canada and "T"
in the US.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it from
a 20 amp circuit. It is not necessary to change the cord set.
Transporting
When transporting the compressor in a vehicle, trailer, etc., make sure the tank
is drained and the unit is secured with straps to prevent tipping. Use care when
driving to prevent tipping the unit over in the vehicle. Damage can occur to the
compressor or surrounding items if the compressor is tipped.
Lifting
Always use two people when lifting and lift from the A
A
recommended lift points (A). DO NOT lift by wheels or shroud.
Moving
The wheels and handle do not provide
adequate clearance, stability, or support for pulling the
unit up and down stairs or steps. The unit must be lifted
or pushed up a ramp.
1. Grasp handle of compressor and tilt compressor
back to rest on wheels.
Risk of Unsafe Operation. Ensure proper
footing and use caution when rolling compressor so that
unit does not tip or cause loss of balance.
2. When location is reached slowly lower compressor to ground. Always
store compressor in a vertical position resting on the rubber bumpers
and wheels.

11 - ENG
OPERATION

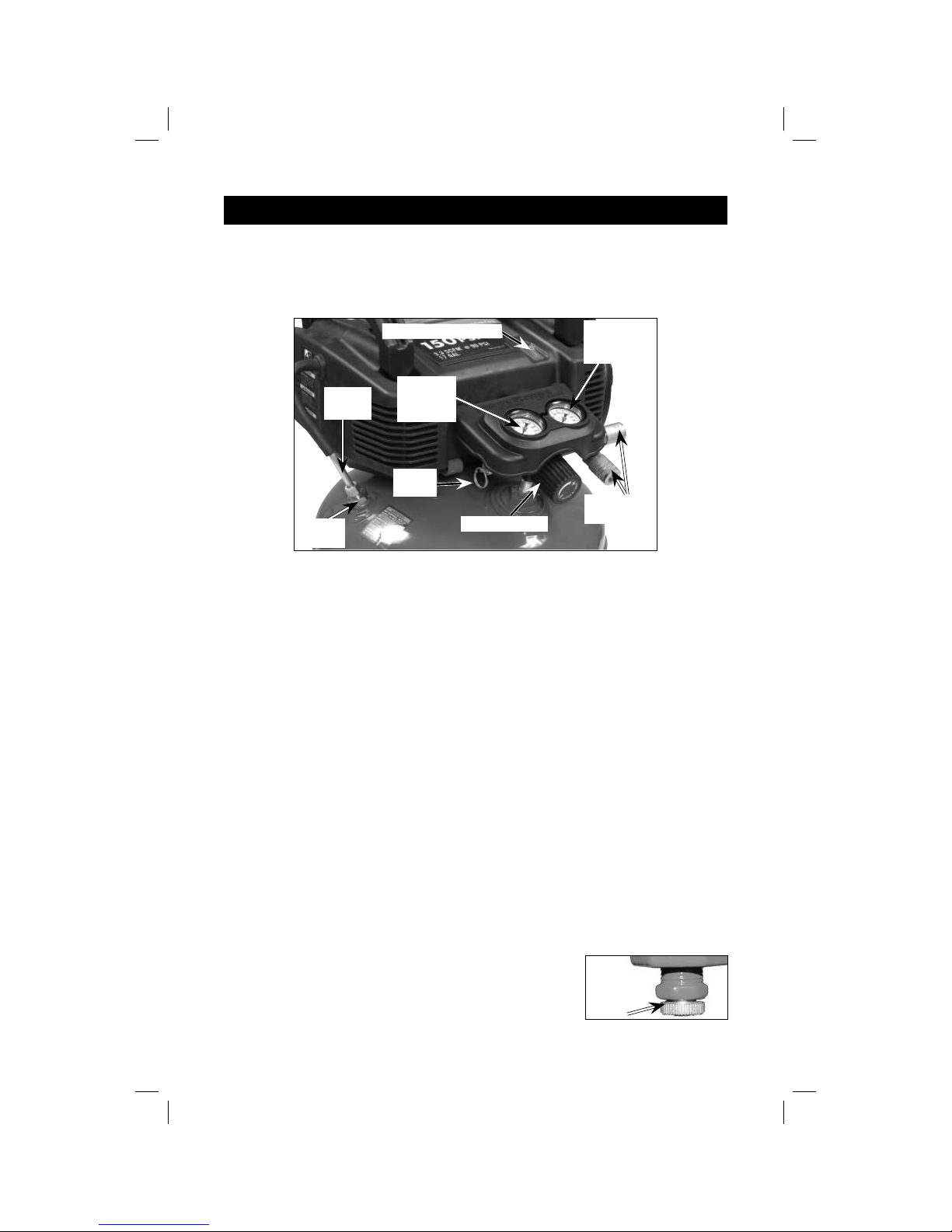

KNOW YOUR AIR COMPRESSOR
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Outlet
Tube
On(I)/Off(O) Switch
Safety
Valve
Tank
Pressure
Gauge
Outlet
Pressure
Gauge
Regulator
Quick
Connect
Check
Valve
DESCRIPTION OF OPERATION
Become familiar with these controls before operating the unit.
On(I)/Off(O) Switch: Place this switch in the On (I) position to provide automatic
power to the pressure switch and Off (O) to remove power at the end of each use.
Pressure Switch (not shown): The pressure switch automatically starts the motor
when the air tank pressure drops below the factory set "cut-in" pressure. It stops
the motor when the air tank pressure reaches the factory set "cut-out" pressure.
Safety Valve: If the pressure switch does not shut off the air compressor at its
"cut-out" pressure setting, the safety valve will protect against high pressure by
"popping out" at its factory set pressure (slightly higher than the pressure switch
"cut-out" setting).
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air
pressure in the tank.
Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure
available at the outlet side of the regulator. This pressure is controlled by the
regulator and is always less than or equal to the tank pressure.
Regulator: Controls the air pressure shown on the outlet pressure gauge. Turn
regulator knob clockwise to increase pressure and counterclockwise to decrease
pressure.
Cooling System (not shown): This compressor contains an advanced design
cooling system. At the heart of this cooling system is an engineered fan. It is
perfectly normal for this fan to blow air through the vent holes in large amounts.
You know that the cooling system is working when air is being expelled.
Air Compressor Pump (not shown): Compresses air into the air tank. Working air
is not available until the compressor has raised the air tank pressure above that
required at the air outlet.
Drain Valve: The drain valve is located at the base of the
Drain
Valve
air tank and is used to drain condensation at the end of
each use.

12 - ENG
Check Valve: When the air compressor is operating, the check valve is "open",
allowing compressed air to enter the air tank. When the air compressor reaches
"cut-out" pressure, the check valve "closes", allowing air pressure to remain inside
the air tank.
Motor Overload Protector (not shown): The motor has an automatic reset
thermal overload protector. If the motor overheats for any reason, the overload
protector will shut off the motor. The motor must be allowed to cool down before
restarting. The compressor will automatically restart after the motor cools.
Quick-Connect Coupler: The quick connect coupler accepts industrial quick
connect plugs. The two quick connect couplers allow the use of two tools at the
same time.
HOW TO USE YOUR UNIT
How to Stop
1. Set the On/Off switch to "Off".
2. Unplug unit when not in use.
Before Starting
Do not operate this unit until you read this instruction manual
for safety, operation and maintenance instructions.
Before Each Start-Up
1. Set the On/Off switch to "Off".
2.
Plug the power cord into the correct branch circuit receptacle. (Refer to Voltage
and Circuit Protection paragraph in the Installation section of this manual.)
3. Turn the regulator knob counterclockwise to set the outlet pressure to zero.
4. Attach hose and accessories.
Risk of unsafe operation. Firmly grasp air hose in hand when
installing or disconnecting to prevent hose whip.
Risk of unsafe operation. Do not use damaged or worn
accessories.
NOTE: The hose or accessory will require a quick connect plug if the air outlet is
equipped with a quick connect socket.
Risk of Bursting. Too much air pressure causes a hazardous
risk of bursting. Check the manufacturer’s maximum pressure rating for air
tools and accessories. The regulator outlet pressure must never exceed the
maximum pressure rating.
Risk of property damage. Compressed air from the unit may
contain water condensation and oil mist. Do not spray unfiltered air at an item
that could be damaged by moisture. Some air tools and accessories may require
filtered air. Read the instructions for the air tools and accessories.
How to Start
1. Set the On/Off switch to "On" and allow tank pressure to build. Motor will stop
when tank pressure reaches "cut-out" pressure.
2. Turn regulator knob clockwise to increase pressure and stop when desired
pressure is reached.
Risk of unsafe operation. If any unusual noise or vibration is
noticed, stop the compressor immediately and have it checked by a trained
service technician.
The compressor is ready for use.

13 - ENG
MAINTENANCE
CUSTOMER RESPONSIBILITIES
Before
each use Daily or after
each
use
See tank
warning
label
Check Safety Valve X
Drain Tank X
Remove tank from service X(1)
1- For more information, call our Customer Care Center at 1-(888)-848-5175
Risk of unsafe operation. Unit cycles automatically when
power is on. When performing maintenance, you may be exposed to voltage
sources, compressed air, or moving parts. Personal injuries can occur. Before
performing any maintenance or repair, disconnect power source from the
compressor and bleed off all air pressure.
NOTE: See Operation section for the location of controls.
TO CHECK SAFETY VALVE
Risk of Bursting. If the safety valve does not work properly,
over-pressurization may occur, causing air tank rupture or an explosion.
Risk from Flying Objects. Always wear certified safety
equipment: ANSI Z87.1 eye protection (CAN/CSA Z94.3) with side shields.
Before starting compressor, pull the ring on the safety valve to make sure that the
safety valve operates freely. If the valve is stuck or does not operate smoothly, it
must be replaced with the same type of valve.
TO DRAIN TANK
Risk of Unsafe Operation. Air tanks contain high pressure air.
Keep face and other body parts away from outlet of drain. Use ANSI Z87.1
eye protection (CAN/CSA Z94.3) when draining as debris can be kicked up
into face.
Risk from noise. Always wear proper hearing protection
during use. Under some conditions and duration of use, noise from this
product may contribute to hearing loss.
NOTE: All compressed air systems generate condensate that accumulates in
any drain point (e.g., tanks, filter, aftercoolers, dryers). This condensate contains
lubricating oil and/or substances which may be regulated and must be disposed of
in accordance with local, state, and federal laws and regulations.
1. Set the On/Off switch to "Off".
2. Turn the regulator knob counterclockwise to set the outlet pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing air to bleed from the tank until tank pressure
is approximately 20 psi. Release safety valve ring.
5. Drain water from air tank by opening drain valve on bottom of tank.
Risk of Bursting. Water will condense in the air tank. If not
drained, water will corrode and weaken the air tank causing a risk of air tank
rupture.

14 - ENG
Risk of Property Damage. Drain water from air tank may contain oil
and rust which can cause stains.
6. After the water has been drained, close the drain valve. The air compressor
can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, the reinstalled.
SERVICE AND ADJUSTMENTS
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE
PERFORMED BY TRAINED SERVICE TECHNICIAN.
Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to voltage sources,
compressed air, or moving parts. Before servicing unit unplug or disconnect
electrical supply to the air compressor, bleed tank of pressure, and allow the
air compressor to cool.

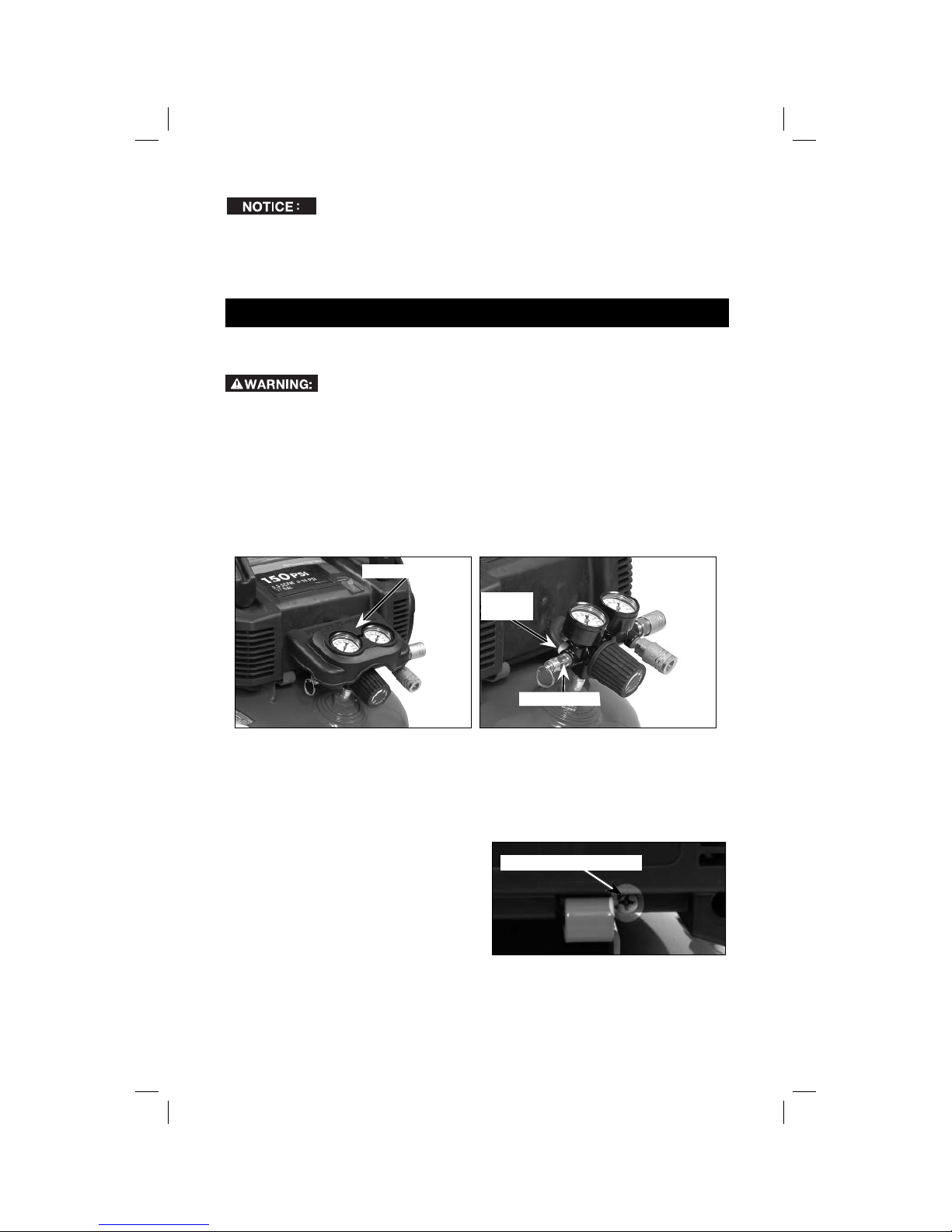

TO REPLACE REGULATOR MANIFOLD
1. Release all air pressure from air tank. See To Drain Tank in the Maintenance
section.
2. Unplug unit.
3. Remove the console cover.
Hose
Clamp
Safety Valve
Console Cover
4. Using an adjustable wrench remove the safety valve from the regulator
manifold.
5. Remove the hose by removing the hose clamp. NOTE: The hose clamp is not
reusable. You must purchase a new hose clamp, see Replacement Parts in
the Service section or purchase a standard hose clamp at a local hardware
store.
6. Remove pump mounting screws
Pump Mounting Screw
securing pump (one on each side).
7. Carefully slide pump from brackets
and out of the way.
8. Using an adjustable wrench remove
the regulator manifold.
9. Apply pipe sealant to new regulator
manifold and assemble, tighten with
wrench.
10. Reapply pipe sealant to safety valve.
11. Reassemble all components in reverse order of removal. Make sure to orient
gauges to read correctly and use wrenches to tighten all components.

15 - ENG
STORAGE
Before you store the air compressor, make sure you do the following:
1. Review the Maintenance section on the preceding pages and perform
scheduled maintenance as necessary.
2. Drain water from air tank. See To Drain Tank under Maintenance.
Water will condense in the air tank. If not drained, water will
corrode and weaken the air tank causing a risk of air tank rupture.
3. Protect the electrical cord and air hose
Cord
Wrap
from damage (such as being stepped on
or run over). Wind air hose loosely
around the compressor handle. Wrap
electrical cord onto the cord wrap as
shown.
4. Store the air compressor in a clean and
dry location.
SERVICE
REPLACEMENT PARTS
REPLACEMENT PARTS
Use only identical replacement parts. For a parts list or to order parts, visit our
service website at www.deltaportercableservicenet.com. You can also order parts
from your nearest PORTER-CABLE Factory Service Center or PORTER-CABLE
Authorized Warranty Service Center. Or, you can call our Customer Care Center at
1-(888)-848-5175.
SERVICE AND REPAIRS
All quality tools will eventually require servicing and/or replacement of parts. For
information about PORTER-CABLE, its factory service centers or authorized warranty
service centers, visit our website at www.deltaportercable.com or call our Customer
Care Center at 1-(888)-848-5175. All repairs made by our service centers are fully
guaranteed against defective material and workmanship. We cannot guarantee repairs
made or attempted by others.
You can also write to us for information at PORTER-CABLE, 4825 Highway 45 North,
Jackson, Tennessee 38305 - Attention: Product Service. Be sure to include all of the
information shown on the nameplate of your tool (model number, type, serial number,
etc.).
ACCESSORIES
Since accessories, other than those offered by PORTER-CABLE,
have not been tested with this product, use of such accessories with this tool could
be hazardous. To reduce the risk of injury, only PORTER-CABLE recommended
accessories should be used with this product.
A complete line of accessories is available from your PORTER-CABLE Factory Service
Center or a PORTER-CABLE Authorized Warranty Service Center. Please visit our Web
Site www.deltaportercable.com for a catalog or for the name of your nearest supplier.

16 - ENG
TROUBLESHOOTING
Risk of Unsafe Operation. Unit cycles automatically when
power is on. When servicing, you may be exposed to voltage sources,
compressed air, or moving parts. Before servicing unit unplug or disconnect
electrical supply to the air compressor, bleed tank of pressure, and allow the
air compressor to cool.
PROBLEM CAUSE CORRECTION
Excessive tank pressure
- safety valve pops off. Pressure switch does not shut off motor when
compressor reaches
"cut-out" pressure.
Move On/Off lever to
the "Off" position, if
the outfit does not shut
off contact a Trained
Service Technician.
Pressure switch "cut-
out" too high. Contact a Trained Service Technician.
Air leaks at fittings. Tube fittings are not
tight enough. Tighten fittings where air can be heard escaping.
Check fittings with
soapy water solution.
Do Not Overtighten.
Air leaks in air tank
or at air tank welds. Defective air tank. Air tank must be replaced. Do not
repair the leak.
Risk
bursting. Do not drill
into, weld or otherwise
modify air tank or it will
weaken. The tank can
rupture or explode.
Air leaks between
head and valve plate. Leaking seal. Contact a Trained Service Technician.
Air leak from
safety valve. Possible defect in safety valve. Operate safety valve manually by pulling on
ring. If valve still leaks,
it should be replaced.
Knocking Noise. Possible defect in
safety valve. Remove and clean, or replace.

17 - ENG
PROBLEM CAUSE CORRECTION
Pressure reading on
the regulated pressure
gauge drops when an
accessory is used.
It is normal for "some"
pressure drop to occur. If there is an excessive amount of pressure drop
when the accessory
is used, adjust the
regulator following
the instructions in
the Description of
Operation paragraph in
the Operation Section.
NOTE: Adjust the
regulated pressure
under flow conditions
(while accessory
is being used).
Compressor is not
supplying enough air to
operate accessories.
Prolonged excessive
use of air. Decrease amount of air usage.
Compressor is not
large enough for
air requirement.
Check the accessory
air requirement. If
it is higher than the
SCFM or pressure
supplied by your air
compressor, you need
a larger compressor.
Hole in hose. Check and replace
if required.
Check valve restricted. Contact a Trained
Service Technician
Air leaks. Tighten fittings.
Regulator knob has
continuous air leak. Damaged regulator. Replace.
Regulator will not
shut off air outlet. Damaged regulator. Replace.

18 - ENG
PROBLEM CAUSE CORRECTION
Motor will not run. Fuse blown, circuit
breaker tripped. Check fuse box for blown fuse and
replace as necessary.
Reset circuit breaker.
Do not use a fuse or
circuit breaker with
higher rating than
that specified for your
particular branch circuit.
Check for proper
fuse. You should use
a time delay fuse.
Check for low
voltage problem.
Check the
extension cord.
Disconnect the other
electrical appliances
from circuit or operate
the compressor on its
own branch circuit.
Extension cord is wrong
length or gauge. Check the extension cord.
Loose electrical
connections. Check wiring connection inside terminal box.
Faulty motor. Have checked by
a Trained Service
Technician.
Motor will not run. Motor overload
protection switch
has tripped
Refer to Motor
Overload Protection
under Operation.
If motor overload
protection trips
frequently, contact
a Trained Service
Technician

19 - ENG
LIMITED WARRANTY
PORTER-CABLE industrial tools are warranted from date of purchase, as follows:
3 YEAR – Limited warranty on 2-stage oil-free air compressor pumps
operating at 1725 RPM.
2 YEAR – Limited warranty on oil-lubricated air compressor pumps.
1 YEAR – Limited warranty on all other air compressor components.
PORTER-CABLE will repair or replace, without charge, at PORTER-CABLE’s
option, any defects due to faulty materials or workmanship. For further detail
of warranty coverage and warranty repair information, call
1-(888)-848-5175
or visit deltaportercable.com. This warranty does not apply to accessories or
damage caused where repairs have been made or attempted by others. This
warranty also does not apply to merchandise sold by PORTER-CABLE which
has been manufactured by and identified as the product of another company,
such as gasoline engines. Such manufacturer’s warranty, if any, will apply. ANY
INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE OR EXPENSE
THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE
PRODUCT IS NOT COVERED BY THIS WARRANTY. Some states do not allow
the exclusion of limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. IMPLIED WARRANTIES, INCLUDING
THOSE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE.
Some states do not allow limitations on how long an implied warranty lasts, so the
above limitations may not apply to you. This warranty gives you specific legal rights
and you may have other rights which vary in certain states or provinces.
LATIN AMERICA: This warranty does not apply to products sold in Latin America.
For products sold in Latin America, see country specific warranty information
contained either in the packaging, call the local company or see website for
warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible
or are missing, call
1-(888)-848-5175 for a free replacement.

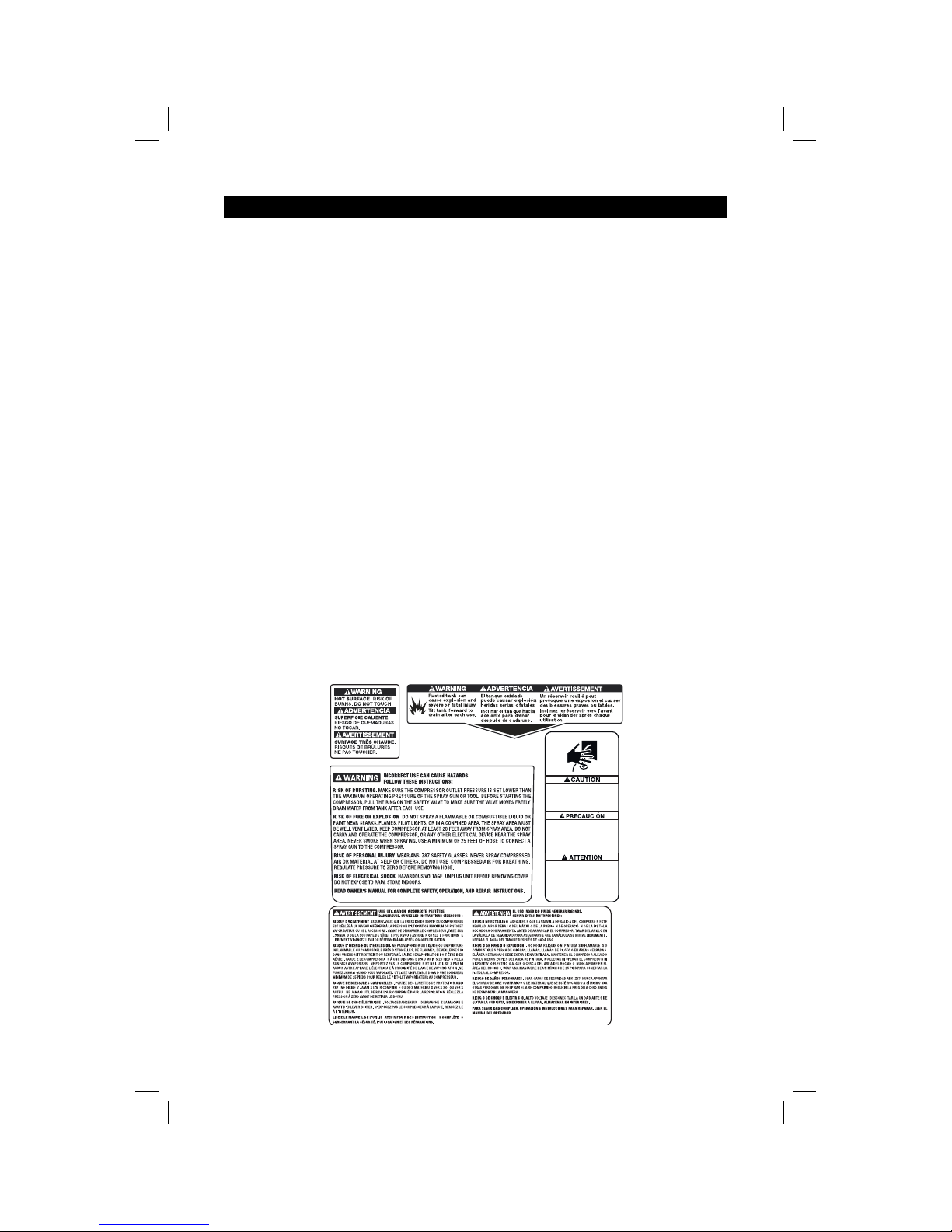

RISK OF DAMAGE. DO NOT USE
OUTLET TUBE AS A HANDLE
TO PUSH, PULL, OR LIFT AIR
COMPRESSOR.
RIESGO DE DAÑOS. NO USE EL
TUBO DE SALIDA COMO ASA
PARA EMPUJAR, JALAR O
LEVANTAR EL COMPRESOR DE
AIRE.
MISE EN GARDE. RISQUE DE
DOMMAGES. N'UTILISEZ PAS
LE TUBE DE SORTIE EN TANT
QUE POIGNÉE POUR POUSSER,
TIRER OU SOULEVER LE
COMPRESSEUR D'AIR.

20 - FR
MESURES DE SÉCURITÉ - DÉFINITIONS
Ce guide contient des renseignements importants que vous deviez bien saisir.
Cette information porte sur VOTRE SÉCURITÉ et sur LA PRÉVENTION DE
PROBLÈMES D'ÉQUIPEMENT. Afin de vous aider à identifier cette information,
nous avons utilisé les symboles ci-dessous. Veuillez lire attentivement ce guide en
portant une attention particulière à ces symboles.
Indique un danger
imminent qui, s'il n'est pas évité,
causera de graves blessures ou la
mort.
Indique la possibilité
d'un danger qui, s'il n'est pas évité,
peut causer des blessures mineures
ou moyennes.
Indique la
possibilité d’un danger qui, s’il n’est
pas évité, pourrait causer de graves
blessures ou la mort.
Indique une pratique
ne posant aucun risque de
dommages corporels mais qui par
contre, si rien n’est fait pour l’éviter,
pourrait poser des risques de
dommages matériels.
CONSIGNES DE SÉCURITÉ IMPORTANTES
Ce produit contient des produits chimiques reconnus
par l’État de la Californie comme étant cancérigènes et pouvant entraîner des
anomalies congénitales ou d’autres problèmes liés aux fonctions reproductrices.
Se laver les mains après toute manipulation.
Certaines poussières contiennent des produits chimiques
reconnus par l’État de la Californie comme cancérigènes et pouvant entraîner des
anomalies congénitales et d’autres problèmes liés aux fonctions reproductrices,
tels que l’amiante et le plomb contenus dans les peintures au plomb.
Afin de réduire le risque de blessures, lire le
mode d’emploi de l’outil.
CONSERVER CES DIRECTIVES
DANGER
RISQUE D’EXPLOSION OU D’INCENDIE
CE QUI PEUT SE PRODUIRE COMMENT L’ÉVITER
• Il est normal que des
contacts électriques dans le
moteur et le manocontacteur
fassent une étincelle.
• Faites toujours fonctionner le
compresseur dans une zone bien
aérée sans matière combustible,
essence ou vapeur de solvant.
