Porter-Cable CPFAC2600P User manual

Pancake CompressorInstruction
manual
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
Part No. D20787-004
ESPAÑOL: PÁGINA 13
FRANÇAISE : PAGE 27
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
MODEL
CPFAC2600P
Copyright © 2000 Porter-Cable Corporation
PROFESSIONAL POWER TOOLS

2
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below. Please read the manual and pay
attention to these sections.
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Caution used without the safety
alert symbol indicates a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Call our Toll Free Number 1-888-559-8550, to obtain the location of the
nearest Authorized Service Center for ordering repair parts and for warranty
repairs.
When ordering repair parts from your local Authorized Service Center,
always give the following information:
• Model number of your compressor
• Part number and description of the item you wish to purchase
Retain Original Sales Receipt as Proof of Purchase for Warranty Repair Work.
IMPORTANT SAFETY INSTRUCTIONS
When using electric tools, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and personal
injury, including the following:
READ AND FOLLOW ALL INSTRUCTIONS.
This tool was designed for certain applications. Porter-Cable strongly
recommends that this tool NOT be modified and/or used for any application
other than for which it was designed. If you have any questions relative to its
application DO NOT use the tool until you have written Porter-Cable and we
have advised you.
Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
P. O. Box 2468
Jackson, TN 38302-2468

3
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD
RESULT IN SERIOUS INJURY AND PROPERTY DAMAGE. READ AND
UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT.
HAZARD
RISK OF EXPLOSION OR FIRE
IT IS NORMAL FOR ELECTRICAL CONTACTS
WITHIN THE MOTOR AND PRESSURE SWITCH TO
SPARK.
IF ELECTRICAL SPARKS FROM COMPRESSOR
COME INTO CONTACT WITH FLAMMABLE
VAPORS, THEY MAY IGNITE, CAUSING FIRE OR
EXPLOSION.
RESTRICTING ANY OF THE COMPRESSOR
VENTILATION OPENINGS WILL CAUSE SERIOUS
OVERHEATING AND COULD CAUSE FIRE.
UNATTENDED OPERATION OF THIS PRODUCT
COULD RESULT IN PERSONAL INJURY OR
PROPERTY DAMAGE.
ALWAYS OPERATE THE COMPRESSOR IN A WELL
VENTILATED AREA FREE OF COMBUSTIBLE
MATERIALS, GASOLINE OR SOLVENT VAPORS.
IF SPRAYING FLAMMABLE MATERIALS, LOCATE
COMPRESSOR AT LEAST 20 FEET AWAY FROM
SPRAY AREA. AN ADDITIONAL LENGTH OF HOSE
MAY BE REQUIRED.
STORE FLAMMABLE MATERIALS IN A SECURE
LOCATION AWAY FROM COMPRESSOR.
NEVER PLACE OBJECTS AGAINST OR ON TOP
OF COMPRESSOR. OPERATE COMPRESSOR IN
AN OPEN AREA AT LEAST 12 INCHES AWAY FROM
ANY WALL OR OBSTRUCTION THAT WOULD
RESTRICT THE FLOW OF FRESH AIR TO THE
VENTILATION OPENINGS.
OPERATE COMPRESSOR IN A CLEAN, DRY, WELL
VENTILATED AREA. DO NOT OPERATE UNIT
INDOORS OR IN ANY CONFINED AREA.
ALWAYS REMAIN IN ATTENDANCE WITH THE
PRODUCT WHEN IT IS OPERATING.
RISK OF BURSTING
AIR TANK: THE FOLLOWING CONDITIONS COULD LEAD TO A WEAKENING OF THE TANK, AND RESULT IN A
VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY.
1. FAILURE TO PROPERLY DRAIN CONDENSED
WATER FROM THE TANK, CAUSING RUST
AND THINNING OF THE STEEL TANK.
2. MODIFICATIONS OR ATTEMPTED REPAIRS TO
THE TANK.
3. UNAUTHORIZED MODIFICATIONS TO THE
UNLOADER VALVE, SAFETY VALVE, OR ANY
OTHER COMPONENTS WHICH CONTROL
TANK PRESSURE.
4. EXCESSIVE VIBRATION CAN WEAKEN THE
AIR TANK AND CAUSE RUPTURE OR
EXPLOSION.
ATTACHMENTS & ACCESSORIES:
EXCEEDING THE PRESSURE RATING OF AIR
TOOLS, SPRAY GUNS, AIR OPERATED
ACCESSORIES, TIRES AND OTHER INFLATABLES
CAN CAUSE THEM TO EXPLODE OR FLY APART,
AND COULD RESULT IN SERIOUS INJURY.
DRAIN TANK DAILY OR AFTER EACH USE. IF
TANK DEVELOPS A LEAK, REPLACE IT
IMMEDIATELY WITH A NEW TANK OR REPLACE
THE ENTIRE COMPRESSOR.
NEVER DRILL INTO, WELD, OR MAKE ANY
MODIFICATIONS TO THE TANK OR ITS
ATTACHMENTS.
THE TANK IS DESIGNED TO WITHSTAND SPECIFIC
OPERATING PRESSURES. NEVER MAKE
ADJUSTMENTS OR PARTS SUBSTITUTIONS TO
ALTER THE FACTORY SET OPERATING
PRESSURES.
FOR ESSENTIAL CONTROL OF AIR PRESSURE, YOU
MUST INSTALL A PRESSURE REGULATOR AND
PRESSURE GAUGE TO THE AIR OUTLET OF YOUR
COMPRESSOR. FOLLOW THE EQUIPMENT
MANUFACTURERS RECOMMENDATION AND
NEVER EXCEED THE MAXIMUM ALLOWABLE
PRESSURE RATING OF ATTACHMENTS. NEVER
USE COMPRESSOR TO INFLATE SMALL LOW-
PRESSURE OBJECTS SUCH AS CHILDREN’S
TOYS, FOOTBALLS, BASKETBALLS. ETC.
WHAT CAN HAPPEN HOW TO PREVENT IT
WHAT CAN HAPPEN HOW TO PREVENT IT

4
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
HAZARD
RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
THE COMPRESSED AIR STREAM CAN CAUSE
SOFT TISSUE DAMAGE TO EXPOSED SKIN AND
CAN PROPEL DIRT, CHIPS, LOOSE PARTICLES
AND SMALL OBJECTS AT HIGH SPEED,
RESULTING IN PROPERTY DAMAGE OR
PERSONAL INJURY.
ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY
GLASSES WITH SIDE SHIELDS WHEN USING
THE COMPRESSOR.
NEVER POINT ANY NOZZLE OR SPRAYER
TOWARD ANY PART OF THE BODY OR AT
OTHER PEOPLE OR ANIMALS.
ALWAYS TURN THE COMPRESSOR OFF AND
BLEED PRESSURE FROM THE AIR HOSE AND
TANK BEFORE ATTEMPTING MAINTENANCE,
ATTACHING TOOLS OR ACCESSORIES.
RISK TO BREATHING
WHAT CAN HAPPEN HOW TO PREVENT IT
THE COMPRESSED AIR FROM YOUR
COMPRESSOR IS NOT SAFE FOR BREATHING!
THE AIR STREAM MAY CONTAIN CARBON
MONOXIDE, TOXIC VAPORS OR SOLID PARTICLES
FROM THE TANK.
SPRAYED MATERIALS SUCH AS PAINT, PAINT
SOLVENTS, PAINT REMOVER, INSECTICIDES,
WEED KILLERS, CONTAIN HARMFUL VAPORS AND
POISONS.
ALWAYS OPERATE AIR COMPRESSOR
OUTSIDE IN A CLEAN, WELL VENTILATED
AREA. AVOID ENCLOSED AREAS SUCH AS
GARAGES, BASEMENTS, STORAGE SHEDS,
WHICH LACK A STEADY EXCHANGE OF AIR.
KEEP CHILDREN, PETS AND OTHERS AWAY
FROM AREA OF OPERATION.
NEVER INHALE AIR FROM THE COMPRESSOR
EITHER DIRECTLY OR FROM A BREATHING
DEVICE CONNECTED TO THE COMPRESSOR.
WORK IN AN AREA WITH GOOD CROSS-
VENTILATION. READ AND FOLLOW THE
SAFETY INSTRUCTIONS PROVIDED ON THE
LABEL OR SAFETY DATA SHEETS FOR THE
MATERIAL YOU ARE SPRAYING. USE A
NIOSH/MSHA APPROVED RESPIRATOR
DESIGNED FOR USE WITH YOUR SPECIFIC
APPLICATION.
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
YOUR AIR COMPRESSOR IS POWERED BY
ELECTRICITY. LIKE ANY OTHER ELECTRICALLY
POWERED DEVICE, IF IT IS NOT USED PROPERLY
IT MAY CAUSE ELECTRIC SHOCK.
REPAIRS ATTEMPTED BY UNQUALIFIED
PERSONNEL CAN RESULT IN SERIOUS INJURY OR
DEATH BY ELECTROCUTION.
ELECTRICAL GROUNDING: FAILURE TO PROVIDE
ADEQUATE GROUNDING TO THIS PRODUCT
COULD RESULT IN SERIOUS INJURY OR DEATH
FROM ELECTROCUTION. SEE GROUNDING
INSTRUCTIONS.
NEVER OPERATE THE COMPRESSOR
OUTDOORS WHEN IT IS RAINING OR IN WET
CONDITIONS.
NEVER OPERATE COMPRESSOR WITH COVER
COMPONENTS REMOVED OR DAMAGED.
ANY ELECTRICAL WIRING OR REPAIRS
REQUIRED ON THIS PRODUCT SHOULD BE
PERFORMED BY AUTHORIZED SERVICE
CENTER PERSONNEL IN ACCORDANCE WITH
NATIONAL AND LOCAL ELECTRICAL CODES.
MAKE CERTAIN THAT THE ELECTRICAL
CIRCUIT TO WHICH THE COMPRESSOR IS
CONNECTED PROVIDES PROPER ELECTRICAL
GROUNDING, CORRECT VOLTAGE AND
ADEQUATE FUSE PROTECTION.

5
IMPORTANT SAFETY INSTRUCTIONS (cont’d)
HAZARD
RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
MOVING PARTS SUCH AS THE PULLEY,
FLYWHEEL, AND BELT CAN CAUSE SERIOUS
INJURY IF THEY COME INTO CONTACT WITH
YOU OR YOUR CLOTHING.
ATTEMPTING TO OPERATE COMPRESSOR WITH
DAMAGED OR MISSING PARTS OR
ATTEMPTING TO REPAIR COMPRESSOR WITH
PROTECTIVE SHROUDS REMOVED CAN EXPOSE
YOU TO MOVING PARTS AND CAN RESULT IN
SERIOUS INJURY.
NEVER OPERATE THE COMPRESSOR WITH
GUARDS OR COVERS WHICH ARE DAMAGED OR
REMOVED.
ANY REPAIRS REQUIRED ON THIS PRODUCT
SHOULD BE PERFORMED BY AUTHORIZED
SERVICE CENTER PERSONNEL.
RISK OF BURNS
WHAT CAN HAPPEN HOW TO PREVENT IT
TOUCHING EXPOSED METAL SUCH AS THE
COMPRESSOR HEAD OR OUTLET TUBES, CAN
RESULT IN SERIOUS BURNS.
NEVER TOUCH ANY EXPOSED METAL PARTS
ON COMPRESSOR DURING OR IMMEDIATELY
AFTER OPERATION. COMPRESSOR WILL
REMAIN HOT FOR SEVERAL MINUTES AFTER
OPERATION.
DO NOT REACH AROUND PROTECTIVE SHROUDS
OR ATTEMPT MAINTENANCE UNTIL UNIT HAS
BEEN ALLOWED TO COOL.
RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
A PORTABLE COMPRESSOR CAN FALL FROM A
TABLE, WORKBENCH OR ROOF CAUSING
DAMAGE TO THE COMPRESSOR AND COULD
RESULT IN SERIOUS INJURY OR DEATH TO THE
OPERATOR OR BYSTANDERS.
ALWAYS OPERATE COMPRESSOR IN A STABLE
SECURE POSITION TO PREVENT ACCIDENTAL
MOVEMENT OF THE UNIT. NEVER OPERATE
COMPRESSOR ON A ROOF OR OTHER
ELEVATED POSITION. USE ADDITIONAL AIR
HOSE TO REACH HIGH LOCATIONS.
RISK OF PROPERTY DAMAGE WHEN
TRANSPORTING COMPRESSOR
(Fire, Inhalation, Damage to Vehicle Surfaces)
WHAT CAN HAPPEN HOW TO PREVENT IT
OIL CAN LEAK OR SPILL AND COULD RESULT IN
FIRE OR BREATHING HAZARD, SERIOUS INJURY
OR DEATH CAN RESULT. OIL LEAKS WILL
DAMAGE CARPET, PAINT OR OTHER SURFACES
IN VEHICLES OR TRAILERS.
ALWAYS PLACE COMPRESSOR ON A
PROTECTIVE MAT WHEN TRANSPORTING TO
PROTECT AGAINST DAMAGE TO VEHICLE FROM
LEAKS. REMOVE COMPRESSOR FROM VEHICLE
IMMEDIATELY UPON ARRIVAL AT YOUR
DESTINATION.
ESW-99 — 9/26/99

6
GLOSSARY
SCFM or CFM: Standard Cubic Feet per Minute; a unit of measurement of
air delivery.
PSIG or PSI: Pounds per square inch gauge.
CUT-IN PRESSURE: While the motor is off, air tank pressure drops as you
continue to use your accessory or air tool. When the tank pressure drops to a
certain low level the motor will restart automatically. The low pressure at
which the motor automatically restarts is called “cut-in pressure.”
CUT-OUT PRESSURE: When you turn on your air compressor and it begins
to run, air pressure in the air tank begins to build. It builds to a certain high
pressure before the motor automatically shuts off - protecting your air tank
from pressure higher than its capacity. The high pressure at which the motor
shuts off is called “cut-out pressure.”
CODE CERTIFICATION: Products that bear one or more of the following
marks: UL, CUL, ETL, CETL, have been evaluated by OSHA certified
indepenent safety laboratories and meet the applicable Underwriters
Laboratories Standards for Safety.
DUTY CYCLE
Porter-Cable air compressors should be operated on not more than a 50%
duty cycle. This means an air compressor that pumps air more than 50% of
one hour is considered misused, because the air compressor is undersized
for the required air demand. Maximum compressor pumping time per hour is
30 minutes.
SPECIFICATIONS
MODEL NO. CPFAC2600P
Horsepower-Peak 2.0
SCFM @ 40 psig 3.7
SCFM @ 90 psig 2.6
Cut-In 120 PSI
Cut-Out 150 PSI
Bore 1.875"
Stroke 1.250"
Voltage/Hertz/Phase 120/60/1
Minimum Branch Circuit 15 Amp
* Fuse Type Time Delay Type “D”
Amperage at Max. Load 10 Amps
Tank Size 6 Gallon
* A circuit breaker is preferred. Use only a fuse or circuit breaker that is the same rating as
the branch circuit on which the air compressor is operated. If the air compressor is
connected to a circuit protected by fuses, use time delay type “D” fuses.

Air Compressor Pump: To compress air,
the piston moves up and down in the
cylinder. On the downstroke, air is drawn
in through the intake valves. The exhaust
valves remain closed. On the upstroke of
the piston, air is compressed. The intake
valves close and compressed air is forced
out through the exhaust valves.
Check Valve (B) Fig. 1: When the air
compressor is operating, the check valve
is “open”, allowing compressed air to
enter the air tank. When the air
compressor reaches “cut-out” pressure,
the check valve “closes”, allowing air
pressure to remain inside the air tank.
ON/AUTO-OFF Switch (C) Fig. 3: Turn
this switch ON to provide power to the
automatic pressure switch and OFF to
remove power at the end of each use.
Pressure Switch (D) Fig. 3: The
pressure switch automatically starts the
motor when the tank pressure drops
below the factory set “cut-in” pressure. It
stops the motor when the air tank
pressure reaches the factory set “cut-
out” pressure.
Regulator (E) Fig. 3: The air pressure coming from the air tank is controlled by
the regulator. Turn the regulator knob clockwise to increase pressure and
counterclockwise to decrease pressure. To avoid minor readjustment after
making a change in pressure setting, always approach the desired pressure
from a lower pressure. When reducing from a higher to a lower setting, first
reduce to pressure less than that desired, then bring it up to the desired
pressure. Depending on the air requirements of each particular accessory, the
outlet regulated air pressure may have to be adjusted while operating the
accessory.
Outlet Pressure Gauge (F)
Fig. 3: The outlet pressure
gauge indicates the air
pressure available at the
outlet side of the regulator.
This pressure is controlled
by the regulator and is
always less than or equal to
the tank pressure. See
“Operating Procedures”.
7
E

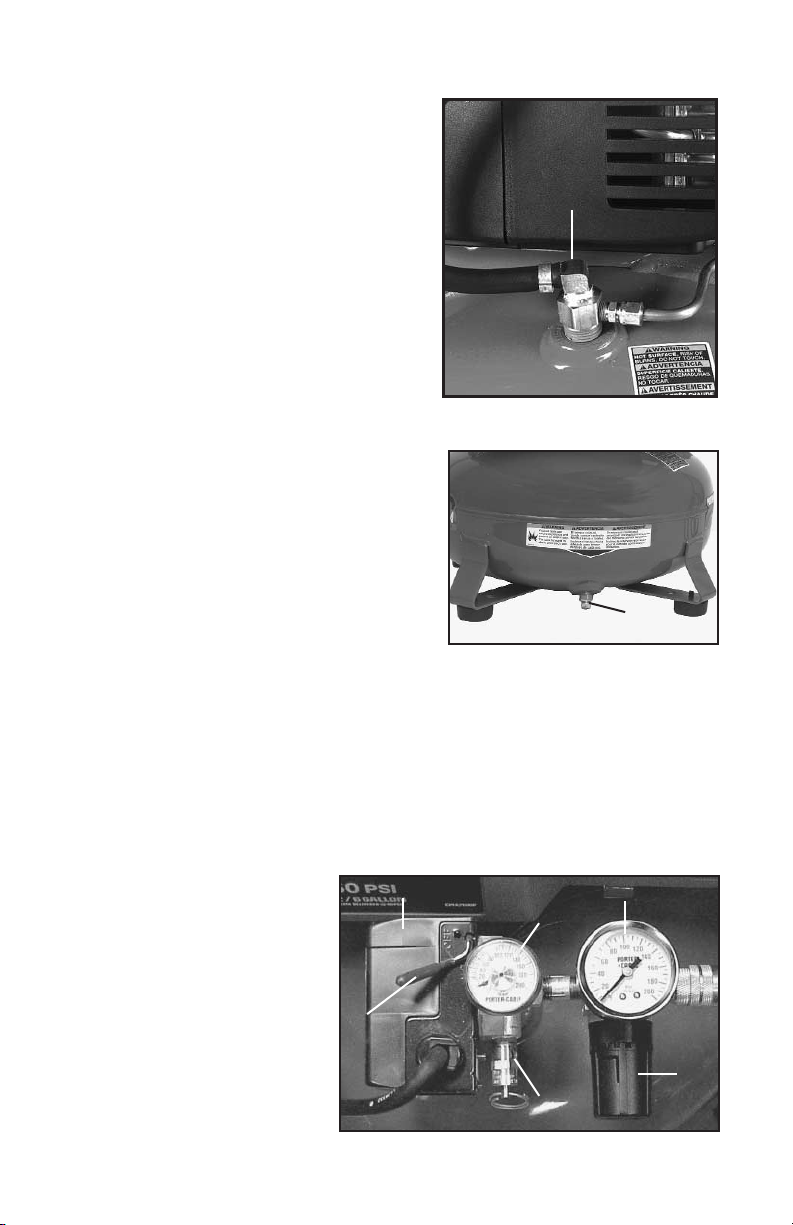

DESCRIPTION OF OPERATION
Fig. 1
Fig. 2
Fig. 3
K
J
F
C
B
G
D

8
Tank Pressure Gauge (G) Fig. 3: The tank pressure gauge indicates the
reserve air pressure in the tank.
Cooling System: This compressor contains an advanced design cooling
system. The cooling system is working when air is being expelled.
Air Intake Filter: This unit requires no air filter due to the unique design of
the air intake system.
Drain Valve (J) Fig. 2: The drain valve is located at the base of the air tank
and is used to drain condensation at the end of each use.
Motor Thermal Overload Protector: The electric motor has an automatic
thermal overload protector. If the motor overheats for any reason, the
thermal overload protector will shut off the motor. The motor must be
allowed to cool before restarting.
Pressure Release Valve: The pressure release valve located on the side of
the pressure switch, is designed to automatically release compressed air
from the compressor head and the outlet tube when the air compressor
reaches “cut-out” pressure or is shut off. The pressure release valve allows
the motor to restart freely. When the motor stops running, air will be heard
escaping from this valve for a few seconds. No air should be heard leaking
when the motor is running, or continuous leaking after unit reaches cut-out
pressure.
Safety Valve (K) Fig. 3: If the pressure switch does not shut off the air
compressor at its cutout pressure setting, the safety valve will protect
against high pressure by “popping out” at its factory set pressure (slightly
higher than the pressure switch cut-out setting).
If the safety valve does not work properly, over-
pressurization may occur, causing air tank rupture or an explosion.
Daily pull the ring on the safety valve to make sure that the safety
valve operates freely. If the valve is stuck or does not operate
smoothly, it must be replaced with the same type of valve.
INSTALLATION AND BREAK-IN PROCEDURES
LOCATION OF THE AIR COMPRESSOR
Your compressor comes to you completely assembled and ready for use.
Operate the air compressor in a dry, clean, cool, and well-ventilated area. The
air compressor pump and case are designed to allow for proper cooling.
Clean or blow off dust or dirt that collects on the air compressor. A clean air
compressor runs cooler and provides longer service. The ventilation openings
on your air compressor are necessary to maintain proper operating
temperature. Do not place rags or other containers on or near these openings.
VOLTAGE AND CIRCUIT PROTECTION
See SPECIFICATIONS Section of this manual.

9
GROUNDING INSTRUCTIONS
The air compressor is equipped with a cord having a grounded wire with an
appropriate grounding plug. The plug must be used with an outlet that has
been installed and grounded in accordance with all local codes and
ordinances. The outlet must have the same configuration as the plug. DO
NOT USE AN ADAPTER.
IMPROPER GROUNDING CAN RESULT IN SEVERE
ELECTRICAL SHOCK.
Inspect the plug and cord before each use. Do not use if there are signs of
damage. Do not modify the plug that has been provided. If it does not fit the
available outlet, the correct outlet should be installed by a qualified
electrician.
If these grounding instructions are not completely understood, or if in doubt
as to whether the compressor is properly grounded, have the installation
checked by a qualified electrician.
EXTENSION CORDS
Use extra air hose instead of an extension cord to avoid voltage drop and
power loss to the motor. If an extension cord must be used, be sure it is:
• A 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot
receptacle that will accept the plug on the compressor.
• In good condition.
• No longer than 50 feet.
• 14 gauge (AWG) or larger. (Wire size increases as gauge number
decreases.) 12 AWG, 10 AWG and 8 AWG may also be used. DO NOT
USE 16 AWG or SMALLER.
ADDITIONAL REGULATORS AND CONTROLS
Since the air tank pressure is usually greater than that which is needed, a
regulator is employed to control the air pressure ahead of any individual air
driven device.
Separate air transformers which combine the function of air regulation,
moisture and dirt removal should be used where applicable.
LUBRICATION
The bearings in this unit are sealed bearings which contain sufficient
lubricant to last their lives. No other lubrication is required.
BREAK-IN PROCEDURES
NOTE: Serious damage may result if the following break-in
instructions are not closely followed.
This procedure is required before the air compressor is put into service, after
replacing the check valve, and when the piston or the cylinder sleeve is
replaced.
a. Set the pressure switch lever to the “OFF” position.

10
b. Plug the power cord into the correct branch circuit receptacle.
c. Turn the drain valve (J) Fig. 2, opening it fully, to prevent air pressure
build-up in the tank.
d. Move the pressure switch lever to “ON/AUTO”. The compressor will
start.
e. Run the compressor for 15 minutes. Make sure the drain valve is open
and there is no tank pressure build-up.
f. After 15 minutes, close the drain valve by turning knob. The air receiver
will fill to cut-out pressure and the motor will stop. The compressor is
now ready for use.
OPERATING PROCEDURES
Preparation for Use:
1. Before attaching air hose or accessories, make sure the OFF/AUTO lever
is set to “OFF” and the air regulator is closed.
2. Attach hose and accessories.
TOO MUCH AIR PRESSURE CAUSES A HAZARDOUS
RISK OF BURSTING. CHECK THE MANUFACTURER’S MAXIMUM
PRESSURE RATING FOR AIR TOOLS AND ACCESSORIES. THE
REGULATOR OUTLET PRESSURE MUST NEVER EXCEED THE
MAXIMUM PRESSURE RATING OF THE TOOL BEING USED.
3. Turn the OFF/AUTO lever to “AUTO” and allow tank pressure to build.
Motor will stop when tank pressure reaches “cut-out” pressure.
4. Open the regulator by turning it clockwise. Adjust the regulator to the
correct pressure setting. The compressor is ready for use.
5. Always operate the air compressor in well ventilated areas; free of
gasoline or other solvent vapors. Do not operate the compressor near the
spray area.
After Use:
6. Set the “OFF/AUTO” lever to “OFF”.
7. Turn the regulator counterclockwise to set the outlet pressure to zero.
8. Remove the air tool or accessory.
9. Pull ring on safety valve (K) Fig. 3, allowing air to bleed from the tank
until tank pressure is approximately 20 psi. Release safety valve ring.
10. Drain water from air tank. Turn drain valve (J) Fig. 2, counterclockwise, to
open.
WATER WILL CONDENSE IN THE AIR TANK. IF NOT
DRAINED, WATER WILL CORRODE AND WEAKEN THE AIR TANK
CAUSING A RISK OF AIR TANK RUPTURE.
NOTE: If drain valve is plugged, pull ring on safety valve (K) Fig. 3,
and hold until all air pressure has been released. The valve can then
be removed, cleaned, and reinstalled.
11. After the water has been completely drained, turn drain valve to close.
The air compressor can now be stored.

11
MAINTENANCE
KEEP TOOL CLEAN
Periodically blow out all air passages with dry compressed air. Clean all
plastic parts with a soft damp cloth. NEVER use solvents to clean plastic
parts. They could possibly dissolve or otherwise damage the material.
WEAR SAFETY GLASSES WHILE USING COMPRESSED AIR.
FAILURE TO START
Should your tool fail to start, check to make sure the prongs on the cord plug
are making good contact in the outlet. Also, check for blown fuses or open
circuit breakers in the line.
SERVICE AND REPAIRS
All quality tools will eventually require servicing or replacement of parts due
to wear from normal use. These operations should ONLY be performed by
either an AUTHORIZED PORTER-CABLE SERVICE STATION or a PORTER-
CABLE SERVICE CENTER. All repairs made by these agencies are fully
guaranteed against defective material and workmanship. We cannot
guarantee repairs made or attempted by anyone other than these agencies.
Should you have any questions about your compressor, feel free to write us
at any time. In any communications, please give all information shown on the
nameplate of your compressor (model number, type, serial number, etc.).
STORAGE
1. Set the “OFF/AUTO” lever to “OFF”.
2. Turn the regulator counterclockwise to set the outlet pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve (K) Fig. 3, allowing air to bleed from the tank
until tank pressure is approximately 20 psi. Release safety valve ring.
5. Drain water from air tank. Turn drain valve (J) Fig. 2, counterclockwise, to
open.
WATER WILL CONDENSE IN THE AIR TANK. IF NOT
DRAINED, WATER WILL CORRODE AND WEAKEN THE AIR TANK
CAUSING A RISK OF AIR TANK RUPTURE.
NOTE: If drain valve is plugged, pull ring on safety valve (K) Fig. 3,
and hold until all air pressure has been released. The valve can then
be removed, cleaned, and reinstalled.
6. After the water has been completely drained, turn drain valve to close.
The air compressor can now be stored.
7. Protect the electrical cord and air hose from damage by winding them
loosely around the air compressor.
8. Store the air compressor in a clean and dry location.

12
LIMITED WARRANTY
PORTER-CABLE CORPORATION warrants to the original purchaser that each new
air compressor and service part is free from defects in material and workmanship and
agrees to repair or replace under this warranty any defective product or part as follows
from the original date of purchase.
5 YEARS – Limited warranty on 2-stage oil-free air compressor pumps that operate
at 1725 RPM and 1 year limited warranty on all other parts.
3 YEARS – Limited warranty on oil-lubricated air compressor pumps and 1 year
limited warranty on all other parts.
1 YEAR – Limited warranty on all other air compressor products.
90 Day – Service parts
Engine warranties are the responsibility of the engine manufacturer. Warranties of
merchandise sold by Porter-Cable which has been manufactured by and identified as the
product of another company are the responsibility of the manufacturer of that product.
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER
Products sold damaged or incomplete, sold “as is”, sold reconditioned or used as
rental equipment.
Delivery, installation or normal adjustments explained in the owner’s manual.
Damage or liability caused by shipping, improper handling, improper installation,
incorrect voltage or improper wiring, improper maintenance, improper modification,
or the use of accessories and/or attachments not specifically recommended by
PORTER-CABLE for the tool.
Repairs necessary because of operator abuse or negligence, or the failure to install,
operate, maintain and store the product according to the instructions in the owner’s
manual.
Damage caused by cold, heat, rain, excessive humidity, corrosive environments and
materials, or other contaminants.
Expendable items that become worn during normal use such as drain valves, fuses,
filters, belts, air cleaners, spark plugs, engine oil and pump oil.
Cosmetic defects that do not interfere with tool functionality.
Freight costs from customer to Porter-Cable.
Repair and transportation costs of products or parts determined not to be defective.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR
EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR
MALFUNCTION OF THE PRODUCT. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM
THE DATE OF ORIGINAL PURCHASE. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitations may not apply to you.
WARRANTY SERVICE is available by delivering or shipping the defective product or
part to any Porter-Cable authorized warranty service location. To determine the nearest
authorized warranty service location, call the toll free number, 1-888-559-8550, 24 hours
a day, 7 days a week. Specific instructions regarding servicing arrangements and
scheduling may vary depending on the type and size of the product and the availability of
repair parts.
DO NOT return the defective product to the retailer.
Retain the original cash register sales receipt as proof of purchase for warranty work.
Only Air compressors with 60 and 80 gallon tanks will be inspected at the site of
installation.
The customer should contact Porter-Cable directly if the purchaser does not receive
satisfactory results from the authorized warranty service center.
Porter-Cable Corporation
4825 Highway 45 North
P.O. Box 2468
Jackson, TN 38302-2468
1-888-559-8550
