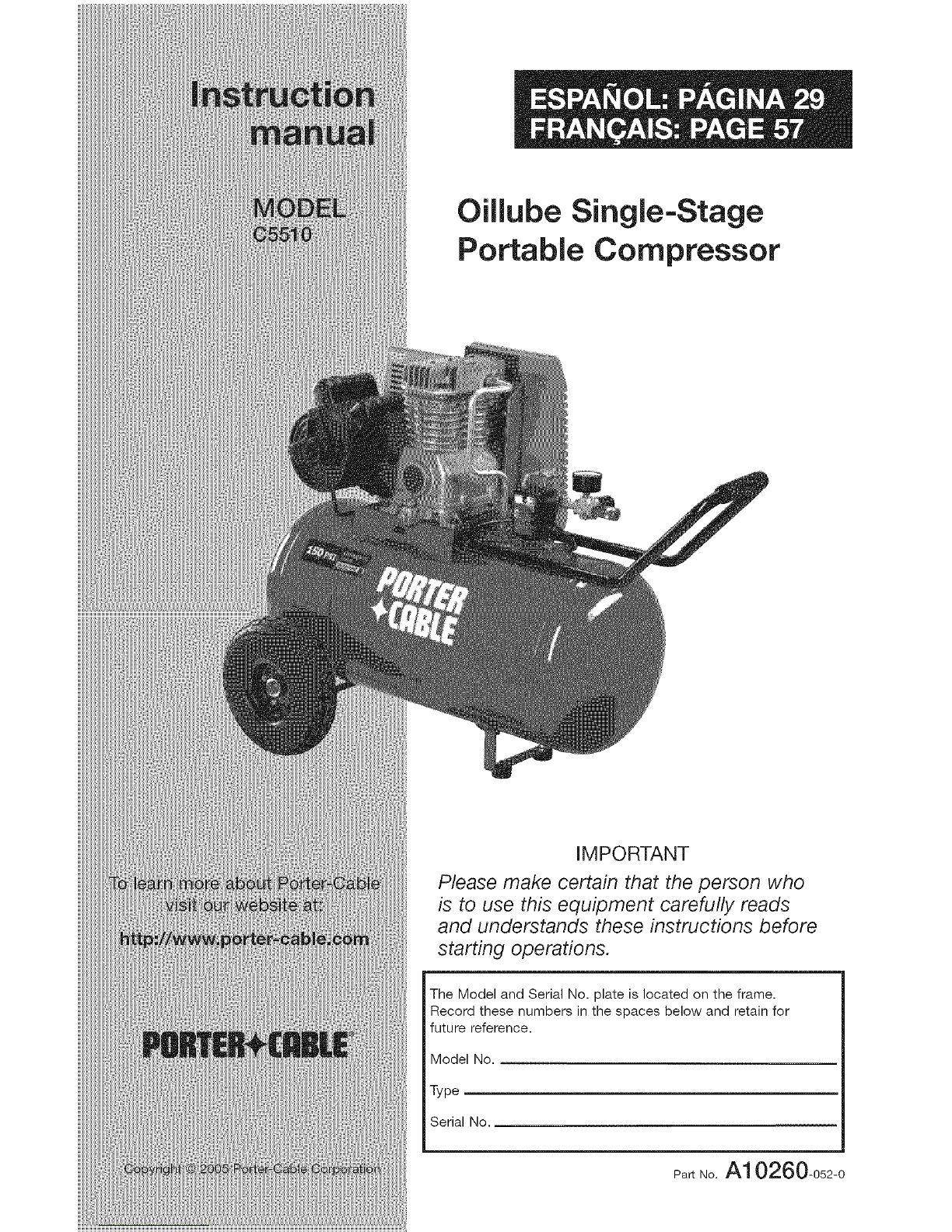

Porter-Cable C5510 User manual

Oillube Single=Stage
Portable Compressor
IMPORTANT
Please make certain that the person who
is to use this equipment carefully reads
and understands these instructions before
starting operations.
The Model and Serial No. plate is located on the frame.
Record these numbers in the spaces below and retain for
future reference.
Model No.
Type
Serial No.
Part No. A10260-052-0

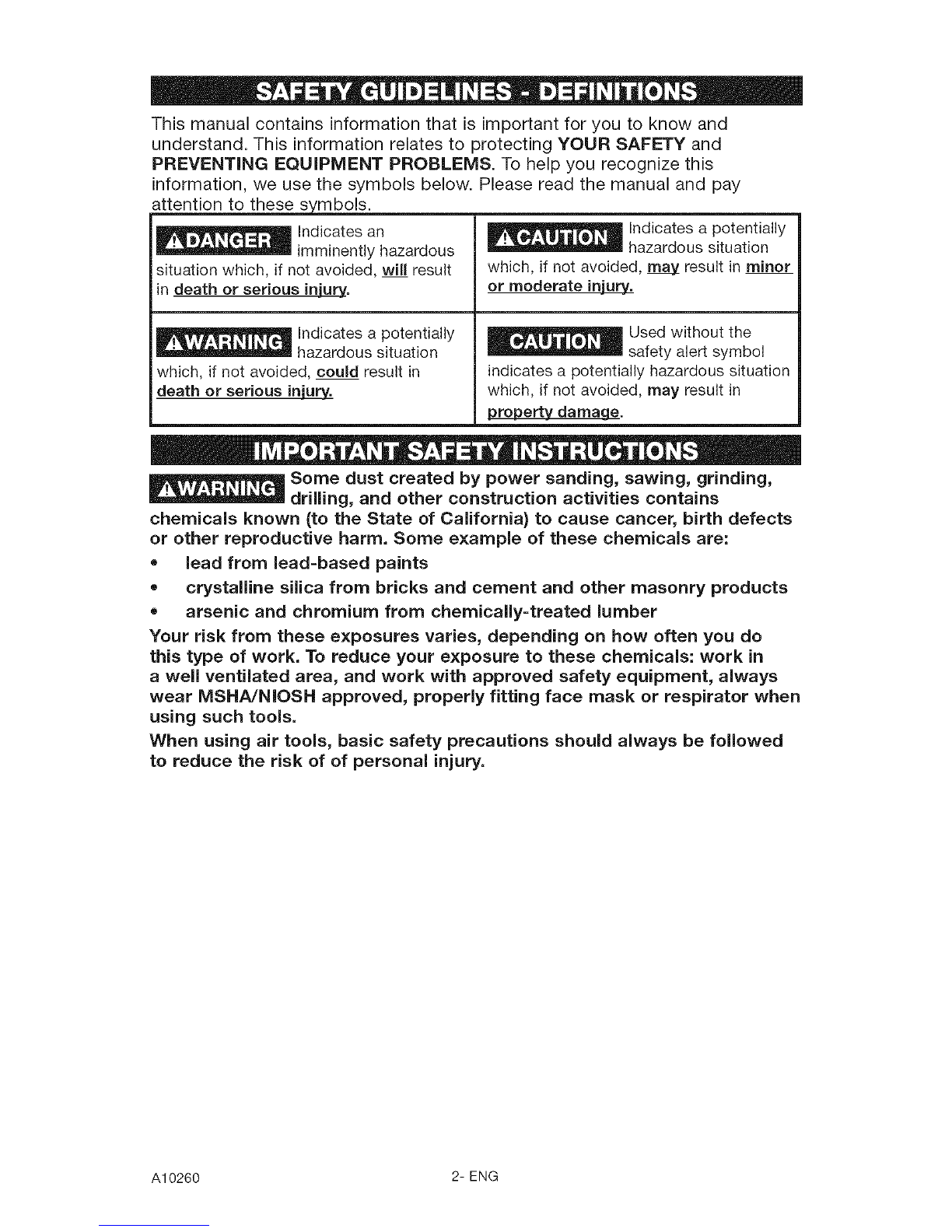

This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below. Please read the manual and pay
attention to these symbols.
_ Indicates an
imminently hazardous
situation which, if not avoided, wil_ result
in death or serious in_.
_ ndicates a potentially
hazardous situation
which, if not avoided, could result in
death or serious injury,.
_ ndicates a potentially
hazardous situation
which, if not avoided, _ result in minor
or moderate injury.
Used without the
safety alert symbol
indicates a potentially hazardous situation
which, if not avoided, may result in
property damage.
_Some dust created by power sanding, sawing, grinding,
__ drilling, and other construction activities contains
chemicals known (to the State of California} to cause cancer, birth defects
or other reproductive harm. Some example of these chemicals are:
•lead from lead-based paints
• crystalline silica from bricks and cement and other masonry products
• arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work in
a well ventilated area, and work with approved safety equipment, always
wear MSHA/NIOSH approved, properly fitting face mask or respirator when
using such tools.
When using air tools, basic safety precautions should always be followed
to reduce the risk of of personal injury.
A10260 2-ENG

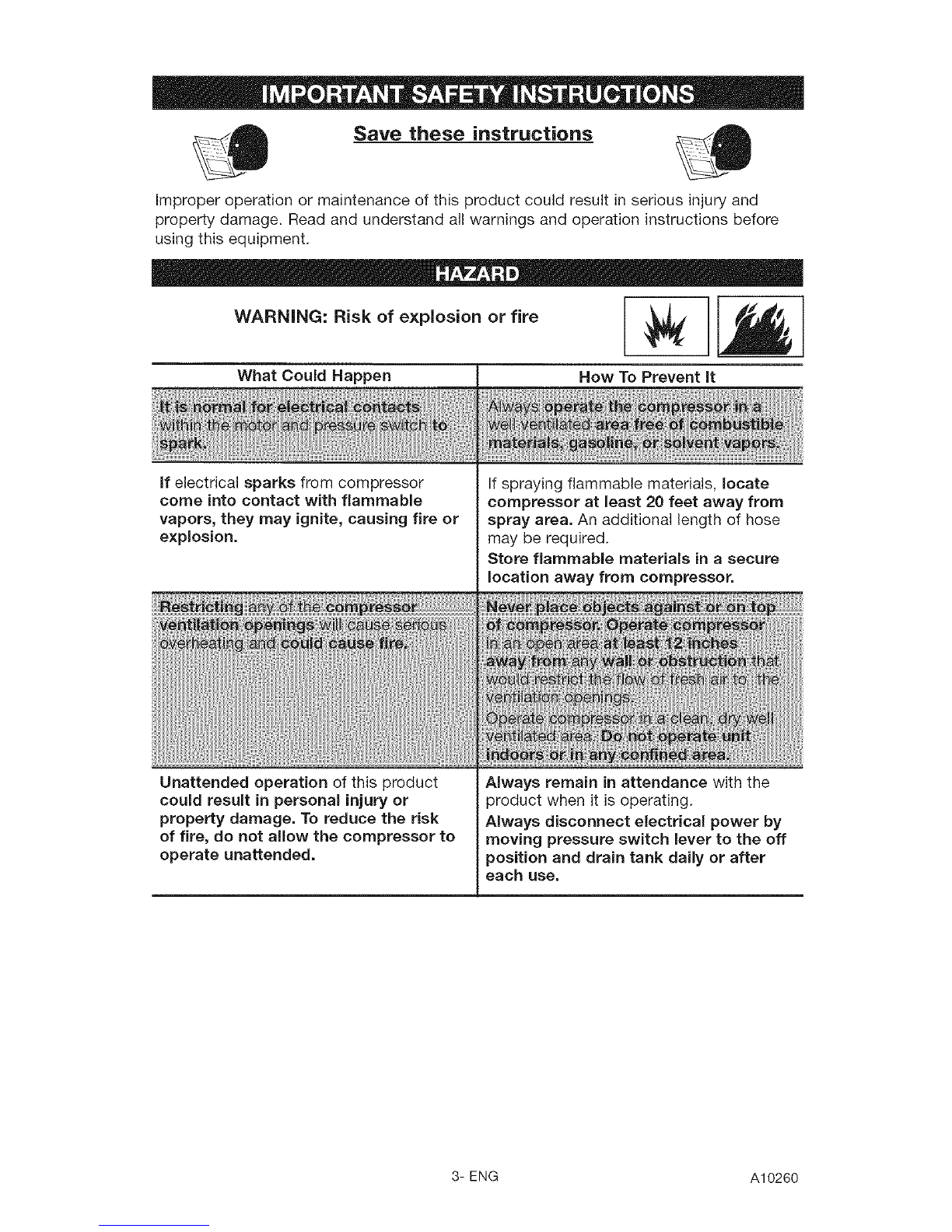

_0 Save these instructions _Q
Improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
WARNING: Risk of explosion or fire
How To Prevent It
What Could Happen
If electrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire or
explosion.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk
of fire, do not allow the compressor to
operate unattended.
If spraying flammable materials, locate
compressor at least 20 feet away from
spray area. An additional length of hose
may be required.
Store flammable materials in a secure
location away from compressor.
Always remain in attendance with the
product when it is operating.
Always disconnect electrical power by
moving pressure switch lever to the off
position and drain tank daily or after
each use.
3- ENG A10260

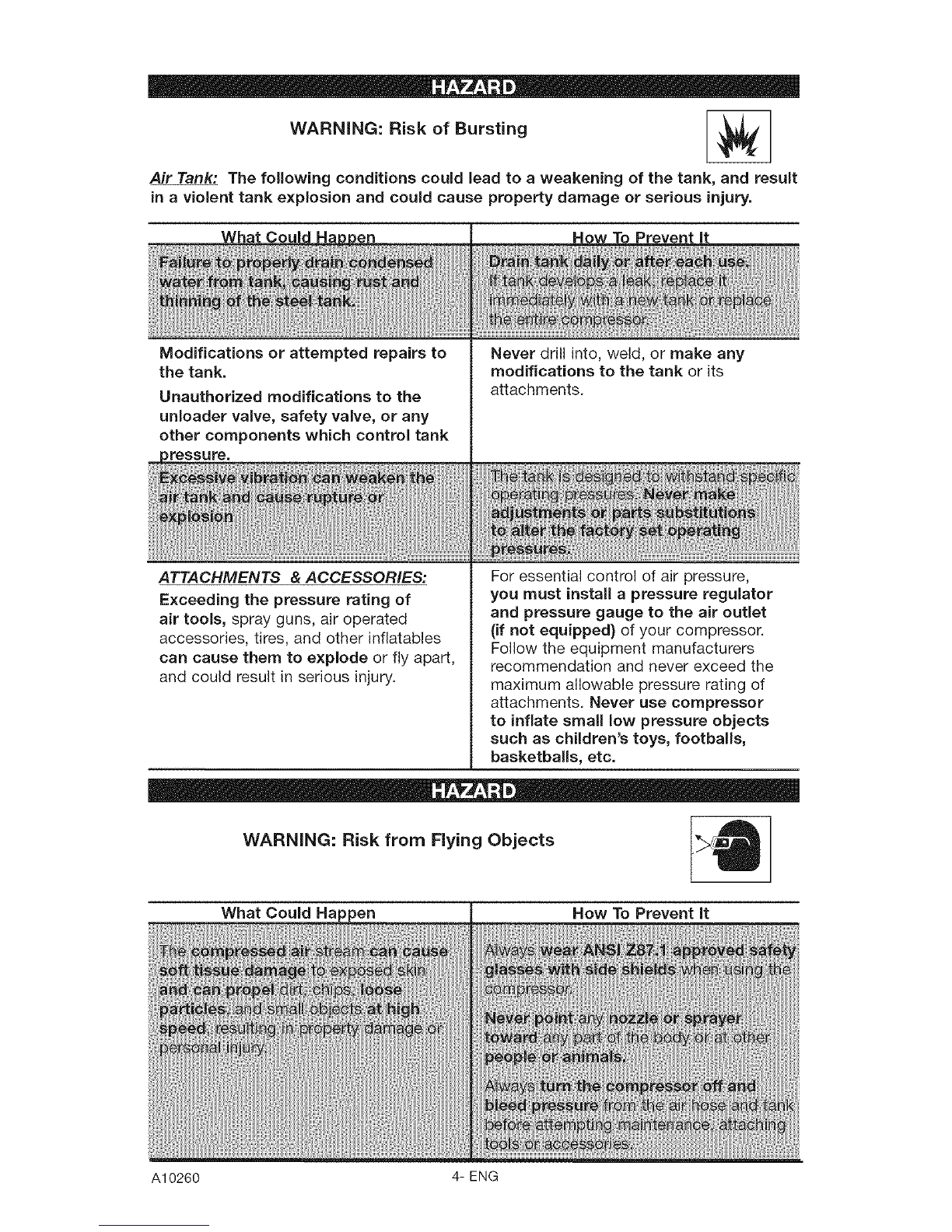

WARNING: Risk of Bursting I_1
Air Tank: The following conditions could lead to a weakening of the tank, and result
in aviolent tank explosion and could cause property damage or serious injury.
What Could
Modifications or attempted repairs to
the tank.
Unauthorized modifications to the
unloader valve, safety valve, or any
other components which control tank
3ressure.
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of
air tools, spray guns, air operated
accessories, tires, and other inflatables
can cause them to explode or fly apart,
and could result in serious injury.
'revent It
Never drill into, weld, or make any
modifications to the tank or its
attachments.
For essential control of air pressure,
you must install a pressure regulator
and pressure gauge to the air outlet
(if not equipped) of your compressor.
Follow the equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments. Never use compressor
to inflate small low pressure objects
such as children's toys, footballs,
basketballs, etc.
WARNING: Risk from Flying Objects
What Could Ha Now To Prevent It
A10260 4-ENG

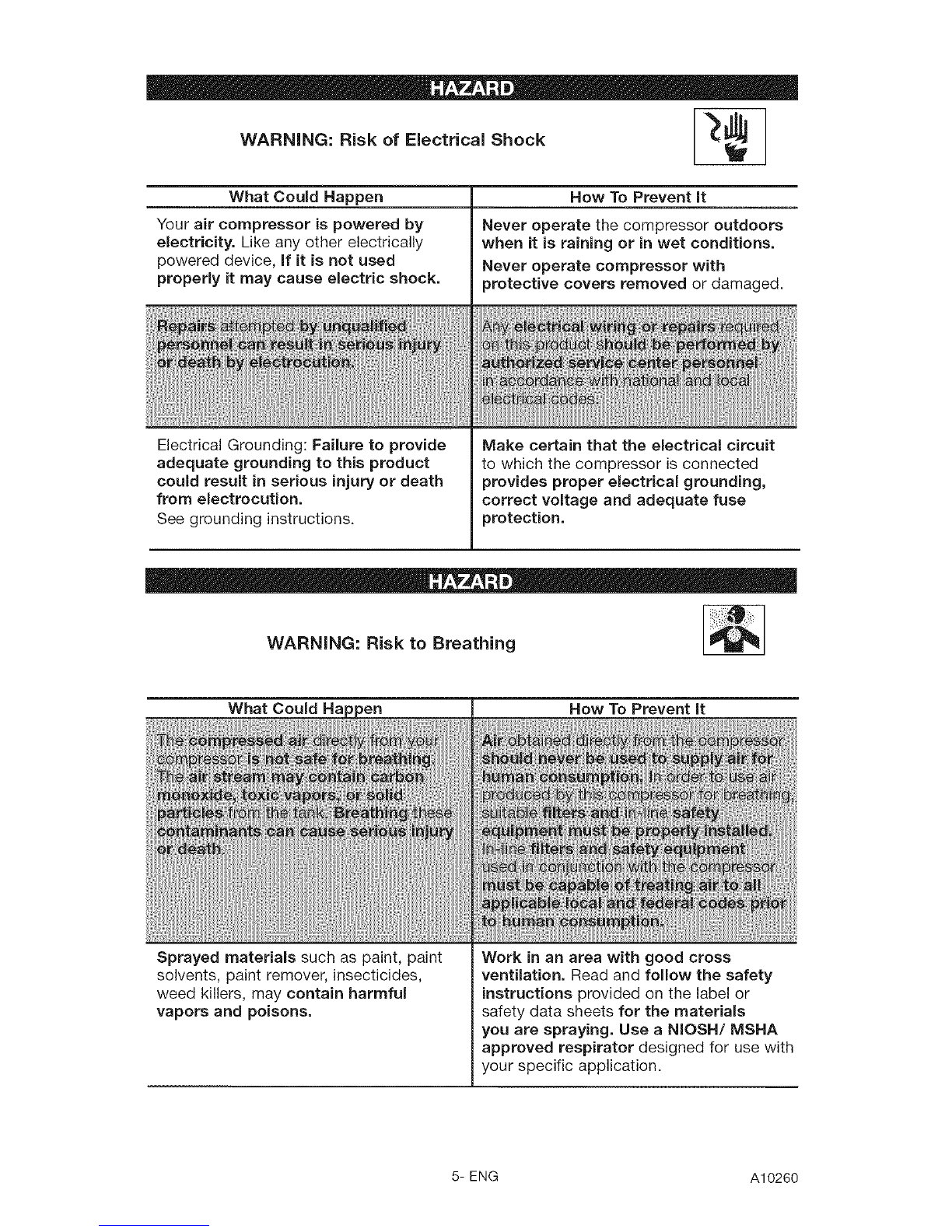

WARNING: Risk of Electrical Shock
What Could Happen How To Prevent it
Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used
properly it may cause electric shock.
Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution.
See grounding instructions.
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with
protective covers removed or damaged.
Make certain that the electrical circuit
to which the compressor is connected
provides proper electrical grounding,
correct voltage and adequate fuse
protection.
WARNING: Risk to Breathing
What Could Ha
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons.
How To Prevent it
_e
in
_J
_f
f_
}t
Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Use a NIOSH/MSHA
approved respirator designed for use with
your specific application.
5- ENG A10260

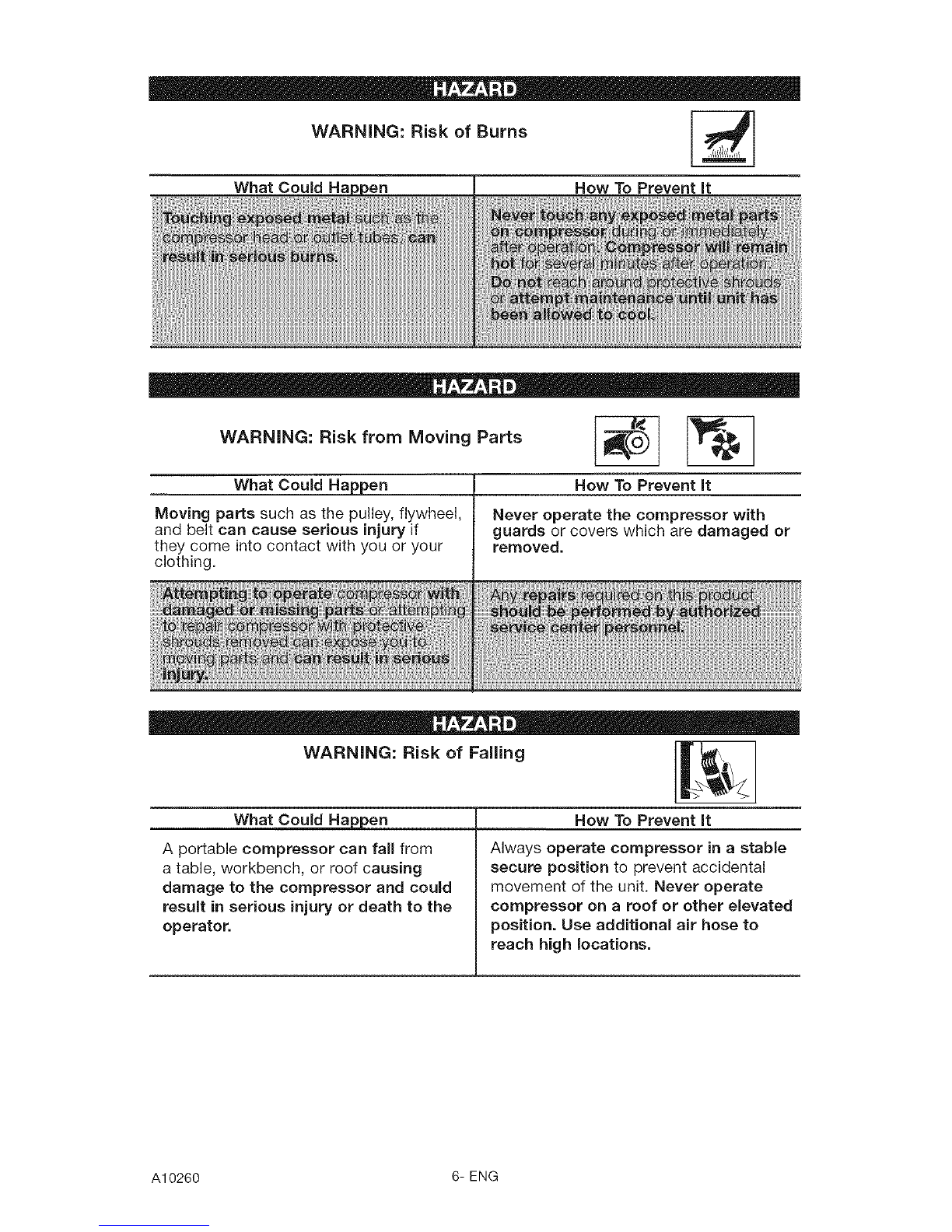

WARNING: Risk of Burns I ,_,,_ I
i .=,==,=,=== i
What Could Hapjoen How To Prevent It
WARNING: Risk from Moving Parts
What Could Happen How To Prevent it
Moving parts such as the pulley, flywheel,
and belt can cause serious injury if
they come into contact with you or your
clothing.
Never operate the compressor with
guards or covers which are damaged or
removed.
WARNING: Risk of Falling
What Could Happen
A portable compressor can fall from
a table, workbench, or roof causing
damage to the compressor and could
result in serious injury or death to the
operator.
How To Prevent it
Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additional air hose to
reach high locations.
A10260 6-ENG

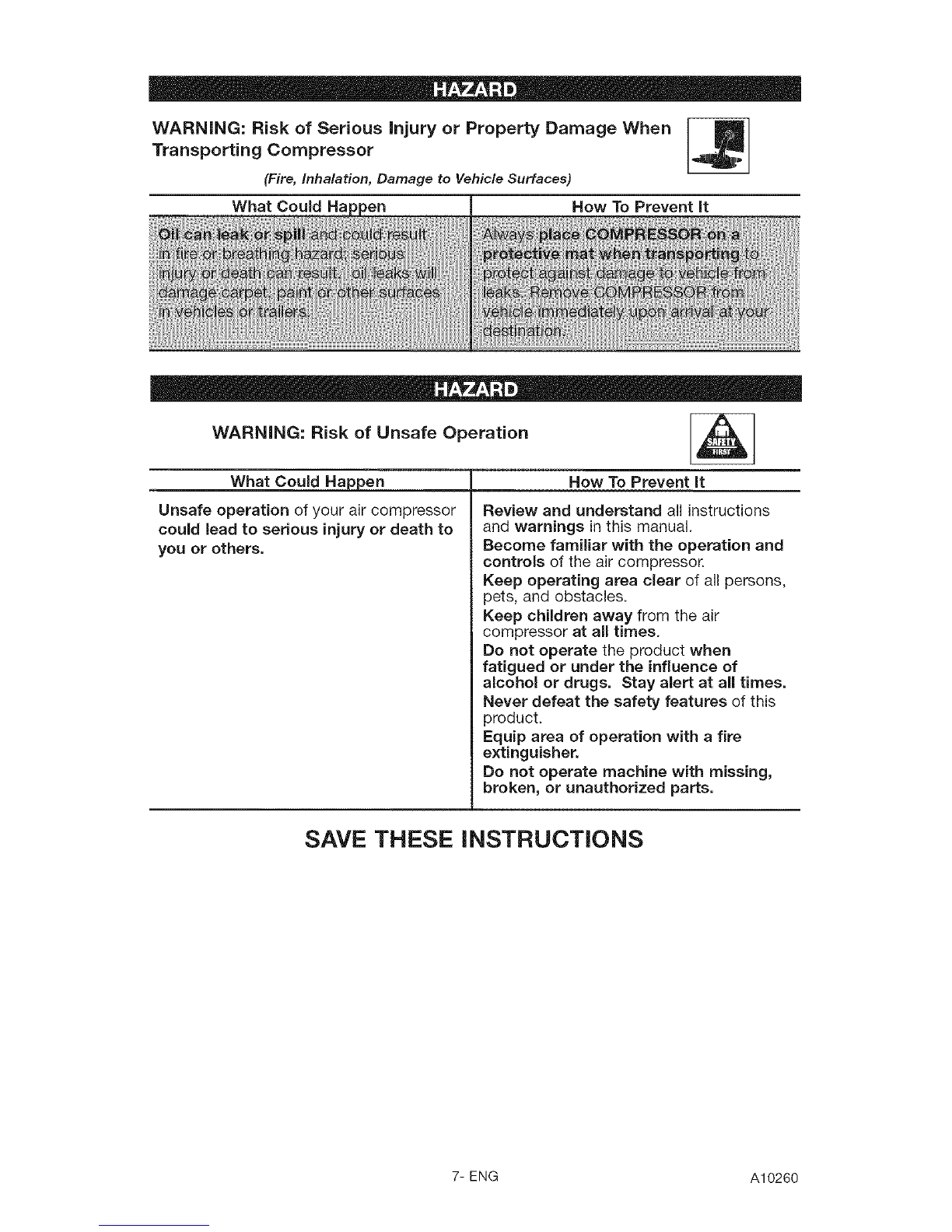

WARNING: Risk of Serious injury or Property Damage When
Transporting Compressor
(Fire, Inhalation, Damage to Vehicle Surfaces)
What Could Ha How To Prevent It
WARNING: Risk of Unsafe Operation
What Could Happen
Unsafe operation of your air compressor
could lead to serious injury or death to
you or others.
How To Prevent It
Review and understand all instructions
and warnings in this manual.
Become familiar with the operation and
controls of the air compressor.
Keep operating area clear of all persons,
pets, and obstacles.
Keep children away from the air
compressor at all times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all times.
Never defeat the safety features of this
product.
Equip area of operation with afire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE iNSTRUCTiONS
7- ENG A10260

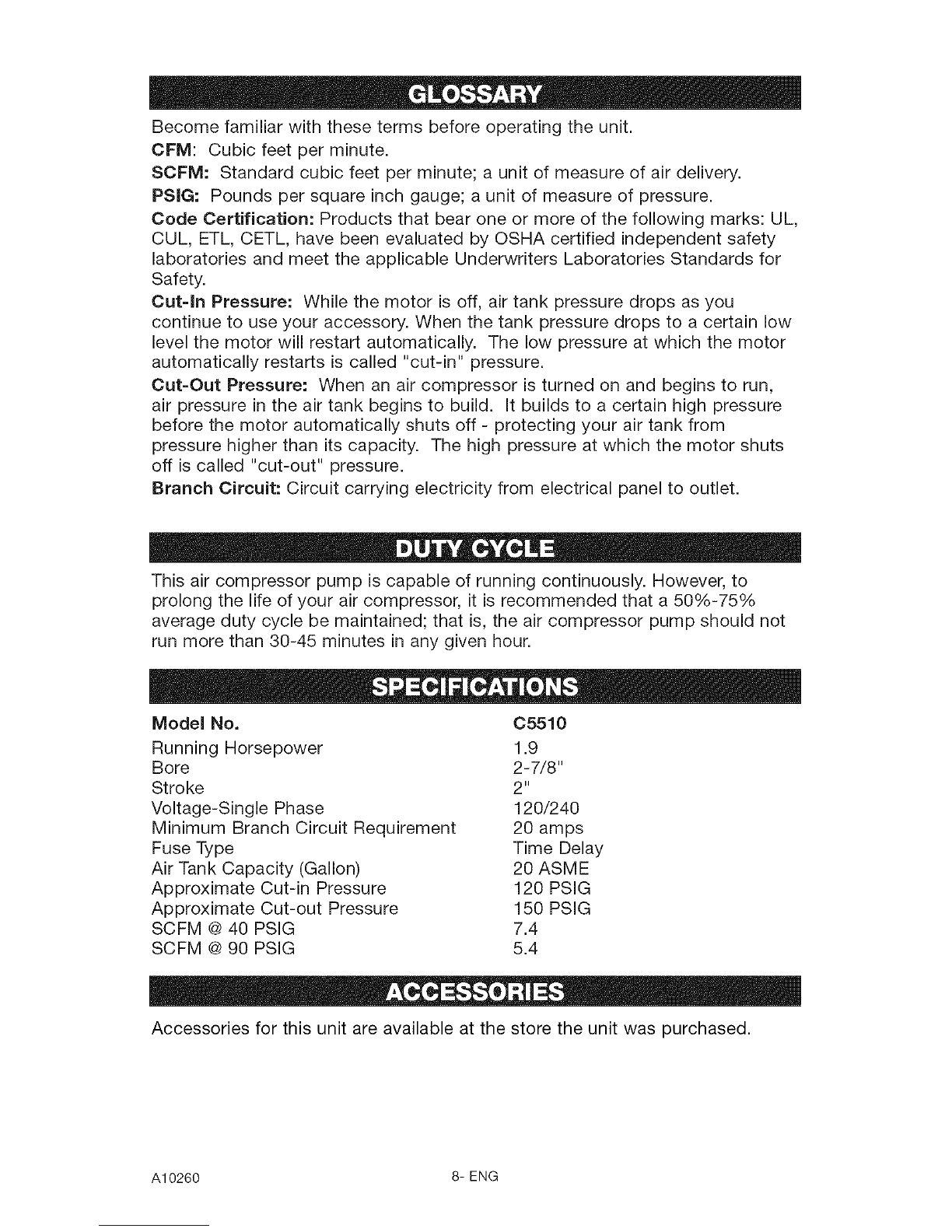

Become familiar with these terms before operating the unit.
CFM: Cubic feet per minute.
SOFM: Standard cubic feet per minute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of measure of pressure.
Code Certification: Products that bear one or more of the following marks: UL,
CUL, ETL, CETL, have been evaluated by OSHA certified independent safety
laboratories and meet the applicable Underwriters Laboratories Standards for
Safety.
Cut-in Pressure: While the motor is off, air tank pressure drops as you
continue to use your accessory. When the tank pressure drops to a certain low
level the motor will restart automatically. The low pressure at which the motor
automatically restarts is called "cut-in" pressure.
Cut-Out Pressure: When an air compressor is turned on and begins to run,
air pressure in the air tank begins to build. It builds to a certain high pressure
before the motor automatically shuts off - protecting your air tank from
pressure higher than its capacity. The high pressure at which the motor shuts
off is called "cut-out" pressure.
Branch Circuit: Circuit carrying electricity from electrical panel to outlet.
This air compressor pump is capable of running continuously. However, to
prolong the life of your air compressor, it is recommended that a 50%-75%
average duty cycle be maintained; that is, the air compressor pump should not
run more than 30-45 minutes in any given hour.
Model No. 05510
Running Horsepower 1.9
Bore 2-7/8"
Stroke 2"
Voltage-Single Phase 120/240
Minimum Branch Circuit Requirement 20 amps
Fuse Type Time Delay
Air Tank Capacity (Gallon) 20 ASME
Approximate Cut-in Pressure 120 PSIG
Approximate Cut-out Pressure 150 PSIG
SCFM @ 40 PSIG 7.4
SCFM @ 90 PSIG 5.4
Accessories for this unit are available at the store the unit was purchased.
A10260 8-ENG

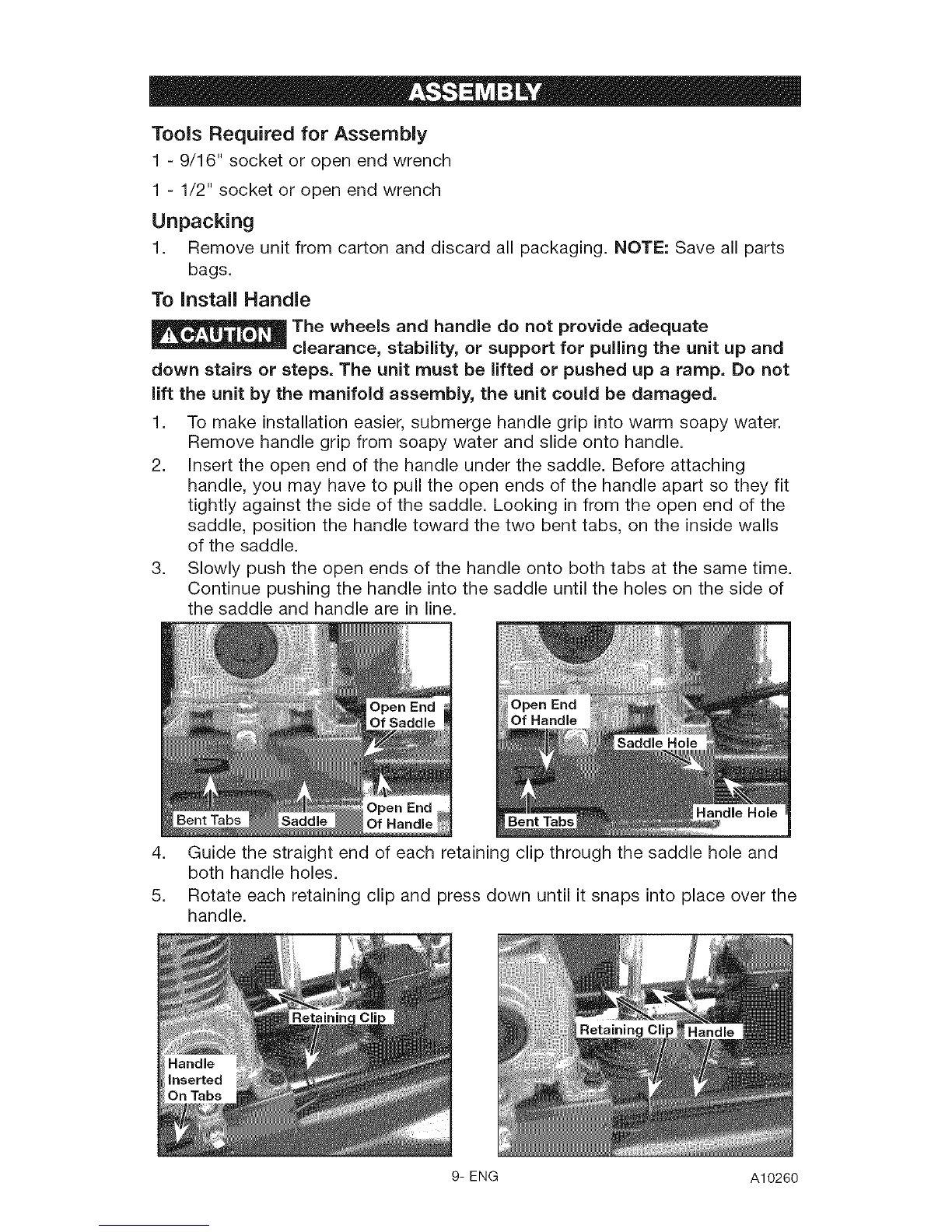

Tools Required for Assembly
1 - 9/16" socket or open end wrench
1 - 1/2" socket or open end wrench
Unpacking
1. Remove unit from carton and discard all packaging. NOTE: Save all parts
bags.
To install Handle
The wheels and handle do not provide adequate
clearance, stability, or support for pulling the unit up and
down stairs or steps. The unit must be lifted or pushed up a ramp. Do not
lift the unit by the manifold assembly, the unit could be damaged.
1. To make installation easier, submerge handle grip into warm soapy water.
Remove handle grip from soapy water and slide onto handle.
2. insert the open end of the handle under the saddle. Before attaching
handle, you may have to pull the open ends of the handle apart so they fit
tightly against the side of the saddle. Looking in from the open end of the
saddle, position the handle toward the two bent tabs, on the inside walls
of the saddle.
3. Slowly push the open ends of the handle onto both tabs at the same time.
Continue pushing the handle into the saddle until the holes on the side of
the saddle and handle are in line.
4. Guide the straight end of each retaining clip through the saddle hole and
both handle holes.
5. Rotate each retaining clip and press down until it snaps into place over the
handle.
Retaining Clip
9- ENG A10260

6. If the handle has excessive movement, it is improperly installed. Check the
following.
A. Are both tabs inside the handle (Step #3)?
B. Does each clip pass through both the saddle and handle (Step #4)?
To Assemble Wheels
lt will be necessary to brace
or support one side of the
unit when installing the wheels because the
compressor will have a tendency to tip.
1. Attach wheels with shoulder bolts and nuts
as shown.
2. Tighten securely. NOTE: The unit will sit
level if the wheels are properly installed.
_The wheels and handle
do not provide adequate
clearance, stability or support for pulling the
unit up and down stairs or steps. The unit
must be lifted, or pushed up a ramp.
Assemble Rubber Feet
1. Attach rubber feet with the screws,
washers, and nuts provided as shown.
2. Tighten securely.
Wheel
Shoulder I_olt
_e
r
(_=p_- Rubber Foot
_'_ Screw
A10260 10- ENG

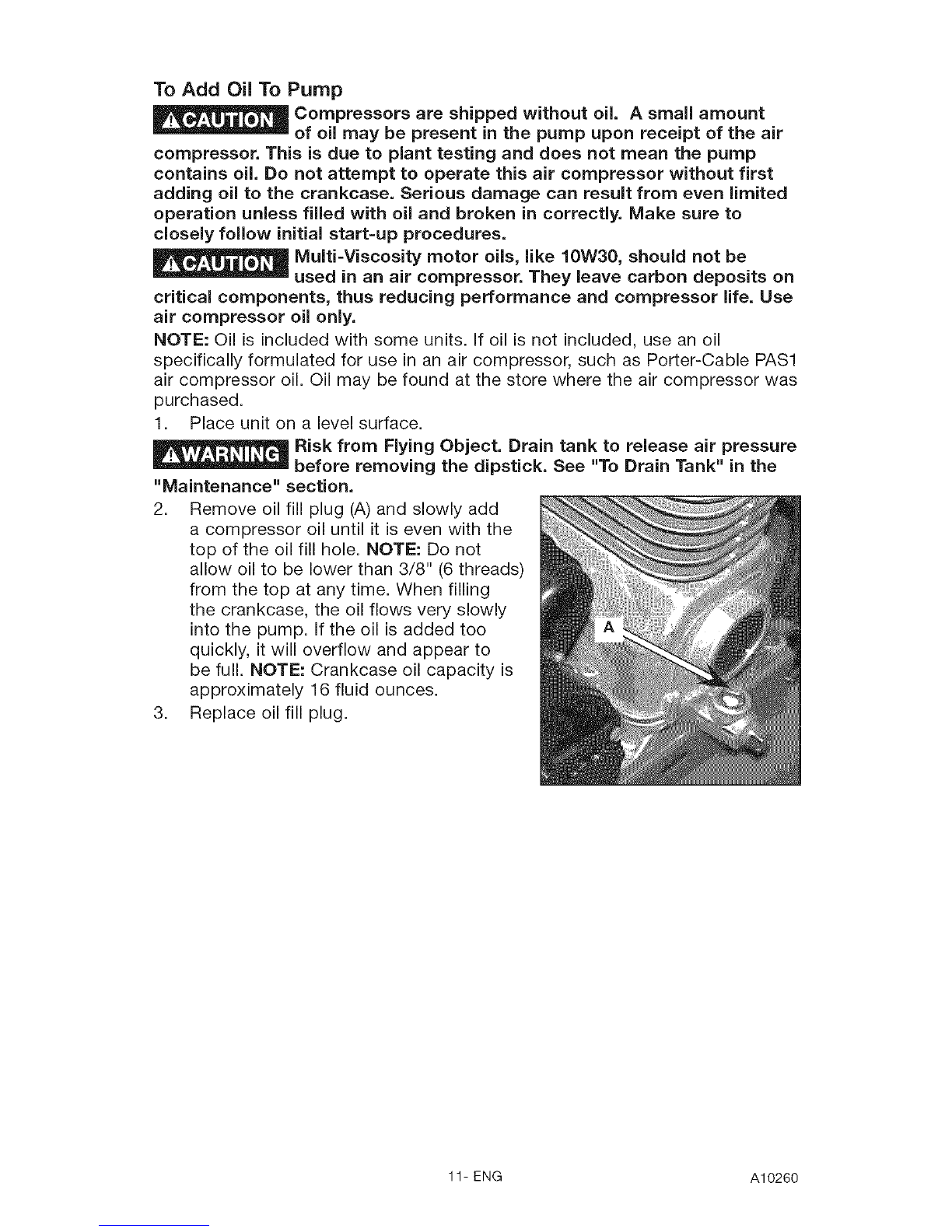

To Add Oil To Pump
_ Compressors are shipped without oil. A small amount
of oil may be present in the pump upon receipt of the air
compressor. This is due to plant testing and does not mean the pump
contains oil. Do not attempt to operate this air compressor without first
adding oil to the crankcase. Serious damage can result from even limited
operation unless filled with oil and broken in correctly. Make sure to
closely follow initial start-up procedures.
_ MultFViscosity motor oils, like 10W30, should not be
used in an air compressor. They leave carbon deposits on
critical components, thus reducing performance and compressor life. Use
air compressor oil only.
NOTE: Oil is included with some units. If oil is not included, use an oil
specifically formulated for use in an air compressor, such as Porter-Cable PAS1
air compressor oil. Oil may be found at the store where the air compressor was
purchased.
1. Place unit on a level surface.
Risk from Flying Object. Drain tank to release air pressure
before removing the dipstick. See "To Drain Tank" in the
"Maintenance" section.
2. Remove oil fill plug (A) and slowly add
a compressor oil until it is even with the
top of the oil fill hole. NOTE: Do not
allow oil to be lower than 3/8" (6 threads)
from the top at any time. When filling
the crankcase, the oil flows very slowly
into the pump. If the oil is added too
quickly, it will overflow and appear to
be full. NOTE: Crankcase oil capacity is
approximately 16 fluid ounces.
3. Replace oil fill plug.
11- ENG A10260

HOW TO SET UP YOUR UNiT
Location of the Air Compressor
+ Locate the air compressor in a clean, dry, and well ventilated area.
+ Place on a solid surface to prevent rocking or tipping.
+ The air compressor should be located at least 12" away from the wall or
other obstructions that will interfere with the flow of air.
+ The air filter must be kept clear of obstructions which could reduce air
flow to the air compressor.
+ The air compressor requires fresh air flow for proper cooling. DO NOT
ALLOW THE COMPRESSOR TO GET WET.
GROUNDING INSTRUCTIONS
Risk of Electrical Shock. in the event of a short circuit,
grounding reduces the risk of shock by providing an
escape wire for the electric current. This air compressor must be properly
grounded.
The portable air compressor is equipped with a cord having a grounding wire
with an appropriate grounding plug (see following illustrations).
1. The cord set and plug with this unit contains a grounding pin. This plug
MUST be used with a grounded outlet.
IMPORTANT: The outlet being used must be installed and grounded in
accordance with all local codes and ordinances.
2. Make sure the outlet being used
3.
4.
has the same configuration as the
grounded plug. DO NOT USE AN
ADAPTER. See illustration.
Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
If these grounding instructions are
not completely understood, or if
Grounding Pin
[_ rounded
Outlets
in doubt as to whether the compressor is properly grounded, have the
installation checked by a qualified electrician.
_Risk of Electrical Shock. IMPROPER GROUNDING CAN
-- RESULT IN ELECTRICAL SHOCK.
Do not modify the plug provided. If it does not fit the available outlet, a
correct outlet should be installed by a qualified electrician.
Repairs to the cord set or plug MUST be made by a qualified electrician.
A10260 12- ENG

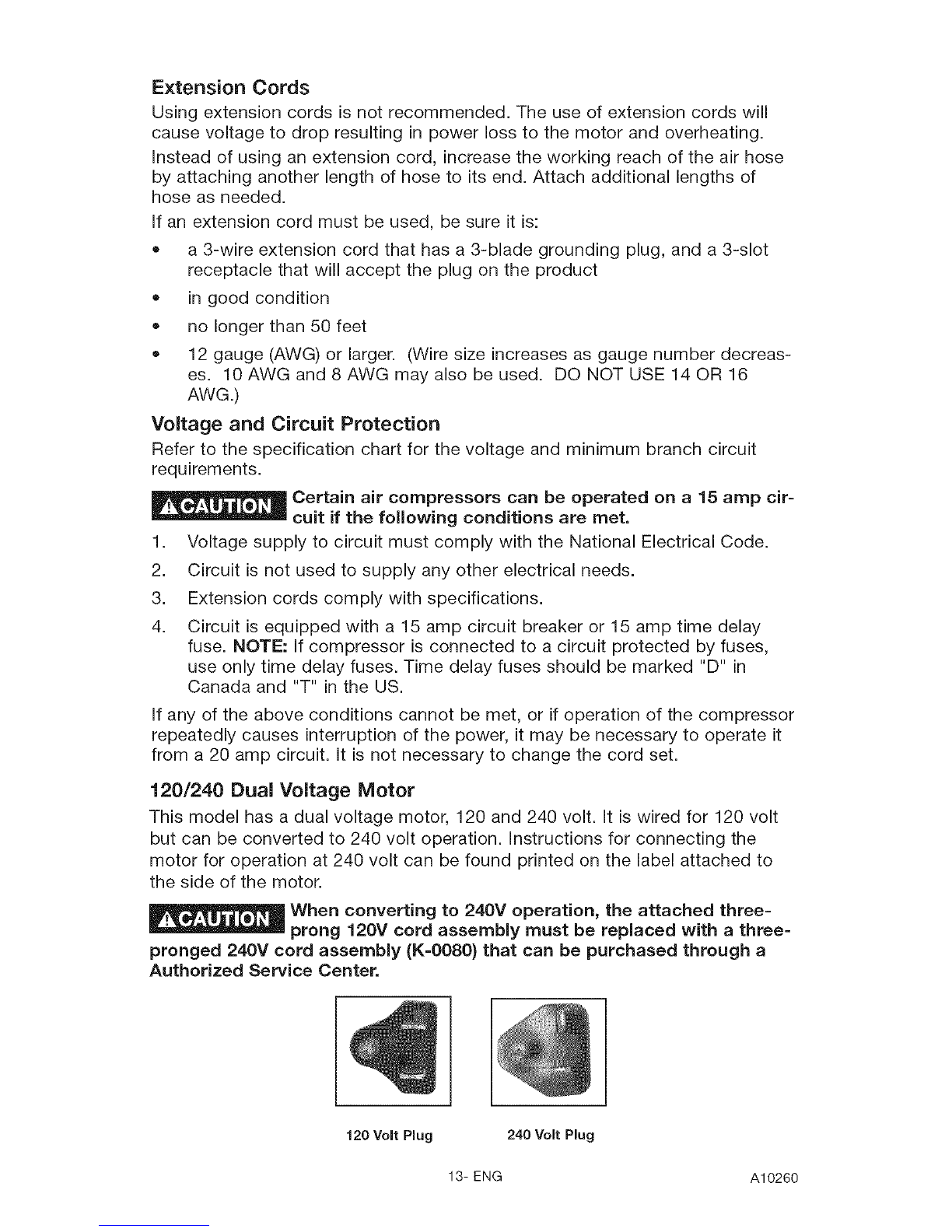

Extension Cords
Using extension cords is not recommended. The use of extension cords will
cause voltage to drop resulting in power loss to the motor and overheating.
Instead of using an extension cord, increase the working reach of the air hose
by attaching another length of hose to its end. Attach additional lengths of
hose as needed.
If an extension cord must be used, be sure it is:
• a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot
receptacle that will accept the plug on the product
in good condition
no longer than 50 feet
12 gauge (AWG) or larger. (Wire size increases as gauge number decreas-
es. 10 AWG and 8 AWG may also be used. DO NOT USE14OR16
AWG.)
Voltage and Circuit Protection
Refer to the specification chart for the voltage and minimum branch circuit
requirements.
_Certain air compressors can be operated on a 15 amp cir-
cuit if the following conditions are met.
1. Voltage supply to circuit must comply with the National Electrical Code.
2. Circuit is not used to supply any other electrical needs.
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay
fuse. NOTE: If compressor is connected to a circuit protected by fuses,
use only time delay fuses. Time delay fuses should be marked "D" in
Canada and "T" in the US.
If any of the above conditions cannot be met, or if operation of the compressor
repeatedly causes interruption of the power, it may be necessary to operate it
from a 20 amp circuit. It is not necessary to change the cord set.
120/240 Dual Voltage Motor
This model has a dual voltage motor, 120 and 240 volt. It is wired for 120 volt
but can be converted to 240 volt operation. Instructions for connecting the
motor for operation at 240 volt can be found printed on the label attached to
the side of the motor.
When converting to 240V operation, the attached three=
prong 120V cord assembly must be replaced with a three-
pronged 240V cord assembly (K=0080} that can be purchased through a
Authorized Service Center.
120 Volt Plug 240 Volt Plug
13- ENG A10260

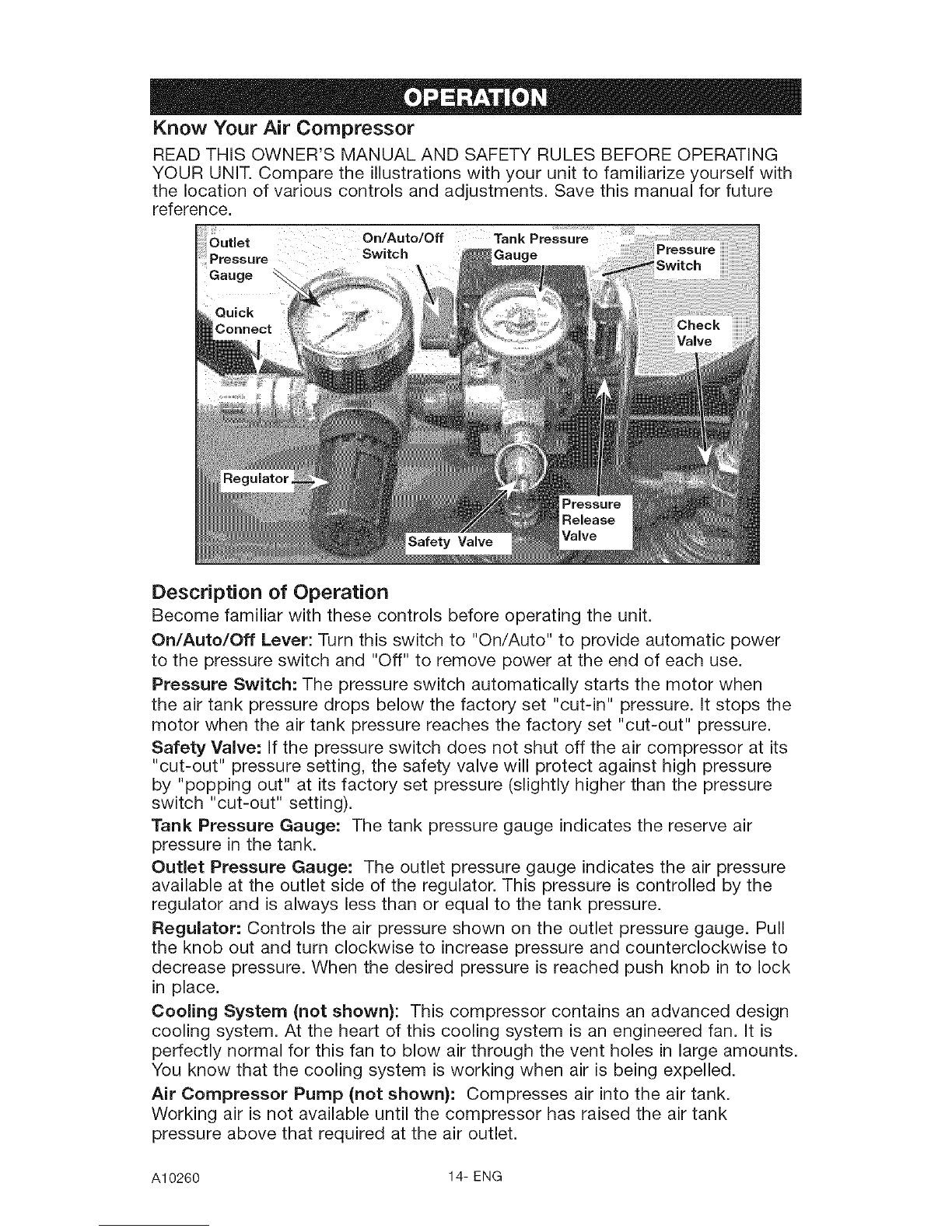

Know Your Air Compressor
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
On/Auto/Off Tank Pressure
Switch Gauge
Description of Operation
Become familiar with these controls before operating the unit.
On/Auto/Off Lever: Turn this switch to "On/Auto" to provide automatic power
to the pressure switch and "Off" to remove power at the end of each use.
Pressure Switch: The pressure switch automatically starts the motor when
the air tank pressure drops below the factory set "cut-in" pressure. It stops the
motor when the air tank pressure reaches the factory set "cut-out" pressure.
Safety Valve: If the pressure switch does not shut off the air compressor at its
"cut-out" pressure setting, the safety valve will protect against high pressure
by "popping out" at its factory set pressure (slightly higher than the pressure
switch "cut-out" setting).
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air
pressure in the tank.
Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure
available at the outlet side of the regulator. This pressure is controlled by the
regulator and is always less than or equal to the tank pressure.
Regulator: Controls the air pressure shown on the outlet pressure gauge. Pull
the knob out and turn clockwise to increase pressure and counterclockwise to
decrease pressure. When the desired pressure is reached push knob in to lock
in place.
Cooling System (not shown): This compressor contains an advanced design
cooling system. At the heart of this cooling system is an engineered fan. It is
perfectly normal for this fan to blow air through the vent holes in large amounts.
You know that the cooling system is working when air is being expelled.
Air Compressor Pump (not shown): Compresses air into the air tank.
Working air is not available until the compressor has raised the air tank
pressure above that required at the air outlet.
A10260 14- ENG

Drain Valve: The drain valve is located at the base of the
air tank and is used to drain condensation at the end of
each use.
Check Valve: When the air compressor is operating, the
check valve is "open", allowing compressed air to enter
the air tank. When the air compressor reaches "cut-out" pressure, the check
valve "closes", allowing air pressure to remain inside the air tank.
Pressure Release Valve: The pressure release valve located on the side of
the pressure switch, is designed to automatically release compressed air from
the compressor head and the outlet tube when the air compressor reaches
"cut-out" pressure or is shut off. The pressure release valve allows the motor
to restart freely. When the motor stops running, air will be heard escaping from
this valve for a few seconds. No air should be heard leaking when the motor is
running or after the unit reaches "cut-out" pressure.
Motor Overload Protector (not shown): The motor has an automatic reset
thermal overload protector. If the motor overheats for any reason, the overload
protector will shut off the motor. The motor must be allowed to cool down
before restarting. The compressor will automatically restart after the motor
cools.
Air intake Filter (not shown): This filter is designed to clean air coming into
the pump. This filter must always be clean and ventilation openings free from
obstructions. See "Maintenance".
How to Use Your Unit
How to Stop:
1. Set the On/Auto/Off lever to "Off".
4.
5.
6.
7.
The compressor is now ready for use.
15- ENG
Before Starting
Break=in Procedure
Risk of Unsafe Operation. Serious damage may result if
the following break-in instructions are not
closely followed.
This procedure is required before the air compressor is put into service and
when the check valve or a complete compressor pump has been replaced.
1. Make sure the On/Auto/Off lever is in the "Off" position.
2. Check oil level in pump. See "Oil" paragraph in the "Maintenance" section
for instructions.
NOTE: Pull coupler back until it clicks to prevent air from escaping through the
quick connect.
3. Plug the power cord into the correct branch circuit receptacle. (Refer to
"Voltage and Circuit Protection" paragraph in the "Installation" section of
this manual.)
Open the drain valve (counter-clockwise) fully to permit air to escape and
prevent air pressure build up in the air tank during the break-in period.
Move the On/Auto/Off lever to "On/Auto" position. The compressor will start.
Run the compressor for 20 minutes. Make sure the drain valve is open and
there is minimal air pressure build-up in tank.
After 20 minutes, close the drain valve by turning clockwise. The air
receiver will fill to "cut-out" pressure and the motor will stop.
A10260

Before Each Start=Up:
Place On/Auto/Off lever to "Off".1.
2. Pull the regulator knob out and turn counterclockwise to set the outlet
pressure to zero.
3. Attach hose and accessories. NOTE: The hose or accessory will require
a quick connect plug if the air outlet is equipped with a quick connect
socket.
_Risk of Bursting. Too much air pressure causes a
-- hazardous risk of bursting. Check the manufacturer's
maximum pressure rating for air tools and accessories. The regulator
outlet pressure must never exceed the maximum pressure rating.
How to Start:
1. Turn the On/Auto/Off lever to "On/Auto" and allow tank pressure to build.
Motor will stop when tank pressure reaches "cut-out" pressure.
2. Pull the regulator knob out and turn clockwise to increase pressure. When
the desired pressure is reached push knob in to lock in place.
The compressor is ready for use.
A10260 16- ENG

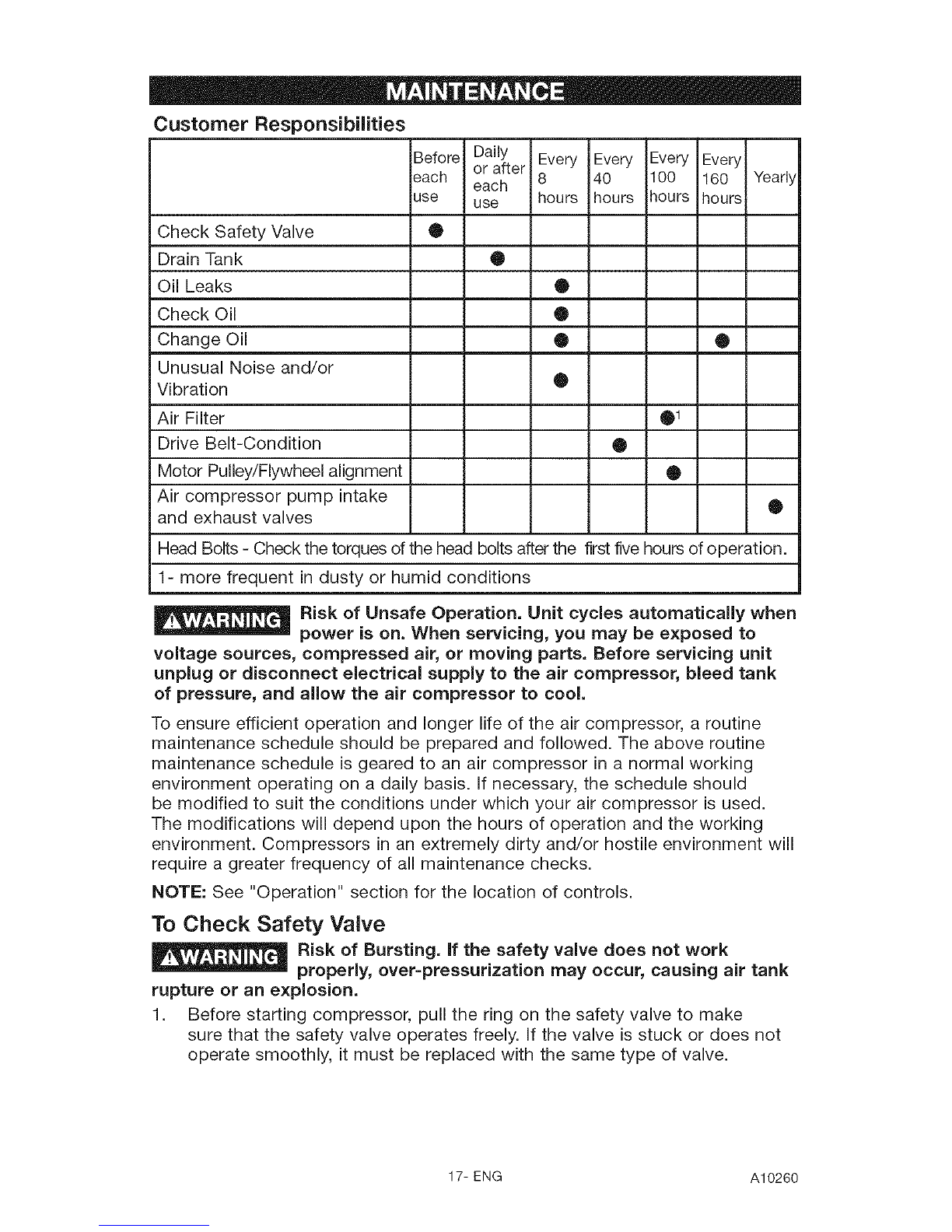

Customer Responsibilities
Before Daily Every Every Every Every
or after
each each 8 40 100 160 Yearly
use use hours hours hours hours
Check Safety Valve •
Drain Tank •
Oil Leaks •
Check Oil •
Change Oil • •
Unusual Noise and/or
IVibration •
' O1A_r Filter
Drive Belt-Condition •
Motor Pulley/Flywheel alignment •
iAir compressor pump intake
and exhaust valves •
Head Bolts - Check the torques of the head bolts afterthe first five hours of operation.
1- more frequent in dusty or humid conditions
_Risk of Unsafe Operation. Unit cycles automatically when
-- power is on. When servicing, you may be exposed to
voltage sources, compressed air, or moving parts. Before servicing unit
unplug or disconnect electrical supply to the air compressor, bleed tank
of pressure, and allow the air compressor to cool.
To ensure efficient operation and longer life of the air compressor, a routine
maintenance schedule should be prepared and followed. The above routine
maintenance schedule is geared to an air compressor in a normal working
environment operating on a daily basis. If necessary, the schedule should
be modified to suit the conditions under which your air compressor is used.
The modifications will depend upon the hours of operation and the working
environment. Compressors in an extremely dirty and/or hostile environment will
require a greater frequency of all maintenance checks.
NOTE: See "Operation" section for the location of controls.
To Check Safety Valve
_Risk of Bursting. If the safety valve does not work
-- properly, over-pressurization may occur, causing air tank
rupture or an explosion.
1. Before starting compressor, pull the ring on the safety valve to make
sure that the safety valve operates freely. If the valve is stuck or does not
operate smoothly, it must be replaced with the same type of valve.
17- ENG A10260

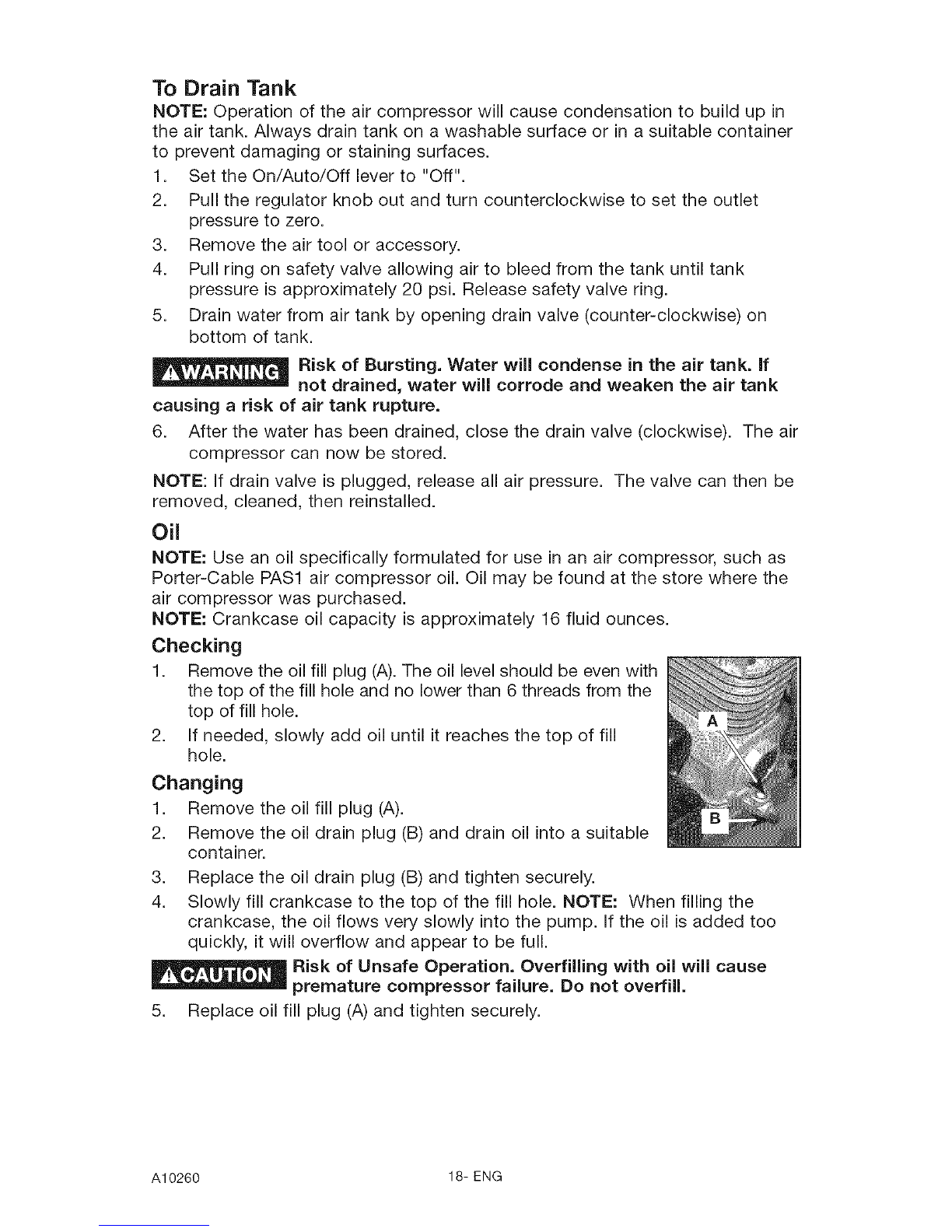

To Drain Tank
NOTE: Operation of the air compressor will cause condensation to build up in
the air tank. Always drain tank on a washable surface or in a suitable container
to prevent damaging or staining surfaces.
1. Set the On/Auto/Off lever to "Off".
2. Pull the regulator knob out and turn counterclockwise to set the outlet
pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing air to bleed from the tank until tank
pressure is approximately 20 psi. Release safety valve ring.
5. Drain water from air tank by opening drain valve (counter-clockwise) on
bottom of tank.
Risk of Bursting. Water will condense in the air tank. if
not drained, water will corrode and weaken the air tank
causing a risk of air tank rupture.
6. After the water has been drained, close the drain valve (clockwise). The air
compressor can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve can then be
removed, cleaned, then reinstalled.
Oil
NOTE: Use an oil specifically formulated for use in an air compressor, such as
Porter-Cable PAS1 air compressor oil. Oil may be found at the store where the
air compressor was purchased.
NOTE: Crankcase oil capacity is approximately 16 fluid ounces.
Checking
1. Remove the oil fill plug (A).The oil level should be even with
the top of the fill hole and no lower than 6 threads from the
top of fill hole.
2. If needed, slowly add oil until it reaches the top of fill
hole.
Changing
1. Remove the oil fill plug (A).
2. Remove the oil drain plug (B) and drain oil into a suitable
container.
3. Replace the oil drain plug (B) and tighten securely.
4. Slowly fill crankcase to the top of the fill hole. NOTE: When filling the
crankcase, the oil flows very slowly into the pump. If the oil is added too
quickly, it will overflow and appear to be full.
Risk of Unsafe Operation. Overfilling with oil will cause
premature compressor failure. Do not overfill.
5. Replace oil fill plug (A) and tighten securely.
A10260 18- ENG

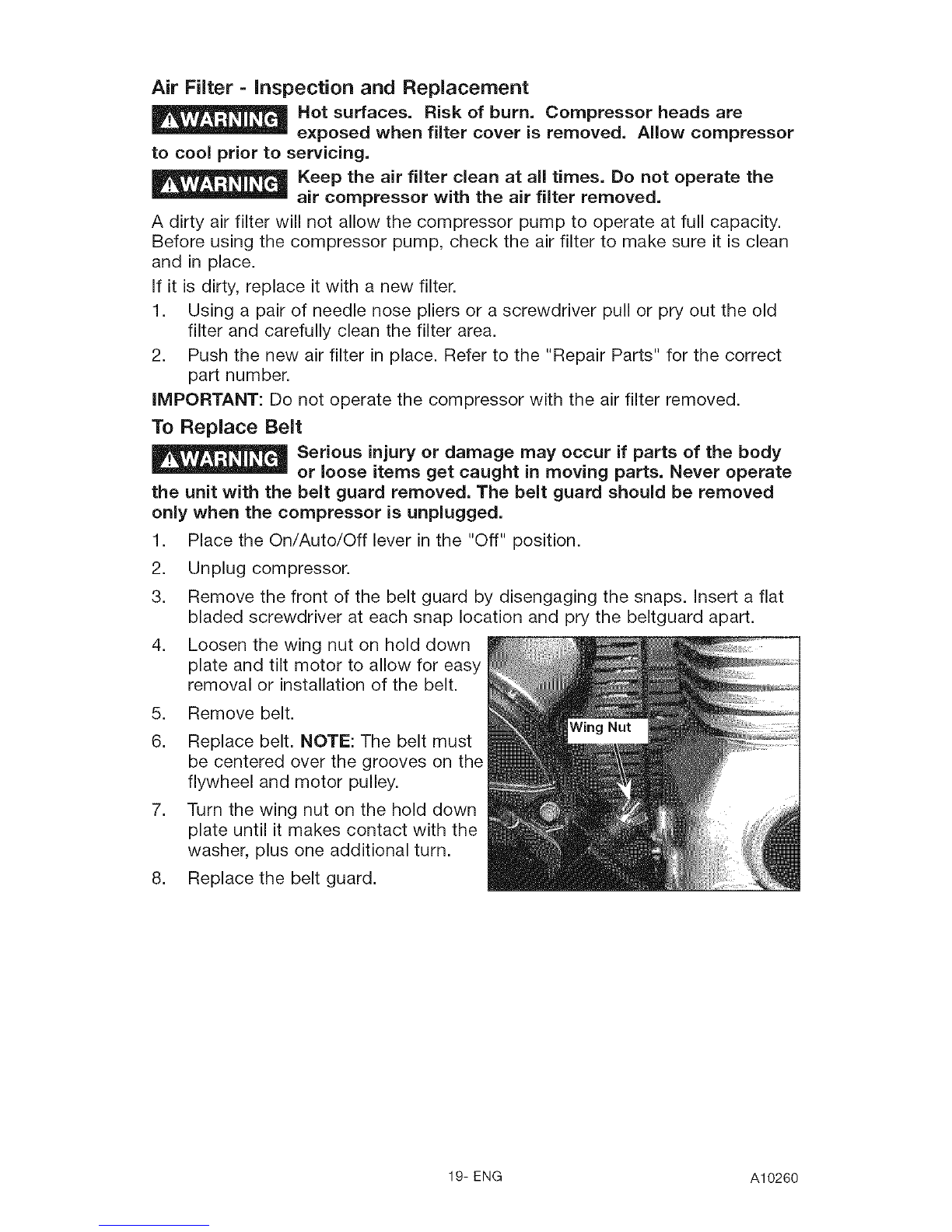

Air Filter = inspection and Replacement
E__ Hot surfaces. Risk of burn. Compressor heads are
exposed when filter cover is removed. Allow compressor
to cool prior to servicing.
E__! Keep the air filter clean at all times. Do not operate the
air compressor with the air filter removed.
A dirty air filter will not allow the compressor pump to operate at full capacity.
Before using the compressor pump, check the air filter to make sure it is clean
and in place.
If it is dirty, replace it with a new filter.
1. Using a pair of needle nose pliers or a screwdriver pull or pry out the old
filter and carefully clean the filter area.
2. Push the new air filter in place. Refer to the "Repair Parts" for the correct
part number.
iMPORTANT: Do not operate the compressor with the air filter removed.
To Replace Belt
_ Serious injury or damage may occur if parts of the body
or loose items get caught in moving parts. Never operate
the unit with the belt guard removed. The belt guard should be removed
only when the compressor is unplugged.
1. Place the On/Auto/Off lever in the "Off" position.
2. Unplug compressor.
3. Remove the front of the belt guard by disengaging the snaps. Insert a flat
bladed screwdriver at each snap location and pry the beltguard apart.
4. Loosen the wing nut on hold down
plate and tilt motor to allow for easy
removal or installation of the belt.
5. Remove belt.
6. Replace belt. NOTE: The belt must
be centered over the grooves on the
flywheel and motor pulley.
7. Turn the wing nut on the hold down
plate until it makes contact with the
washer, plus one additional turn.
8. Replace the belt guard.
19- ENG A10260

Motor Pulley/Flywheel Alignment
NOTE: Once the motor pulley has been moved from its factory set location, the
grooves of the flywheel and pulley must be aligned to within 1/16" to prevent
excessive belt wear.
The air compressor flywheel and motor pulley must be in-line (in the same
plane) within 1/16" to assure belt retention within flywheel belt grooves. To
check alignment, perform the following steps:
1. Turn air compressor off, lock out the power supply, and relieve all air
pressure from the air tank.
2. Remove belt guard.
3. Place a straightedge against the
outside of the flywheel and the
motor drive pulley.
4. Measure the distance between
the edge of the belt and the
straightedge at points A1 and A2 in figure. The difference between
measurements should be no more than 1/16".
5. If the difference is greater or less than 1/16" loosen the set screw holding
the motor drive pulley to the shaft and adjust the pulley's position on the
shaft until the A1 and A2 measurements are within 1/16" of each other.
6. Tighten the motor drive pulley set screw. See Parts manual for torque
specifications.
7. Visually inspect the motor drive pulley to verify that it is perpendicular to
the drive motor shaft. Points B1 and B2 of Figure should appear to be
equal. If they are not, loosen the setscrew of the motor drive pulley and
equalize B1 and B2, using care not to disturb the belt alignment performed
in step 2.
8. Retighten the motor drive pulley setscrew. See Parts manual for torque
specifications.
9. Reinstall belt guard.
Air Compressor Pump Intake and Exhaust Valves
Once a year have a Trained Service Technician check the air compressor pump
intake and exhaust valves.
Air compressor Head Bolts - Torquing
The air compressor pump head bolts should be kept properly torqued. Check
the torques of the head bolts after the first five hours of operation. Retighten if
necessary. See Parts manual for torque specifications.
A10260 20- ENG
